BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Feb 17, 2012 By ensuring ATC gripper aligns tool with extreme precision, ATC Alignment Tool prevents collision and potential damage, extending machine tool, cutting tool, and tool holder life. Tool may also be used to align ATC gripper to magazine tool pockets. Unit has built-in stylus that determines high/low values when plug is slowly rotated. Values are displayed on 10 micron/div dial indicator and reveal eccentric direction.

Haydon Kerk Motion Solutions    Waterbury, CT 06705
Feb 17, 2012 With 0.0006 in./step resolution and max load of 3 lb-ft, Microslide Linear Actuator is optimized for microfluidics and optical positioning applications. Microslide is 0.87 in. W x 1.0 in. H and provides up to 2.5 in. stroke. Equipped with 15000 Series 0.59 in. can-stack stepper motor, unit has self-lubricating polyacetal load carriage, supported by stainless steel guide rods with Black Ice® TFE coating. Kerk® leadscrew comes in 0.012, 0.016, 0.020, 0.039, and 0.079 in. leads.

Eastex Products, Inc.    Holbrook, MA 02343
Feb 17, 2012 Available in 54 and 60 in. rolls, Medical Fabrics are suited for fabricating inflatable medical products. These soft, non-stretch, thermoplastic polyurethane-coated nylon fabrics hold air, water, and gels and can be manufactured using RF welding as well as heat and sonic sealing technologies. Flame-retardant, fluid-proof, cleanable, stain-resistant, anti-bacterial, and anti-fungal fabrics, offered in blue, black, and maroon, come in various fabric deniers, including 70d, 210d, and 420d.

Interstate Specialty Products    Sutton, MA 01590
Feb 17, 2012 Utilizing automated digital dieless cutting machines, Prototype Die Cut Parts Service can supply parts with tolerances to ±0.005 in., depending upon material and size. Parts can be produced from 1 in.² up to 60 x 120 in. with virtually any geometry, including narrow cross sections and close hole spacing. Using non-metallic materials, service can produce filters, breather vents, frits, filtration support media, membrane supports, and gaskets.

Electro Standards Laboratories    Cranston, RI 02921 3403

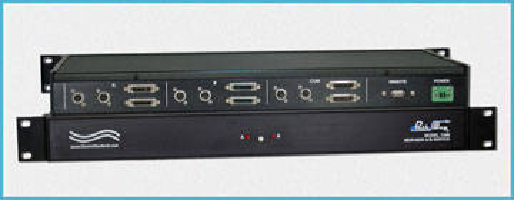

Feb 17, 2012 With PathWay® Model 7296, user can share 2 single-port MDR interface devices and 2 single-port MXR interface devices among 2 other devices for each channel. All 4 channels are switched simultaneously via front panel pushbutton or via serial remote control operation. With USB Type-A connector on rear panel that accepts ASCII RS232 serial data commands, user can control switch position, lockout front panel operations, and obtain switch status from remote location.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 17, 2012 Series TE-OND/TE-RND Outdoor Air Temperature Sensor accurately measures outdoor ambient temperatures on top of buildings or air handling units. Temperature sensor is guarded by white plastic shield and mounted on north side of building to protect against radiated heat. Where north facing side is not accessible, six-plate radiation shield version is available. Both models are mounted in IP65 enclosure and have removable terminal block.

Dwyer Instruments, Inc.    Michigan City, IN 46361

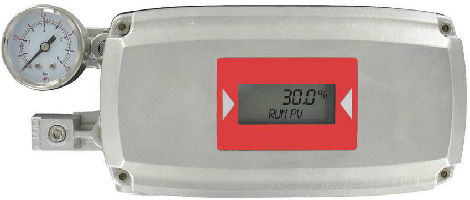

Feb 17, 2012 Constructed of aluminum or stainless steel, Series 185 and 285 Smart Positioners take 4-20 mA input signal to accurately control valve stroke of linear valves and rotary valves, respectively. LCD screen attached to outer surface of units allows inspection of positioner condition while in field. Housed in NEMA 4X enclosure with operating temperature of -22 to 185°F, positioners are available in single or double action models with auto calibration function.

Rousseau Metal    St. Jean-Port-Joli, QC G0R 3G0  Canada
Feb 17, 2012 Able to be stacked or anchored side-to-side or back-to-back, L compact cabinet can be used as tool box; single, double, or triple cabinets; or integrated under surface of workstation. Central locking mechanism on housing enables all drawers to be locked simultaneously, and lock-in mechanism prevents drawers from opening on their own. Available housing heights are 24, 28, 34, and 40 in., and there are 6 drawer heights from 3-12 in. Each drawer can hold up to 100 lb.

STMicroelectronics    Lexington, MA 02421
Feb 17, 2012 Producing brightness equivalent to outdoor security floodlight, Model STCF04 offers 8 user-selectable levels for flash, 12 levels for torch, and light-sensor input. Device incorporates flash and torch safety timers, temperature sensing, and short circuit protection features. Combining supercapacitor, discrete high-current MOSFET switch, and high-power LEDs in 3 x 3 mm TFBGA package, IC is suited for emergency high-intensity flashing lights as well as camera and cameraphone applications.

RTP Co.    Winona, MN 55987
Feb 17, 2012 Impact-modified polylactic acid (PLA) bioplastic compounds are designed for select semi-durable and durable applications and offer enhanced impact strength and high heat deflection temperatures. Available in both injection and extrusion grades, PLA compounds are fully colorable and have bio-content as high as 95% depending on additive loading levels. Applications include molded covers, housings, and structural components for appliance, consumer electronics, office equipment and medical devices.

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243
Feb 17, 2012 WiLink(TM) 8.0 product family is collection of 45 nm single-chip wireless connectivity solutions that integrate up to 5 different radios. Each chip variant comes in compact WSP package that can be mounted directly on PCB, and includes all required RF front ends, complete power management system, and comprehensive coexistence mechanisms. Product includes integrated RF front ends for both 2.4 GHz and 5 GHz capable of reaching more than 100 Mb/sec Wi-Fi TCP throughput.

iRise    El Segundo, CA 90245
Feb 17, 2012 iRise® Studio for Mac allows users to visualize how new applications function before any code is written, showing things such as scrolling, using slider bars, stretching and compressing displays, and entering information into forms. Rapid app design creates simulations for iOS, Android, Blackberry, Windows Phone 7, WebOS, and tablets. This prototyping application creates interactive visualizations that shorten development time and allow for greater testing period.

Maxim Integrated Products    Sunnyvale, CA 94086
Feb 17, 2012 In addition to proprietary charger adapters from Apple and Sony, Models MAX14578E/MAX14578AE detect USB standard downstream ports, USB charging downstream ports, or dedicated charger ports. When charging port is detected, devices will control external lithium-ion battery charger controller to optimize charge time and efficiency. On-chip LDO provides 5.3 V output, which can be used to power USB transceiver. Operating from -40 to +85°C, ICs offer ±15 kV HBM ESD protection on USB data pins.

Anadigics, Inc.    Warren, NJ 07059
Feb 17, 2012 Supplied in 7 x 7 x 1.3 mm package, AWB7128 and AWB7228 are optimized for WCDMA, HSPA, and LTE small-cell base stations operating in 2,620-2,690 MHz frequency band. Both power amplifiers use InGaP-Plus(TM) technology and offer linearity of -47 dBc ACPR @ ±10 MHz offset. Respectively, AWB7128 and AWB7228 are performance-optimized for ¼ and ½ W linear power applications and offer +24.5 and +27 dBm linear output power, 16% and 14% efficiency, and 28 and 27 dB gain.

Angoss Software Corporation    Toronto   Canada
Feb 17, 2012 KnowledgeCLOUD solutions are delivered via KnowledgeHUB Cloud-based analytical platform, which enables data integration from customer and third party data sources - including structured and unstructured data - to provide opportunities for text mining and social media analysis. Once consolidated, data is transformed and loaded into client-specific Analytic Data Marts, which power predictive analytics insights and actions. KnowledgeSTUDIO(TM) serves as analytic engine at center of KnowledgeHUB platform.

Intermec Corp.    Everett, WA 98203
Feb 17, 2012 With motion tolerance and omni-directional scanning, SG20 Series accelerates barcode scanning process in retail, healthcare, and general countertop applications. Models are available with 1D linear or 2D imagers and either Bluetooth® cordless or corded connectivity. Multi-color LED provides bright visual cue to confirm successful scan. Featuring ergonomic design with natural smooth grip, scanners have disinfectant-ready housing to minimize spread of diseases in healthcare applications.

BMMsoft Corporation    San Francisco, CA 94104
Feb 17, 2012 Available with 72-40,000 TB and 16-15,365 cores, EDMT® 9 performs real-time acquisition, indexing, access, and cross-analysis of both structured data and unstructured data such as emails, social media blogs, documents, and multimedia files. Accessible via mobile device, it uses parallel processing to tag, create metadata, and ingest entire data set. Resulting unified data can be accessed and analyzed using reporting, audit, search, and litigation tools, as well as SAP Business Objects®.

ClearCube Technology, Inc.    Austin, TX 78759
Feb 17, 2012 Featuring fiber and copper network connections, respectively, Models CD9424 and CD7424 integrate Smart Card Readers for desktop authentication on Secret Internet Protocol Routed Network. Units support 5v, 3v, and 1.8v smart cards, including SIPR hardware token, eliminating separate USB readers for specific smart cards. Compatible with specific versions of VMware View and PCoIP protocol, zero clients allow PCoIP pre-session authentication that verifies identity through PCoIP encrypted protocol.

Crown Equipment Corp.    New Bremen, OH 45869
Feb 17, 2012 Offering main lift speed of 120 fpm, TSP Series can complete full traverse in 5 seconds and pivot 180° in 6 seconds. TSP 7000 Series, utilizing 80 and 72 V batteries, can reach total height of 675 in. and deliver most loads to full height, while TSP 6500 Series, using 48 V batteries, can reach up to 531 in. MonoLift(TM) mast features boxed-in cross section construction that minimizes twisting and swaying, while regenerative braking and lowering systems capture lost energy and return it to battery.

Norman Data Defense Systems, Inc.    Fairfax, VA 22031
Feb 17, 2012 Part of Norman Network Protection product family, Norman SCADA Protection System defends against cyber attacks from malware such as trojans, worms, and viruses that can disrupt production and services delivery. Solution is installed on network perimeter, preventing industrial control systems from being infected by malicious code transferred across network. Typical users include manufacturers, financial institutions, healthcare, and government agencies.
