NKK Switches    Scottsdale, AZ 85260-3420
Aug 14, 2002 Environmentally sealed WT Series conforms to IP67 of IEC529 standards. Actuator and base are epoxy sealed, and bushing has inner and outer sealing ring. Outer housing of heat-resistant resin meets UL 94V-O flammability standards and provides arc and tracking resistance. Available ratings are 10 A @ 125 Vac, 6 A @ 250 Vac, or 10 A @ 30 Vdc. Series comes in single and double pole, momentary or maintained actions, and in 6 circuit configurations.

Eastman Chemical Co.    Kingsport, TN 37662-5075
Aug 14, 2002 When molded into bottles, Eastar copolyester AN001 injection stretch blow molding resin results in wall sections as thick as 10 mm with light transmission rates to 91%. It is suitable for cosmetic and personal care markets.

IHS, An Inductotherm Co.    Fort Worth, TX 76106 1888
Aug 14, 2002 IHScanner with solid state power supply is complete with part quenching and recirculating components. Dual spindle heat treating system features 17 in. vertical travel, part rotation, and multi-function microprocessor-based PMC. Power ratings and frequencies range from 25 to 100 kW and from 25 to 200 kHz. System heat treats cylindrical parts from .38 to 1.00 in. diameter and up to 17 in. long. UNIPOWER 30 kHz unitized, bench-top power supply is rated at 6 kW for full duty cycling and 10 kW for hardening applications.

Imperial Electric A Kinetek Co.    Akron, OH 44306
Aug 14, 2002 Series 06 synchronous, permanent magnet motors offer torque range of 63.7 to 3186 oz-in. with peak torque from 283 to 14161 oz-in. Nominal speed range is 500 to 3,000 rpm. All motors are 6-pole with magnets made from neodymium/iron/boron alloys. Stator windings are 3-phase star connections. Flange-mount motors are totally enclosed (IP44) and feature heat-treated, square aluminum alloy housings, and prelubricated, sealed, deep-groove ball bearings.

Windsor Industries, Inc.    Englewood, CO 80110-5533
Aug 14, 2002 Saberâ„¢ walk behind scrubber for commercial floor care has AquaMizerâ„¢ system that eliminates need for multiple trips to refill water tanks. It has simple intuitive controls, making it easy to operate and maneuver in congested areas. Brushes and pad drivers can be removed or installed without tools because of removeable shroud. Hinged polyethylene battery covers can be lifted to gain access to batteries for change and service.

Flowserve Corporation    Irving, TX 75039
Aug 13, 2002 Polyshield Baseplate and Foundation is made from polymer mix using epoxy resins. Single unit replaces traditional baseplate and formed concrete foundation for pump-driver sets. It provides flat mounting surfaces, 1-piece motor mounting block, chemical resistance to aggressive liquids, high vibration dampening characteristics, and less maintenance. Baseplate and foundation can be installed in 1½ to 2 days with minimal field rework to meet jobsite specifications.

Measurement Systems International, Inc. (MSI)    Seattle, WA 98168 4660

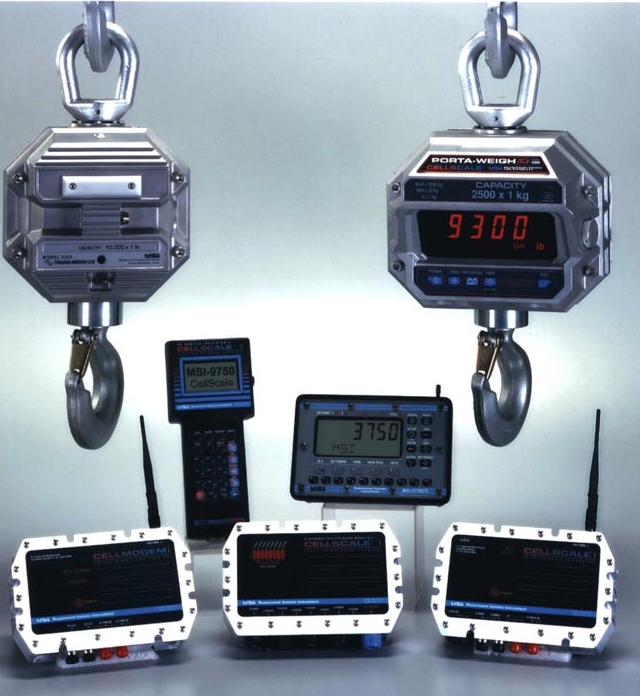

Aug 13, 2002 MSI-9000 CellScale central controller communicates via RF communications with multiple indicators and/or modems. It monitors, controls, and networks multiple weighing sensor inputs and outputs. Suitable for industrial weighing and process control applications, it eliminates need for redundant scales, indicators, and data collection equipment. Data display, collection, and processing can be initiated and controlled from one or more remote locations.

Firing Circuits, Inc.    Shelton, CT 06484

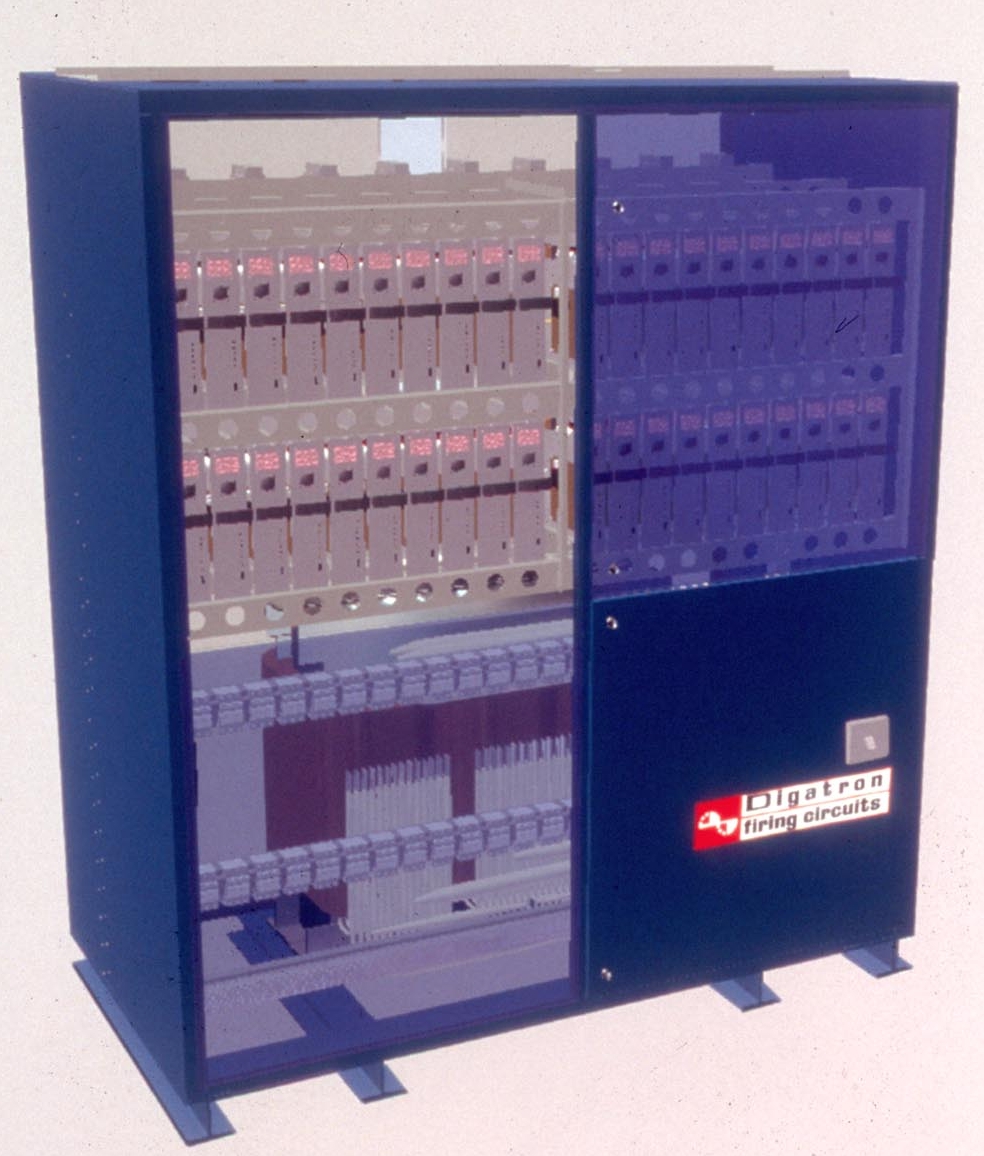

Aug 13, 2002 BC/HD (battery charging/high density) system is suitable for formation of automotive, or flooded, lead-acid batteries. It can also be used for VRLA and high-production, water-bath formation installations. System is available with output currents of 10 to 60 A and output voltages up to 450 Vdc. Depending upon output and control requirements, it uses either Micro Me cabinet controller or MicroForm-SB single-board, stand-alone microprocessor controller.

Eriez Magnetics    Erie, PA 16506

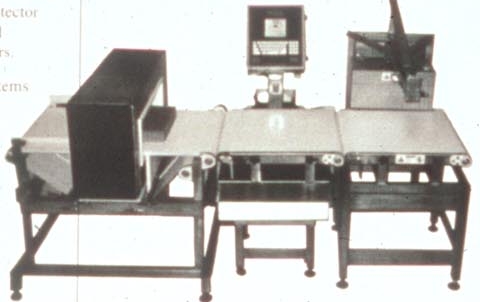

Aug 13, 2002 Metal Detector/In-Motion Checkweighers combine company's E-Z Tec® Metal Detection technology with Thompson Scale Company's checkweighers. Models TSC 350, Sonic 350, 4693, and 4693i cover capacities from 0.002 to 200 lb with speeds from 40 to 350 units per min. Conveyors are available in stainless steel, painted mild steel or, for harsh environments, can be painted with a corrosion resistant epoxy.

Anderson Products    Worcester, MA 01610
Aug 13, 2002 Floor & Window Squeegees are made of heavy-duty neoprene and can be used for drying floors and removing excess water, slush, and snow. Non-sparking aluminum frame resists rust. Refill blades are available. Its tapered hardwood, lacquer finished handle provides comfort, durability, and ease of use for water removal applications.

Metabo Corp.    West Chester, PA 19380 4243

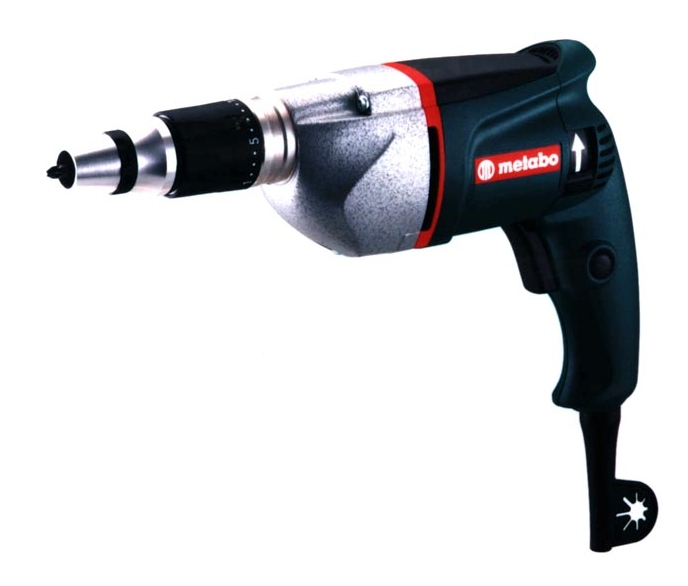

Aug 13, 2002 DWSE 6.3 corded power screwdriver is suitable for applications including roofing, cladding steel frames, prefabricated house construction, and automobile factory and body shop work. It has 4.8 A, 550 W motor, and provides 10 torque settings from 27 to 159 lb-in. It handles self-drilling screws up to 1/4 in., self-tapping screws up to 5/16 in., chipboard and wood screws from 1/8 to 5/16 in., self-drilling screws, and sheet metal screws.

Spelsberg/Altech Corp.    Flemington, NJ 08822 6000

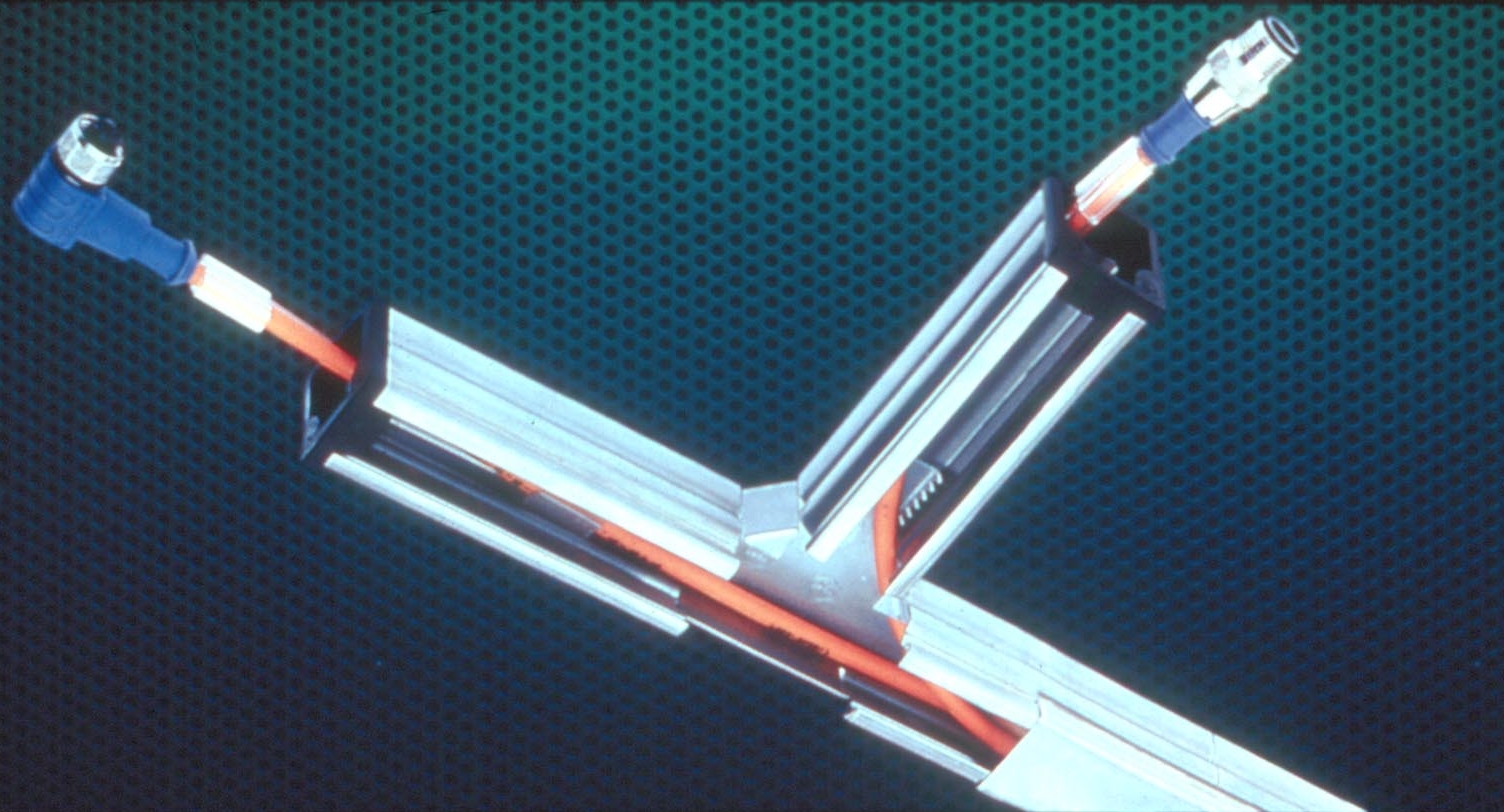

Aug 13, 2002 Industrial and Mini Metal Cable Trays ensure uninterrupted transmission of power or signals to and from power source controllers, machinery, cabinets, distribution panels, and enclosures. Made from galvanized steel or stainless steel, units come in sizes ranging from .59 x .59 in. to 11.8 x 5.9 in. Industrial Cable Trays offer closed system to protect from dust, rodents, and moisture. Trays can be mounted on walls, ceilings, or floors.

Analytical Specialties, Inc.    Houston, TX 77058

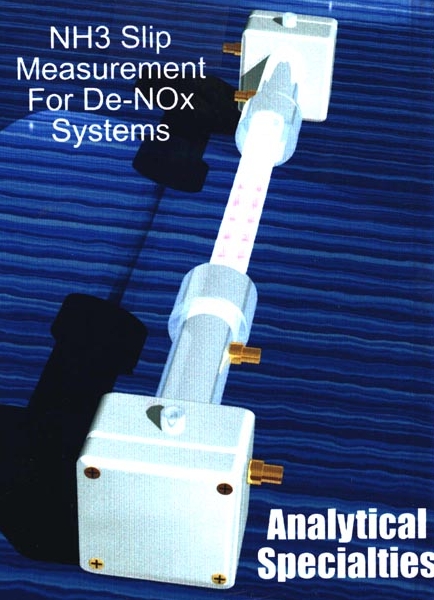

Aug 13, 2002 Insitu Laser Gas Monitors provide power plant operators with real-time ammonia slip measurements in NOx removal systems. They install downstream catalyst beds in treated flue gas outlet. Monitors are accurate to 0.1 ppm and other elements in gas flow do not affect ammonia slip data.

Mitutoyo America Corporation    Aurora, IL 60504 9176

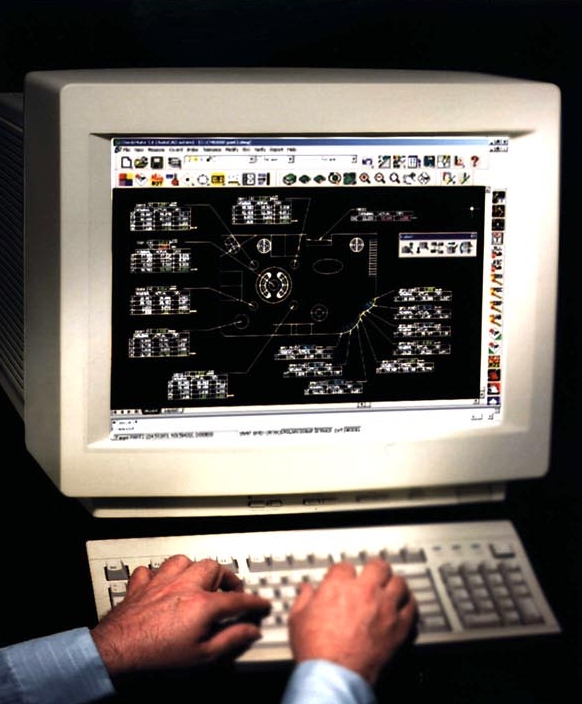

Aug 13, 2002 CheckMate 6000 CAD/CMM, for off-line programming of coordinate measuring machines, supports over 20 DMIS characterizations plus 5 other CMM builder native languages. It accepts CAD files through IGES, STEP and VDA neutral file transfer standards. User can work from 3-D CAD models, wireframe, or surfaces to generate CMM part programs. Software includes program simulation, collision detection/avoidance and probe path optimization.

ICS Electronics Corp.    Milpitas, CA 95035

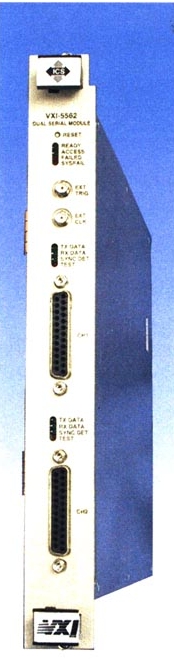

Aug 13, 2002 Model VXI-5562 single-slot wide, C-size module transmits and receives binary data, and fits in majority of VXI test systems. Each channel has 2 Mbyte buffers and provides programmable data, clock and data gate or enable signals with user selected RS-422 or LVDS transceivers. Internal frequency synthesizer generates clock rates up to 10 Mbits/sec. Data can be received continuously or module can be set to detect 8, 16, 24, or 32-bit sync patterns.

Logansport Matsumoto Co.    Logansport, IN 46947

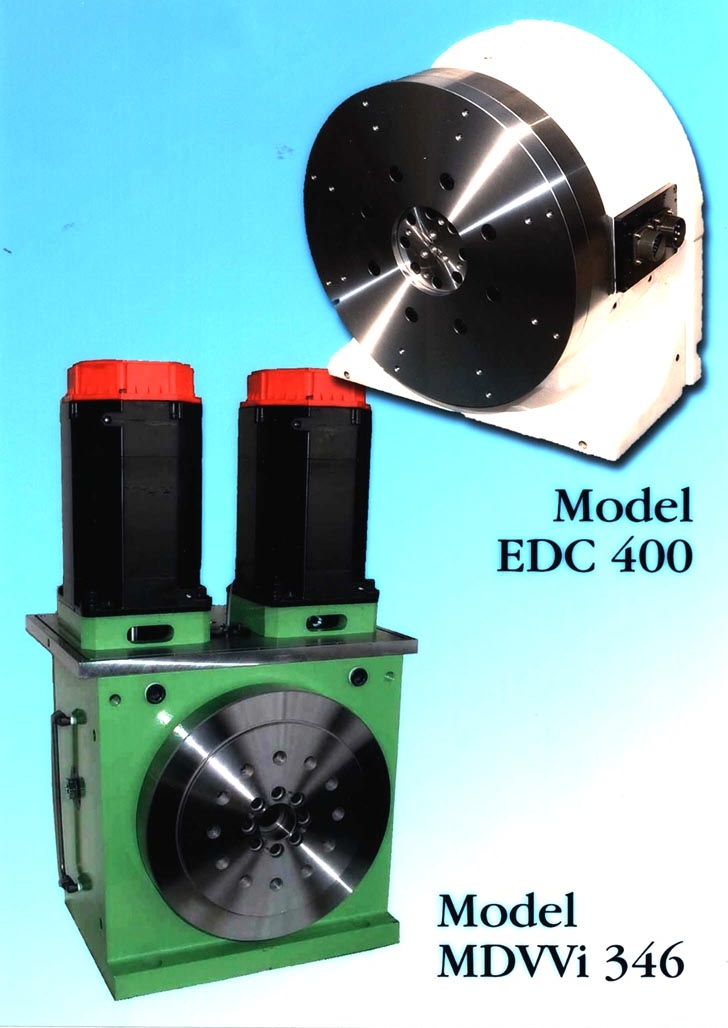

Aug 13, 2002 MMK EDC 400 features direct-drive motor, zero-backlash positioning, and 5 arc-sec accuracy. It delivers speeds to 180 rpm and maximum torque of 694 N-m, for high-volume and aerospace production. MMK MDVVi 346 utilizes 2 synchronized servo motors that drive OTT worm gear. It delivers speeds to 200 rpm and torque of 500 N-m. Table suits rapid-response machining for complex parts manufacturing. Rotary table for submerged EDM machining is also available.

Invensys Sensor Systems    Woonsocket, RI 02895 1129

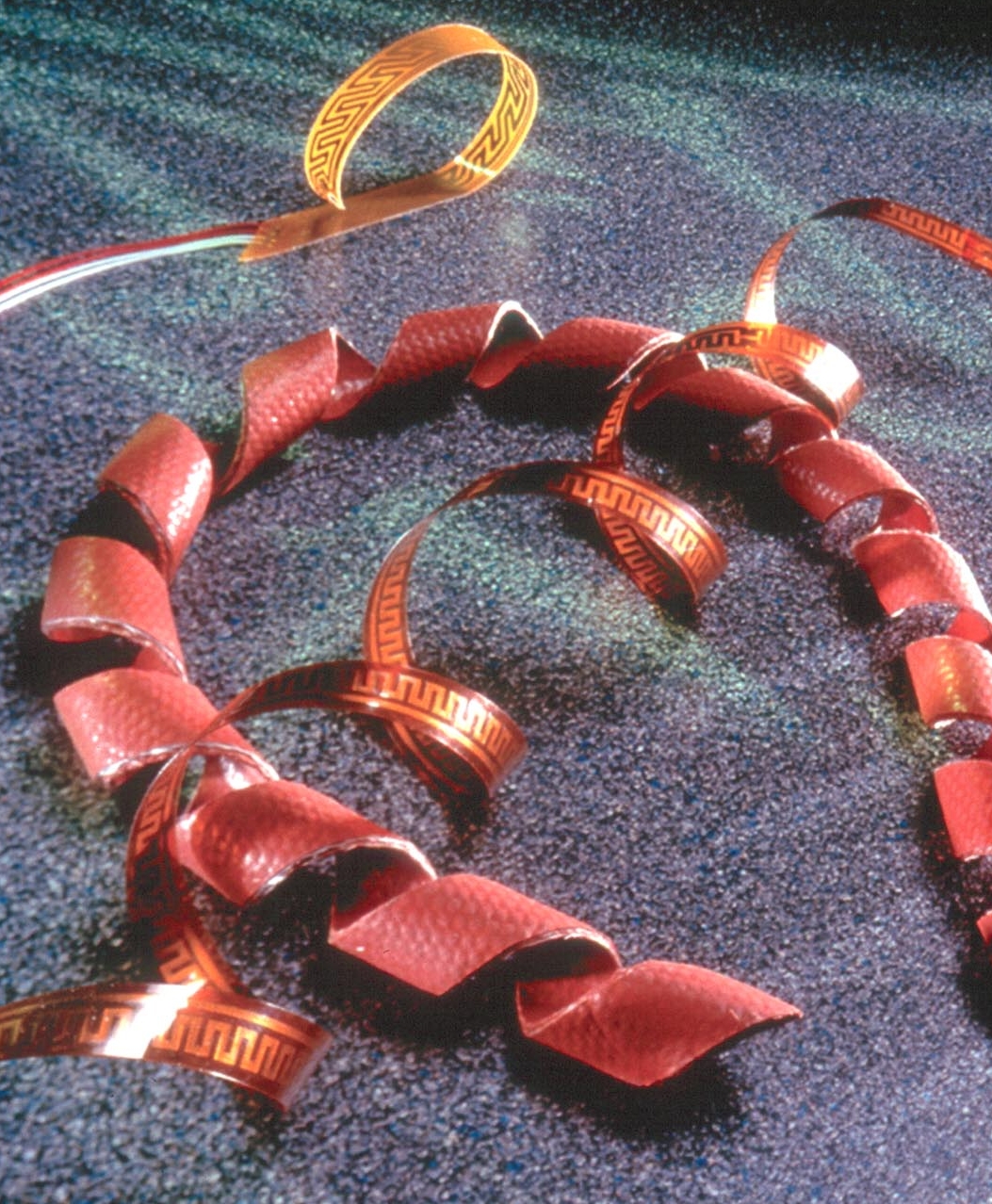

Aug 13, 2002 Able to heat pipes in high altitudes and cold climates, Spiral heaters are available with different heating element designs, including single and multi-layer etched circuits and single and multi-layer wire wound circuits. Single, multiple, and variable watt densities can be designed into spiral heaters to suit specific application needs. Dielectric substrate materials available include silicone, polyimide, neoprene, and polyester.

LINPAC Materials Handling    Georgetown, KY 40324

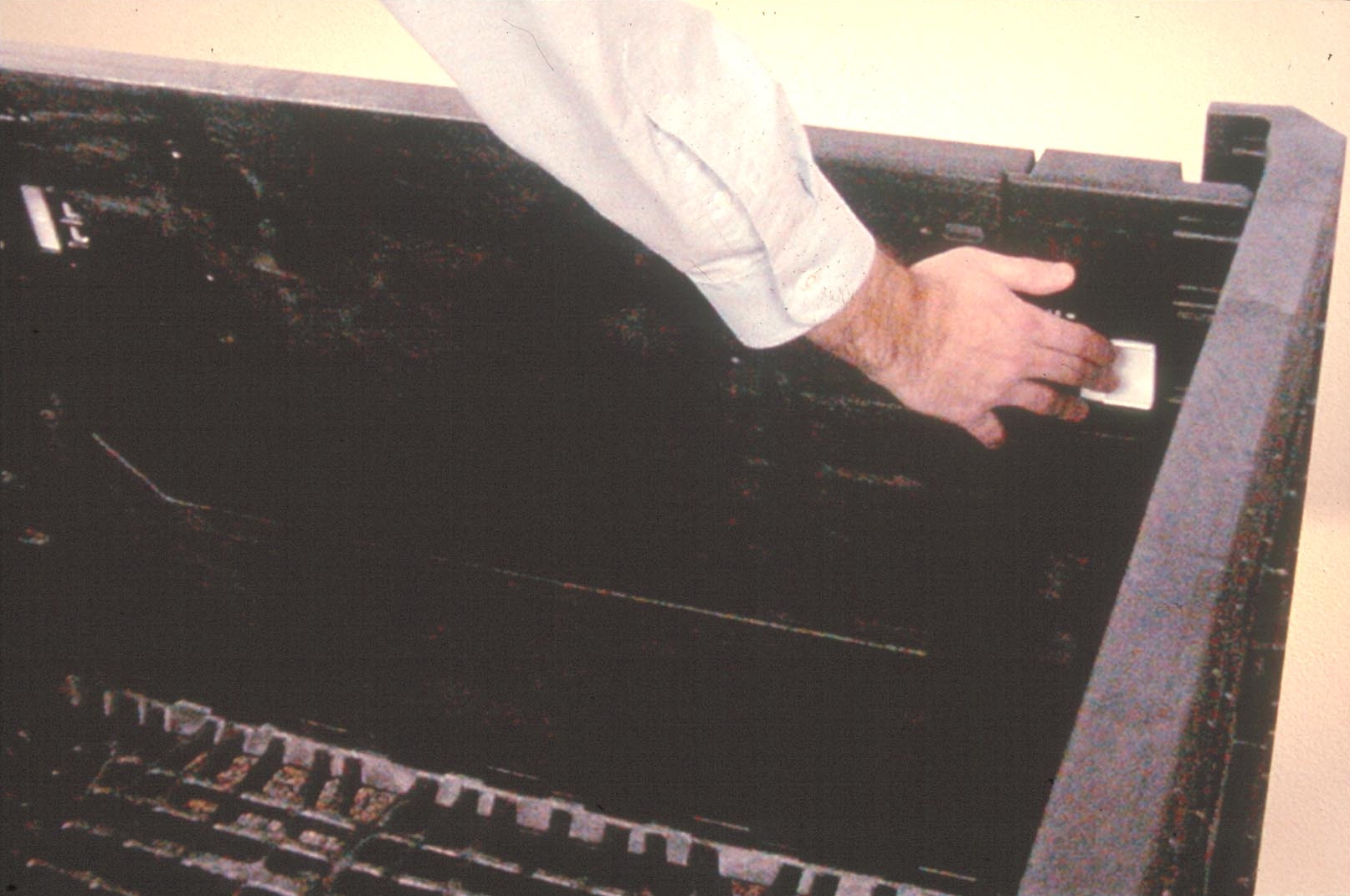

Aug 13, 2002 ROPAKâ„¢ 4548 collapsible containers offer reach-through latches on 33 and 34 in. high models on 48 in. sides of container as well as on both solid and open sidewall models of 45 x 48 in. containers. Option allows operators to collapse containers from one side. ROPAK 4548 model is available in 7 heights from 25 to 50 in. with load capacities to 2,000 lbs. All models offer choice of 0, 1, or 2 hinged drop doors on 48 in. side and are available with 4-way forklift entry.

AMISTCO Separation Products Inc.    Alvin, TX 77511

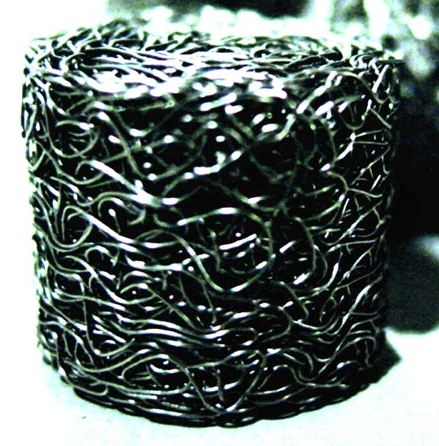

Aug 13, 2002 Knitted Wire Mesh Filter Elements (KWFE) offer alternative to sintered metals, plastics, paper, and cloth. Continuous lengths of uniform interlocking wire loops strengthen KWFE to provide vibration resistance. Available in plastic and metal alloy materials, KWFE can be used in applications that require flame resistance. Wire gauge, knit spacing, and degrees of compression provide various filtration pressure drop and solids retaining characteristics.

Hosokawa Bepex Corporation    Minneapolis, MN 55413-2810

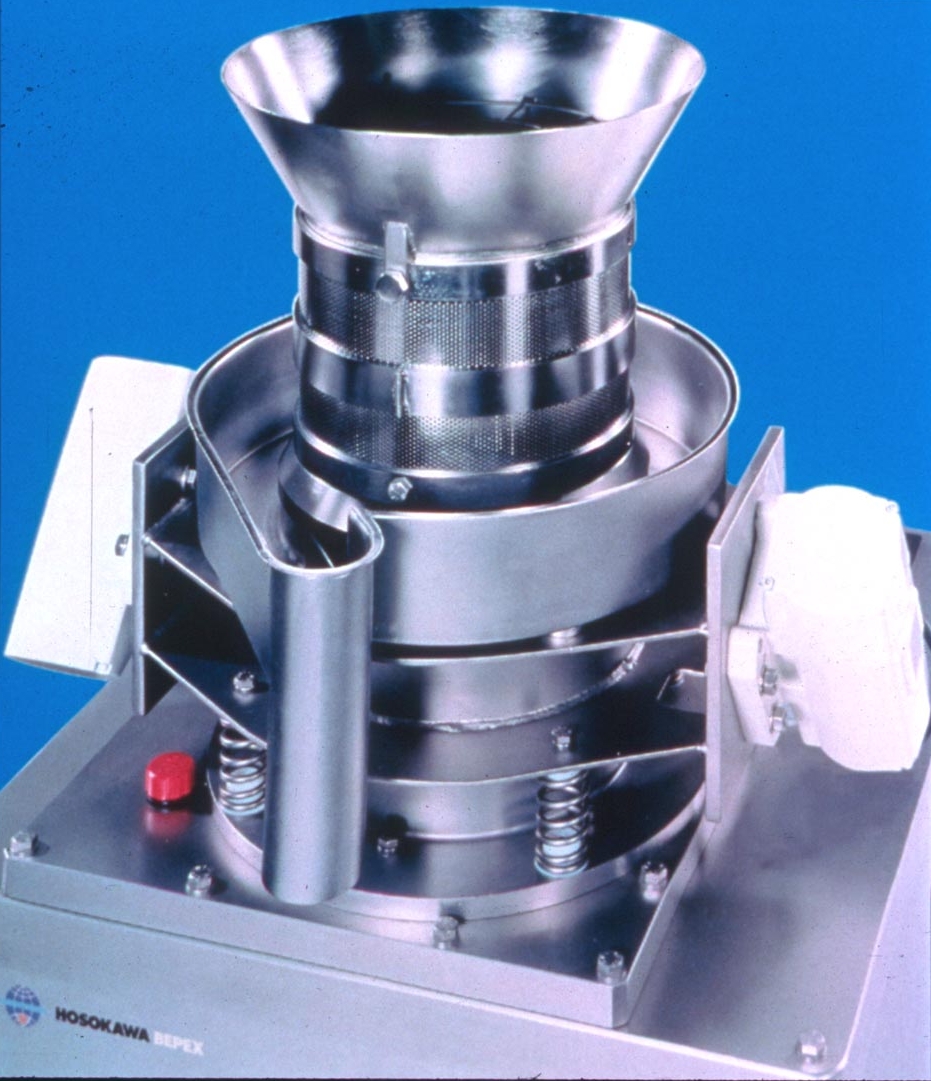

Aug 13, 2002 Bextruder® low-pressure, basket type extruder is capable of production rates up to 5,000 lbs/hour. Its product chamber has upper rotor that mixes and conveys material downward to second rotor. Lower rotor densifies material and pushes it through surrounding perforated basket to produce cylindrical pellets. Pellet diameters range from 0.3 to 3.0 mm.
