Macro Sensors, Div. of Howard A. Schaevitz Technologies, Inc.    Pennsauken, NJ 08110 1334

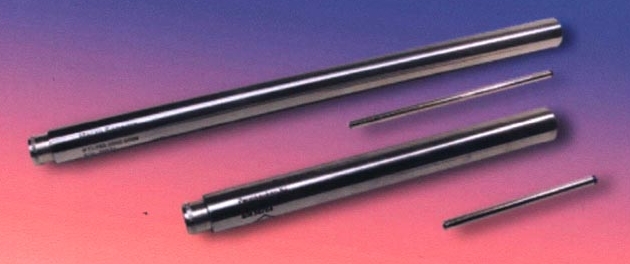

Aug 21, 2002 Operating from 10 to 36 Vdc input, HSDI 750 Series loop-powered, 4-20 mA, LVDT position transmitter is constructed of TIG-welded stainless steel. Hermetically sealed device operates in environments where caustic and corrosive materials are present. Available with measurement ranges of 1 to 10 in., series provides non-contact position monitoring and remote feedback. Two-wire position transmitter operates with loop resistance up to 800 ohms.

3M    St. Paul, MN 55144

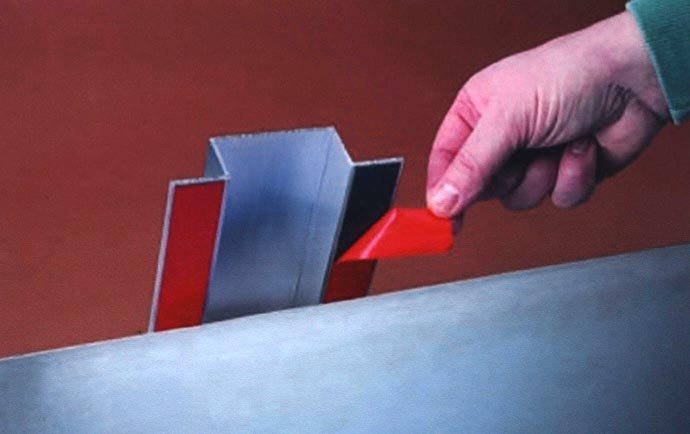

Aug 21, 2002 3M(TM) VHB(TM) tape families enable OEMs to join materials before or after powder-coating process. They provide seal, vibration damping, thermal expansion allowance, and bond differential substrates. Tapes can replace spot welds in metal assembly applications, prior to most paint systems, or replace rivets or screws by bonding to most powder coatings after painting process. Applications include attaching metal stiffeners.

Columbia Machine Inc.    Vancouver, WA 98661
Aug 21, 2002 Palletizer/Conveyor customizes loads for retailers who want specific, end-of-aisle product displays. Controls can be adapted to both floor-level and high-level palletizers to enable column-stacking capabilities. When placed at aisle ends in retail outlets, display stacks make it easy for consumers to pick specific products without having to move other cases in load.

Komet Of America, Inc.    Schaumburg, IL 60193 4544

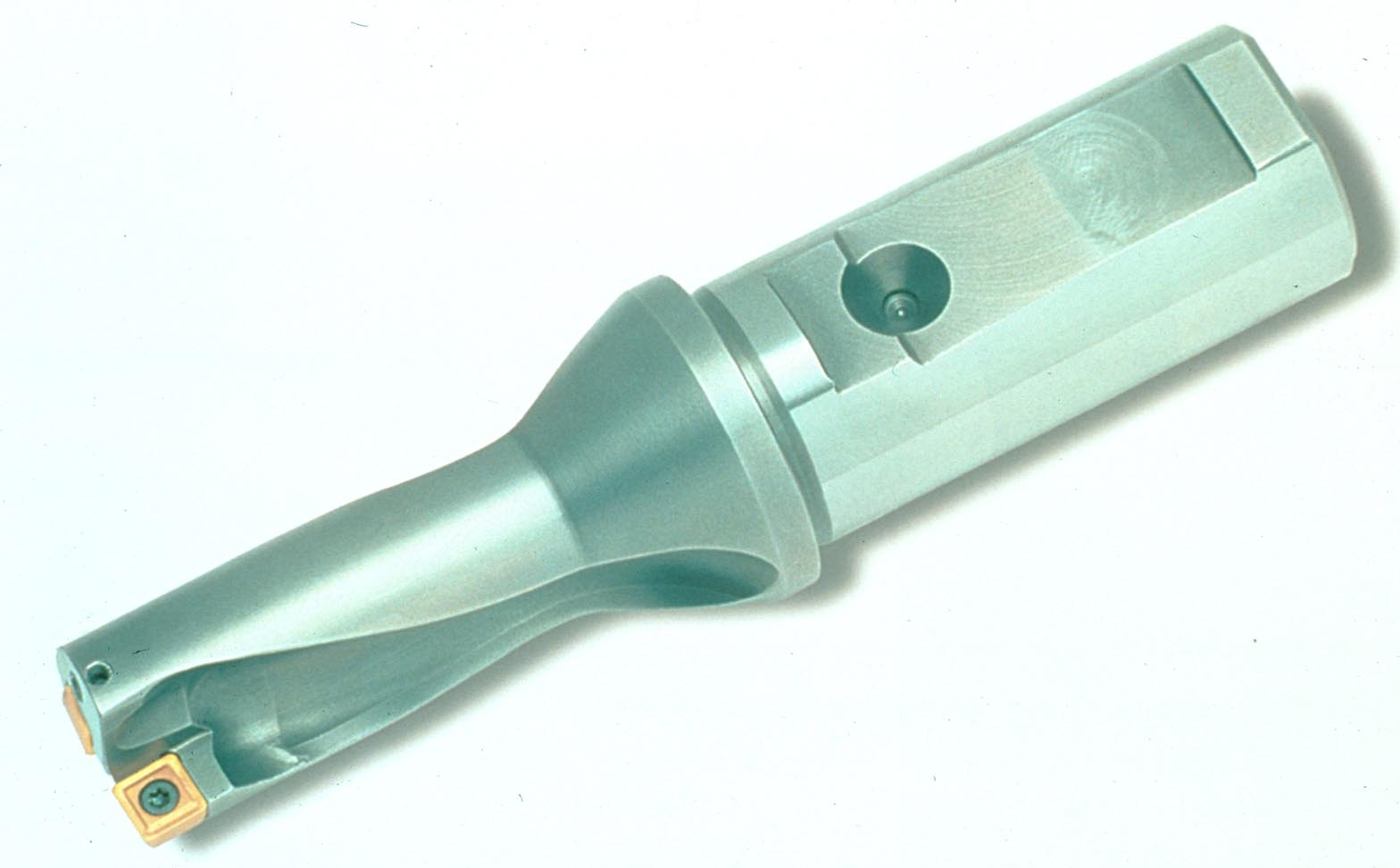

Aug 21, 2002 KUB Quatron® delivers repeatable holes even in difficult drilling conditions, interrupted cuts, uneven castings, and hardened steels. It is offered in both inch and metric standards with drill depth of 2X diameter. Four-edge design allows variety of positions of square carbide inserts. Straight shanks come in .750, 1.000, and 1.250 in. dia and 20, 25, and 32 mm dia. Coolant holes follow spiral configuration of drill body resulting in increased coolant volume and chip removal.

Loveshaw, An ITW Co.    South Canaan, PA 18459

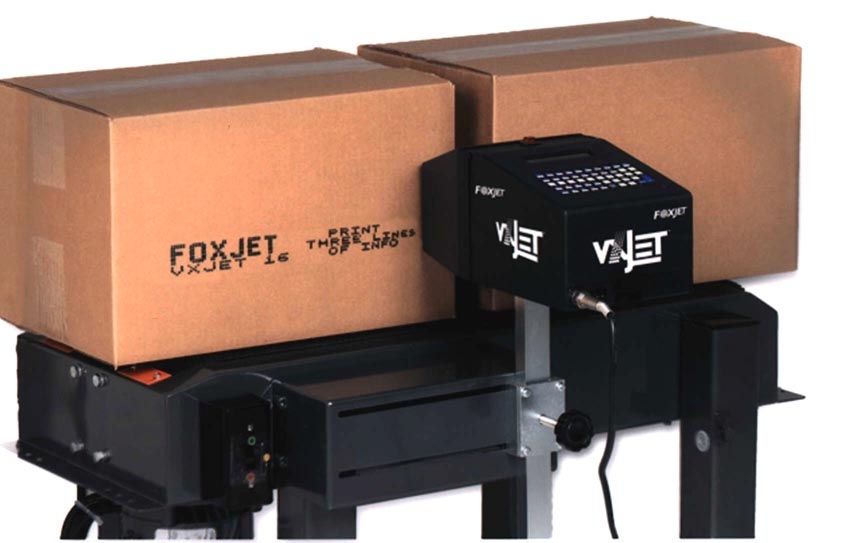

Aug 21, 2002 VXJetâ„¢ Printing Systems, offered in 4 models, feature steel housing, non-pressurized ink container, and automatic speed and direction sensing. Units print to within 1/2 in. of case bottom. They can print from 1 to 3 lines between 3/8 to 2 7/32 in. high. Narrow nose allows for access in tight mounting conditions.

Mate Precision Tooling    Anoka, MN 55303

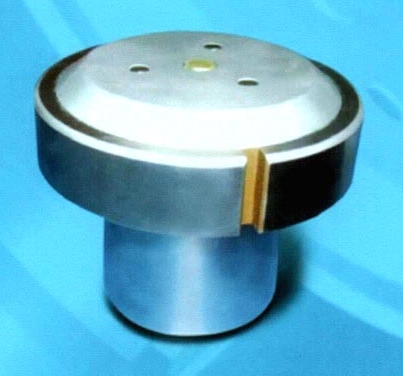

Aug 21, 2002 PowerMaxâ„¢ produces extrusions and other punched forms. Forming capabilities allow for large extrusions, use of thick materials, and use of complex forms such as embosses, lances, and hinges. Disc springs, below lower turret, produce stripping force. Consisting of die and spring canister, PowerMax is available for all punch presses using thick turret style tooling.

Resec Systems, Inc.    Bergenfield, NJ 07621

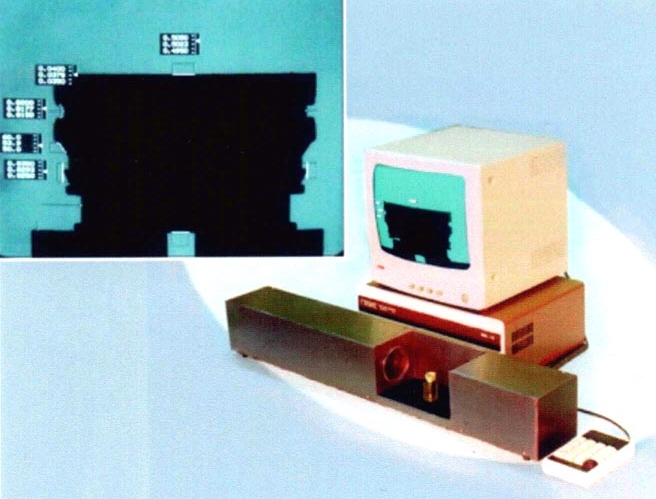

Aug 21, 2002 Model J-181a makes repeated measurements as it rotates part through 360° in programmable steps. Gaging takes about 10 seconds for complete rotation in 10° increments (36 steps). System handles parts up to 2 in. long x 1.25 in. dia. Software displays diameters at any point(s) along part's length, distance between features along length, and other dimensions. Accuracy is typically 0.0001 in. Serial port provides for data collection.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Aug 21, 2002 Model LL-V vertical entry style submersible sensor may be suspended in open tank or attached to crown of enclosed tank to measure liquid level with 0.1% accuracy. Sensor has all-welded stainless steel construction, and welds are helium leak tested. Atmospherically vented oceanographic cable assembly exits through ½-14 NPT threaded conduit connection. This allows mechanical or chemical protection tubing or pipe to be threaded over cable.

APEM Components    Haverhill, MA 01835

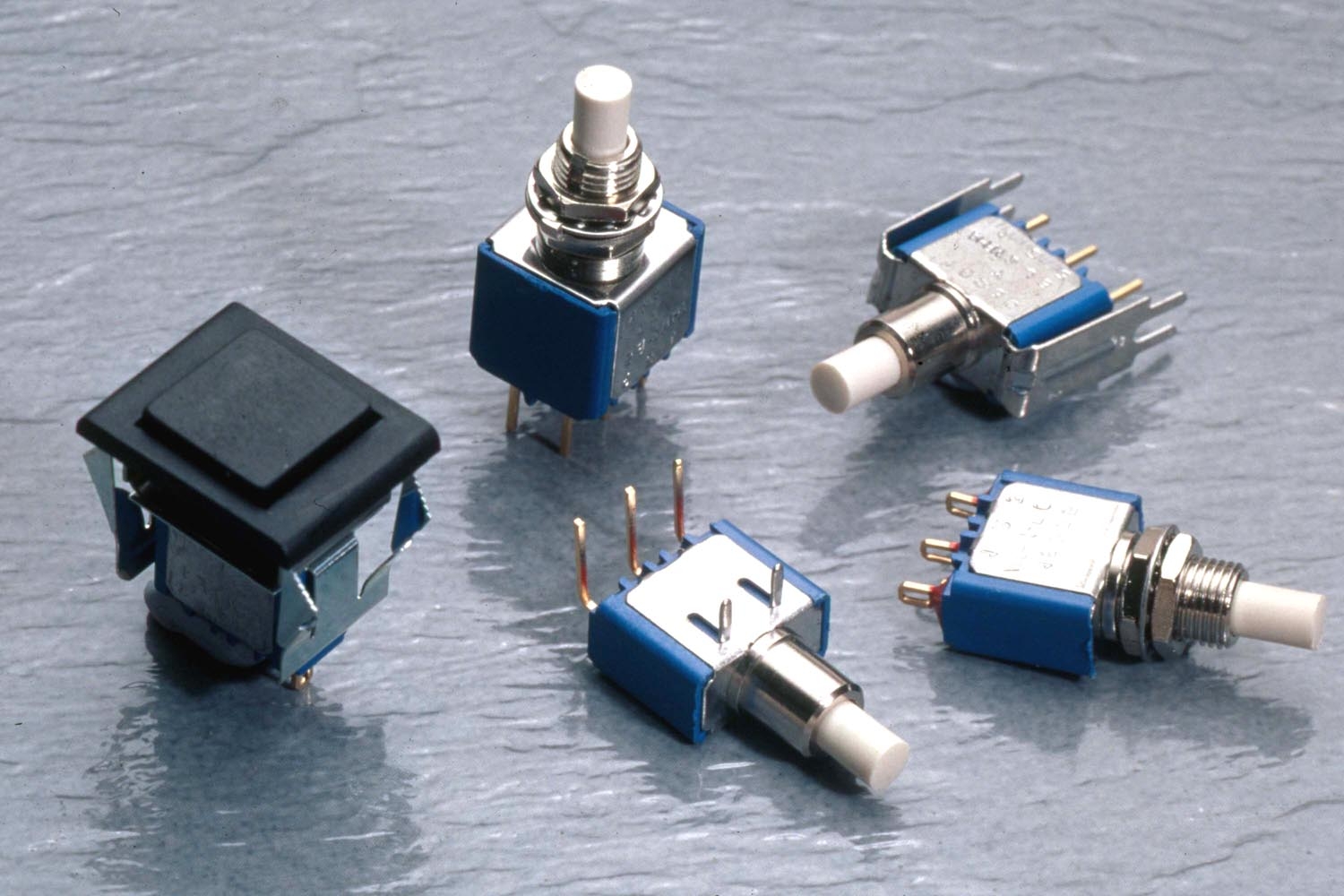

Aug 21, 2002 Miniature 18000 series switches are available in SPDT and DPDT with snap-action contact mechanism for tactile switching. Options include ratings from 100 mA at 30 Vdc to 1 A at 120 Vac or 30 Vdc, panel mounted styles, snap-in mounting models, and straight, vertical, or horizontal printed circuit mounting models. Other options include actuator length, round and square snap on caps in colors, and front panel bezels in various colors.

Bicron Electronics Co.    Canaan, CT 06018

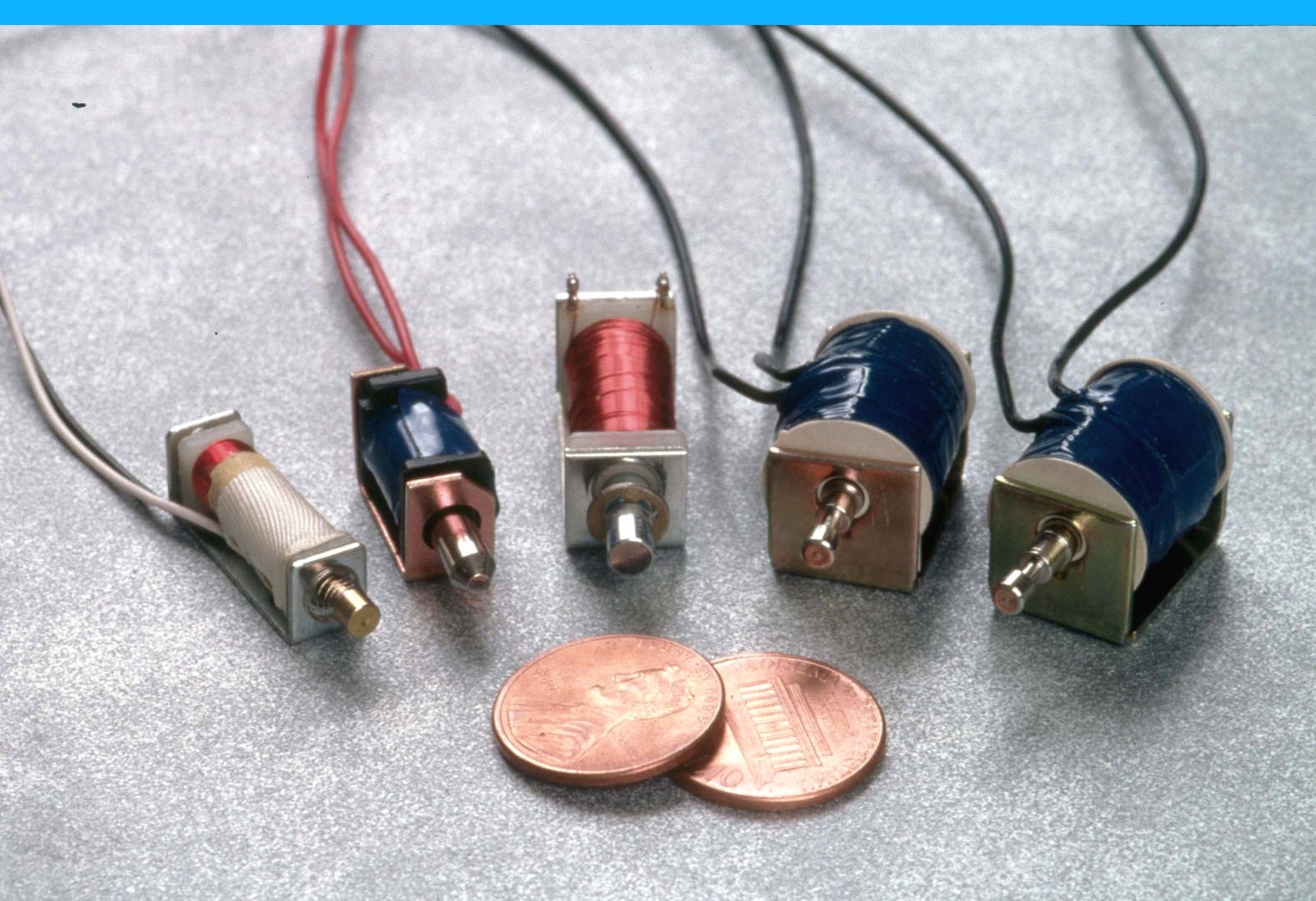

Aug 21, 2002 C-Frame solenoids are available in 5 models, each with coil voltage ratings of 3, 6, 12, or 24 Vdc. Force ratings are from 0.09 oz at 0.04 in. stroke to 34.8 oz at 0.02 in. stroke. Available in sizes from 0.69 to 0.91 in. long. Frames are one piece construction and easy to mount via threaded holes in base. Solenoids are suited for gaming machines, centrifuges, scanners, circuit breakers, coin counters, and optical equipment/shutters.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Aug 21, 2002 Available in air-, electric-, and battery-powered configurations, Two-Pad Air Powered Vacuum Lifter handles loads up to 500 lbs. Designed for use with air balancer or electric hoist, it offers integrated air balancer controls and integrated up/down and release handlebar controls. Additional offerings include all-welded steel construction, vacuum packs, alarm systems, and vacuum pads.

Kee Safety, Inc. (formerly Kee Industrial Products, Inc.)    Buffalo, NY 14206-2665
Aug 21, 2002 Designed for use with 1¼ in. and 1½ in. standard pipe, Kee Lite® base fittings are constructed of high-grade Aluminum Silicon Magnesium. Model L150 provides heavy-duty, 4-point fixing base flange for use when structural fitting is required. Model L152 provides either 4-point fixing base or wall flange. Fittings are corrosion-resistant and intended for indoor or outdoor use. Applications include railings, display fixtures, racks and shelving, and tubular pipe structures.

Cherry Electrical Products    Pleasant Prairie, WI 53158

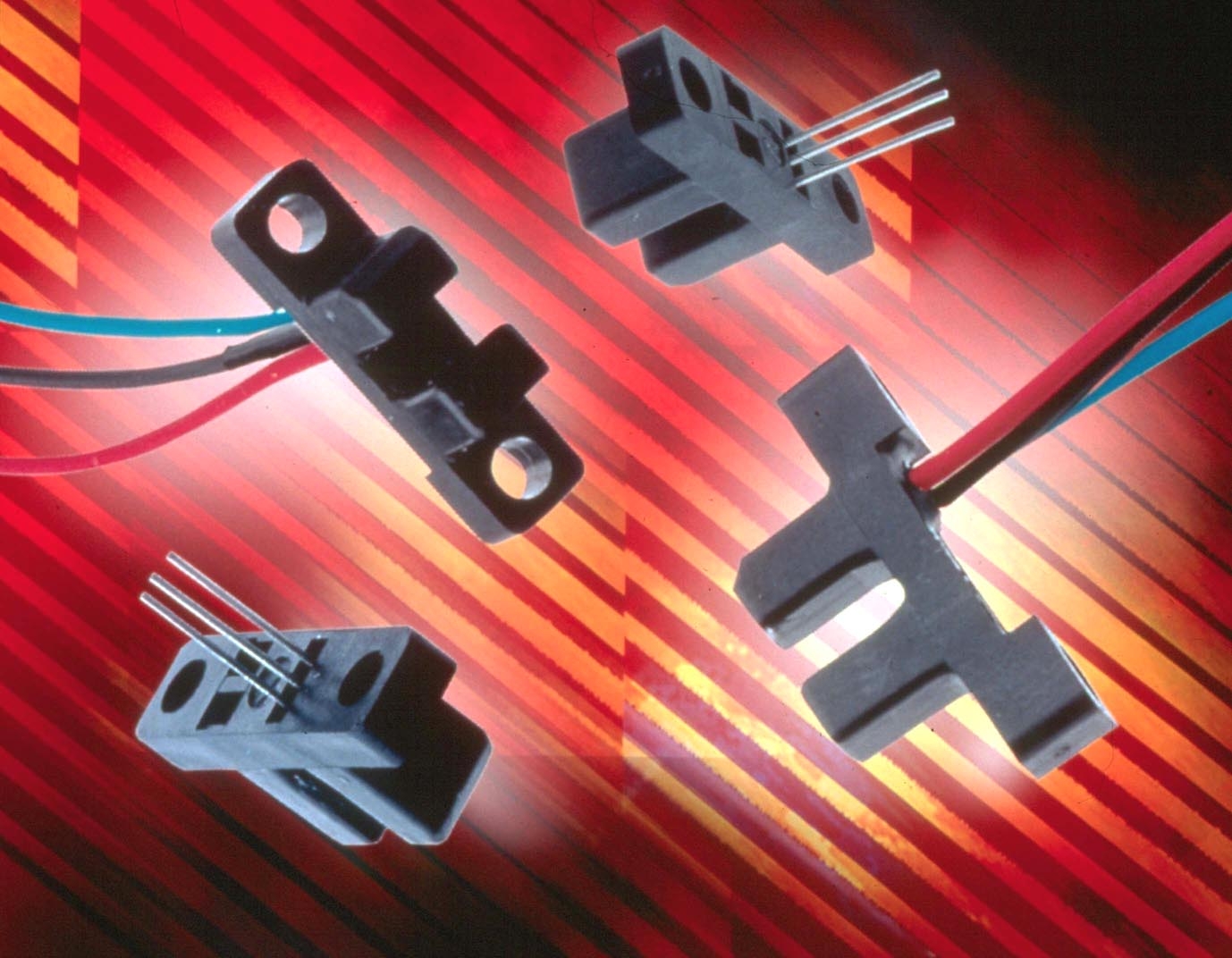

Aug 21, 2002 VN1015 Series employs Hall effect digital vane sensor and permanent magnet in 2 small towers, separated by .135 in. air gap. Output of Hall effect device switches when ferrous target passes between towers. Typical targets are linear or rotary vanes using square saw tooth or open slot in solid disk or band. Dimensions are .425 X .975 X .250 in. Temperature ratings are -40 to +85°C and -40 to +125°C. Supply voltage ranges from 5 to 24 Vdc.

Kistler Instrument Corp.    Amherst, NY 14228 2119

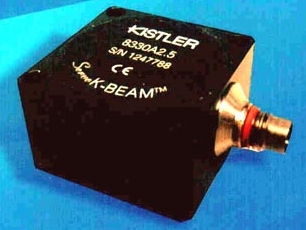

Aug 21, 2002 ServoK-BEAM 8330A2.5 Accelerometer is an analog force feed back sensor that utilizes silicon micro-machined variable capacitance sensing element. It features resolution of 0.8 µg @ <1 Hz, and operates from single power supply between ±6 and ± 15 Vdc with 8 mA typical current consumption. Sensing element and integrated electronics are packaged in environmentally sealed, aluminum housing. Hard anodized coating provides ground isolation.

Rockwell Automation    Milwaukee, WI 53204
Aug 21, 2002 Deployed on wired and wireless platforms, knowledge management and e-learning systems offer tools to digitize, archive, and provide employees with real-time, multi-media access to information. They provide best practices, subject matter professionals, training, equipment documentation, and performance data. Employees have instant access to data to execute processes and troubleshoot machinery. Technology standards also simplify tasks such as reporting and assessment.

DSP Group, Inc.    Santa Clara, CA 95054
Aug 21, 2002 CedarDSPCoreâ„¢ scalable architecture is offered with various Digital Signal Processor (DSP) core designs for different performance metrics. It suits a broad range of markets and applications such as Communication Terminals (3G smartphones, 802.1la/b/g terminals and access points, and broadband modems), Infrastructure (base-stations, media gateways, and DSLAMS), and Home Entertainment (DVD recorders, PVRs and set-top boxes).

Hyster Co.    Greenville, NC 27834
Aug 21, 2002 W45Z and W40Z weigh 4500 and 4000 lb, respectively, and have 24 V electrical systems. Bottom-mounted handle enables ergonomic actuation when moving products in tight spots, such as trailers. Speed button, on back of handle, allows operator to actuate truck using thumb with handle in fully raised position. W40Z offers optional 110 Vac charging for smaller retail applications. Built-in hinged convenience tray provides ventilation to protect work environment from battery gases.

Hyster Co.    Greenville, NC 27834
Aug 21, 2002 E30-40HSD 3-wheel Electric StandDrive(TM) Counterbalanced lift truck allows for instant operator access to electrical apparatus, lift pump, drive motors, and power steering assembly. Ultima(TM) Control Handle allows for intuitive movement and simultaneous travel, hoist and one auxiliary function. It works in conjunction with operator display for set-up of traction and hydraulic functions, and is controlled via software for smooth transitions between moves.

Setco    Cincinnati, OH 45233

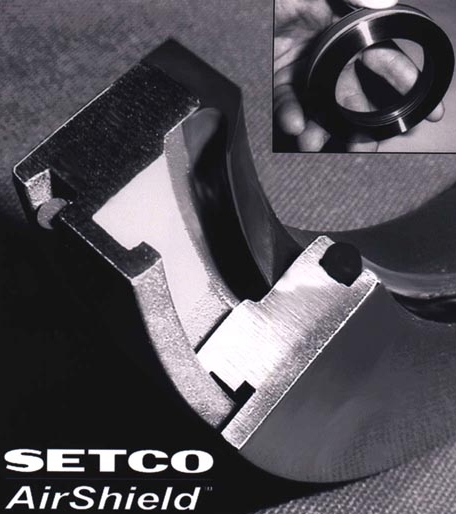

Aug 21, 2002 Universal AirShield(TM) features precision machined steel housing and Viton lip seal. It provides tangential air purge system for dynamic and static protection. Constant air flow creates near frictionless seal between bearing cap and spindle shaft to protect front and rear bearings. Seal eliminates spindle failure due to bearing contamination from coolant ingress and condensation, contamination, and chip damage.

Convertech    Wharton, NJ 07885 1800
Aug 20, 2002 Button and Lug Shafts are optimized for wider webs and designed to support heavy loads. Self-contained bladders ensure continuous performance and make repairs easy. Shafts are available in 3 in. (standard duty and heavy duty), 4, 5, and 6 in. diameters.
