B & R Industrial Automation Corp.    Roswell, GA 30076
Aug 27, 2002 Provit 5000 allows data from touch screen, LEDs, and function keys, as well as data from connected keyboards, to be transmitted. Required 24 Vdc is fed in at local connector where IPC is located. Display unit and corresponding remote connector are supplied via cable connecting 2 remote display connectors. Unit can connect CD-ROM drive at distance up to 35 m with separate connection, transforming remote display unit into complete operating terminal.

Dawning Technologies, Inc.    Fairport, NY 14450 9542

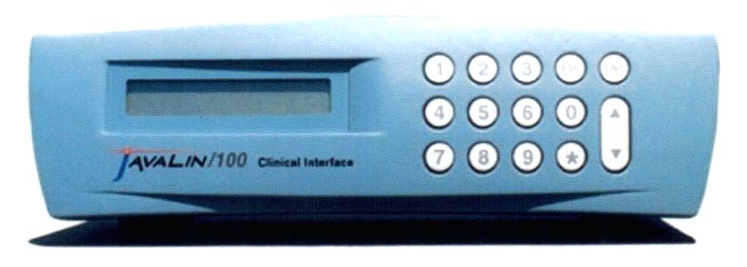

Aug 27, 2002 With open source connectivity, Javaâ„¢-based JavaLin/100 Clinical Interface houses CPU, solid-state memory, instrument specific driver module, and embedded JResultNet Clinical Router software. It uses Linux open-source operating system and includes Java Runtime Engine for application programs. Unit can control interfaces to serial or network based instruments and connects directly to network hubs. Multiple encryption algorithms ensure data security.

Advanced Power Technology    Bend, OR 97702

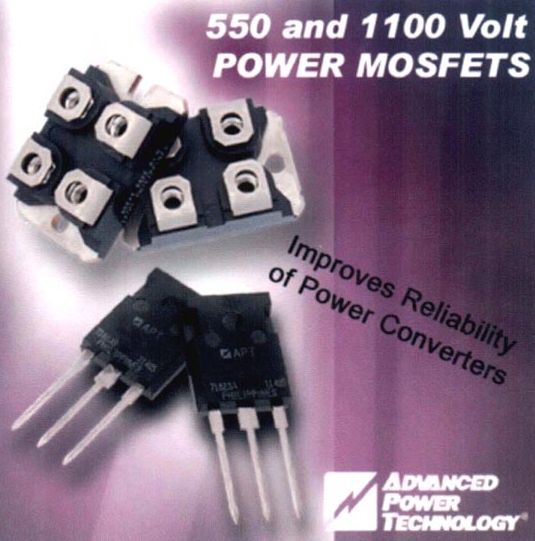

Aug 27, 2002 POWER MOS 7® FREDFETs (MOSFET with fast body diode) provide additional voltage safety margin for system reliability. Their metal gate structure provides for low gate resistance. FREDSETs with 550 V rating provides 50 to 310 milliohms on-resistance and max current rating of 20 to 80 A. Rated at 1100 V, FREDFETs offer 260 to 1200 milliohms on-resistance and have max currrent ratings from 10 to 30 A.

Xycom Automation Inc.    Saline, MI 48176

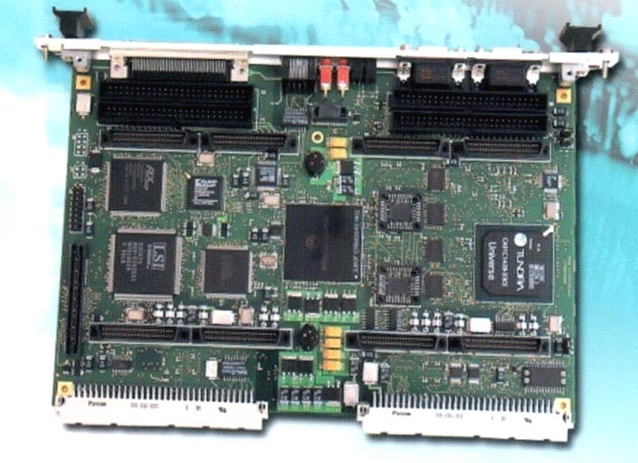

Aug 27, 2002 Suitable for applications in process control, telecommunications, and traffic control, TVME-8240 VME CPU board offers MPC8240 PowerPC micro-processor, DRAM controller, and PCI interface. PowerPC Processor based IndustryPack® Carrier has 4 IndustryPack interfaces and supports 4 real-time operating systems (VxWorks, Linux, pSOS+, and OS9).

Plast-O-Matic Valves Inc.    Cedar Grove, NJ 07009

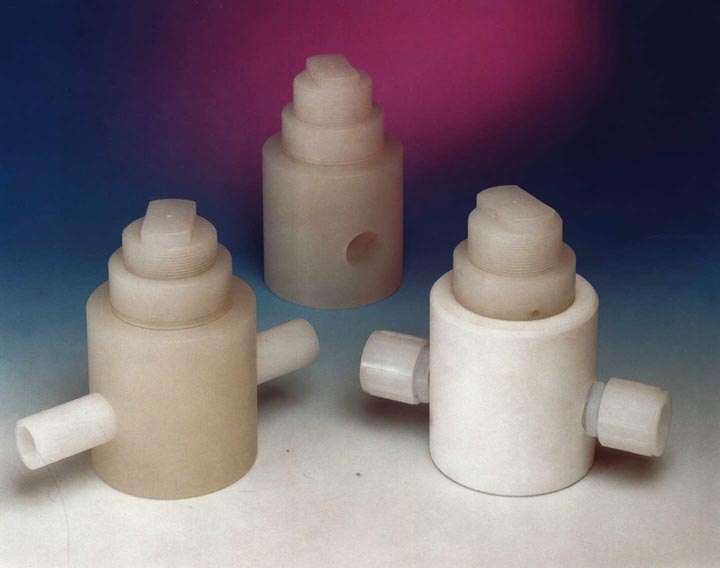

Aug 27, 2002 Suitable for semiconductor and other applications requiring ultra-pure liquids, Series PRU regulators convert inlet pressure up to 120 psi to preset downstream range from 5 to 100 psi. Valve body materials are Teflon PTFE, Kynar® PVDF, or natural polypropylene. Piping connections are flare, spigot, socket, or threaded. Convoluted, Teflon diaphragm senses and controls downstream pressure. Stainless steel springs control pressure setting.

Dart Controls, Inc.    Zionsville, IN 46077

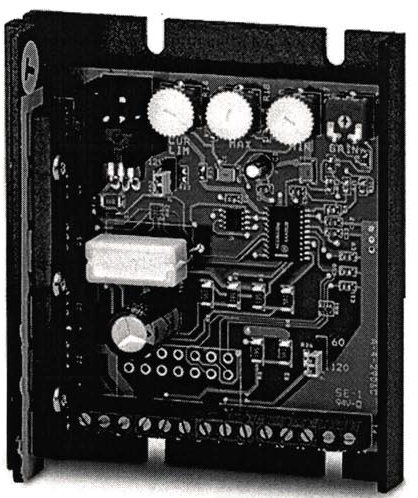

Aug 27, 2002 Surface-mount, compact Model 700BDC motor speed control offers choice of standard, screw-terminal connector, or European-style, pluggable connector. Fixed resistors are available as option, or conventional trim pots can be used for setting min/max speeds.

Heatron Inc.    Leavenworth, KS 66048
Aug 27, 2002 Thin, optically clear CLEARVIEW film contains micro resistance heating element that maintains legibility of electronically generated text on instrument screens used outdoors or in cold environments. It allows undistorted high definition viewing of information on hand-held instrument screens and displays. Embedded temperature sensor covers specified area over heater element close proximity of heater and sensor allows uniform display of information.

Lifeline Security Co.    Middletown, MD 21769
Aug 27, 2002 EXITAIR-BIO filters out toxic smoke and biological agents such as ebola, botulism, and anthrax. It has 4-layer HEPA filter with active carbon that blocks out particles down to 0.3 microns with efficiency rating of 99.97%. See-through hood is made of polymide film that protects neck, face, and head from burns. Base of hood is made of pliable neoprene latex, which makes it adaptable to any size neck and ensures snug air-tight seal to keep out smoke.

Microvision, Inc.    Bothell, WA 98011
Aug 27, 2002 Flicâ„¢ palm-sized bar code scanner comes with software that enables user to plug and play without any programming and support requirements. Virtual Wedge software automatically enters scanned bar code data into standard Windows® applications, including spreadsheet and database applications. Typical uses include point of sale, asset management, inventory and document control, transportation logistics, and medical.

Dranetz Technologies, Inc.    Edison, NJ 08818 4019
Aug 27, 2002 Multi-DAQ TASKCard® enables users to perform power quality surveys, root-cause analysis, or full energy audits. It is designed specifically for use with Power Platform 4300 and works with DRAN-View® visualization and analysis software. Three operational approaches include Inrush/Fault Recorder for 30 sec capture and storage of data, Data Logger for long-term analysis, and Power Quality Monitor which automatically evaluates existing rms and waveform conditions to establish optimal setups.

T-Drill Industries, Inc.    Norcross, GA 30093 2928
Aug 27, 2002 Model TCC-25 Rotary Tube Cut-off machine offers integrated double end finishing, which allows square or chamfered ends to be provided on one (or both) ends of tube. It allows operator to select desired cut type (thru cut, cut and pull, or end finished) from control panel. Lengths and quantities are user-selectable, allowing the machine to be programmed for automatic operation.

Discovery Semiconductors Inc.    Ewing, NJ 08628
Aug 27, 2002 Suitable for eye safe free space applications, Model R205M operates at 150 MHz with peak gain of 20 dB. Offered in compact hermetic package, balanced receiver option consists of matched InGaAs/InP photodiodes and low noise amplifier. When used in coherent-lightwave link designs, receiver eliminates laser relative intensity noise (RIN). It comes with choice of optical input connector and type K or dual GPPO/SMMP coaxial RF output.

AD OPT Technologies Inc.    Montreal, QC H3V 1H8
Aug 27, 2002 Altitude® Manpower Planning (MPP) system provides tools to plan optimal and cost effective manpower levels for projected fleet schedule plan. Cost analysis tool allows planners to evaluate different options, scenarios, and short- or long-term schedules. System is able to run what-if scenarios and react to unforeseen crew shortages. Integrated via common data system, it provides sufficient staffing levels for every applicable aircraft category.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 27, 2002 Compact Series 645 differential pressure transmitter measures gas or liquid up to 100 psid with ±0.25% accuracy. It measures 7 x 8 in., and can be wall or pipe mounted. Applications include HVAC and refrigeration equipment, energy management systems, pump speed control, filter condition monitoring, and process control. Three-valve manifold assembly allows for total elimination of air in line or pressure cavities.

Advanced Motion Controls, Inc.    Camarillo, CA 93012

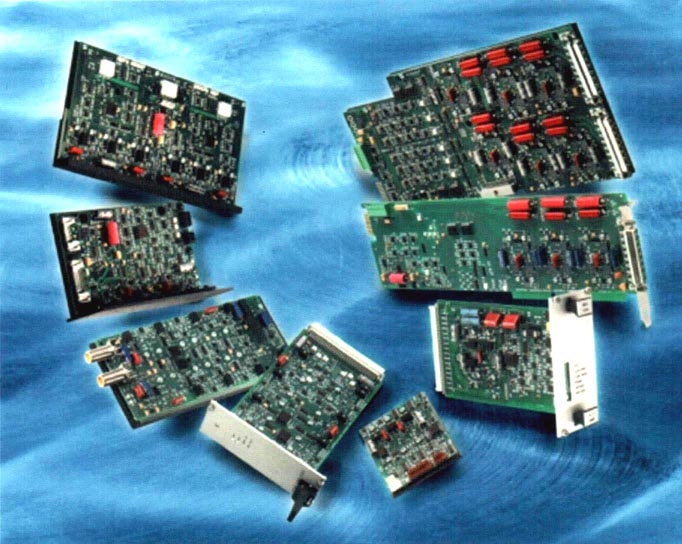

Aug 27, 2002 Servo amplifiers and drives are available in custom designs to drive brushless and brush-type linear and rotary motors and actuators. Each can be customized with connectors, number of axes, power range, feature set, functionality, diagnostics, packaging, and I/O. Supply voltages range from 20 to 400 Vdc. Output current capability is up to 120 A peak. Various commands and interfaces are available.

TRUMPF Inc.    Farmington, CT 06032
Aug 27, 2002 The X5 option for V Series Press Brakes allows for ±2.95 in. programmable movement of right back gauge finger stop. It enables operator to program and form tapered flanges with up to 2.95 in. of variation. User can choose between 2-, 3-, 4-, 5-, or 6-axis back gauge. Brakes feature automatically controlled bending, press force of 56 to 357 tons, and bending lengths from 50 to 160 in. Applications include thick-sheet and stainless-steel processing, as well as coining and folding.

Ortronics, Inc.    New London, CT 06320
Aug 27, 2002 Mighty Mo full size cabinets (32 in. wide) includes 2 Mighty Mo Vertical Cable Management Channels. Available in 4 sizes, cabinets come with curved safety glass front door, removable side panels, and solid rear door (all lockable). They also have ventilation fans, 4 adjustable 12-24 tapped EIA mounting rails, and cable access at top and bottom. Wall mount cabinets are available in 5 sizes and are available in fixed and swing-out versions.

CTC Parker Automation    Milford, OH 45150 9792
Aug 27, 2002 MachineLogic Slot Card offers simultaneous Fieldbus and Ethernet communications, program capacity to handle larger applications, IEC 61131 programming language compliance, and 16K of I/O. Slot Card has its own processor and real-time operating system and can be bundled with PowerStation and Interact software for single source control solution.

Toyota Industrial Equipment    Torrance, CA 90509 2991
Aug 27, 2002 Walkie Stacker electric forklift series is comprised of 7 models, which includes straddle, counterbalanced, and reach stackers with capacities ranging from 2,000 to 4,000 lbs. Engineered with Metal Oxide Semiconductor Field Effect Transistor (MOSFET) controller systems and SEM (Separately Excited Motor) drive technologies, forklift series offers stepless acceleration, heavy-duty wheels, multi-function control handle, and programmable drive system.

HARTING, Inc.    Elgin, IL 60123 5538
Aug 27, 2002 Han-Brid connector packages standard RJ-45 plugs and jacks into variety of hoods and housings that offer protection from water, oil, dust, and dirt. Two integrated 10 A contacts supply power to network. Assembly is performed with standard tools making field installation possible. Connector is rated for Category 5 transmissions.
