Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Aug 23, 2002 Engine-driven Shield-Arcâ„¢ SA250, in fully assembled Ready-Pakâ„¢ road-trailer package, consists of power source, trailer, cable rack, ball hitch, fender and light kit, 300 A ground clamp, 300 A electrode holder, 100 ft 2/0 electrode cable, 100 ft 2/0 ground cable, and 7018 Excalibur electrodes. SA-250 250 A stick welder features Perkins 4-cylinder, water-cooled, diesel engine. It is suitable for construction, repair, and pipe welding.

Endress + Hauser Inc.    Greenwood, IN 46143
Aug 23, 2002 PROline Prosonic Flow 93P works on pipes from 2 to 160 in. dia to measure flow of liquids, including acid, paint, liquefied gas, and ultrapure water. Clamp-on sensor attaches to exterior wall of pipe. Stainless steel sensors are rated NEMA 6P or IP 67/68. Temperature range for sensors is -40 to +340ºF. Transmitter housing has NEMA 4X rating and features LCD display. Unit can make two-channel measurement at one or two different measuring points.

Comco, Inc.    Burbank, CA 91504 3344
Aug 23, 2002 MicroBlaster removes material and performs exacting surface preparation on difficult to reach surfaces. It can be used with 25 or 50 micron abrasive media to blast air foils and reach down into 40 to 100 radial cooling holes of air foil. Micro-abrasive blasting removes oxide layer, and finely textures surface to further enhance chemical cleaning.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Aug 23, 2002 Spectrum® 625 portable air plasma cutter produces cuts at rate of 16 ipm using hand-held torch. Wind Tunnel Technologyâ„¢ helps prevent abrasive dust and metal particles from damaging internal components, while Fan-On-Demandâ„¢ function reduces amount of airborne material pulled through unit by turning on cooling fan only when needed. Suitable for light construction, maintenance, fabrication, and body shop applications.

Tri-Mer Corp.    Owosso, MI 48867
Aug 23, 2002 Suitable for use in corrosive environments, fabrications are manufactured from 3/16 to 1½ in. homogeneous polypropylene. Material is UV-stable and not subject to delamination or environmental stress cracking. Chemically inert and free of plasticizers, fabrications suit process and manufacturing applications. Performance life is rated at 20+ years.

APV Americas Fluid Handling    Lake Mills, WI 53551
Aug 23, 2002 Model Ws+ with flexible diameter impeller settings allows users to set flow and pressure levels up to 396 gpm and 200 ft, respectively. Suitable for hygienic applications, it is approved to 3A sanitary standards. Standard hydraulic pump comes with 1 mechanical seal made of silicon carbide/carbon. Double mechanical flushed seal and silicon carbide/silicon carbide seal faces are also available.

Power Innovations International, Inc.    Lindon, UT 84042
Aug 23, 2002 Uninterruptible power quality (UPQâ„¢) Series Q-RX provides clean, filtered, and conditioned power plus battery backup for mobile electronic equipment and computer systems. Rack-mounted systems are available in 1, 2, and 3 kVA models, have hot swappable batteries, and exceed military standards MIL-STD-167, 810E, and 810 for shock, vibration, temperature, and humidity. Applications include trucks, ships, and aircraft where COTS equipment is required.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Aug 23, 2002 Ultimate G Style shave tool holder has dovetail float mechanism, hardened and ground dovetail slide, and tapered gib. Dovetail float mechanism, with more bearing surface than original pin style holders, reduces chatter. Holder has replaceable tool post that can be removed without having to remove shave tool holder or altering setup at machine. Tool posts are available for standard dovetail tools or HSS and super carbide insert type tools.

Inpro/Seal Co.    Rock Island, IL 61204 7331
Aug 23, 2002 Inpro/Seal® VBXâ„¢ Bearing Isolators eliminate moisture, dirt, and abrasives that contaminate bearing environments, protecting motors from failure. Isolators are available for new and rebuilt premium efficiency severe-duty electric motors.

Calex Mfg. Co., Inc.    Concord, CA 94520
Aug 22, 2002 QH Series converters, housed in industry-standard 1.45 x 2.28 x 0.52 in. 1/4 brick package, provide up to 20 A of current, and have output voltages of 3.3, 5, 12, 15, or 24 Vdc. Efficiency is up to 87%. Output is isolated from inputs, allowing output to be used with positive or negative polarity and various grounding options. Input voltage options are 24 and 48 Vdc. All models provide pulse-by-pulse and dead-short current limiting.

Leidemaul Ltd.    Rockford, IL 61104
Aug 22, 2002 EasyLinearâ„¢ linear motion products include Round Way and Profiled Rail Ball Slides, as well as Teflon Composite Slides. Ball slides are suitable for high-speed and positioning applications. Teflon Composite slides are suitable for rugged environments.

Newman, M.M., Corp.    Marblehead, MA 01945

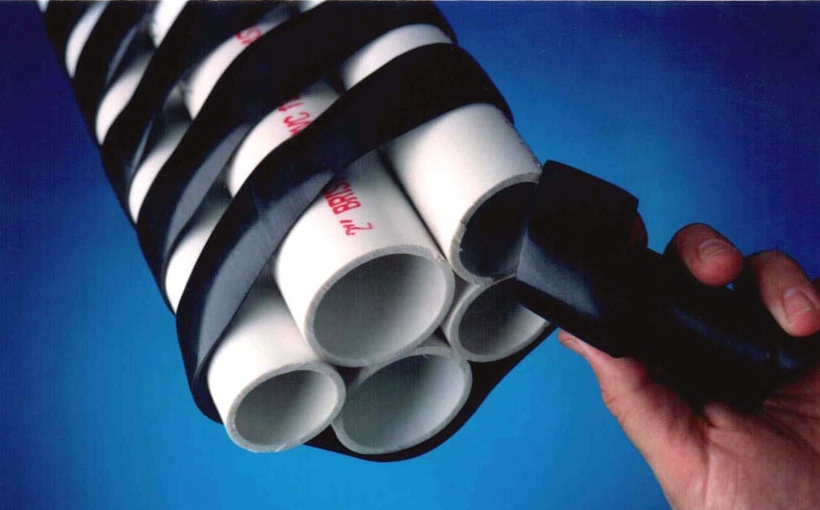

Aug 22, 2002 Heli-Tube® Spirally Cut Polyethylene Cable Wrap and Abrasion Protector is 1 1/2 in. OD. Designed for outdoor use, UV-resistant black wrap is unaffected by direct sunlight, saltwater, fuels, oils, and detergents. It is UL listed, conforms to ASTM-D-1044, Federal Spec LP 390 for abrasion resistance, and meets MIL-I-631D and MIL-P-26692 specs. Nine other sizes from 1/8 to 1-1/4 in. O.D. are offered.

Meller Optics, Inc.    Providence, RI 02940

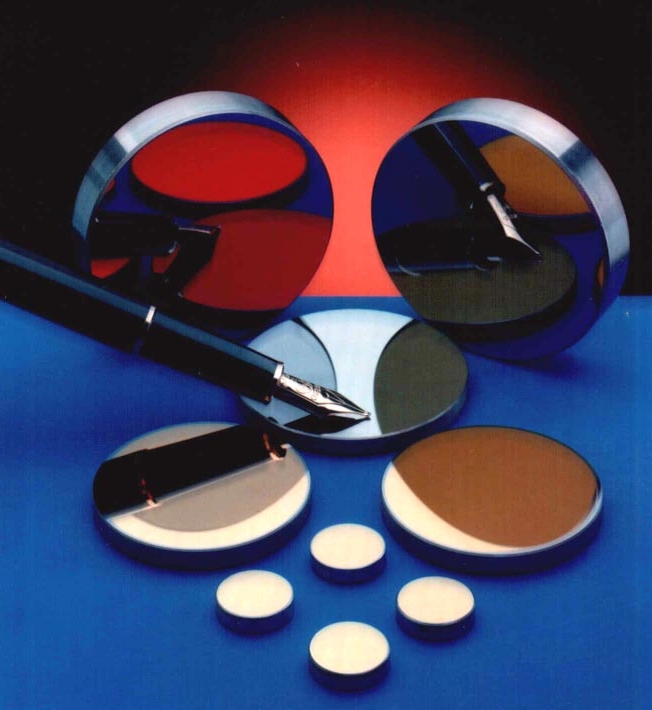

Aug 22, 2002 CO₂ Laser Mirrors, for 25 to 200 W industrial lasers, are available in ½ to 1½ in. OD sizes. Silicon mirrors feature average reflectance >99.5 to 99.7% @ 10.6 µm and 45° AOI, while molybdenum mirrors provide 98% average reflectance, and are more durable for use in applications that require frequent cleaning. Mirrors made from silicon can be provided with enhanced silver, copper, and DMBR (dual band) coatings.

Hitachi Cable Manchester, Inc.    Manchester, NH 03109
Aug 22, 2002 U320 SCSI NexZ₀â„¢ cable consists of 34 twisted pairs with 30 AWG stranded primaries, designed for internal point-to-point or daisy chain SCSI assemblies. Round construction allows easy routing within box and increases air flow over flat equivalents. Differential impedance is 120 ohms ± 5 ohms and meets SPI-3 and SPI-4 electrical requirements. Primary overall diameter of .024 in. permits cable to be laminated on .025 in. centers for termination with IDC connectors.

80/20, Inc.    Columbia City, IN 46725
Aug 22, 2002 Stanchions are available in 40 models, including single or double shaft bases, blank or pre-drilled mounting plates, and single or double mounting blocks in 1, 1.5, and 2 in. bore sizes. Quick Clamp series of stanchions allow user to make fast adjustments without tools. Applications include positioning camera equipment, scanning devices, light sources, photo sensors, computer monitors, and actuators.

Schurter, Inc.    Petaluma, CA 94975

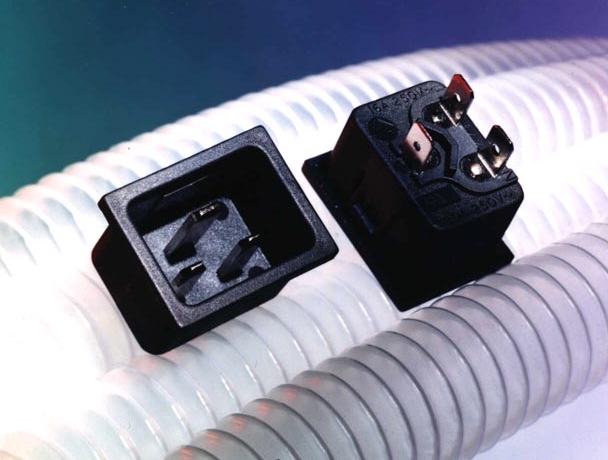

Aug 22, 2002 Model 4793 is offered in several versions to suit panel thicknesses from 1 to 3 mm, with 6.3 mm quick-fit terminals or solder tabs. Body is made from UL94-V0 thermoplastic, and contact pins and terminals are bright electro-tin plated brass for low resistance. Inlet is designed to comply with EN 60320-1/C20 for Class I cold condition. It is approved at cURus 250 V/20 A and VDE 250 V/16 A.

Alemite Corporation    Charlotte, NC 28226 3515
Aug 22, 2002 RAM reciprocating grease pumps have double acting downtubes and provide 4.5 gpm grease delivery. Powered by RAM air-operated 3 in. dia spool valve motor, they provide constant grease flow on both upstroke and downstroke. Pumps produce 50:1 material-to-air pressure ratio. Air inlet is 1/4 in. female, and material outlet is 3/8 in. female. Units are available in portable, drum, and bulk dispensing configurations.

Rexnord Industries, LLC    Milwaukee, WI 53214
Aug 22, 2002 Stearns® 87,300 Series solenoid-actuated, hazardous location disc brake is offered in 7 sizes with torque ratings from 10-105 lb-ft. Motor- and foot-mounted versions are available with NEMA 4, 7, and 9 enclosure protection. Cast-iron enclosure features O-ring seals between housing and endplate, as well as endplate and motor. Class H coil insulation and built-in thermal protector prevent brake surface temperature from exceeding specified limits for hazardous locations.

Spectronics Corp.    Westbury, NY 11590

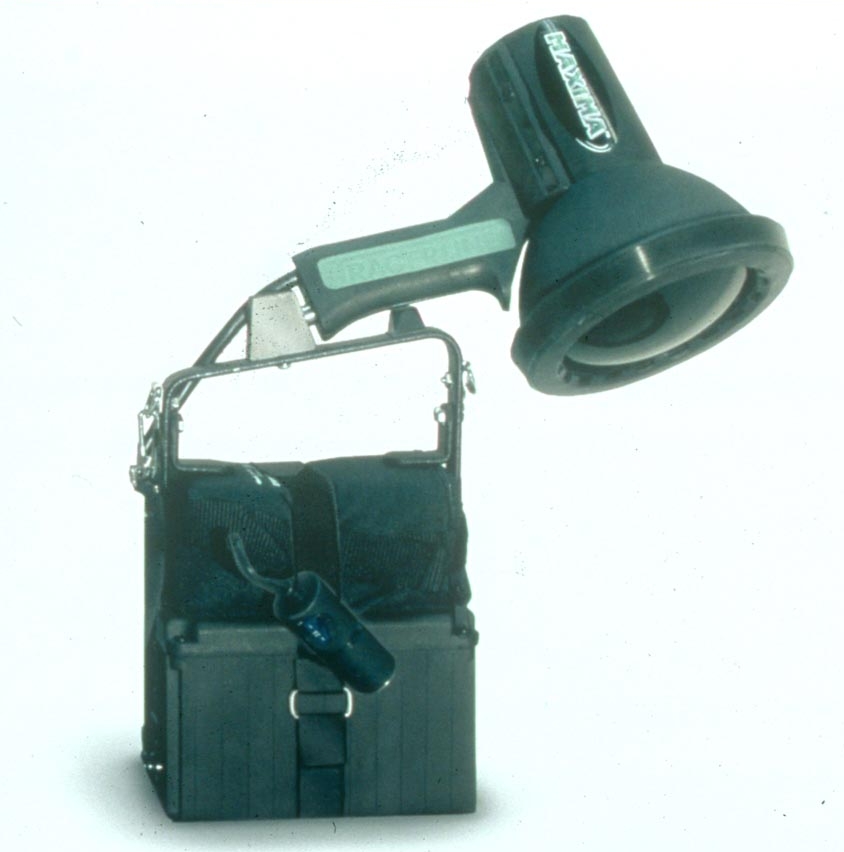

Aug 22, 2002 Tracerline® Maximaâ„¢ TP-35000 ultraviolet lamp utilizes Micro Discharge Light technology, which enables lamp's 35 W bulb to deliver UV-A intensity of 60,000 µW/cm² at 15 in. Polymer housing is dent-proof and shock-resistant. Bulb assembly is single integral unit with no exposed circuitry. TP-35000 is offered in spot and flood versions in 100, 120, and 230 V. Battery operated, 12V portable model is also available, as is version with retractable flying reel.

DJ Instruments    Billerica, MA 01821
Aug 22, 2002 Model GG features integral 1-piece design and is offered with number of pressure ports, electrical connections, and choice of aluminum or stainless steel bodies. Accuracy is <1.0% of Full Scale, and Full Scale output is 1.0 mV/V nominal. Pressure ranges are from 0-100 up to 0-10,000 psig. Typical uses include hydraulic fluid controls and pump diagnostic systems.
