Finishing Equipment Inc.    St. Paul, MN 55122

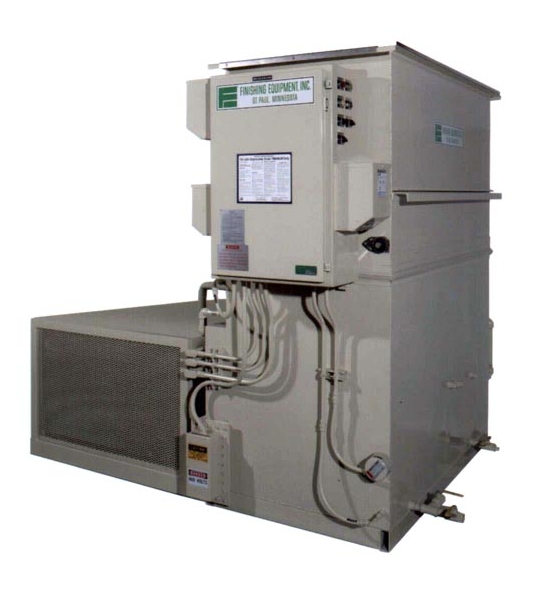

Aug 26, 2002 Self-contained Model MSM uses Methylene Chloride, an EPA-approved solvent, to clean and strip coatings, while recovering all solvent. Method eliminates flammable and explosive solvents, as well as hand scrubbing and scraping. Process, when used for stripping, removes resists used for masking during plating and etching. It also removes rubber, paints, resins, and other coatings, and cleans spray masks, fixtures, racks, and hooks.

Orange Peel - Rotating Shaft Guards    Cedarburg, WI 53012

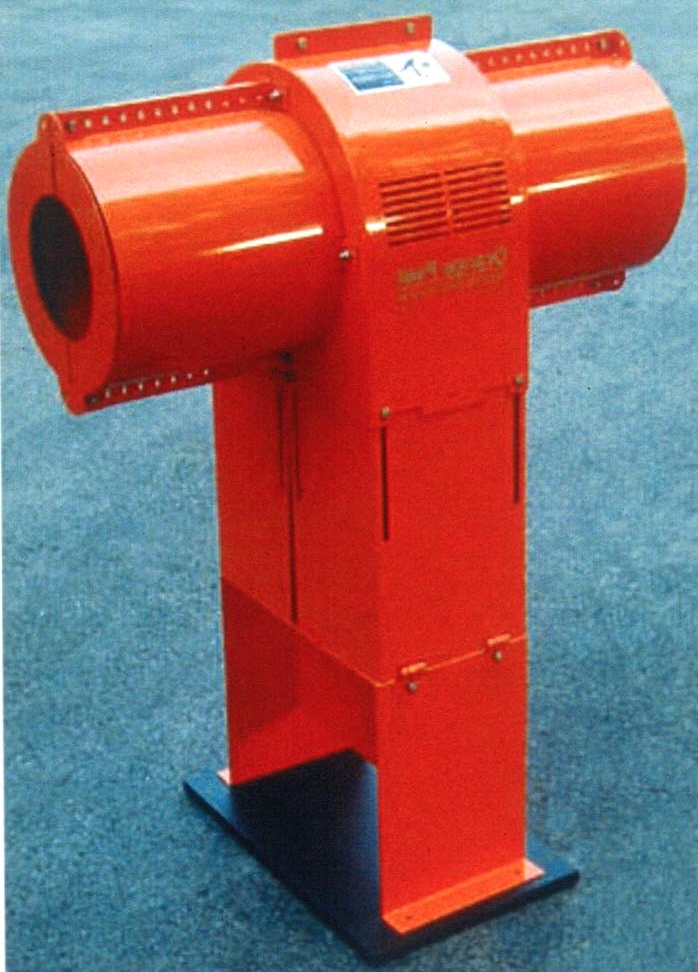

Aug 26, 2002 High Base guards are available for use with Type CCG Polyethylene and CFCG/SCG Metal Guards. Made from fabricated steel, and powder coated in safety orange finish, High Bases elevate guards to accommodate high base to centerline requirements. Supplied in polyethylene or metal, they offer all stainless steel hardware. Polyethylene guards never dent, rust, or need painting. Applications include pumps, fans, gear drives, crushers, and plant machinery.

Yasda Precision America Corporation    Elk Grove Village, IL 60007

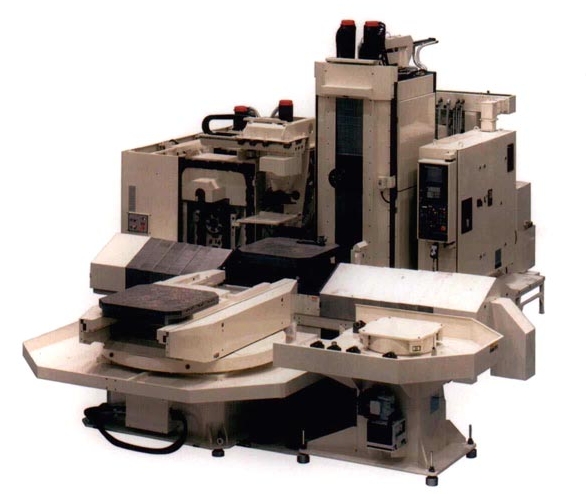

Aug 26, 2002 Model YBM-10T Precision Center, capable of high-speed positioning of 45 m/min, uses twin ball screws on each of 3 axes. Ball-screw and twin servo-drive system provide vertical movement and straightness of head stock. Axial/radial combination roller bearing on B-axis allows components up to 5 tons to be rotated and positioned. Hybrid system offers load sensing and surface pressure compensation functions on slide way.

Porta-King Building Systems    Earth City, MO 63045 1211

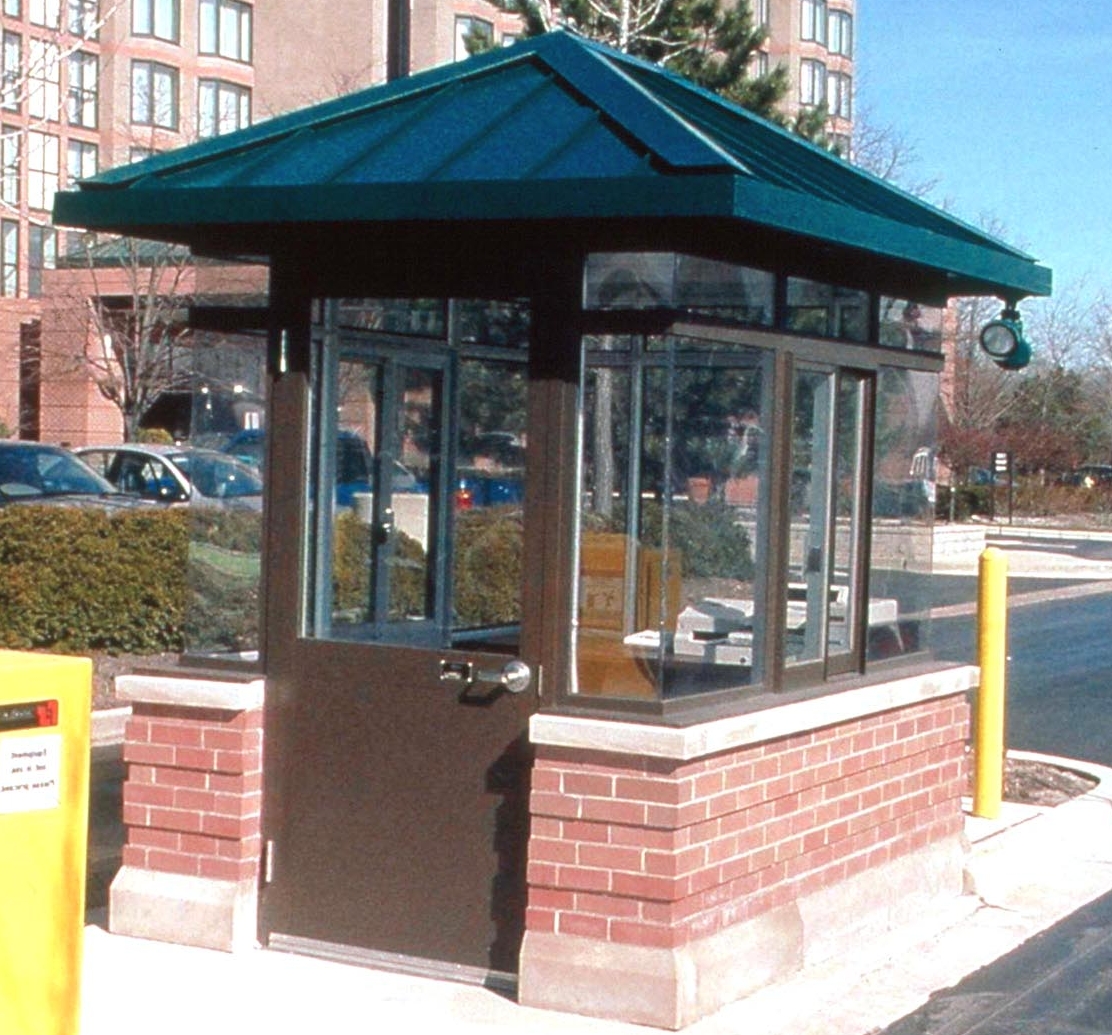

Aug 26, 2002 Pre-wired, custom-built, satellite booths, for airports, are available with steel or aluminum construction. Steel booths offer single- or double-paned tempered glazing, butt joined at corners, while aluminum models have heat-formed polycarbonate or acrylic wrap-around glazing. Both models can be provided with horizontally sliding transaction windows, raised or reveled roof fascia, brick facades, standing-seam and expanded-metal roofs, and custom paint.

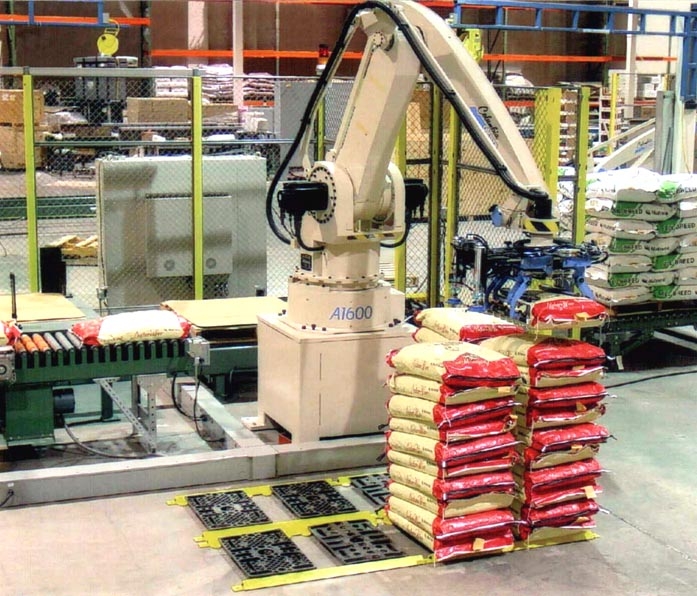

Columbia Okura LLC    Vancouver, WA 98661
Aug 26, 2002 Mini-pallet Palletizing System stacks single column of bags onto 24 x 15 in. pallet. It can also simultaneously stack product on standard 40 x 48 in. pallet. Palletizer is suitable for seed and animal-feed industries where individual orders are common, eliminating need to manually transfer bags from standard-pallet load to mini-pallet.

Stanley Co., Inc.    Irvine, CA 92606-5029

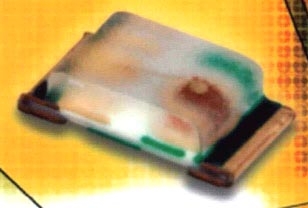

Aug 26, 2002 PY1114CK Super Thin SMT LED is 0.4 mm thick, making it a suitable light source for applications requiring minimal space. It is available in yellow-green with milky white lens. Luminous intensity is 5.6 mcd with IF of 10 mA. Forward voltage is typically 2.1 V with IF of 10 mA, and reverse current IR is 100 µA maximum, with VR of 4V. PY1114CK comes in tape-and-reel packaging.

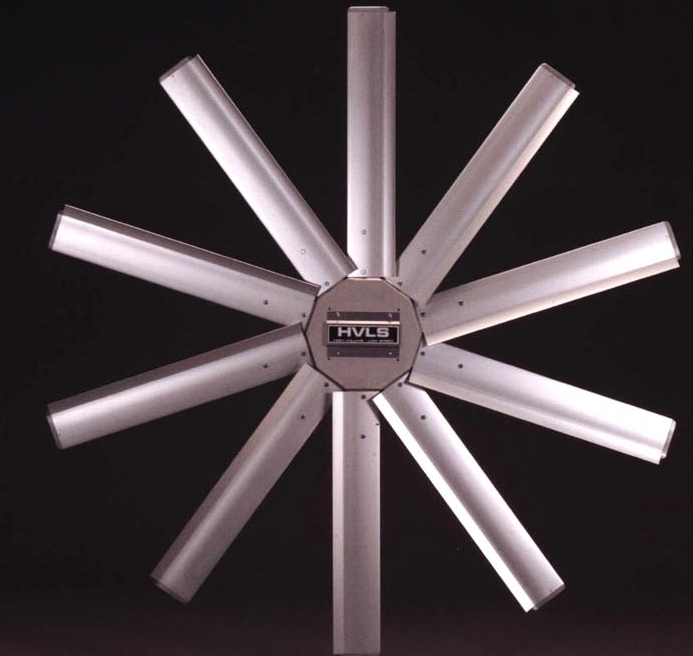

HVLS Fan Co.    Lexington, KY 40575
Aug 26, 2002 Wickerbill or Gurney-flap modified airfoils are available on 8, 10, and 12 ft HVLS (high volume, low speed) fans. Wickerbill-modified 12 ft diameter fans move over 80,000 cfm, as much as a conventional 20 ft fan. Fans employ 10 airfoils, blanketing an area of 10 to 15,000 square feet with 3 mph breeze. Available in diameters from 8 to 24 ft, HVLS ceiling-mounted fans are suitable for use in high-ceilinged warehouses, industrial plants, and distribution centers.

Igus, Inc.    East Providence, RI 02914 0349
Aug 26, 2002 ReadyChain® Energy Chain System® is made up of cable carrier, cables, connectors, and other components, customized for industrial applications. It is useful for manufacturers who produce products in series or single-item production. Applications include textile machinery, robotics, tube-bending machines, construction equipment, assembly line, and gantry cranes.

Adhesive Technologies, Inc.    Hampton, NH 03842 1995
Aug 26, 2002 Designed in 4 x 4 in. blocks, for use with melt pots and large bulk systems, non-toxic Formula 298-404 hot-melt spray adhesive provides single-surface bonding within 30 seconds and tack times from 1 min. With output yield rated to 48 ft², formula can be applied to large substrates where temperature resistance is of concern. Viscosity at 350°F is rated at 2000 cps, and heat resistance (50 gram weight) is rated to 215°F.

Wieland Electric Inc.    Burgaw, NC 28425
Aug 26, 2002 Spring-clamp Series WKF 1.5 E provides double-tier connection on one side for fixed wiring. The other side consists of pluggable blocks that can be immediately connected and disconnected. Spring-clamp blocks offer 5 mm termination point spacings and are UL rated for 15 A, 300 V for wire sizes 22-14 AWG. Pluggable blocks are rated for 12 A and over-voltage category II (400V/4kV/2). Polyamide 6.6 plastic housing is rated to UL 94 V-0 flammability standards.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Aug 23, 2002 Engine-driven Shield-Arcâ„¢ SA250, in fully assembled Ready-Pakâ„¢ road-trailer package, consists of power source, trailer, cable rack, ball hitch, fender and light kit, 300 A ground clamp, 300 A electrode holder, 100 ft 2/0 electrode cable, 100 ft 2/0 ground cable, and 7018 Excalibur electrodes. SA-250 250 A stick welder features Perkins 4-cylinder, water-cooled, diesel engine. It is suitable for construction, repair, and pipe welding.

Endress + Hauser Inc.    Greenwood, IN 46143
Aug 23, 2002 PROline Prosonic Flow 93P works on pipes from 2 to 160 in. dia to measure flow of liquids, including acid, paint, liquefied gas, and ultrapure water. Clamp-on sensor attaches to exterior wall of pipe. Stainless steel sensors are rated NEMA 6P or IP 67/68. Temperature range for sensors is -40 to +340ºF. Transmitter housing has NEMA 4X rating and features LCD display. Unit can make two-channel measurement at one or two different measuring points.

Comco, Inc.    Burbank, CA 91504 3344
Aug 23, 2002 MicroBlaster removes material and performs exacting surface preparation on difficult to reach surfaces. It can be used with 25 or 50 micron abrasive media to blast air foils and reach down into 40 to 100 radial cooling holes of air foil. Micro-abrasive blasting removes oxide layer, and finely textures surface to further enhance chemical cleaning.

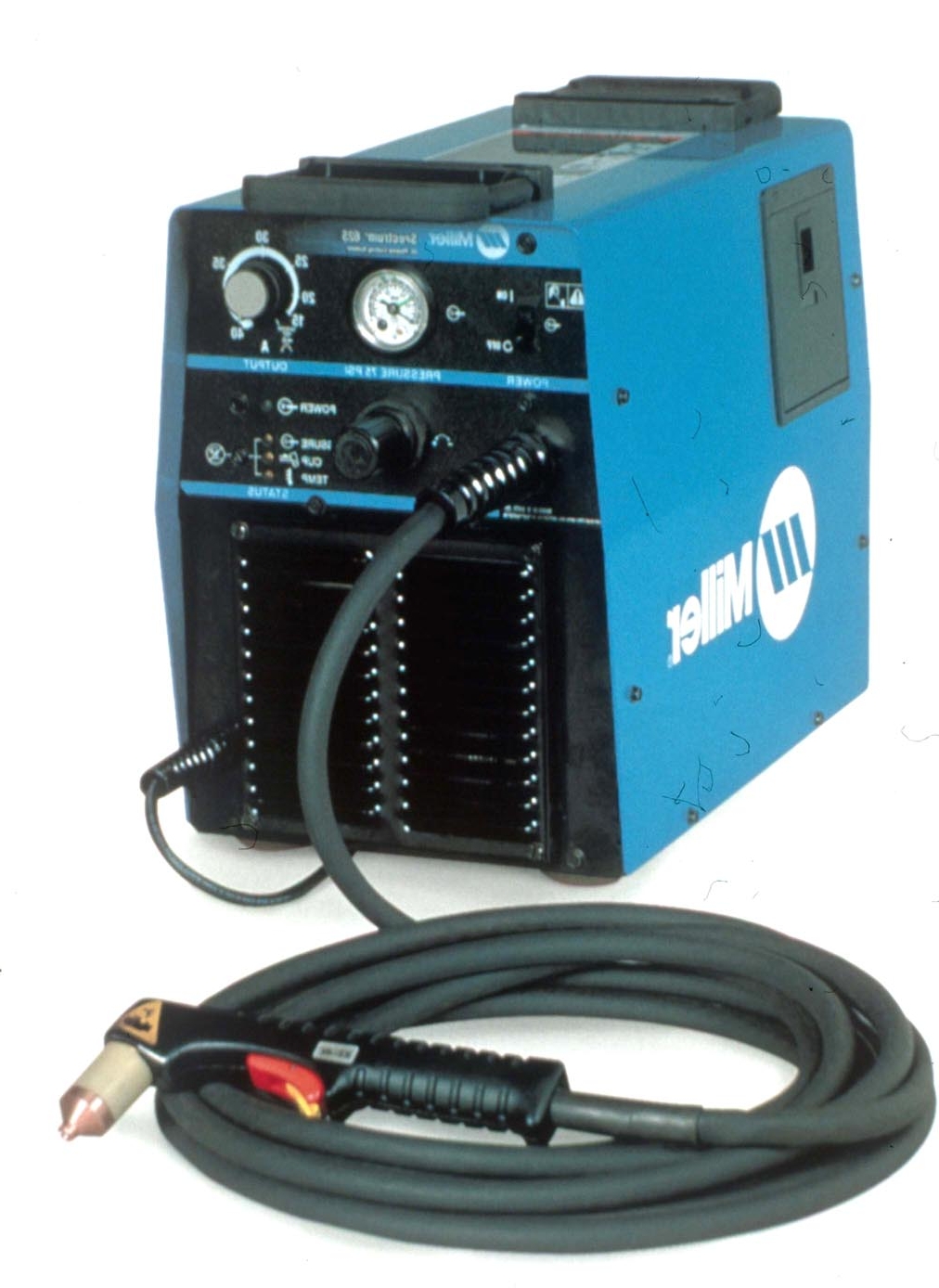

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Aug 23, 2002 Spectrum® 625 portable air plasma cutter produces cuts at rate of 16 ipm using hand-held torch. Wind Tunnel Technologyâ„¢ helps prevent abrasive dust and metal particles from damaging internal components, while Fan-On-Demandâ„¢ function reduces amount of airborne material pulled through unit by turning on cooling fan only when needed. Suitable for light construction, maintenance, fabrication, and body shop applications.

Tri-Mer Corp.    Owosso, MI 48867
Aug 23, 2002 Suitable for use in corrosive environments, fabrications are manufactured from 3/16 to 1½ in. homogeneous polypropylene. Material is UV-stable and not subject to delamination or environmental stress cracking. Chemically inert and free of plasticizers, fabrications suit process and manufacturing applications. Performance life is rated at 20+ years.

APV Americas Fluid Handling    Lake Mills, WI 53551

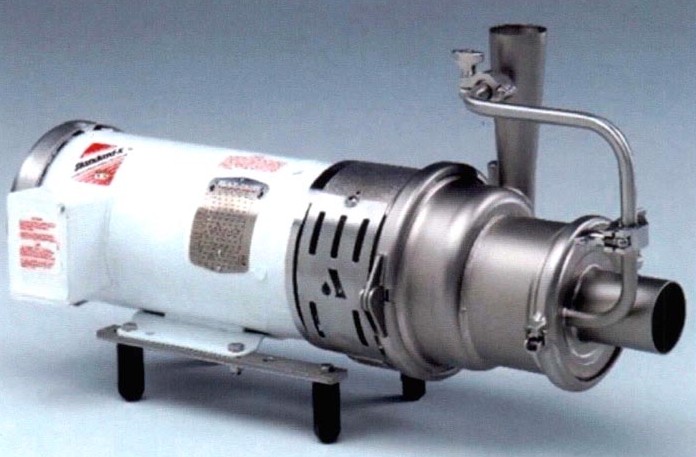

Aug 23, 2002 Model Ws+ with flexible diameter impeller settings allows users to set flow and pressure levels up to 396 gpm and 200 ft, respectively. Suitable for hygienic applications, it is approved to 3A sanitary standards. Standard hydraulic pump comes with 1 mechanical seal made of silicon carbide/carbon. Double mechanical flushed seal and silicon carbide/silicon carbide seal faces are also available.

Power Innovations International, Inc.    Lindon, UT 84042

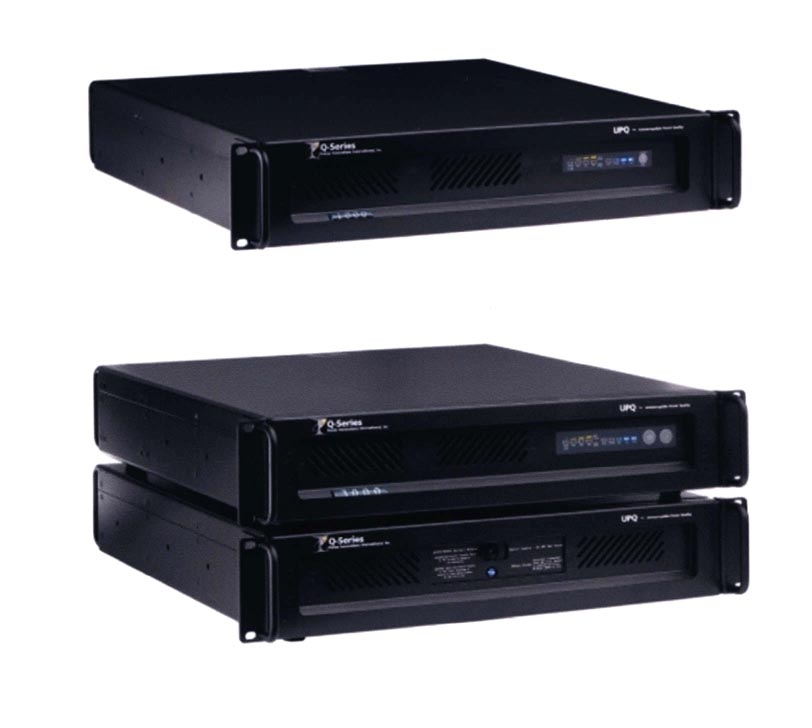

Aug 23, 2002 Uninterruptible power quality (UPQâ„¢) Series Q-RX provides clean, filtered, and conditioned power plus battery backup for mobile electronic equipment and computer systems. Rack-mounted systems are available in 1, 2, and 3 kVA models, have hot swappable batteries, and exceed military standards MIL-STD-167, 810E, and 810 for shock, vibration, temperature, and humidity. Applications include trucks, ships, and aircraft where COTS equipment is required.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Aug 23, 2002 Ultimate G Style shave tool holder has dovetail float mechanism, hardened and ground dovetail slide, and tapered gib. Dovetail float mechanism, with more bearing surface than original pin style holders, reduces chatter. Holder has replaceable tool post that can be removed without having to remove shave tool holder or altering setup at machine. Tool posts are available for standard dovetail tools or HSS and super carbide insert type tools.

Inpro/Seal Co.    Rock Island, IL 61204 7331
Aug 23, 2002 Inpro/Seal® VBXâ„¢ Bearing Isolators eliminate moisture, dirt, and abrasives that contaminate bearing environments, protecting motors from failure. Isolators are available for new and rebuilt premium efficiency severe-duty electric motors.

Calex Mfg. Co., Inc.    Concord, CA 94520

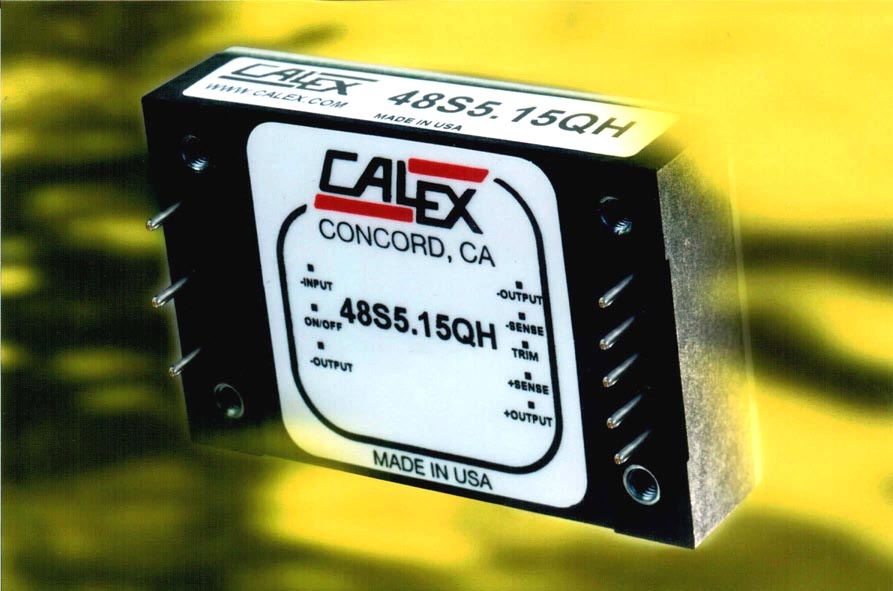

Aug 22, 2002 QH Series converters, housed in industry-standard 1.45 x 2.28 x 0.52 in. 1/4 brick package, provide up to 20 A of current, and have output voltages of 3.3, 5, 12, 15, or 24 Vdc. Efficiency is up to 87%. Output is isolated from inputs, allowing output to be used with positive or negative polarity and various grounding options. Input voltage options are 24 and 48 Vdc. All models provide pulse-by-pulse and dead-short current limiting.
