AEC, Inc.    Wood Dale, IL 60191
Sep 24, 2002 Fluid Cooling System packages water-to-air heat exchanger and pumping system to cool process water when water temperature of 5°F above ambient dry bulb temperature is acceptable. Factory plumbed and wired, system comes complete with plug-n-play capabilities. When process water temperatures at or below 70°F are necessary, chiller is required.

Thomson Industries Inc.    Port Washington, NY 11050 2214
Sep 24, 2002 Ball Screws are assembled, packaged, and nitrogen purged inside laminar flow, Class 10 clean room environment. They are lubricated, bagged, and sealed to eliminate contamination and enhance shelf life. Custom clean room hollow and telescoping screws can be designed and built, in addition to stainless steel and chrome plated assemblies. Inch and metric sizes are available with preloaded and non-preloaded ball nuts.

Danaher Motion/Thomson Linear Bearing    Mayfield Heights, OH 44124
Sep 24, 2002 Precision Balls are offered in flat, diagonally cut, cone, and pin shapes that are typically used as hardened polishing and shaping tools. Sizes range from 1/6 to 1 in. in stainless steel, 52100 chrome, and ceramic materials. Balls are QS-9000 certified and ISO 9002 registered.

Bio-Rad Laboratories Inc.    Hercules, CA 94547
Sep 24, 2002 Model 680 offers on-board software capabilities and validation protocol as well as optional on-board printer and temperature control. Stand alone instrument may be controlled by PC using Microplate Manager PC software. Wavelength range is 400–750 nm. Model 680 reads 96-well plate in 6 sec in Fast Read mode and performs dual wavelength reads in 10 sec. Checkmark Reader Performance Check Plate IQ/OQ/PQ accessory kit is available to check performance parameters of accuracy, precision, and linearity.

Zebra Skimmers    Solon, OH 44139
Sep 24, 2002 Zebra Muscleâ„¢, consisting of skimmer, aerator, and oil separator, includes spin-welded fittings to create leak-proof skimming system. Available in 3 different models, system includes non-kinking, crush-resistant coolant hose, 1 gpm submersible pump, and translucent 15 gal barrel. Zebra Muscle aerates, filters, and separates coolant from tramp oil so that coolant lasts longer.

DVS Digital Video Inc.    Burbank, CA 91502
Sep 24, 2002 Based on Incite Editor software and HDStationRGB, Incite Editor v3 supports HD formats plus 2K and 4K. With compatibility to HDreel and real-time disk array with network capabilities and fiber channel connectivity, HDStationRGB acts as central video hub for digital lab. It may be applied to both SDTV and HDTV broadcast markets, as well as for high-end feature film production.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Sep 24, 2002 Rack and Pinion System includes gear reducer or gearmotor with integrated pinion and rack. All mounting surfaces are ground to tight tolerances. Standard rack lengths are 167 to 500 mm. High linear accuracy is due to minimum total pitch error of 12 µm per 500 mm of length. Load capacities up to 13,000 N are available. Wear-resistant surface treatment and individually deburred gear teeth provide reliability.

Synario Design Automation Div., Data I/O Corp.    Redmond, WA 98073 9746
Sep 24, 2002 Portable TF20 Tray Feeder incorporates electronically controlled drive systems to enable feeder to safely handle thick or thin JEDEC or IEC trays. Automatic tray exchange is controlled by host machine is less than 5 sec. Trays are fed from stack to pick position and returned once devices have been programmed. Tray replenishment is achieved during machine’s TAKT time.

Liquid Control Corp.    North Canton, OH 44720
Sep 24, 2002 The C500 3D Contour Motion Platform provides heavy-duty robotic dispensing. Operator selects programs through flat panel control. Programming selections can be made by choosing program name or photos of part to reduce potential for operator error. System delivers dots, lines and contours in 2D and 3D. P200 Point to Point Motion Platform is designed for fast dispensing placement accuracy and repeatability without coordinated XY movement. Five pallet programs can be stored.

Compaction America, Inc.    Kewanee, IL 61443 1714

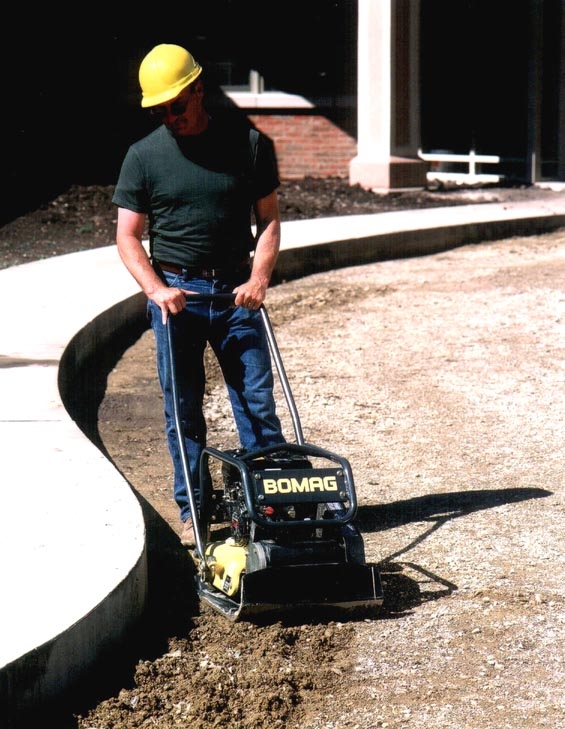

Sep 23, 2002 Single-direction Models BOMAG BP25/48 and BP25/48D deliver 6,075 lb of centrifugal force at frequency of 5,400 vibrations/min. BP25/48 is powered by 5.5 hp Honda gasoline engine, while BP25/48D has 4 hp Hatz diesel engine. Wear-resistant base plates decrease amount of material pick-up and allow operators to turn units while compacting asphalt without scuffing work surface. Optional water sprinkler may be added for asphalt patching applications.

American Allsafe    Tonawanda, NY 14150 2593
Sep 23, 2002 Winter cap is available in range of styles for use under all types of safety helmets and caps. Hook and loop fasteners under chin make for easy, secure fit. Most models are treated for flame retardance. Various fabric and comfort options are available.

EPSON Factory Automation/Robotics    Carson, CA 90746

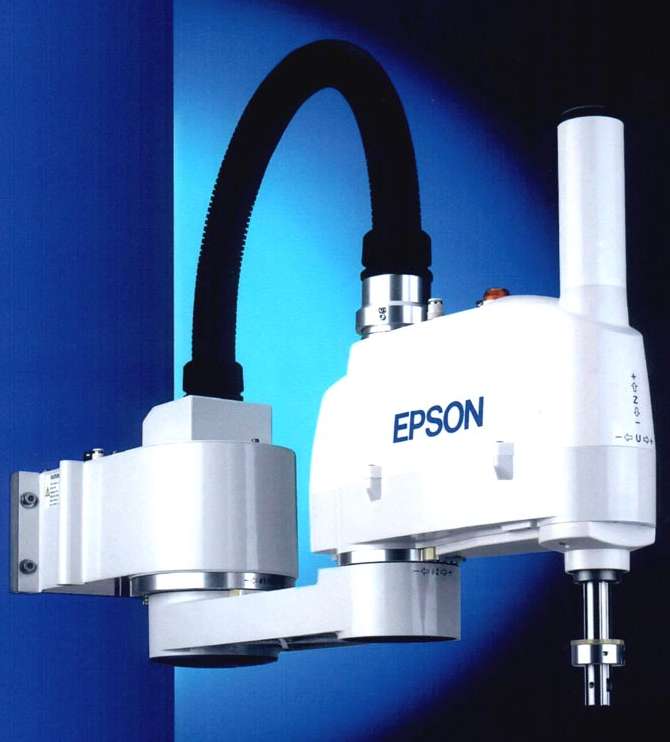

Sep 23, 2002 E2 SCARA Robots provide 0.38 in/sec cycle time with 0.008 micron repeatability. They can be mounted on table top, side wall, shelf top, shelf bottom, and ceiling. Units are offered in 32 models which are UL listed, plus Class 10 Cleanroom and ESD compliant. Programming software runs on open architecture, PC-based controller.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Horizontal Model FH 1016 includes 1 in. blade, controlled with carbide guides, and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash-down hose for clean up.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model SH 1016 horizontal band saw includes 1 in. blade, which is controlled with carbide guides and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash down hose.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Swing-head Model SHA 1016 offers 60° mitering capability. It has capacities of 10 x 16 in. at 90° and 10 x 8 in. at 30°. Band saw includes 1 in. blade, controlled with carbide guides, preset blade tensioning with power blade-cleaning brush, and fine adjustment of feed control. Machine has 40 in. stroke, parts counter, and 2 hp variable-speed drive.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model SH 1419 swing head band saw has 60° mitering capability with capacities of 14 x 19 in. at 90° and 14 x 8 in. at 30°. It includes 1 1/4 in. blade, carbide guides, preset blade tensioning, power blade brush, and 3 hp variable frequency AC drive with speeds from 70 to 400 fpm. Self-contained hydraulic unit offers quick approach, head hold, and separate cutting feed rate. Saw also features feed force adjustments, recirculating flood coolant system, and ANSI guarding.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Vertical Contour Model VC-20 saws, polishes, and files wood, plastic, steel, aluminum, and stainless steel. Variable-frequency, 2 hp AC drive achieves band speeds from 100 to 2000 fpm. Band saw accepts blade widths from 1/16 to 1 in. and follows radiuses or cuts off large sections. Equipped with one set of insert-type guide blocks for bands 1/8 through 1/2 in., saw may be adapted for up to 1 in. bands. It includes band tension indicator and chip pan.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Semi-automatic Model CLM 350 offers rigid column design, allowing cutting of up to 4 in. solid tool steels. Rugged enough to cut tough alloys and heavy wall tubes, saw utilizes 5 hp driven motor with self-contained hydraulic system, and can miter 45° left and right. It offers electric stroke control with optional foot pedal, fine adjustment of head travel, emergency lockout tag-out, 14 in. blade, and 39 in. stop.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model 5014 TM Ironworker has capacity of up to 50 tons of pressure and can punch a 13/16 in. hole in 3/4 in. plate. Standard offerings include keyed punch ram and 3-station revolving turret, which accepts up to 3 pieces of tooling that can be changed in seconds. Rectangular notcher notches material up to 2½ x 3 in. in 5/16 in. material. Angle shear will shear up to 3 x 3 x 5/16 in. angle iron. Component tool table design accepts optional equipment.

Nyden Corporation    San Jose, CA 95134
Sep 23, 2002 Brakes, coupled to 5-Phase AM Stepper motors, stop heavy loads rapidly and hold them stationary in case of power failure. Holding torque ranges from 41.66 to 138.87 oz-in. Brakes are part of NEMA-size 23 or metric-size 34 package, with dielectric strength sufficient to withstand 0.5 kV at 50 Hz, insulation resistance of 100 Mohms or better, with 500 V potential applied between motor windings and frame, and operating temperature of 0 to 50°C.
