Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Horizontal Model FH 1016 includes 1 in. blade, controlled with carbide guides, and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash-down hose for clean up.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model SH 1016 horizontal band saw includes 1 in. blade, which is controlled with carbide guides and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash down hose.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Swing-head Model SHA 1016 offers 60° mitering capability. It has capacities of 10 x 16 in. at 90° and 10 x 8 in. at 30°. Band saw includes 1 in. blade, controlled with carbide guides, preset blade tensioning with power blade-cleaning brush, and fine adjustment of feed control. Machine has 40 in. stroke, parts counter, and 2 hp variable-speed drive.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model SH 1419 swing head band saw has 60° mitering capability with capacities of 14 x 19 in. at 90° and 14 x 8 in. at 30°. It includes 1 1/4 in. blade, carbide guides, preset blade tensioning, power blade brush, and 3 hp variable frequency AC drive with speeds from 70 to 400 fpm. Self-contained hydraulic unit offers quick approach, head hold, and separate cutting feed rate. Saw also features feed force adjustments, recirculating flood coolant system, and ANSI guarding.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Vertical Contour Model VC-20 saws, polishes, and files wood, plastic, steel, aluminum, and stainless steel. Variable-frequency, 2 hp AC drive achieves band speeds from 100 to 2000 fpm. Band saw accepts blade widths from 1/16 to 1 in. and follows radiuses or cuts off large sections. Equipped with one set of insert-type guide blocks for bands 1/8 through 1/2 in., saw may be adapted for up to 1 in. bands. It includes band tension indicator and chip pan.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Semi-automatic Model CLM 350 offers rigid column design, allowing cutting of up to 4 in. solid tool steels. Rugged enough to cut tough alloys and heavy wall tubes, saw utilizes 5 hp driven motor with self-contained hydraulic system, and can miter 45° left and right. It offers electric stroke control with optional foot pedal, fine adjustment of head travel, emergency lockout tag-out, 14 in. blade, and 39 in. stop.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model 5014 TM Ironworker has capacity of up to 50 tons of pressure and can punch a 13/16 in. hole in 3/4 in. plate. Standard offerings include keyed punch ram and 3-station revolving turret, which accepts up to 3 pieces of tooling that can be changed in seconds. Rectangular notcher notches material up to 2½ x 3 in. in 5/16 in. material. Angle shear will shear up to 3 x 3 x 5/16 in. angle iron. Component tool table design accepts optional equipment.

Nyden Corporation    San Jose, CA 95134

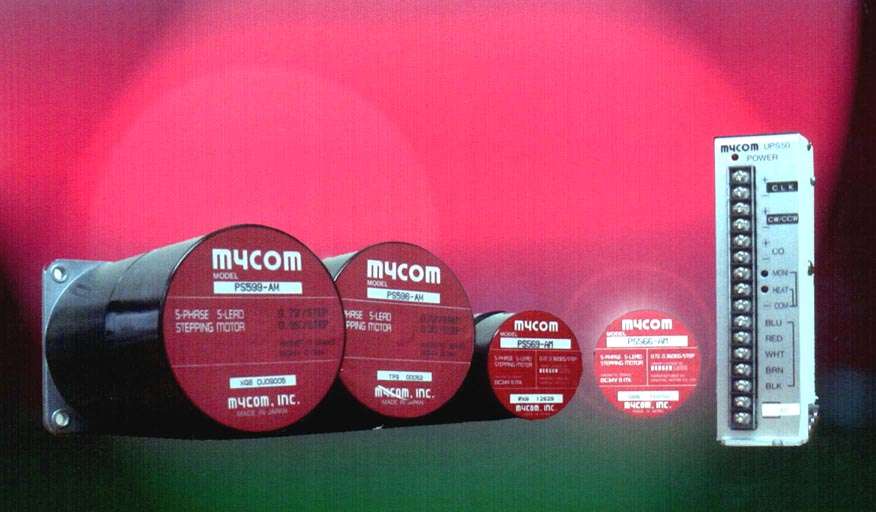

Sep 23, 2002 Brakes, coupled to 5-Phase AM Stepper motors, stop heavy loads rapidly and hold them stationary in case of power failure. Holding torque ranges from 41.66 to 138.87 oz-in. Brakes are part of NEMA-size 23 or metric-size 34 package, with dielectric strength sufficient to withstand 0.5 kV at 50 Hz, insulation resistance of 100 Mohms or better, with 500 V potential applied between motor windings and frame, and operating temperature of 0 to 50°C.

Stafford Mfg. Corp.    Woburn, MA 01888 0670
Sep 23, 2002 PowerRingâ„¢ keyless locking devices mount mechanical components to round shafts. Non-marring bore contracts securely onto shaft while expanding OD tightly into ID of hub. Devices are adjustable, balanced to minimize vibration at high speeds, and prevent backlash damage caused by heavy loads. Available in 24 sizes ranging from ¾ to 3 in. ID, they are suitable for mounting gears, sprockets, pulleys, and related devices.

Allegro Industries    Garden Grove, CA 92841-1410
Sep 23, 2002 Winter Liners protect outdoor worker from extreme cold and wind. Liners are available in four models: Sherpa, All Fleece, All Purpose, and Knitted. All have back reflective strip, suspension straps that attach liner to hard hat, and two pockets on either side to hold Warming Packs. Elastic strip along forehead and hook & loop closures around neck allow for snug fit and prevent wind from entering. Warming Packs produce heat for up to 10 hr.

Yasda Precision America Corporation    Elk Grove Village, IL 60007
Sep 23, 2002 Oil Pure MS-BZ features Quick Suction Pot System (Q Pot) that collects floating substances through automatic surface suction, regardless of turbulence of fluid. It requires no liquid-level adjustment after installation. Pump uses bellows-type design to separate floating substances smoothly, without further agitation. Adjustable surface levels allow users to change settings to separate fluids of different weights and viscosities.

Industrial Metal Products Corp.    Lansing, MI 48901

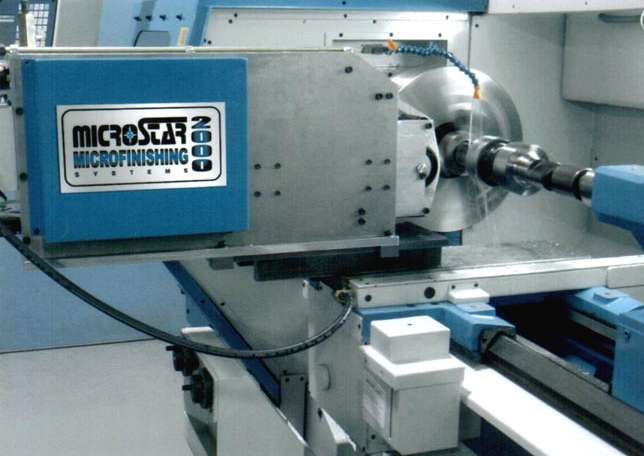

Sep 23, 2002 Microstar Microfinisher is independently controlled, mounts to any lathe or grinder, and is available in 115 or 250 Vac versions. It uses abrasive film, backed by oscillating platen in contact with workpiece. Abrasive film, available in range of grades and standard 2, 4, and 8 in. widths, is automatically indexed from 150 ft roll and can move in either direction without clutch, gearing, or electrical changes. Film speed from 0-8 ipm assures precise finish control.

Industrial Scientific Corp.    Oakdale, PA 15071 1500
Sep 23, 2002 Compact T40 Rattlerâ„¢ protects employees from carbon monoxide or hydrogen sulfide exposure. Monitor operates for up to 500 hr on single, replaceable AA alkaline battery and will alert user to low battery life with audible and visual indicators. Liquid crystal display provides continuous real-time readings in parts-per-million. When low or high alarm setpoints are exceeded, it alerts user by activating audible, visual, and vibration alarms.

Integument Technologies, Inc.    Tonawanda, NY 14150-6711
Sep 23, 2002 FluoroGrip® tape resists ozone, weather, and harsh chemicals such as organic and inorganic acids and aggressive solvents. It works in temperatures up to 450°F and is elastomeric to 330% elongation. Tape can be used to prevent corrosive or reactive liquids from leaking into expansion, control joints, and cracks in concrete and other materials. Fluoropolymer-based tape has plasma activated pressure sensitive adhesive, but no VOCs or hazardous solvents.

TAOS Inc.    Plano, TX 75074
Sep 23, 2002 TSL2550 single-chip, ambient light sensor produces digital output capable of direct SMBus interface. It reduces overall system power by measuring ambient light to control display screen backlighting in portable equipment and also identifies light source type. Sensor utilizes 2 photodetectors and companding analog-to-digital converter to provide light measurements over 12-bit dynamic range. Information can be used to calculate light intensity in lux units.

Akro-Mils, A Div. Of Myers Industries, Inc.    Akron, OH 44301
Sep 23, 2002 AkroClean provides upright vacuum holder molded into its base and contoured shape. During transport, cart's textured surface platform prevents buckets/containers from shifting. Its moisture dam keeps liquids away from vacuum area, while molded slots secure cleaning tool handles. Cart offers structural web foam plastic construction. Its two, 8 in. wheels and two, 3 in. plate style swivel casters are constructed of non-marking, high-density rubber compound.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 23, 2002 Model V5-4000 5-axis VMC offers 137.8 x 66.9 in. table and standard X-Y-Z travel of 157.5 x 98.4 x 29.5 in. It comes with 45 hp, 15,000 rpm HSK-63A spindle. Extended A and B rotary axis travels of ±40° allows processing of broad range of parts. SINUMERIK 840D digital NC system offers modular 32-bit microprocessor control. Housed in 50 mm wide unit with SIMODRIVE 611D drive system, it integrates SIMATIC S7 programmable controller and Profibus DP distributed I/O link.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 23, 2002 MEGA-150 horizontal machining center offers X-Y-Z travels of 57.0 x 43.3 x 49.8 in., and can machine parts 51.2 in. dia and 59 in. high. XT option features 60 hp, 2-range geared, #50 taper or HSK-100A spindle with either 6,500 or 10,000 rpm, giving max torque of 845 lbs-ft. AP option offers HSK-63A spindle with 15,00 or 21,000 rpm. Tilt spindle for full 5-axis contouring is available in both. Fanuc 160i-MB dual processing CNC runs on Windows 2000.

Torqer Inc.    Cleveland, OH 44110
Sep 23, 2002 RollaBench features Torqer Industrial Truk wheel system, which provides comfortable push or pulling effort of less than 8 lbs for each 2000 lbs of Gross Vehicle Weight. It is made of all steel, welded construction and will function indefinitely. Models are available with 5 to 17 lockable drawers and lockable cupboard areas to carry and store tools, supplies, and parts. All have 27 x 54 in. heavy steel top workbench surface.

Metabo Corp.    West Chester, PA 19380 4243
Sep 23, 2002 Model Lf724 strips paint, varnish, and other coatings on flat wood surfaces. S-automatic clutch reduces damage to gear train when planer hits nail on siding or wood. Tool has 4 reversible solid tungsten carbide blades and creates minimal dust during use. Blade cutting diameter is 3 1/7 in. and max rabetting height is 1 1/0 in. Cutting depths are .012 in. axil and .006 in. radial. No-load speed is 11,000 rpm with torque of 18 lbs-in.
