Huco Engineering Industries    San Rafael, CA 94903 2020
Sep 27, 2002 Corrosion-resistant Multi-Beam® helical beam coupler design offers one-piece construction and 1 or 2 sets of flexible elements. Its multiple, 3-start beams handle evenly distributed stresses produced by coupler. Intrinsically balanced, it readily adapts to high speeds without balancing. In sizes up to 2.50 in. dia, Multi-Beam coupler accommodates shaft sizes to 2.0 in. Stainless steel versions have peak torque rating of 103 lbs-ft.

XPiQ    Holliston, MA 01746
Sep 27, 2002 Offered in 25 different voltages from 2 to 60 V, output modules provide up to 200 W of power to suit requirements of EOEM industry. Single PCB design utilizes proprietary thermal management approach. Up to 6 modules can be used in one power platform. Rated at 200 W, J modules provide fully isolated outputs, single wire current share, remote inhibit, remote sense, power valid, current limit, over-voltage, and over-current protection.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Sep 27, 2002 Model 104-ICOM-2S dual-port PC/104 utility board optically isolates serial data lines from each other and from computer for smooth, error free data transmission even in noisy environments. Serial ports are based on the 16C550 UART with 16 byte FIFO, suitable for high-speed communication and embedded Windows operating systems. Ports are available with two DB9 male connectors with jack screws. Each port's RS422 or RS485 protocol is selected by jumpers on board.

Applied Plastics Co.    Norwood, MA 02062
Sep 27, 2002 APC Teflon® Coated Mandrels have uniform, non-flaking coating that provides smooth, slippery surface which is chemically inert and withstands up to 500°F operating temperatures. Made from stainless steel or nitinol, mandrels are tested in accordance with ASTM-1894. Wire is grit blasted before Teflon® coatings are applied from 0.00005 to 0.0008 in. thick onto wire from 0.005 to 0.45 in. dia, with ±.0001 in. final dia. tolerances.

Kee Safety, Inc. (formerly Kee Industrial Products, Inc.)    Buffalo, NY 14206-2665
Sep 27, 2002 Kee Lite® fittings are constructed of high-grade aluminum silicon magnesium, making them strong, lightweight, and corrosion-resistant. Fittings have contoured design, hidden set screws, and bright finish suitable for railings, lighting grids, display fixtures, playground equipment, racks and shelving, guard rails, and other tubular pipe structures. For use with 1¼ and 1½ in. standard pipe, fittings require no welding, threading, or drilling to install.

Scapa North America    Windsor, CT 06095
Sep 27, 2002 Unifilm® U621A and Unifilm® U624A acrylic adhesive transfer films are suitable for high temperature gasketing applications and precision die-cutting for component assembly. Unifilm U621A is 2 mils thick and U624A is 5 mils thick. Both have operating temperature range from -40 to +300°F and have good holding power and long-term aging properties.

Kontron    Poway, CA 92064
Sep 27, 2002 Model XL-LP42 4U/8-slot CompactPCI high-density packet switched platform allows users to route signals across 2.16 compliant backplane without cables. Seven CompactPCI slots support 32-bit/33 MHz or 64-bit/66 MHz system and peripheral processor boards; and 1 slot is dedicated for PICMG 2.16-compliant switched fabric processor. Two PCI bus segments with H.110 telephony bus are routed to peripheral slots on each segment.

Invensys    Foxboro, MA 02035
Sep 27, 2002 Real-time, in-process Inspection Accelerator, designed to accelerate material processing, offers high-speed image capturing, processing, and analysis for defect and anomaly detection. It also provides classification, visualization, enunciation, tracking, and marking for unpatterned, continuous sheet and web materials. System inspects web speeds of more than 3000 fpm, web widths of more than 30 ft, and defect resolutions of less than 0.5 mm.

Teradyne, Inc.    Boston, MA 02118
Sep 27, 2002 TestStation SEâ„¢ can be configured with analog measurement instruments and in-depth digital test capabilities. System hardware is controlled by worksheet-based software. Test capabilities include standard shorts and opens testing; analog value and digital function testing; vectorless opens testing using Deltascan and Framescanâ„¢; and reduced-access boundary scan testing using Victoryâ„¢ software.

DVS Digital Video Inc.    Burbank, CA 91502
Sep 27, 2002 Fully integrated, Linux-based, editing, compositing paint and effects suite includes SDTV version of Piranha HD that runs on SDStationOEM video I/O board and HDStationRGB. Board's feature set includes real-time color space conversion, integrated RS422 control, and 8- and 10-bit color depth. It supports SD and HD formats up to 2k and 4K.

Brooks-PRI Automation, Inc.    Chelmsford, MA 01824
Sep 27, 2002 FIXLOADâ„¢ 6^M load port offers fast wafer-access time and load port-to-FOUP interoperability. It is fully compliant to relevant SEMI standards and is completely backward compatible. Optional single connector interface provides communication to E84, carrier ID, and FixMAPâ„¢ mapping systems. OEMs can choose between either RS 232 serial, 50 pin digital I/O, Ethernet, or DeviceNetâ„¢ load port-to-tool control interface.

Dover Flexo Electronics, Inc.    Rochester, NH 03867
Sep 26, 2002 MAC MultiAmplifier Card and IMUX Tension Multiplexer provide multi-point tension monitoring. MAC amplifies signals from up to 8 tension transducers or load cells, and supplies corresponding number of 0 to 10 Vdc signals. Signals may be used as inputs to drives, PLCs, or other control devices. Additional 0 to 1 mA or 0 to l00 microA signal is supplied as meter output. IMUX can select and display up to 32 inputs from MACs or other tension amplifier devices.

American Allsafe    Tonawanda, NY 14150 2593
Sep 26, 2002 Silencio® Local features NRR 27 rating, and offers 14 channels providing choice of operation with numerous groups or individuals. Active listening amplifies warning sounds and signals and allows communication in vicinity without removing hearing protection. Headset provides Push to Talk transmission or voice activation for hands-free operation. When receiving call, automatic muting by 6 dB occurs.

Love Controls    Michigan City, IN 46361
Sep 26, 2002 Model LCT016, in 1/16 DIN package, provides simple 8- or 11-pin socket installation. Scale and timing functions are adjusted with individual front-mounted switches. Tamper-resistant cover prevents unauthorized changes and restricts movement of analog set-point knob. LEDs indicate power and output status. Ranging capabilities are from 0.1-1.2 sec to 25-300 hrs. Timing functions include Signal On-Delay, Flicker Off-Start, Signal On/Off-Delay, and Signal Off-Delay.

Bunting Magnetics Company    Newton, KS 67114 0468

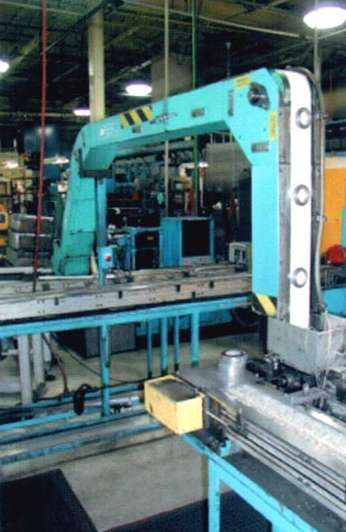

Sep 26, 2002 Standard Frame Magnetic Conveyors include horizontal, incline, and vertical units that transport, feed, accumulate, elevate, orient, and sequence ferrous and partially ferrous items. Customer assembles complete conveying systems from pre-fabricated units. Conveyors move parts and scrap up inclines as steep as 90 degrees. They provide positive, continuous control of materials to reduce labor, save floor space, and increase productivity.

Wilkerson Instrument Co., Inc.    Lakeland, FL 33811

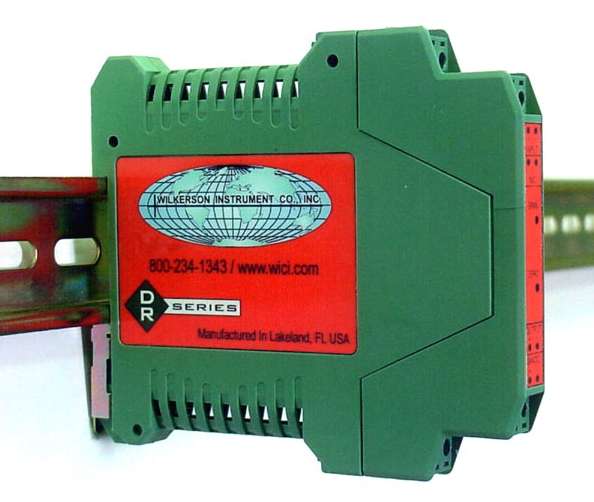

Sep 26, 2002 Model DR4300 isolated signal conditioner can be supplied with inputs from ±50 mV to ±256 Vdc or ±0/1 mA to ±200 mA. Outputs can be supplied for 0/1 V, 1/5 V, 0/5 V, -5/5 V, 0/10 V, -10/10 V, 0/1 mA, 0/20 mA, or 4/20 mA. Unit is powered by 21 to 28 Vdc and provides 3-way isolation rated at 1500 Vac, 50/60 Hz. It has plug-in screw terminal blocks, and ZERO and SPAN controls on front panel. Isolator can measure voltage or current signals with high common mode levels present.

Nevamar, Decorative Products Division    Odenton, MD 21113-1397

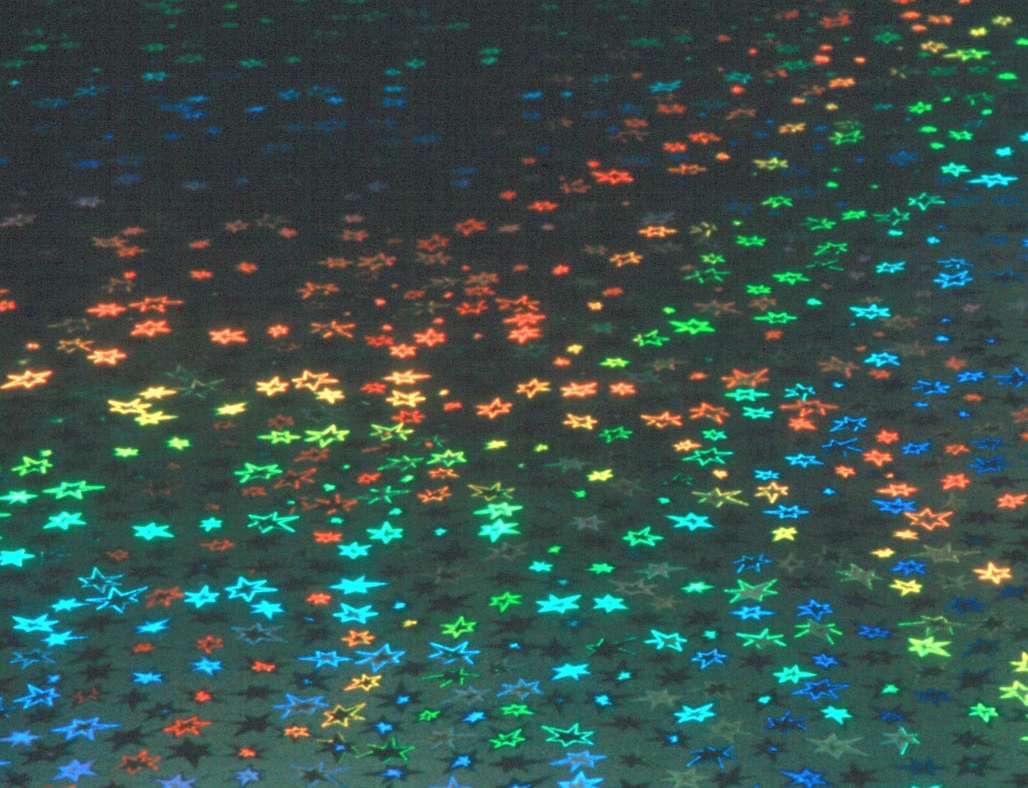

Sep 26, 2002 Paparazzi!â„¢ Holographic Surfacing is designed for low abrasion vertical applications such as well cladding, signage, soffits, and accent strips. Surfacing is offered in 0.039 in. thickness and in 48 x 120 in. sheets. Material can be formed to 3/8 in. outside radius for applications requiring tight bends.

Nevamar, Decorative Products Division    Odenton, MD 21113-1397

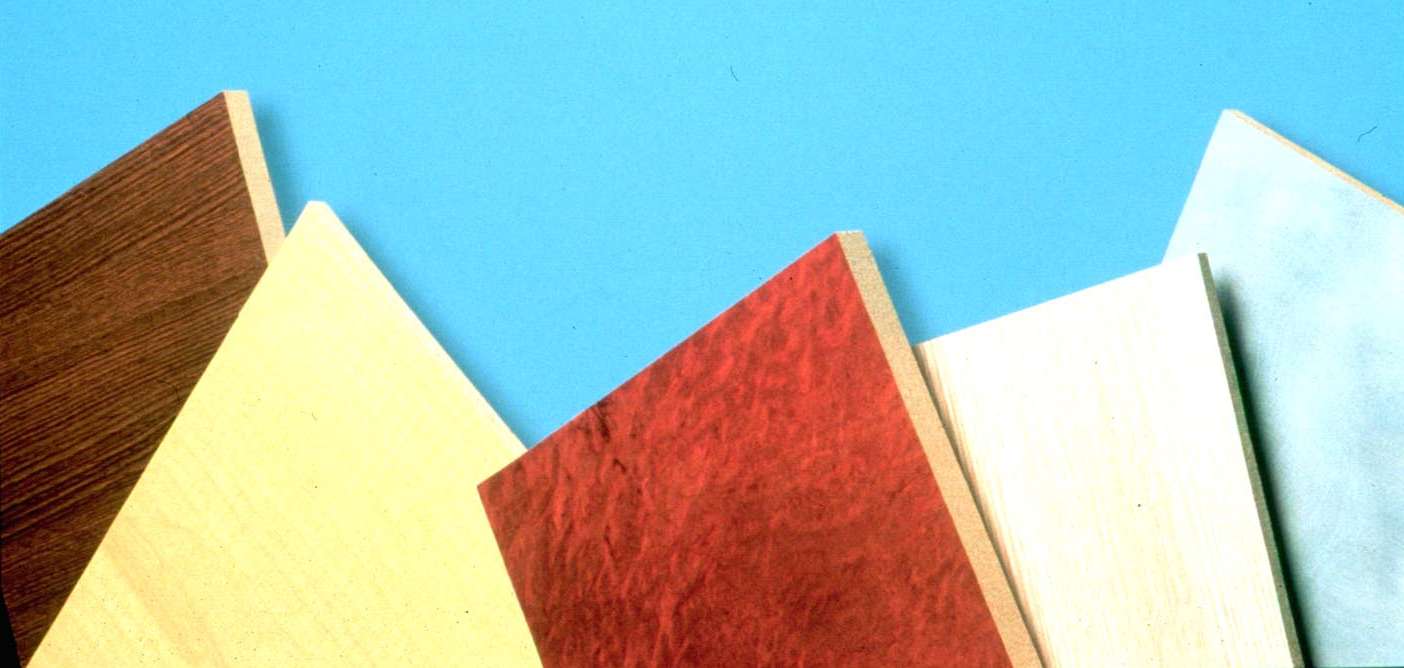

Sep 26, 2002 Thermal-fused MelaFace® panels are resistant to moisture, stain, soiling, and scuffing. Resin-saturated paper is permanently bonded to substrate, making panels suitable for both vertical and horizontal applications. Panels can be ordered with decorative surfaces on both sides, or with decorative surface on one side, and liner grade on the other, and are fastened using glue, staples, nails, or screws. Woodgrains and patterns are available, with matte or gloss finishes.

Lapp USA    Florham Park, NJ 07932

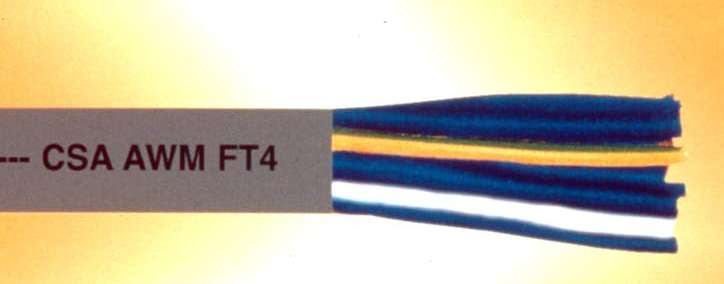

Sep 26, 2002 Flexible, multi-conductor OLFLEX® Auto-I cable, with high stranding and PVC jacket, is suitable for use in dry, damp, and wet conditions, as well as direct-burial applications. It can withstand temperatures up to 90°C, and has worldwide approvals including UL Type TC, UL Type MTW, CSA AWM, and CE.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Sep 26, 2002 Single-step CFM Vacuum line enables workers to collect coolants, lubricants, cutting, oils, and metal scraps; filter out debris; and pump purified fluids into reservoir tank for immediate reuse, without leaving the sump. Able to filter metal scraps and particles down to 100 microns, filtration system traps and contains aerosols released from metalworking fluids. Collection capacities range from 55 to 159 gallons.
