Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Able to cut dry with 14 in. carbide tipped blade, Model KM14SC handles light-duty wall thicknesses, 1/4 in. angles, pipe, and structural steel. Saw cuts up to 4½ in. stock at 90° and miters up to 3½ in. at 45° left or right. With 1 in. spindle arbor and 1300 spindle speed at 1725 RPM, saw offers 5 hp motor with manual switch, cast iron construction, and dual cam-lock vises. Also included: dual V-belt drive and OSHA safety blade guard.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Model KM14HS cuts aluminum, brass, and plastic with a 14 in., carbide-tipped, steel blade. It miters 45° left and right, has 4½ in. capacity at 90°, and has 4 x 3½ in. capacity at 45°. Saw offers twin V-belt drive, 4400 spindle speed at 3450 rpm, and 1 in. spindle with sealed ball bearings. Equipped with 5 hp motor with manual switch, saw has cast-iron construction, dual cam-lock vise, and OSHA safety blade guard.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 With its 20 in. disc, Model DS20 sander operates at 1740 rpm. It offers tilt table with miter gauge and reversing switch. Two motors are available: 2 hp, 3 phase or 1½ hp, 1 phase.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Sep 06, 2002 Clausing/Equiptop PNC grinders utilize longitudinal servo hydraulic control systems, PLCs with NC mode control, and vertical and crossfeed servo motor control systems. Grinders are available in 5 sizes with tables from 10 x 20 to 16 x 40 in., longitudinal table movements (hydraulic) from 22.75 to 41.73 in., and wheel diameters from 8 to 14 in. Offerings include C3 class vertical and crossfeed ballscrews and 10 in. color TFT display.

TRUMPF Inc.    Farmington, CT 06032
Sep 06, 2002 CNC TrumaBend C 60 has 82 in. of bending length with down-acting y1/y2 hydraulic ram drive that delivers 472 ipm on approach, and returns with up to 74 ipm pressing speed. Model C 60 offers ±.0004 in. ram repeatability. It is offered in 4-axis and 6-axis configuration and comes equipped with auto-passive bed crowning system as standard. Programmable back-gauging table gauges flange and can also support large, thin sheets.

TRUMPF Inc.    Farmington, CT 06032
Sep 06, 2002 Self-contained VectorMark® includes power supply, cooling system, and 115 V electrical connection. Motor-driven Z axis allows automatic adjustment of focal distance to accommodate different workpieces. VectorMark is offered as OEM component for integration in automated production lines and as standalone workstation with Class 1 safety enclosure and integrated fume extractor. Frequency-doubled version (wavelength 532 nm) is suitable for marking synthetic materials.

Leuze electronic, Inc.    New Hudson, MI 48165
Sep 06, 2002 Model BCL 8, with metal housing and IP 67 protection rating, reads up to 500 scans/sec and automatically detects and reads all customary code types. It comes with RS 232 interface, M12 or cable connection, and switching input or switching output. For added protection, all parameters are stored fail-safe and operation status is indicated via dual LEDs.

Leuze electronic, Inc.    New Hudson, MI 48165
Sep 06, 2002 Compact Plus light curtain can be equipped with various function packages for muting, blanking, or cyclical control. Output modules, such as semiconductor outputs, relay outputs, ProfiSafe and SafetyBUS p, allow curtain to be integrated into existing applications. IR-Diagnostics interface and teach-in function are included.

Gore, W. L., & Associates, Inc., Electronic Products Div.    Elkton, MD 21922-0160
Sep 06, 2002 Parallel optics QuadLink MSA is optimized for 10 gigabit operation across multiple industry standards, including Optical Internetworking Forum for SONET/SDH, InfiniBand(TM) and 10-Gigabit Fibre Channel. It is based on 4-channel, full-duplex architecture that operates over single-ribbon fiber cable. QuadLink MSA is compatible with SERDES and integrated switch silicon. Standardized management interface is provided.

Dressta North America    Buffalo Grove, IL 60089
Sep 06, 2002 Model TD-25H offers modular power train, 1-piece welded steel main frame, and hexagonal cab. Its individual final drive modules have outboard planetaries that can be removed as assemblies. Bolt-on, 8-piece sprocket distributes wear evenly over track bushings, while forward mounted pivot shafts allows for vertical movement of track frames and absorbs working and shock loads from dozer push arms.

Nova Engineering, Inc.    Cincinnati, OH 45246
Sep 06, 2002 Comm Core Bundle includes 5 related communication IP Cores written in VHDL programming language. They include Complex Multiplier/Mixer, Numerically Controlled Oscillator, Linear Feedback Shift Register, Binary Pattern Correlator, and Early/Late Gate Symbol Synchronizer. Bundle is offered as stand-alone product or as upgrade to Constellation Development System.

Andover Controls Corp.    Andover, MA 01810
Sep 06, 2002 CFR Compliance Pack addresses accountability and traceability of both security and environmental conditions in plant manufacturing processes. Compliant with FDA's 21 CFR Part 11 regulations, software provides detailed audit trails and ensures that process-related environmental conditions are monitored on manufacturing floor. All card access events and security alarms are recorded within common 21 CFR Part 11 architecture.

Melcor Corp., A Unit Of Laird Technologies    Trenton, NJ 08648 4534

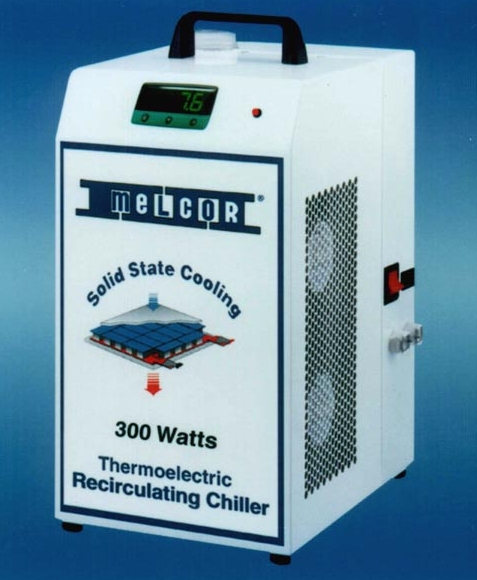

Sep 05, 2002 Closed-loop, 300 W Model MRC300 includes pump, reservoir, low fluid level detector, and 7 ft detachable power cord. Available in 2 serial port configurations, its integrated, solid-state temperature controller stabilizes fluid temperature to within 0.25°C. Freestanding, dual-voltage 115/230 AC chiller uses water or coolant solution and offers choice of RS232 or RS485 serial communication. It measures 13.8 x 8.0 x 13.5 in.

Lyndex Corp.    Northbrook, IL 60062

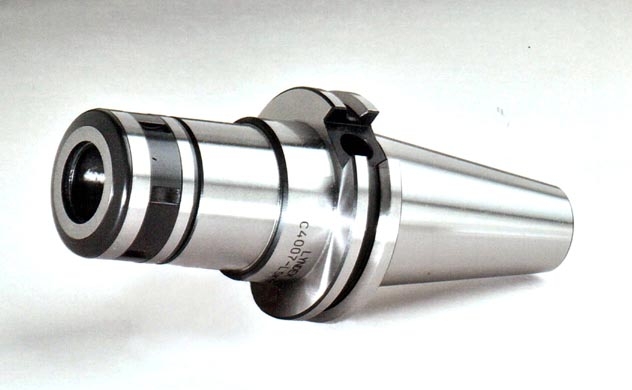

Sep 05, 2002 Narrow-bodied LSK Toolholding System drills, taps, reams, and mills. Small taper angle (8° included) results in improved concentricity. Run-out accuracy is held to less than 3 microns at 4 times diameter of cutting tool shank. Tools with up to 1 in. diameter can be accommodated. Coolant delivery systems allow for coolant through tool as well as along tool shank.

NKK Switches    Scottsdale, AZ 85260-3420
Sep 05, 2002 SMARTSWITCH(TM) STN, with 13.9 x 10.6 mm viewing area and 36 x 24 pixel resolution, suits electronic devices that require display of graphics, text, or moving images. It can be used in 1U rack-mount units and in applications where 7-segment displays and LED matrices do not provide enough information. Module is offered with straight PC terminals and features multi-color LED backlighting with standard or super bright options.

Eurotherm Controls    Leesburg, VA 20175

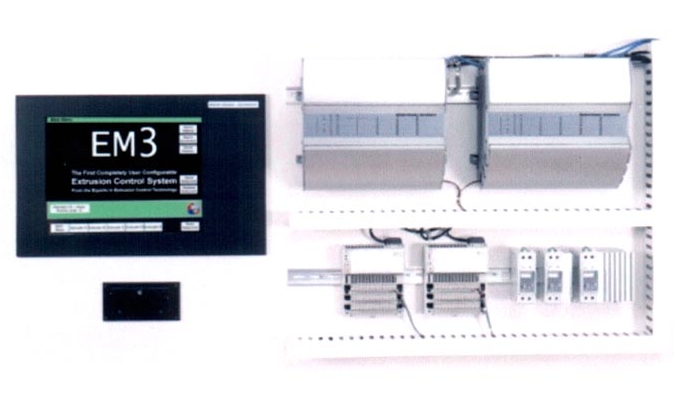

Sep 05, 2002 Extrusion Master 3 (EM-3) makes it possible for user with little or no knowledge of process control theory to optimize extruders and melt pumps. Adaptive, auto-tuning pressure control loop accounts for material and machine variations for consistent product. Web loading utility allows custom Web pages to be loaded into control system. Wizard-like interface guides user through Web content transfer processes of moving files from PC to EM-3 control.

Sperry West Inc.    La Jolla, CA 92037
Sep 05, 2002 Spyder® CCTV Video Cameras feature invisible mounts and tough shell. They have no exterior movable parts, so camera angles and views remain consistent and safe from tampering. Cameras are small and fit against walls and ceilings, with largest model measuring 4 x 6 in. Seven-model line comes in 1-, 2-, or 3-view configurations for use in rooms, intersecting T corridors, hallways, and elevators.

Weldlogic, Inc.    Newbury Park, CA 91320

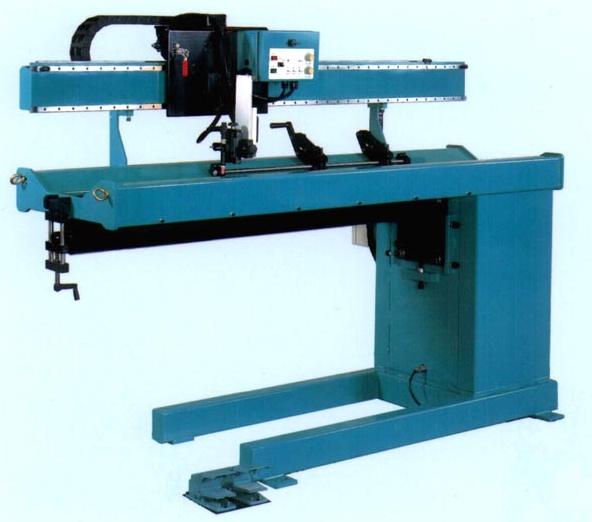

Sep 05, 2002 Longitudinal Seamer is designed for Tig, Plasma, Mig, and laser welding processes. It includes auto sequence, part ejection, and advanced carriage controls. Unit is micro adjustable for even heat sinking.

PCB Piezotronics Inc.    Depew, NY 14043 2495

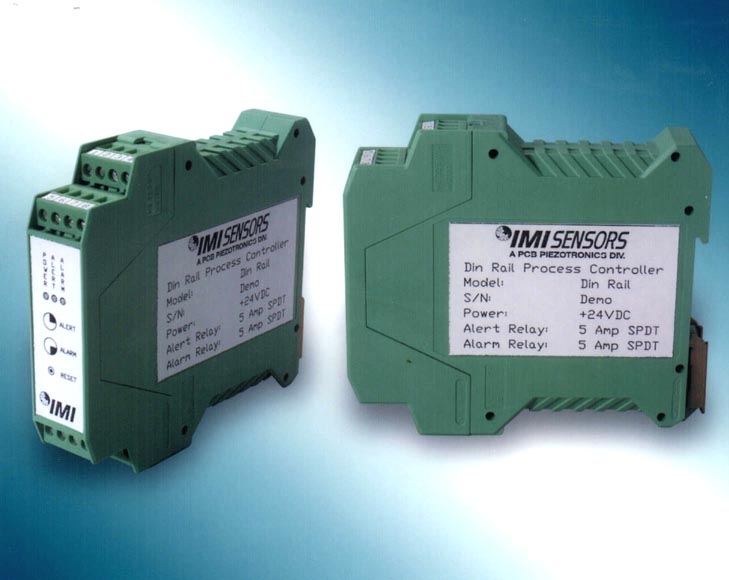

Sep 05, 2002 DIN-rail mountable Model 682A04 dual relay alarm module works with any 4-20 mA signal input. Its adjustable, 0-45 sec time delay makes it suitable for use with vibration signal inputs that directly output signal or with vibration transmitters that provide conditioned output signal from analog accelerometers. Time delay serves to eliminate false alarm trips due to momentary vibratory upsets, caused by machinery start-ups, run downs, or vehicle drive-bys.

Sensors, Inc.    Saline, MI 48176
Sep 05, 2002 SEMTECH-D enables diesel vehicle's tailpipe emissions and output of on-board electronic control system to be measured and recorded simultaneously while being driven on road. When reporting concentrations for NO, NO₂, CO, CO₂, and THC exhaust constituents, accuracy, resolution, and detection limits are 3-4%. Reporting is in g/Bhp-hr or g/mile on electronically controlled engines. For engines without electronic controls, additional instrumentation is needed.
