Heidenhain Corp.    Schaumburg, IL 60173-5337
Sep 06, 2002 Series LIF400 offers travel up to 1 meter and maintains long wave accuracy of ±3 µm. It is suitable for both coarse and fine measurement applications, from 4 microns down to 10 nanometers of resolution. SUPRADUR grating style provides high tolerance to contamination such as oil, dust, and fingerprints, due to precisely measured layers of glass and reflective material. Optical limit switches allow user to place limits anywhere directly on scale.

APW Ltd.    Waukesha, WI 53188-1013
Sep 06, 2002 Conduction Cooled Frame Assemblies consist of top frame, insulator, and backing plate. For corrosion resistance, assemblies are available in black anodize, chemical film, and electroless nickel plating. Aluminum 6061-T6 provides high thermal conductivity, as well as lightweight support. Frame and backing plate are each machined from solid piece to assure continuous heat flow and structural integrity. Component area can be customized to match board and application.

Cooper Wiring Devices    Long Island City, NY 11101
Sep 06, 2002 Smart Dimmer allows light levels to be adjusted at master or remote locations before lights are turned on. LEDs indicate illumination level, while microprocessor electronics permit dimmer control to raise or lower light levels at any station while lights are On or Off. Suitable for incandescent and magnetic low voltage systems. Each master dimmer can control up to 5 remote devices.

Big Sky Distribution    Spring Lake, MI 49456
Sep 06, 2002 Sky-Loc Rapid Release Receiver Caps positively lock over end of quick release ball lock pins allowing them to be used in applications where hole is not within tolerance or out of round. Cap increases holding area of pin and provides for maximum pullout strength. Made from 303 stainless steel, caps fit 1/4, 5/16, 3/8, 1/2, and 5/8 in. quick release pins. They come with plain ends as well as with tapped hole to attach lanyard to end cap.

Chicago Industrial Pump Co.    Chicago, IL 60622
Sep 06, 2002 Pitbull Pump is made up of pressure chamber and 2 check valves with remote control panel. It is based on compressed air piston acting directly on surface of liquid being pumped. Liquid is directed into chamber, pressurized, and discharged with air/liquid interface maintained through process to eliminate need for diaphragm or bladder. Pump cycling is automatic so it stops when no liquid is present. Pitbull handles hard-to-pump solids and abrasives, trash, and chemicals.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Banjo-style Miniature Flow Control can be mounted directly on small bore cylinders. Intake air flows in freely and exhaust air is metered out through adjustment screw to regulate speed of cylinder. Unidirectional valve has nickel-plated brass stem and threads, 25% glass filled nylon body, and expanded internal O-ring. It is available with 10-32 UNF threads and 1/8 and 1/4 in. NPT threads for 5/32 and 1/4 in. OD tubing.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Series 500HP/506HP Carbon Steel Ball Valves are offered in sizes from ¼ through 2 in. with working temperature of 0 to 150°F. They come in round or square bodies with hex shaped ports. Internal design features Nitrile O-rings and Delrinâ„¢ seats with Molybdenum disulphide. External phosphate coating ensures corrosion resistance. All are fully ported for unrestricted bore and minimum flow restriction. NPT or SAE straight thread Female/Female port configurations are available.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Series 509 Solder End Ball Valves are designed to be soft soldered into ASTM B88 copper lines without disassembly or disturbing seats and seals. Working temperature is 100 to 250°F with maximum working pressure up to 400 psi, depending on valve size and joining material (either 50-50 tin-lead solder or 95-5 tin-antimony solder). All valves have forged brass body, PTFE seats and seals, blow-out proof stem, chrome plated brass ball, and ¼ turn shutoff.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Engineered Polymer Manifold has 3/8 in. tube inlet ports and 1/4 in. tube outlet ports. Working pressure is from 27 in. Hg vacuum to 250 psi at -40 to +200°F. Brass Manifold comes with 1/8 to 3/8 in. ports, which are located on top and along side for convenient assembly. It is machined from CA360 brass and has working temperature from -65 to +250°F at 1000 psi maximum. Custom manifolds can be fabricated to meet virtually and design requirement.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Model KM26 Abrasive Mitering Saw offers capacity up to 9 in. at 90° and up to 4 in. for solids and 6 in. for shapes at 45° (right miter only). It includes air operated chain vise, steel safety guard with 9 x 16 in. wheel guard opening, cog belt drive, 1800 rpm spindle speed, 20 hp 3-phase motor with magnetic starter, and 1 in. arbor with 7 in. wheel flange.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Able to cut dry with 14 in. carbide tipped blade, Model KM14SC handles light-duty wall thicknesses, 1/4 in. angles, pipe, and structural steel. Saw cuts up to 4½ in. stock at 90° and miters up to 3½ in. at 45° left or right. With 1 in. spindle arbor and 1300 spindle speed at 1725 RPM, saw offers 5 hp motor with manual switch, cast iron construction, and dual cam-lock vises. Also included: dual V-belt drive and OSHA safety blade guard.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Model KM14HS cuts aluminum, brass, and plastic with a 14 in., carbide-tipped, steel blade. It miters 45° left and right, has 4½ in. capacity at 90°, and has 4 x 3½ in. capacity at 45°. Saw offers twin V-belt drive, 4400 spindle speed at 3450 rpm, and 1 in. spindle with sealed ball bearings. Equipped with 5 hp motor with manual switch, saw has cast-iron construction, dual cam-lock vise, and OSHA safety blade guard.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 With its 20 in. disc, Model DS20 sander operates at 1740 rpm. It offers tilt table with miter gauge and reversing switch. Two motors are available: 2 hp, 3 phase or 1½ hp, 1 phase.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Sep 06, 2002 Clausing/Equiptop PNC grinders utilize longitudinal servo hydraulic control systems, PLCs with NC mode control, and vertical and crossfeed servo motor control systems. Grinders are available in 5 sizes with tables from 10 x 20 to 16 x 40 in., longitudinal table movements (hydraulic) from 22.75 to 41.73 in., and wheel diameters from 8 to 14 in. Offerings include C3 class vertical and crossfeed ballscrews and 10 in. color TFT display.

TRUMPF Inc.    Farmington, CT 06032
Sep 06, 2002 CNC TrumaBend C 60 has 82 in. of bending length with down-acting y1/y2 hydraulic ram drive that delivers 472 ipm on approach, and returns with up to 74 ipm pressing speed. Model C 60 offers ±.0004 in. ram repeatability. It is offered in 4-axis and 6-axis configuration and comes equipped with auto-passive bed crowning system as standard. Programmable back-gauging table gauges flange and can also support large, thin sheets.

TRUMPF Inc.    Farmington, CT 06032
Sep 06, 2002 Self-contained VectorMark® includes power supply, cooling system, and 115 V electrical connection. Motor-driven Z axis allows automatic adjustment of focal distance to accommodate different workpieces. VectorMark is offered as OEM component for integration in automated production lines and as standalone workstation with Class 1 safety enclosure and integrated fume extractor. Frequency-doubled version (wavelength 532 nm) is suitable for marking synthetic materials.

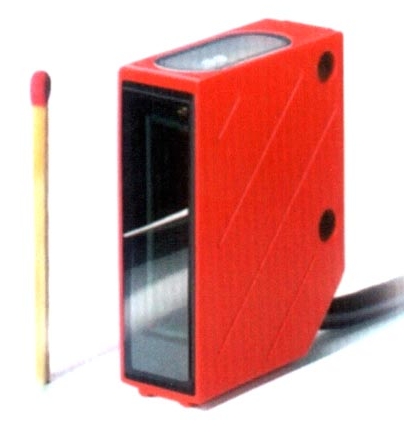

Leuze electronic, Inc.    New Hudson, MI 48165
Sep 06, 2002 Model BCL 8, with metal housing and IP 67 protection rating, reads up to 500 scans/sec and automatically detects and reads all customary code types. It comes with RS 232 interface, M12 or cable connection, and switching input or switching output. For added protection, all parameters are stored fail-safe and operation status is indicated via dual LEDs.

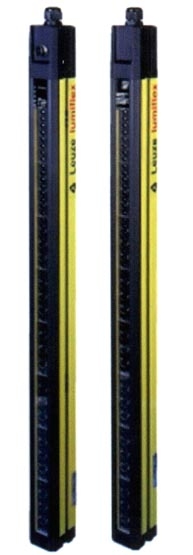

Leuze electronic, Inc.    New Hudson, MI 48165
Sep 06, 2002 Compact Plus light curtain can be equipped with various function packages for muting, blanking, or cyclical control. Output modules, such as semiconductor outputs, relay outputs, ProfiSafe and SafetyBUS p, allow curtain to be integrated into existing applications. IR-Diagnostics interface and teach-in function are included.

Gore, W. L., & Associates, Inc., Electronic Products Div.    Elkton, MD 21922-0160
Sep 06, 2002 Parallel optics QuadLink MSA is optimized for 10 gigabit operation across multiple industry standards, including Optical Internetworking Forum for SONET/SDH, InfiniBand(TM) and 10-Gigabit Fibre Channel. It is based on 4-channel, full-duplex architecture that operates over single-ribbon fiber cable. QuadLink MSA is compatible with SERDES and integrated switch silicon. Standardized management interface is provided.

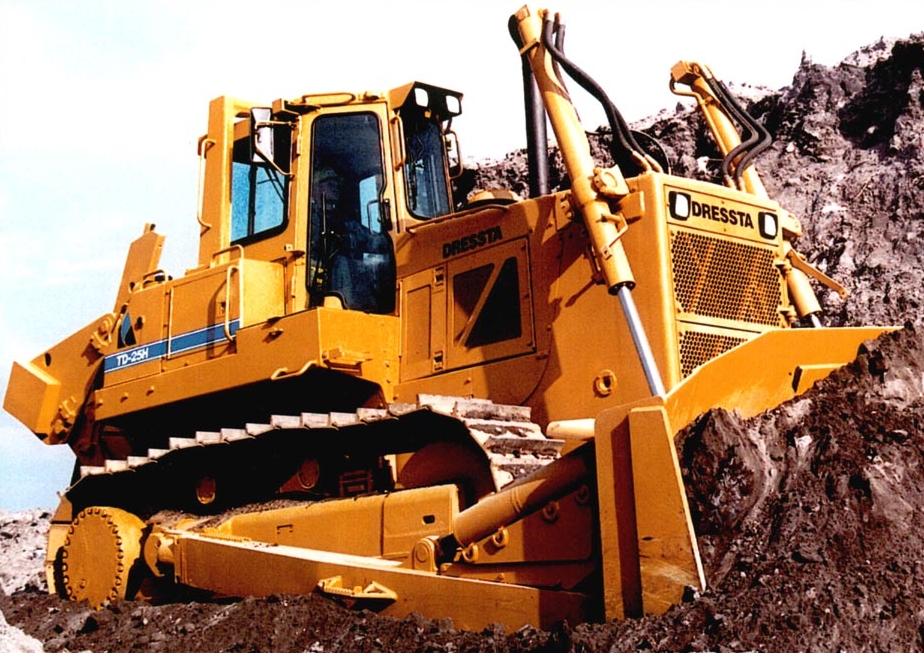

Dressta North America    Buffalo Grove, IL 60089
Sep 06, 2002 Model TD-25H offers modular power train, 1-piece welded steel main frame, and hexagonal cab. Its individual final drive modules have outboard planetaries that can be removed as assemblies. Bolt-on, 8-piece sprocket distributes wear evenly over track bushings, while forward mounted pivot shafts allows for vertical movement of track frames and absorbs working and shock loads from dozer push arms.
