Z-World    Davis, CA 95616

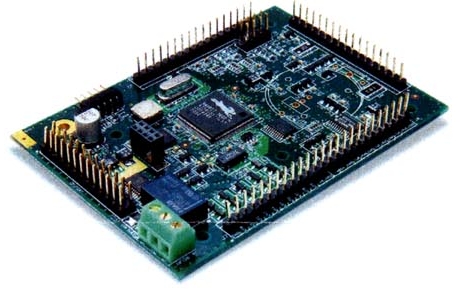

Aug 29, 2002 With built-in analog and digital I/O, LP3500 Fox is suitable for portable, handheld, battery-powered, and remote monitoring systems. It measures 3.65 x 2.60 x 0.45 in., consumes less than 20 mA, and uses less than 100 µA in power-save mode. Computer has Rabbit 3000 microprocessor, with up to 512K each of Flash and SRAM, 26 digital I/O, A/D converter, PWM outputs, 6 serial ports, one relay, and 2 ports for connection to serial Flash cards, keypad/display, and other devices.

Graymills Corporation    Chicago, IL 60613

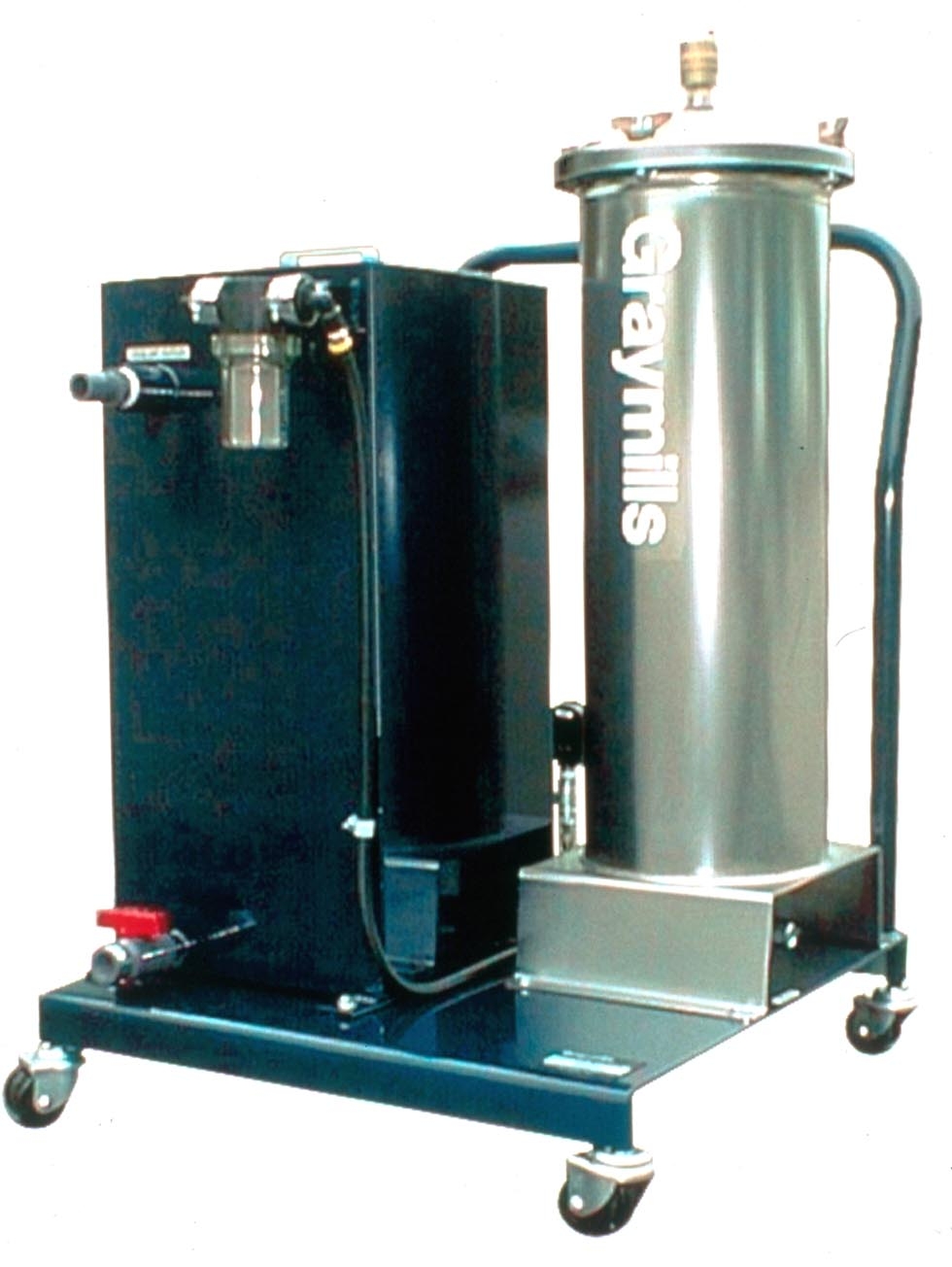

Aug 29, 2002 Portable OSEP-1 fluid-conditioning filtration system and oil/water separator removes contaminants from water-based coolants used in typical machining centers. It helps keep bacteria levels to minimum and eliminates smoking caused by oils in coolant coming in contact with hot tooling. It has 2 x 2 ft footprint, heavy-duty casters, 17 gal capacity, and can be moved easily. It requires only 50 psi air connection, with no electrical connection.

Nanmac Corp.    Framingham, MA 01702 2469
Aug 29, 2002 Sensing tip, with thermocouple ANSI Type J, K, E, or T, maintains contact with moving or stationary walls to measure surface temperatures. Applications include bearings, rotating shafts, printed circuit boards, molding machines, and plates. Thermocouples are available in models as small as 3/4 in. in overall length.

Scapa North America    Windsor, CT 06095

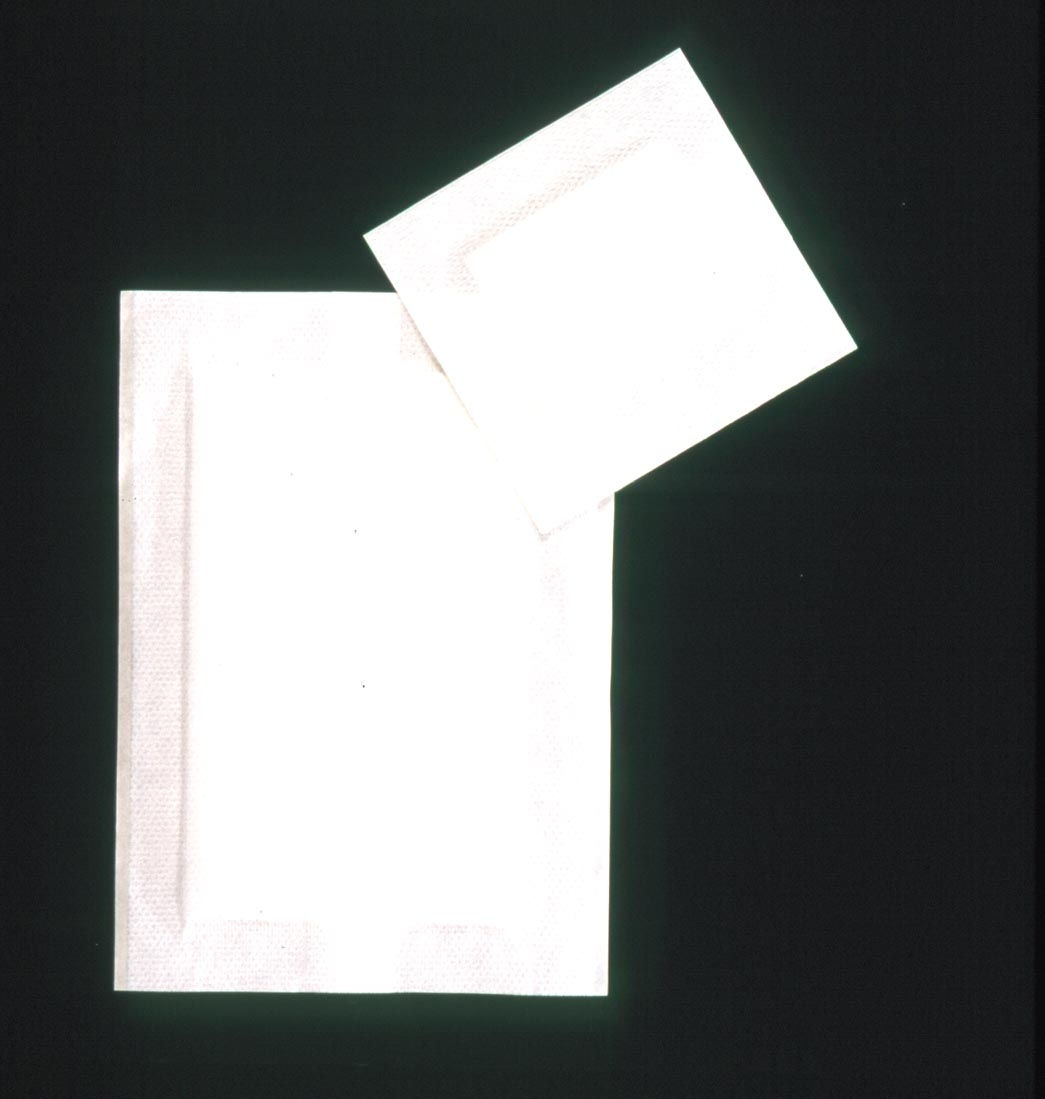

Aug 29, 2002 Medical-grade, single-coated, pressure-sensitive Bioflex® Rx100P is breathable, conformable, and lightweight, making it suitable for TENS, EKG electrode, and bandage applications. It consists of white, spunlaced polyester fabric, coated on one side with acrylic adhesive that carries Device Master Fiber number with Bureau of Medical Devices. Tape is supplied on white, polycoated, stay-flat, easy release liner.

Kyocera Display America, Inc.    Plymouth, MI 48170
Aug 29, 2002 Digital 10.4 in. VGA TFT display, with user-selectable reverse scan and both 3.3 V and 5.0 V input voltage, handles 150 G shocks and 1 G vibration, and operates over temperature range of 0 to 50°C. Backlight CCF lamps have estimated life of 50,000 hr. Display has 260K colors, luminance of 400 nits, 640 x 480 dot pixel display format, contrast ratio of 300:1, and viewing angle of 120°. Applications include test, measurement, diagnostic equipment, and industrial controls.

Thermadyne Industries, Inc.    St. Louis, MO 63017

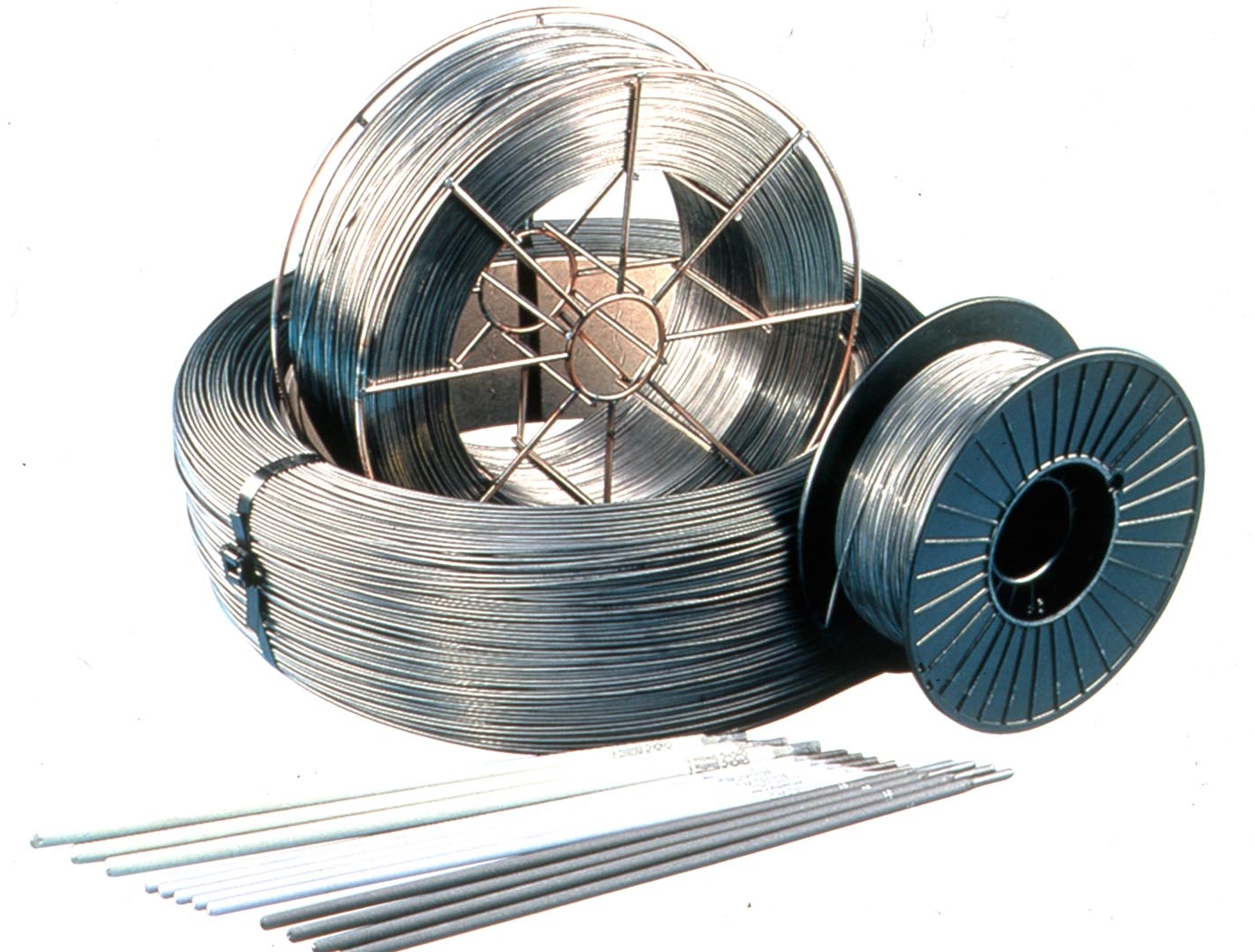

Aug 29, 2002 Copper-covered Thermal Arc® SF-1 and SF-1A (E71-T1) flux-cored welding wires prevent moisture absorption and rust. They have no seams, flux voids, or strip seams. Sizes range from .045 to .052 in. diameter. SF-1 is welded in CO₂ shielding gas while SF-1A is designed for 75 Argon-25CO₂. Both wires feature low spatter and easily removed slag cover.

J. W. Winco, Inc.    New Berlin, WI 53151
Aug 29, 2002 Made from black phenolic plastic with glossy finish, knobs are available with tapped insert or threaded stud. Tapped insert is brass while threaded stud is zinc plated steel. Both are molded in. Knob's smooth shape provides operator with a comfortable grip. Knobs have maximum heat tolerance of 300°F.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Aug 29, 2002 Model 8515C piezoresistive pressure transducer is available with double paralene coating that protects against temporary water impingement. Coating is applied to diaphragm and interfacing components between case and diaphragm, and makes transducer suitable for blast effect studies and measurement of surface pressure gradients on helicopter or turbine blades. Available in 15 and 50 psi ranges, it has full-scale output of 200 mV with high overload capability.

Meese Orbitron Dunne Co.    Saddle Brook, NJ 07662

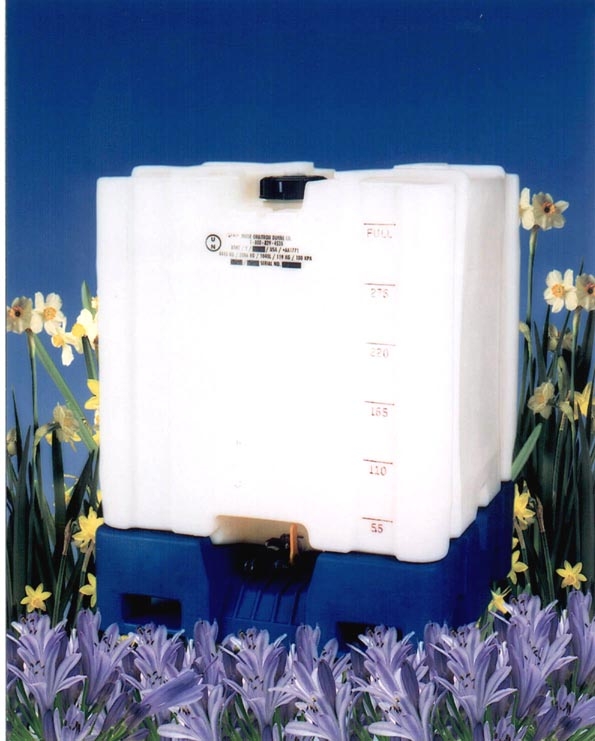

Aug 29, 2002 UN/DOT certified Unitote intermediate bulk container lets manufacturers safely ship natural, nature identical, synthetic, and mixed flavors in large volumes. Available in 275 and 330 gal capacities, IBC stacks 2 high when filled, 3 high when empty, and drains to less than 3 oz. All plastic, chemical resistant, polyethylene container accommodates hazardous materials with specific gravity ratings up to 1.9.

Lapp USA    Florham Park, NJ 07932

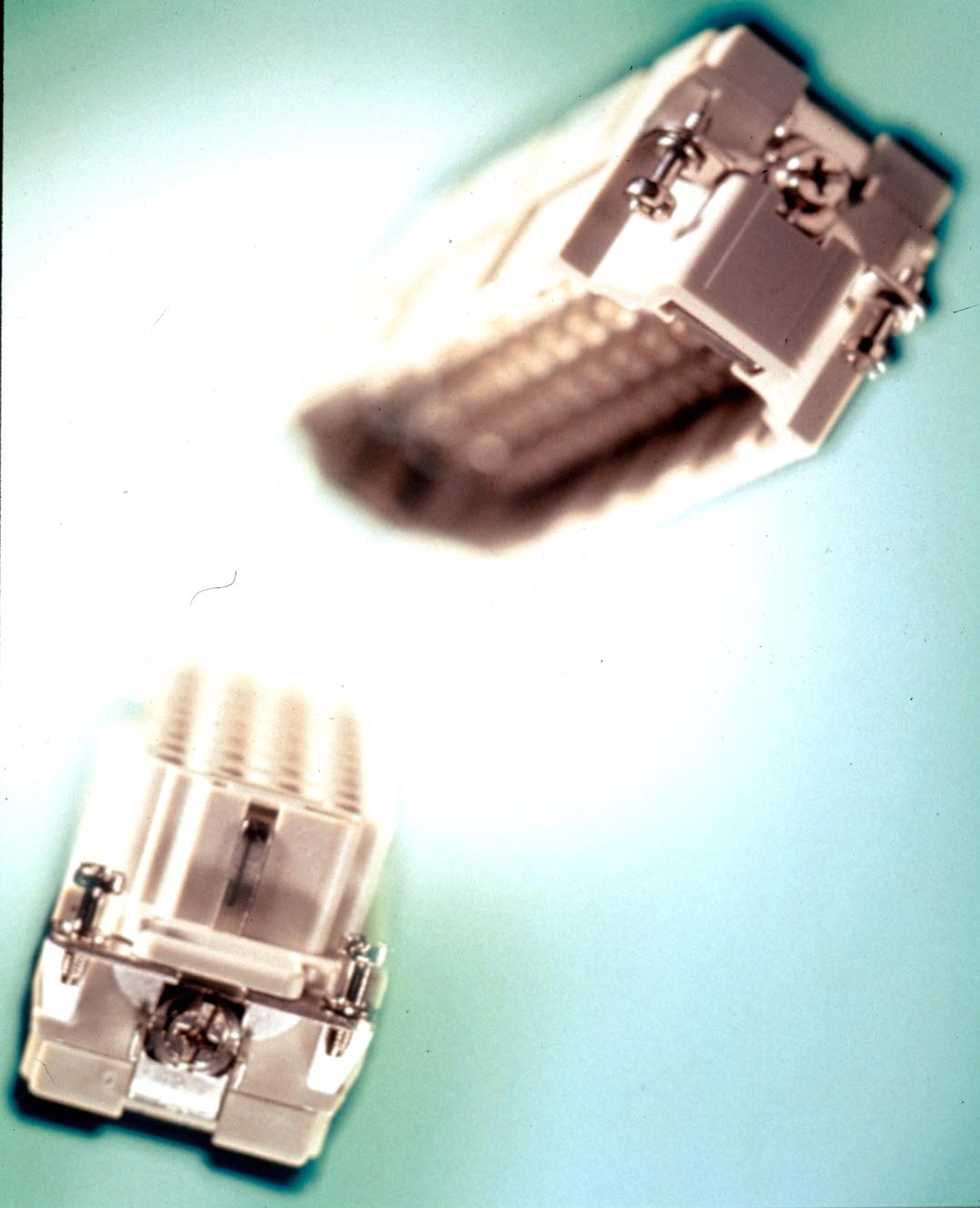

Aug 29, 2002 UL, CSA, and VDE approved, EPIC® HEE Series high density connectors have 16 A, 600 V rating. Family consists of 6 contact capacity configurations: 10, 18, 32, 46, 64 (2x32), and 92 (2x46). Crimp terminated inserts are available with silver or gold contacts. Connectors are suitable for robotic, transportation, automotive, and industrial applications.

BASCO    University Park, IL 60466

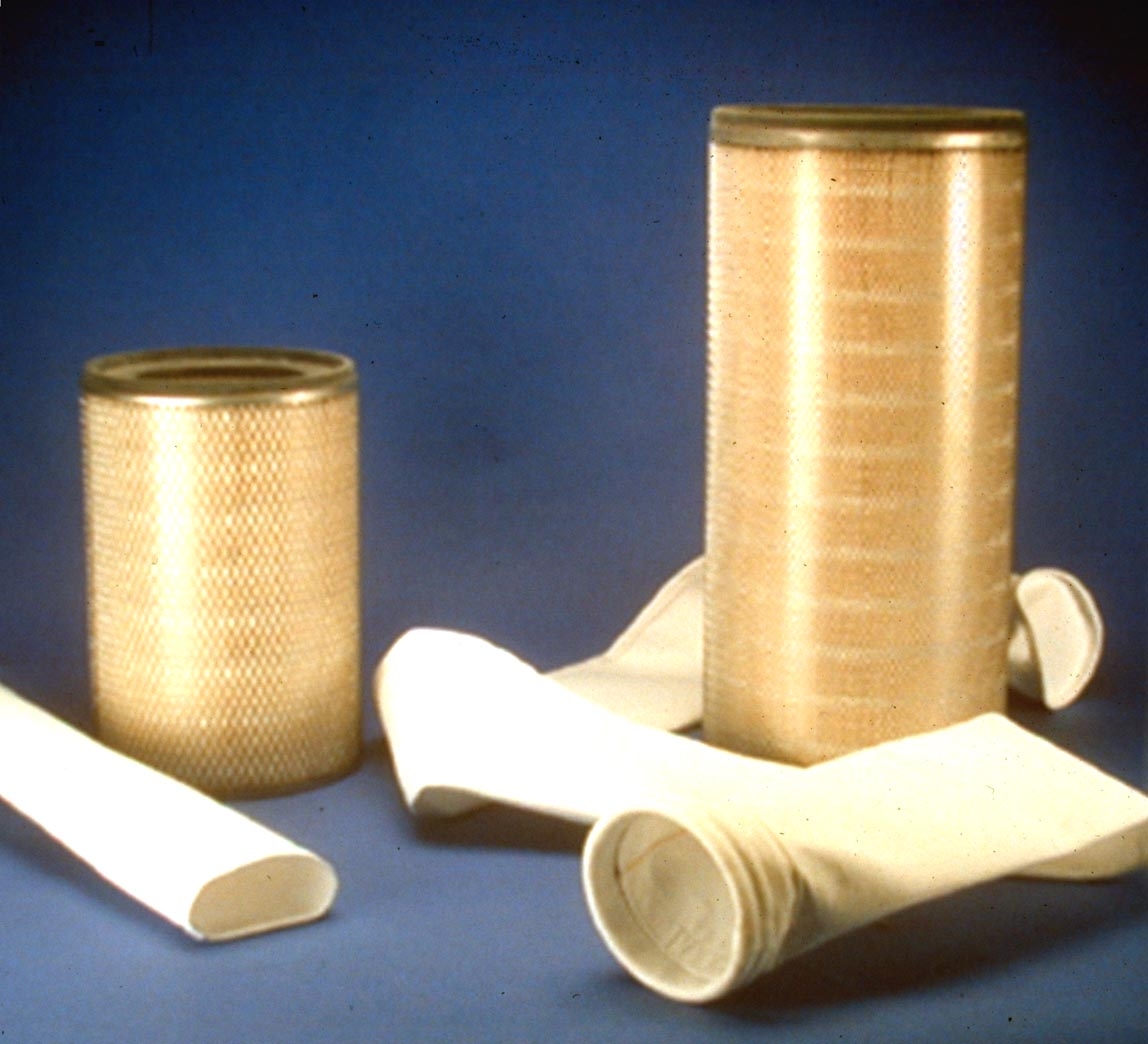

Aug 29, 2002 Pulse Jet Dust Collector Filter Bags are available in configurations such as plain top/disc bottom with ground wire, snap-band top/disc bottom, and plain top/disc bottom. Bags can be custom made to fit any dust collector. Available media includes HO treated polyester, dual-dimple, pleated polyester, 100% spun-bond polyester, aluminized, spun-bond polyester, PTFE membrane, anti-static membrane, hi-temp membrane, hi-temp fiber felt, and 80/20 paper cellulose.

REP Corporation    Bartlett, IL 60103-8146
Aug 29, 2002 Presses make sequential or simultaneous injection of 2 materials, such as rubber, liquid silicone, or thermoplastic elastomers. Machines work 3 ways: 2 consecutive shots into adjacent cavities; simultaneous or sequential shots into single cavity; or simultaneous shots into 2 separate cavities. Onboard PC controls operation of dual injection heads, closing/clamp unit, and all other electrical, hydraulic, and mechanical machine functions.

Pisco USA, Inc.    Elk Grove Village, IL 60007

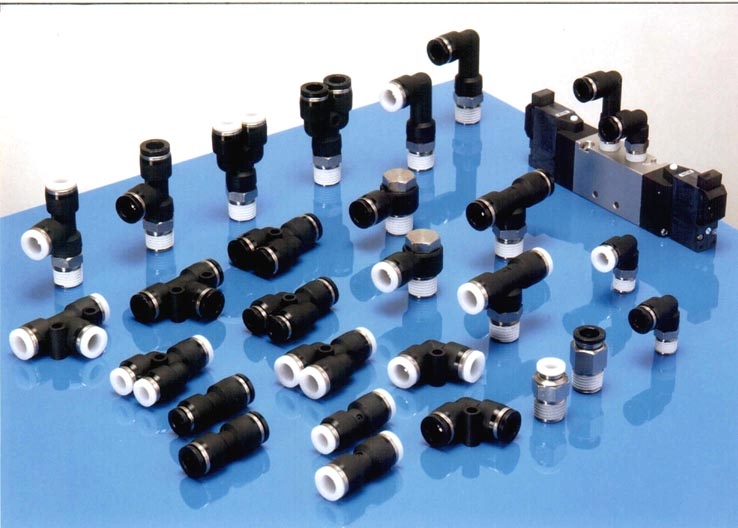

Aug 29, 2002 Featuring lightweight components and compact design, T Series tube fittings and speed controllers for pneumatic equipment handle pressures to 150 psi and temperatures from 32 to 140°F. T Series products are ISO 9001 certified.

Komatsu America International Company    Vernon Hills, IL 60061

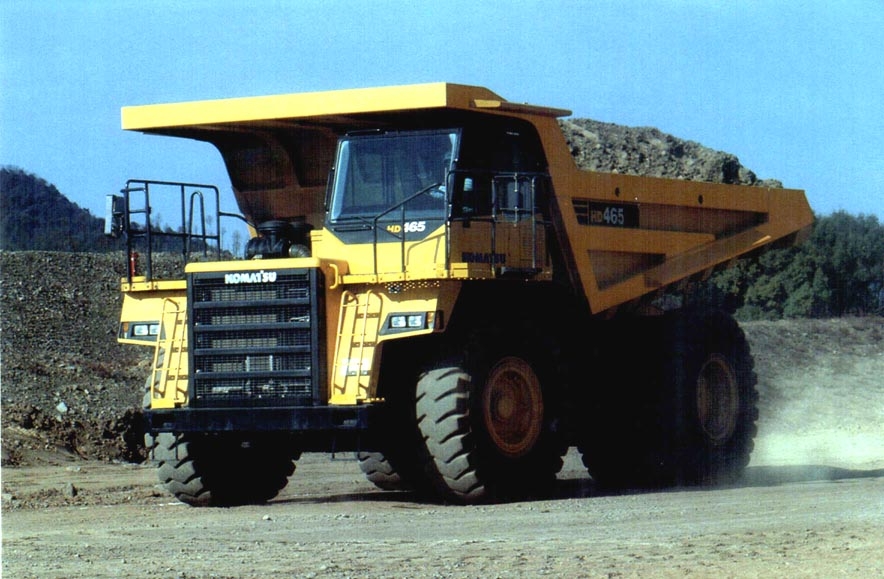

Aug 29, 2002 The HD465-7 has 715 hp turbocharged engine, 7 speed transmission, hydraulic brake system, wide spacious cab, and SUV-style interior with reclining seat, tilted steering wheel, and AM/FM stereo. It weighs 217,820 lb. For safety, truck has roll over protective structure, falling object protective structure, and rock deflector that overhangs cab. Electronic display monitoring system oversees truck's operation, fluid and pressure levels.

Komatsu America International Company    Vernon Hills, IL 60061
Aug 29, 2002 Dash-7 Model HD605 truck weighs 242,290-lb yet travels at speeds up to 43.5 mph. It has 715 hp 6 cylinder TIER II emissionized engine, 7 speed automatic transmission, and hydraulic system for power and control. Transmission automatically selects optimum gear according to vehicle speed, engine rpm, and shift position. Oil cooled multiple disc retarder allows truck to decelerate without frequent use of brakes, permitting safe travel down long, steep slopes.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965

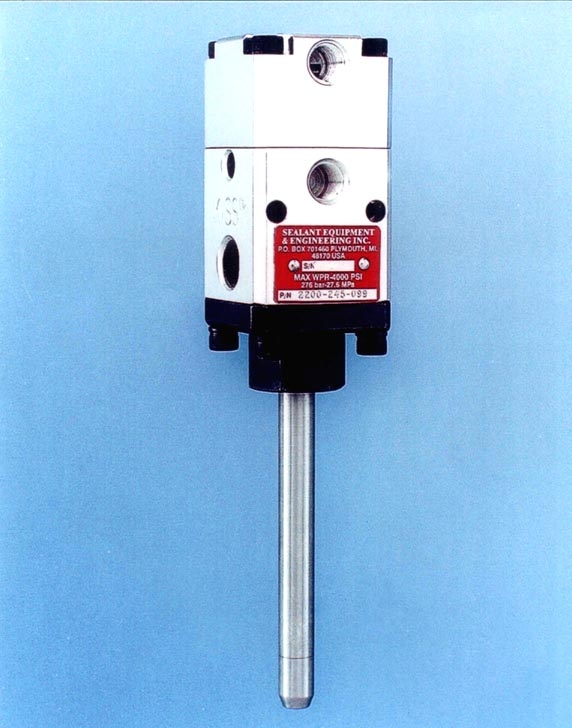

Aug 29, 2002 Series 2200-245 Tip-Seal Kiss® valves automatically apply beads or drops of adhesive or sealant materials such as silicone, urethane, or other moisture-sensitive products. Multiple valves can be supplied from one common material header and transfer pump station. Carbide hardened, integrated needle and nozzle assembly has abrasion-resistant seal. Stainless steel spring ensures shut-off when valves are closed if main air pressure is lost.

PACE, Inc.    Laurel, MD 20723 1990

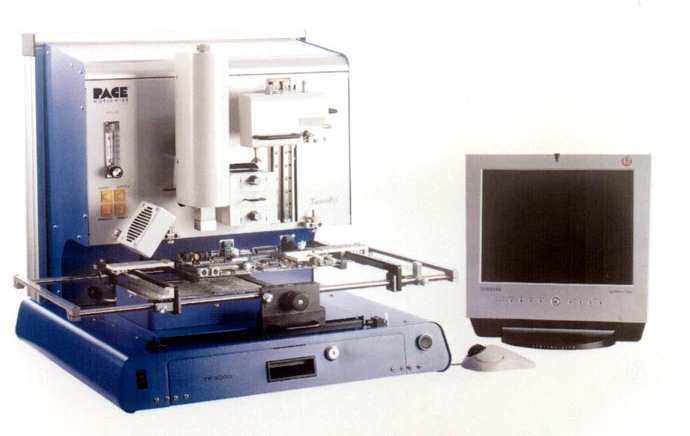

Aug 29, 2002 ThermoFlo 3000 BGA/CSP rework and repair equipment, featuring vision overlay system with independently controlled, dual color LED lighting, can accurately place area array devices with solder ball diameters as small as 4 mm. Its 400 W bottom-side heater and 1600 W top heater coupled with nozzle design ensures successful reflow and even heating. Up to 4 thermocouples may be connected to develop/verify profiles.

Lyon Workspace Products    Aurora, IL 60507

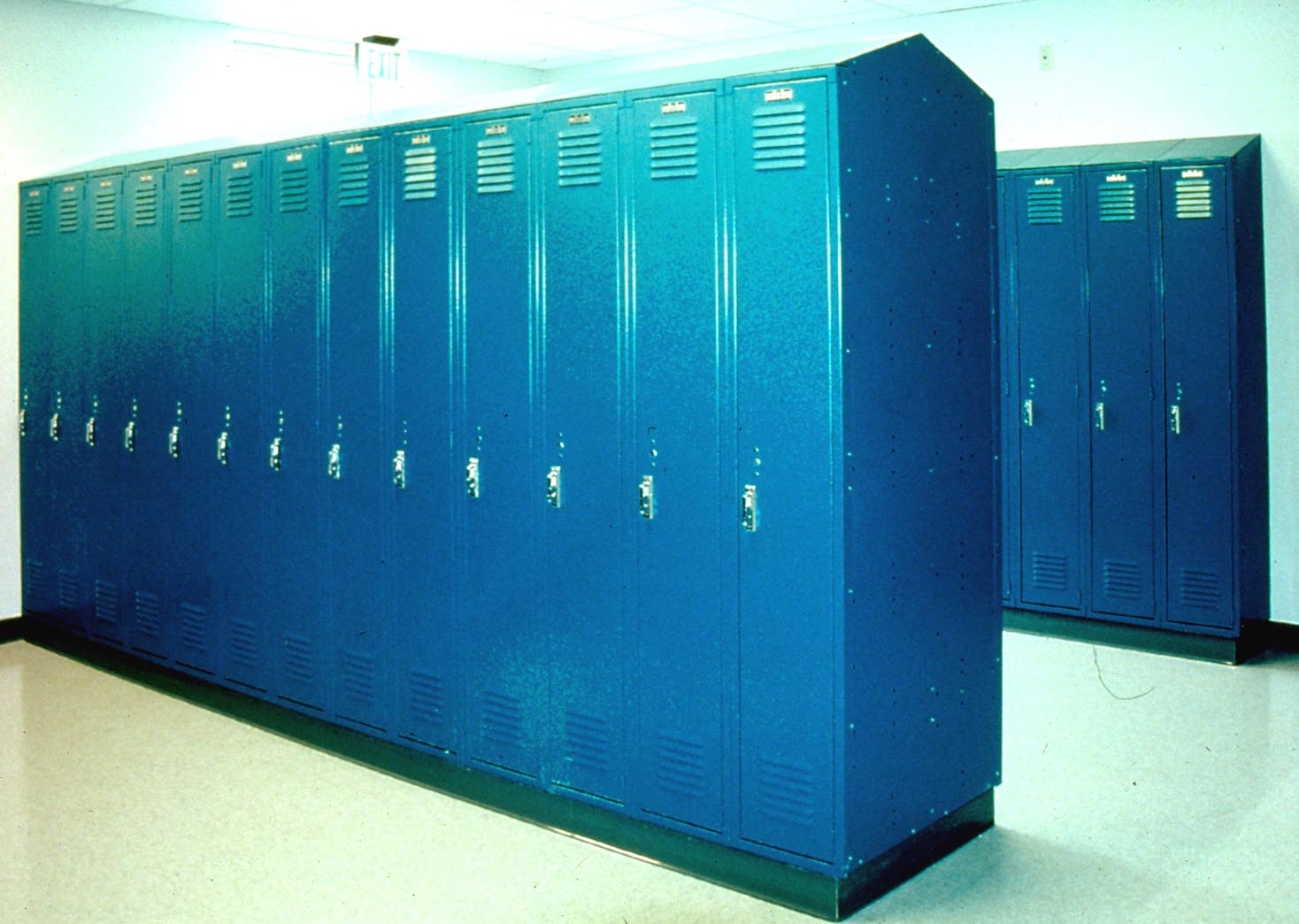

Aug 29, 2002 Integrated Frame Locker has door frame that is integral part of sides, top, and bottom of locker for strength and security. Single-point, recessed locking device features magnetic catch for positive door closing. Locker's 14 gauge steel doors on single, double, and triple tier models have 18 gauge pan-type stiffener welded inside channel-shaped formation on hinge side of door. Standard diamond shaped door perforations provide proper ventilation.

Garon Products, Inc.    Wall, NJ 07719 1924
Aug 29, 2002 Tigerdeckâ„¢ coating system protects high traffic concrete, wood, and metal substrates that need flexible, chemical resistant coating. Since coating is flexible, it allows substrate to move with changes in temperature and humidity without cracking or popping off. Elastomeric, seamless waterproof membrane prevents moisture attack that causes damage to any slab. Coating has low odor and comes in large selection of colors.

Garon Products, Inc.    Wall, NJ 07719 1924
Aug 29, 2002 Traffic Fast™ mix and pour, shallow crack, concrete repair material contains high-bond liquid polymer that provides impact resistance. Fast setting, self-leveling product eliminates need for extensive key cutting. Traffic Fast™ is suitable for use on loading docks, shipping/receiving platforms, bridge decks, warehouse and plant traffic lanes— any area that cannot be shut down for extended time.
