Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

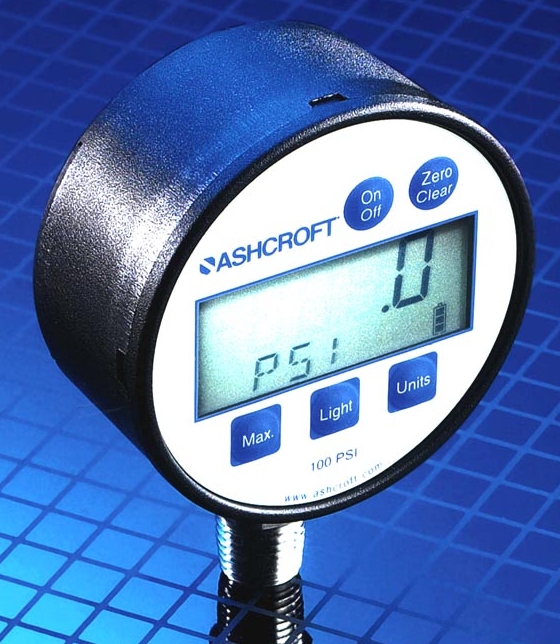

Sep 10, 2002 Ashcroft® Type D1005PS has ½% full scale, terminal point accuracy including linearity, repeatability, and hysteresis. Four-digit display features ½ in. character size and is available in 11 ranges from vacuum to 9,999 psi. Gauge includes peak hold feature for maximum pressure indication and backlight for visibility. Stainless steel sensor and socket make it suitable not only for dry air applications, but for other media as well.

LEWCO, Inc.    Sandusky, OH 44870
Sep 10, 2002 LAHR Steel Hinged Belt Conveyor can be custom built to meet production needs. Flow patterns include S, P, L, and Z, with belt widths up to 60 in. Lengths and inclines fit specific application. Options include belt material, coating, rigid or adjustable supports, and casters. Conveyor typically handles metallic chips and non-metallic waste from machining operations or scrap from trimming, punching, and forming machines.

Blum Laser Measuring Technology Inc.    Fort Mitchell, KY 41017

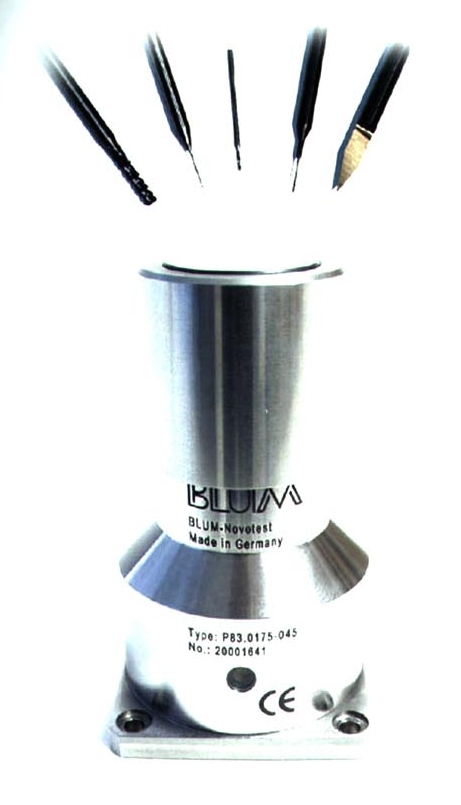

Sep 10, 2002 Automatic Z-Nano, for tool length setting and breakage detection, offers ±0.002 mm parallelism between measuring face and mounting face, and torque-free 2.5 N measuring force, which permits measurement of tools less than 0.2 mm in diameter. Repeatability is rated at ±0.5 µm, and overall stroke is 10 mm. Measurement data is transmitted directly to machine CNC via protected conduit connector cable. Software offers NC routines and cycles compatible with most control systems.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

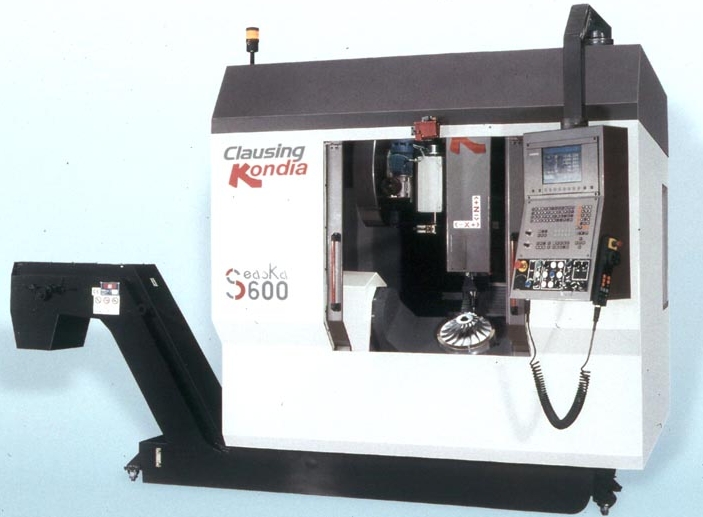

Sep 10, 2002 Kondia Model Seaska Vertical Machining Center (VMC) is equipped with moveable column guided by 5-axis CNC Heidenhain TNC 530M. Able to provide linear and circular interpolation, VMC has cast iron bed and column, hardened and ground ballscrews, and cast iron balanced headstock structure. Axes have pre-loaded linear guide systems, and RANDOM-type 20-tool automatic tool change system provides air blast spindle taper cleaning system. VMC has 6,000 rpm, oil-cooled main spindle cartridge.

J.W. Done, Co.    Foster City, CA 94404

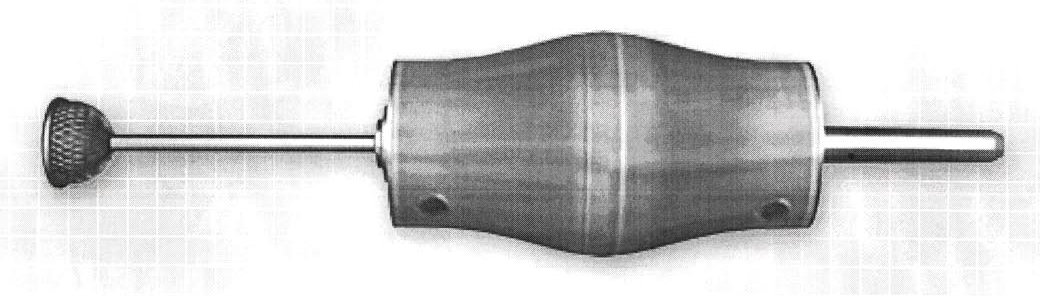

Sep 10, 2002 ORBITOOLâ„¢ removes burrs specifically from intersection of holes. Operation can be tailored to leave minimally broken edge or blended radius. Tool is used like any cutting tool found on lathe turret or tool magazine of machining center. It can deburr non-circular features and is suitable for process control environment.

Grieve Corporation, The    Round Lake, IL 60073-2898

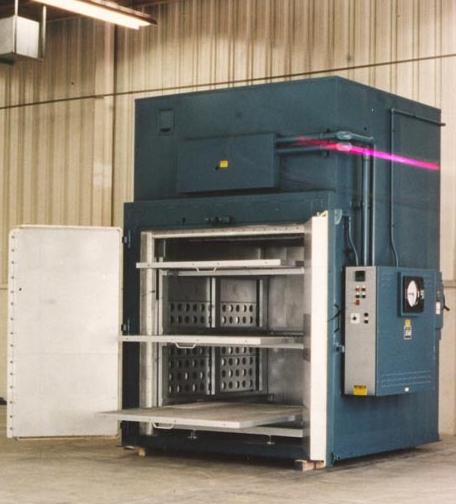

Sep 10, 2002 Model No. 902 electric, high temperature oven has maximum operating temperature of 850°F, rollout shelving, 100 kW of Incoloy sheathed tubular heating elements, and 10,000 CFM, 7½ hp recirculating blower that provides combination airflow to workload. Oven has overall workspace dimensions of 72 x 79 x 78 in., with top-mounted heating chamber, aluminized steel interior and exterior, and inner and outer door gaskets. Doors have expansion joints on inner face.

Allegro Industries    Garden Grove, CA 92841-1410

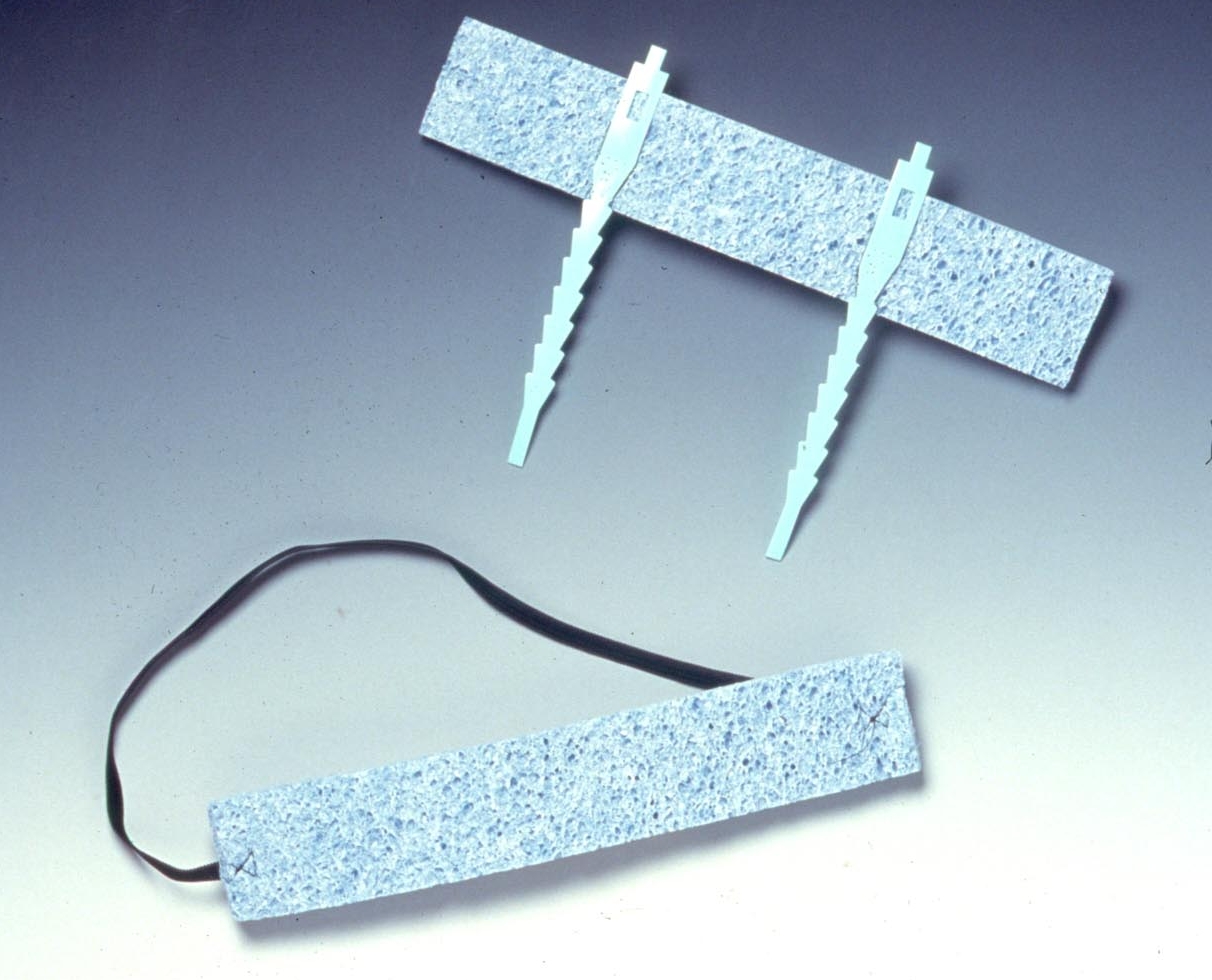

Sep 10, 2002 Available in Standard, Deluxe, and Clip-on styles, sweatbands absorb excess perspiration for workers who must function in excessive heat environments. They can be worn under hard hats, welding helmets, and sandblasting hoods. Sweatbands are 8 5/8 in. long. Standard style is made of cellulose sponge, while Deluxe style has reinforced sponge with fine porosity for better absorption. Clip-on model is for use with hard hats and suspension systems.

RAE Corp.    McHenry, IL 60050 7001

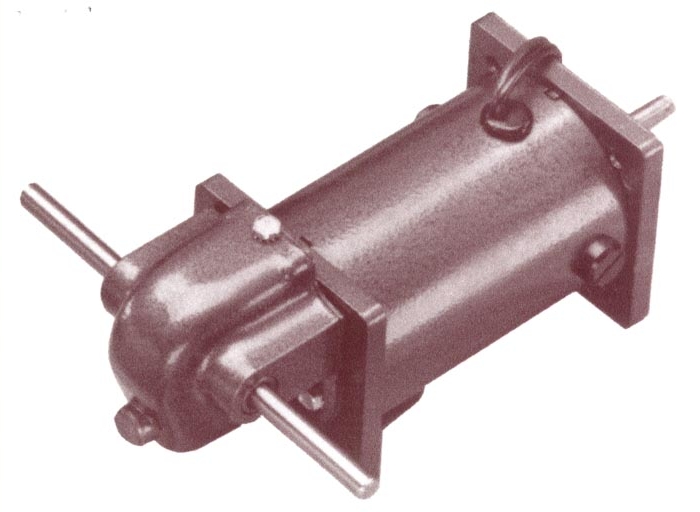

Sep 10, 2002 Model M1500 G4 PM dc gearmotor has metal construction and Bakelite gear that provides quiet operation for noise sensitive applications. It is available in 12 to 115 V models, with maximum continuous torque ratings to 7 lb-in. Motors are UL approved and have ceramic magnets, double-shielded ball bearings, Class F insulation, dynamic alloy balanced armature, TENV design, externally replaceable brushes, and auto-hook, Tang-type commutator.

Nilfisk Advance, Inc.    Plymouth, MN 55447 3408
Sep 10, 2002 Cylindrical I-MAXâ„¢ 28C and I-MAXâ„¢ 32C have 28" and 34" cleaning paths, respectively, and 30 gal solution and recovery tanks. Both have simple, ergonomic handle bar and touch-pad control panel for all scrub features. Rear solution fill port lets operator fill solution tank with ordinary garden hose while emptying recovery tank. Options include high tower roller bumpers, solid steel side panels, scrub and vac kit, and various squeegee blades.

Micro Air Clean Air Systems    Wichita, KS 67205

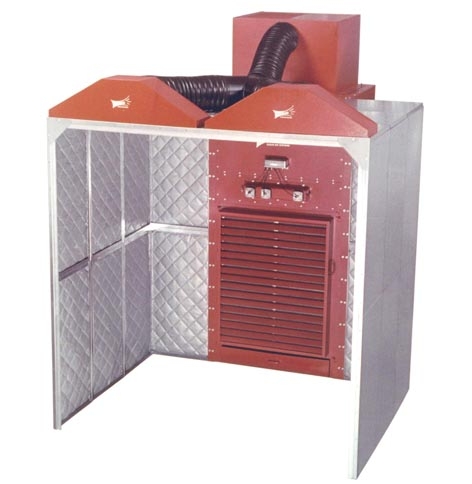

Sep 10, 2002 Modular booth has 5 cartridge filters that are cleaned by Roto-Pulseâ„¢ cleaning system. Sound levels within booth are low, with no banging associated with reverse pulse filter cleaning systems. Walls and ceilings are constructed from 2 x 4 ft galvanized panels, for width, depth, and height flexibility. Optional regain air system washes worker's breathing and vision zone, pulling particulate away from workers and increasing capture velocities of airborne particles.

Garner Industries    Lincoln, NE 68504

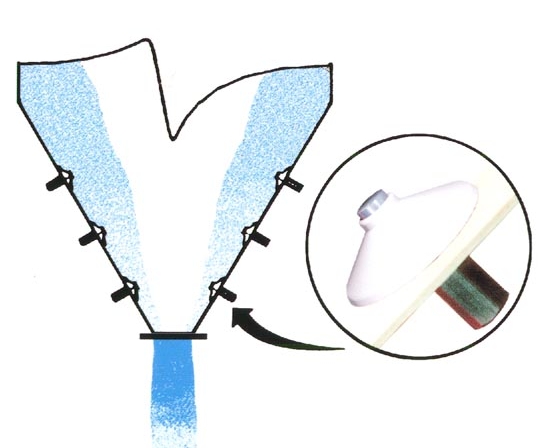

Sep 10, 2002 Airbrator Pad combines aeration and vibration to make bulk material consistently flow from silos and bins. Pad creates vibration as air flows between pad's boot and bin wall, providing effective flow aid for all types of dry products. Pads can work with blower air pressure from 5 to 60 psi.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

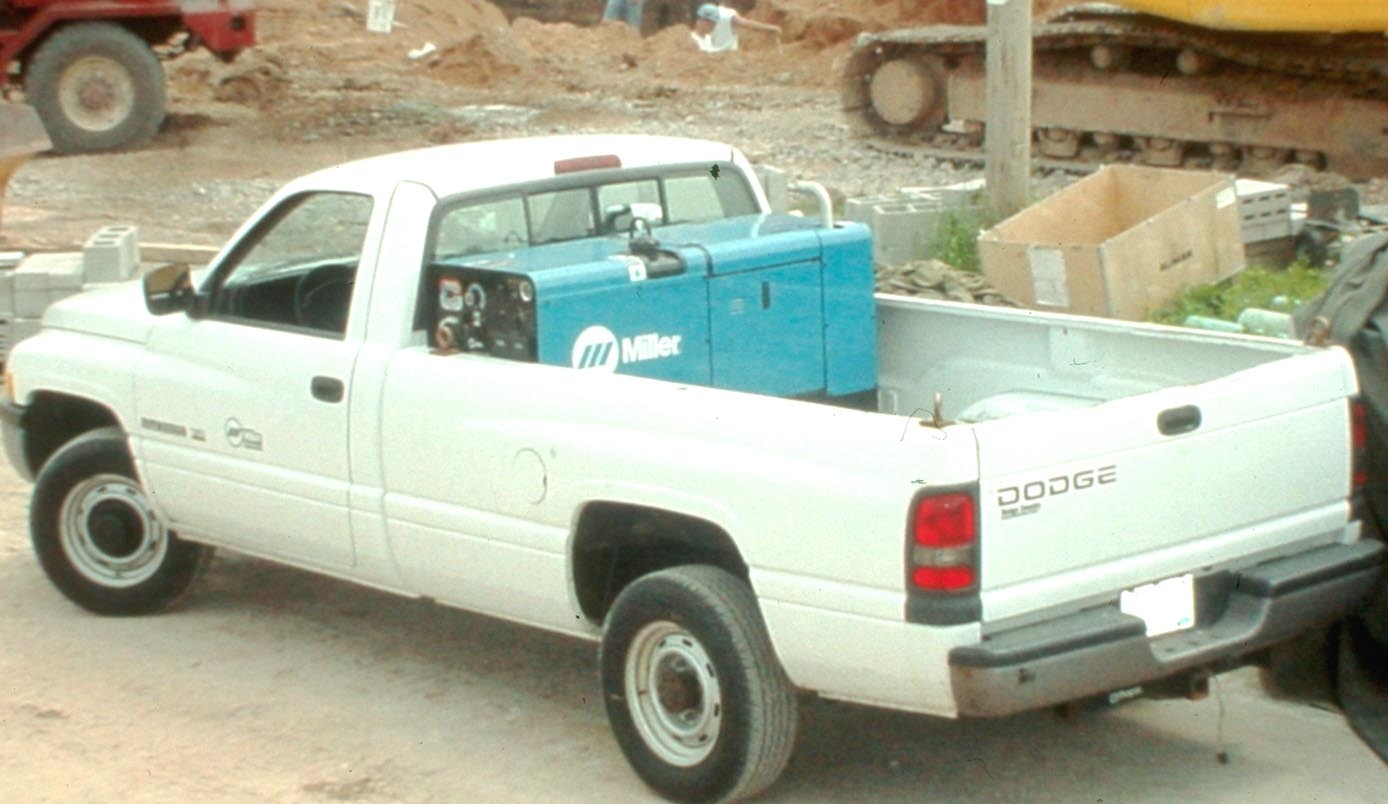

Sep 10, 2002 Trailblazer Pro 350 D provides 20 to 350 A of dc Stick/TIG/MIG welding output and 12,000 W continuous, voltage-regulated 120/240 V single-phase generator power. For TIG welding aluminum, it has 35 to 250 ac output. Powered by 26 hp Kubota diesel engine, it has 100% duty cycle rating of 300 A at 32 V in ambient temperature of 104ºF. Generator features Arc Drive and Hot Startâ„¢ for Stick welding performance.

Minco    Minneapolis, MN 55432

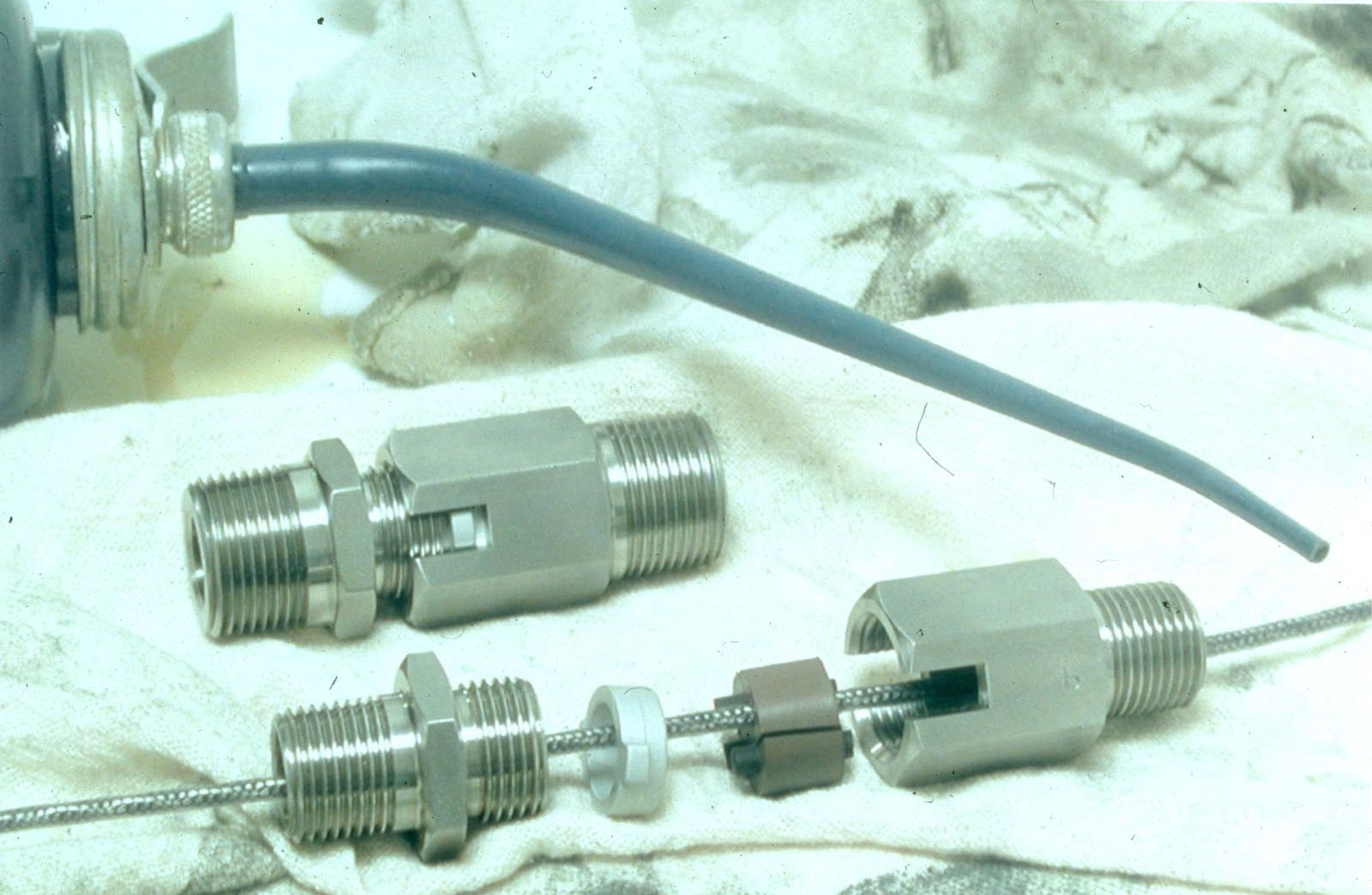

Sep 10, 2002 FG3015 keeps oil from wicking along wires where they exit machine housings. Compression seal conforms tightly to cable jacket and keeps oil inside machine to 50 psi. Split grommet allows user to install seal without threading cable or wires through grommet. Body is all stainless steel. Models are available for single cables or up to 6 individual wires, with diameters from 0.05 to 0.23 in. FG3015 is rated to 150°C.

FastPic Systems    Westbrook, ME 04092
Sep 10, 2002 FastPic Parts PLâ„¢ gives operators of automated storage and retrieval systems capability to enter part number into system and have stored items automatically delivered. Software uses installation wizard to create parts inventory by SKU number. It can manage virtually all manual and ASR systems, including shelving and racks, pick light systems, vertical carousels, and vertical lift modules. It interfaces to WMS, LESA, and ERP systems.

Automation Control Products    Alpharetta, GA 30005
Sep 10, 2002 Advantech 5820 includes embedded Linux build that boots directly into Xwindows. It does not need Microsoft Windows server to boot-it comes up and displays Xwindows shell. Xwindows shell allows user to start application from any Linux computer on network and have its display sent to industrial Linux client. Customers who are running Linux or Unix applications on central computer can use industrial Linux Thin Client as display.

EPSON Factory Automation/Robotics    Carson, CA 90746
Sep 10, 2002 Vision Guide robot guidance system uses Geometric Search Tool to quickly locate model or multiple models at any position under harshest conditions. Tool finds parts with full 360° rotation as well as parts that are partially obscured. It can be used in manufacturing of appliance, automotive, biotechnology, consumer, electronics, food processing, medical, pharmaceutical, photonics, semiconductor, and telecommunication products.

Thomas Products Division    Sheboygan, WI 53081
Sep 10, 2002 Series 3013 is suitable for instrumentation and sampling applications. Compressor has ability to restart against pressure or vacuum. Series is available with dc motors, in 3, 4.5, 6, and 12 V to provide maximum continuous pressure to 2.2 psi, maximum intermittent pressure to 8.7 psi, and maximum vacuum up to 13.5 in. Hg.

Yaskawa Electric America, Inc.    Waukegan, IL 60085
Sep 09, 2002 Model V7 Adjustable Frequency Drive accommodates digital programming of almost 200 parameters, while digital, pulse-train input ensures precise frequency entry. Digital operator's LED readouts monitor operating conditions, including output frequency and current. Seven standard multifunction inputs access 17 preset speeds. Analog input, multifunction Form-C relay output, 2 multifunction open collector outputs, analog output, and RS-485 network communication port are provided.

Fisher Controls Regulator Div. - An Emerson Process Management Co.    Marshalltown, IA 50158 2823
Sep 09, 2002 Model ROC809 combines Remote Terminal Unit (RTU), Flow Computer, and PLC capabilities. Gas flow calculations use AGA 3 for orifice metering, AGA 7/ISO 9951 for turbine metering, and AGA 8/ISO 9951 for compressibility. PID loop control is configurable for up to 16 control loops. Up to 6 Function Sequence Table (FST) controls let users develop control strategies using logic, math, comparison, time-related, control-related, database, and general command sets.

All Sensors Corp.    Morgan Hill, CA 95037
Sep 09, 2002 Miniature sensors, offered in pc board mountable package, offer one or two pressure ports for use with 1/16 in. tubing. Pressure ranges are available from 1 in. w.g. FS to 30 in. w.g. FS. Their package measures 0.5 x 0.6 in. with 4 electrical leads. Sensors are available choice of output proportional to gage or differential pressure and employ electrical cross-coupling compensation. Applications include hand held manometers and HVAC airflow monitoring applications.
