Thomson Industries Inc.    Port Washington, NY 11050 2214
Sep 06, 2002 MicroGuideâ„¢ linear guides, with 440C stainless steel construction, have Gothic Arch ball-groove geometry for quiet, single-rail operation, and provide accuracy up to ±0.1 mm. Available in 5, 7, 9, and 12 mm sizes, all have industry standard envelope and bolt-hole pattern for drop-in replacement of existing guides. The 5 mm MicroGuide is clean room and vacuum compatible. Applications include pick and place of miniature components and devices in processing equipment.

TechniDrill Systems Inc.    Kent, OH 44240
Sep 06, 2002 Column-type, 3-axis system drills holes from 0.500 to 4.000 in. dia, in depths up to 60 in., using BTA tooling. It provides 48 in. x-axis table travel and 36 in. y-axis drill headstock movement. CNC control system monitors cutting tools for torque and feed thrust, and locates holes on irregular-shaped workpieces using Renishaw probe. Coolant is filtered to 10 microns and provided to drills at up to 120 gpm at 1,000 psi.

Camfil Farr    Riverdale, NJ 07457
Sep 06, 2002 Multi-pocket Hi-Flo® uses Controlled Media Spacing (CMS) to minimize pocket-to-pocket contact and keep pockets aligned. Filter promotes uniform airflow and full utilization of its microfine fiber glass media, which ensures low resistance to airflow and consistent submicron particle capture. Available in 4 efficiencies, MERV 9, 11, 13, and 14, based on ASHRAE 52.2, it removes fumes, smoke, bacteria, fungi, virus-bearing droplet nuclei, and atmospheric impurities.

Aalborg Instruments & Controls, Inc.    Orangeburg, NY 10962
Sep 06, 2002 Self-contained Model GFM thermal mass flow meter measures gas flow up to 100 sL/min with accuracy of ±1.5% and repeatability of ±0.5% f.s. Flow rate is unaffected by temperature and pressure variations. Output is 0-5 Vdc or optional 4-20 mA. Response time is typically 2 sec. Maximum pressure is 500 psi. LCD readout provides readings in direct engineering units in terms of specific gases. Aluminum and stainless steel models are available.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Leak-free, reusable, brass ball valve is available in sizes from 1/4 to 2 in. It handles working pressures of 600 psi W.O.G., or 150 psi in on-off saturated steam service, in temperature range from 0 to 250°F. Applications include construction equipment, chemical processing, plastic and rubber products manufacturing, pumps, and specialized industrial machinery.

Selco Products Co.    Reno, NV 89521-5908
Sep 06, 2002 High-Precision NTC Series Thermistors measure temperatures from -50 to +110°C with precision of ±0.3°C, and are available in all resistance-temperature curve materials. Resistance values at 25°C are available from 1 to 47 Kohms. They require no adjustment between control circuit and sensor. Standard tolerance ranges are ±1%, ±3%, and ±5%. Dissipation value is 2 mW/°C in still air, with typical thermal time constant of 15 sec. Maximum power rating is 10-15 mW at 25°C.

LINPAC Materials Handling    Georgetown, KY 40324
Sep 06, 2002 Suited for applications involving bulky, lightweight products, ROPAKâ„¢ L-Series 4548 container is constructed of high-density polyethylene (HDPE) and measures 45 x 48 x 34 in. (L x W x H). Available with 2 drop doors, collapsible container withstands repeated use under severe conditions and stacks without racking. Model offers 4-way forklift entry and label areas for organization/distribution processes.

Access Hardware Supply    San Leandro, CA 94577
Sep 06, 2002 Simplex 5000 mechanical lock includes internal drive parts of cast stainless steel and clutch-free direct-drive design. Various cylinder options and combinations are available that change in seconds. Grade 1 hardware offers key override for extra security for maintenance or emergency personnel.

Graco Inc.    Minneapolis, MN 55440
Sep 06, 2002 Model WB100â„¢ isolates waterborne coatings when spraying with electrostatic equipment. System offers portable cabinet that holds a 5-gallon pail for waterborne material. Tritonâ„¢ pump, mounted inside cabinet, supplies material to PRO Xs3â„¢ WB electrostatic spray gun for fine finish applications. Unit is equipped with 60 kV electrostatic air spray gun and voltage display.

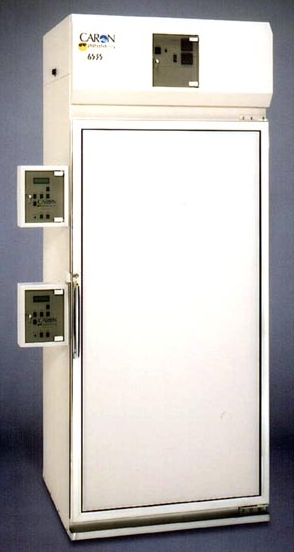

Caron Products & Services, Inc.    Marietta, OH 45750 0715
Sep 06, 2002 Suited for use in pharmaceutical industries, photostability Chamber illuminates undersides of immediate product packaging during photostability testing. Bottles are vertically suspended by their caps above inverted light banks.

Teledyne Hastings Instruments    Hampton, VA 23661
Sep 06, 2002 Digital Metaline® and high capacity digital flow instruments include flow meters and controllers with self-diagnostics, including warnings and alarms for flow, sensor, and valve status. Meters measure from 5 sccm to 2500 slm, with accuracy better than ±0.5% of reading. All feature flexible operation with ±12, ±15, or 24 Vdc power supplies, transparent operation in analog or digital modes, and RS232 or RS485 interface with baud rates up to 19.2 kbaud.

Trion Industries, Inc.    Wilkes Barre, PA 18702 6997
Sep 06, 2002 EWT Shelf Works(TM) mounts via pushbutton/front rail system or ordinary wire ties, and also works as freestanding unit. It adjusts from 5 to 12 in. wide to accommodate any shape package, and has powder-coated, galvanized wire and Celcon plastic adaptors. Open wire design sheds dust and dirt and promotes air circulation, making it suitable for cooler and freezer applications. Clear plastic front rail is available as alternative to wire front product stops.

Eraser Co., Inc., The    Syracuse, NY 13221
Sep 06, 2002 Models E200/E300 will strip most types of film insulation including varnish, enamel, polyester, glass, and resin from round wires between 1 and 20 AWG, square wire up to 1/4 in., or rectangular wire up to 1/4 x 2 in. Wire brush wheels can strip multiple wires at same time. Adjustable length stop can be set for strip lengths from 1/2 to 3-1/2 in. Dust take off port is included for connection to dust removal system.

Hosokawa Bepex Corporation    Minneapolis, MN 55413-2810
Sep 06, 2002 Purge vessel can be used as batch processor to dry and cool large mass of polymer pellets. Heated, dry air flows up through bottom of purge vessel while it is being filled with wet polymer pellets. As airflow continues, pellets are held under high volatile vapor pressure and low volatile partial pressure. When pellets are dry, vessel is purged with dehumidified air. In cooling phase, cool, dry air recirculates through vessel to cool polymer pellets to specified temperature.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Sep 06, 2002 Series LIF400 offers travel up to 1 meter and maintains long wave accuracy of ±3 µm. It is suitable for both coarse and fine measurement applications, from 4 microns down to 10 nanometers of resolution. SUPRADUR grating style provides high tolerance to contamination such as oil, dust, and fingerprints, due to precisely measured layers of glass and reflective material. Optical limit switches allow user to place limits anywhere directly on scale.

APW Ltd.    Waukesha, WI 53188-1013
Sep 06, 2002 Conduction Cooled Frame Assemblies consist of top frame, insulator, and backing plate. For corrosion resistance, assemblies are available in black anodize, chemical film, and electroless nickel plating. Aluminum 6061-T6 provides high thermal conductivity, as well as lightweight support. Frame and backing plate are each machined from solid piece to assure continuous heat flow and structural integrity. Component area can be customized to match board and application.

Cooper Wiring Devices    Long Island City, NY 11101
Sep 06, 2002 Smart Dimmer allows light levels to be adjusted at master or remote locations before lights are turned on. LEDs indicate illumination level, while microprocessor electronics permit dimmer control to raise or lower light levels at any station while lights are On or Off. Suitable for incandescent and magnetic low voltage systems. Each master dimmer can control up to 5 remote devices.

Big Sky Distribution    Spring Lake, MI 49456
Sep 06, 2002 Sky-Loc Rapid Release Receiver Caps positively lock over end of quick release ball lock pins allowing them to be used in applications where hole is not within tolerance or out of round. Cap increases holding area of pin and provides for maximum pullout strength. Made from 303 stainless steel, caps fit 1/4, 5/16, 3/8, 1/2, and 5/8 in. quick release pins. They come with plain ends as well as with tapped hole to attach lanyard to end cap.

Chicago Industrial Pump Co.    Chicago, IL 60622
Sep 06, 2002 Pitbull Pump is made up of pressure chamber and 2 check valves with remote control panel. It is based on compressed air piston acting directly on surface of liquid being pumped. Liquid is directed into chamber, pressurized, and discharged with air/liquid interface maintained through process to eliminate need for diaphragm or bladder. Pump cycling is automatic so it stops when no liquid is present. Pitbull handles hard-to-pump solids and abrasives, trash, and chemicals.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Banjo-style Miniature Flow Control can be mounted directly on small bore cylinders. Intake air flows in freely and exhaust air is metered out through adjustment screw to regulate speed of cylinder. Unidirectional valve has nickel-plated brass stem and threads, 25% glass filled nylon body, and expanded internal O-ring. It is available with 10-32 UNF threads and 1/8 and 1/4 in. NPT threads for 5/32 and 1/4 in. OD tubing.
