SURFCAM, CAD/CAM Systems By Surfware    Westlake Village, CA 91362
Sep 16, 2002 SURFCAM Verify 4.1 uses solid models to display material removal process for 2, 3, 4, and 5-axis milling and turning. Verification lets user detect errors on computer without tying up NC machine. Toolpath backplotting displays toolpath along with material removal. Backstepping allows user to back up verification process one cut at a time. SURFCAM Verify system contains integrated Predator Virtual CNCâ„¢ module, as well as Predator Editorâ„¢ with DNC communications functionality.

Bently Nevada Corp.    Minden, NV 89423
Sep 16, 2002 Series 3500 platform provides all data-capture functions needed for interfacing machinery protection system to condition monitoring software. Functionality is provided by 3500/22M TDI Rack Interface Module, which allows users to connect system to System 1â„¢ software with one Ethernet cable. M² Monitor modules capture high speed waveform information and supply this to System 1 software via the 3500/22M TDI module. System also includes integrated data acquisition.

Waldmann Lighting Co.    Wheeling, IL 60090
Sep 16, 2002 Opticlux features standard 4-diopter glass lens, along with acrylic magnifier lenses in 3.5 and 6-diopters. Plastic lenses have Cera-tec® coating and are resistant to mechanical scratches, cleaning agents, and solvents. Built-in electronic ballast provides additional energy efficiency, and eliminates plug-in or external ballasts. Magnifier cover attached to light can be removed by pressing snap-catch, or used as additional protection against work surface glare.

MSA    Pittsburgh, PA 15230 0426
Sep 16, 2002 Ultima® IR Combustible Gas Monitor features plug-in IR sensing element, and offers complete calibration with self-contained record of latest calibration date and time. Indicator alerts user when sensor needs to be replaced. Relay outputs with 2 alarm levels become available when internal relay option is selected. Monitor provides local display of gas concentrations (min, max, and avg), output signals, and alarm indications.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Sep 16, 2002 Push Button Stations provide contact closure to activate emergency equipment, audible and visual signals, and alarm panels. Red Emergency and Yellow Evacuation units have push-and-turn reset button. Red Fire units feature key lock reset button. Tamper-resistant polycarbonate cover prevents false alarms without restricting use in emergency situations and protects against physical damage. Piezo horn sounds when cover is lifted and is powered by 9 Vdc battery.

Labsphere, Inc.    North Sutton, NH 03260 0070
Sep 16, 2002 OPTRONIK RMS-l0gse offers hardware and software solution for absolute retroreflection measurement. OPTRONIK OPTO software provides graphical interface with menu driven controls for data acquisition, display, and analysis. Light source is temperature regulated to standard illuminant A, making it ready for use without long burn-in procedures. Unit can be positioned at distances of 10 m (ECE) or 100 ft (SAE). Motor driven detector can be controlled via PC or from front panel keypad.

Triple E Corp.    Lowell, MA 01852
Sep 16, 2002 CPCI backplanes in 3U and 6U models are available in 2, 3, 4, 5, and 6 slot versions. The 1U, 2U, and 3U horizontal subracks can house 2, 4, and 6 slot backplanes, respectively. Units feature right hand system slot position, are compliant with Revision 2 of PICMG 2.1 Hot Swap specification, and support both 33 and 66 MHz operation. I/O signaling environment is selectable between 3.3 V and 5 V. Power is supplied via 6.35 mm Fastons and M4 Power Bugs.

Moody Tools, Inc.    East Greenwich, RI 02818 0230
Sep 16, 2002 POLLICIS® Series anti-static drivers feature ESD handles and Swiveltopâ„¢ molded into anti-roll hex shape, allowing smooth-gliding, stable rotation. Design eliminates hand fatigue and cramping. Blades are manufactured from hardened, high tensile strength alloy steel. Drivers are available with other style handles, in sets and individually. Sets are packaged in vinyl pouches.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Sep 16, 2002 Acoustic products includes prepolarized random incidence, Series 130 array, and precision condenser microphones, available in 1/4 and 1/2 in. sizes. Family also includes ICP® preamplifiers, dual channel amplifiers, calibrators, and Pistonphones. Applications include sound power testing, engine noise, outdoor noise monitoring, acoustic chamber testing, sound pressure mapping, acoustic mode analysis, near-field acoustic holography, and vibro-acoustic testing.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 16, 2002 Magnetic Sensor measures position and rotation and senses non-ferrous and ferrous metals. By changing excitation frequency, depth of detection is changeable. Sensing distance is 0 to 1 mm and operating temperature is 0 to 60°C. Unit is suitable for micro-magnetism applications, where lower level changes in magnetism are required, such as in GPSs and vending machine coin detection.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 16, 2002 Model G9EA offers small contact gap along with power consumption of approximately 5W. Its rated load is 400 Vdc, its rated current is 60 A, and it provides electrical endurance of 30,000 operations (min) at 400 Vdc, 30 A. Ambient temperature range is rated from 40 to 70°C. Power relay is suitable for battery chargers and master shut offs for hybrid and electric vehicles as well as battery forklifts and industrial robot controllers.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 16, 2002 LR family of G3VM series MOSFET relays utilizes 1-form-A contact configuration, which offers power consumption rates of 5 mA (LED trigger current). LR family includes AC/DC switching, input-output isolation of 1.5 kVac, and ON resistance between 1 and 5 ohms. Applications include ATE, test and measurement, and RF and IT applications. Family is also suitable for IP routers, DSLAM equipment, data storage, edge routers, and LANs.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 16, 2002 Models G6Z, G6Y, and G6W have power consumption rates of 200 mW, while G6K-RF offers rate of 100 mW. At 1 GHz, isolation for models G6K-RF and G6Y is 20 and 60 dB, respectively. At 2.5 GHz, isolation for models G6Z and G6W is 30 and 60 dB, respectively. Model G6Z works at 50 and 75 ohms. Models G6Z and G6W offer Y and E input/output arrangement and are SMT and PCB thru-hole mountable. G6Y relays are PCB thru-hole mountable and G6K-RF relays are available in SMT.

Jergens, Inc.    Cleveland, OH 44110
Sep 16, 2002 Side Swivel style lifting rings are engineered for mounting by OEMs on items shipped to customers. Each ring pivots 180° and swivels 360°, which allows items being lifted to be flipped or turned. Lifting rings have capacities to 4,100 lbs and offer 5:1 strength factor. Manufactured of domestically produced certified alloy steel, they have 3-piece design. Metric and inch versions are available.

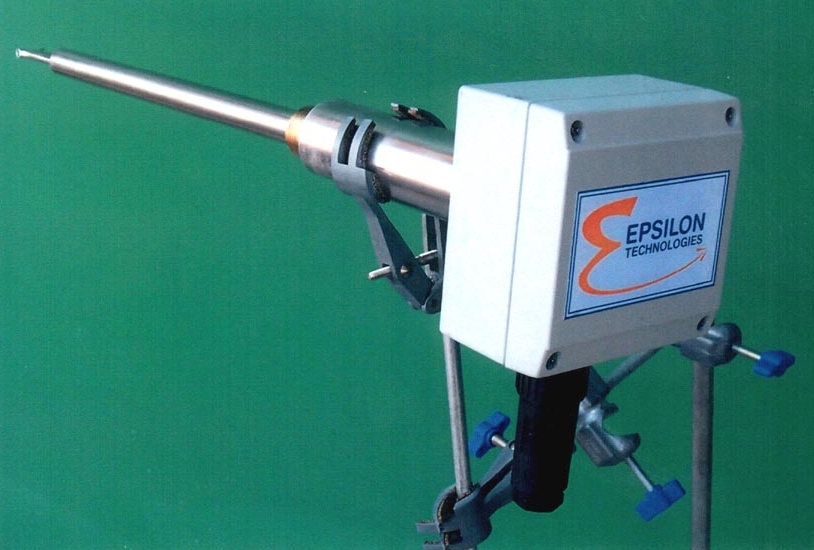

Epsilon Technologies LLC    Wayne, PA 19087
Sep 16, 2002 The PT Transmitter is a fully integrated pitot based flow meter that reports and displays velocity, volumetric flow or mass flow, gas temperature, and duct pressure of process. Unit is mounted using compression fitting and only requires one cable for power and signal. Fully configurable platform allows operator to allocate 2 analog outputs and relay alarms to any of measured and calculated parameters. Various probe lengths suit process needs.

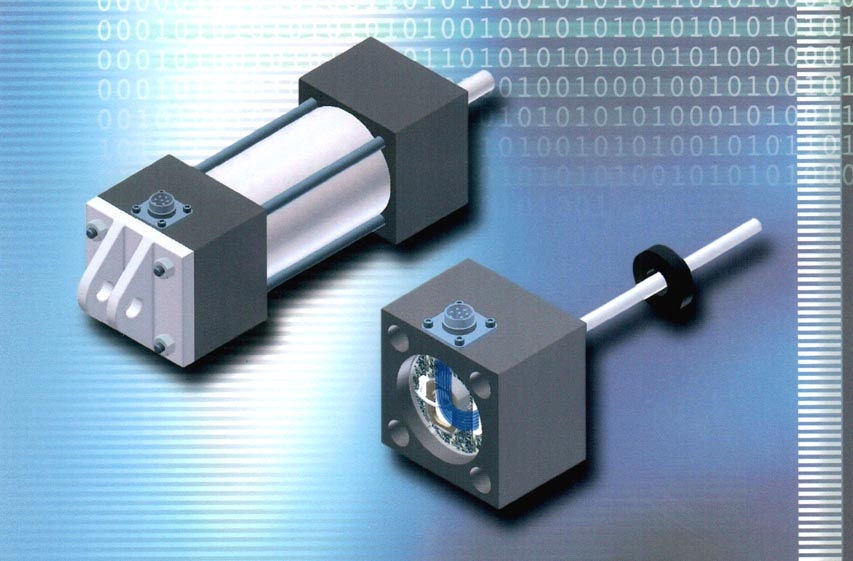

MTS Sensors Group    Cary, NC 27513
Sep 16, 2002 Tempsonics® L Series LD4 features short sensing element and overlapping electronics module, which allow complete assembly to be mounted inside actuator cylinder endcap. Complete sensor installed height is 28.5 mm. LD4 sensor is available with voltage, current, start/stop, and pulse-width modulated (PWM) outputs. With 8 mm pressure pipe and 55 mm dia electronics housing, unit can be used in standard size endcaps for cylinders with bore diameters as small as 51 mm.

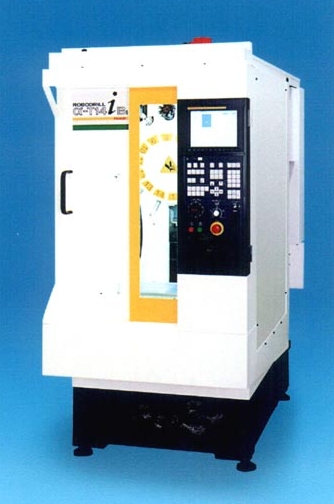

Methods Machine Tools, Inc.    Sudbury, MA 01776
Sep 16, 2002 Robodrill B Space Saver Machining Center performs rigid tapping to 6,000 rpm, peck tapping for deep hole taps and/or gummy materials, and high-speed reverse tapping. It has 24.8 x 13 in. table with capacity of 330 lbs and working cube of 11.8 x 12.9 x 12.9 in. Machine includes 14-station tool changer and is offered with 5/7.5 hp 8,000 rpm or 2/5 hp 15,000 rpm 30-taper spindles. It offers feed rates to 590 ipm, rapid traverse to 1,890 ipm, accelerations to 1.3 G, and 0.9 sec tool changes.

AEI North America, Inc.    Marcellus, NY 13108
Sep 16, 2002 Econoflex2 Series is available in 2 versions: 10.6 mm dia configurable type and 5.8 mm dia flexible type, each is offered in standard (450 and 900 mm) and custom lengths. High resolution 6K pixel image bundle is coupled with illumination provided via built-in battery powered light source. Accessories include 90° mirror, magnet, retrieval tool, and CCD or digital camera adapters. Inspection applications include ductwork, drains, and sewer lines.

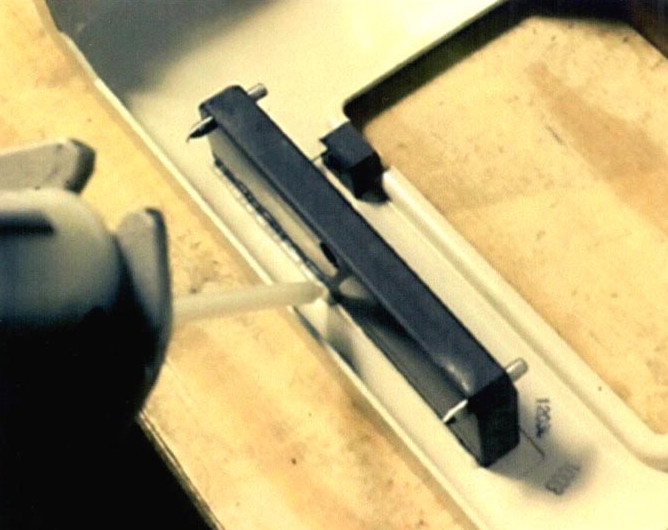

Devcon    Danvers, MA 01923
Sep 16, 2002 Plastic Welder(TM) bonds engineered plastics and dissimilar substrates. It achieves functional cure in 1 hour or less. Plastic Welder II forms chemical-resistant bonds to nylon-containing alloys, modified polyesters, epoxy composites, or standard plastics. Composite Welder FS is a flexible methacrylate for bonding thermoplastics, thermosets, metal, and composite assemblies. Flex Welder fills gaps up to 3/8 in. and provides bond line flexibility. All withstand weathering, humidity, and variations in temperature up to 250°F.

Opticis North America, Inc.    Richmond Hill, ON L4B 3B2
Sep 16, 2002 M3-250-PAT 850 nm multi-mode Small Form Factor Pluggable (SFP) LC optical transceiver is based on Vertical Cavity Surface Emitting Laser (VCSEL) technology. With IEEE Standard 802.3z compliance, 2.5 Gbps transceiver serves markets for InfiniBand, Fibre Channel, and Gigabit Ethernet. Mechanical packaging is designed for low RFI/EMI characteristics as well as to minimize ESD effects. Transceiver is certified to comply with FCC, CDRH, and UL standards.
