Gateway Safety, Inc.    Cleveland, OH 44131 1045
Sep 12, 2002 Strobe-VS meets ANSI Z87.1-1989 standard and is constructed with uncoated polycarbonate lenses. Lenses offer panoramic view of work area, while nylon frame offers integral browguard and molded-in sideshields. Temples are adjustable to fit various sizes. Suitable for indoor and outdoor wear, 100% polycarbonate lens blocks 99.9% of harmful UV-A and UV-B light up to 380 nm. Available in 3 frame colors with gray or clear lenses.

Adalet    Cleveland, OH 44135 3301

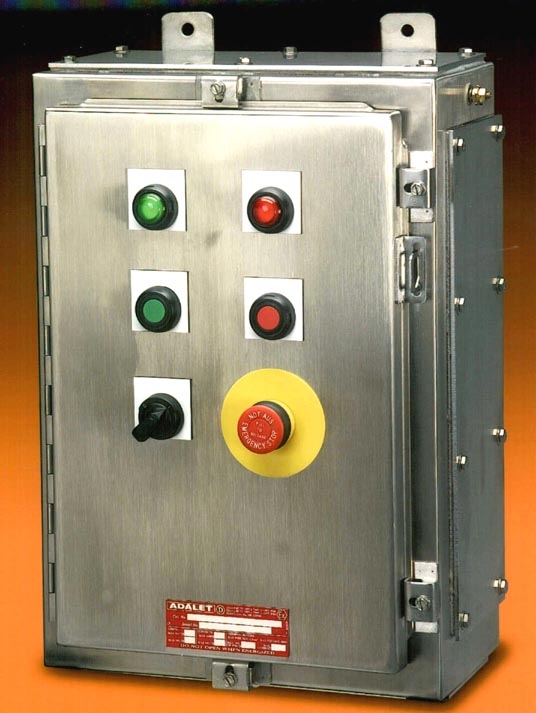

Sep 12, 2002 CN Series Increased Safety Control Enclosures house electrical equipment that will not generate arcs or sparks during normal operation. They also house equipment in which surface temperatures are controlled below incentive values. Able to resist impact, enclosures prevent possibility of excessive heat and ingress of water or dust. They are available in stainless steel 316L and 304 and polyester powder-coated carbon steel in sizes from 12 x 24 x 6 in. to 60 x 36 x 20 in.

L-3 Communications, Electrodynamics, Inc.    Rolling Meadows, IL 60008
Sep 12, 2002 Large-display Model CI 75 features highly visible, dual-color, internal flag. When indicator coil is energized by 50 msec pulse, flag display flips 180° and stays magnetically locked. Available in single- and dual-coil models, .75 in. display requires no bulbs or power when latched in either position. Reset to black is accomplished electrically by pulsing separate reset coil or by reversing polarity in single coil unit.

Danaher Motion/Thomson Ball & Lead Screws    Mayfield Heights, OH 44124
Sep 12, 2002 Miniature Ball Screw provides 95% typical efficiency. Standard diameter starts at 4 mm, with 1 mm lead. Manufactured as both rolled and ground unit, it is also available in range of precision classes, from ISO3 to ISO7 (0.012/300 mm to 0.050/300 mm). Ball screw has nylon wipers to protect from ingress of contamination and can be supplied with ends machined to customer's specification.

Air Quality Engineering, Inc.    Minneapolis, MN 55428
Sep 12, 2002 MistBuster® Quad, rated at 1250 cfm, eliminates mist and smoke from air stream. Because motor and impeller are on clean air side of unit, dirty air will not contaminate motor. Unit has no consumable filters to replace. Reusable concentrated cleaning solutions keep filters clean. MistBuster is rated 70 dBA @ 6 ft on high speed. It comes ready to run with 110 V electrical connections, and complies with 0.5 mg/m³ NIOSH criteria for fluid mist.

Esco Tool    Medfield, MA 02052
Sep 12, 2002 Model APS-438 uses chain-mount Single Cut Bracket to convert into portable chop-off saw that cuts tube, pipe, or bar stock from 2 to 5 in. OD. Featuring 3 hp motor that runs on 90 psi, saw uses 10 or 12 in. fiberglass-reinforced abrasive blades that leave no HAZ (heat affected zone). Saw produces square cut with ±1/16 in. accuracy, and can cut stainless steel, inconel, and other hard materials.

ESAB Welding & Cutting Products    Florence, SC 29501
Sep 12, 2002 Columbus Windows®-based programming package offers process control for cutting machines, plus part programming, true shape nesting, common line cutting, plate and inventory management, parts management, and machine-specific estimating in single package. It supports straight or bevel cutting with oxyfuel, plasma, waterjet and laser, plus marking devices. Modules run on desktop workstation, or basic package (Vision Plus-CNC) can run directly on Vision PC or NT control.

Hagen & Co. Inc.    Marblehead, MA 01945
Sep 12, 2002 True Accountingâ„¢ compares actual plant profits to profits that would be achieved if plant was running at true potential. It breaks down profit gap into reasons for underperformance and values each improvement opportunity. Methodology does not replace company's financial reporting system. Instead, it serves as management decision system that establishes true profit potential of each part of business.

Maxwell Technologies, Inc.    San Diego, CA 92123

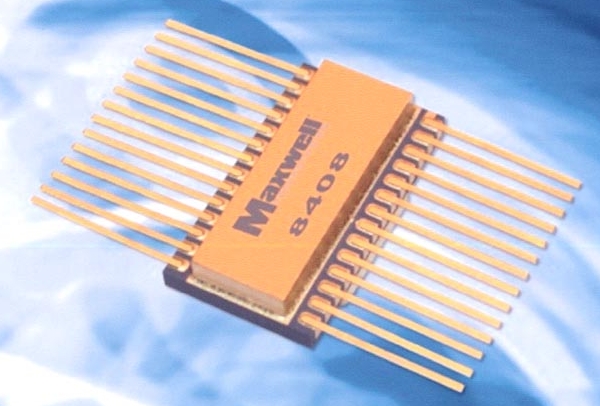

Sep 11, 2002 Space-qualified Model 8408, quad 8-bit multiplying digital-to-analog converter (DAC), provides TTL/CMOS inputs coupled with compatibility with 8-bit microprocessors. Monolithic converter offers 4 separate DACs, each with its own reference input and on-board data latches. Data loading into 8408 is similar to write cycle utilized in RAM. Read/write function serves as accessible memory location for systems that require self-diagnostics. Endpoint linearity is rated at ±¼ LSB.

Sonitek (Sonic & Thermal Technologies, Inc.)    Milford, CT 06460

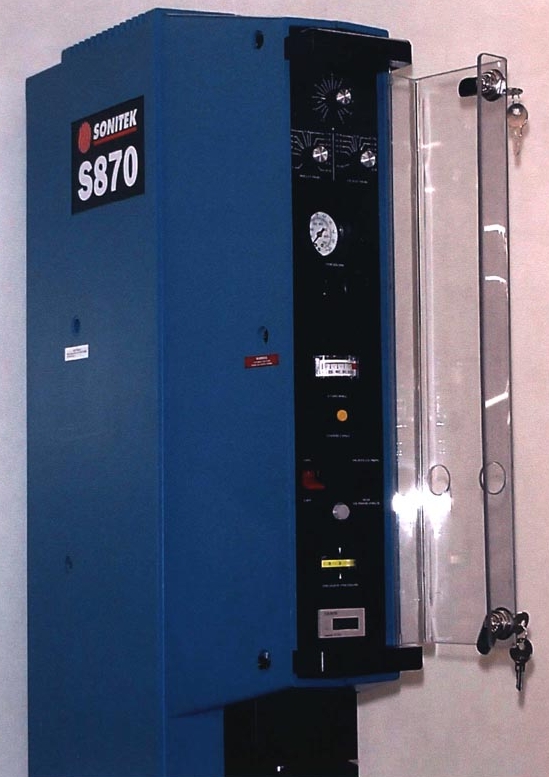

Sep 11, 2002 Securely attached to control area of welder, lockout panels cannot be opened without key once they are closed and locked. This allows production managers or qualified technicians to set parameters of welding processes and lock panel, limiting control access to unauthorized personnel. Lockout panels can be ordered for Heatstaking equipment and Ultrasonic Welders.

N-TRON Co.    Mobile, AL 36609
Sep 11, 2002 N-Viewâ„¢ OPC Server and switch firmware can create network remote monitoring system. Software automatically acquires switch data points from N-View switches in network. Each switch records and transmits 5 switch status variables and 42 different port variables including status, packet traffic, and packet error information. OPC client software and HMI packages can be used to view, alarm, trend, and gather historical network data using switch variables.

Tamron USA Inc.    Commack, NY 11725

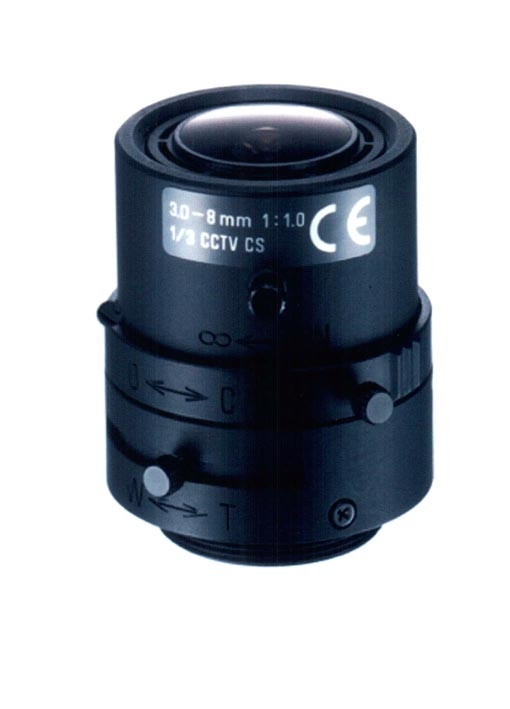

Sep 11, 2002 Fast 3.0-8 mm F/1.0 aspherical extended-range Vari-Focal lens for 1/3 CCD cameras has dynamic aperture range of F/1.0 - F/360, making it suitable for surveillance. Dynamic range allows just one lens to be used in area where lighting conditions may change drastically, yet image quality can be constantly maintained. Lens construction is optimized with multi-coating to eliminate flare and ghosting, ensuring high-resolution, high-contrast picture.

Tamron USA Inc.    Commack, NY 11725

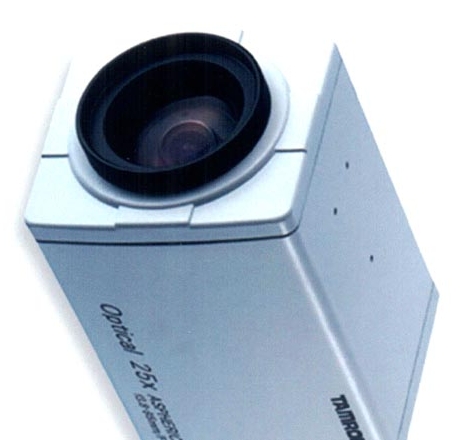

Sep 11, 2002 Compact Zoomcam 3.8-95 mm F/1.6-3.7 AF camera has 2 aspherical lenses to provide 25X zoom, plus simultaneous 8X digital zoom for magnification up to 200X (760 mm). AF system lets it focus on strongly lit images or images with varied densities moving in vertical direction. ZoomCam has minimum lux of 0.01 in color when used with field memory/integration mode on. CCD sensor provides horizontal resolution of more than 470 TV lines.

Universal Silencer, A Fleetguard/Nelson Co.    Stoughton, WI 53589 0411
Sep 11, 2002 Product line includes four grades of engine silencers: Industrial grade for minimal silencing with noise reduction of 20 dB; Residential grade for moderate silencing with noise reduction of 25 dB; and Critical and Hospital grades for maximum exhaust silencing from 25 to +40 dB, respectively. Line also includes specialty units such as spark arresting silencers; low-pressure drop units; space saving units, which are 50% smaller than conventional units; and insulation blankets.

Servo Magnetics Inc.    Canoga Park, CA 91303

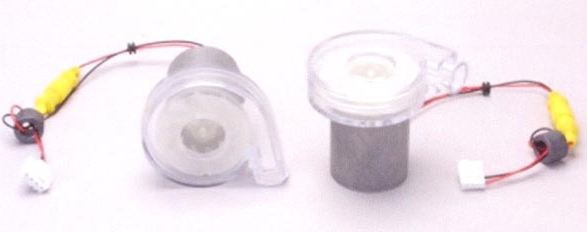

Sep 11, 2002 Compact 24 Vdc blower produces 10 in. H₂0 pressure and flow rate of 18 cfm. Drive and commutation electronics are embedded in motor, providing 2-wire input. Impeller and rotor are balanced to provide vibration-free, low-noise operation. Blower measures 2.9 in. dia x 2.8 in. long. Windings for other voltages are available.

K-Sun    Somerset, WI 54025

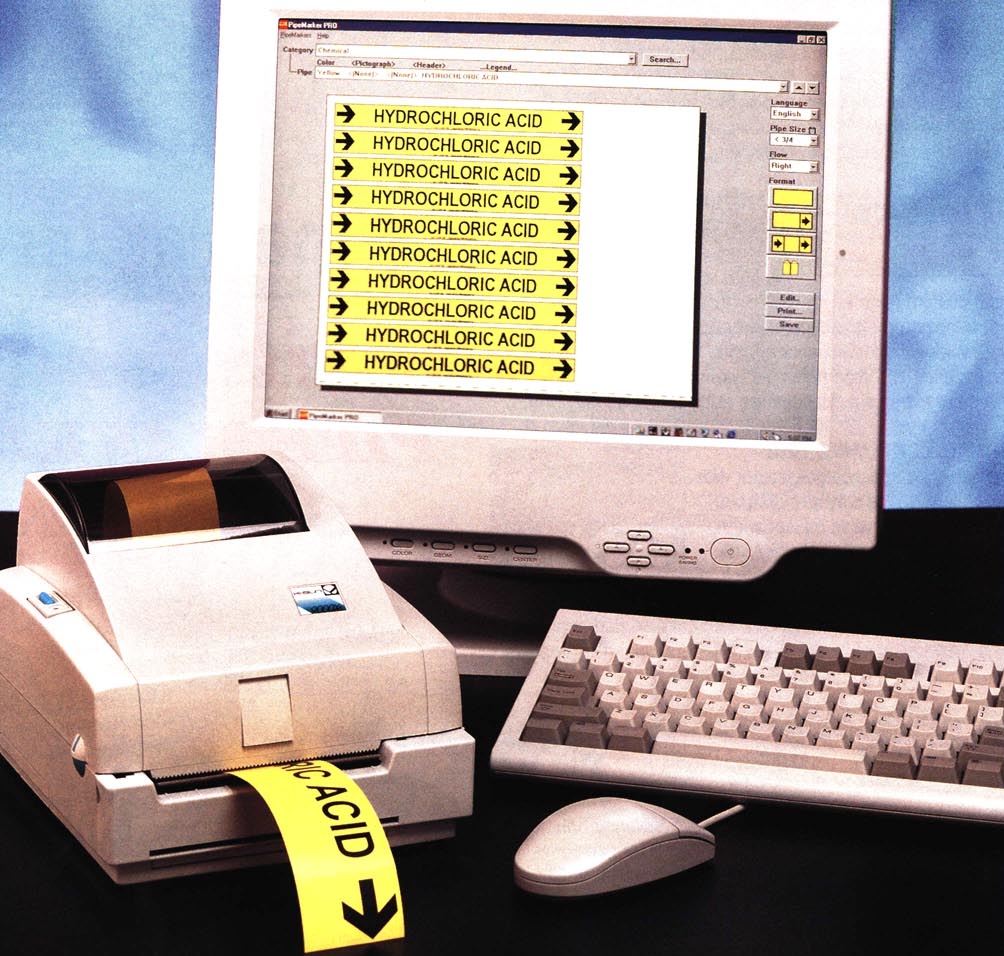

Sep 11, 2002 MaxiSoft® PipeMarker V2(TM) produces industrial markers and tags using computer, printer, and media. Software has hundreds of pre-defined pipe, valve, and tag markers that meet OSHA regulations and ANSI standards. Thermal transfer printer produces markers 2 or 4 in. wide, up to 50 in. long, with 203 dpi image quality. System prints on PolyDurable(TM) adhesive-backed rolls and thermal resin ribbons that will adhere to pipes, conduit, cable, wire, or tubes.

Farval Lubrication Systems, Inc.    Kinston, NC 28504
Sep 11, 2002 ExactoServe® can lubricate small, medium, and large bearings on machines with single lube point or hundreds of points. It has adjustable oil and grease feeders and positive displacement volumetric output injectors to lubricate machinery friction points. Four basic injector models cover broad discharge range. Each injector has built-in indicator pin to visually monitor each operational cycle. Setting injectors to desired output requires only simple screw adjustment.

Lyndex Corp.    Northbrook, IL 60062

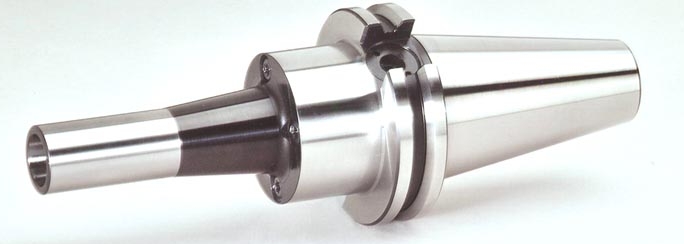

Sep 11, 2002 Insider chucks have slim and compact bodies for precision machining at speeds of up to 30,000 rpm with tools up to 1/2 in. dia. Draw-in collet clamping system provides strong, high-precision gripping, with run-out accuracy of less than 3 microns at 4 times dia of cutting tool. Chucks are available in three series, with nose diameter of smallest size being 15 mm. High precision pre-balancing is performed to ensure reliability at high speeds.

SKF Motion Technologies    Lansdale, PA 19446

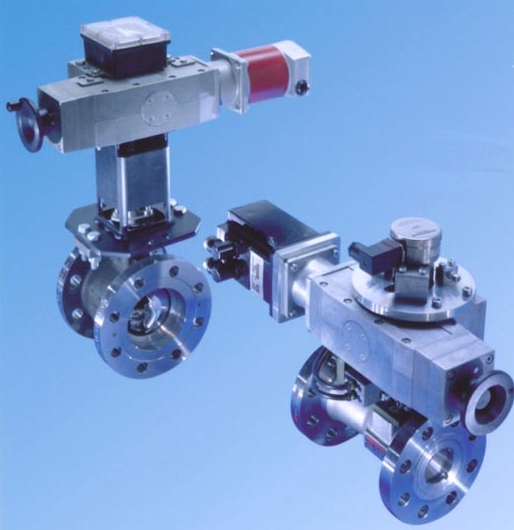

Sep 11, 2002 CRAB Series feature modular construction to promote customization, and perform with few moving parts. Preloaded ball-screw assembly and gear-tooth profile virtually eliminate backlash. Actuators can achieve rotational motion ranges from 100 to 360 deg (depending on rack length) and torque capacity exceeding 5100 lbs-ft of force. All are self-contained and ready-to-mount for plug-in operation (AC or DC power supply).

RKC Instrument    South Bend, IN 46628

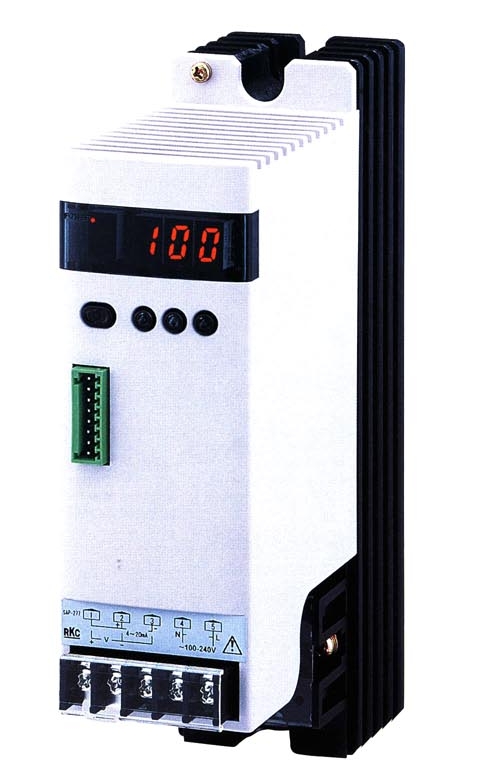

Sep 11, 2002 THV microprocessor-based SCR power controller features programming keys and offers programmable phase control or zero-cross control. Functions include gradient setting, ramp-up and ramp-down with soft-start and soft-down, and high/low output limiters. Unit includes 3 types of output modes and base-up setting (output bias). It operates at 100 to 240 Vac and automatically selects power supply frequency 50 or 60 Hz.
