Stocko Div. Of Wieland Electric Inc.    Burgaw, NC 28425
Oct 11, 2002 Suited for appliance and white goods applications, RAST 2.5 insulation displacement contact (IDC) connector is rated up to 4 A, 32 V for wire sizes 22 to 24 AWG. Available in 3 to 20 pole positions (according to application), connector's housing material is rated UL 94 V-0 for flammability. Contacts offer clean IDC connections that slice through conductors' insulating materials for direct contact with conductor.

Edmund Optics    Barrington, NJ 08007
Oct 11, 2002 Infinity KV and Infinivar CFM include analog control units and power supplies. Control units allow users to vary focus and focusing speed. Infinity KV lenses have working distances to 2 m or field of view as small as 0.8 mm in diameter. The Infinivar CFM microscope video lenses are continuously focusable from infinity down to 0.8 mm field of view at working distance of 9 mm. Lenses also offer magnification as high as 330x.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089
Oct 11, 2002 Miniature Model FBR53 pcb relay has bifurcated contacts, with contact rating of 14 Vdc (resistive). It is rated at 125°C and can switch up to 20 A for 100,000 operations. As 1 Form U relay, FBR53 is capable of switching 2 signals at one time, and as 1 Form A relay, it can handle heavy loads, such as automatic braking systems. Unit withstands in-rush currents up to 60 A. Capability for continuous current is 80 A, 10 sec; 60 A, 120 sec; and 40 A continuous at 85°C.

Applied Data Sciences, Inc.    Dallas, TX 75381 4209
Oct 11, 2002 Model CPCIHSDâ„¢ utilizes CompactPCI bus based architecture to implement and emulate Encore Computer HSD II (High Speed Interface) Input/Output functions. It can also be used as gateway between real-time databases and ethernet links. DMA engine supports full data chaining, data buffering, and data reformatting. Device can perform data transfers from host to external device and host to host. Transfer rates between CPCIHSD and external device can operate in excess of 10 Megabytes/sec.

Fluke Corp.    Everett, WA 98203
Oct 11, 2002 Model 16/322 Combo Kit contains Model 16 DMM, Model 322 Clamp Meter, test leads, and thermocouple for temperature measurement. It is suitable for testing motor start and run capacitors up to 10,000 microfarads, as well as for general measurements up to 600 Vac or dc, 40 megohms, diode test, and continuity. Clamp meter offers one-handed operation and low current measurements with better than 2% accuracy. Both tools meet IEC 1010-1 CAT III 600 V safety standards.

Enpac Corp.    Eastlake, OH 44095
Oct 11, 2002 Hose Bibbâ„¢ fits most industrial hose ends up to 3 in. in diameter. It is lightweight and fastens in place to capture small leaks and drips of up to 1 quart. Hose Bibb is suitable for hydraulic hoses common to industrial equipment and factories.

SWF Machinery    Sanger, CA 93657
Oct 11, 2002 Model CE 151 automatic case erector/bottom flap sealer reaches speeds up to 45 cases/min. It includes Nordson hot melt system, easy load hopper, programmable logic controller, fully automatic interlocked safety doors, and multiple case size capabilities. Steel casters, automatic idler-output control, variable speed motors, and stainless steel/wash down construction are options available to customize machine.

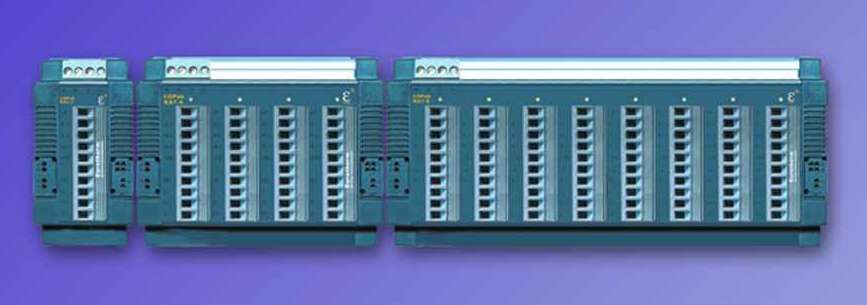

Action Instruments, Inc.    San Diego, CA 92123
Oct 11, 2002 I/O Pak(TM) K-Series Modules are 1,000 Hz, 19-bit analog measurement devices. Three types are offered with 1 to 32 channel configurations. All models operate on 10 to 30 Vdc and transmit information over RS-485 interface. I/O configuration files may be stored (on PC), retrieved and downloaded. Linearized, scaled, and formatted data is transmitted to host or network master using standard protocols, over 2-wire RS-485 serial or 100baseT Ethernet networks, over distances of up to 3 km.

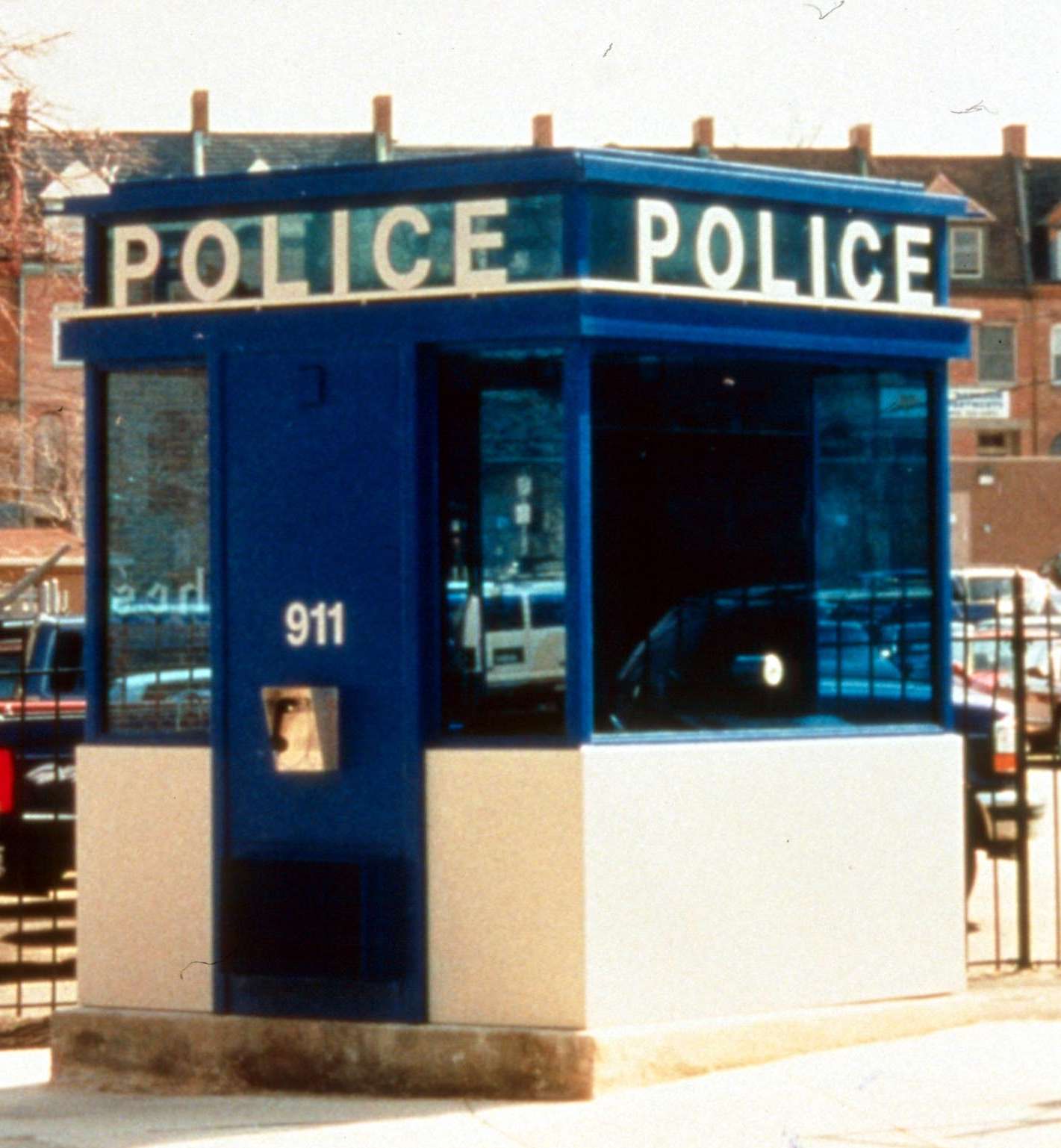

Porta-King Building Systems    Earth City, MO 63045 1211
Oct 11, 2002 POLICE KOBAN building stands 10 ft 6 in. tall and is equipped with back-lit illuminated signage. Built-in security features include Class III bullet-resistant construction, custom-designed stainless steel monitor shelves and cabinets for surveillance equipment, and exterior-mounted autodial 911 phone for civilian use. Through-wall climate control, service sink, and dimming lights increase comfort. Variety of custom acrylic finishes are available.

Contech    Goddard, KS 67052
Oct 11, 2002 Multiple Roll Die-Cutting System handles nonwoven roll material with low-tension pull to avoid stretching. Webs from multiple rolls are brought through ultrasonic welder (to combine material) and inkjet printer (to print part numbers and lettering). Optically registered, belt-fed die-cutter cuts out finished parts, which are then removed from belt onto conveyor for operator collection.

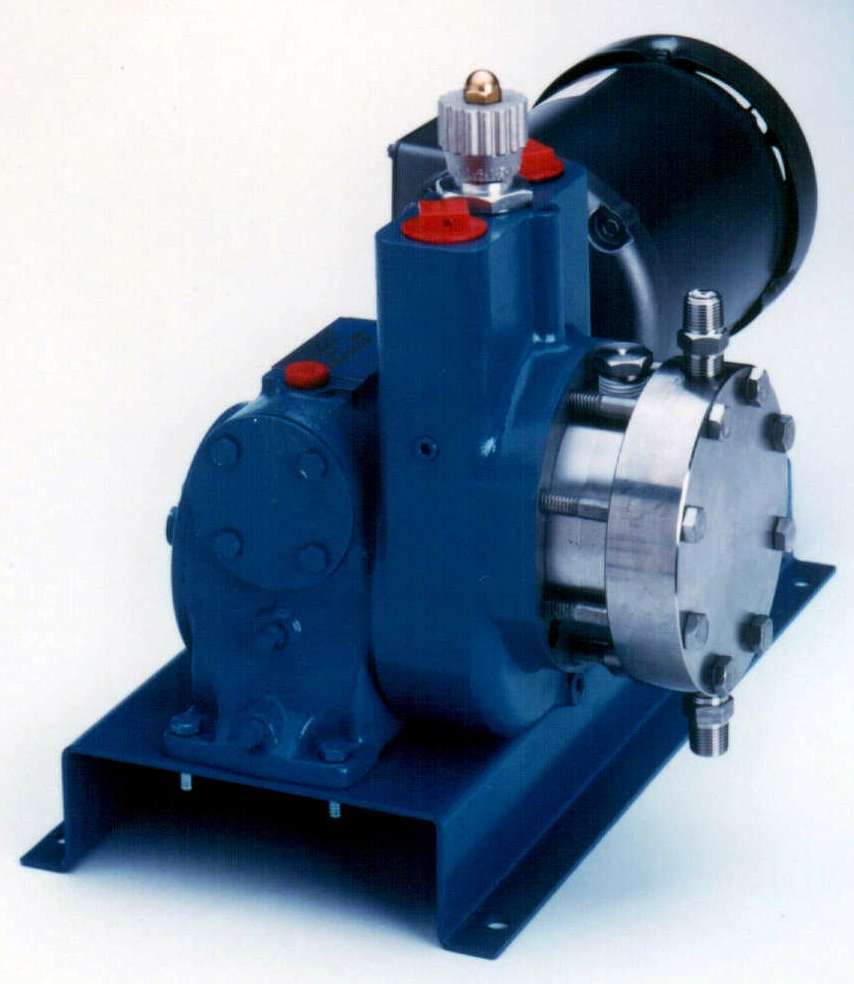

Jaeco Fluid Systems, Inc.    Exton, PA 19341
Oct 11, 2002 Available with separate chambers for hydraulic fluid and gear lubricant, hydraulically actuated JaecoFram 1â„¢ performs accurate, leak-proof metering of difficult-to-handle liquids. Pump utilizes heavy-duty, totally immersed in oil, gear reducer system and built-in hydraulic relief valve. Available in simplex and duplex models, capacities range from 0.8 to 56 gph (max). Capacity is adjustable while pump is running or idle over turn-down ratio of 10:1.

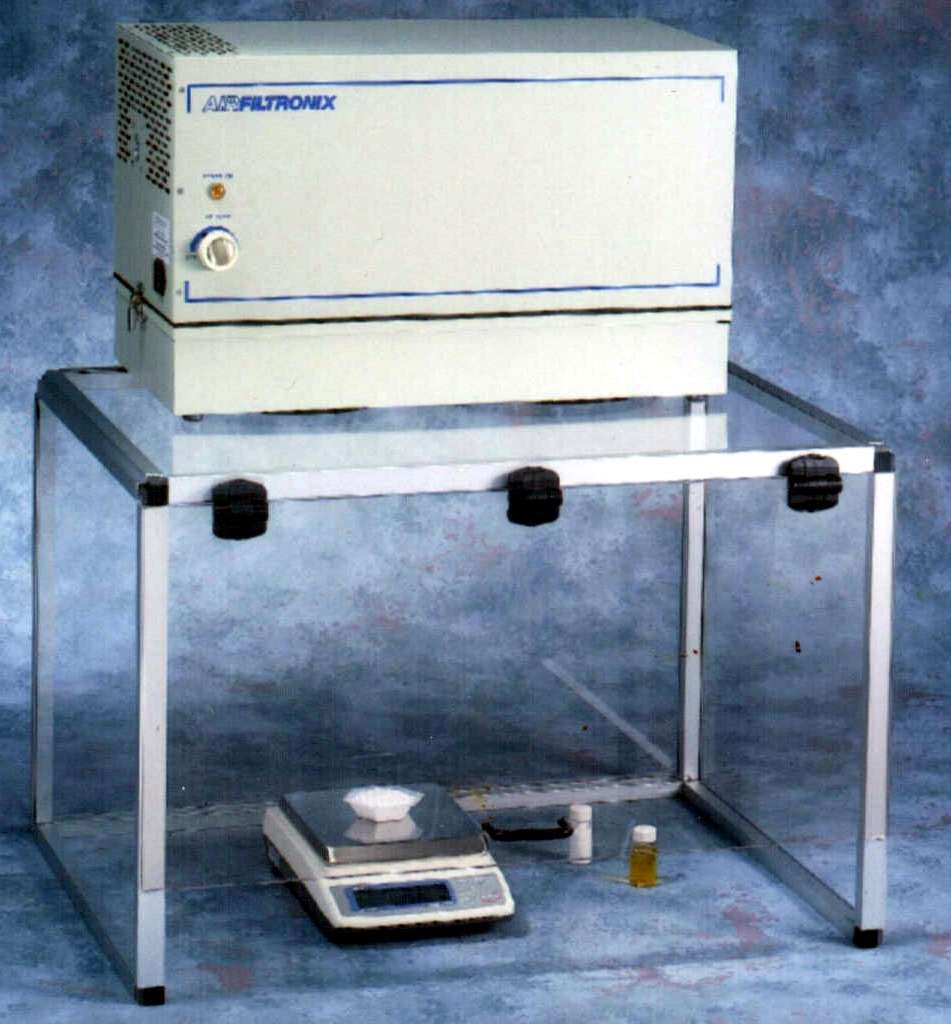

Airfiltronix Corp., A Div. Of Physitemp Instruments Inc.    Clifton, NJ 07013 2949
Oct 11, 2002 Model BE-1 workstation filters out particulates and potentially hazardous fumes. With face velocity that adjusts to specific needs, high visibility enclosure includes HEPA filter, which removes 99.99% of particulates larger than 0.3 microns. Optional charcoal filters are available for adsorbing vapors. Workspace area measures 28 x 21 x 19 in. (W x D x H) and suits weighing and measuring processes involving dust, particulates, powders, and vapors.

Delta Power Supply, Inc.    Cincinnati, OH 45242
Oct 11, 2002 SuperBallastâ„¢ is designed for high- or low-bay HID lighting applications. Fast-Startâ„¢ feature provides quick ramp-up time and lamp-preserving startup. Ballast delivers full light output in less than 75 seconds. Continuous dimming capability allows infinitely variable dimming down to 35% of power. Lamps can be dimmed using standard 0-10 V feedback from control devices. Flicker-free SuperBallast self-compensates for line voltage fluctuations from 190 to 304 V.

Azova, Inc.    Akron, OH 44311
Oct 11, 2002 Model LTM-8201C and LTM-8203C provide standalone solutions with up to 32 input points connected on 1 to 3 data lines (Number and configuration of points vary per model). They leverage I-Wire® Network technology to provide multi-drop systems that can be configured without programming. Basic systems consist of panel-mount controller with push-button interface and LED display. They offer RS-485 port and programmable high and low alarms.

80/20, Inc.    Columbia City, IN 46725
Oct 11, 2002 Available in fractional and metric sizes, modular T-Slotted aluminum extrusions are suitable for constructing modular machine frames. Offered as alternative to welded steel, aluminum extrusions are available with panels, handles, wire mesh, lift-off hinges, casters, and leveling feet.

Goldsmith & Eggleton, Inc.    Wadsworth, OH 44281 2084
Oct 11, 2002 G&E Blended 565 EPDM is suited for high-performance products and continuous cure extrusion applications. Ethylene and ENB are measured and controlled through entire manufacturing process for repeatable processing characteristics. G&E Blended 565 EPDM can be colored to allow for more product applications. Supplied as free-flowing pellets in 33 lb bags, applications include tube and cover stock, construction profiles, window gaskets, and molded goods.

SE Relays LLC - Magnecraft Brand    Northfield, IL 60093
Oct 11, 2002 Series 78 ice cube style industrial relays include Model 78XCX (3PDT, 11-pin relay) and Model 78XDX (4PDT, 14-pin model). They use quick connect plug in/solder terminals and can be specified with polycarbonate dust cover or with optional top flange cover. Load contact rating is 10 A at 250 Vac 50/60 Hz. AC operated relays are available in voltages from 6 to 240 Vac, and DC relays handle from 6 to 110 Vdc.

Panduit Corp.    Tinley Park, IL 60477 3091
Oct 11, 2002 Type H Hinged Cover Slotted Wall Wiring Duct is lead-free and designed to route, protect, and manage electrical wires and data communication cabling. Hinged cover can be opened up to 100° on either side of duct or be removed completely for installation and maintenance. Duct is suitable for frequent equipment modifications or repair in electrical cabinets and in communication closets where moves, adds, and changes are common.

Amber Science, Inc.    Eugene, OR 97402 4147
Oct 11, 2002 Model 3084 bench top, line powered, microprocessor-based, 5-function meter covers 6 ranges of conductivity (auto or manual) with max full scale of 3300 counts. Function key selects conductivity, resistivity, high purity water, total dissolved solids, salinity, or self-test. Measurement data is displayed on 2-line (20 characters per line), backlit dot matrix liquid crystal display. Meter offers RS-232 output for data logging to serial printer or PC.

Corel Corporation    Ottawa Ontario K1Z 8R7, CD   Canada
Oct 11, 2002 Business applications, iGrafx FlowCharter 2003 and Process Central 2003, offer visualization, documentation, and communication tools which enable users to create, manage, share, and change business process models. Tools available via repository in Process Central include version control, approval tracking, link management, access control, and queries, all as browser-viewable documents. Auto-zooming iGrafx FlowCharter 2003 creates cause-and-effect diagrams.
