TE Connectivity Ltd.    Berwyn, PA 19312
Sep 17, 2002 Ultra-Pod .250 Series FASTON Tab offers F-crimp wire termination and is applied with all-in-one applicator that crimps terminal to wire and inserts it into insulation housing. Tab connects with .250 x .032 receptacles and accepts 18-10 AWG wire with insulation diameters up to .200. Contacts are made from tin-plated brass, and nylon housing meets UL 94V-2 flammability requirements. Contacts, which are suitable for solid or stranded wire, are rated for 600 Vac.

Cooper Power Systems    Waukesha, WI 53188
Sep 17, 2002 Metal Oxide Varistor Elbow (M.O.V.E.â„¢) Deadfront Arresters limit surge voltages and divert surge current. They offer total compliance to IEEE Standards 386â„¢ and C62.11â„¢. Units feature glass-collared MOV disks with smooth outer surfaces, MOV disks bonded with conductive silver loaded epoxy, aluminum spring shunts, and welded flexible leads. Units provide 200 A endpoint overvoltage, 200 A loop overvoltage, and 600 A endpoint overvoltage protection.

Ircon Inc.    Niles, IL 60714
Sep 17, 2002 Torpedo Car Inspection System uses single or dual Stinger thermal imaging cameras to inspect torpedo car for deteriorated refractory lining. Dual camera system inspects both sides of car as it passes on its way to pour area, and identifies hot spots on outside car wall. System includes PC, software, cameras, and rugged camera enclosures. Data can be viewed, saved, or sent to SQL database for historical information. Optional relay outputs are available.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Sep 17, 2002 Custom Vacuum Lifters have extension handles for parts up to 10 ft long. Cross-arms can be adjusted individually along frame and vertically for handling awkward or bulky loads. Lifters gently attach and release loads without using straps, grabs, or magnets. They are offered in air-, electric-, and battery-powered models with capacities up to 10,000 lbs. Units handle large rotationally molded plastic parts, sheet metal fabrications, and fiberglass enclosures.

Anderson Products    Worcester, MA 01610
Sep 17, 2002 Upright Brooms are offered in 2 different styles. Heavy Duty Bass Fiber Broom is of industrial quality for tough sweeping jobs. Fiber stays stiff under wet conditions and metal cap and metal band construction ensure proper flare. Industrial Corn Blend Broom is made of selected corn and rattan blend for heavy sweeping. It is available in 3 sew and 5 sew and is suitable for warehouse use.

Toledo Transducers Inc.    Holland, OH 43528
Sep 17, 2002 Press Attendant integrated automation and monitoring system combines die protection, tonnage monitoring, programmable limit switches, and brake monitoring into resolver-based package. Functions protect press investments by automating and alerting operator of any problems before press or die becomes damaged. Additional features include motion detect, job storage, counters, speed compensation, timed outputs, and reverse tonnage.

Siber America, Inc.    Gurnee, IL 60031
Sep 17, 2002 CODI offers option for including either SMD or through-hole components as part of switch. Outputs may be sequential, BCD coded, gray coded, or customized in virtually endless variety of ways.

Grace Engineered Products, Inc.    Davenport, IA 52807
Sep 17, 2002 M5 Series NEMA 4X stainless steel interface has locking mechanism to comply with FDA regulation #21CFR211, which requires validated systems be locked. Over 4,000 different combinations of cables, connectors, and outlets in NEMA 1/12/4/4X housings are available. M5 Series meets requirements of drug, food processing, dairy, chemical, and petro-chemical industries.

LaCrosse Rainfair Safety Products    Racine, WI 53403
Sep 17, 2002 Tuff 'n Lite aprons, sleeves, and smocks are abrasion and bacterial resistant, impermeable to water and grease, and will not crack in cold conditions. Garments can be hand or machine washed and are recyclable. Material returns to its original shape even after variety of physical and temperature stresses. Three Tuff 'n Lite aprons will provide same performance as 100 vinyl aprons or 750 disposable polyethylene aprons.

Square D Co.    Raleigh, NC 27611
Sep 17, 2002 ALTIVAR® 11 AC drive is designed for ¼ to 3 hp motors, making it replacement for electromechanical controls in 2-speed motor or DC applications. Available in 115 and 230 V single phase and 230 V 3-phase, drive includes built-in drive motor thermal protection. It features 2- or 3-wire control and has 4 logic inputs, 1 fault relay, and 1 digital output. Switching frequency is adjustable from 2 to 16 kHz. Drive is UL listed and CE marked.

National Instruments Corp.    Austin, TX 78759-3504

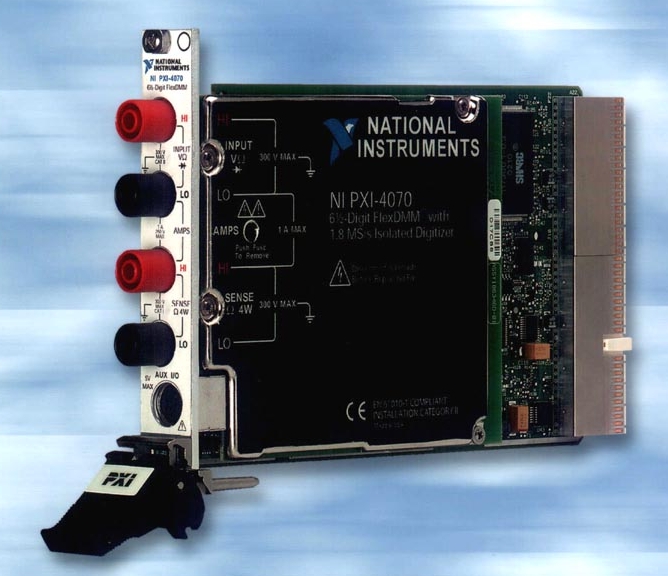

Sep 17, 2002 Model PXI-4070 FlexDMM 6½-digit digital multimeter (DMM) comes in single-slot 3U PXI module. It features self-calibration and offset compensated ohms measurement. In isolated digitizer mode, FlexDMM can acquire both AC and DC-coupled waveforms up to ±300 V input, at maximum sample rate of 1.8 MS/s. Unit delivers 6 ppm basic 24-hour DC accuracy and sub µV sensitivity. Continuously variable DC reading rate is from 100 S/s at 6½ digits to 5 kS/s at 4½ digits.

National Instruments Corp.    Austin, TX 78759-3504

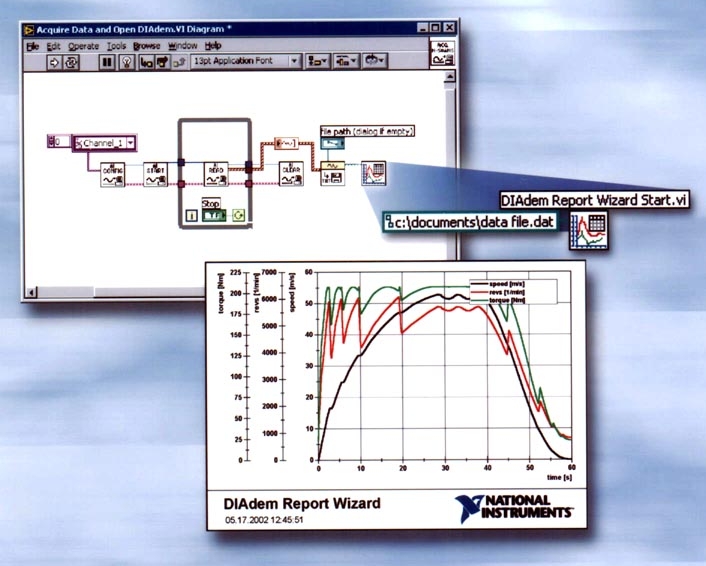

Sep 17, 2002 DIAdem v8.1 seamlessly integrates with LabVIEW environment. Engineers can correlate data from different channels, sources, and signals. They can then use interactive tools, such as FFT analysis, for detailed visual examination of data. Engineers can analyze data point-by-point while opening interactive windows that zoom in and out of graphs for varying amounts of detail. DIAdem works with Asian character sets for writing and distributing reports worldwide.

Texas Industrial Peripherals    Austin, TX 78722

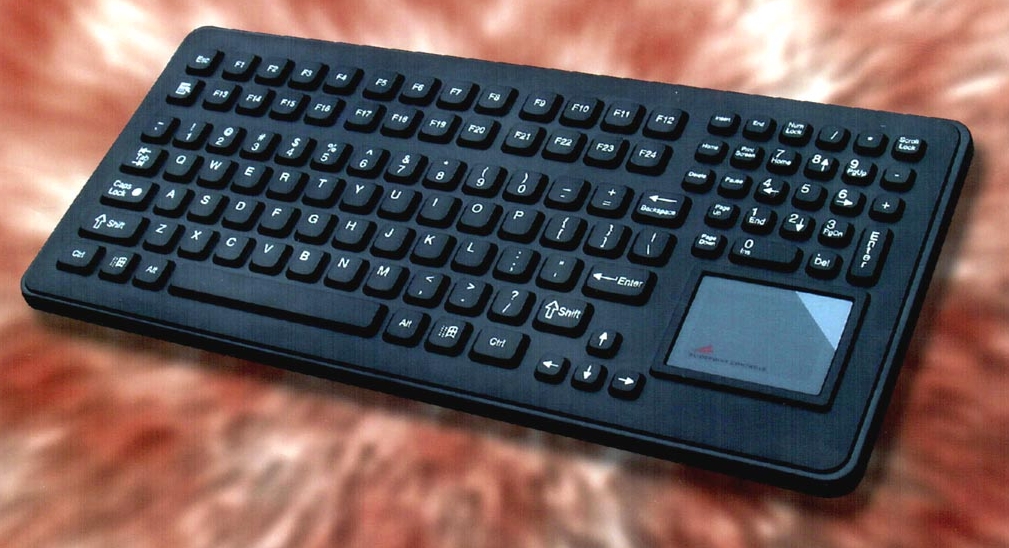

Sep 17, 2002 Touchpad of rugged Desktop Ultimate DU-5K-TP uses capacitive sensing technology to provide smooth and accurate cursor movement in waterproof package. Full size QWERTY keypad provides 116-key functionality. Features include 24 function keys and Windows keys. ABS polycarbonate case measures 15 x 6.5 x 1.5 in. and weighs 2.5 lbs. Footprint allows for integration into rack drawers and shelves.

Anderson Products    Worcester, MA 01610

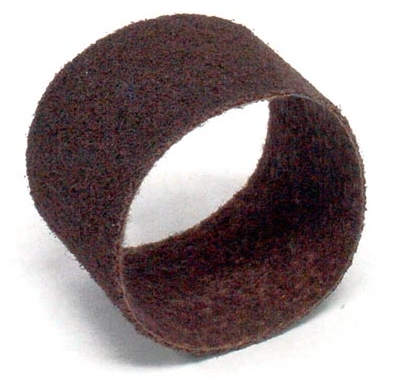

Sep 17, 2002 Anderlex belts offer low stretch resistance for high-tension applications. Suited for use on steel, stainless steel, and aluminum with abrasive belt equipment, belts resist loading. Color coated system includes blue (very fine), maroon (medium), and brown (coarse). Applications include buffing, polishing, and finishing of metal surfaces. Belts can also be used for centerless polishing, gridline conditioning, and defuzzing wood surfaces.

Meriam Instrument    Cleveland, OH 44102

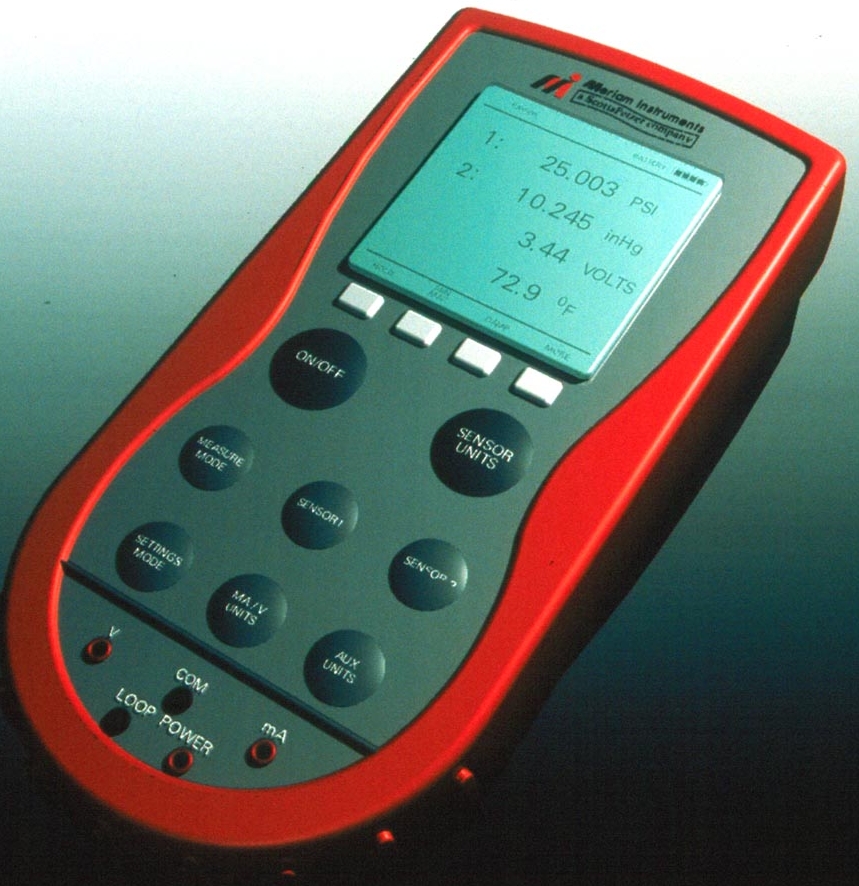

Sep 17, 2002 Model RTD1000 measures resistance of RTD sensor types including platinum, copper, nickel, and iron materials with nominal resistances to 1000 ohms. Designed for use with hand-held MFT 4000 Series Multi-Function Tester, it may connect with 2, 3, or 4-wire RTDs via accessory connectors. Menu feature on MFT selects RTD type, nominal resistance, and alpha value. General-purpose connector with alligator clip terminations provides for temporary connections to installed RTDs.

Spence Engineering Co., Inc.    Walden, NY 12586-0230
Sep 17, 2002 Offered with full flow manifold ends, Figure 780 Diverter Valve is O₂ cleaned for oxygen service. Valve's stainless steel handles indicate flow direction with full 180° operation, while blowout-proof stem and v-ring stem packing ensure maximum safety and reliability with minimum maintenance. Diverter valve is available in ¾, 1, and 1½ in. sizes and suits pressures to 600 psig and temperatures from cryogenic to 400°F.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 17, 2002 NS operator interface accesses information from PLCs up to 3 networks away from one screen. Information can be accessed from Ethernet network, ControllerLink network, and up to 2 serial ports, simultaneously. HMI has 4-channel video input module to display camera images from vision inspection sensors. Ladder monitor tool allows PLC's ladder program to be monitored from system's menu. Available in 7 (STN), 10, and 12 in. (TFT) sizes, NS-series screens have 256-color displays.

Fisher Controls Regulator Div. - An Emerson Process Management Co.    Marshalltown, IA 50158 2823
Sep 17, 2002 Offered in globe and angle body styles, pressure-balanced NotchFloâ„¢ DST control valve trim prevents clearance-flow problems in high-pressure liquid applications. Its longitudinal flow path incorporates pressure staging notches which achieve required pressure drop while avoiding conditions that would result in trim damage. Separation of shutoff and throttling locations prevent high pressure drops from occurring at trim seat at low flow conditions. Flow rangeability is rated 50:1.

ASB Industries, Inc.    Barberton, OH 44203
Sep 17, 2002 Low-profile, precision press is a free-standing unit that can be moved from one location to another. Press is available with capacity to 700 tons at 2000 psi. Largest platen size model, with 36 x 36 in. platen, stands just 81.25 inches high. Unit can be supplied with electric, oil, or steam heat platen. Various controls can provide temperature control, data storage, hydraulic control, cycle control, system diagnostics, and interface.

Woodhead Connectivity    Northbrook, IL 60062-1892
Sep 17, 2002 SST Remote I/O Adapter allows user to connect 1769 Allen-Bradley® Compact I/Oâ„¢ to Allen-Bradley® Remote I/O network. It features automatic mapping of I/O module data and support for up to 30 I/O modules in system. Separate LED indicators provide system, network, I/O, and diagnostic status. Baud rate, starting rack, and quarter are user-configurable. Processor lockout option prevents reconnection after loss of communication.
