Nilfisk Industrial Vacuums    Morgantown, PA 19543

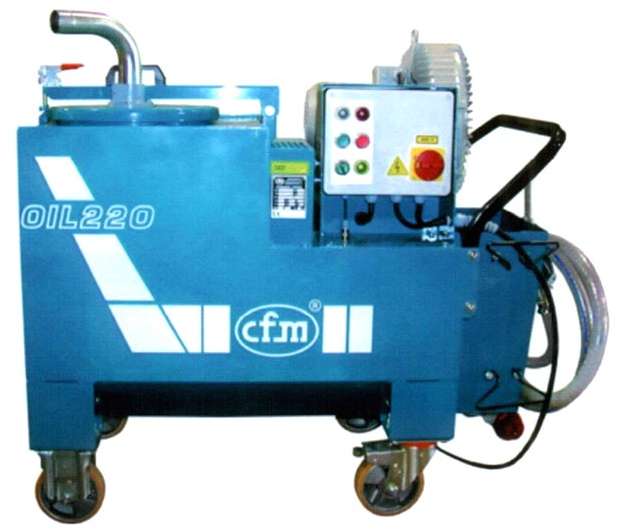

Sep 26, 2002 Single-step CFM Vacuum line enables workers to collect coolants, lubricants, cutting, oils, and metal scraps; filter out debris; and pump purified fluids into reservoir tank for immediate reuse, without leaving the sump. Able to filter metal scraps and particles down to 100 microns, filtration system traps and contains aerosols released from metalworking fluids. Collection capacities range from 55 to 159 gallons.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

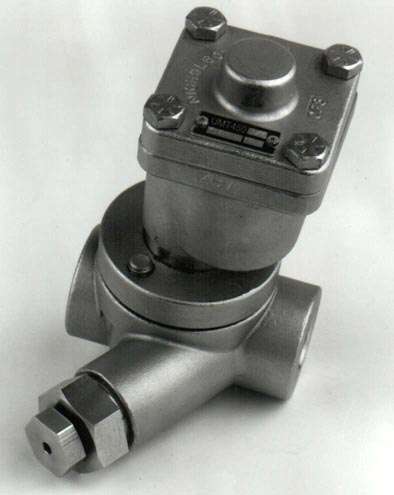

Sep 26, 2002 Liquidator Universal Mount Steam Traps are rebuildable thermostatic units, providing zero steam loss during normal operation. They conform to 2-bolt universal swivel mount, and can attach to other manufacturer's universal mount steam trap bodies for easy replacement of existing traps in the field. Capacities are tested and published in accordance with ASME standard PTC 39.1. Three orifice sizes are available.

Arcom Control Systems    Overland Park, MO 66085

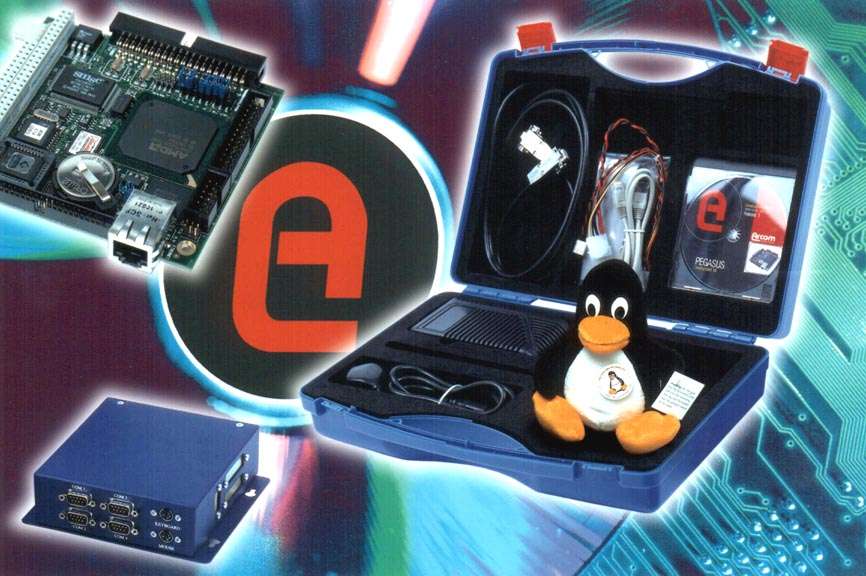

Sep 26, 2002 Development Kit supports company's 133 MHz AMD SC520 based PEGASUS PC/104 board suitable for embedded control and communications applications. It comes with GNU/Linux with 2.4 kernel, optional IBM J9(TM) Java virtual machine, 32 Mbytes DRAM , 16 Mbytes of Flash, PSU, rugged enclosure, serial and Ethernet cable set, manual, and utility CD. IBM JVM and user's Java based application will load and execute directly from on board 16 MByte Flash memory.

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173

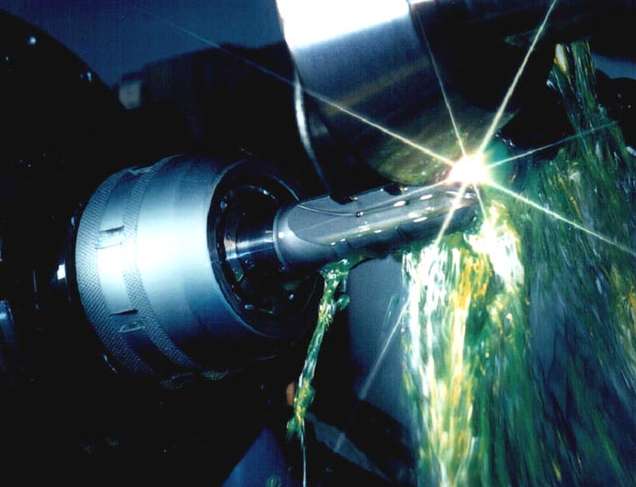

Sep 26, 2002 IONOGRIND combines advantages of dielectric fluid used for metal removal and good surface quality, along with grinding oil that produces minimal foam or vaporization. Used for eroding and grinding polycrystalline diamonds, HSS, and hard metals, its composition minimizes cobalt leaching. It is manufactured by enriching pure synthetic products with satellite electrodes and adding age-stable, high pressure additives.

MTS Sensors Group    Cary, NC 27513

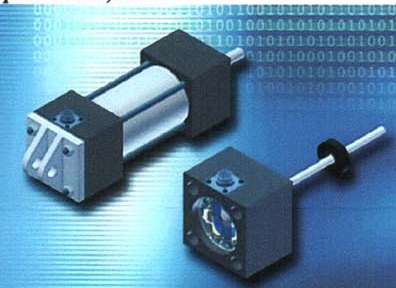

Sep 26, 2002 Temposonics® L Series LD4 sensing element and overlapping electronics module can be mounted inside end cap of hydraulic or pneumatic cylinder. Complete sensor installed height is 28.5 mm. Sensor fits in end caps with bore diameter as small as 51 mm, and suits clevis-mount configurations. Design allows users to install and maintain sensor without disassembling complete cylinder. Sensor is available with voltage, current, start/stop, and PWM outputs.

Dolch Computer Systems Inc.    Fremont, CA 94538

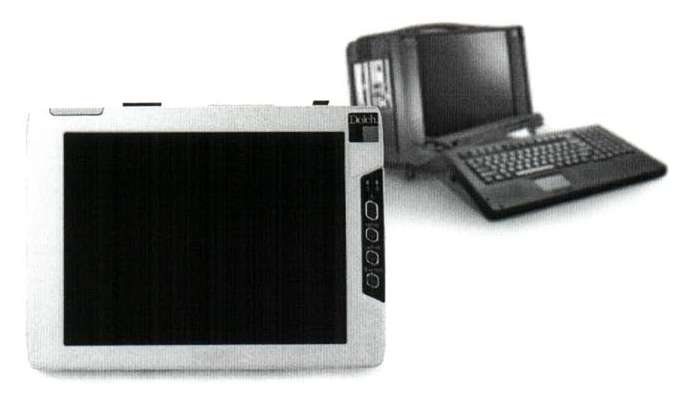

Sep 26, 2002 FlexPAC(TM) portable computer is available with optional mobile touch screen display that communicates through peer-to-peer 802.1 lb protocol up to 150 ft away, regardless of application. It features Pentium® 4 processor running at 2 GHz, system memory up to 1 GB, and 16 MB of video memory. Tri-circuit cooling system can handle up to 150 W of heat dissipation. Up to 6 expansion slots are available for full-sized PCI or ISA add-in cards.

Instrumentation Group    Asheville, NC 28804 1228
Sep 26, 2002 All Proâ„¢ Bimetal Thermometers have all stainless steel construction and come in 2 in. back-connected dial, and 3 and 5 in. dial sizes with back, bottom, and all angle case styles. Connections are ¼ in. NPT on 2 in. dials and ½ in. NPT on 3 and 5 in. dials. Units provide 1% span accuracy and spun-over, non-removable sealed bezel ring. F and C scales are color coded for easy reading.

Rockwell Automation / Allen-Bradley/Power Group    Mequon, WI 53092

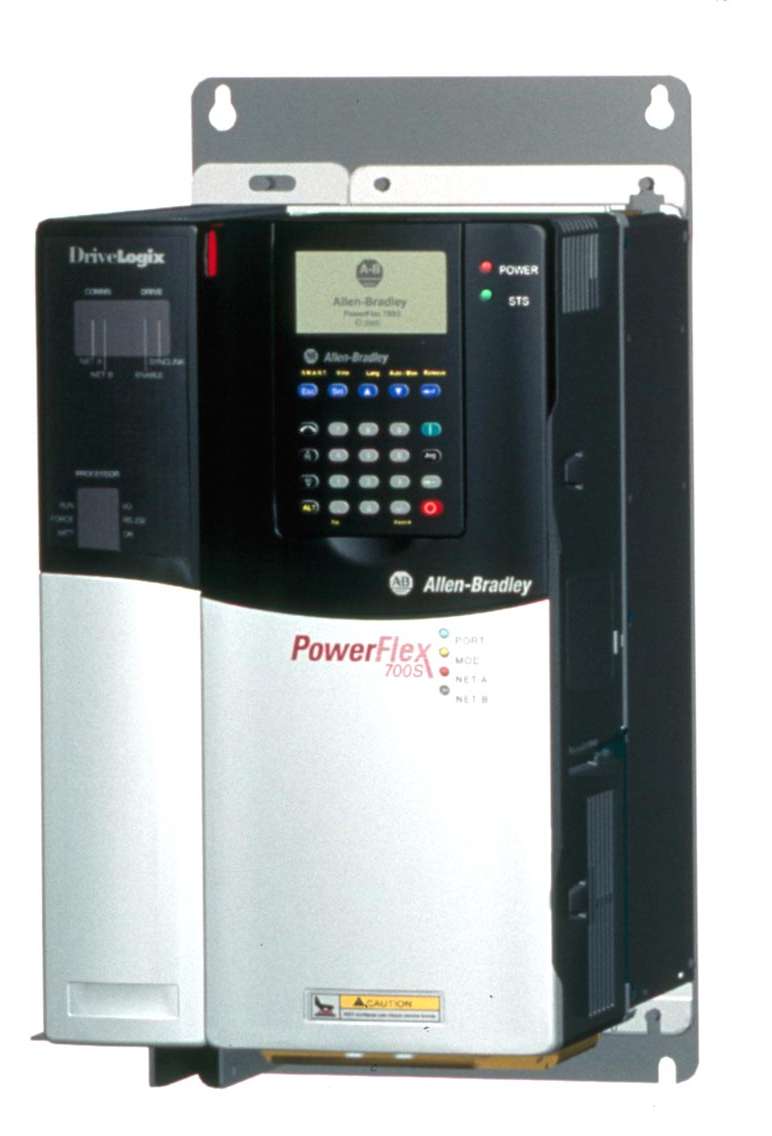

Sep 26, 2002 PowerFlexâ„¢ 700S AC drive features selectable motor control algorithms, high-speed data link, and integral position loop. It provides 0.37 to 55 kW at 400 V and 0.5 to 100 hp at 480 V. Drive can operate as stand-alone device, communicating to central controller, or as intelligent drive and controller combination in fully distributed architecture. Selectable motor control algorithms, utilizing Allen-Bradley Force Technologyâ„¢, allow closed loop or sensorless operation.

LMI Technologies Inc.    Southfield, MI 48075
Sep 26, 2002 Non-contact, laser-based, industrial gauging sensor, based on shadow measurement principle, is suitable for non-stationary, rubber, metalworking, aluminum, paper, textiles, and plastics applications. Class II Laser Beam Sensor (LBS) consists of emitter and receiver, and allows up to 3.3 ft distances between them. Measurement range varies from 0.02 to 1 in., accuracy is better than 0.5 percent at 10 kHz, and resolution is less than 0.1 percent of measurement range.

Parker/Texloc Div. of Parflex    Fort Worth, TX 76106

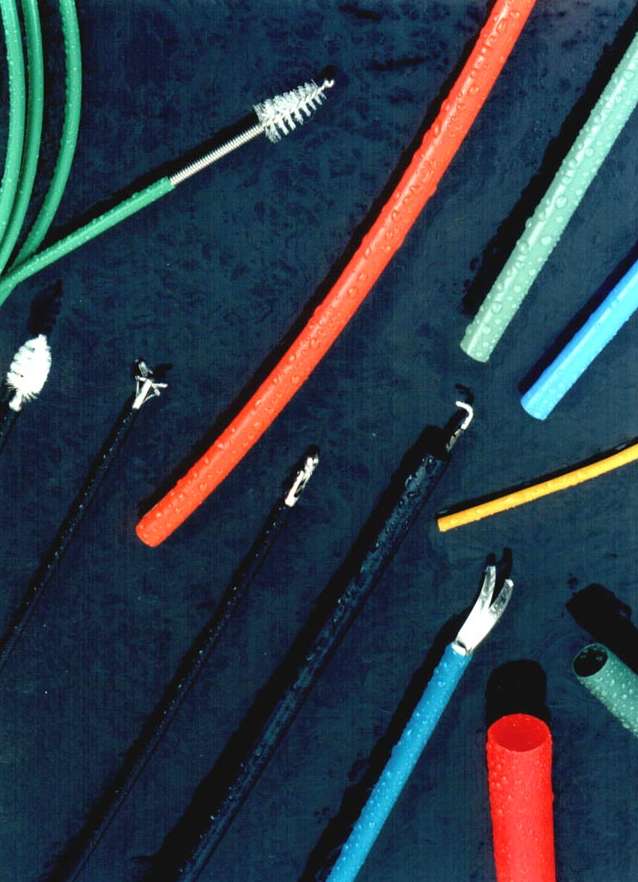

Sep 26, 2002 TexMed Polyolefin Medical Grade Heat Shrink Tubing can be custom extruded with shrink ratios of 2:1 up to 4:1 and will shrink fit at temperatures of 230 to 284°F. With dielectric properties up to 1,000 Volts/Mil, USP Class VI compliant polyolefin heat shrink has continuous operating temperature of -40 to 225°F. Available in sizes from .020 to .551 in. dia, with various wall thicknesses, tubing can be manufactured in black, clear, and custom colors.

Reemay Inc.    Old Hickory, TN 37138 3651
Sep 26, 2002 Typar® Super Scrimâ„¢ spunbonded polypropylene media offers high airflow, and can be electrostatically charged. Available in weights from 1.75 to 8.0 osy, it is suitable for ASHRAE-related pleated or multi-pocket bag filters. It can be used as backing, facing, or between layers of filtration media. Super Scrim has no binders such as glue, adhesives, or acrylic to limit filtering area. It maintains physical properties when wet and is dimensionally stable.

Synario Design Automation Div., Data I/O Corp.    Redmond, WA 98073 9746
Sep 26, 2002 High Insertion Count (HIC) Socket Adaptersâ„¢ are designed for ProLINE-RoadRunnerâ„¢ and PP/PS Automated Programming Systems. They support Chip-Scale packages including BGA, micro-BGA, and others. Statistical monitoring capabilities built into adapter board provide tool to aid in preventative maintenance.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005

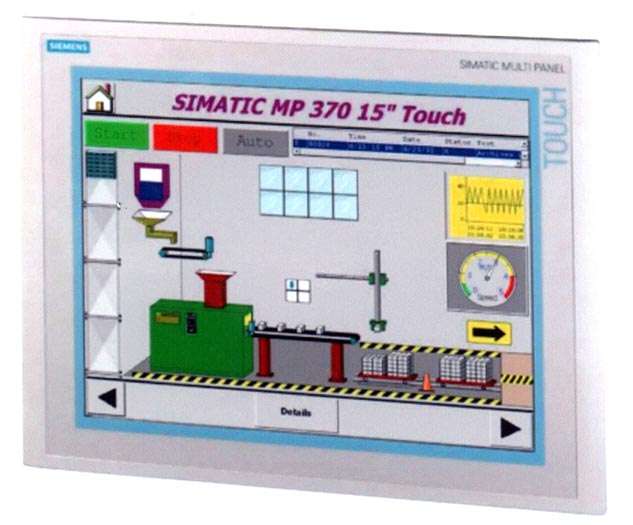

Sep 25, 2002 Multi-Panel SIMATIC® MP 370 touch screen, with 15 in. display, has 1024 x 768 pixel resolution and 256 colors. Integrated interfaces make it possible to connect unit to Simatic S7, S5, and 505 controllers, as well as PROFIBUS DP. MP 370 also interfaces with office TCP/IP over integrated Ethernet port. I/Os including mouse, keyboard, and printer can be connected via on board USB port. Expansion slots for PC cards and compact flash allow for additional add-ons.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115

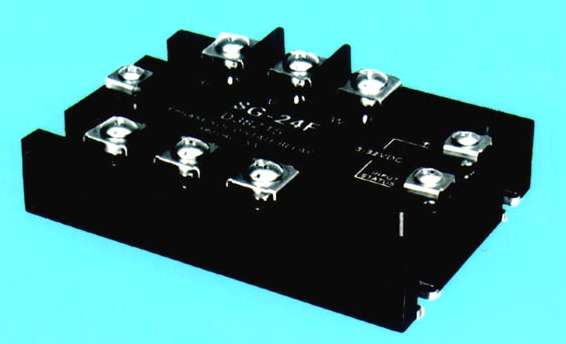

Sep 25, 2002 Solid-state Series SG-24F includes 3 models, switching 10 through 25 A at up to 440 Vrms with dc inputs, and either zero-cross or random turn-on with up to 800 V blocking. LED indicator and built-in snubbers are included. Series uses photo-isolation for high input-to-output isolation of 4000 Vrms.

Curtis Instruments, Inc.    Mount Kisco, NY 10549
Sep 25, 2002 CE- and UL-approved enGageâ„¢ I, II, and III replace 1, 2, and 3 instruments respectively, and enGage III units add up to 8 icons as well. Gauges can be user customized with capabilities from tachometers and fuel gauges to temperature and field-programmable maintenance monitoring. More than 10 functions can be selected in any combination. Fully sealed gauges snap into panel with bracket, offer non-volatile memory, and withstand extreme temperatures.

ESI North America    Shelby Township, MI 48315
Sep 25, 2002 PAM-STAMP 2G sheet-metal stamping solution provides die design feasibility to process validation and optimization. PAM-DIEMAKER, PAM-QUIKSTAMP, and PAM-AUTOSTAMP modules are built upon interoperable architecture to allow seamless CAD data information sharing without modeling discontinuity. Software includes customizable Application Programming Interface (API) and allows continuous process improvement with online decision-making in scalable environment.

Haewa Corp.    Duluth, GA 30097

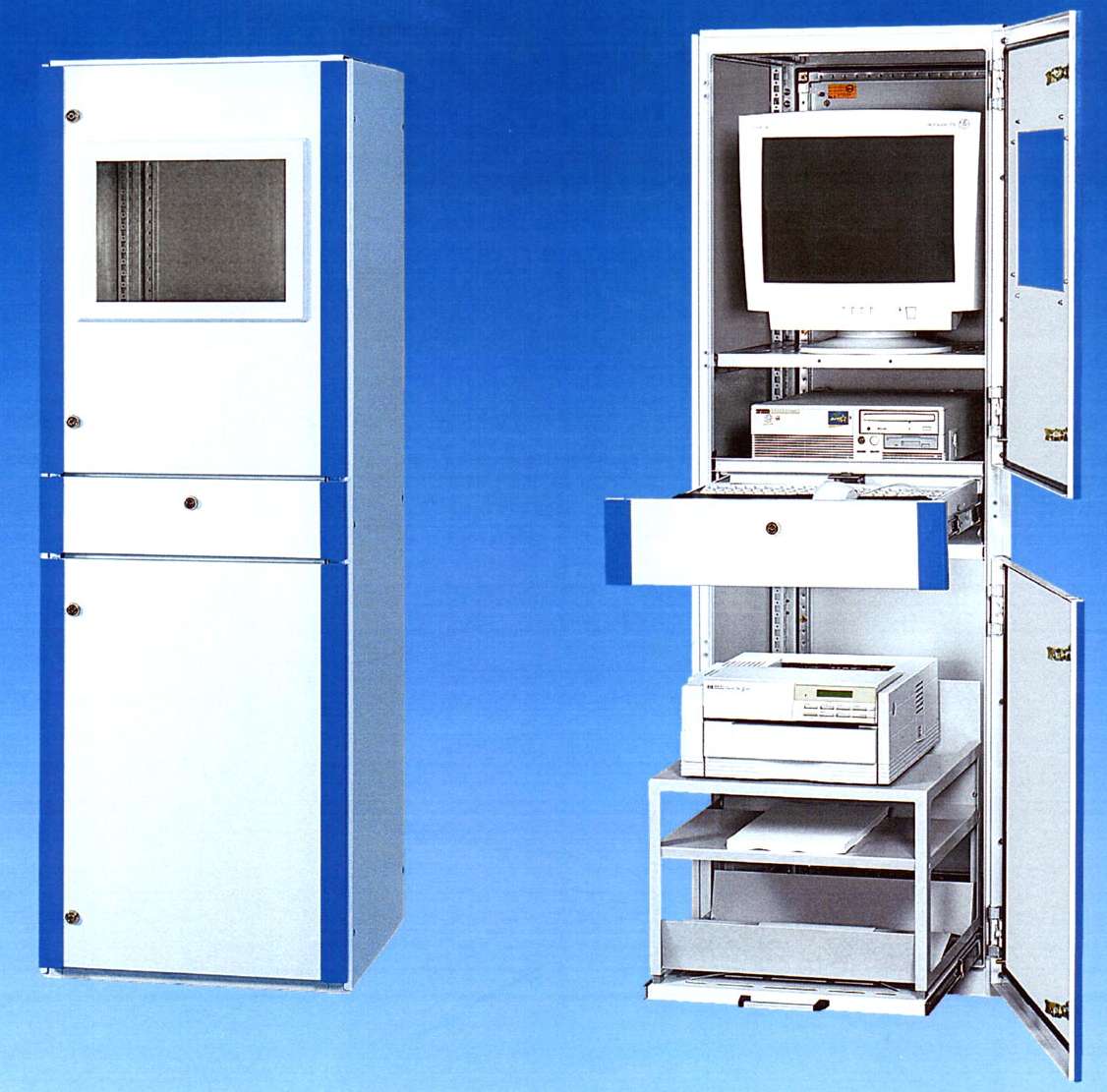

Sep 25, 2002 Type 2036 PC cabinets are available in 2 standard sizes, 24 x 63 x 24 in. (W x H x D) and 24 x 71 x 24 in., in cold rolled or stainless steel. They offer cabinet frame with continuous hole profile, removable side panels, 120° hinged doors, and top and bottom cable entry plates. Monitor brezel, with integrated Makrolon window, has 14.57 x 10.83 in. viewing area. Keyboard drawer comes with adjustable keyboard shelf and mouse storage compartment.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 25, 2002 Arrow Series 2 VMC-1000 includes Profibus I/O interface technology and digital vector spindle drive that provides 30 hp (max), 25 hp MTDR. Spindle acceleration allows 40 series spindle to reach 8,000 rpm in 1.8 sec, while drive system provides constant torque, regardless of load. Process matching feedrates of 590 ipm are combined with traverse rates of up to 1,416 ipm. Operator convenience features include high intensity lighting and end panel windows.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 25, 2002 Fixed Table Vertical (FTV) Machining Centers both provide 40 and 50 taper, multi-tasking machining with 40 m/min rapid traverse rate in all axes (6 m/sec² on X-axis), and 4 m/sec² acc/dec rate. With 3,700 x 815 x 800 mm X-Y-Z machining envelope, FTV 840-3700 models allow machining of 4,300 mm long parts weighing up to 11,574 lbs. FTV 850-2500 models have X-Y-Z machining envelope of 2,540 x 815 x 800 mm and allows machining of 3,140 mm long parts to 8,250 lbs.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 25, 2002 Models V-CNC 750 and V-CNC 500 utilize GE Fanuc 21i-B CNC control. V-CNC 750 models offer X-Y-Z travel of 762 x 510 x 510 mm, and V-CNC 500 models offer 510 mm of X-Y-Z-axis travel. Both models provide acc/dec rate of 3 m/sec², rapid traverse in X-Y-Z axes of 20 m/min, and max feed rate of 15 m/min. Both offer ±5 micron positioning accuracy and ±1 micron repeatability.
