Siebel Systems, Inc.    San Mateo, CA 94404
Sep 23, 2002 Siebel v7.5 embeds best practice business processes such as performance management, training, employee self-service, and corporate-wide access to resources, news, and other information. Best practices support sales, marketing, service, and partner and employee relationship management. To provide integration, it supports Web Services, Universal Application Network, SOAP, WSDL, Microsoft .NET, and J2EE-based applications.

iTerra Communications LLC.    Fremont, CA 94539
Sep 23, 2002 Model iTH10-4005, a 12.5 Gb/s D flip-flop integrated circuit, is designed for applications that require precise timing of digital signals. It is suitable for test and measurement applications operating at OC-192 and OC-768, in addition to OC-192 and OC-768 SONET long haul and ultra long haul optical transport systems.

Durex Industries    Cary, IL 60013 2979
Sep 20, 2002 Mineral-insulated cable heaters deliver heat at temperatures over 1800°F in applications where standard heaters are impractical, due to size or space restrictions. Heaters can be formed to cover cylindrical areas that require uniform heating pattern. A variety of electrical connectors are available for application-specific requirements. Flexible leadwire can be supplied with protective jackets, such as stainless steel braid or armor.

Stegmann, Inc.    Dayton, OH 45414
Sep 20, 2002 C120 Series with 2 in. housing is available with any incremental count from 1 to 8,192 ppr. It has electrical bandwidth up to 820 kHz and firmware generated marker pulse of 90 or 180, providing feedback at speeds up to 10,000 rpm while maintaining marker width and synchronization. Encoder combines hybrid OPTO-ASIC and small, unique code disk. Both tracks are read simultaneously by sensor array for high resolution and accuracy.

PHD, Inc.    Fort Wayne, IN 46899
Sep 20, 2002 Series SM Slide is available in 8, 12, 16, 25, and 32 mm bore sizes, with choice of 3 travel lengths. Slides provide smooth linear motion at 2x thrust of single bore cylinder. Optional porting through guide shafts allow saddle to move without flexing incoming air. All units are ready for 8 mm proximity switch. External mounting kits prevent flexing of electrical connectors. Slide is available in imperial and metric versions.

Hassia USA    Morganville, NJ 07751
Sep 20, 2002 TwinLine Two-Axis Robot Packaging Machine has gripper arm drive with 2 pairs of identical carbon-fiber drive arms, driven by 2 servo-drive motors. It can perform pick-and-place motions in less than 0.5 sec and handle loads up to 63 kg at cycle time of less than 2 sec. Robot adapts to customer specifications for applications including collating of primary product and pick and placement, utilizing either suction or mechanical gripper system.

Pacific Scientific    Rockford, IL 61105 0106
Sep 20, 2002 PCE800 Series DSP-based servo drives feature 480 Vac operation and are compatible with European voltage requirements. Internal profile generator allows for pre-set index moves, while 24-bit Digital Resolver to Digital Conversion algorithm provides position accuracy of 5 arc sec. Velocity-loop bandwidth is 400 Hz. Drives include RS232/485 communication, anti-resonance filters, and Windows® based software. Connections are easy accessible from front panel.

Danfoss VLT Drives    Loves Park, IL 61111
Sep 20, 2002 VLT® 5000 FLUX Drives are designed with Digital Signal Processing technology and operate with standard inverter duty AC motors. They come fully assembled and are suited for applications requiring precise closed loop control, including hoisting, positioning, elevators, and centrifuges. Communications protocols include RS232, RS485, Profibus, and DeviceNet.

Durr Environmental, Inc.    Wixom, MI 48393
Sep 20, 2002 Overhead Transfer Cart (OTC) suits floor automation systems where clients want to maintain open aisle way for pedestrians, operators, maintenance personnel, and equipment. OTC can be used as alternative method of transfer to that of the Rail Guided Vehicle (RGV). It can be equipped with various conveyor cross sections, safety options, handheld pendant, and fixed- or variable-speed drives.

Eraser Co., Inc., The    Syracuse, NY 13221
Sep 20, 2002 Model WC2 measures, counts, and cuts wire from 29 to 16 AWG and flexible tubing up to ¼ in. OD. It will cut hook-up wire, sleeving, heat shrink tubing, and other small wire and cable with cut lengths from 0.22 to 999.99 in. Automatic operation eliminates operator fatigue and repetitive motion disorders caused by using hand tools.

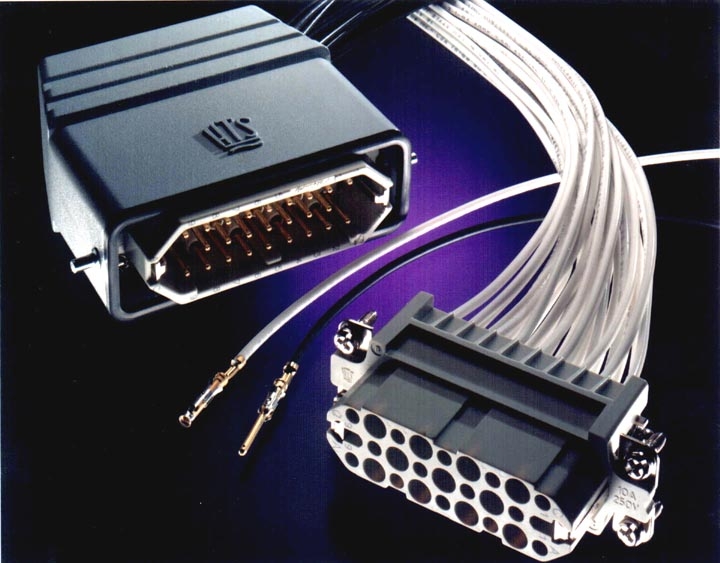

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 20, 2002 HTS HD Series modular connector system is comprised of rectangular outer shell made from die cast zinc or aluminum, inner contact housing, and Multimate contacts, which employ pin and socket design that is either stamped and formed or screw-machined. Contacts accept 30 to 14 AWG stranded wire. Connector accommodates 7 to 128 contacts and is rated for 250 Vac at 10 A per contact. Applications include industrial machinery, molding equipment, and automated processing equipment.

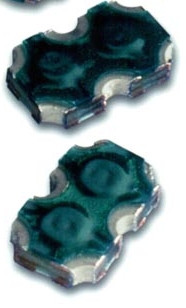

Littelfuse, Inc.    Des Plaines, IL 60016
Sep 20, 2002 PulseGuard® PGB Series 0805 Surface Mount ESD Suppressor features low capacitance of 0.055 pF and ESD event response time of less than 1 ns, ensuring ESD protection without waveform distortion. Four-channel component is capable of clamping direct-contact pulses of 8 kV of ESD energy. Leakage current is less than 1 nanoamp. Polymer-based suppressor comes in glass epoxy package and is compatible with pick-and-place processes.

Kycon Inc.    San Jose, CA 95125
Sep 20, 2002 Combination Connector consists of 3 RCA phono jacks in red, white, and yellow color combination and 1 S-video connector in black. Main housing and colored washers are made from ABS thermoplastic, and contacts are made from brass and steel. Connector is available in PCB mount, and in vertical and horizontal configurations.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036
Sep 20, 2002 ERGO® Hacksaw Frame provides high blade tension to hold blades in place for straight, accurate cuts. Spring-tensioned blade loader assures that blades are centered firmly inside frame. Setting screw allows for adjustment of blade tension, and secure lever arm locks blade into position. Blades can be installed at 55° angle for flush cutting. Protruding nose helps reach into confined spaces, and rubber-coated thumb grip on front handle relieves pressure on user's hand.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036
Sep 20, 2002 Bi-metal hacksaw blades improve cutting performance through positive rake angle and precision ground teeth. They include 14 or 18 teeth per inch for cutting through heavy metals such as aluminum or copper. Slicing through stainless steel or thinner metals can be accomplished using blades with 24 or 32 teeth per inch.

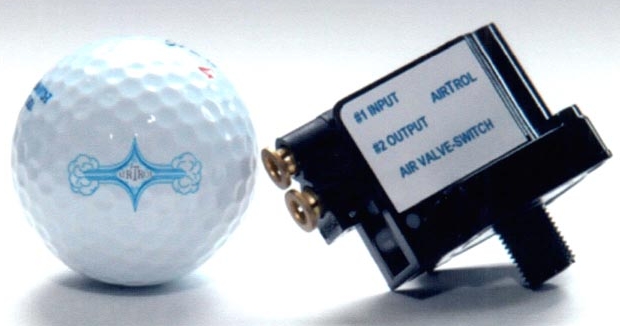

Airtrol Components Inc.    New Berlin, WI 53146 2107
Sep 20, 2002 Non-electrical, air-valve switch has adjustable setpoint with up to 10 turns of resolution. Valves can be ordered as normally open or normally closed, and pilot actuation can be pressure or vacuum. Switch is suitable for applications that require intrinsic safety, pneumatic sequencing, and precise pressure relief. Four mounting styles are available.

Internation Surface Preparation Corp.    Fresno, TX 77545
Sep 20, 2002 Blastrac® GPX 10-18 propane-powered, ride-on shot blast cleaning system strips, cleans, and profiles simultaneously. Onboard dust collection system controls dust and contaminants. With 10 in. blast cleaning path and travel speed up to 200 fpm, system offers production capacity up to 1300 ft²/hr.

Norma Products, Inc.    Wixom, MI 48393
Sep 20, 2002 RLGU pipe clamps are made of lightweight aluminum-zinc with 12 mm band width in loop configuration. They are suitable for securing ducts, hoses, cables, and wiring harnesses, as well as pipes. For applications requiring dampening of noise and vibration, such as automotive and heavy truck, clamps can be ordered with rubber sleeve.

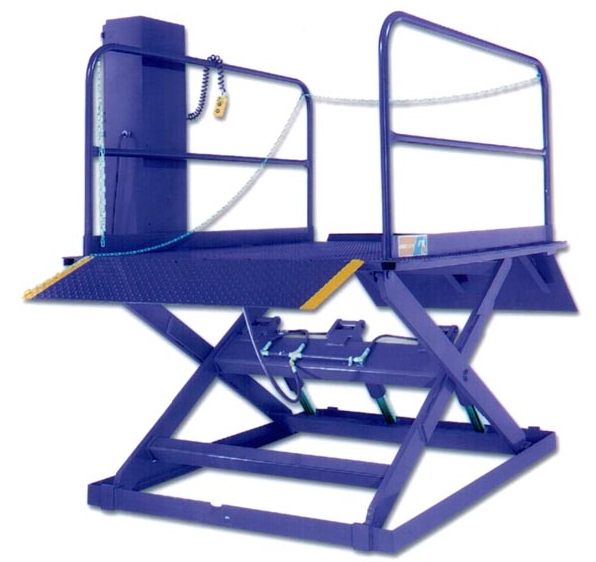

Advance Lifts, Inc.    St. Charles, IL 60174
Sep 20, 2002 Top of ground dock lift has 6 ft wide x 8 ft long safety tread steel deck, 18 x 60 in. hinged transfer bridge, and 60 in. wide x 36 in. long hinged chock approach ramp. Lifting capacity is 5000 lbs with 6.25 in. lowered height and 54 in. vertical travel. Lift includes removable safety hand rails, safety restraint chains, and bridge lifting chain. Five HP electric hydraulic power unit is prewired and mounted on lift.

L.J. Star, Inc.    Twinsburg, OH 44087
Sep 20, 2002 Obround Weld Pad Gages consist of weld pad, glass window, gaskets, cover flange, and bolting. Standard materials of construction include 316L stainless steel and carbon steel, with gasket materials of EPDM and Viton®. Glass window is tempered borosilicate glass, which is resistant to chemical attack, and thermal and mechanical shock. Models provide visible glass sizes ranging from 1 in. wide x 6 in. long to 4 in. wide x 24 in. long. They are designed for working pressure of 150 psi at 500°F.
