Vaisala, Inc.    Woburn, MA 01801 1008
Sep 30, 2002 Model DM70 handheld meter provides measurement accuracy of ±2°C for dew-point temperatures ranging from -50°C to ambient. Graphical user interface indicates that measurement has stabilized. Pressure-tight sensor can be inserted directly into pressurized processes and is resistant to condensation. Meter includes built-in logging capability, graphical LCD display, and analog output. Windows® software is optional.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 30, 2002 Oil Sentinel consists of sensing element, mechanical interface that secures to oil reserve, and signal conditioning unit with LED. It installs directly in machine tool and industrial processing equipment and measures oil parameters including water contamination, oxidation, temperature, and level. LED displays condition of oil and can detect problems such as cooling system failures, leaks, and use of incompatible fluids.

Supply Corporation, The    Lake Geneva, WI 53147-0100
Sep 30, 2002 SafeStep® features MG-104â„¢ ice breaker that triggers synergistic action to provide long-term melting power without refreezing. It melts ice and snow effectively at temperatures below 0°F. SafeStep® is non-toxic to children and pets and will not harm grass, trees, or shrubs. It does not leave oily residue and will not stain carpeting and floors. Available in 50 lb corrugated carton with plastic liner, SafeStep® will not attract moisture.

DIRAK    Chantilly, VA 20151-1220
Sep 30, 2002 Swinghandle is equipped with both combination lock and master key override, providing flexibility of individually secured cabinets without compromising access by maintenance or security personnel using single key. It integrates completely into existing family of company's modular locking and latching systems.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Sep 27, 2002 Span Lab TO-14 Calibration Bench generates calibration mixtures which can be fed directly to VOC analysis systems or captured in SUMMA canisters. It contains up to 30 individually controlled permeation tube ovens, with up to eight tubes in each oven. Each tube emits precise amount of component into carrier gas. Mixtures with up to 200 compounds can be prepared. They can be dry or humidified, and delivered at pressures to 40 psi.

Balluff, Inc.    Florence, KY 41042-0937
Sep 27, 2002 One-piece BGL sensors for part location, height verification, and edge detection have pre-aligned optics integrated into metal fork-style body, allowing for plug-and-play installation. Resolution is 0.3 mm, repeatability is 0.02 mm, and hysteresis is less than 0.1 mm. Sensors are available in sensing gap slot sizes from 5 to 120 mm, are protected against short circuits/reverse polarity, and are user-selectable for NO or NC operation.

Balluff, Inc.    Florence, KY 41042-0937
Sep 27, 2002 HyperPROX 4X long-range proximity sensor incorporates on-board temperature compensation ICs that eliminate impact of temperature on sensing distance. Sensor may be mounted farther away from target, minimizing risk of mechanical damage. Applications include controlling, regulating, automating, positioning, and monitoring work processes in machine-tool, plastics, textile, and automotive industries (or anywhere processes must be automated).

TURCK, Inc.    Plymouth, MN 55441

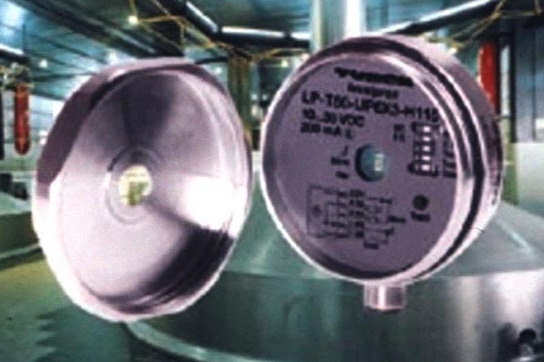

Sep 27, 2002 levelprox, designed for use with metal storage tanks, utilizes ultrasonic sensing technology to detect liquid levels inside metal-walled tanks. Suitable for applications where intrusion into tank is not desired, levelprox can sense through metal walls from .040 to .590 in. thick. It incorporates 1-102 Tri-clamp fitting into sensor and can be used with optional mounting kit. It includes alarm output and teach button for set-up and programming.

Cooper Instrument Corp.    Middlefield, CT 06455
Sep 27, 2002 SP160 Digital Solar Panel Meter is 4.5 x 1.125 x .625 in. and does not require any external power sources. It features temperature range of -58 to 158°F, ±1°F accuracy, and 10 ft probe cord. Applications include heating and ventilation, holding and storage tanks, freezers, foodservice equipment, and beverage coolers and dispensers.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Sep 27, 2002 SpectraLight® Jr provides multiple light sources for color matching and evaluation of color quality/uniformity. It uses filtered tungsten halogen daylight technology. Unit is equipped with 5 selectable light sources for various color evaluations and metamerism testing. Interior is made from low gloss, neutral-gray material. It includes push button membrane keypad, removable diffuser, and separate on/off control for UV source.

Ophir Optronics, Inc.    Danvers, MA 01923

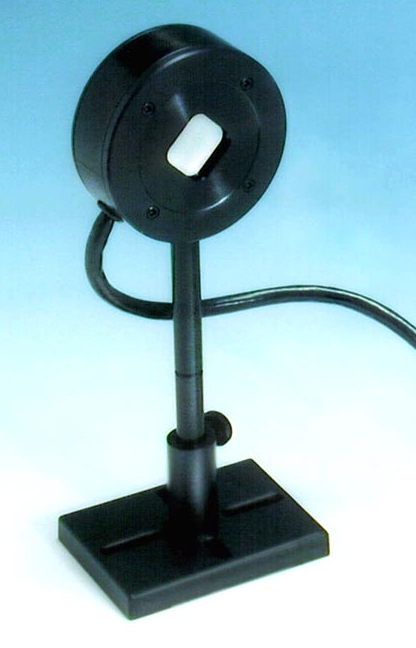

Sep 27, 2002 Models PE25 and PE50 Pyroelectric Heads (metallic absorber 0.19 to 3.0 µm) are 24 mm thick, with maximum pulse rate limits to 4,000 Hz and linearity of 1%. Model PE50 has lower limit energy measurement range of 15 µJ. Models PE25BB and PE50BB (black absorber 0.19 to 2.0 µm) Pyroelectric Heads can make measurements of pulse widths up to 10 mS.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 27, 2002 Series 600 6-port valve is designed for applications where no shutoff is needed. Three-position handle alternately routes fluid to ports on one side or the other. Detent mechanism assists in positioning accuracy. Valve features 1/2 in. pipe thread top ports and 3/8 in. pipe thread bottom ports. It has forged brass body, PTFE seats and seals, and Viton O-rings. Working pressure is up to 150 psi at 250°F and vacuum to 29 in. Hg.

TMP, Technical Machine Products    Cleveland, OH 44102 4431
Sep 27, 2002 Model 1826-3 plastic laminating press utilizes 18 x 26 in. aluminum platens, and produces up to 2640 plastic cards/hr. Self-contained package includes laminator, closed-loop cooling system, trays, polished lamination plates, and pads. Advanced Control Package provides storage of 5 recipes, temperature and pressure ramping, actual vs setpoint data display, and visual and audible alarms, including heater failure detection. Controls use 10 in. touchscreen.

Diversified Technologies, Inc.    Bedford, MA 01730

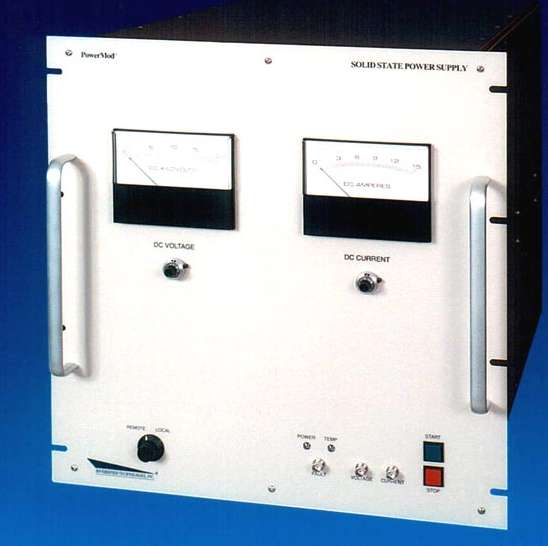

Sep 27, 2002 PowerModâ„¢ combines switching technology at high voltage and high power in 19 in. rack-mount unit. Suitable for manufacturing and laboratory applications, it offers up to 200 KHz switching speeds with less than 1% voltage regulation and less than 0.1% ripple. Capable of operating in constant voltage mode, constant current mode, or constant power mode, solid-state switching power supply is offered in 30 and 40 kW units. It offers full over-voltage and over-current protection.

Demag Cranes and Components    Cleveland, OH 44139
Sep 27, 2002 Modular system includes in-line, right angle, and offset gearmotors. Powered by Indrive Variable Speed Gearmotor, Cylindrical Rotor Motors, or Conical Rotor Brake Motors, system offers up to 8,850 lb-ft of torque with horsepowers rated from fractional to 100 hp. Gear drive ratios are available from 3:1 to 500:1 with single or multiple speed motors. Various brake torques are available for stopping and positioning accuracy requirements.

Huco Engineering Industries    San Rafael, CA 94903 2020

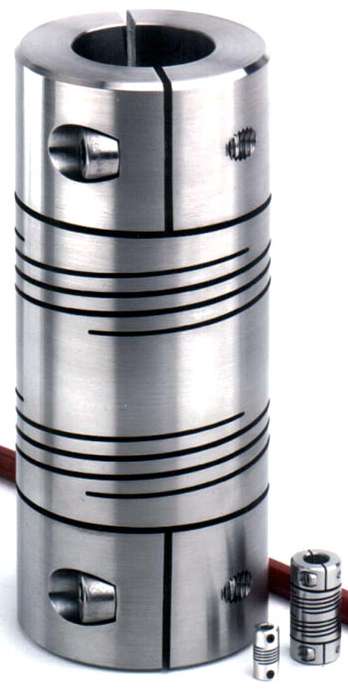

Sep 27, 2002 Corrosion-resistant Multi-Beam® helical beam coupler design offers one-piece construction and 1 or 2 sets of flexible elements. Its multiple, 3-start beams handle evenly distributed stresses produced by coupler. Intrinsically balanced, it readily adapts to high speeds without balancing. In sizes up to 2.50 in. dia, Multi-Beam coupler accommodates shaft sizes to 2.0 in. Stainless steel versions have peak torque rating of 103 lbs-ft.

XPiQ    Holliston, MA 01746

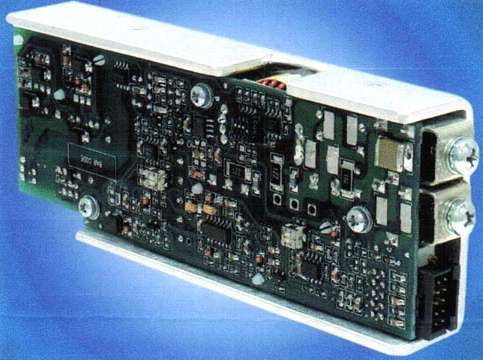

Sep 27, 2002 Offered in 25 different voltages from 2 to 60 V, output modules provide up to 200 W of power to suit requirements of EOEM industry. Single PCB design utilizes proprietary thermal management approach. Up to 6 modules can be used in one power platform. Rated at 200 W, J modules provide fully isolated outputs, single wire current share, remote inhibit, remote sense, power valid, current limit, over-voltage, and over-current protection.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506

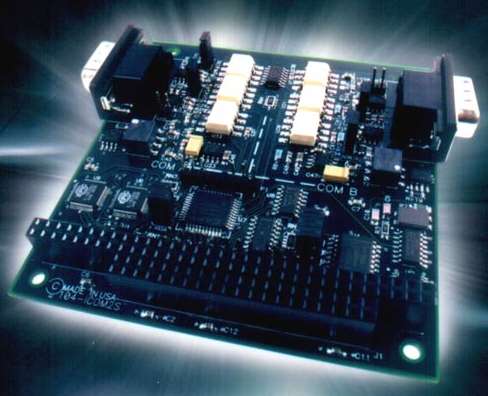

Sep 27, 2002 Model 104-ICOM-2S dual-port PC/104 utility board optically isolates serial data lines from each other and from computer for smooth, error free data transmission even in noisy environments. Serial ports are based on the 16C550 UART with 16 byte FIFO, suitable for high-speed communication and embedded Windows operating systems. Ports are available with two DB9 male connectors with jack screws. Each port's RS422 or RS485 protocol is selected by jumpers on board.

Applied Plastics Co.    Norwood, MA 02062
Sep 27, 2002 APC Teflon® Coated Mandrels have uniform, non-flaking coating that provides smooth, slippery surface which is chemically inert and withstands up to 500°F operating temperatures. Made from stainless steel or nitinol, mandrels are tested in accordance with ASTM-1894. Wire is grit blasted before Teflon® coatings are applied from 0.00005 to 0.0008 in. thick onto wire from 0.005 to 0.45 in. dia, with ±.0001 in. final dia. tolerances.

Kee Safety, Inc. (formerly Kee Industrial Products, Inc.)    Buffalo, NY 14206-2665
Sep 27, 2002 Kee Lite® fittings are constructed of high-grade aluminum silicon magnesium, making them strong, lightweight, and corrosion-resistant. Fittings have contoured design, hidden set screws, and bright finish suitable for railings, lighting grids, display fixtures, playground equipment, racks and shelving, guard rails, and other tubular pipe structures. For use with 1¼ and 1½ in. standard pipe, fittings require no welding, threading, or drilling to install.
