Fairchild Semiconductor    South Portland, ME 04106
Oct 03, 2002 Surface-mount Models QTLP610C-EB and QTLP611C-EB provide viewing angles of 120° and 130°, respectively. PCB-based, surface-mount Model QTLP601C-EB has 100° viewing angle. All units feature low power consumption, with Vf less than or equal to 3.15V @ 5mA, and narrow forward voltage range of 2.75 to 3.15V. They use DC voltage and do not require auxiliary circuitry. LEDs use InGaN/Sapphire blue, water-clear optics.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Oct 03, 2002 Designed to facilitate global compliance requirements, PharmaSpec UV-Vis includes comprehensive validation capabilities, 1.0 nm resolution, and built-in functions for the pharmaceutical industry. Stand-alone or PC controlled with UV Probe 32-bit software, spectrophotometer complies with all major international pharmacopoeia specifications.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Oct 03, 2002 Tape Dispenser uses most any tape or film including craft, gummed, vinyl, cotton cloth, double face, paper, Kapton®, and glass cloth. When used in automatic mode, it presents piece as soon as previous piece has been removed. In manual mode, dispenser presents piece each time button is pushed. Unit will cut tape into lengths ranging from 19 to 490 mm. Two rolls up to 1 in. in width can be accommodated. Maximum roll diameter is 177 mm.

Esco Tool    Medfield, MA 02052
Oct 03, 2002 MILLHOG® Rolling Motor and Tube Expander Kits accurately control tube expansion and create tight mechanical seal between tube OD and tube sheet. They include choice of rolling motor types, custom sized tube expanders from 3/8 to 4 ½ in. O.D., hose whip with in-line air filter, oiler, wrenches, and operating instructions. Air-powered motors have torque limits that can be preset from 25 to 325 lbs-ft.

Thaxton, A Div. Of Hy-Tech Machine    Cranberry Township, PA 16066
Oct 03, 2002 Type D Hydrotest Closure fits on inside diameter of pipe, tube, and variety of OEM equipment, eliminating need to weld or fabricate fixtures for testing or flushing. Made of heat treated, plated carbon steel with neoprene seals, unit is rated for temperatures from -65 to +250°F and pressures to 7,000 psi. Sizes range from 1 to 24 in. in diameter and are stocked in sizes to 12 in. diameter for Sch 40 and Sch 80.

Jamesbury, Neles - Metso Automation Brands    Worcester, MA 01615 0004
Oct 03, 2002 ValvGuardâ„¢ automatically monitors and tests emergency shutdown and emergency venting valve performance and provides warning so that actions can be implemented before dangerous situation occurs. Operators can test valve performance on-line, anytime without disturbing process. Since exact condition of valve is known at all times, scheduled maintenance periods can be extended and unnecessary process shutdowns and repairs avoided.

Omega Lighting    Tupelo, MS 38804
Oct 03, 2002 Xtestâ„¢ combines micro-controller and surface-mount chip technology to accurately allow for complete control of emergency safety lighting system. It signals the failure of a single LED lamp in exit sign, helping to ensure that exit will remain evenly illuminated and meet code-specific light output requirements.

Aerotech, Inc.    Pittsburgh, PA 15238
Oct 03, 2002 Model ANT-4V offers speeds up to 50 mm/sec, 2 nm resolution, when combined with MXH multiplier, 60 picometers with Automation 3200, and 200 nm accuracy. Non-cogging, non-contact direct drive employs direct position feedback. All critical elements of ANT-4V are suitable for continuous operation and stage requires no maintenance.

Intelligent Motion Systems, Inc.    Marlborough, CT 06447-1334
Oct 03, 2002 Versatile and compact (1.7 in. L x 1.8 in. H x 1.4 in.W) MDrive14 combines NEMA size 14 stepping motor with on-board half/full step drive. Its optically isolated logic inputs accept 5–24 Vdc signals, sourcing or sinking. Setup parameters include Motor Resolution, Motor Direction with respect to direction input, and Run/Hold currents. Settings may be changed on-the-fly or downloaded and stored in non-volatile memory. Operating voltage ranges from 12–48 Vdc.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Oct 03, 2002 Diamond-Like Carbon Coating (DLC) features corrosion resistance and low wear rate. Inserts coated with DLC have low friction coefficient of µ=0.05-0.2, even without lubricants. Aluminum alloy adhesion on edge can be suppressed even in dry machining, thereby decreasing cutting resistance. Chips are removed well, preventing cutting material from being scratched and deterioration of machined surface caused by re-adhesion to cutting material.

Greenheck Fan Corp.    Schofield, WI 54476 0410
Oct 03, 2002 Model MSCF Modular Small Cabinet Fan recirculates, reconditions, supplies, or mixes air. Modular construction allows for sections to be added or reconfigured. Each section has access doors on both sides providing accessibilty to all components. Belt-drive Model MSCF incorporates forward curved wheel and drive frame isolation for quiet operation. It provides air volume from 300 to 4,250 cfm, with pressures up to 4 in. wg.

DigiLens Inc.    Sunnyvale, CA 94086
Oct 03, 2002 Wavechipâ„¢ silicon chip measures 27 x 7.5 mm and includes 60 independently controllable electro-optic filters. Microscopic filters are created with electrically switchable Bragg gratings, which are used to route, condition, and monitor DWDM wavelengths all within same integrated circuit. Wavechip provides core optical processor in DGE130 Dynamic Gain Equalizer module.

MarathonNorco Aerospace, Inc.    Waco, TX 76712-6588
Oct 03, 2002 Ball Reverser® comes in 5 standard sizes to accommodate almost any size load. Two slot balls move relative to fixed ball as they follow turnaround curve. Standard curve is designed for optimum deceleration and acceleration of mass for each size Ball Reverser. Standard strokes range from 0.44 to 148.0 in. Cage and sleeve are made from hardened bearing steel and plated for corrosion-resistant finish.

Master Bond, Inc.    Hackensack, NJ 07601
Oct 02, 2002 MB297FL single component cyanoacrylate adhesive has operating temperature range of -65 to +185°F and bonds to metals, ceramics, plastics, and elastomers. It adheres to assemblies whose substrates have different expansion coefficients. Cured adhesive has excellent optical clarity and is resistant to many chemicals. It is available in 1/3 oz, 1 oz, and 1 lb bottles.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Oct 02, 2002 The SALD-7001 Laser Diffraction Particle Size Analyzer offers violet semiconductor laser (405 nm wavelength) and strategically placed photo sensors, which can detect wide-angle scattered light signals up to 60°. Measuring range of SALD-7001 is 0.015 to 500 µm. Unit's single-violet laser light source coupled with single optical system enables accurate size determination of super fine particles by laser diffraction method.

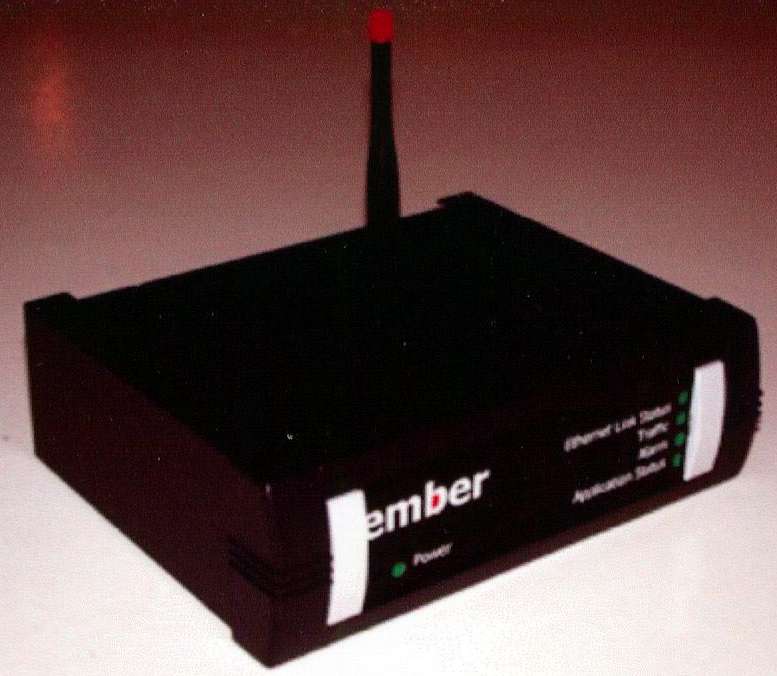

Ember Corporation    Boston, MA 02210
Oct 02, 2002 EmberNet utilizes intelligent mesh-based topology (scalable into tens of thousands of nodes) and routing algorithm to route around typical interferences. Operating in 900 Mhz ISM band, EmberNet hardware uses direct sequence spread spectrum radio with twelve channels and employs hardware-based encryption. Product suite consists of: EmberNet Node, 8-bit microcontroller hardware; EmberNet Gateway, Linux-based hardware device; EmberNet Serial Node; and EmberNet Developer Kit.

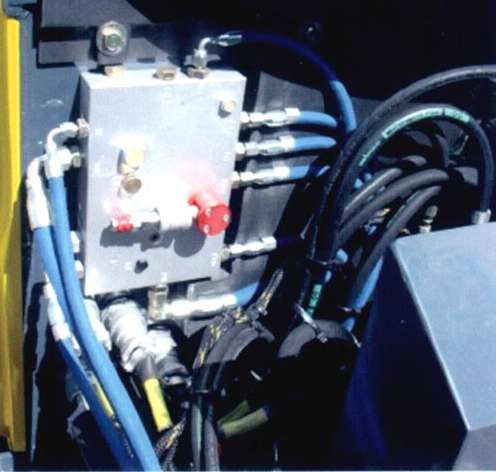

Norgren    Littleton, CO 80120
Oct 02, 2002 Used in D-Series ADTs (Articulated Dump Trucks), IPM (Integrated Pneumatic Manifold) physically mounts all pneumatic components and serves as transfer port between engine and driver controls. Pneumatic components include V44 and V05 solenoid valves, D18 pressure switches, sensors, Fleetfit fittings, connectors, and hoses. Pneumatics control exhaust brake actuators, parking and ancillary brake systems, transmission shifting, and remote hydraulic valves.

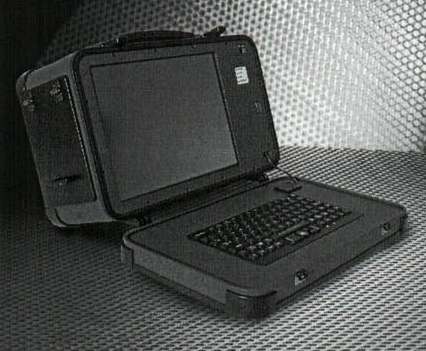

Dolch Computer Systems Inc.    Fremont, CA 94538
Oct 02, 2002 Sealed, ruggedized MilPAC(TM) dust- and dirt-proof, indoor/outdoor computer has corrosion-protected aluminum case that shields internal components from up to 40 G shock. For environmental protection, MilPAC is IP 54 rated for weatherproof storage and transit. Fold-up keyboard protects 14.1 in. hi-bright XGA TFT display. Readability is provided via 150-nit active-matrix screen, viewable in bright, ambient light conditions.

Aremco Products, Inc.    Valley Cottage, NY 10989
Oct 02, 2002 Aremco-Bondâ„¢ 2150 ceramic-filled, vibration-resistant epoxy provides tensile shear strength of 2,350 psi and flexural strength of 11,800 psi. Chemical resistance to acids, alkalis, organic fluids, and salts is provided to operating temperature of 400°F. Black pigmented, 100% solids epoxy cures at room temperature within 24 hr or at 200°F in 30 min. Cured product is machinable and exhibits linear shrinkage of .004 in./in. and Shore-D hardness of 84.

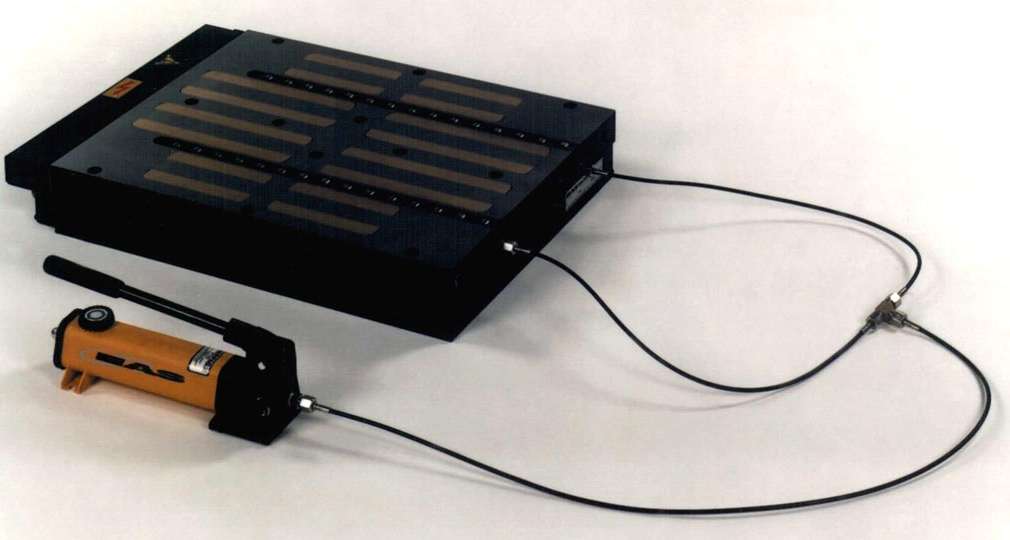

EAS Mold & Die Change Systems, Inc.    Butler, WI 53007-0550
Oct 02, 2002 Magnetic Clamp System can accommodate operating temperatures to 464°F. With optional heating system positioned between magnets and mold, system provides consistent heat transfer. It can accommodate heating rods or heated fluid. For vertical applications, safety bars or latches provide added safety. Primary applications include rubber molding, ceramic molding, elastomer molding, and compression molding.
