Zetex, Inc.    Hauppauge, NY 11788

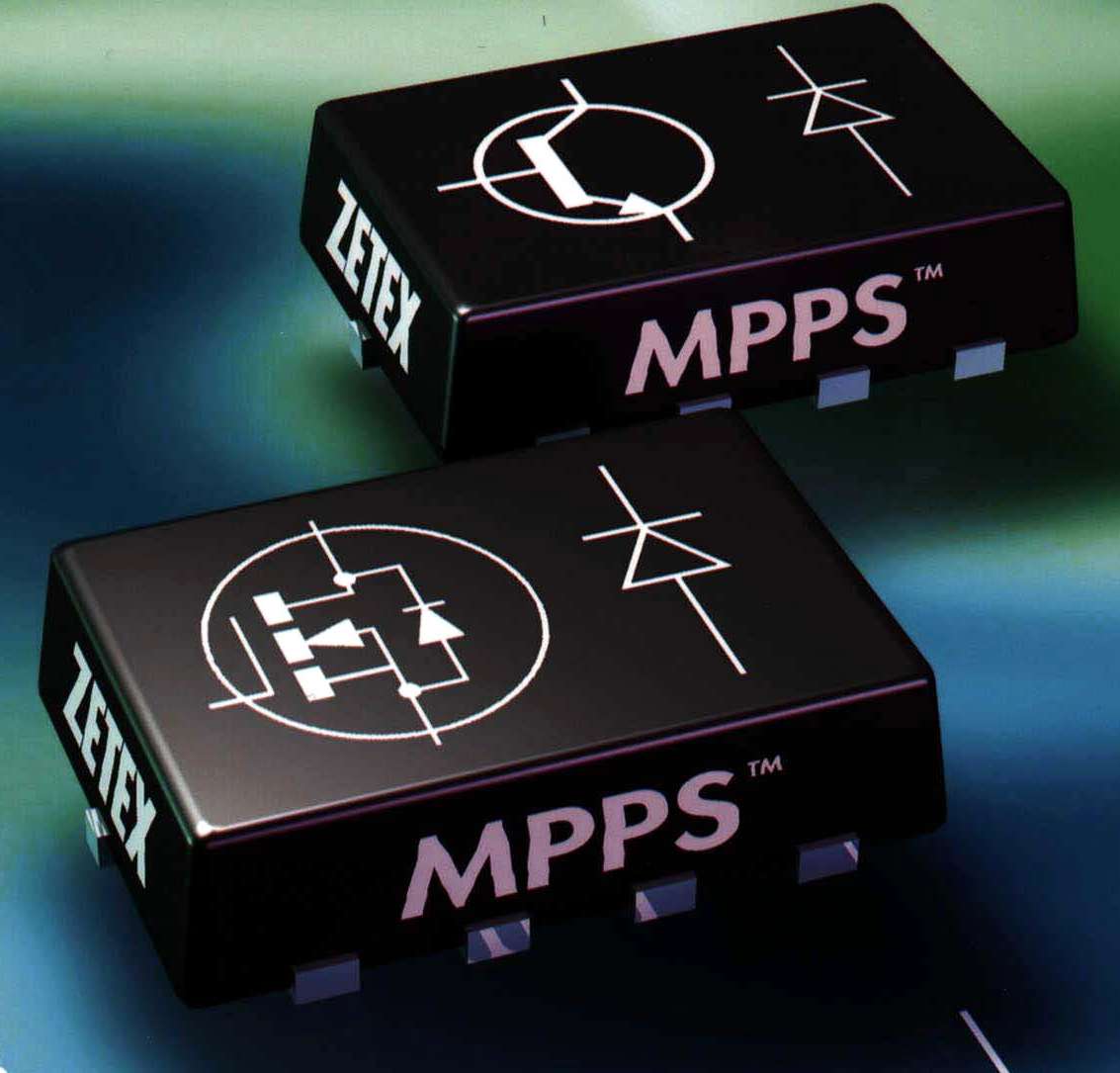

Oct 28, 2002 Provided in miniature micro leaded package (MLP), Series of MOSFET/Schottky and Bipolar/Schottky combination products offer board space savings of 88% over alternative SM8 packaged products. One NPN and 3 PNP bipolar combination products are offered, featuring true 1 A DC rated, 40 V fast switching Schottky barrier diode. Bipolar transistor's on-state voltage is typically 140 mV at 1 A, and range includes 12, 20, and 40 volt rated PNP parts and 20 V NPN.

Banner Engineering Corp.    Minneapolis, MN 55441

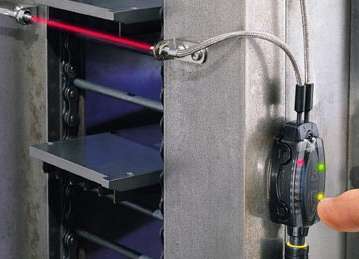

Oct 28, 2002 Designed to be used without enclosure, model FI22 offers snap-mount bracket and adhesive mounting method. Setup is accomplished via visible light beam and real-time feedback of 8-segment LED bargraph display. Unit features push-button 1 or 2-point static, and 2-point dynamic TEACH programming as well as manual adjustment mode. Unit operates from 10 to 30 Vdc and includes reverse polarity protection, two 100 mA solid state outputs, and transient voltage protection.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005

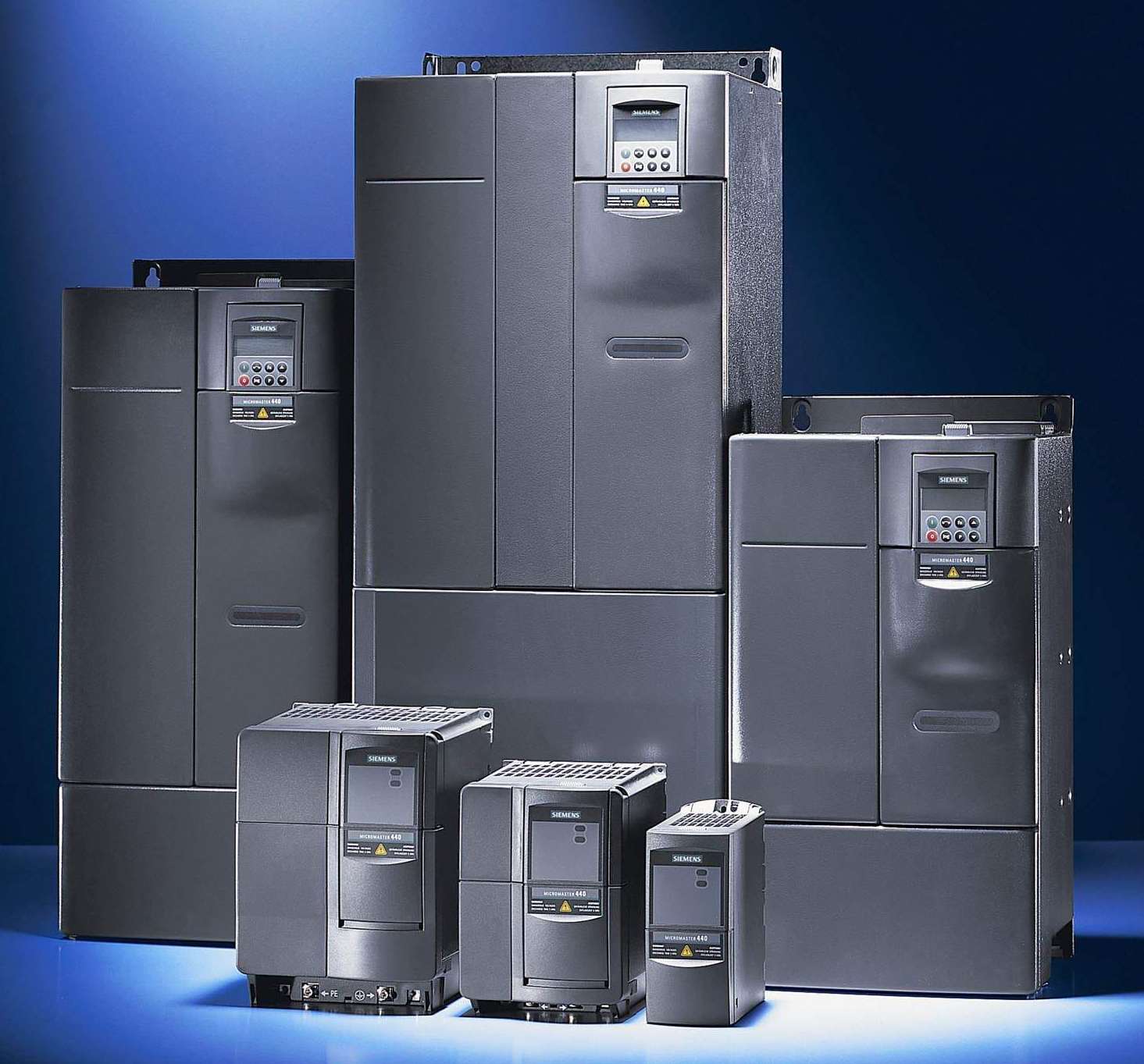

Oct 28, 2002 MICROMASTER universal drives are available in 4 performance classes: MM410, fractional to 1 hp, 1-phase 120 and 220 V contactor drives; MM420, fractional to 15 hp, 1- and 3-phase, 230 and 460 V basic inverter drives; MM430 variable torque rated inverters; and MM440 units with sensorless vector capability and optional closed loop vector control. All units offer accessible terminals, interchangeable operator panels, programming software, and built-in RS485 serial link.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089

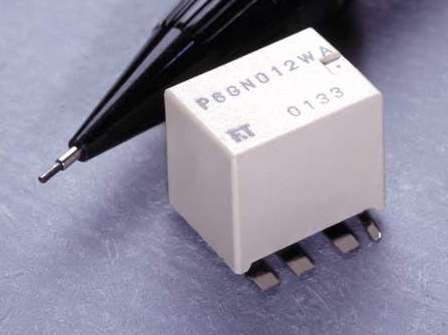

Oct 28, 2002 Measuring 11.8 x 8.8 x 10.3 mm, surface-mount electromechanical relay offers efficient magnetic circuit structure. Model FTR-P6 consumes 800 mW and has 25 A (14 Vdc) contact rating at locked motor load for 100 K. Capable of handling max inrush current of 35 A, relay has max acoustic noise level of 60 dB/5 cm. Unit's structure withstands vibration and lead-free reflow soldering processes. Its gull-wing leads are compatible with lead-frame welding.

Pfeiffer Vacuum Inc.    Nashua, NH 03063
Oct 28, 2002 Designed for use in portable, battery-powered, or compact analytical instruments, CompactTurbo TPD 011 measures 2.5 x 2.5 x 6.7 in. With pumping speed of 10 L/s for Nitrogen and pressure rating of 5 x 10^-5 mbar, pump is operated via RS485 interface through control unit or PC. When combined with small rotary vane or diaphragm pump, unit completes total vacuum package. CompactTurbo TPD 011 includes TC 100 drive system.

Molex Inc.    Lisle, IL 60532-1682

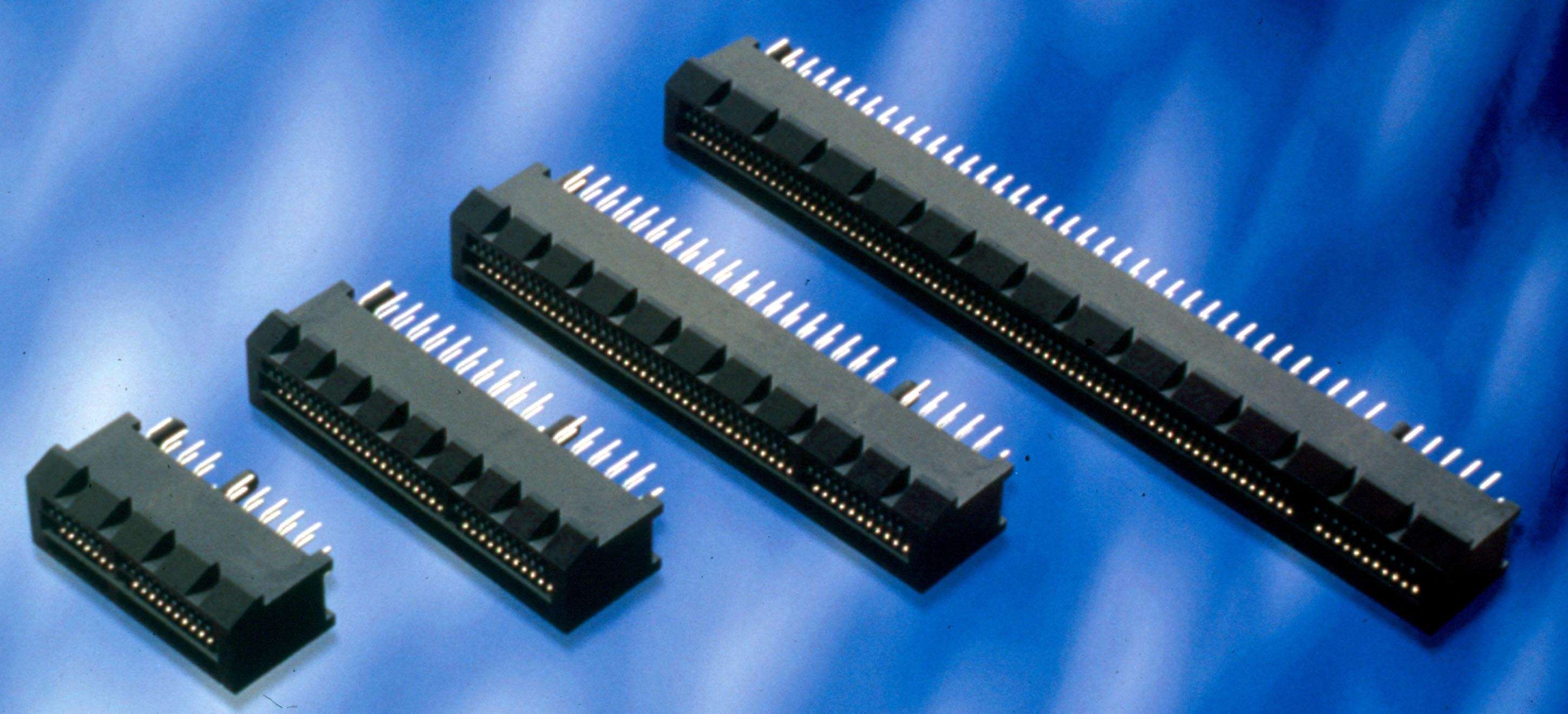

Oct 28, 2002 Edge card connector line includes series of four edge connectors, each with specific bandwidth capabilities. Connectors are suitable for use in computing and data communications applications including PCs, servers, and workstations.

Molex Inc.    Lisle, IL 60532-1682

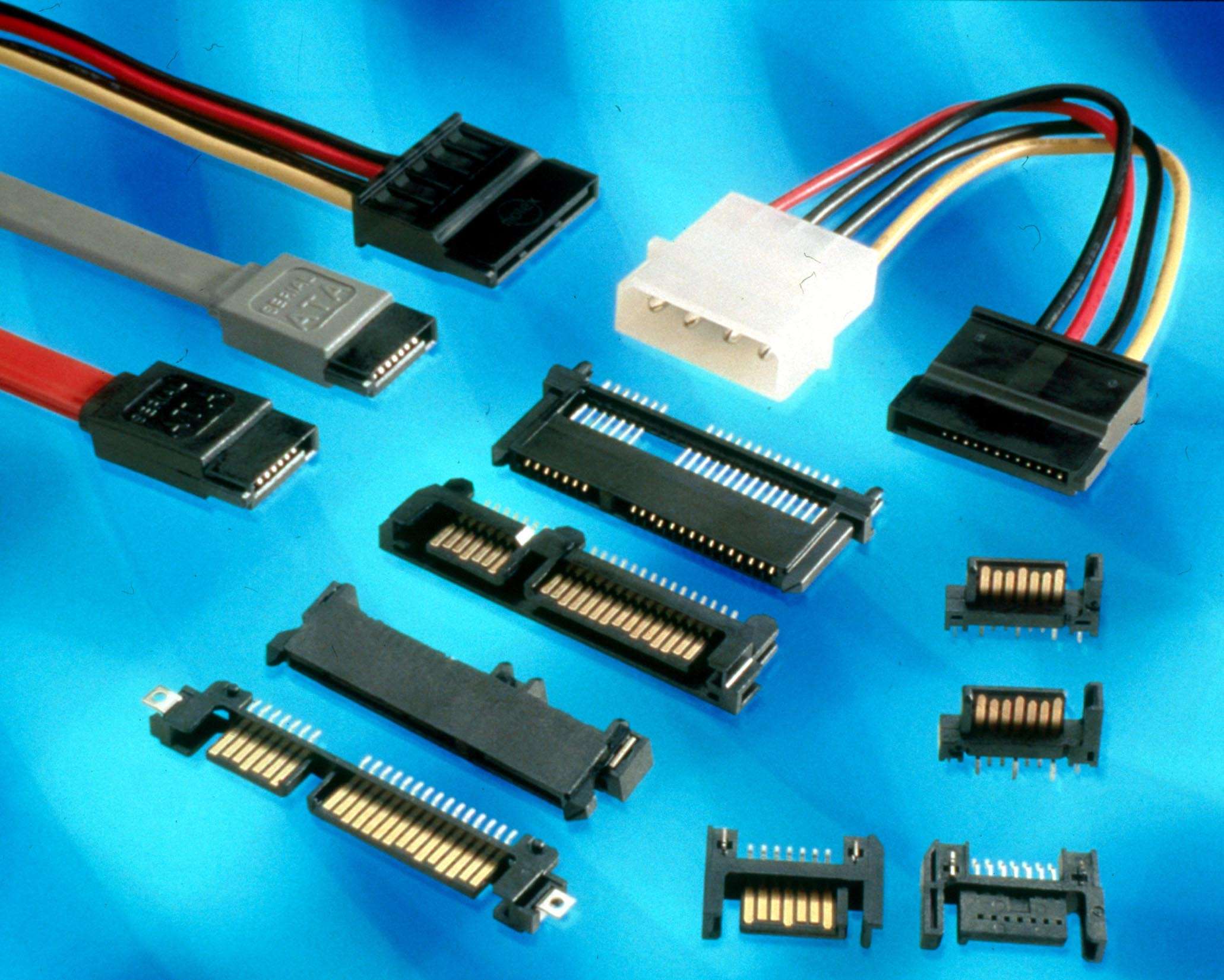

Oct 28, 2002 Serial ATA Interconnects feature differential pair signaling technology and can support 1.5 Gbps. Combined signal and power interface, with built-in hot-plug capability, is suitable for blind-mate applications. Units support 1.8, 2.5, and 3.5 in. form factors with both cabled and direct docking systems.

Henkel Loctite Corporation    Rocky Hill, CT 06067

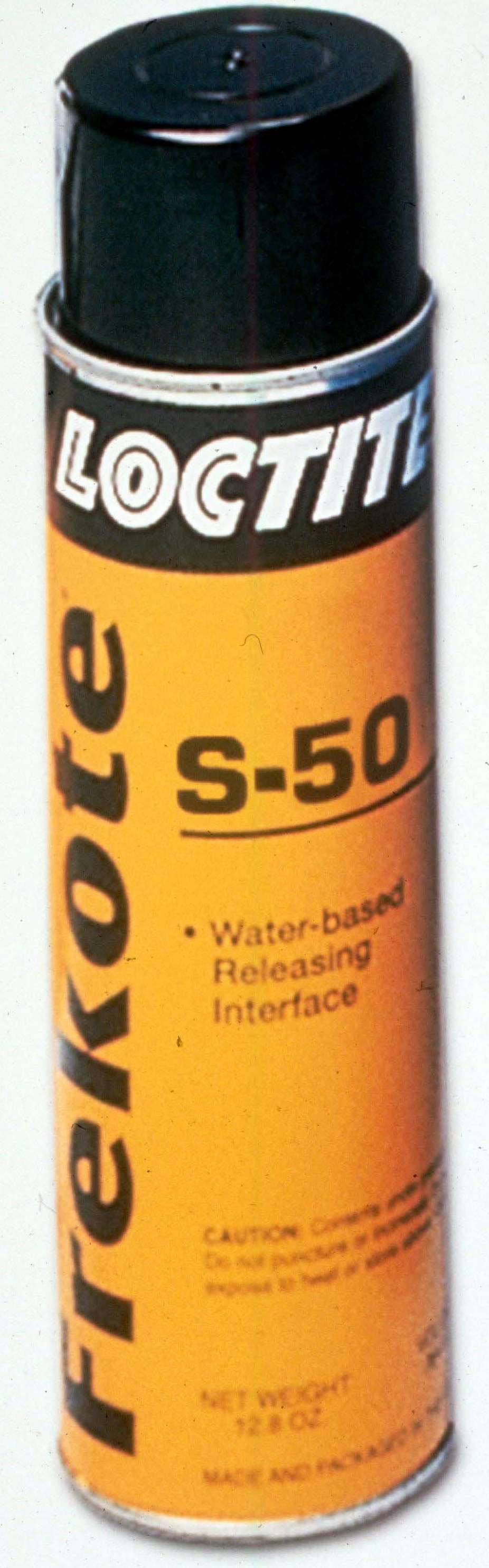

Oct 28, 2002 Frekote® S-50, water-based, non-flammable mold release coating, suits silicone rubber molding applications. Requiring no cure time at elevated temperatures, coating can be used in mold temperatures from 220 to 390 °F, at which molding commences as soon as water carrier evaporates. When applied to preheated surfaces, product forms thin, inert, thermally stable coating that releases most types of silicone rubber.

RBP Chemical Technology, Inc.    Milwaukee, WI 53214 0069
Oct 28, 2002 UNITROL® CTP I one-step, low VOC concentrate is designed for presses running at greater than 2,200 fpm. It contains agents that help eliminate feedback and flashing problems that can occur at high speeds on presses with duotrol or continuous dampening systems. Product contains agents to control ink and water balance and chelators to prevent calcium glazing, while also preventing toning and scumming problems.

Mori Seiki USA Inc.    Rolling Meadows, IL 60008
Oct 28, 2002 CAPS-VEGA's Auto Feature Recognition automatically extracts all machineable features data. Once imported, software analyzes data to determine cutting planes and optimal way to machine part features, resulting in fully populated feature tree representing all operations needed to create parts. Software also allows users to combine features into patterns and to adjust machining order. Software can also program 4th positioning axis.

Leuze electronic, Inc.    New Hudson, MI 48165

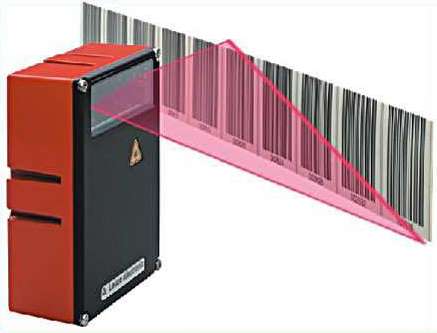

Oct 28, 2002 Optical Barcode Positioning System BPS 34/37 incorporates flexible, hard wearing barcode tape, which allows system to determine its position with +1 mm accuracy. Unit utilizes visible red light laser to read barcodes, then ascertains position of that code and reports position back to evaluation unit via integrated SSI or Profibus DP interface. With contactless scanning distance from 60 to 140 mm, there is no wear.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Oct 28, 2002 Advanced Design System (ADS) 2002C electronic design automation (EDA) software verifies design performance early in development cycle for wireless communication products. Offerings include multi-threaded Ptolemy simulation, TD-SCDMA Design Library, and link to company's ESG Signal Studio software. ADS 2002C incorporates one feature that adjusts both circuit component values and layout dimensions to optimize physical and circuit performance.

Molex Inc.    Lisle, IL 60532-1682
Oct 28, 2002 LaneLinkâ„¢ connectors support InfiniBandâ„¢ 4X and 12X link technology. Cable-to-board I/O system is optimized for differential signaling at 2.5 Gbps per pair. Its pcb receptacle provides isolation of cable loads from SMT solder tails. Cable wire terminates directly to plug contacts, while wire guide and strain relief captures individual wires and attaches to ground contacts. Pinch-to-release latch levers provide positive latch opening prior to unmating cable.

Caron Products & Services, Inc.    Marietta, OH 45750 0715

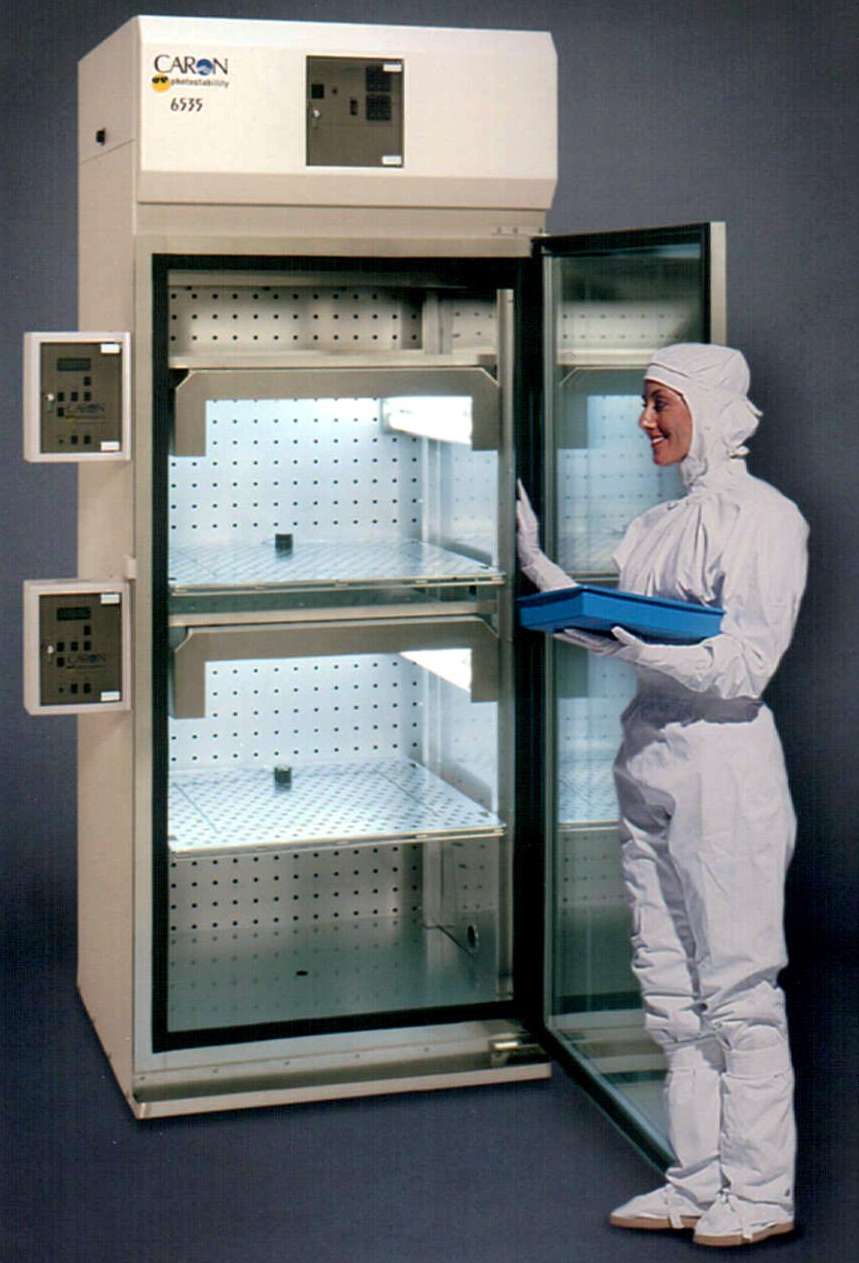

Oct 25, 2002 Cleanroom Chambers are designed for operation in environments sensitive to excessive particulate contamination. HEPA filters limit particulate emission concentrations. Chambers are useful for companies in pharmaceutical, electronic, medical, semi-conductor, and other industries, where manufacturing and testing of contaminant-free product is imperative.

Schurter, Inc.    Petaluma, CA 94975

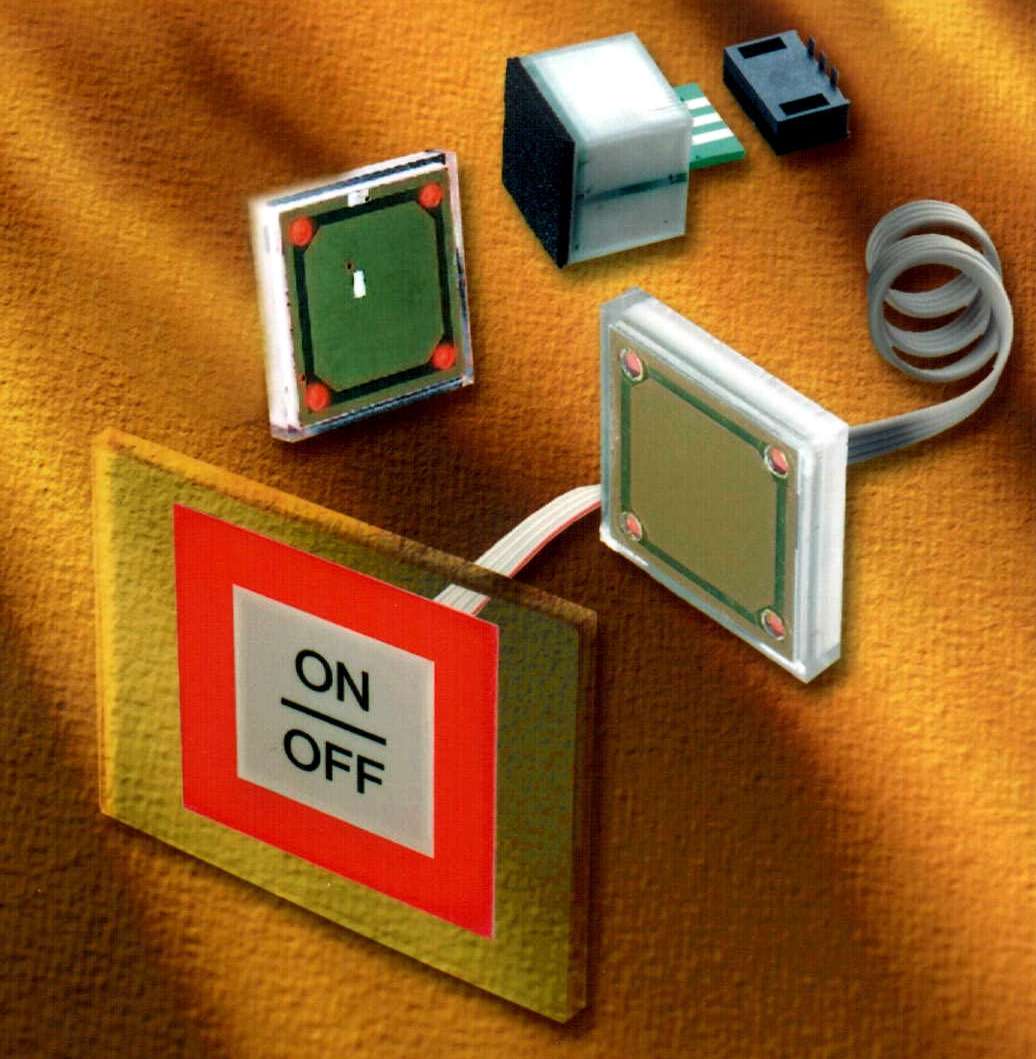

Oct 25, 2002 Momentary/latching Model CSE15 uG (Capacitive Switch Element under glass) is actuated by touch or by approaching surface. It offers adjustable sensitivity and point illumination in varying colors. Connecting illumination directly to switched output signal results in on/off feedback. Electronic parts are molded into plastic frame, impervious to dust, dirt, moisture, and heat. Switches can be arranged for grids of 15 x 15 mm and mounted under overlay up to 20 mm thick.

Electrocube, Inc.    Monrovia, CA 91016 4150
Oct 25, 2002 Seacor AEBank series consists of application-specific configurations of electrically parameter-matched electrolytic capacitors. AEBank is terminated using low resistance, minimal inductance, copper buss strips, to which optional bleeder resistors may be added. Able to be designed for various mounting configurations, unit can be banked to any capacitance value. Voltages are available from 10 to 20,000 V, and currents are available up to 1000 A rms.

S-B Power Tool Co. (Skil/Bosch)    Chicago, IL 60646 5925
Oct 25, 2002 Brute-Toughâ„¢ drill/drivers are designed with ½ in. chuck for continuous heavy use in high torque drilling applications. Models offer 1,500 rpm (14.4 V) and 1,300 rpm (18 V) in addition to 475 lb-in. torque. Compact-Toughâ„¢ drill/drivers, designed for tight spaces, feature 3/8 in. chuck and come in 9.6, 12, and 14.4 V models with speeds up to 1,200 rpm (12 and 14.4 V). All drill/drivers include Dura-Shieldâ„¢ exterior housing consisting of ABS/Nylon blend.

Almco, Inc.    Albert Lea, MN 56007 2751
Oct 25, 2002 Automated, continuous thru-feed Model XLR-22 features round-bowl design for deburring and finishing of metal parts. Cycle/separation options include continuous once-around-and-out processing, or batch cycling for parts requiring longer deburring exposure. Bowl is 8 ft in diameter and lined with 1 in. cast-molded urethane for parts protection. It has 8¼ in. tub cross-section, full-length tub contour baffle, and automatic lubrication for vibratory bearings.

Astec America Inc.    Carlsbad, CA 92008
Oct 25, 2002 Dual-output, quarter-brick Series ALQ15 offers output voltages of 3.3/2.5, 3.3/1.8, and 2.5/1.5 V. Rated to deliver up to 15 A from either output, series provides a full 60 W of clean, regulated, low-noise DC power. Unit can start up into high-capacitance loads of up to 10,000 microFarads per output. Features include over-temperature, over-current, and over-voltage protection. Input voltage range is 36-75 V, and operating temperature range is -40 to +85°C.

A & D Weighing    Milpitas, CA 95035
Oct 25, 2002 Models EKi and EWi come with backlit LCD and RS-232C for connecting to printer or computer. Both models include counting, percentage, and comparator modes, and EWi models have triple range weighing. GLP data output assures reporting documentation. Users can choose from 9 weighing units. Capacities range from 120 g to 12 kg, with readabilities as precise as 0.001 g. Applications include field-testing, production quality control, and sieve analysis.
