Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Minneapolis, MN 55428
Oct 02, 2002 Prismo VARIO offers x, y, z measuring ranges from 27 x 35 x 19 in. to 47 x 165 x 39 in. with accuracy up to ul = 2.0 + L/350, which is guaranteed from 64–79°F. Users can interchangeably replace probes for different measurement requirements. DT Dyna-touch probe permits indexing steps of 2.5° and measuring range of 2 x 360° in any axis of rotation. VASTXT active scanning probe head allows single-point measurement, scanning of form elements, and known and unknown contours.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Minneapolis, MN 55428
Oct 02, 2002 Model PS200 Profile Scanner visualizes surface shape, which helps to obtain tangible information on function behavior of workpieces. Optical laser measuring technology provides probing up to 50 mm/s, capturing data quantity of up to 7,000 points/probing and up to 2,000 probings/surface. Integrated stray light sensors allow measurement angles up to 85°. XY stage has measuring range of 200 mm in X and Y directions. Linear guideways offer straightness accuracy of 2 µm/200 mm.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Minneapolis, MN 55428
Oct 02, 2002 VAST Navigator, available for CenterMax Production Measuring Center, is based on dynamic stylus calibrations performed once for stylus configurations. Configuration can then be used for all scanning speeds and on different diameters. Helix Scanning function allows cylinder to be probed in continuous helical line as 1 element. Tangential probing provides continuous travel from probe path to probing process without having to stop and maneuver as in conventional methods.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133
Oct 02, 2002 Model MH-1201A offers force from 70 to 250 lbs and provides absolute weld-to-weld consistency. Model MH-1301A, with 100 to 400 lbs of force, features integrated weld transformer and is suitable for demanding applications. Heaviest duty weld head, Model MH-1401 allows forces up to 1000 lbs. All are plug and play, benchtop units built on heavy-duty frames. They can be run with either AC or DC inverter controls.

TDL Technology    Las Cruces, NM 88012-9736
Oct 02, 2002 Model 601 contains tunable 8-pole Butterworth highpass filter followed by tunable 8-pole Butterworth lowpass filter. Both filter responses are flat in pass band (unity gain) and roll off at 96 dB per octave beyond corner frequency. Corner frequencies can be set from 100 Hz to 40 kHz at front panel or over serial link from PC. Unit includes input analog anti-aliasing lowpass filter, variable gain output amplifier, and analog lowpass output filter.

Vestil Manufacturing Co.    Angola, IN 46703-0507

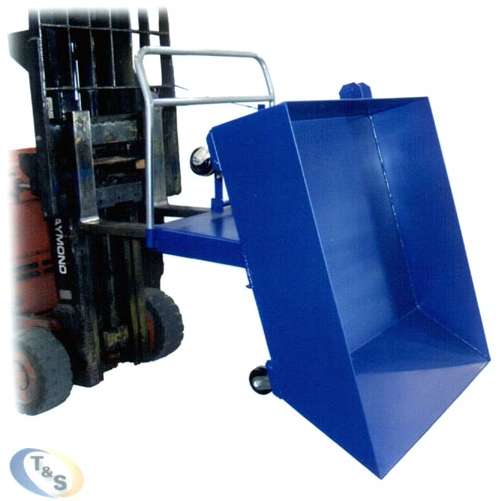

Oct 02, 2002 Low Profile Parts Hopper can be placed underneath machinery to be used as catch basin for parts. Fork pockets allow hopper to be dumped at 90°. Unit rolls smoothly on 4 x 2 in. phenolic casters with push handle. Once material is dumped, hopper will automatically return to locked position when lowered to ground. Overall size is 48 ½ in. W x 57 in. D x 18 in. H. Inside hopper size is 48 in. W x 49 in. D x 12 in. H. Capacity is 1,500 lbs.

APEM Components    Haverhill, MA 01835

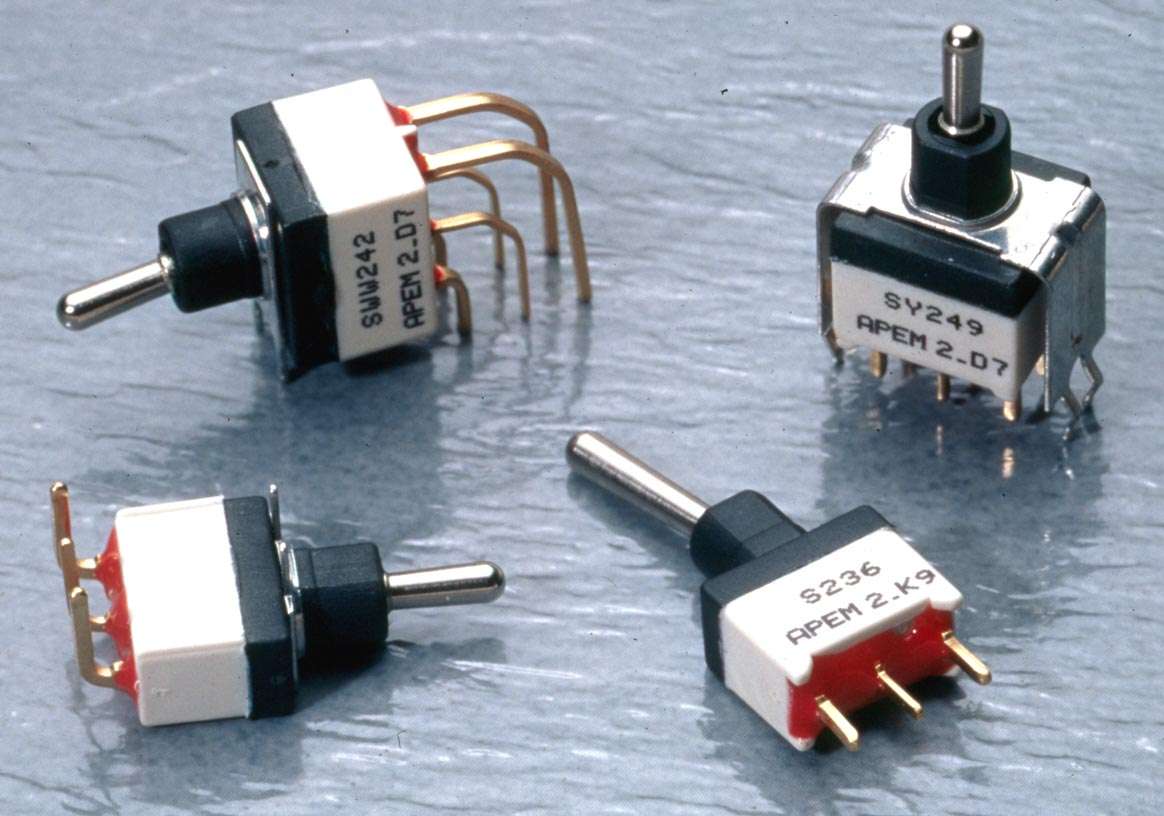

Oct 02, 2002 S Series switches are rated from 0.4 VA at 20 V up to 5 A, 125 Vac or 4 A, 30 Vdc. They consist of single pole double throw and double pole double throw models in various ON, OFF, and Momentary electrical configurations. All feature chrome plated bat actuator in choice of 2 lengths, insulated (UL94-V0) bushing and body, and metal restraining bracket. They are designed for insertion on printed circuit boards up to .078 in. thick. Operating temperature is -20 to 85°C.

Guest Industrial, Marinco Industrial Group    Napa, CA 94558

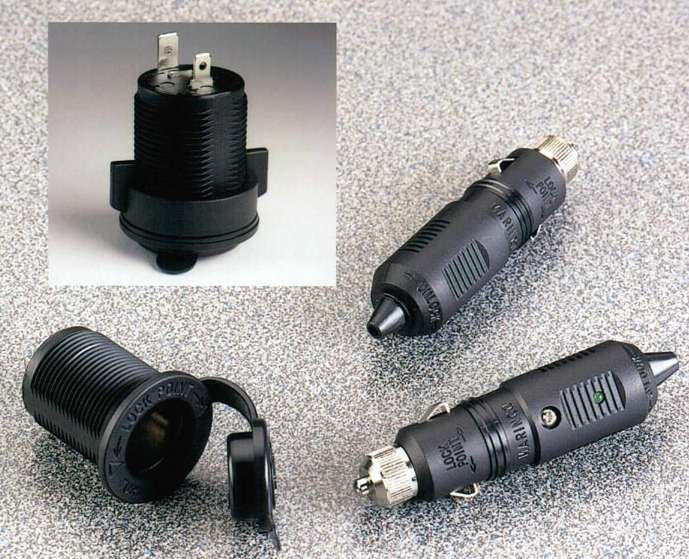

Oct 02, 2002 Model 12VRCTT (thin terminal) 12 V receptacle features 4 different sized NEMA connection tabs to prevent misconnection. Model 12VPG2A 12 V plug is fused at 2 A instead of standard 10 A fuse. Model 24VRC receptacle and 24VPG plug have same design features as 12 V products, but with 24 V rating and red LED power indicator. Slide-Lokâ„¢ locking ring allows installers to slide keyed ring past most of receptacle's threads, until ring is flush against panel.

Kontron    Poway, CA 92064
Oct 02, 2002 Model CP382 3U/4HP board incorporates over-temperature thermal shutdown at 302°F, under-voltage protection with upper threshold of 9.5 V, and maximum over-current protection of 1.2 A. Each of 24 digital channels offers up to 500 mA of output current. Unit has standard temperature range of 70 to 158°F, and is suitable for harsh industrial automation applications. Supported software includes Windows, VxWorks, and Linux.

BJM Corp.    Old Saybrook, CT 06475
Oct 02, 2002 EMCAT motor and transformer maintenance software package integrates with ALL-TEST IV Pro 2000 handheld fault finder and data collector. Combined, they perform testing and automatic analysis of AC/DC electric motors. Software incorporates trending, routing, scheduling of maintenance, work order management, review of equipment data by location or name, and entering of data from other test technologies.

TE Connectivity Ltd.    Berwyn, PA 19312

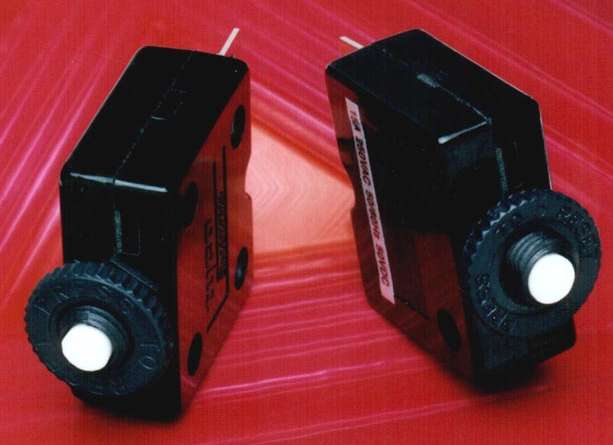

Oct 02, 2002 P&B W54 thermal circuit breaker can not be manually tripped. Push-button doubles as reset mechanism and indicator when unit has been tripped. Quick connect .250 in. tabs and #8-32 screws are available for wire termination. M11 x 1.0 thread and 3/8 in.-24 UNF thread is standard. Unit will continuously carry 100% of rated capacity. At 135% of rated capacity, it will trip within 1 hour and its trip time at 200% is 5.0 to 40 sec. Interrupt capacity is 1,000 A per UL 1077.

TURCK, Inc.    Plymouth, MN 55441

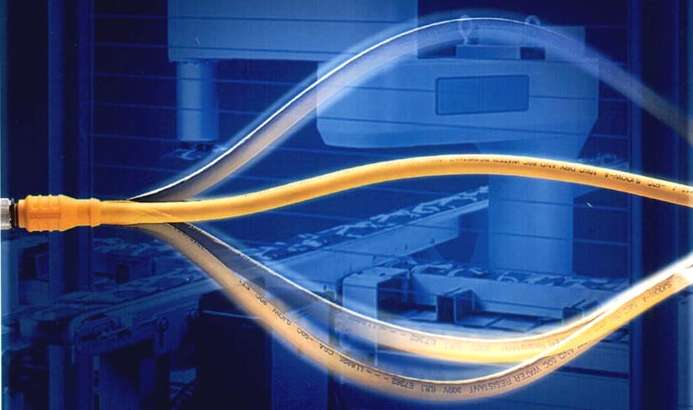

Oct 02, 2002 flexlife-10 performs 10 million cycles of continuous flexing, bending, and twisting motion. Its design includes oil-, water-, and abrasion-resistant Thermoplastic Elastomer and Polyurethane cable jackets with up to 19 conductors; Teflon® flex facilitator; and finely stranded custom alloy conductors. It is available with molded cordsets or as spooled cable in 30, 100, or 200 m lengths. Operating temperature (max) is 221°F and cold flexibility is rated to -40°F.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Oct 02, 2002 Grade GC1610 cemented carbide PluraTech endmills, eliminate polishing and electrical discharge machining in shops finishing hardened steel dies and molds. Used to machine prehardened steels, endmills' fine-grained carbide has wear-resistant titanium aluminum nitride coating. Suited for high-speed machining applications, Grade GC1610 is available in CoroMill PluraTech ball-nose, toroid, and square end multiflute designs.

Computer Conversions Corp.    East Northport, NY 11731
Oct 02, 2002 Infinite resolution Synchro/Linear DC converter modules measure 2.6 x 3.1 x .82 in. and mount on printed circuit boards. They convert synchro or resolver inputs of 11.8 or 90 V, 400Hz or 90V, 60Hz into ±10 Vdc outputs, representing ±180 of input angle. Output scaling of 0 to 360° for 0 to 10 V is also available. Converters have isolated reference and synchro inputs and are insensitive to input amplitude variations. Output is short circuit protected.

Computer Conversions Corp.    East Northport, NY 11731
Oct 02, 2002 Miniature converter modules provide up to 3 VA power output and ±6 min accuracy. Measuring 2.6 x 3.1 x 1.0 in., units accept 14-bit natural binary angle and convert it into 3-wire synchro or 4-wire resolver signal. Output is short circuit protected, and ±15 V and +5 Vdc power supplies are required. Standard output voltages are 90 or 11.8 V rms L-L, 60 or 400 Hz. Digital inputs are TTL/DTL compatible, and synchro output and reference is fully transformer isolated.

MECCO Marking Systems, M.E. Cunningham, MECCO Machine Ltd. Divisions    Ingomar, PA 15127

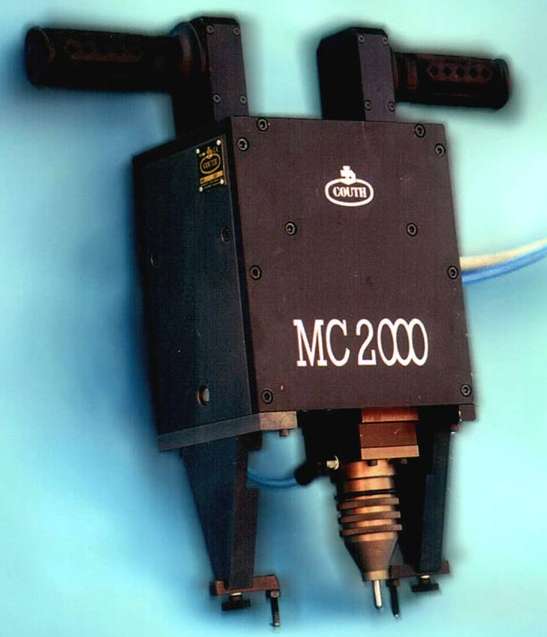

Oct 02, 2002 Model MC2000, stand-alone marking system includes microprocessor control, keyboard, and portable N34 marking head. Marking windows range from 72 x 35 mm to 200 x 35 mm. Alpha-numeric characters are created in 4 to 25 mm continuous dot patterns. Text is input from keyboard, barcode reader, or external RS-232 input. Overall unit, suited for applications that require deep marks that are legible after painting/galvanizing, measures 380 x 430 x 135 mm (W x H x D).

MECCO Marking Systems, M.E. Cunningham, MECCO Machine Ltd. Divisions    Ingomar, PA 15127
Oct 02, 2002 Model PH-50 holder, made of hardened shock-steel, protects product and user from foul hammer blows. It incorporates interchangeable type chase, which allows multiple chases to be set up at start of workday or when batch/part numbers are switched. Interchangeable type characters are available as letters and numbers in 1/8, 3/16, 1/4, and 1/2 in. sizes. Delrin attachment surrounds holder body to locate marking window during marking operation.

MECCO Marking Systems, M.E. Cunningham, MECCO Machine Ltd. Divisions    Ingomar, PA 15127

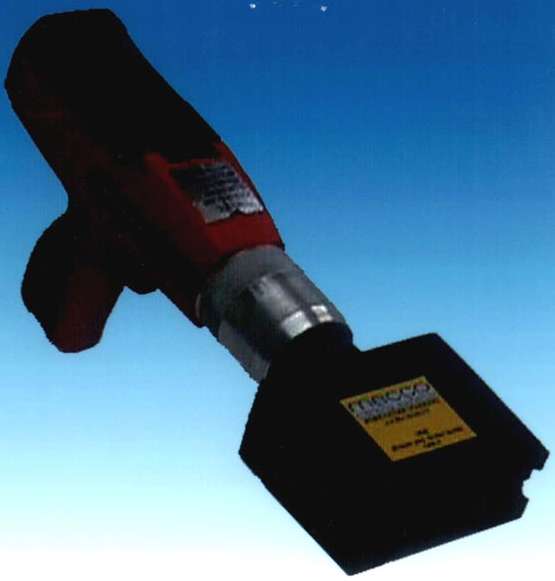

Oct 02, 2002 Urethane Portamark®, for Ramset semi-automatic tool, allows surfaces and fully assembled products to be marked in any position. Reinforcement fibers within urethane holder are suited to use in cold marking applications free of chemical hazards. Tapered edges allow operator to visually locate type characters in proper marking window. Holder pocket accommodates 1/4 to 1/2 in. interchangeable type characters, which can be identified when partial impression occurs.

MECCO Marking Systems, M.E. Cunningham, MECCO Machine Ltd. Divisions    Ingomar, PA 15127
Oct 02, 2002 Hot Stamp Bumpy Bar Code imbeds 10 mil deep, 3-D bar code onto metal, plastic, and rubber materials. It is made using engraved bumpy bar code dies and custom-engineered die wheel, which fixtures 4 dies. Latter is tied to color-sensing PLC, which instructs device which die mold to use for which color. Used to error-proof assembly processes, it can be used to track automotive interior and Powertrain parts, catalytic converters, and plastic bumpers.

InterlinkBT, LLC    Minneapolis, MN 55441

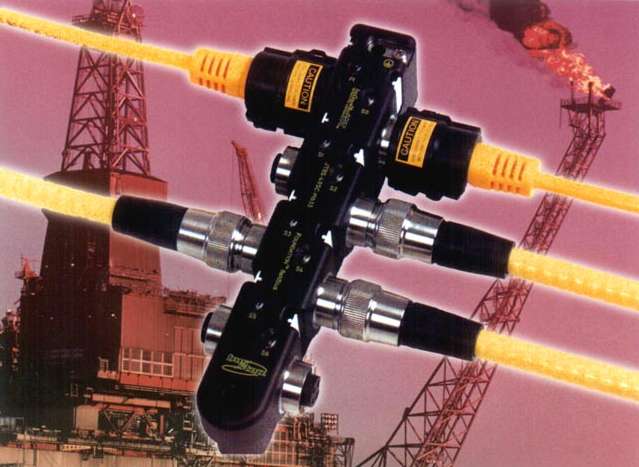

Oct 02, 2002 Short Circuit Junction Tee, for FOUNDATION(TM) Fieldbus segments, features overmolded design for corrosion resistance. Circuit board is completely encapsulated in UV stable polyurethane. Available with stainless steel and nickel-plated brass connectors, Junction Tee provides complete IP67 protection, and short circuit protection to all 6 spurs. Current to each spur is limited to 55mA and provides red LED indication if faulted.
