Flir Systems, Inc.    North Billerica, MA 01862

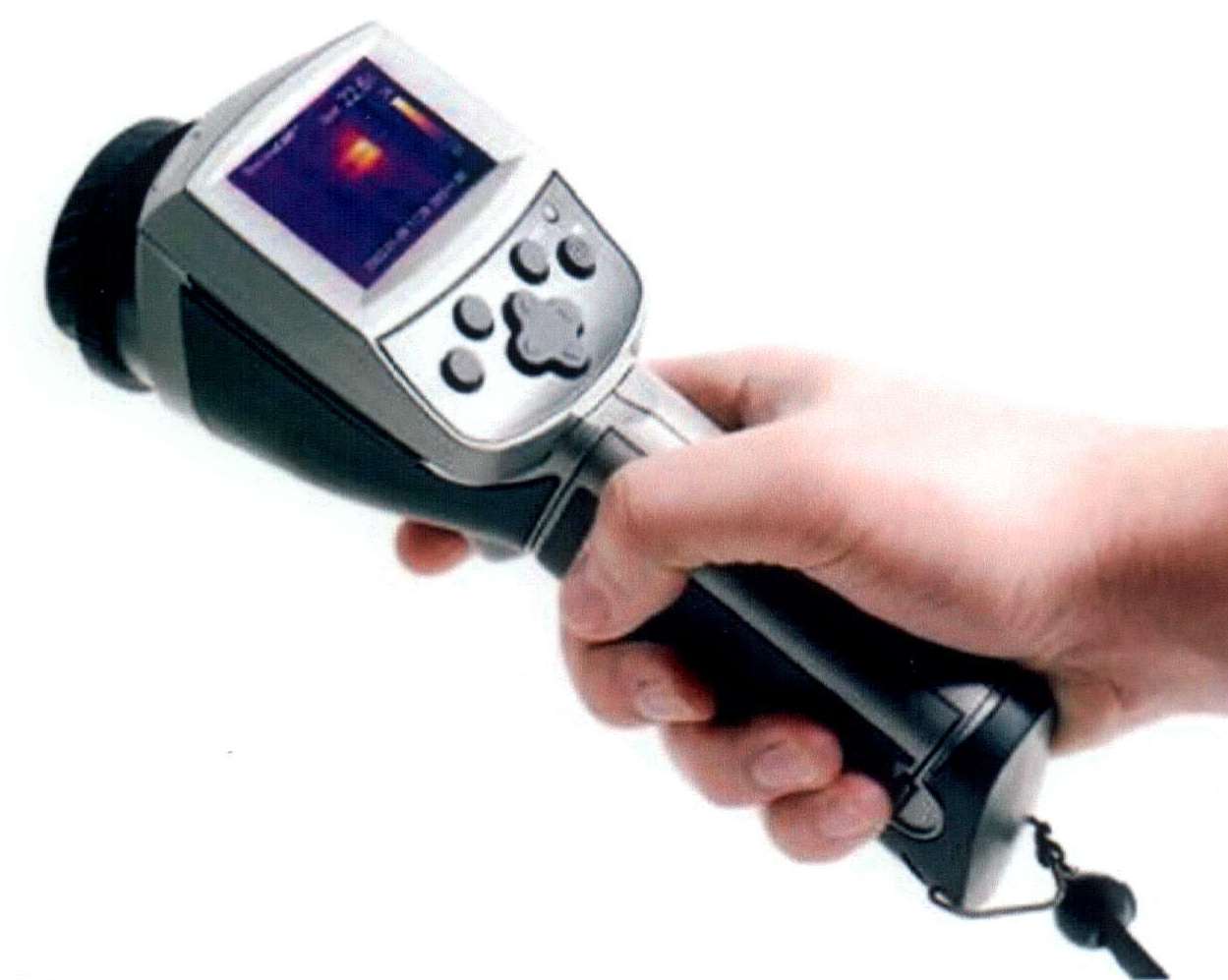

Oct 07, 2002 ThermaCAM E2 hand-held IR camera finds and documents faults in electronic components, assemblies, and mechanical systems, before they result in design flaws and/or warranty returns. It offers non-contact temperature measurement, and in-field JPEG image storage. Uncooled microbolometer IR detector produces highly sensitive thermal images that can be viewed on camera's 2.5 in. color LCD. Images captured in the field can be transferred to computer via USB and serial port connections.

Toray Plastics (America)    North Kingstown, RI 02852

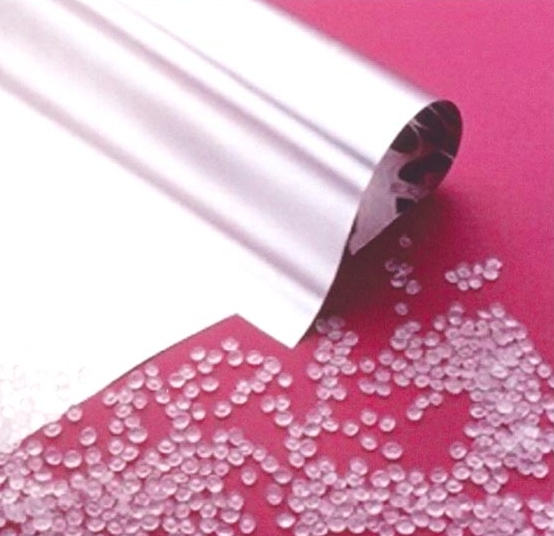

Oct 07, 2002 Torayfan PC-2 high barrier 45-gauge OPP film is suited for extrusion and adhesive laminations. Typical applications include cold seal and multi-layer laminations for liquid and stand-up pouches. Barrier material may be surface printed, buried in lamination, extrusion-coated, or used for strong cold seal adhesion. Metal adhesion values exceed 400 g/in., and cold seal bonding works with natural and synthetic cohesives.

DAS Distribution Inc.    East Granby, CT 06026
Oct 07, 2002 Takikawa LDM Series non-contact laser micrometers include Models 303H and 304H which can measure length, width, height, position, thickness, gap, and inside/outside diameter accurately to within ±2µm linearity with 0.1µm resolution. Model 303H offers measuring range of 0.25 to 30 mm, while Model 304H features measuring range of 0.5 to 90 mm. Both come complete with display processor, which includes High/Low Alarm Limits, RS-232 Interface, and ±10 Vdc Analog Output.

Warner Electric    South Beloit, IL 61080
Oct 07, 2002 Electrically released Series WR brakes engage when power is turned off or interrupted. Models WR-213, WR-198, and WR-180 feature torque capacities of 53, 35, and 4.43 lb-in., respectively. Brakes offer optional manual release and limit switch to disconnect power or arm warning circuit. Applications include conveyors, machine tools, robotics, hand held power tools, and personal mobility devices.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466

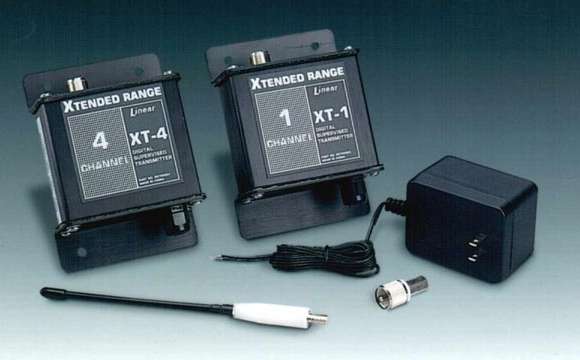

Oct 07, 2002 Long Range Radio Control Transmitter and Receiver are for use in wireless remote control applications. Crystal controlled transmitter accepts dry contact input and transmits encoded message to receiver. Encoding is done via FSK (frequency shift keying). Upon detection and verification of encoded control signal, receiver triggers remote device via dry contact. Single, four, and sixteen channel receivers can be mixed and matched with single or four channel transmitters.

Magtrol, Inc.    Buffalo, NY 14224

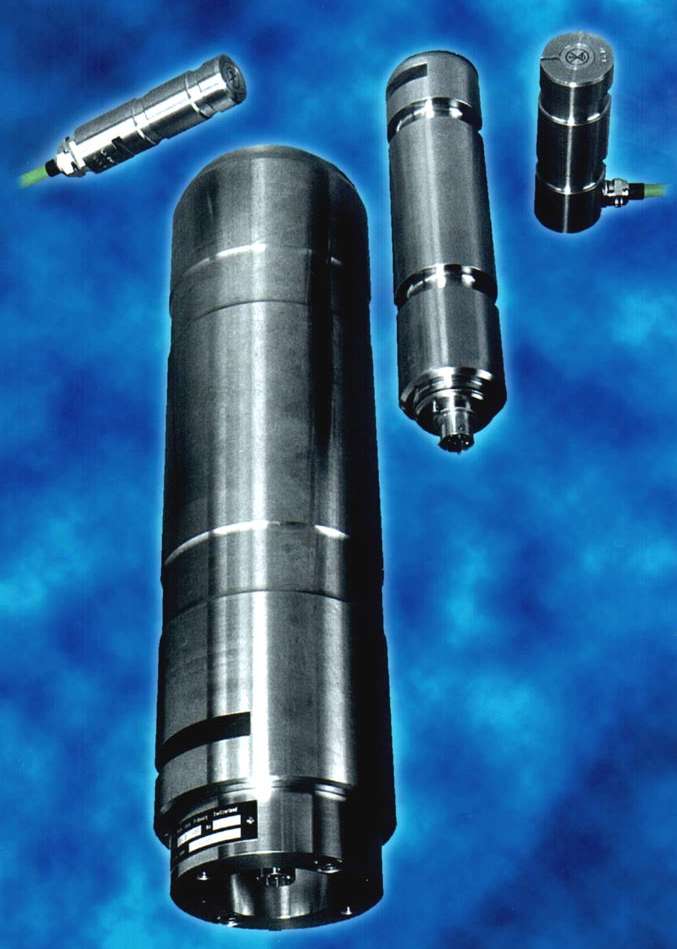

Oct 07, 2002 Load Measuring Pins are based on full-bridge strain gauge technology, and provide load or overload measurement in any harsh industrial environment. Standard models include LB Series (mV output) and LE Series (integrated signal amplifier) available in 10 capacities from 2.5 to 2500 kN. All are made of high resistance stainless steel, with standard options including lubrication, cable length, and output connector type.

3M    St. Paul, MN 55144
Oct 07, 2002 Suited for domestic preparedness applications, Full Facepiece Respirator 6000 Series provides negative/positive pressure operation and can be paired with 3M(TM) cartridges to protect against tear agents and most military and industrial materials. Respirator offers flexible silicone face seal and adjustable head straps for user comfort. Available in small, medium, and large sizes, units provide wide field of vision.

Smock Material Handling Co., Inc.    Indianapolis, IN 46236
Oct 07, 2002 Conveyor, based on friction wheel design, is available for in-floor and above floor applications. In-floor design includes non-slip floor plate on all horizontal surfaces. Product line includes non-powered wheel and ball caster sections. Various stop designs can be used to build complete systems of powered transportation and non-powered spurs and loops. Applications include integration into automated assembly and manufacturing systems.

Walchem Corp.    Holliston, MA 01746 1460
Oct 07, 2002 Offered in prewired NEMA 4X wall mount package, WDP Series controllers accept 2 electrode signals in any combination of pH and ORP. Their 4 control outputs may be used as on/off control relays or pulse proportional outputs. Each control output can be assigned to either electrode, and relays can be either high or low set point, high or low alarm, in-range or out-of-range alarm, or probe wash. Differential measurement technique is immune to ground loop problems.

Dematic Corp.    Grand Rapids, MI 49505
Oct 07, 2002 Easy Step(TM) Paced Work Platforms are floor-mounted, recessed-belt conveyors, designed to convey production workers, their tools and supplies, at same speed as main assembly line. They have steel frame and pulleys, adjustable, cushioned floor supports, debris catch basin, and automatic boot-activated safety stop. Oil-resistant, non-slip belt materials are available to match applications. Sizes range from 18 to 102 in. wide, 10 to 72 ft long, and 7.5 in. high.

Applied Data Sciences, Inc.    Dallas, TX 75381 4209
Oct 07, 2002 DAQPOD combines digital thermometer, hygrometer, and barometer in handheld, 9 V battery-powered unit. It reads and sends real-time, polled weather sensor data via serial port when requested by laptop or desktop computer. ASCII commands poll sensors using programs such as Procomm or Hyperterminal. Included software allows upload of sensor readings. It also calculates air density, density altitude, dew point temperature, and water vapor percentage.

Setra Systems, Inc.    Boxborough, MA 01719
Oct 07, 2002 Model 227INT can be configured with 1.125 in. Down-Mount C seal or W seal interfacing base. C seal pressure fitting and small swept sensor chamber utilize VAR 316 stainless steel electropolished to 5 Ra finish, which eliminates particle entrapment. Transducer is available with 5 Vdc, 10 Vdc, or 4 to 20 mA output with ±0.25% of Full-Scale or ±1.0% of Reading accuracy. Pressure ranges are from –14.7 or 0 to 25 psi up to 0 to 3000 psi in gauge, absolute, or compound pressure.

Adept Technology, Inc.    San Jose, CA 95134
Oct 07, 2002 Configurable kits consist of linear track, mounting bracket, and cable track. Able to integrate with tabletop SCARA and 6-axis robots with SmartControllerâ„¢ and SmartServoâ„¢ control architecture, kits allow one robot to service two or more assembly/material handling stations. Based on SmartModules and SmartServo technology, kits are also equipped with IEEE 1394-based SmartServo communication interface kit.

Leuze electronic, Inc.    New Hudson, MI 48165
Oct 07, 2002 Model DDLS 200 contactless data transmission unit works over distance up to 300 m. It comes ready to work with Allen Bradley DH+/RIO, Profibus and interbus interfaces. Dimensions of 90 x 190 mm allow for mounting in almost any position, and Single Hand Adjustment system allows one person to adjust light beam with high degree of accuracy. DDLS 200 is suited for logistics applications since it can communicate with virtually any machine that has PLC.

Schrader Bellows    Cuyahoga Falls, OH 44221
Oct 07, 2002 The F3 Series air control valves are available from Schrader Bellows Pneumatic. This product line provides leak free performance in pneumatic applications and reduces overall inventory cost. The F3 Series features an aluminum extruded body to provide precise porosity free sealing surfaces. The valve’s unique "Loose Seal" design gives the advantage of a wear compensating, pressure loaded bi-directional seal with narrow band contact that is self-compensating. This combination assures long life and leak-free performance. The F3 Series also features plug-in subbase or manifold mountings, which means the same valve body can be used in individual or ganged applications.

Assembled Threading Tools Div., Greenfield Industries    Augusta, GA 30903
Oct 04, 2002 Model 4MxR solid carbide end mill combines roughing and finishing in one tool. Features include shallow, flat, profile; high helix, multi-flute geometry; corner radius; and center flute cutting. It is designed for maximum metal removal when milling steels, hard steels, titanium and nickel-based alloys, and other hard materials 50-60 Rc.

Labsphere, Inc.    North Sutton, NH 03260 0070
Oct 04, 2002 Fully automated OPTRONIK SMS-10H measures automotive and general vehicle lamps in accordance with DIN, CIE, SAE, JIS, and KS standards. It includes motorized table with 2 rotational axes and 3 linear axes for precise positioning of test samples. Built-in alignment laser facilitates sample positioning to ensure repeatable measurement. OPTO software provides graphical interface with menu driven controls for data acquisition, display, and analysis.

Telco Intercontinental Corp.    Houston, TX 77095
Oct 04, 2002 Maintenance-free IPM Brushless AC Motors are offered with standard speeds of 2000, 3000, and 6000 rpm. Optional speeds are available to 8000 rpm. Motors offer low temperature rise with no cooling fan and do not have carbon or electric flash. Low EMI is compatible with European CE standard.

Renco Encoders, Inc.    Goleta, CA 93117
Oct 04, 2002 Available with resolutions up to 2048 lines, model RCM15, 1.5 in. dia rotary optical encoder combines brushless motor commutation pulses and incremental position feedback. Offerings include company's slide/gap mechanism and one LED. Built-in servo groove allows ±20° rotation of encoder to align commutation tracks with motor poles. Encoder provides commutation for 4-, 6-, or 8-pole brushless motors.

ATOFINA Chemicals, Inc.    Philadelphia, PA 19103-3231
Oct 04, 2002 Solarkote® H resin enhances appearance of high impact polystyrene sheet (HIPS) via co-extrusion. Cap layer of 6 to 12 mil provides protection from ultraviolet light, without sacrificing impact performance of composite sheet. Co-extruded layer is inherently colorless, but may be readily colored. It maintains high visible light transmission, permitting wet appearance. Applications include tub/shower surrounds, building trim and shutters, and lawn and garden equipment.
