Symbol Technologies, Inc.    Holtsville, NY 11742
Oct 11, 2002 Model PDT 8000 Microsoft Windows-powered Pocket PC-based mobile computer features integrated barcode scanning and wireless LAN and WAN capabilities. Unit is equipped with 32-bit Intel® PXA250 applications processor based on Intel XScaleâ„¢ technology, Microsoft Pocket PC software, video and audio capabilities, and 3.9 in. touch-screen display. PDT 8000 withstands repeated drops and extreme variations in temperature.

Parvus Corp.    Salt Lake City, UT 84115 2913
Oct 10, 2002 PC/104 Variable Railed Card Cage houses PC/104 modules within embedded computer system. It is constructed with 2 zinc-plated, 20 ga steel end caps and 4 black-anodized aluminum rails with grooves that integrate rubber inserts. Inserts securely hold cards in place. Rails come in 4, 6, 8, and 10 in. lengths. Removal of 2 rails provides complete access to PC/104 card stack, which can be as large as 14 PC/104 cards and still fit within card cage.

Xycom Automation Inc.    Saline, MI 48176
Oct 10, 2002 IndustryPack® and PMC mezzanine modules are applicable to systems with high I/O density and mixed analog, digital, fieldbus, motion control, and serial requirements. They include 8 analog, 8 digital, 4 communication, and 2 memory modules. Model TVME200, 6U VMEbus carrier, holds up to 4 (single-size) or 2 (double-size) IndustryPack modules. It offers rotary switches, selection of IRQ levels, status LEDs, and self-healing fuses.

Mosaic Industries    Newark, CA 94560

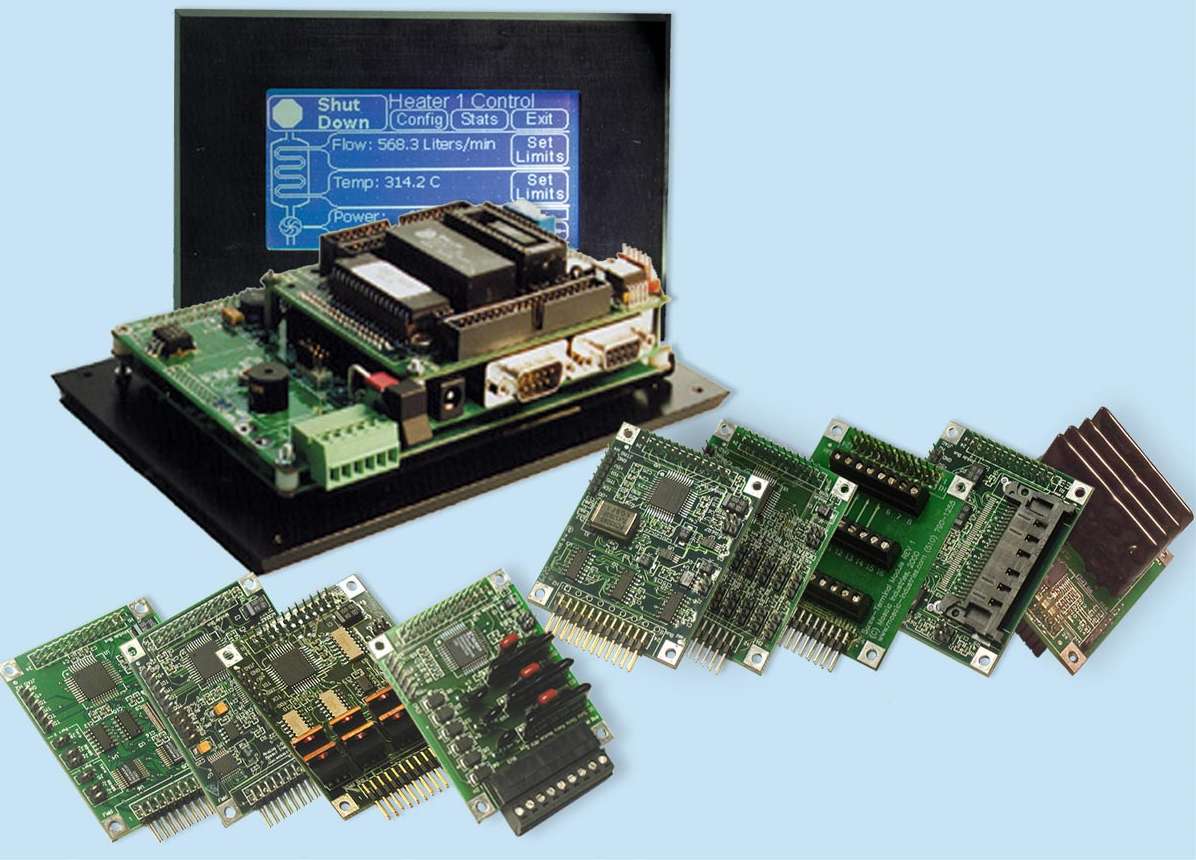

Oct 10, 2002 Wildcards, modular 2 x 2.5 in. plug-in boards, are available for 24-bit sigma-delta A/D converters, RS-485 serial communications, and 16-bit A/D and 12-bit D/A conversion. Other modules are available for opto-isolated control of DC and AC loads, voltage switching, and removable mass memory cards. They are suited for applications requiring multiple I/O points, high resolution, data acquisition, and real-time control. They include pre-coded I/O drivers.

Caddock Electronics, Inc.    Riverside, CA 92507

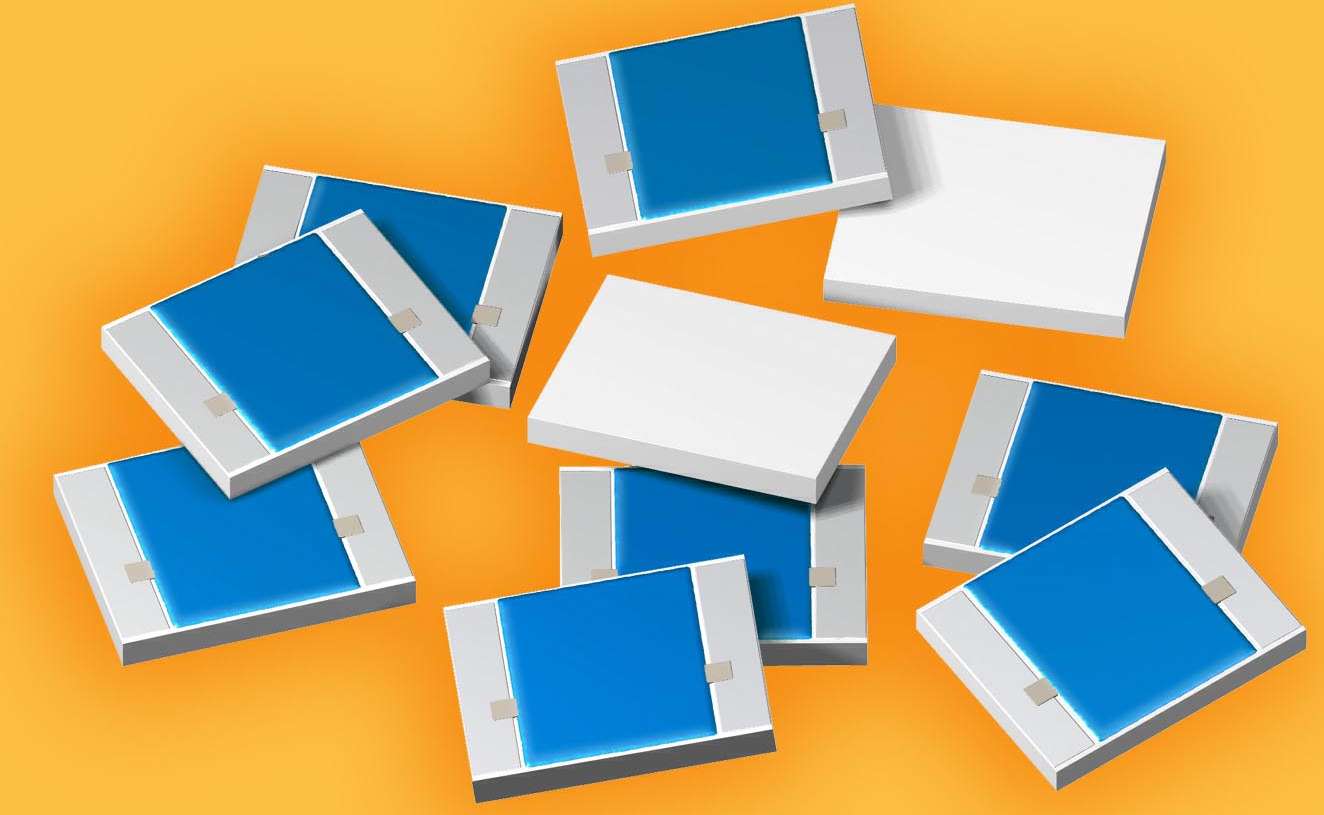

Oct 10, 2002 Rated at 150 V, Model CHR2520FC flip-chip style chip resistor is available in 8 standard values from 10 to 100 Meg with 1% tolerance. Temperature Coefficient is ±25 ppm/°C from 10°C to 40°C, ref to +25 °C. Resistor is offered in custom versions with resistance up to 1,000 Meg and tolerances to ±0.25%, as well as in wire bondable versions for Hybrid circuits. Tape and reel packaging has 1,000 pieces per reel.

Dalton Electric Heating Co., Inc.    Ipswich, MA 01938

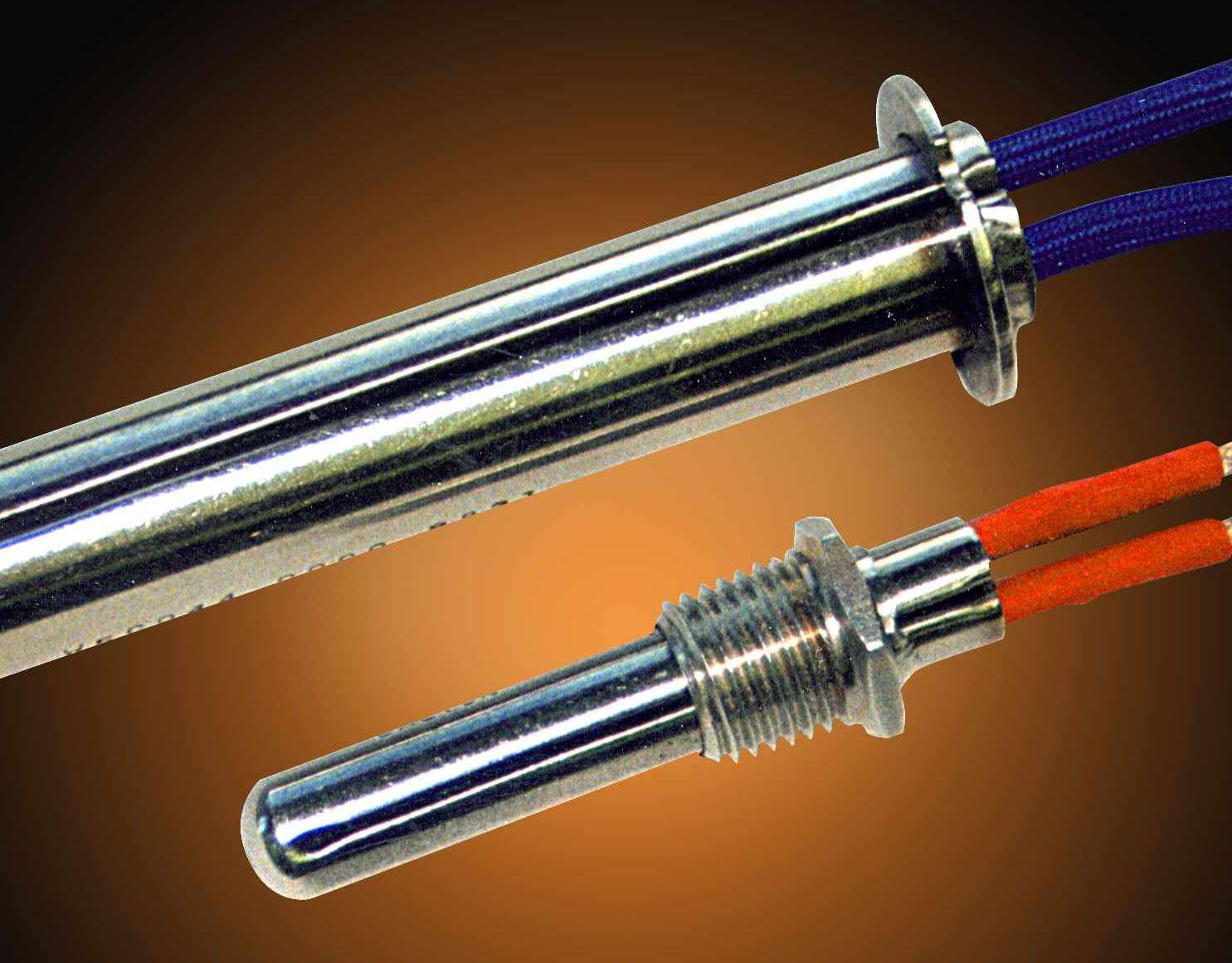

Oct 10, 2002 Watt-Flex® Split-Sheath Cartridge Heaters are available with stainless steel flange, mounting bracket, NPT fitting, or puller end plug. Split-sheath construction allows each half of heater to expand independently when energized, for metal-to-metal contact with surrounding bore, maximizing heat transfer. Standard diameters range from 1/4 to 1 in., and 8 to 20 mm. Units come in lengths from 1 1/4 to 72 in. with operating temperatures to 1,700°F.

SpaceAge Control, Inc.    Palmdale, CA 93550

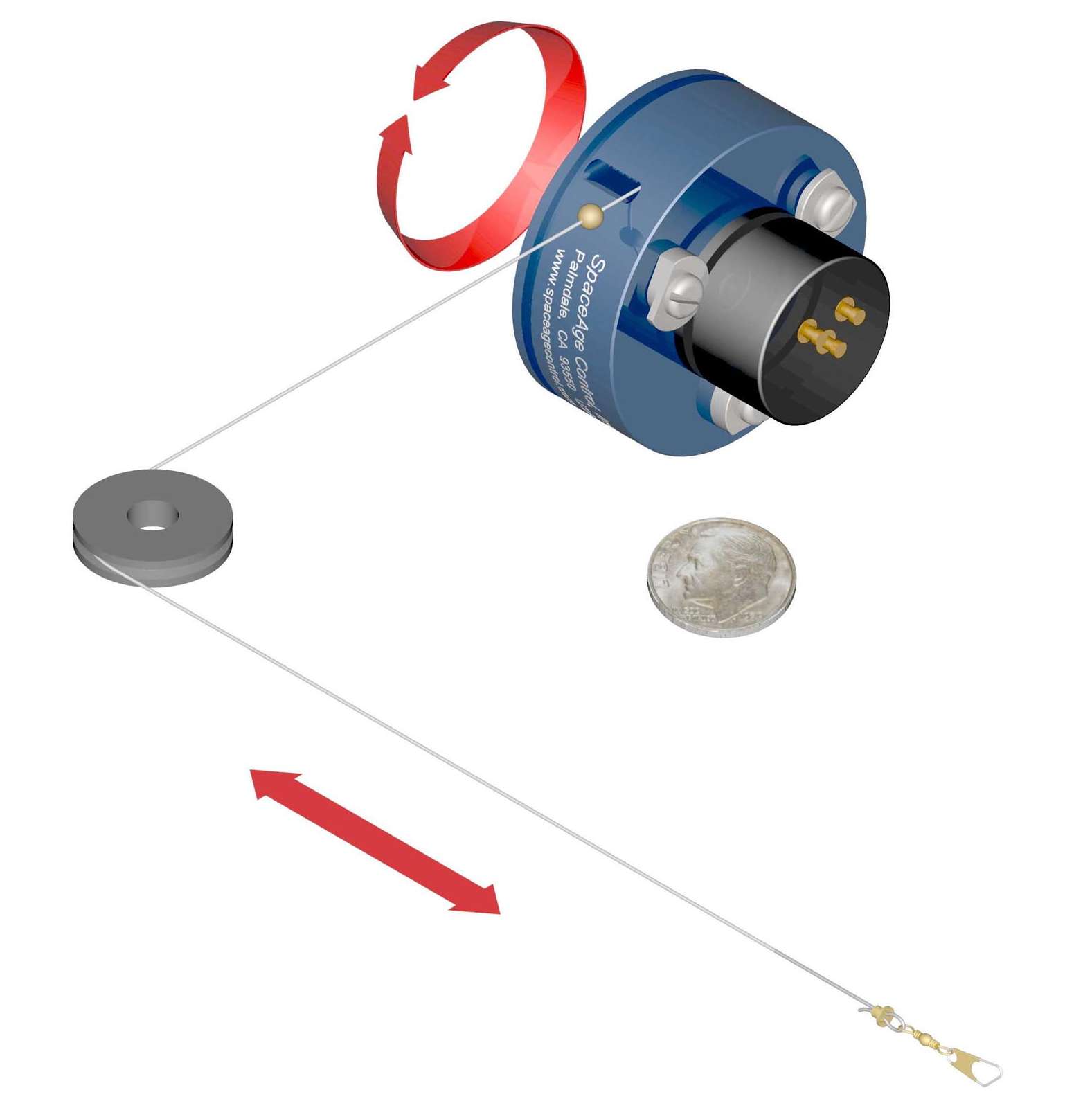

Oct 10, 2002 Series L miniature position transducer measures 1.70 in. dia x 1.53 in. long and delivers 21.25 in. range. Stainless steel cable is wound around spring-powered, precision-machined drum. Bearing-mounted drum is mated to sensor assembly that translates linear position information to electrical signal. EasyMountâ„¢ design eliminates special fixturing. Analog and digital outputs are available. Operating temperature is from -40 to +85°C (analog) and -10 to +85°C (digital).

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913

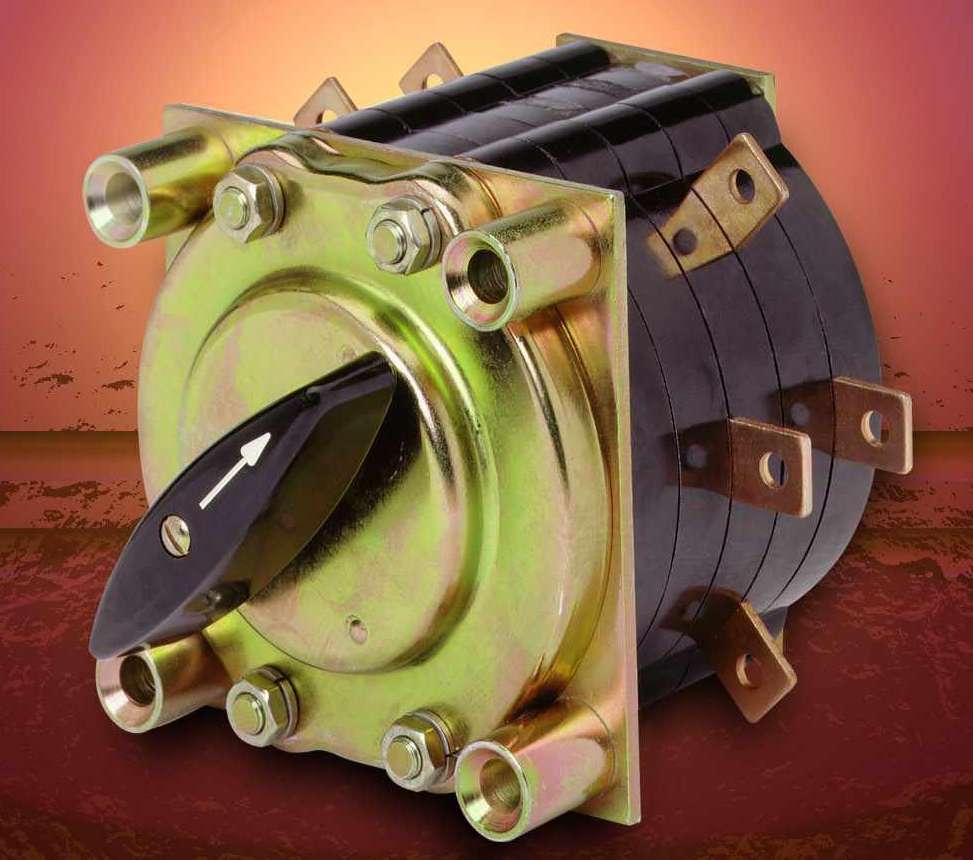

Oct 10, 2002 Snap-Action Switch line offers double-wiping, low-resistance contacts that hold their positions inside fully enclosed decks. Suited for dc and ac switching, models carry continuous ratings from 20 to 200 A at 600 V, and are available with up to 4 positions and 12 poles. Snap-action design provides approximately 10 msec transfer time. Non-shorting contacts are standard.

Hach Company    Loveland, CO 80539-0389

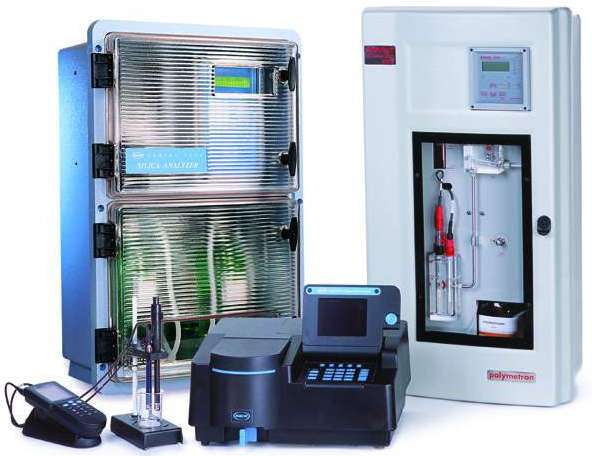

Oct 10, 2002 Series 5000 Silica Analyzer provides part-per-billion surveillance to detect demineralizer breakthrough and steam carryover. Its 9073 Sodium Analyzer detects part-per-trillion in condensate. Solution is available with on-line pH monitor probes and ranges. Its sensIONâ„¢156 Portable pH/conductivity/dissolved oxygen meter tracks these water parameters, while DR/4000 Spectrophotometer provides preprogrammed tests for sensitive water quality tests.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089

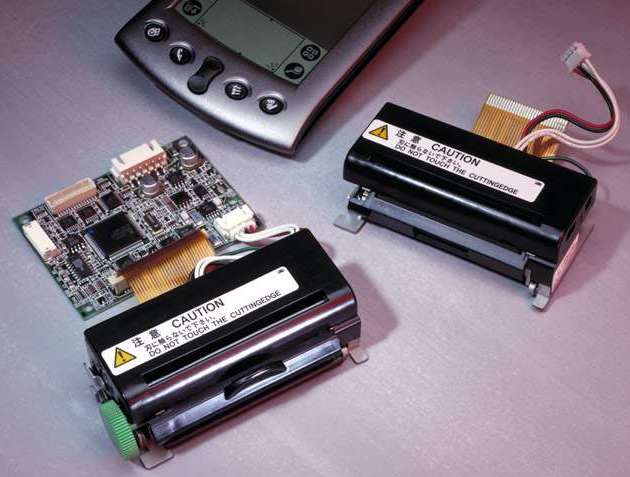

Oct 10, 2002 Model FTP-639USL001, 24V-driven, 3 in. printer includes cutter capable of performing full or partial cuts, integrated paper feed and paper guide section, and miniature serial control board. Die-cast frame provides electrostatic protection and heat retention or dissipation. Output speeds include 200, 50, and 30 mm/sec. Operating life is rated at over 500,000 cuts or 100 million pulses. Printer accommodates up to 10 in. dia paper rolls.

Everest VIT, Inc.    Flanders, NJ 07836 4500
Oct 10, 2002 XL PROâ„¢ 3.9 mm diameter probe, with measurement capability, provides fully articulated views of spaces where maneuverability is limited. Imaging is accomplished via iViewâ„¢ system for image manipulation, measurement, saving, and annotation. Probe offers All-Wayâ„¢ articulation and forward and side-view optical tips, allowing for inspection in all directions. Camera head tip provides 160° bend angle for full directional viewing.

Holophane    Granville, OH 43203

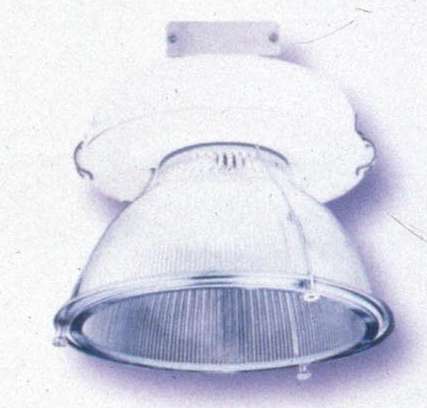

Oct 10, 2002 CSA certified, low profile Bantam 2000® luminaires are offered with choice of 4 glass optical systems: Enduralume®, Prismatite®, Prismalume® and Prismpack®. Reflectors and refractors are attached to optical assembly door, while relamp cable supports optical assembly during relamping. Lighting fixtures may be used with 70-175 W metal halide lamps and 50-150 W high-pressure sodium lamps. Mounting options include pendant, ceiling, stanchion, arm, or wall.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 Extruded profiles are available in 11 models for aluminum structural framing system. Aluminum profiles, with 10 mm t-slot design and center bore, capable of handling heavy-duty loads and applications, provide alternative to welded steel. They are offered with choice of connectors and accessories. Edge allows flush mounting of profile cover strips to create smooth, finished surface.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

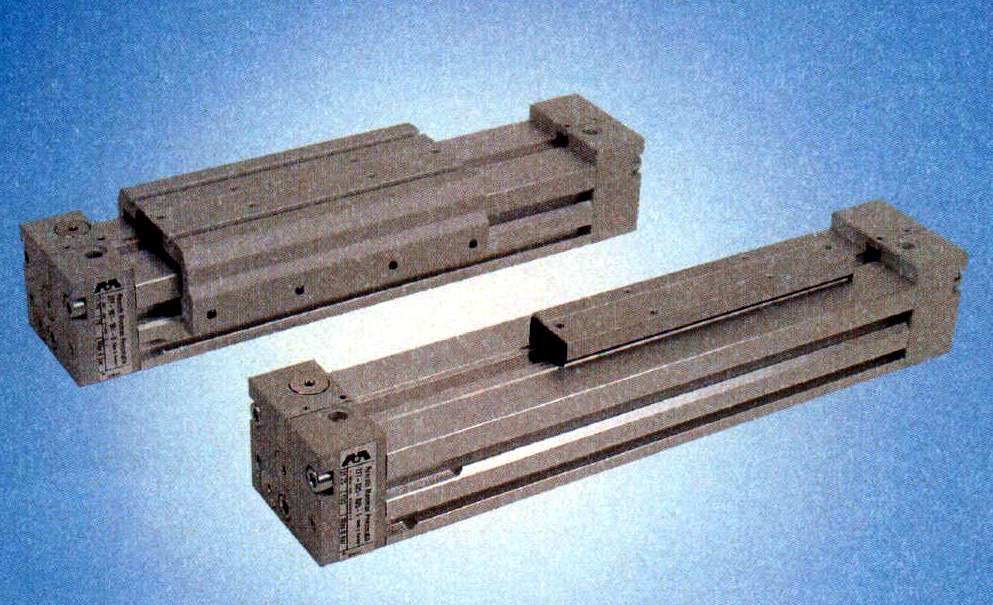

Oct 10, 2002 RexMoverâ„¢ rodless pneumatic cylinders offer virtually leak-free operation. Oval-shaped piston design allows greater resistance to side load. Air connection choices include: on side at both ends, on rear of end covers, or one on end cover. Models are available with internal guiding, slide bearing guide, mini guide, or heavy-duty guide. All feature aluminum construction, cushions and impact bumper, magnetic piston for sensors, and grooves for sensors on 3 sides.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

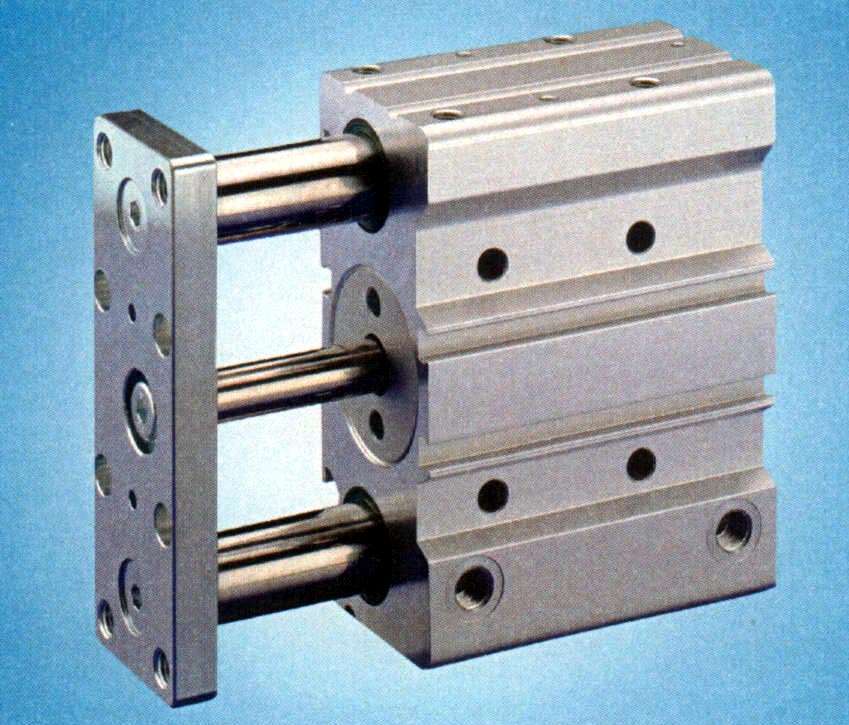

Oct 10, 2002 Guided Pneumatic Cylinder is offered in 10 different diameters between 12 and 100 mm with stroke lengths up to 200 mm. Guide rods are supported by either slide bearings or ball bearings. Two cylinders can be directly combined to 2-axis system without any adapter plate. Applications include material handling systems, stopping or clamping, and carrier of grippers, suction cups and other fixtures.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

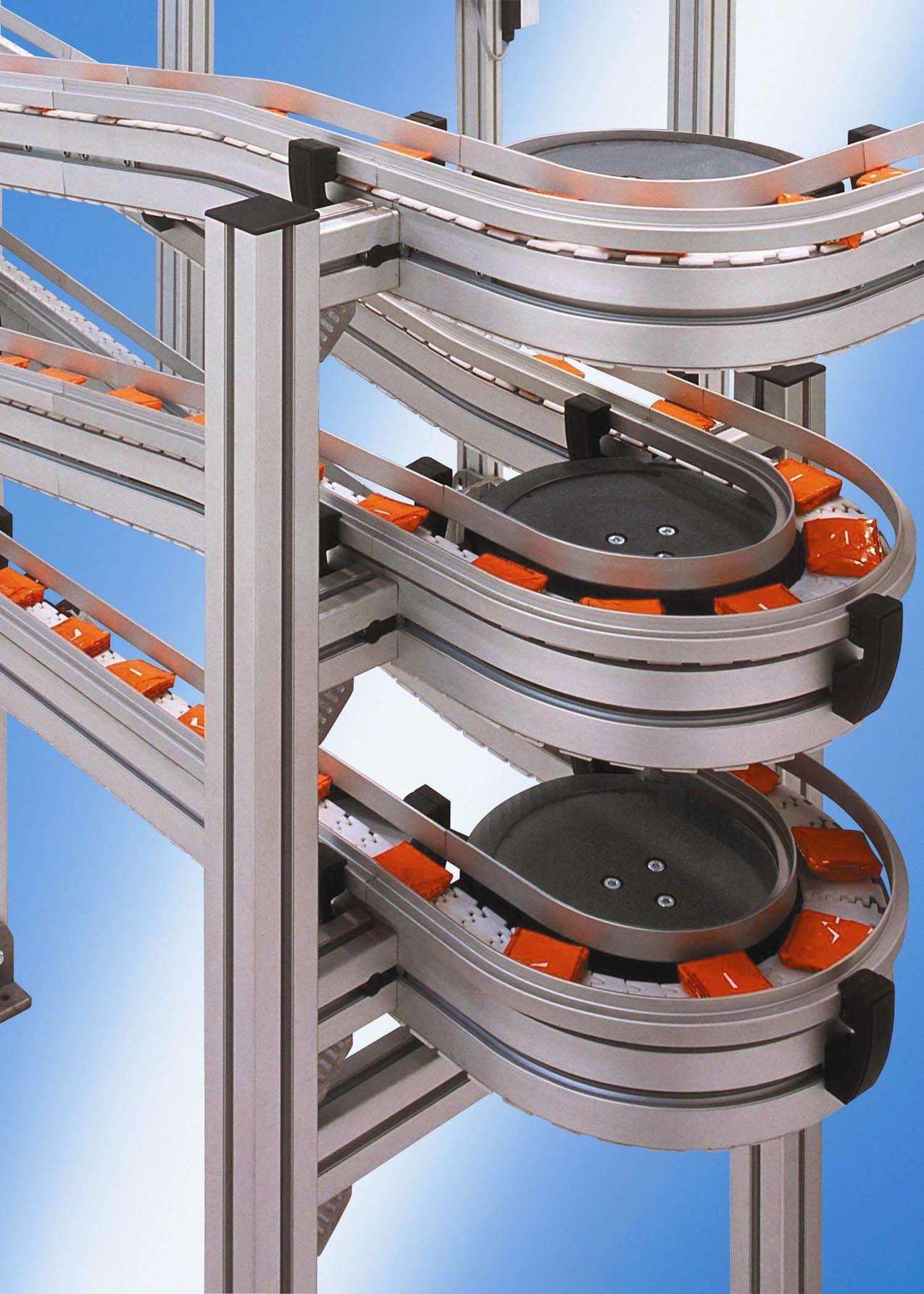

Oct 10, 2002 VarioFlowâ„¢ single strand chain conveyor lets manufacturers link assembly operations with functions such as parts feeding and packaging on either side of assembly process. Profile widths include 65 and 90 mm, with chains of 62 and 87 mm, respectively. Chain handles tensile force up to 1250 N. Applications include automotive, electronics, packaging, and personal care industries.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

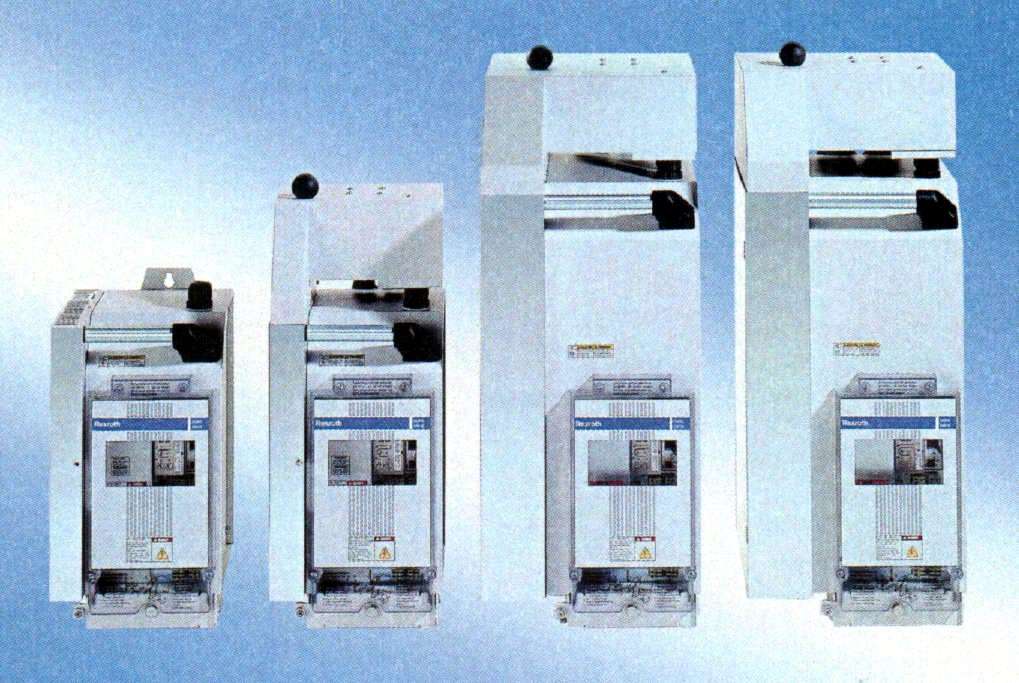

Oct 10, 2002 DURADRIVE decentralized drive system offers servo motors and servo drives with IP65 protection and allows decentralized use directly at the machine. Standardized bus systems reduce necessary installation outlay and allow connection to different servo drives while facilitating simpler project planning, more cost-effective installation, and faster commissioning.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707

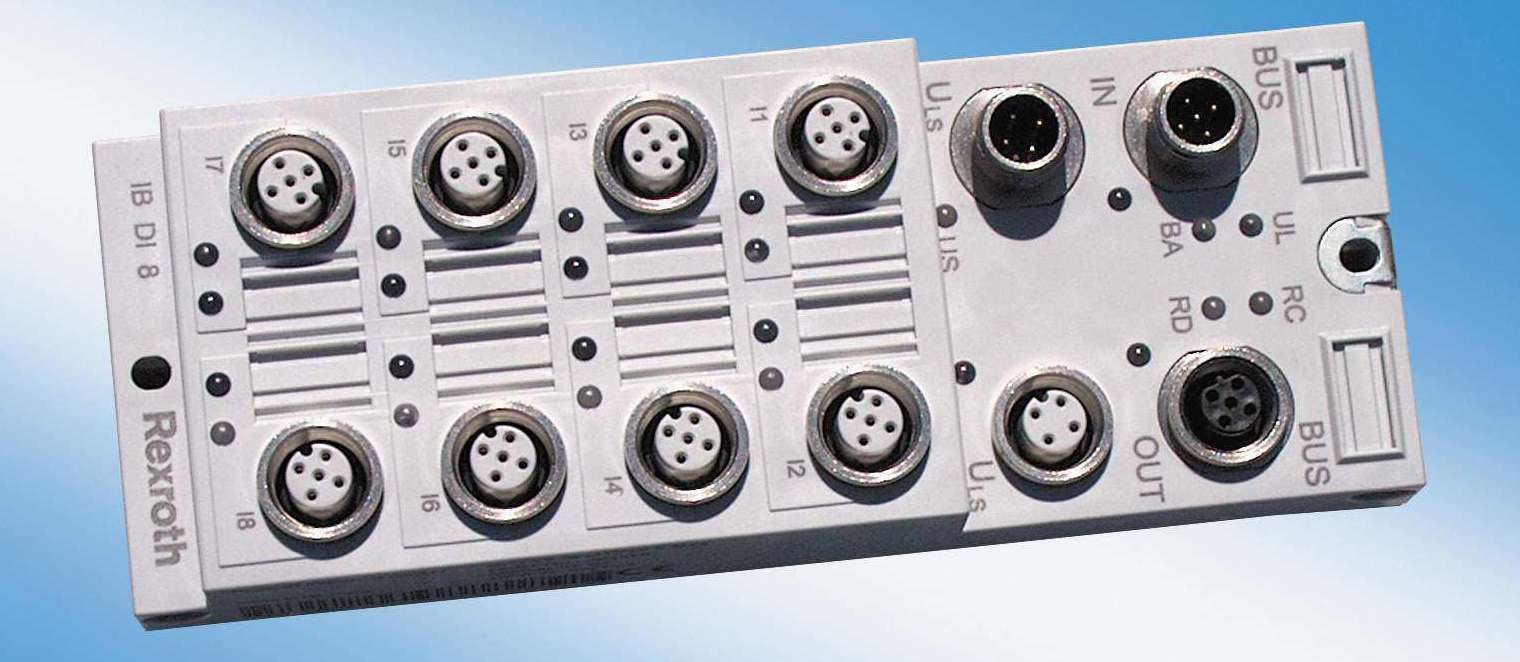

Oct 10, 2002 FieldLine I/O fixture-mounted I/O module is offered with 8 digital inputs, 8 digital outputs/2 A capacity, or 4 digital inputs/4 digital outputs/2 A capacity. It offers detachable mounting subplate and horizontal/vertical DIN rail mounting. Fieldbus connections support Profibus, Interbus, and DeviceNet networks. Diagnostic capabilities include monitoring of low sensor supply voltage, sensor supply overcurrent, short/overload, and low module supply voltage.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 System200 Version 22 provides multi-tasking PLC system with PC plug-in cards, compact rack PLC cards, and soft-PLC running on IndraView industrial PC. Fieldbus systems such as Interbus, Profibus, and DeviceNet are supported. Clearly structured messages, multi-language text and HTML support, and contact level detail and diagnostics eliminate searching in PLC logic. ActiveX support with configuration editor makes it easy to integrate existing software.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

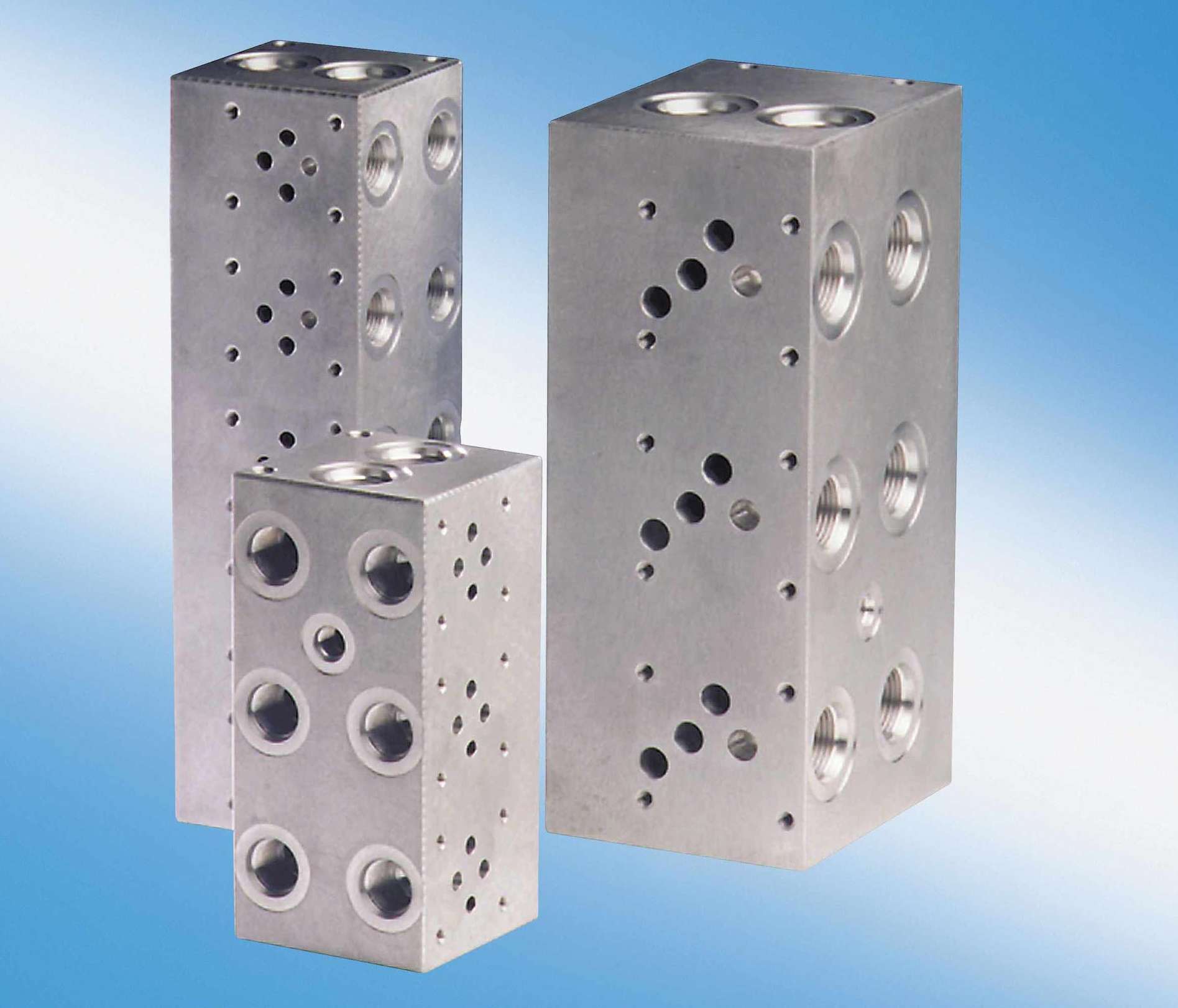

Oct 10, 2002 Bar Manifolds are offered in aluminum (3000 psi) and ductile iron (5000 psi) and feature either SUN or ISO relief valve cavity. Number of stations per manifold ranges from one through eight. Units feature SAE threaded ports and pressure-gauge port for measuring pump pressure. Mounting kit is included and provides all items necessary for assembly.
