GE Intelligent Platforms    Charlottesville, VA 22911
Nov 08, 2002 CIMPLICITY® HMI Plant Edition(TM) v6.0 offers CIMPLICITY SQL 2000 and screen playback capabilities, which allow users to play back historical logged data through graphic screens via virtual remote. View, alarm, and paging functions aid in database archiving and reporting, process analysis, and plant response time. Version 6.0 leverages Microsoft® technologies and provides infrastructure for data collection and visualization of aggregated data.

AutomationDirect.com    Cumming, GA 30040-9905

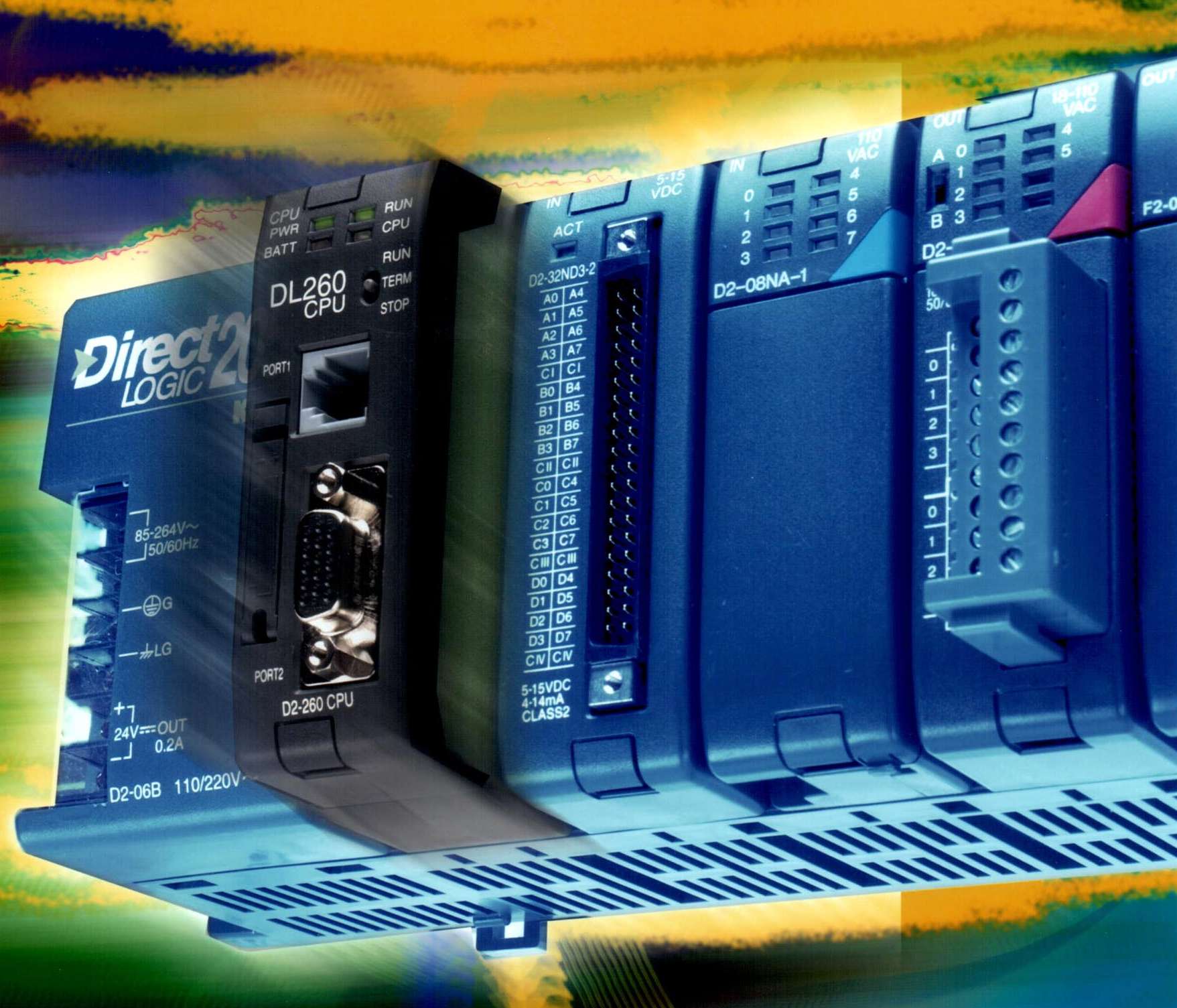

Nov 08, 2002 Model D2-260, for Series DL205 micro-modular PLCs, features 16 PID loops with auto-tune, total memory of 30.4 K, and support for maximum of 16,384 I/O points. It supports local expansion up to 5 total bases. Two communication ports provide array of communications possibilities. Top port can be used for programming, connection to EZText/EZTouch or DV-l000 operator interface panel, or as K-sequence or DirectNET slave. Bottom port supports RS232C or RS422/RS485.

Santa Barbara Analysis    Marina del Rey, CA 90291

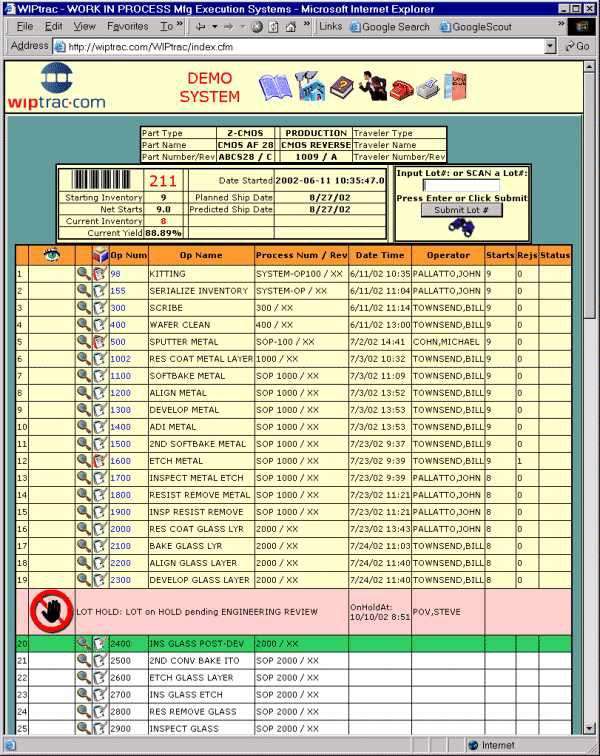

Nov 08, 2002 WIPtrac manufacturing execution software (MES) is 100% Internet based. Entire application can be installed on servers inside factory or hosted off site. WIPtrac offers traceability, instant WIP reporting, detailed configuration options, statistical process control integration, and on-line manufacturing specifications.

Tri-Mer Corp.    Owosso, MI 48867
Nov 08, 2002 Spring Release Tanks are manufactured in 100% homogenous polypropylene, PVC, and CPVC. Spring release allows tanks to be manufactured in larger sizes since thermal expansion is not a design factor. Insulated co-polymer unit that operates continuously at temperatures below 32°F is also available. Tanks measure up to 110 ft long and 15 ft deep. They are designed for applications such as anodizing, pickling, wire phosphating, and etching.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Nov 08, 2002 Model GWB-402T rotary-table, turbine-blast system is designed for surface treatment of components up to 30 in. in diameter. Workpieces are exposed to blast as they slowly revolve on alloy-armored 40 in. diameter turntable. Space-saving footprint measures 60 x 60 in. System is equipped with two 10 hp blast turbines and has capacity of 2000 lbs. Dust separation and media reclamation system consists of rotary sieve, sensitive cascade airwash, and cyclone separator.

Product Fabricating, inc.    Miamitown, OH 45041
Nov 08, 2002 MASSAIREâ„¢ systems filter high volumes of air with only 74 dBA of noise to minimize air-borne contaminants. They are offered in 2 models which provide velocities up to 6600 and 8800 cfm. Incorporating modular design and small footprint of 52 x 40 in. (Model M-6600), units can accommodate almost any size work cell, booth, or shop and can function as stand-alone dust collector. Applications include surface grinding, sanding, welding smoke, and bulk powder handling.

Recycling Technology, Inc.    Hickory, NC 28603
Nov 08, 2002 Vertical Rotary Grinders operate at 120 rpm with 30,000 lb-ft of torque and noise level from 80 to 85 dB. Rotor shaft incorporates 1 3/4 x 11 in. solid steel discs, each pocketed to accept 3 knife holders. Knives are made from A2 tool steel to hardness of 60 Rockwell. Grinders have heavy-duty ram constructed of 5/8 in. thick top plate. Nylon glides and position adjustments eliminate metal-to-metal contact. PLC controls monitor and control all functions.

Eye Lighting International    Mentor, OH 44060
Nov 08, 2002 High Pressure Sodium (HPS) Ignitronâ„¢ EN/ES lamp, in standard wattages from 50 to 1000 W, saves up to 40 W per lamp, compared to standard HPS lamps. Offering built-in Ferro-Electric Capacitor (FEC) Ignitor and low-voltage starting aid, lamp delays electrode deterioration, hard starting, end darkening, and voltage rise. Starting aid requires only 1200 V starting pulse. Lamp is suitable for use in parking, roadway, security, and industrial applications.

Uvex Safety Inc., A Bacou USA Co.    Smithfield, RI 02917 1896
Nov 08, 2002 Offered in regular and small sizes, Howard Leight Fusionâ„¢ reusable earplugs include soft-braided fabric detachable cord system to prevent losing them on-the-job. With NRR (noise reduction rating) of 27, earplugs have FlexiFirmâ„¢ cores for insertion into ear canals, providing all-day fit. SoftFlangeâ„¢ design enables them to adjust to wearers' ear canals. They are packaged in HearPackâ„¢ or FlipTop Box for storage during breaks or between shifts.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779
Nov 08, 2002 Leg Leveling Glides are available with swivel or rigid stems in heights from 1.00 to 2.50 in. with slotted or square points for adjustment purposes. They are also offered with various thread sizes, point styles, base shapes (hex or round), and metal or plastic feet. Base diameters range from .875 to 1.375 in. Made of plain steel with zinc plating, glides suit applications such as sheet metal enclosures, point-of-purchase displays, cabinetry, appliances, and kiosks.

ERICO    Solon, OH 44139-2631
Nov 08, 2002 Portable Universal Earth System Tester (EST301) with splash-proof construction is microprocessor controlled. Its LCD display shows required test connections and offers complete automatic test sequence for selected operations. It provides 2-pole resistance and 3-pole ground/earth resistance measurements @128 Hz as well as 4-pole resistance measurements for determination of soil resistivity. It also offers clamp-on selective and stakeless measurement capabilities.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615
Nov 08, 2002 Model FSA/FSAD-125S Operator Armchair System is available with fixed or ball bearing rotating designs with electrical junction box. Features include chair mounted adjustable flip-up armrest and 12.5 in. wide consoles with 20° sloped front. Each console accommodates 30 pilot devices as well as several mill-duty Joysticks. With heavy-duty suspension system and weight compensation adjustment (up to 310 lb), unit is furnished with 115 Vac outlet.

Nematron Corp.    Ann Arbor, MI 48103
Nov 08, 2002 Analog Flat Panel Monitors, available in 12.1, 15, and 17 in. sizes, offer TFT displays and optional resistive touchscreens. High-brightness models are available for direct sunlight applications. Industrial monitors feature aluminum front panels that meet NEMA 4/IP65 standards. Models also include 16.7 million available colors (15 and 17 in. models) and up to 1750 cd/m² (high brightness LS series). All models can be arm, panel, wall, or rack mounted.

Eaton Corp., Cutler-Hammer Group    Moon Township, PA 15108
Nov 08, 2002 With ATC-400 Logic Controller, model ATH4/ATV4 is available in open and enclosed designs for installations, assemblies integration, OEM, and retrofit purposes. Suitable for wall mount applications up to 1000 A in NEMA 1, 3R, and 12 enclosures, switch includes multi-tap transformer panel, digital time delay functions, plant exerciser clock, overcurrent protection, and 2-line, backlit LCD (readable in bright light).

Chomerics, Div. Of Parker Hannifin Corp.    Woburn, MA 01888-4014
Nov 08, 2002 PREMIERâ„¢ molded plastic parts offer proprietary dispersion of nickel-plated carbon fibers in user's choice of resin matrices. Evenly dispersed, randomly oriented fibers permit integration of shielding into housings without additional processing steps. Providing greater than 90 dB of EMI shielding performance, thermoplastics resist abrasion and corrosion. Parts can be molded in wall thicknesses less than 0.030 in. for maximum geometric flexibility.

CyberResearch, Inc.    Branford, CT 06405 2932
Nov 08, 2002 DCCA and DCCB inverters work with DC supplies, operate on seats or floors, and store in glove compartments. DCCB models provide extra 200 W of reserve capacity to handle momentary surge loads. DCCH inverters offer heavy-duty construction and accept 12 or 24 Vdc input. DCCU inverters provide continuous AC power up to 2400 W, peak surge power up to 4800 W, and use integral power sensors that switch smoothly from AC power to battery power during brownouts and service interruptions.

Dressta North America    Buffalo Grove, IL 60089
Nov 08, 2002 Equipped with hydrostatic steering, Model 530E is powered by 195 hp Komatsu 4-cycle turbocharged diesel engine. Electronically controlled powershift transmission can also be operated as automatic. Wheel loader handles various buckets with 3.7 to 5.9 cu yd capacities and provides more than 30,000 lbs of straight tipload capacity when pulling up through pile. Hydraulics feature joystick with transmission down shift and forward/reverse button.

TransMagic, Inc.    Westminster, CO 80031
Nov 08, 2002 TransMagicâ„¢ R3.0, for companies that make or design molds, molded parts, or machined parts, includes key features for mass properties, to determine part volumes and bounding box sizes, and to scale parts in desired units. Quoting tool provides CAD data repair, translation, viewing and collaboration for all major MCAD platforms and neutral file formats and supports CATIA®, SAT®, STEP®, IGES, Pro/ENGINEER®, Unigraphics, Parasolid® and Open HSF file formats.

Rockwell Automation    Milwaukee, WI 53204
Nov 08, 2002 Allen-Bradley® Bulletin 1492-SPU offers selectable current range from 0.5 to 20 A at up to 240 V, allowing users to match breakers with circuit loads. Built-in fault detection helps maintenance personnel quickly determine and troubleshoot faults. Units measure only 80 mm in height, conserving panel space. Circuit breakers are UL489 listed and CSA 22.2 No. 5 approved. They protect load devices such as controllers, solenoids, power supplies, and control transformers.

Rockwell Automation    Milwaukee, WI 53204
Nov 08, 2002 Able to host multiple development environments, VersaView industrial computers come pre-installed with company's software products. Supporting slots for up to 14 cards, they suit PC-based control, simplified data exchange, and information processing. Used with RSBizWare, they can collect information and upload applications and commands. Computer memory is available at 128 to 512 MB RAM (expandable to 1 GB). Monitors are available with display sizes of 12, 15, or 17.4 in.
