Peer Bearing Co.    Waukegan, IL 60085

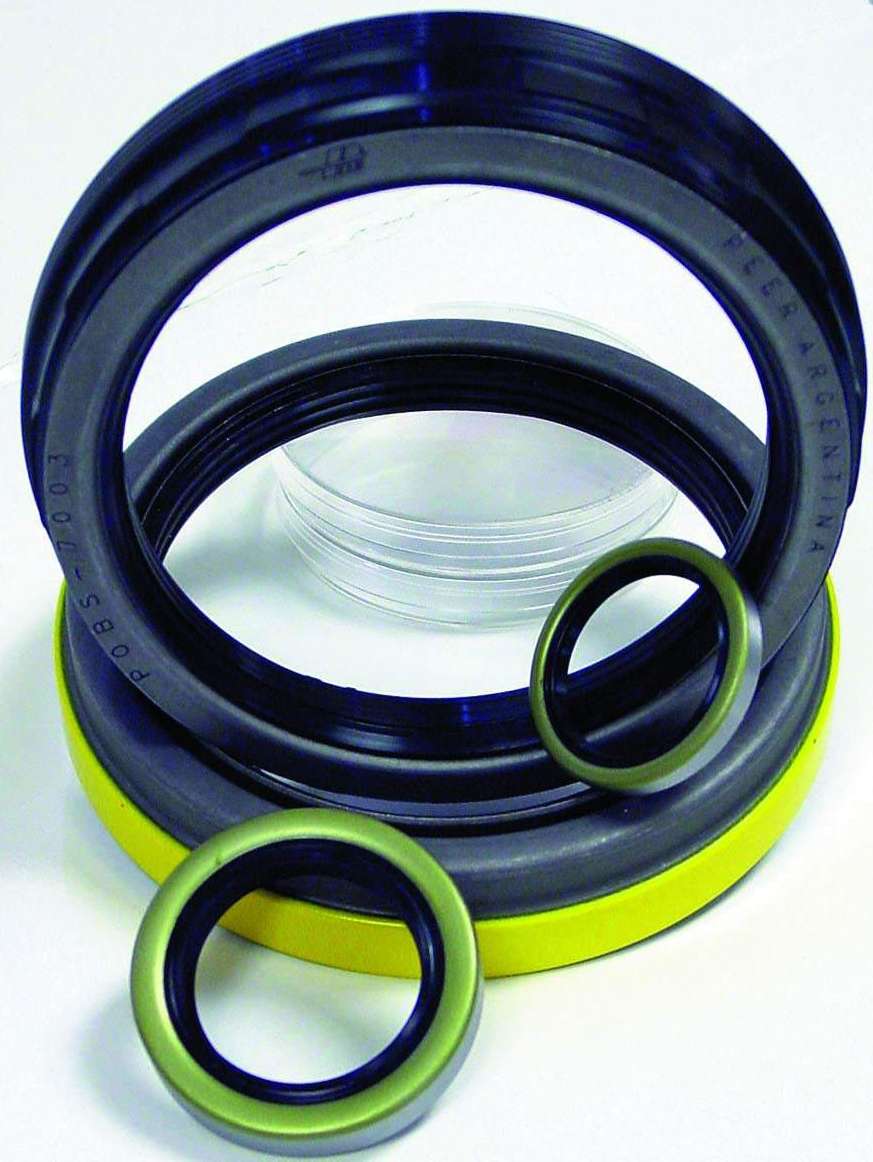

Oct 17, 2002 Oil Seals available in over 100 different types, from single-lip designs to metal-clad seals, fit shaft sizes ranging from 3.2 to 317.5 mm. They meet ISO 6194 standards and are available in 4 base polymers: Nitrile, Polyacrylate, Silicone, and Fluoroelastomer. ASTM D2000-standard seals retain lubrication and exclude dirt and moisture. Oil Bath Seals, for wheel hubs, offer 4 unitized, one-piece designs with metal or Nitrile-covered OD, ground surface, and front chamfer.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

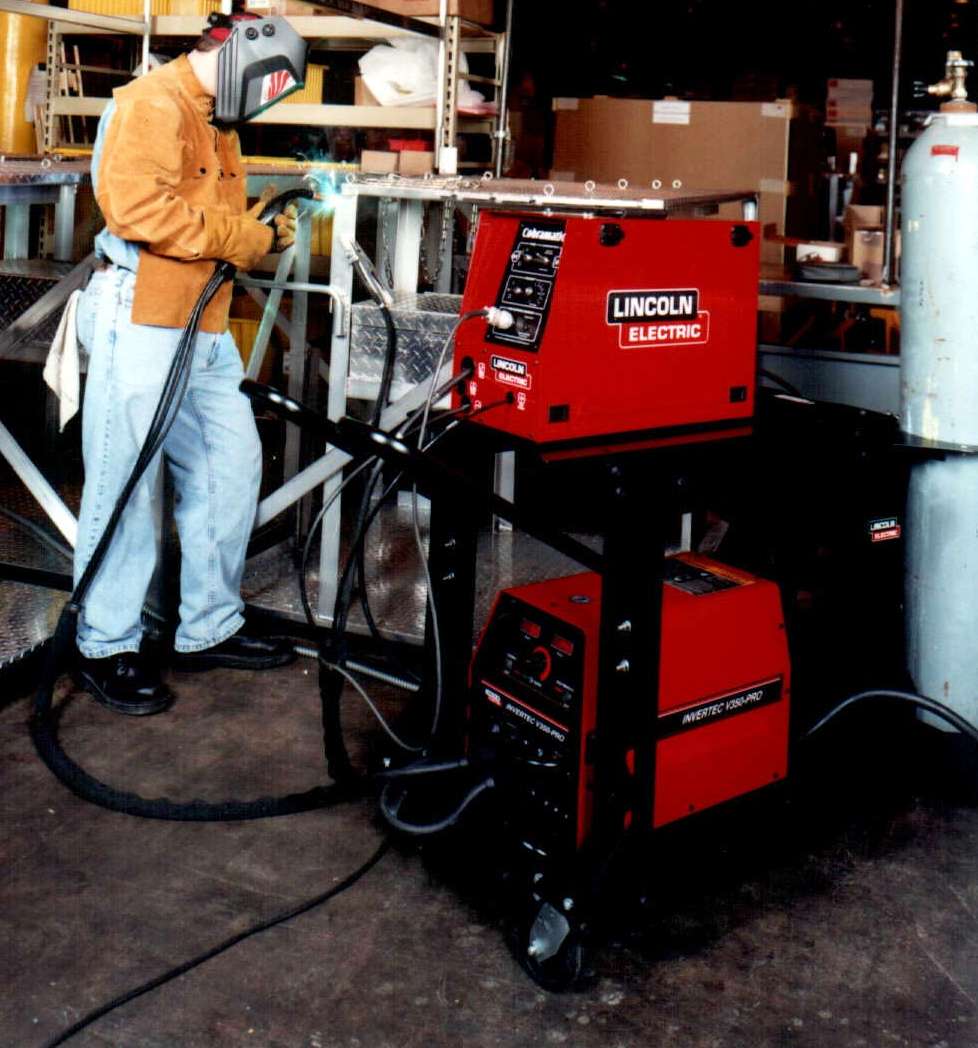

Oct 17, 2002 Cobramatic® includes wire retainer, which has spool drag tension and wire leveling on spool to prevent tangling or damage to wire. Unit also includes 1-lever wire selector, which provides precise tension and wire feed (regardless of material), and PosaStartâ„¢ adjustable circuit for smooth starts when used with constant current DC power supplies. Gas purge kit is located in unit, as opposed to in torch, and it accommodates 12 in. dia spools.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Oct 17, 2002 Ranger® 8 is offered with 20.5 hp, twin-cylinder, air-cooled Onan® Performer® gasoline engine that runs at 3,600 rpm. Automatic engine shutdown protects against low oil pressure and prevents engine damage, while automatic engine idler offers fuel economy and noise control. Ranger 8 Onan OHV suits Stick, DC and AC TIG, and general purpose CV wire feed welding. Unit offers 8,000 W continuous 115/230 Vac generator power for tools and lights.

Alto U.S. Inc.    Chesterfield, MO 63017 3626

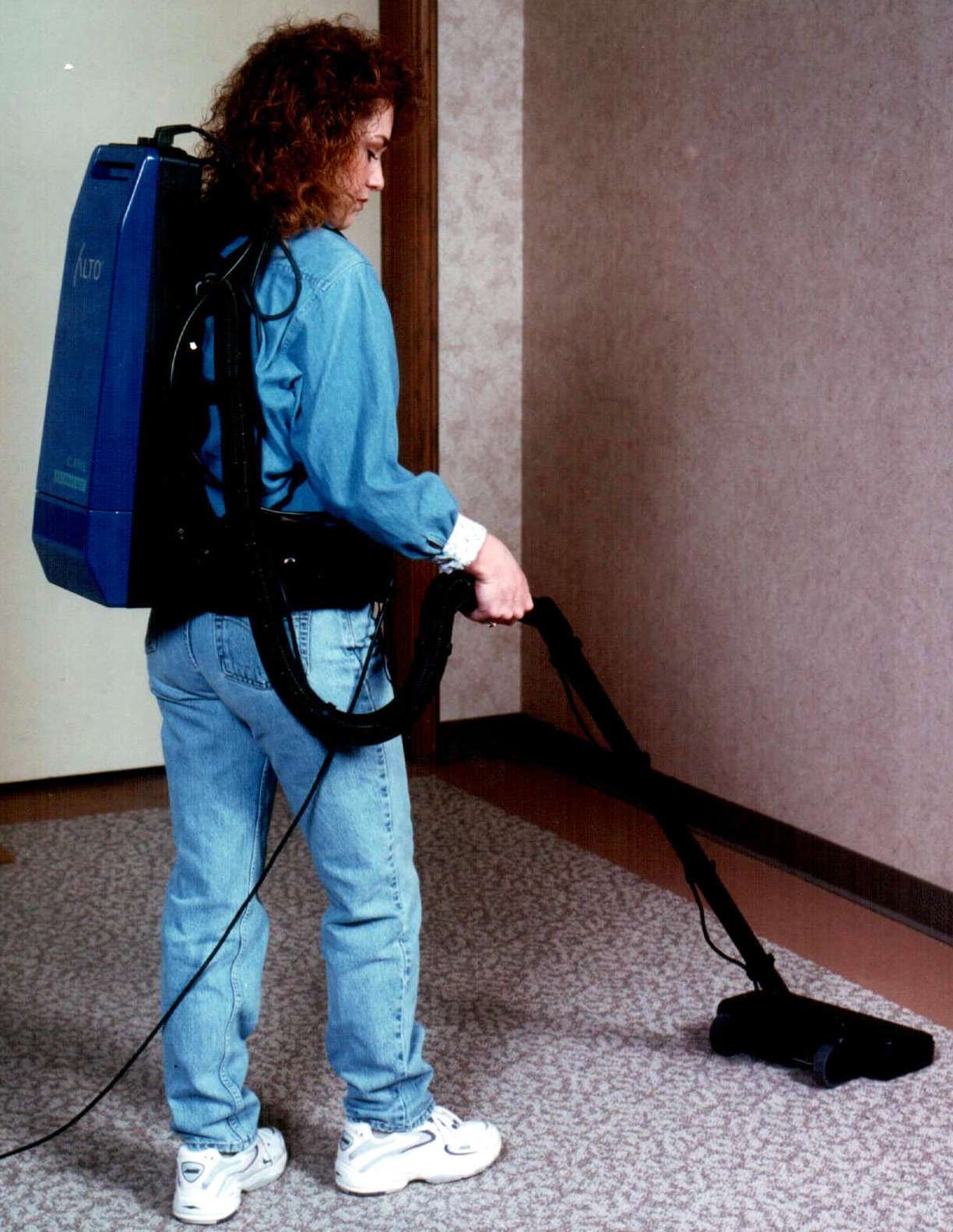

Oct 17, 2002 UL and CSA approved FILTRAVACâ„¢ vacuums utilize 4-step, dual motor filtration systems that carry soiled air through multiple filters before returning air back into environment. Designed with built-in carrying handle, vacuums include foot actuated, 3-position height adjustment. Indicator brush light tells operator when brush is idle. Vacuums also include double chevron brush head and indicator light for full or clogged collector bags.

Alto U.S. Inc.    Chesterfield, MO 63017 3626

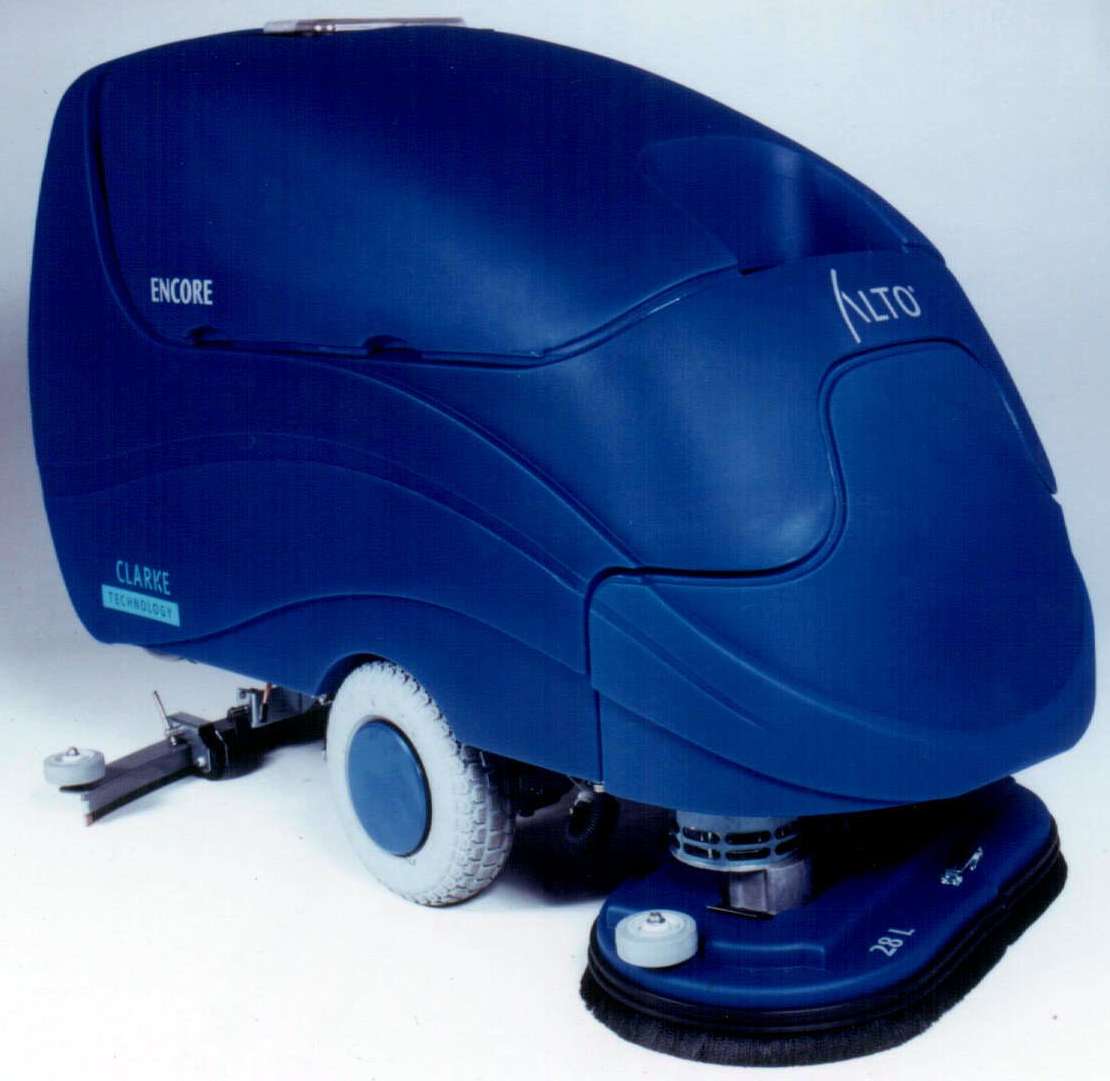

Oct 17, 2002 Sixth Generation ENCORE automatic floor scrubbers include 28, 33, and 38 in. models. They are available with various combinations of batteries, brushes, and pads for any cleaning surface. Designed with electronic technology and straightforward simplicity, scrubbers suit floor maintenance needs of schools, service centers, automobile garages, shopping malls, and grocery stores.

Alto U.S. Inc.    Chesterfield, MO 63017 3626
Oct 17, 2002 Model SC7740 incorporates independent sweeping system that picks up dirt and debris before scrubbing and dust control system that prevents dust from being stirred. Machine sweeps, scrubs, or does both simultaneously. Double-scrub brush design (for disk scrubbing) offers aggressive cleaning action. All brooms and brushes raise and lower for one-pass sweeping/scrubbing. Offerings include hydraulic brush drive motors and Accu-Trackâ„¢ break-away squeegee.

Retsch, Inc.    Irvine, CA 92614
Oct 17, 2002 EasySieve supports routine sieve analyses and direct communication with analytical balances. It offers direct transfer of weighing data, tabular or graphical format for results, and interface for sieve shaker AS 200 control. Resulting data is compatible with Word, Excel, and PowerPoint or can be exported as ASCII file. It provides automated registration, evaluation, and management of data.

Specialty Coating Systems    Indianapolis, IN 46278
Oct 17, 2002 Spincoat G3 Series incorporates microprocessor-based, closed loop servomotor control for speed regulation. Units include 8, 12, and 15 in. bowl models in 3 enclosure sizes. Eight in. model is available in non-programmable and programmable versions, while 12 and 15 in. models are available as programmable units only. Programmable units can store and execute 30 programs having up to 20 individual steps each, and are controllable in 1.0 rotation increments and 0.1 sec timing increments.

Extech Instruments Corp.    Nashua, NH 03063

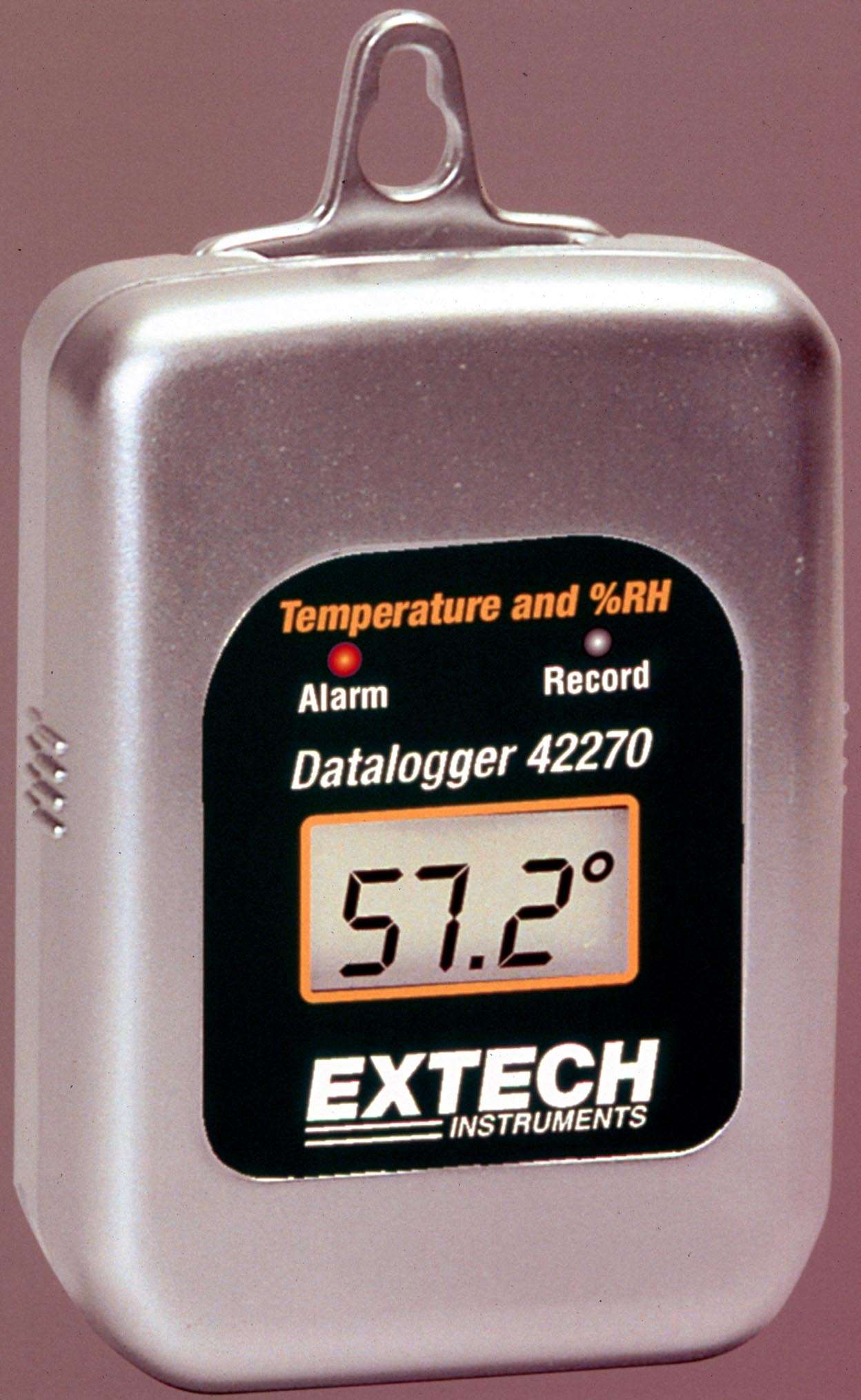

Oct 17, 2002 Model 42275 Temperature/Humidity Datalogger features operating range of -40 to +185°F. Sampling time is adjustable between 1 sec and 2 hr, and LED flashes when unit is sampling. Windows-compatible software is included for programming, downloading, and analyzing recorded data. Datalogger offers scheduled, magnetic, and immediate start capability; real-time clock that stores time and date with data; and programmable high and low limits with alarm indicator.

Force Control Industries, Inc.    Fairfield, OH 45014

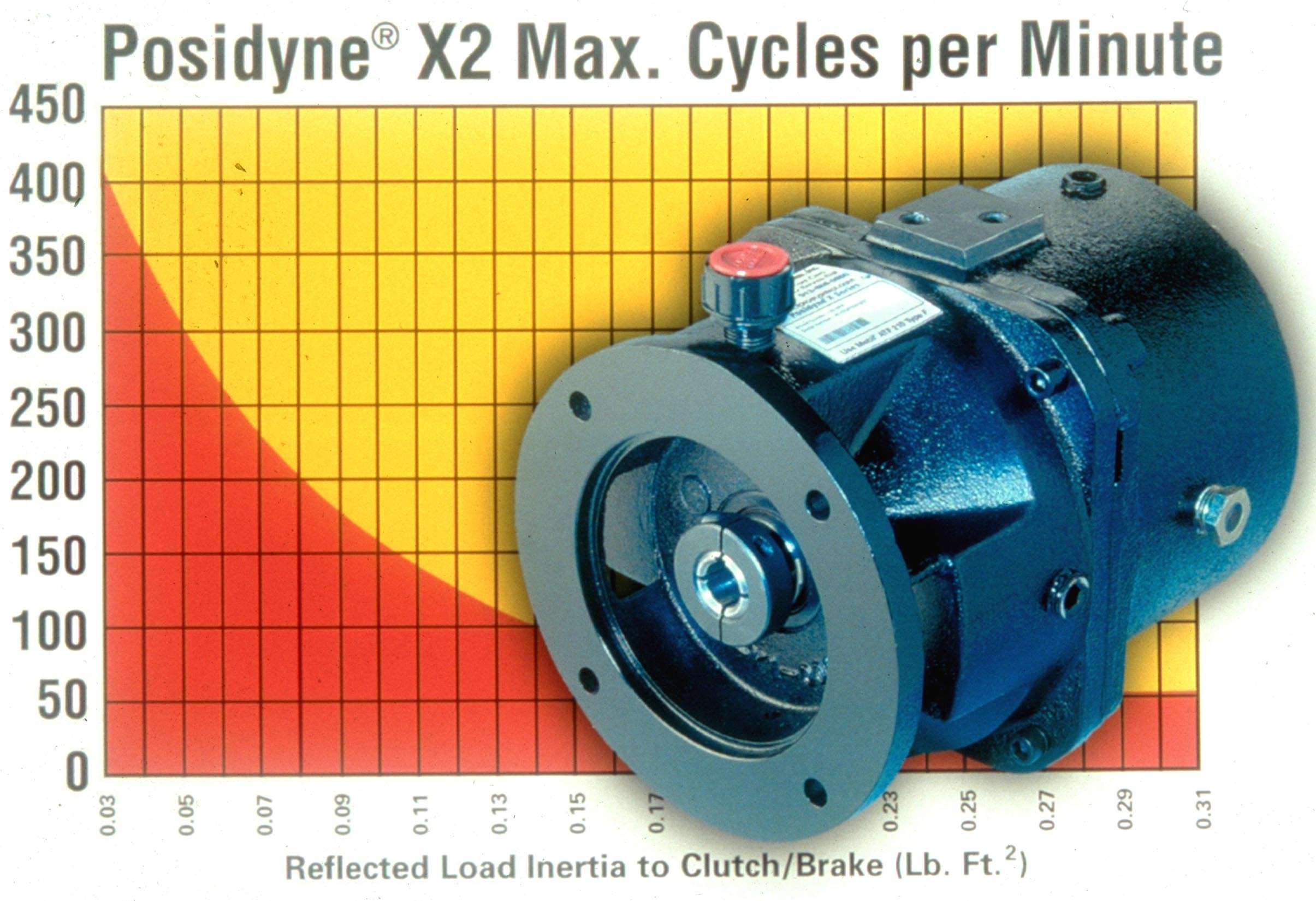

Oct 17, 2002 Posidyne X Series is engineered for up to 10 hp drives and is available in torque ratings from 100 to 1000 lb-in. Units transmit torque by shearing automatic transmission fluid between multiple friction discs, minimizing wear while absorbing heat of engagement, and dissipating it through housing. Pneumatic actuation allows precise control of torque and engagement speeds with simple pressure change. Double C-face mounting and clamped-split quill allow drop-in, bolt-up installation.

UE Systems, Inc.    Elmsford, NY 10523

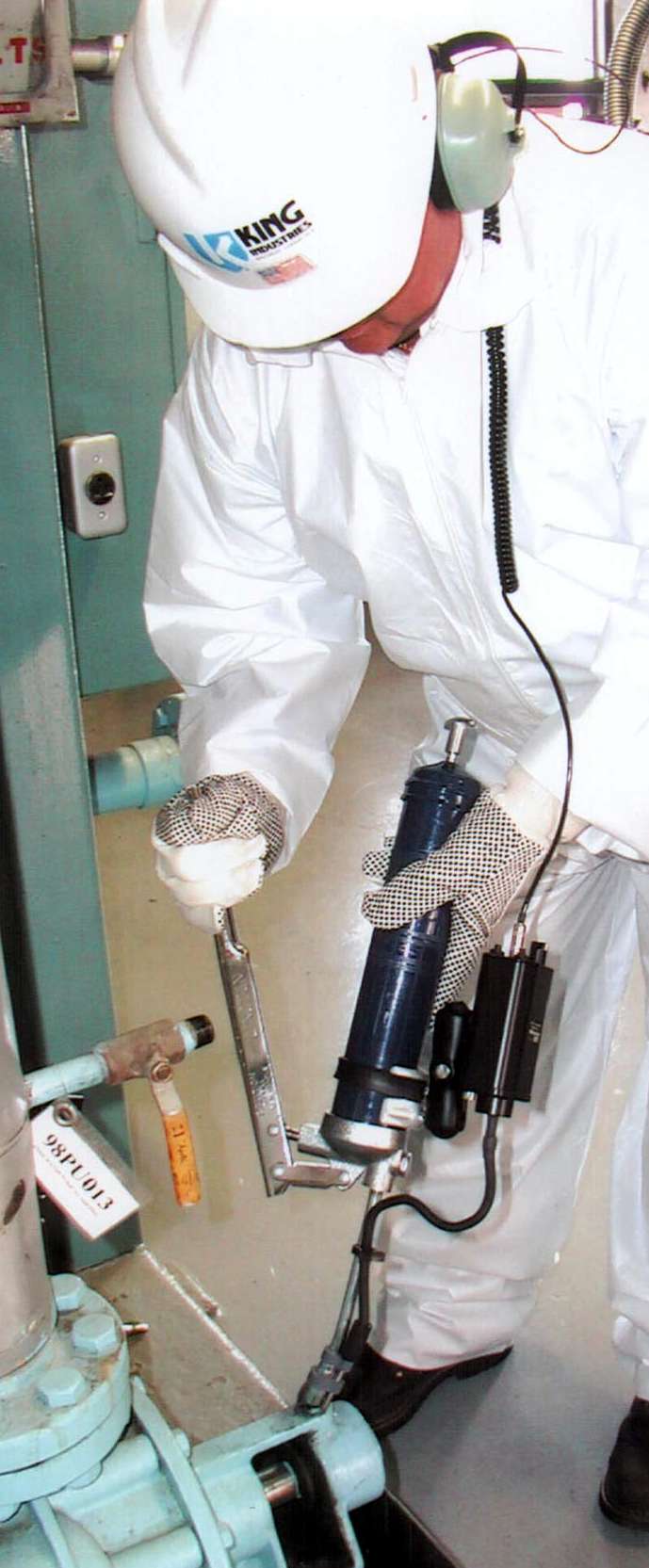

Oct 17, 2002 Portable Ultraprobe 201 Grease Caddy informs users of lubrication conditions in bearings by sensing high-frequency emissions produced by bearings. It translates them into audible range where they are heard through headphones and seen on meter. Amplitude levels can be set to determine when to lubricate. Unit attaches to most common grease guns, swivels for left and right handed users, and adjusts for odd angle approaches.

Watlow    St. Louis, MO 63146

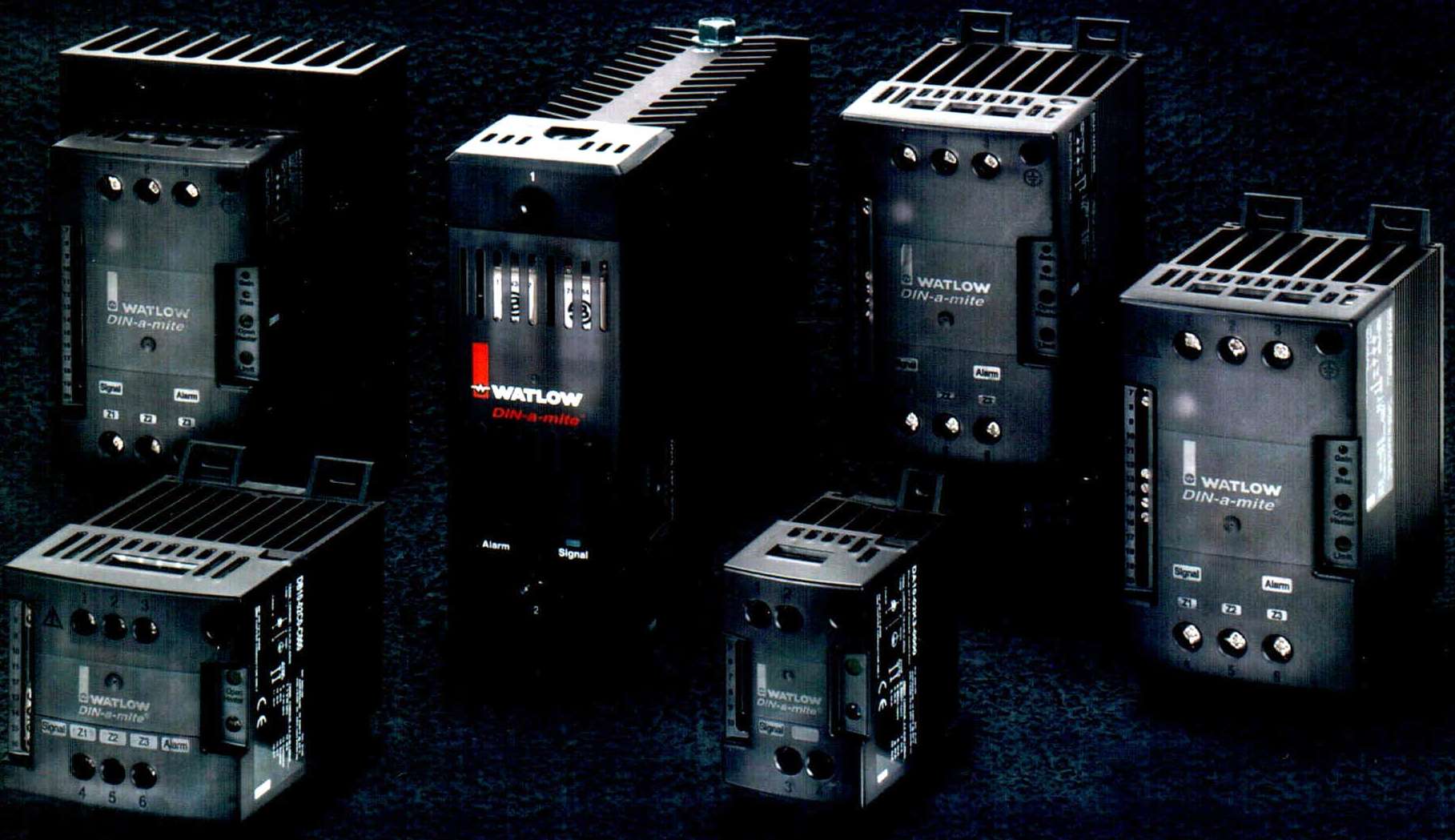

Oct 17, 2002 DIN-A-MITE® compact power controllers provide SCR control, heatsink, wiring, and touch-safe exterior. Controllers offer switching capabilities from 16–100 A and voltages from 24–600 V in 4 packages. Units feature DIN rail or sub-panel mounting, MDR replacement screen to eliminate mercury problems, and tighter-fitting cover on integrated ground-leg wire packages to ease wiring. All 4 models match load requirements with 1-phase, 3-phase/2-leg, and 3-phase/3-leg switching.

T.C. Service Co.    Willoughby, OH 44094
Oct 17, 2002 TOP CAT® Model 520VK vertical grinder/sander is available in versions that include 7 or 9 in. configurations for both Type 27 or Type 28 grinding wheels; and 4, 5, or 7 in. sizes for sanding discs. Wheel guard version includes drive flange wrench, while sanding pad version comes with sanding disc mounting nut and wrench. Tool has 1,500 W, 2 hp motor with rated speeds of 6,000–12,000 rpm. All versions include comfort-grip handles to protect hands and handle isolators.

Taylor Hobson, Inc.    West Chicago, IL 60185
Oct 17, 2002 Portable laser based alignment system, Micro Alignment Laser, measures alignment, straightness, flatness, parallelism, perpendicularity, and more. With measurement ranges up to 20 x 20 mm and accuracies of 5 microns up to a distance of 10 m, it consists of highly stable laser transmitter, high-precision position sensitive device (PSD) receiver with electronic processing system, and software for use on laptop, notebook, or desktop PC.

Patlite (USA) Corporation    Torrance, CA 90501

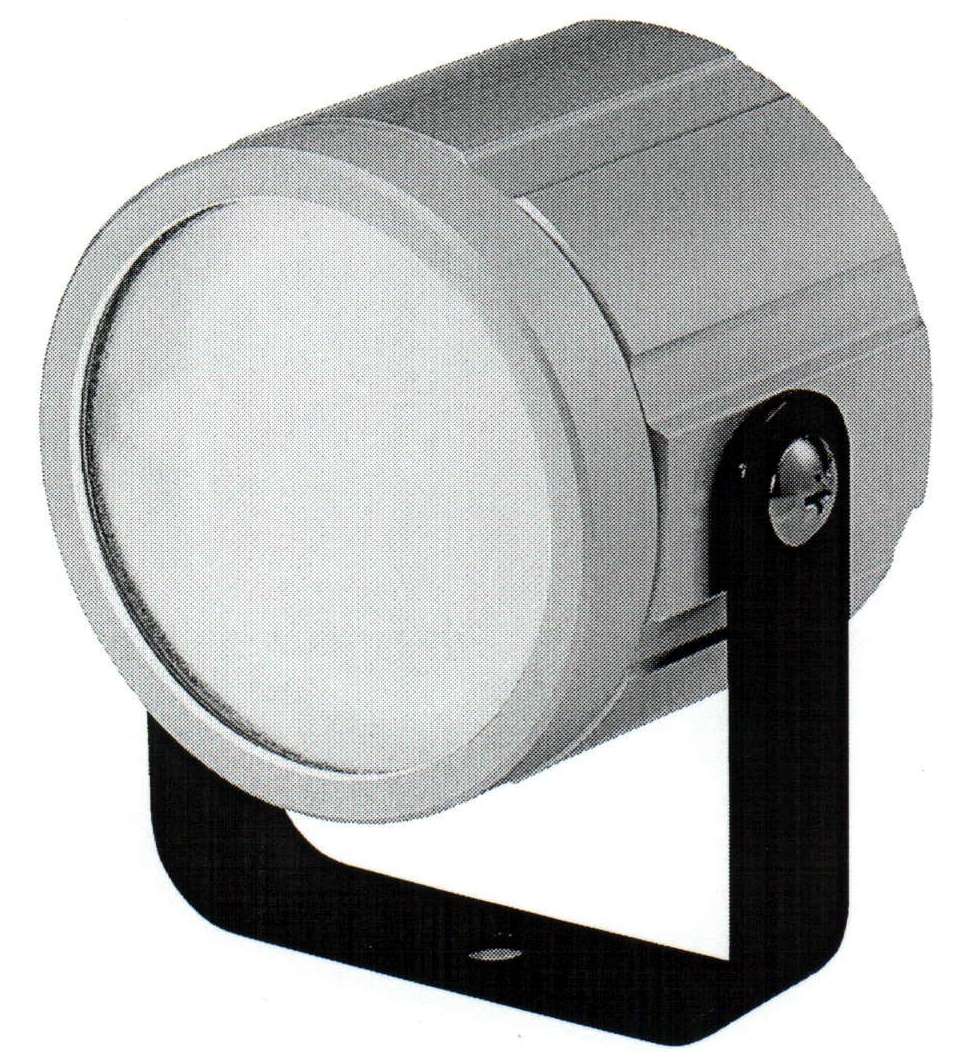

Oct 17, 2002 Suitable for machine tool, process, inspection, and image processing industries, model CLE-24 provides white illumination with uniform diffraction. It offers ultra-bright LEDs, reliability in harsh environments, and produces low heat and noise. Additional offerings include rust-, corrosion-, and oil-proof anodized aluminum body and IP-65 rating.

Sermatech Technical Services    Limerick, PA 19468

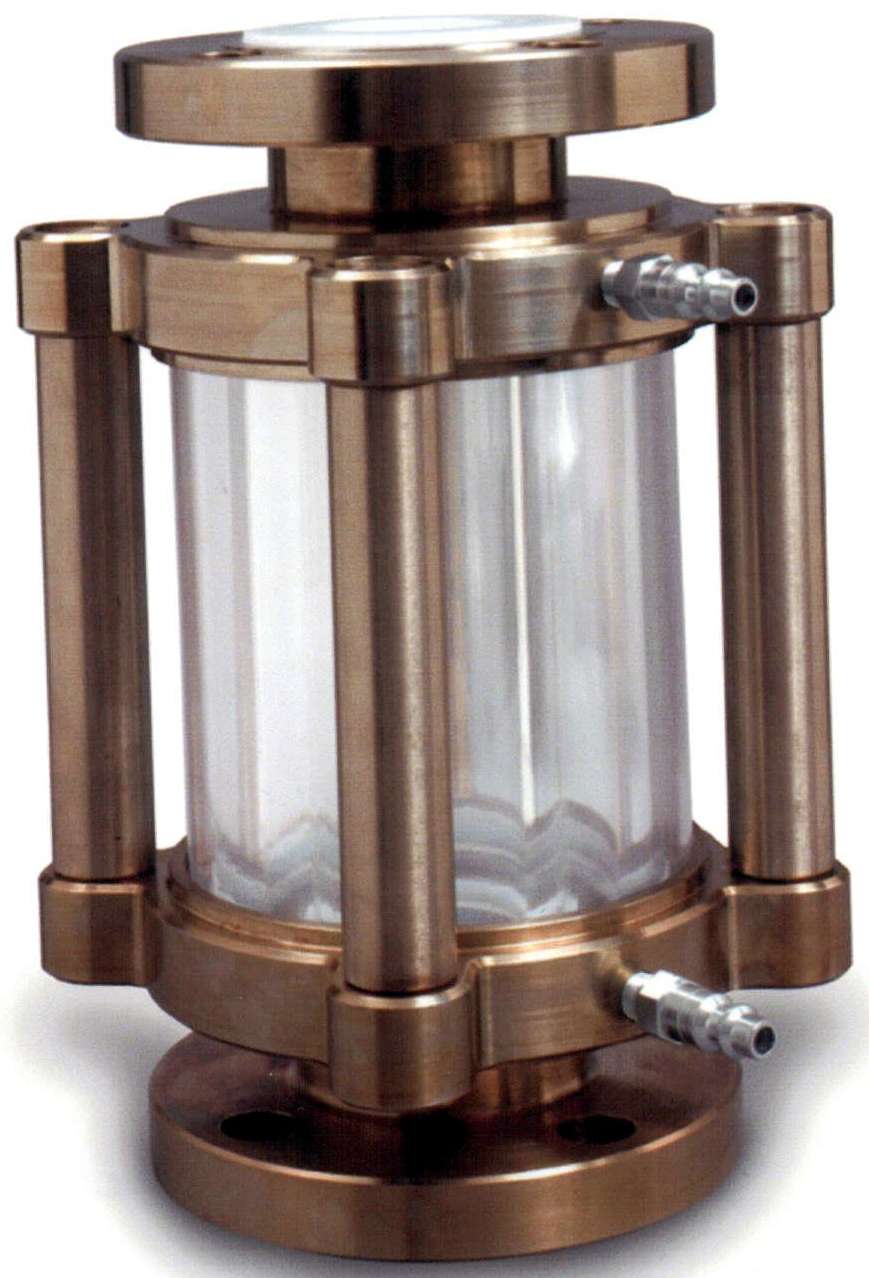

Oct 17, 2002 Double-Sureâ„¢ dual containment sight flow indicator has 150 psig pressure rating and operating temperature range from -20 to +350°F. The inner chamber is subject to 225 psig hydrostatic pressure test and 150 psig helium bubble test, while outer chamber is subject to latter. Indicator includes Lexan® impact shield with unobstructed 360° view and Teflon® and borosilicate glass-wetted surfaces. Indicators are available in 1, 1½, and 2 in. dia in lengths up to 30 in.

Atkinson Dynamics - A Federal Signal Co.    University Park, IL 60466

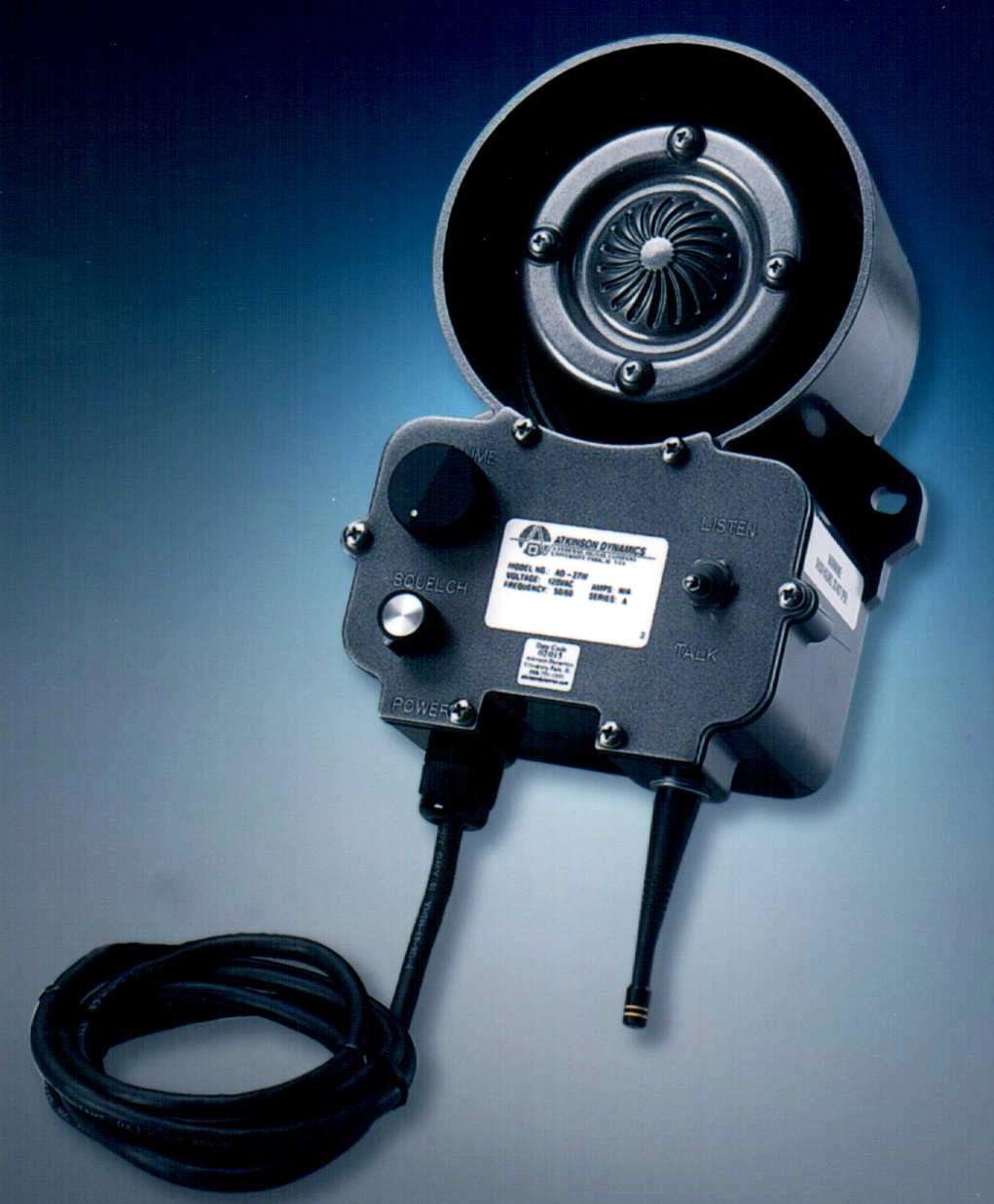

Oct 17, 2002 Wireless Industrial Intercoms can be set up, taken down, and moved around with ease. They operate on 120 Vac power supplied locally to each station. Units are suitable for applications where extreme weather, high noise, or harsh usage requirements are present such as offshore drilling rigs, refineries, textile plants, foundries, and chemical processing operations. Vandal-proof, corrosion-resistant cast aluminum housing is sealed to keep out moisture and dust.

Igus, Inc.    East Providence, RI 02914 0349

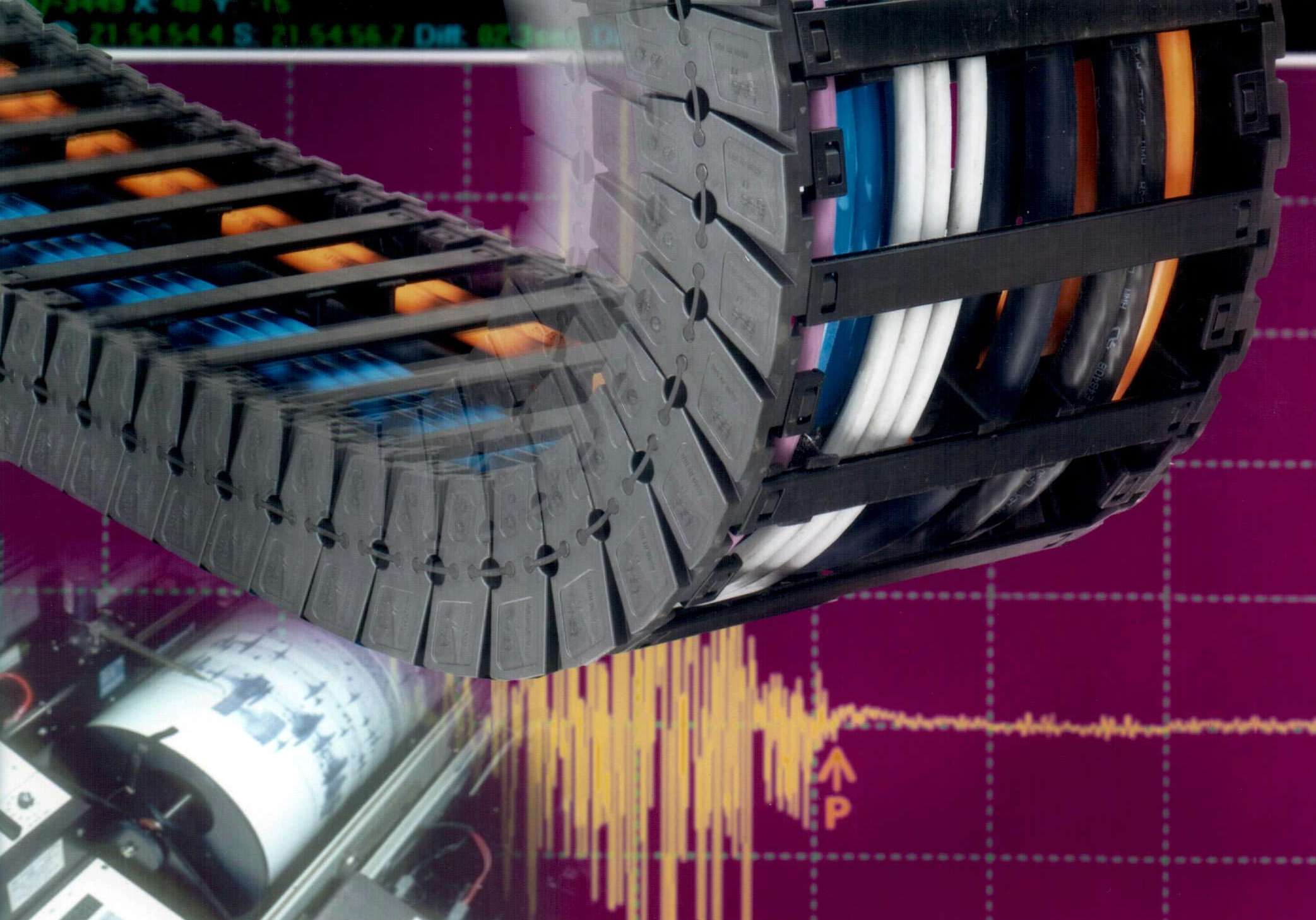

Oct 17, 2002 Energy Chain® System E6 utilizes links that are connected by and isolated from each other through flexible connecting element. It includes snap-open crossbars for easy installation of cables; separators to guide individual cables with chain; and low weight and corrosion resistance through all-polymer design. System is offered in 3 heights and up to 16 width/radius combinations. Applications include machine tools, measuring devices, and semiconductor equipment.

Cooper Power Systems    Waukesha, WI 53188
Oct 17, 2002 Kyle® VFI Vacuum Fault Interrupter pad-mounted switchgear with Visible-Break provides positive visual verification of contact status when distribution-switching procedures require indication of open circuit prior to testing and verification. Visible-Break feature is available in 2-position (open/closed) and 3-position (open/close/ground) configurations with ground switch capabilities. Unit meets switching and protection requirements for 5, 15, 25, and 35 kV underground systems.

Metcal, Inc.    Menlo Park, CA 94025

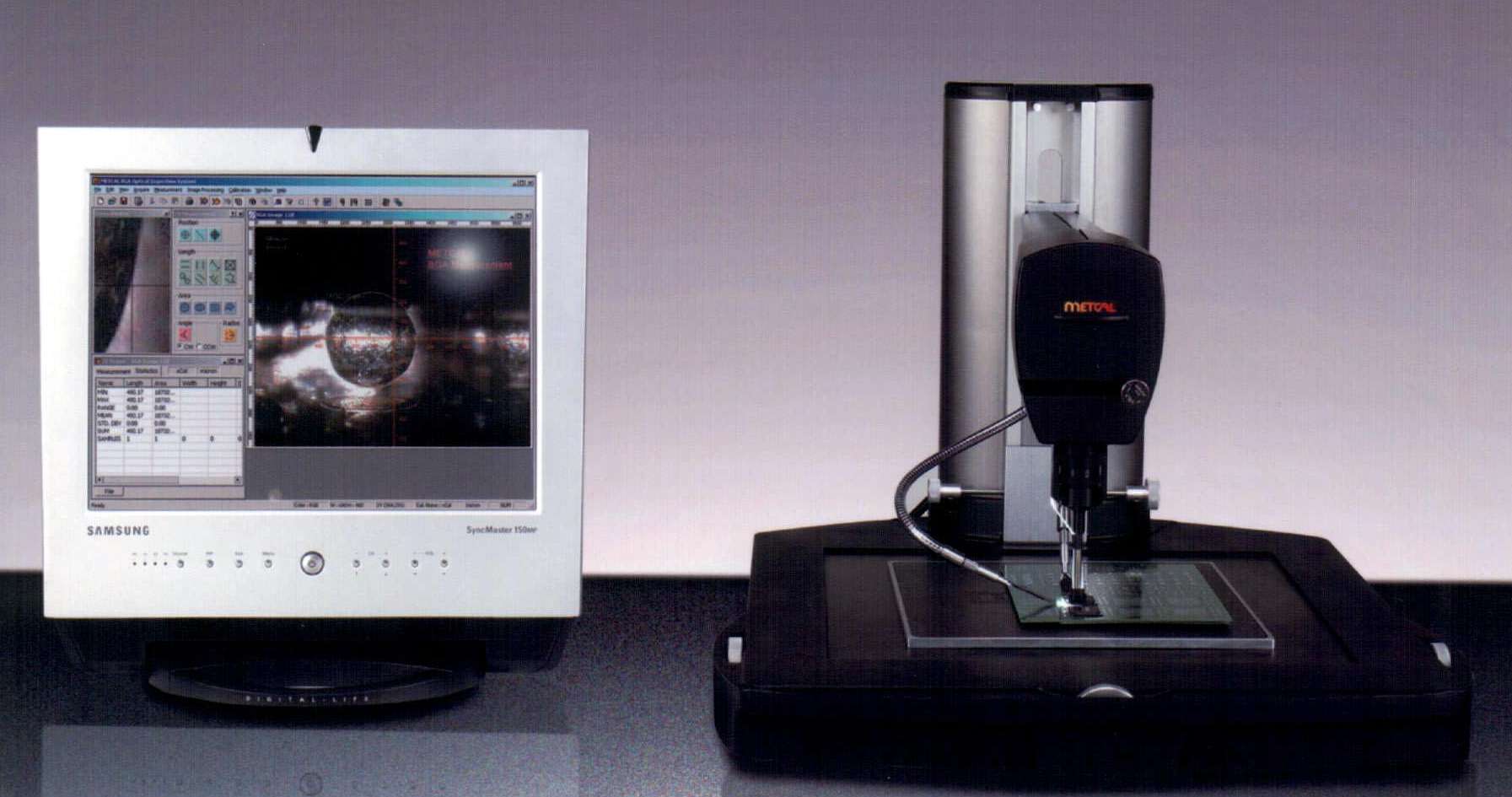

Oct 17, 2002 Model VPI-1000 Optical Inspection System uses endoscope technology to see under array packages that have been placed and soldered onto PCB. It can inspect components with stand-off heights as low as 0.05 mm, while providing images magnified up to 245x. MT2 tips can negotiate between components 0.7 mm apart. Using optional board holder increases size of boards that can be handled up to 305 x 305 mm. X-Y table offers variable height adjustment from 12.7 to 83.82 mm.
