Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

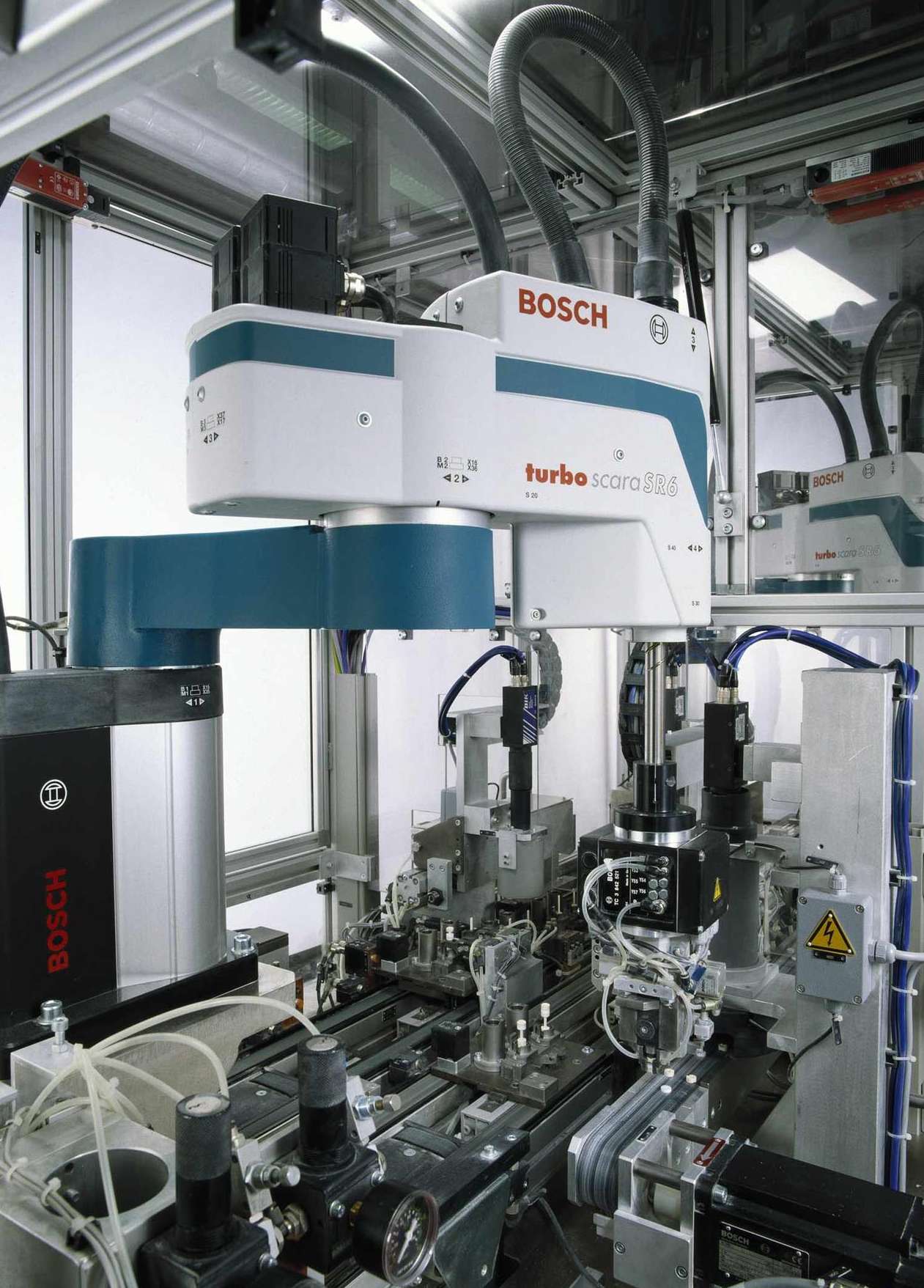

Oct 11, 2002 The turboscaraâ„¢ SR4plus, SR6plus, and SR8plus include absolute measurement system, which ensures that robots always know work envelope position without reference homing cycle each time they are powered up. Robots can be pre-wired for plug-and-play attachment of end-of-arm tooling, speeding on-site installation. EVS201 power supply and safety module include 4 operating modes for automatic or manual operation. Control system includes robot-specific functions and internal PLC.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

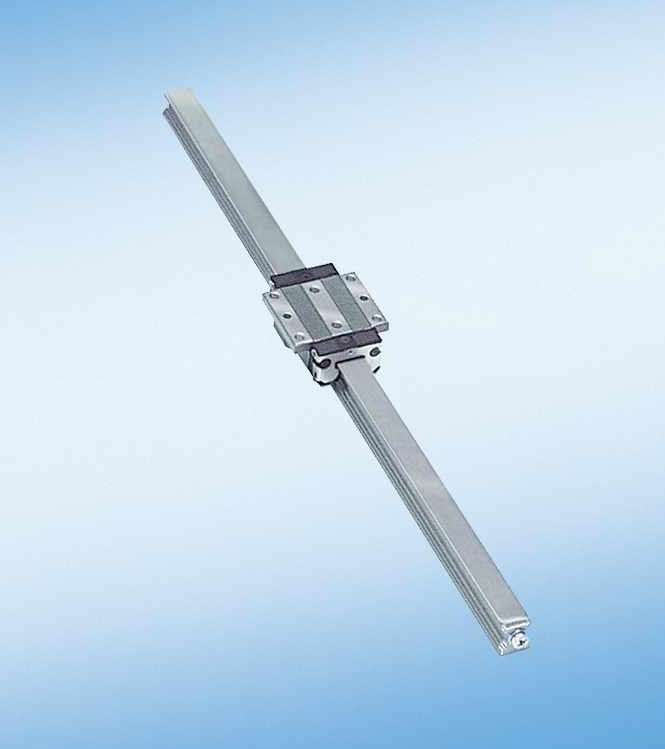

Oct 11, 2002 Generation 2 Ball Rail® System, with integrated lubrication system, uses foam insert inside runner block to release lubrication to balls over time. Optional ball chain technology enables travels speeds up to 10 m/sec, and provides noise reductions up to 6 dBA. Runner block offers improved sealing for use in harsh environments.

Lascar Electronics, Inc.    Palo Alto, CA 94303-0727
Oct 11, 2002 Model DPM 742-BL, 4-20mA loop powered process indicator, offers 3.5 digit display with LED backlighting for readability in low light conditions and optional IP67-rated bezel. Calibrated via 2 multiturn potentiometers, it has 0.5 in. digit height, programmable decimal points, and low drift bandgap reference circuit. Optional NEMA 4X bezel provides protection against moisture and particles in hostile environments.

TA Instruments    New Castle, DE 19720
Oct 11, 2002 DSC Autosampler for Q Series DSC modules has 50 sample, 5-reference-pan carousel tray that allows round-the-clock sample analysis. Autolid arm manages operation of DSC cell's lids and heat shield for repeatable thermal isolation of cell. Sample arm controls loading and unloading of sample and reference pans in sequential or random order. Optical sensor guides sample arm, ensuring precise pan placement and automatic calibration of system.

Chemineer, Inc., A Unit of Robbins & Myers, Inc.    Dayton, OH 45401

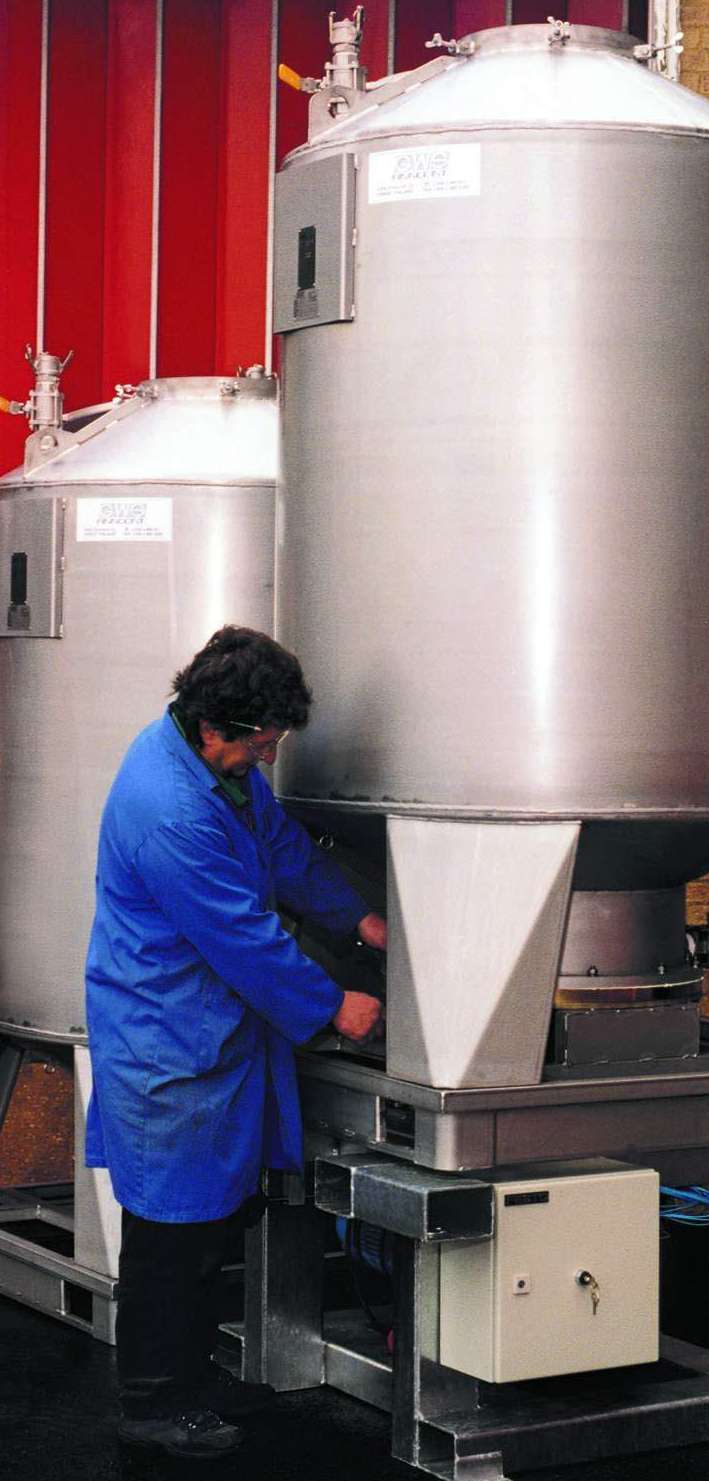

Oct 11, 2002 Nimix® Mixing System features completely sealed mixing chamber providing intrinsically safe, emission-free processing environment. IBC-based mixer units transport chemical intermediate from one location to another within same plant. IBCs can be moved by forklift and when re-suspension is required, IBC is placed on frame over drive station. Back stops guide IBC onto docking position, while air cylinders fire taper locking pins to hold unit in position.

Weidmuller, Inc.    Richmond, VA 23236
Oct 11, 2002 Combination cutting tool and screwdriver, swifty® set tightens/loosens screws, cuts cable to length, and connects, all without changing tools. It is able to cut solid copper conductors up to 16AWG and flexible conductors to 14AWG. Cutting blade offers automatic opening. swifty is suited for working with IDC2 quick connection technology (Insulation Displacement Connection) and can be fitted onto any screwdriver with max 3.5 mm dia, non-insulated shaft.

Vestil Manufacturing Co.    Angola, IN 46703-0507

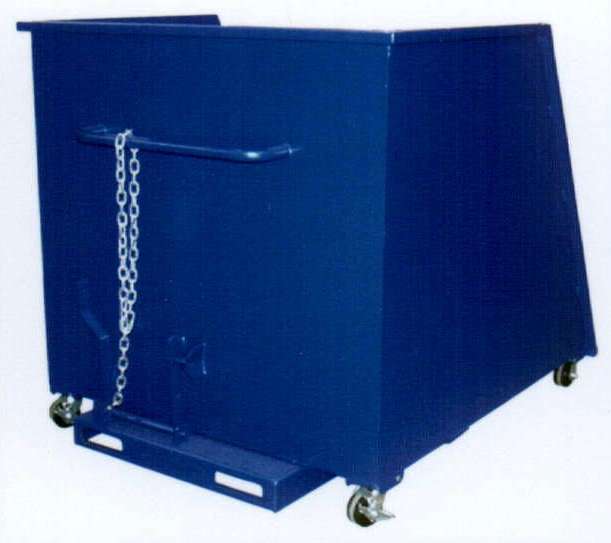

Oct 11, 2002 Open End Dumping Hopper allows orderly loading at ground level. Rolling smoothly on 4 x 2 in. phenolic casters, it can easily be moved from one location to another. Once hopper is full or user has finished loading items, hopper can be dumped with use of fork truck. Overall size is 55 in. wide x 60 in. deep x 54 in. high with usable inside dimensions of 51½ in. wide x 60 in. deep x 48 in. high. Capacity is 2,000 lbs.

Extech Instruments Corp.    Nashua, NH 03063

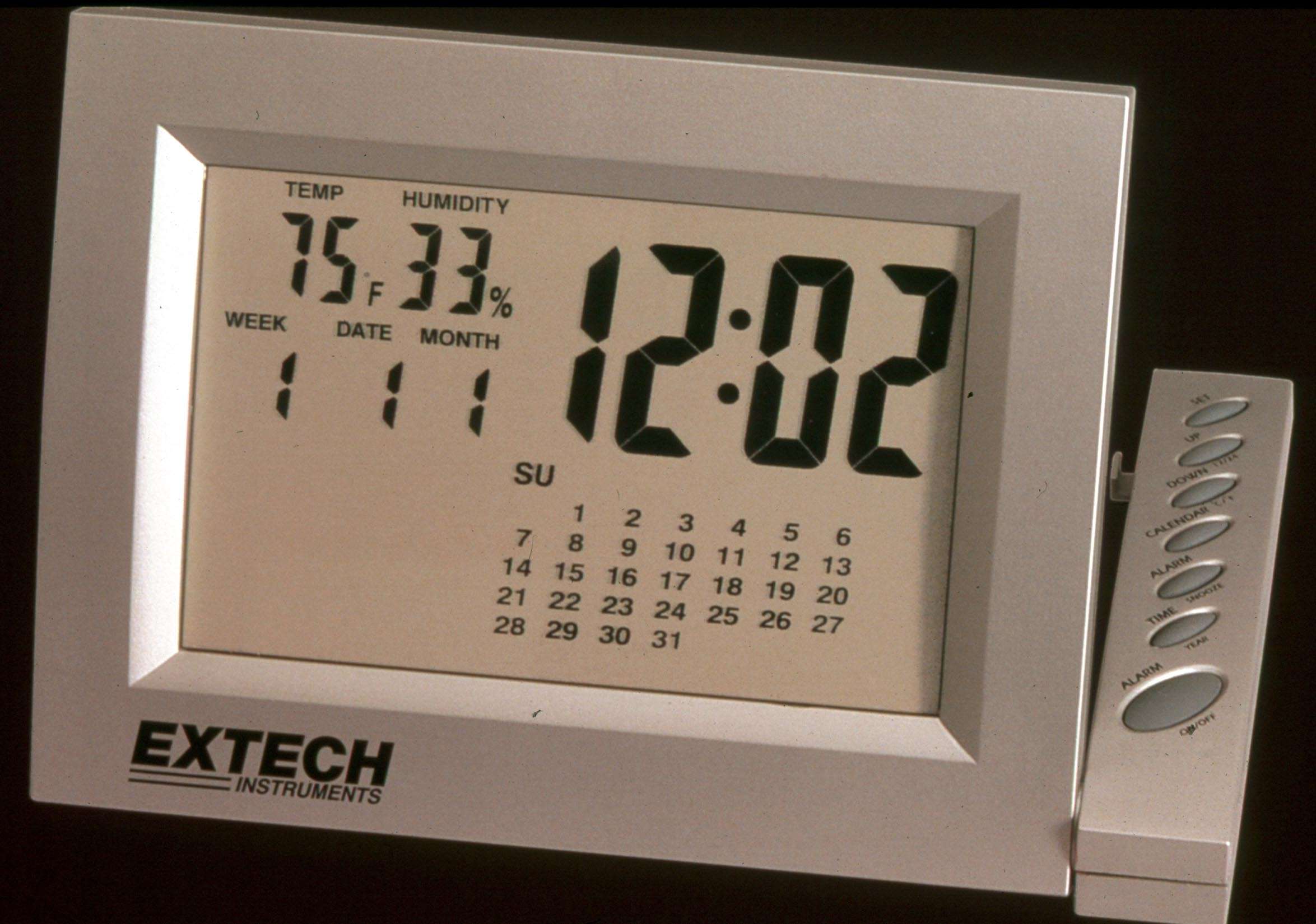

Oct 11, 2002 Model 445850 measures relative humidity from 20 to 90% with ±5% accuracy. Temperature measurements are °C/°F selectable and range from 14 to 140°F (-10 to 60°C) with accuracy of 1.8°F (1°C). LCD displays numeric week, day, month, and calendar. Clock alarm has 4 minute snooze function. Unit includes built-in stand and 2 AAA batteries.

Ideal Industries, Inc.    Sycamore, IL 60178
Oct 11, 2002 Series 780 Ground Resistance Clamp Meter, suited for conducting quick field surveys, has jaws that clamp directly around ground rod. It reads ground resistance from 0.01 to 1,500 Ohms as well as ground leakage current up to 15 A. Additional offerings include auto ranging, audible indication of readings in excess of 40 Ohms, open jaw indicator, and data hold function.

Banner Engineering Corp.    Minneapolis, MN 55441

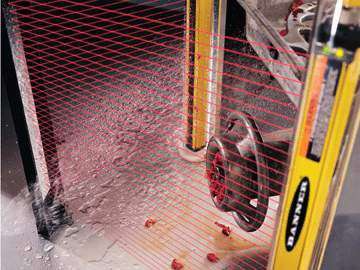

Oct 11, 2002 Tubular Series MSA-TE safety light-screen enclosures are constructed of transparent, FDA-approved, polycarbonate tubing with Delrin end caps. They come in 12 lengths to accommodate MINI-SCREEN® safety light-screen sensors from 4 to 48 in. long. NEMA 4x- and IP67-rated enclosures are suitable for high-pressure wash-down applications. Series SSM-S corner mirrors have SS reflective surfaces. They are offered in 14 lengths and work with light-screen sensors up to 72 in. long.

Maxcess Technologies, Inc.    Summerville, SC 29483
Oct 11, 2002 Series HD 3500, for cleanrooms and data centers, is offered in solid and perforated, die-cast aluminum panels, in 24 x 24 in. and 600 x 600 mm sizes. Using CISCA concentrated load test, HD 3500 series deflects 0.080 in. under concentrated static load of 4000 lb for solid panel, and 3600 lb for perforated panel. Panels come in variety of tile finishes, in static dissipative and conductive ranges with autocatalytic nickel, nickel chrome, or conductive epoxy coating.

Hydro Electronic Devices, Inc. (HED)    Hartford, WI 53027 0218

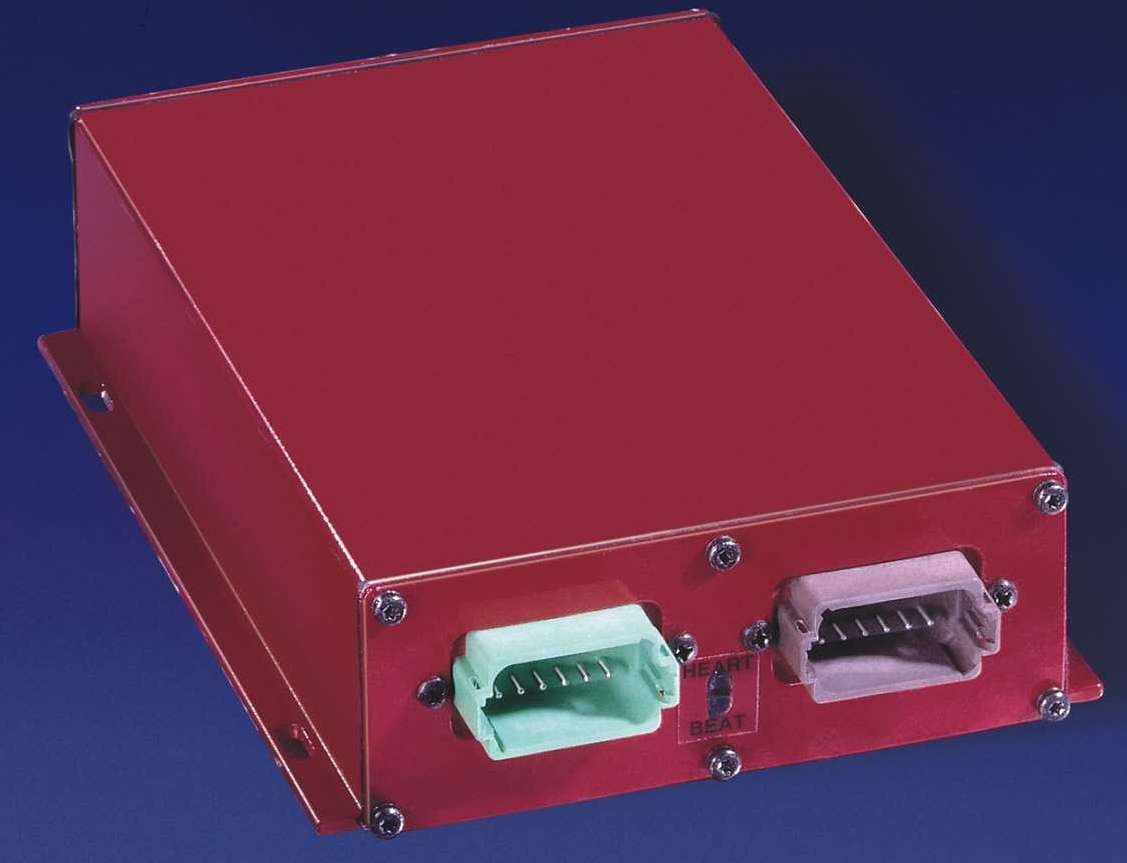

Oct 11, 2002 Model CL-100 HED Central Control Module, for CANLinkâ„¢ family of control components, is placed along CAN systems for trafficking communications to areas that must be isolated. It includes 32-bit microprocessor and RS232 connection. Incorporated J1708 port enables CL-100 to talk to other parts of machinery that operate on that protocol. Field-rugged, CL-100 is not affected by EMI/RFI, extreme vibration and temperatures, dirt, moisture, or harsh equipment wash downs.

Norstat, Inc.    Rockaway, NJ 07866
Oct 11, 2002 With high-impact ABS package, Series 140 siren measures 93 x 73 or 93 x 103 mm. Rated IP 54 or 65, siren utilizes screwable connections and is available in 9 to 28 V or 110 to 240 V versions. With 32 available tones (adjustable via DIP switch) siren is volume adjustable and can reach maximum volume of 110 dB. It is suitable for use in either indoor or outdoor applications.

Stocko Div. Of Wieland Electric Inc.    Burgaw, NC 28425
Oct 11, 2002 Suited for appliance and white goods applications, RAST 2.5 insulation displacement contact (IDC) connector is rated up to 4 A, 32 V for wire sizes 22 to 24 AWG. Available in 3 to 20 pole positions (according to application), connector's housing material is rated UL 94 V-0 for flammability. Contacts offer clean IDC connections that slice through conductors' insulating materials for direct contact with conductor.

Edmund Optics    Barrington, NJ 08007
Oct 11, 2002 Infinity KV and Infinivar CFM include analog control units and power supplies. Control units allow users to vary focus and focusing speed. Infinity KV lenses have working distances to 2 m or field of view as small as 0.8 mm in diameter. The Infinivar CFM microscope video lenses are continuously focusable from infinity down to 0.8 mm field of view at working distance of 9 mm. Lenses also offer magnification as high as 330x.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089

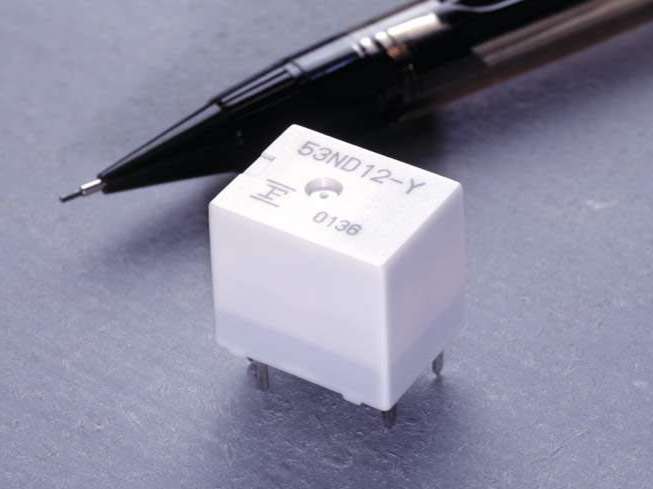

Oct 11, 2002 Miniature Model FBR53 pcb relay has bifurcated contacts, with contact rating of 14 Vdc (resistive). It is rated at 125°C and can switch up to 20 A for 100,000 operations. As 1 Form U relay, FBR53 is capable of switching 2 signals at one time, and as 1 Form A relay, it can handle heavy loads, such as automatic braking systems. Unit withstands in-rush currents up to 60 A. Capability for continuous current is 80 A, 10 sec; 60 A, 120 sec; and 40 A continuous at 85°C.

Applied Data Sciences, Inc.    Dallas, TX 75381 4209

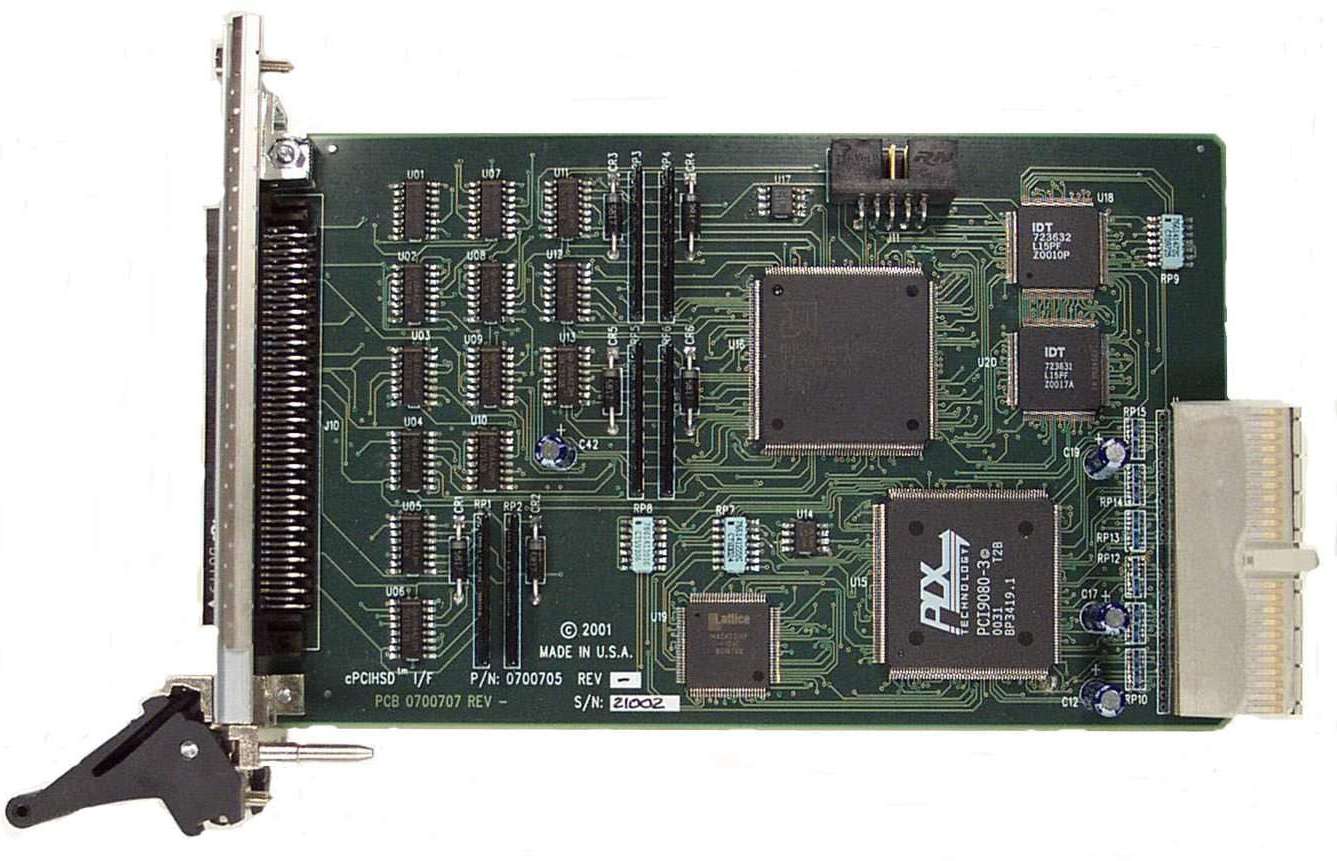

Oct 11, 2002 Model CPCIHSDâ„¢ utilizes CompactPCI bus based architecture to implement and emulate Encore Computer HSD II (High Speed Interface) Input/Output functions. It can also be used as gateway between real-time databases and ethernet links. DMA engine supports full data chaining, data buffering, and data reformatting. Device can perform data transfers from host to external device and host to host. Transfer rates between CPCIHSD and external device can operate in excess of 10 Megabytes/sec.

Fluke Corp.    Everett, WA 98203

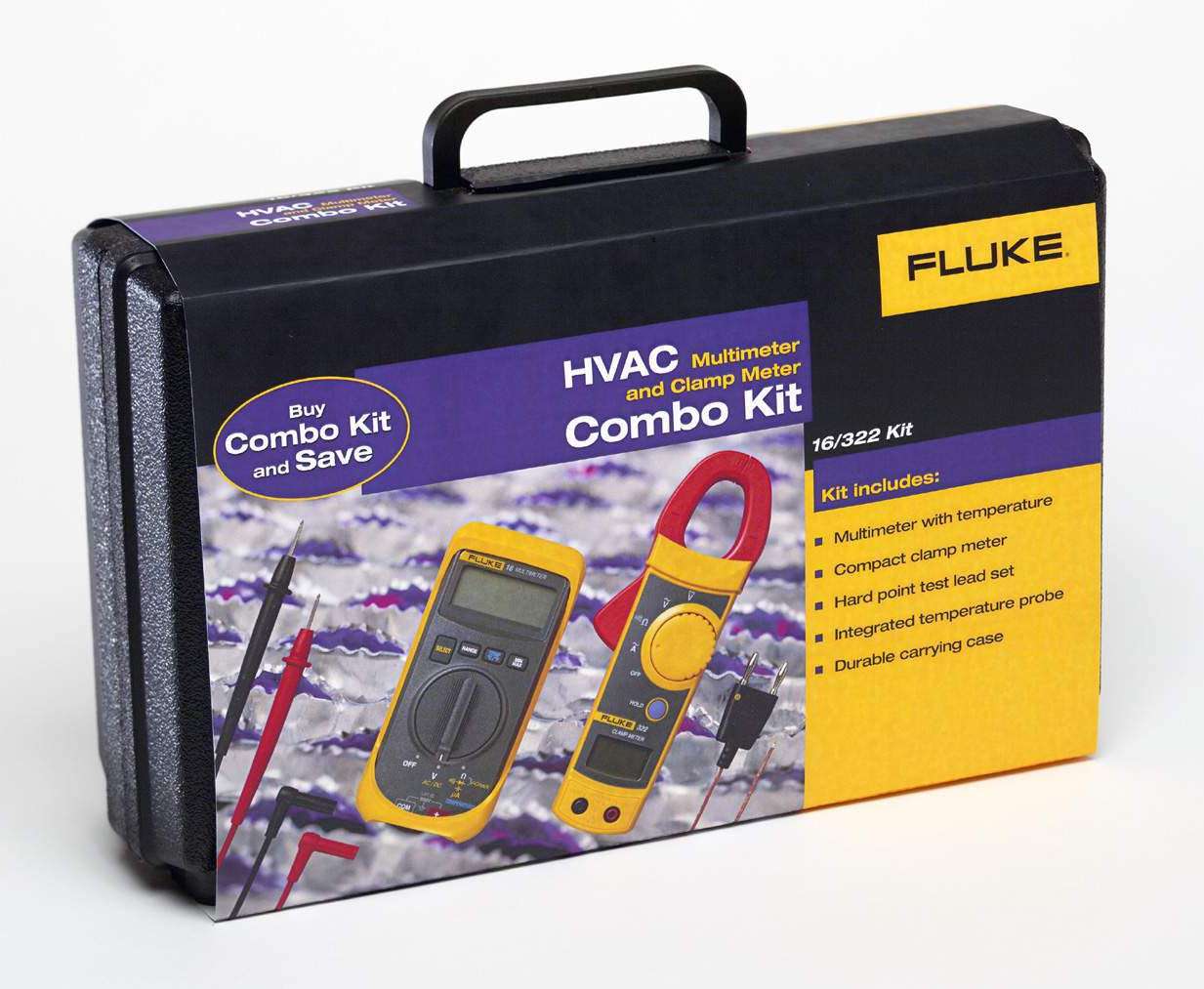

Oct 11, 2002 Model 16/322 Combo Kit contains Model 16 DMM, Model 322 Clamp Meter, test leads, and thermocouple for temperature measurement. It is suitable for testing motor start and run capacitors up to 10,000 microfarads, as well as for general measurements up to 600 Vac or dc, 40 megohms, diode test, and continuity. Clamp meter offers one-handed operation and low current measurements with better than 2% accuracy. Both tools meet IEC 1010-1 CAT III 600 V safety standards.

Enpac Corp.    Eastlake, OH 44095

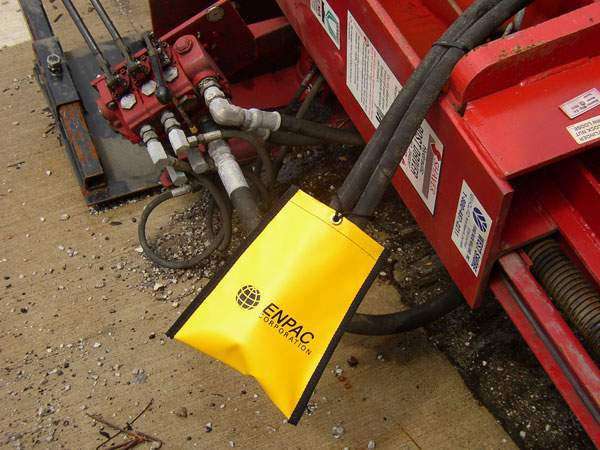

Oct 11, 2002 Hose Bibbâ„¢ fits most industrial hose ends up to 3 in. in diameter. It is lightweight and fastens in place to capture small leaks and drips of up to 1 quart. Hose Bibb is suitable for hydraulic hoses common to industrial equipment and factories.

SWF Machinery    Sanger, CA 93657

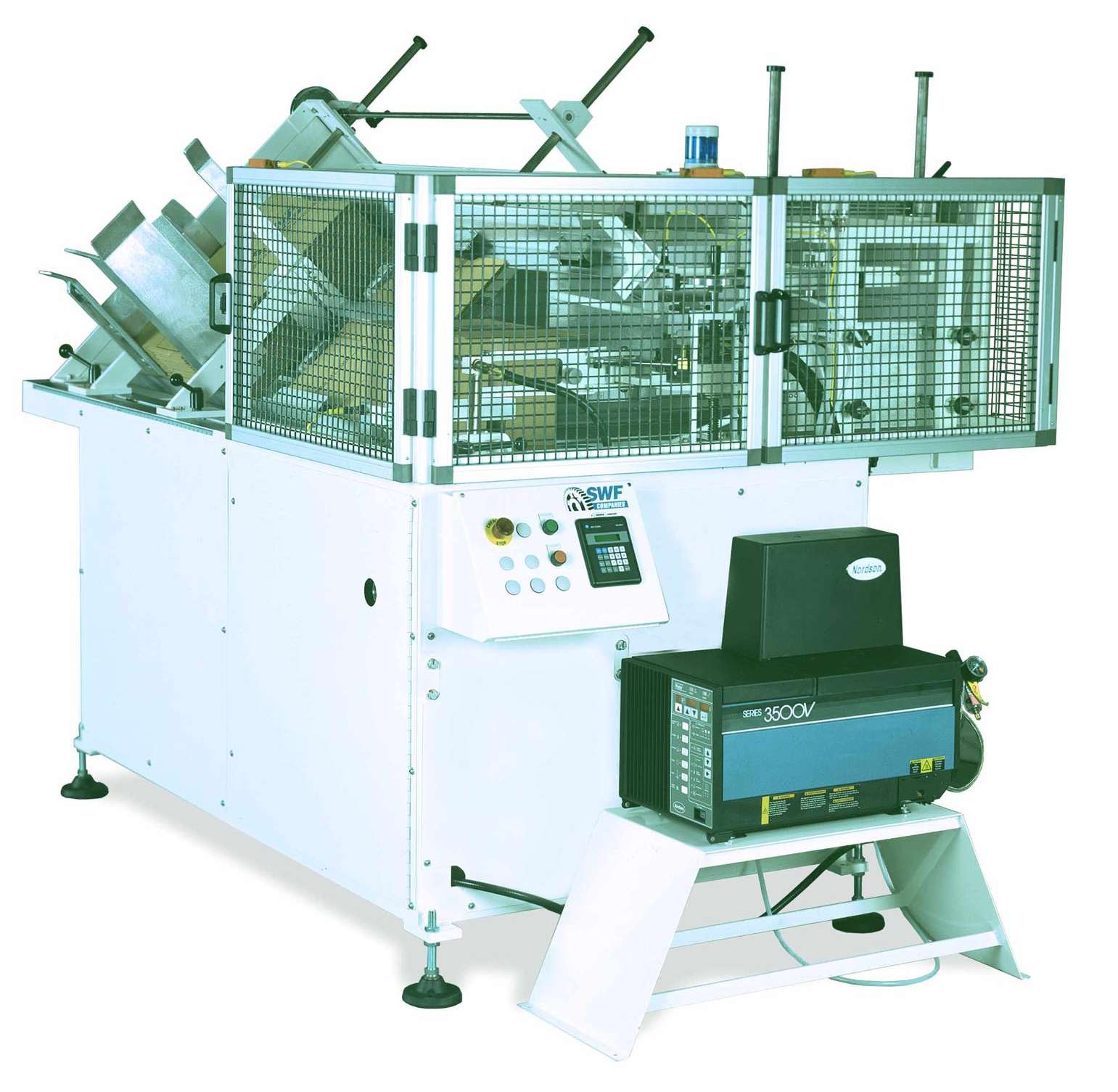

Oct 11, 2002 Model CE 151 automatic case erector/bottom flap sealer reaches speeds up to 45 cases/min. It includes Nordson hot melt system, easy load hopper, programmable logic controller, fully automatic interlocked safety doors, and multiple case size capabilities. Steel casters, automatic idler-output control, variable speed motors, and stainless steel/wash down construction are options available to customize machine.
