NKK Switches    Scottsdale, AZ 85260-3420
Oct 16, 2002 Single- and double-pole MS miniature, slide switches are available with 2- and 3-position circuits, which range from standard on-on and on-off-on to on-on-on position. Panel- and PC-mounted switches feature non-shorting contact mechanism that reduces sparking and increases operating life in ac circuits. Electrical capacity is rated at 6 A @ 125 Vac(3 A @ 250 Vac), for silver contacts, and 0.4 VA @ 28 Vac/dc for gold contacts.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207

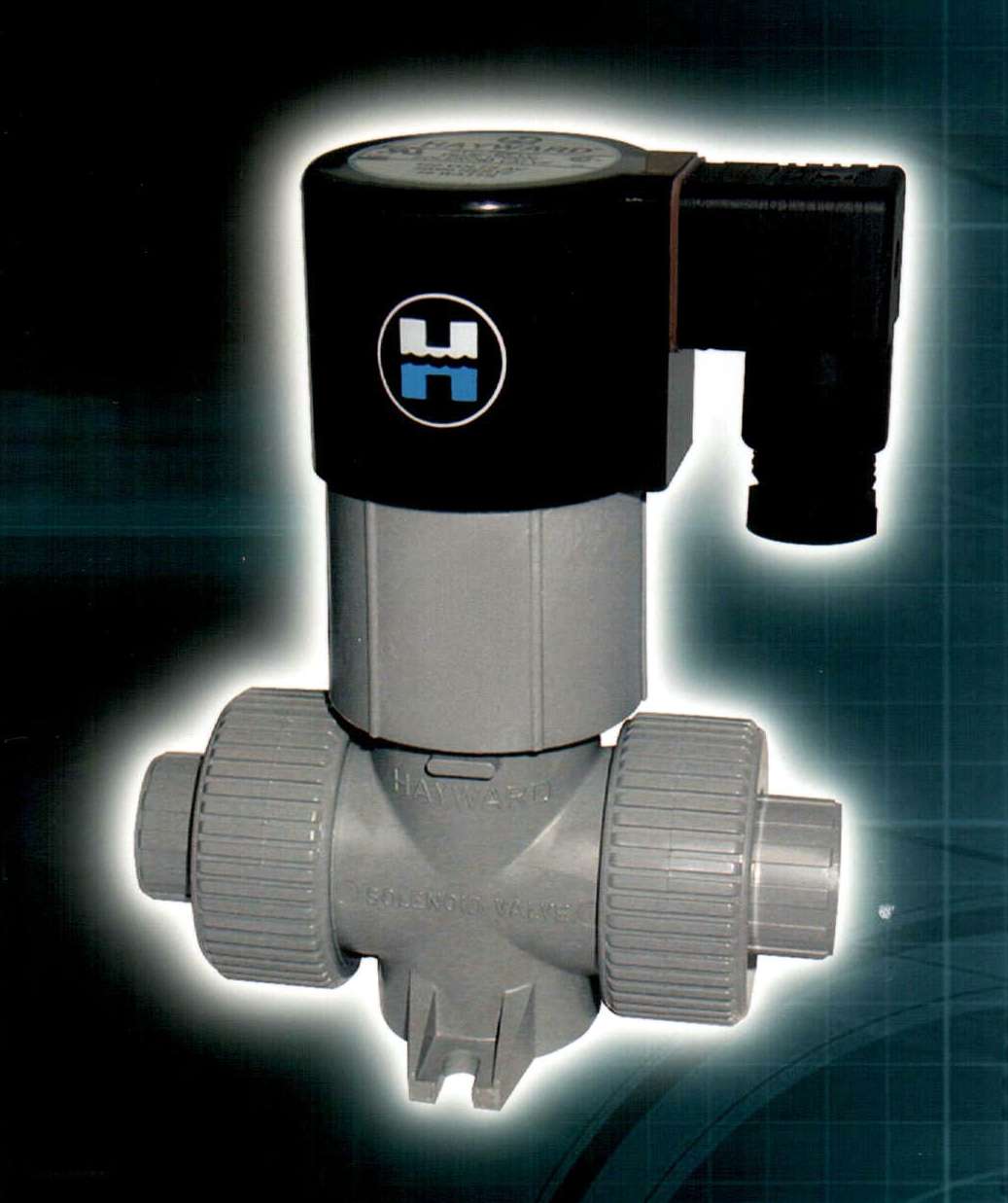

Oct 16, 2002 Corrosion-resistant, all plastic valve can be left in open position indefinitely or cycled continuously with no damage to coil. Coil rectifies ac current to dc current, allowing it to be rated for 100% continuous duty applications. Molded polyester housing, resistant to harsh corrosive environments, encapsulates coil assembly and electronics. Valve is offered in sizes for 1/4 to 1 in. pipelines, in PVC or CPVC construction, and with choice of Viton® or EPDM seals.

Flowline Inc.    Los Alamitos, CA 90720

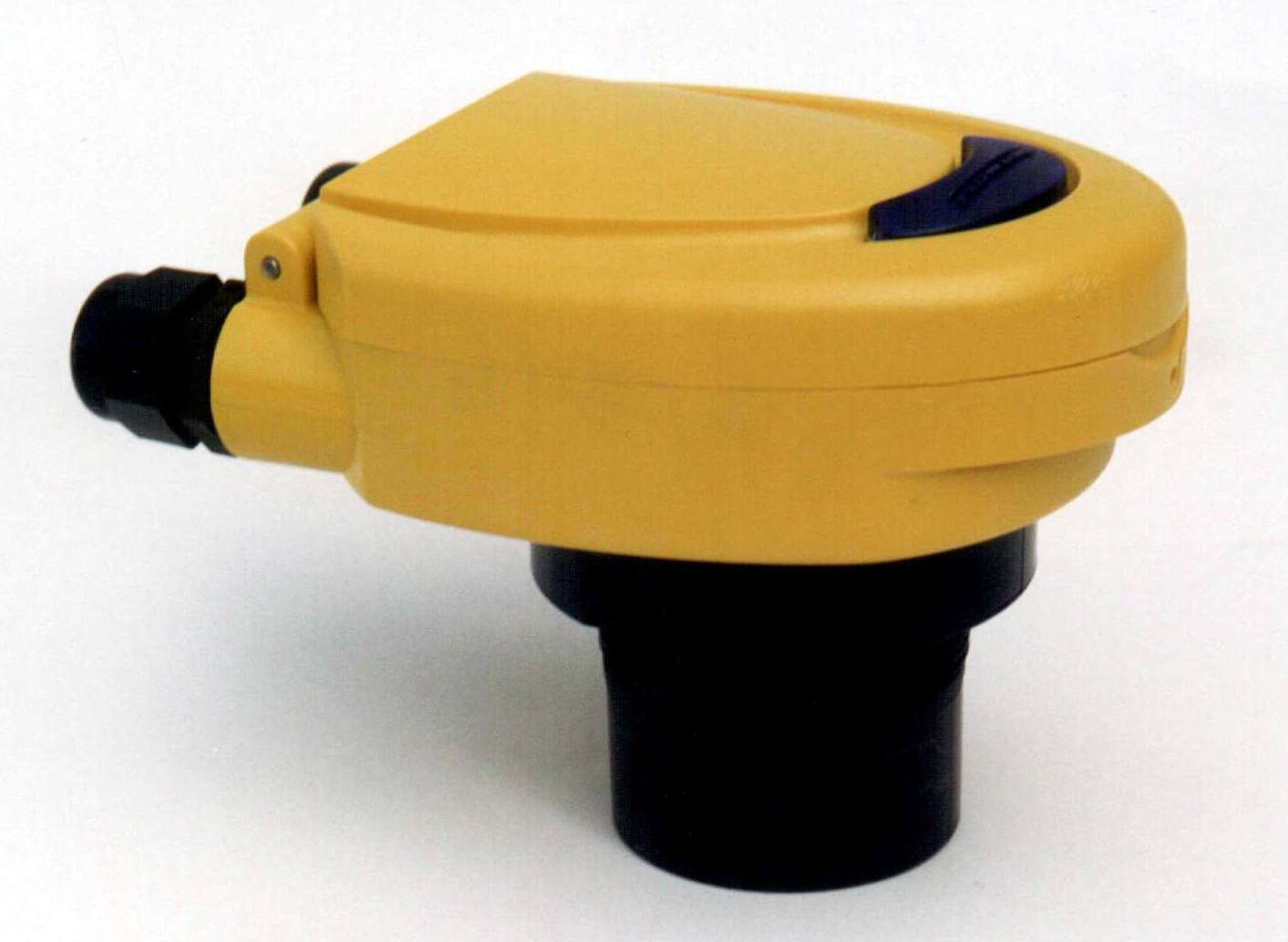

Oct 16, 2002 Series LU72-74 Ultrasonic Echo Switch, for corrosive slurries and waste liquids, provides non-contact level detection up to 10 ft in standard 1 in. mount. Optional 2 in. mount version offers measurement spans up to 25 or 40 ft. Both are equipped with 3 SPDT relays and 1 to 6 setpoints. PC/ABS enclosure is rated NEMA 4x (IP65) with Kynar® transducer. Easy-Calâ„¢ pushbutton calibration with non-volatile memory is provided for all user setpoints.

Tel-Tru Mfg. Co., Inc.    Rochester, NY 14605

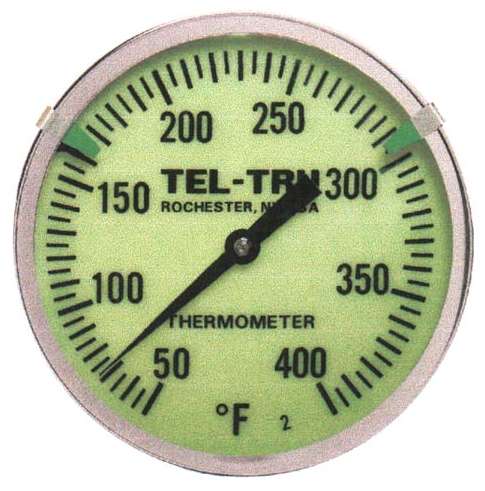

Oct 16, 2002 Glow Dial and Reflective Bimetal Thermometers are available in 5 in. adjustable-angle or back-connect models. Luminescent dials have reflective pointers and 2 reflective clips that snap onto dial rims. Minimum and maximum limits can be indicated, allowing on-the-spot customization. Viewable in daylight or at night, thermometers allow users to check if processes are operating within designated safe zones.

ARO - Ingersoll-Rand Fluid Products    Bryan, OH 43506
Oct 16, 2002 With wetted parts constructed of 100% natural, pigment-free PVDF or Polypropylene, ARO 1" (fluid ports) natural diaphragm pump handles fluids requiring contaminant-free processing. Pump resists contamination, chemical reactions, temperature, and corrosion. Design incorporates stall-free, lube-free air motor design and ice-free operation. Pump capacity is rated at 47 gpm (max) with operating pressure of 120 psi (max).

CRC Industries, Inc.    Warminster, PA 18974

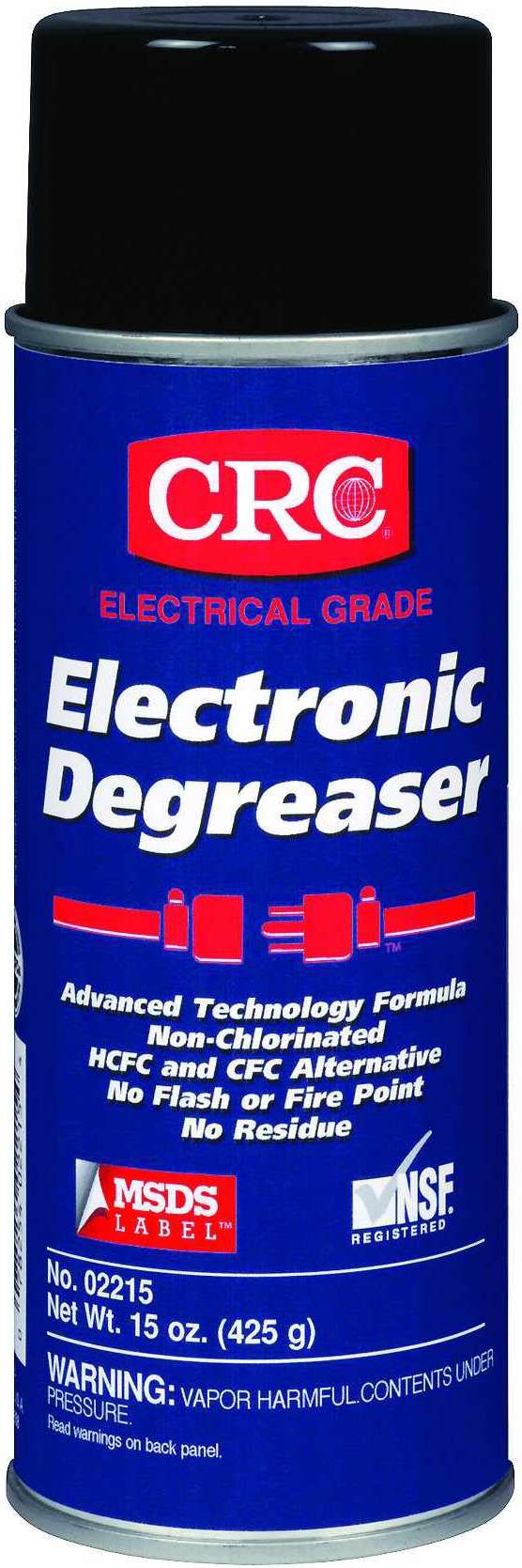

Oct 16, 2002 Electronic Degreaser utilizes COzolâ„¢ technology. Non-chlorinated, non-conductive, non-corrosive, and non-staining, product has no flash point, and is offered as alternative to HCFC 141b and traditional chlorinate products such as perc and TCE. CO₂ propellant means no condensation residue. It is available in 16 oz aerosol containers as well as 1 gal bottles, 5 gal pails, and 55 gal drums.

Thomas & Betts Corp.    Memphis, TN 38125

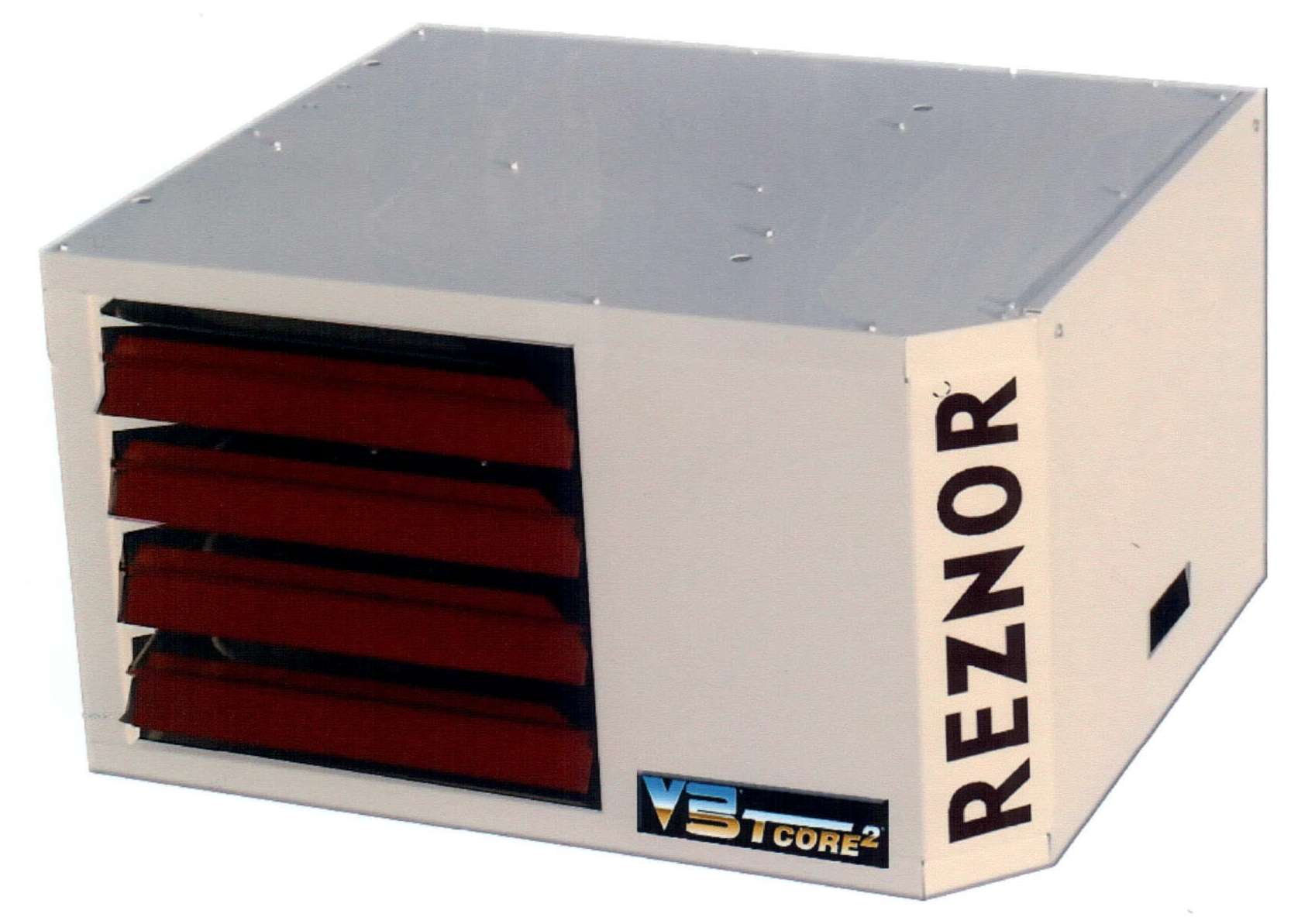

Oct 16, 2002 Reznor? V3? gas-fired suspended unit heaters are available with 2 methods of air delivery: Axial Propeller Fans and High Air Throw Centrifugal Blowers. Full series is offered in 14 sizes ranging from 30,000?400,000 BTUH gas input. Operation is controlled through integrated circuit board with LED diagnostic indicator lights. Propeller Units in sizes 30-125 are approved for residential use. All sizes and styles are CSA approved for commercial and industrial installation.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466

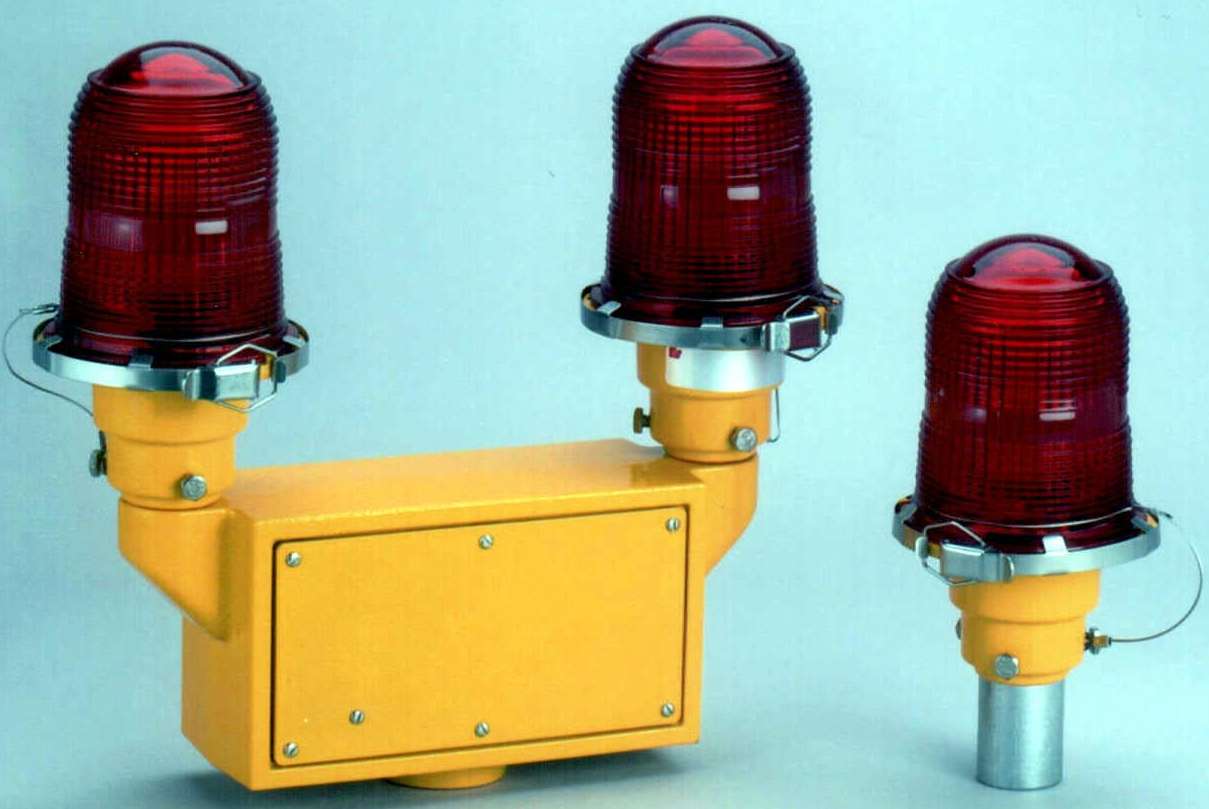

Oct 16, 2002 Available in single- or double-light configuration, steady-burning Red Aviation Obstruction Lights are designed to warn pilots flying at night about obstructions such as antennas, water towers, smokestacks, skyscrapers, and airport perimeter fencing. A 116-Watt lamp rated for 8000 hr and photoelectric cells rated for over 5000 on/off operations are installed within corrosion-protected die-cast aluminum housing with wiring enclosure for mounting on 1 in. NPT pipe.

Strain Measurement Devices, Inc. (SMD)    Meriden, CT 06450 7152

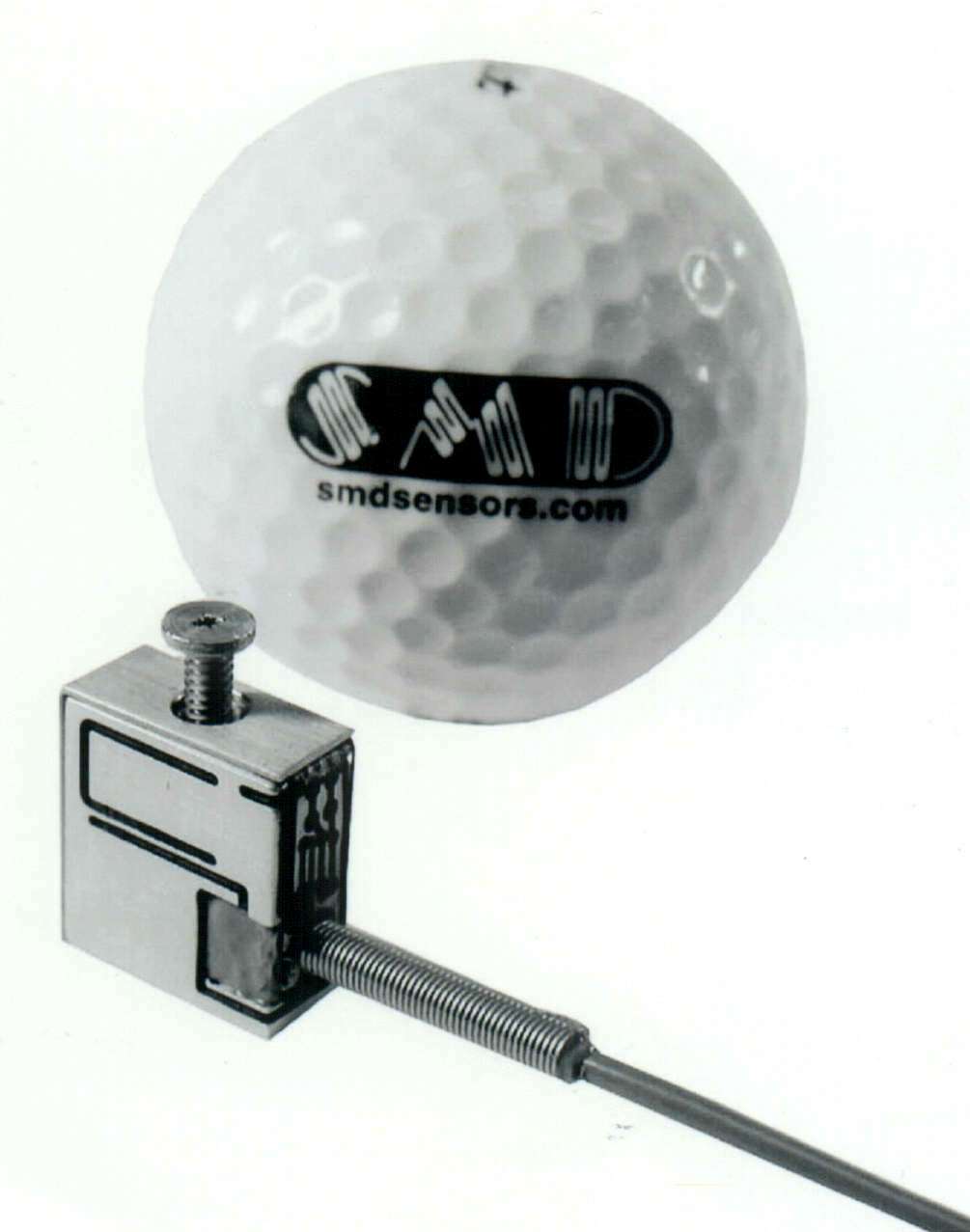

Oct 16, 2002 Universal, S-type S610 Micro-S Cell has stainless steel sensor and is intended for operations requiring very small size and/or low mass. Unit includes flat compression mode fitting for compression loading and #4-40 threaded holes for tension loading. Strain relief for cable is provided by stainless steel spring. Thin-film strain gauge technology provides less than 1% per year drift, as well as low power consumption (5,000 W bridge).

Love Controls    Michigan City, IN 46361

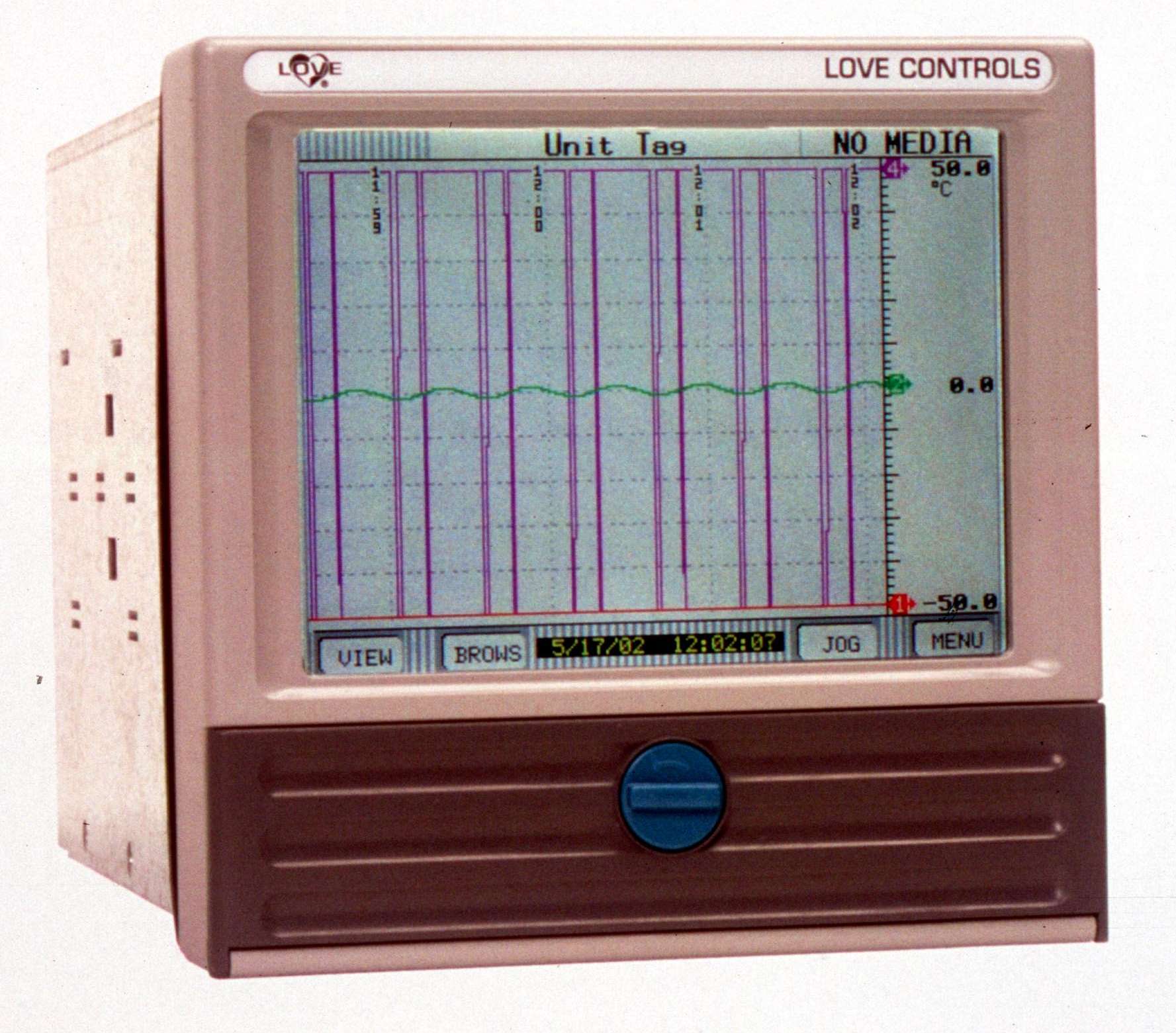

Oct 16, 2002 Model LVR10 offers 5 in. diagonal monochrome display and optional 5.6 in. diagonal color TFT display. Display provides line charts in horizontal or vertical line formats, bar-graph format, and as discrete, digital indicators. Recorder, with 2 isolated, universal inputs, expands to 6 channels with optional cards. Adjustable scan rates allow measurements to be taken every 125 msec to every 10 min. Data can be downloaded to standard floppy drive, which stores up to 700,000 readings.

Hoffman    Anoka, MN 55303 7504
Oct 16, 2002 Stainless steel Watershedâ„¢ Enclosures help prevent accumulation of contaminants. Top is sloped at 20° to prohibit foreign items from resting on enclosure. Lift-off doors are sloped, top and bottom, to promote runoff. UL 4X-rated line includes 18 two-door, freestanding models in disconnect and non-disconnect configurations, as well as 18 wall-mount models with self-grounding, stainless steel, ¼-turn latches and double seal. All are NSF certified.

AGR International, Inc.    Butler, PA 16001-0149
Oct 16, 2002 Gawis with AutoFeedâ„¢ (Gawis AFâ„¢) provides repeatable measurement of variables that affect container performance. Non-contact, automated laboratory device performs container and preform quality assurance testing. Gawis AF permits multiple laboratory tests to be performed in 1 operation and provides hands-free testing of up to 20 containers or 72 preforms. Unit includes automatic bottle-feeding system, infrared thickness measurement system, and automatic centering device.

Exxon Mobil Corp.    Irving, TX 75039 2298
Oct 16, 2002 Mobil Pegasus 905 offers extended drain capability and wear protection without sacrificing cleanliness. It reduces heat exchanger deposits in natural gas gathering, transmission, cogeneration, and combined heat and power applications. Oil consists of additive system with heavy, neutral basestocks and exhibits antioxidant characteristics, viscosity control, and thermal stability.

Utex Scientific Instruments, Inc.    Mississauga, ON L5L1A3  Canada
Oct 16, 2002 Data aquisition Winspect v6.0 offers suite of signal and image processors that users can cascade together to form more complex processors. No programming is required, and if needed, users can write their own formulas. Processors are suitable for noise reduction, advanced feature extraction, and for reducing amount of data collected. Winspect includes updated user interface with strip charts, alarms, and annotations that calculate statistics automatically.

Omega Engineering, Inc.    Stamford, CT 06907
Oct 16, 2002 Series TX1500 features 2-wire operation power, which is obtained directly from 4 to 20 mA loop, with no need for separate power input. Isolation to 1500 V rms eliminates possibility of electrical ground loops between signal source and receiver. Overvoltage of 120 Vac may be applied across input or output leads for 1 min in all models with voltage or thermocouple input. Reverse polarity of 400 Vp may be applied across output leads indefinitely.

FasTest, Inc.    Roseville, MN 55113-1317
Oct 16, 2002 Lightning Dry Leak Detector performs pressure decay leak testing sensing pressure changes to 0.00005 psi. It provides self-diagnostic messages and setup procedures, and can be integrated into fully automated system. Test results can be downloaded on computer or PDA for analysis. Intuitive prompts on LED display make setting parameters easy. Automatic calibration system correlates pressure loss to internal NIST traceable leak orifice.

Teklynx    Whitefish Bay, WI 53217
Oct 16, 2002 LABEL MATRIX® v7.0 enables users to design custom shapes from shape templates using Windows MetaFile (.WMF) formats. It supports PLANET Code barcode-symbology standard for US Postal Service's CONFIRM online mail-tracking system. Database module reads and writes dBase III and IV files, and can open and modify other database types using Open Data Base Connectivity drivers. LABEL MATRIX can require double entry verification of keyboard input at print time to validate correct entries.

Cirronet Inc.    Norcross, GA 30093
Oct 15, 2002 Models SEM5811 and SEM5811X interconnect Ethernet-based devices in factory floor/industrial applications. They operate in unlicensed 5.8 GHz band to avoid interference issues in 2.4 GHz or 900 MHz band. SEM5811 units offer over-the-air data rate of up to 1.23 Mbps. SEMs operate in point-to-point and point-to-multipoint configurations and utilize frequency hopping spread spectrum (FHSS) technology and 24-bit CRC and ARQ schemes.

SynQor    Boxborough, MA 01719 1316
Oct 15, 2002 PowerQor® Mega series eighth-brick sized isolated dc/dc converter delivers up to 15 A total output current at 3.3 V and below and 50 W at 5 V and above, without heatsink. The EML series has 48 V nominal input (35-75 V range) and meets input voltage transient requirements up to 100 V for 100 msec. Unit measures 0.9 x 2.3 x 0.37 in., occupies 60% of board space of standard quarter-brick, and can deliver full power up to 70°C with no airflow (2.5V and below).

Komatsu America International Company    Vernon Hills, IL 60061
Oct 15, 2002 Designed primarily for work in confined zones, the 86 hp, 30,865 lb PC138USLC-2 near-zero-tail-swing excavator features patented HydrauMindâ„¢ hydraulic control system, ergonomically designed cab, and three working modes. Powered by turbocharged Komatsu S4D102E-1 four cylinder, water-cooled engine, the PC138USLC-2 features a 20,940 lb bucket digging force, and 13,890 lb arm force.
