National Instruments Corp.    Austin, TX 78759-3504
Oct 17, 2002 DAQCard-6036E data acquisition (DAQ) device offers 16-bit analog input on 16 single-ended or 8 differential channels, two 16-bit analog output channels, 8 digital I/O lines, and two 24-bit counter/timers. It digitizes input voltages at rates up to 200 kSamples/s. Using programmable function inputs (PFI), engineers can synchronize device with multiple data acquisition and control devices. Unit also includes on-board temperature sensor and temperature drift protection circuitry.

Spang Power Electronics    Mentor, OH 44060-1855

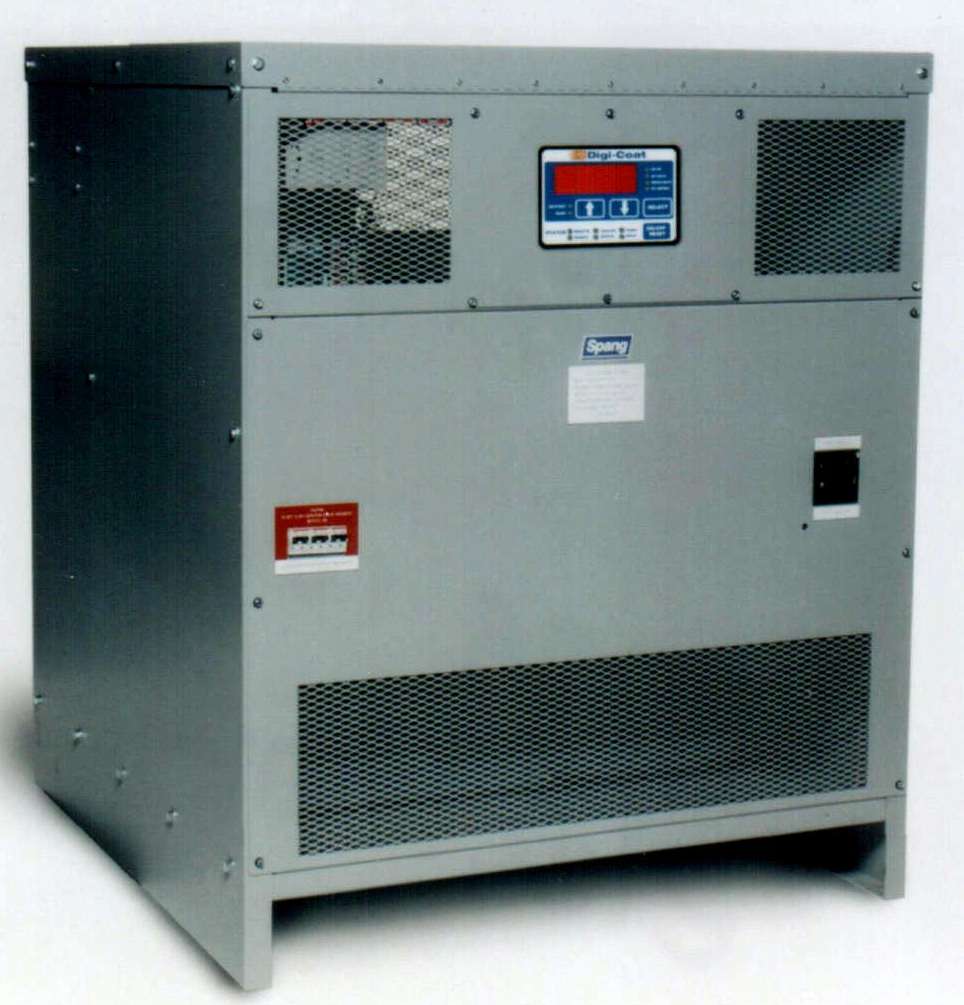

Oct 17, 2002 Built on 6-pulse technology, Digi-Coat network-connectable rectifier outputs 0 to 400 Vdc of power and combines advantages of custom-built system with economy of off-the-shelf unit. Unit offers on-board digital display and remote communications. Additional features include 5% RMS ripple; 1% regulation; voltage, current, and power monitoring; programmable ramp to paint voltages; and multiple paint and hold voltages.

Victaulic    Easton, PA 18040

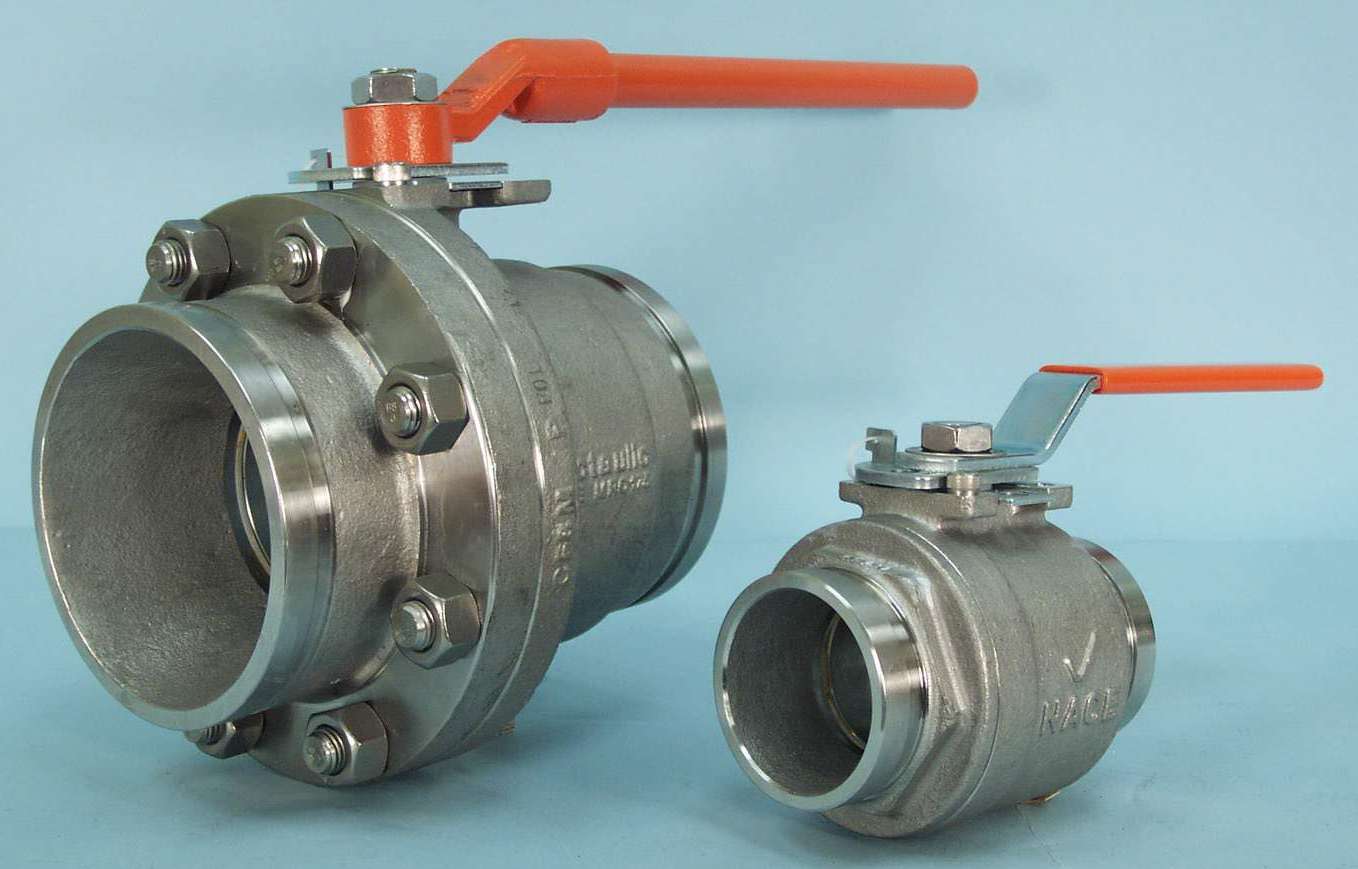

Oct 17, 2002 Series 726 (ductile iron) and Series 726S (CF8M stainless steel) 2-piece, end-entry valves have floating balls for lower torque requirements. NACE compliant, valves have maximum working pressures rated to 1,000 psi for 1½ to 3 in. and 800 psi for 4 and 6 in. sizes. Chrome-plated carbon steel ball and stem are connected to virgin TFE seat (Series 726); 316 stainless stem and ball are standard for Series 726S. Valves come with ISO mounting holes.

Stacoswitch    Costa Mesa, CA 92626

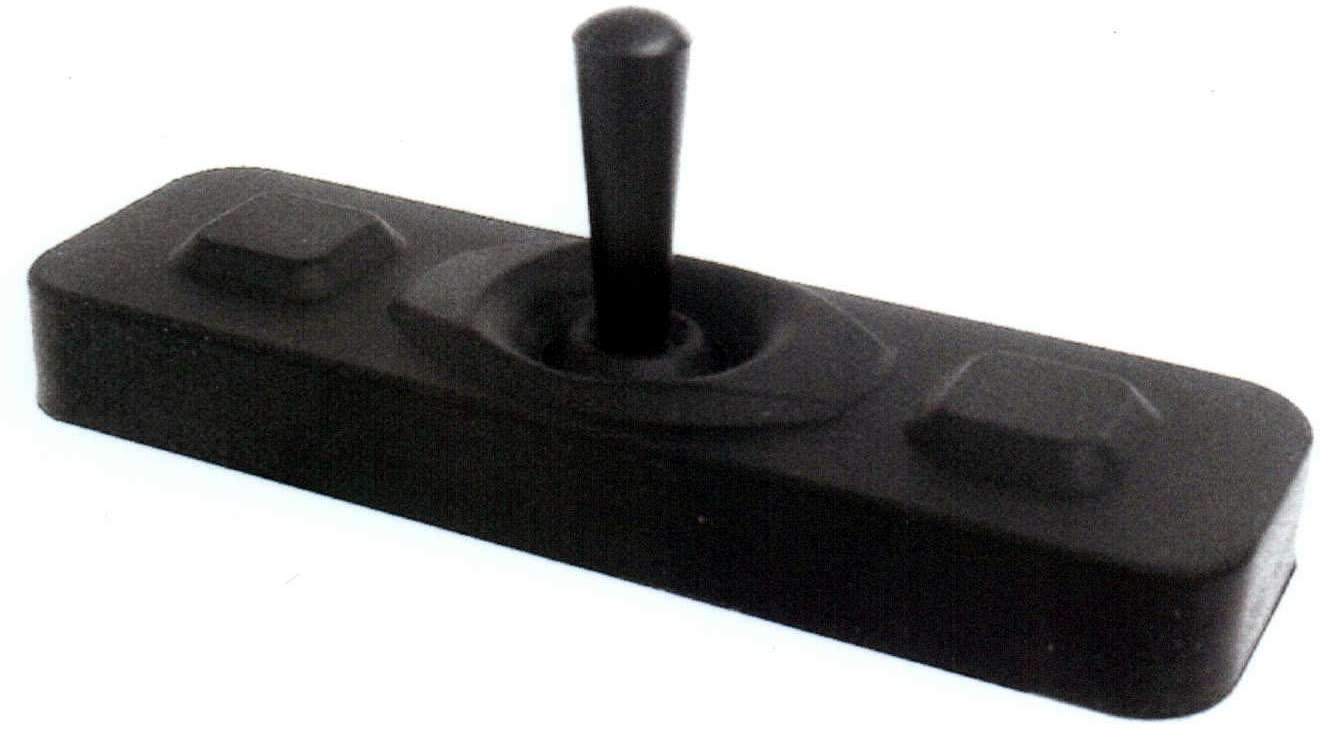

Oct 17, 2002 Model M723, part of company's MET (Molded Elastomer Technology) products, is NEMA-4 sealed for clean room, medical, and industrial applications. Made of fungus-inert elastomer, product provides green LEDs for backlighting. It measures 3.69 x 1.21 x 1.43 in. and can be panel mounted in horizontal or vertical position. Offered with long or short handle, joystick is available in military version with shielding for EMI/RFI protection.

Seco-Larm    Irvine, CA 92606-5012

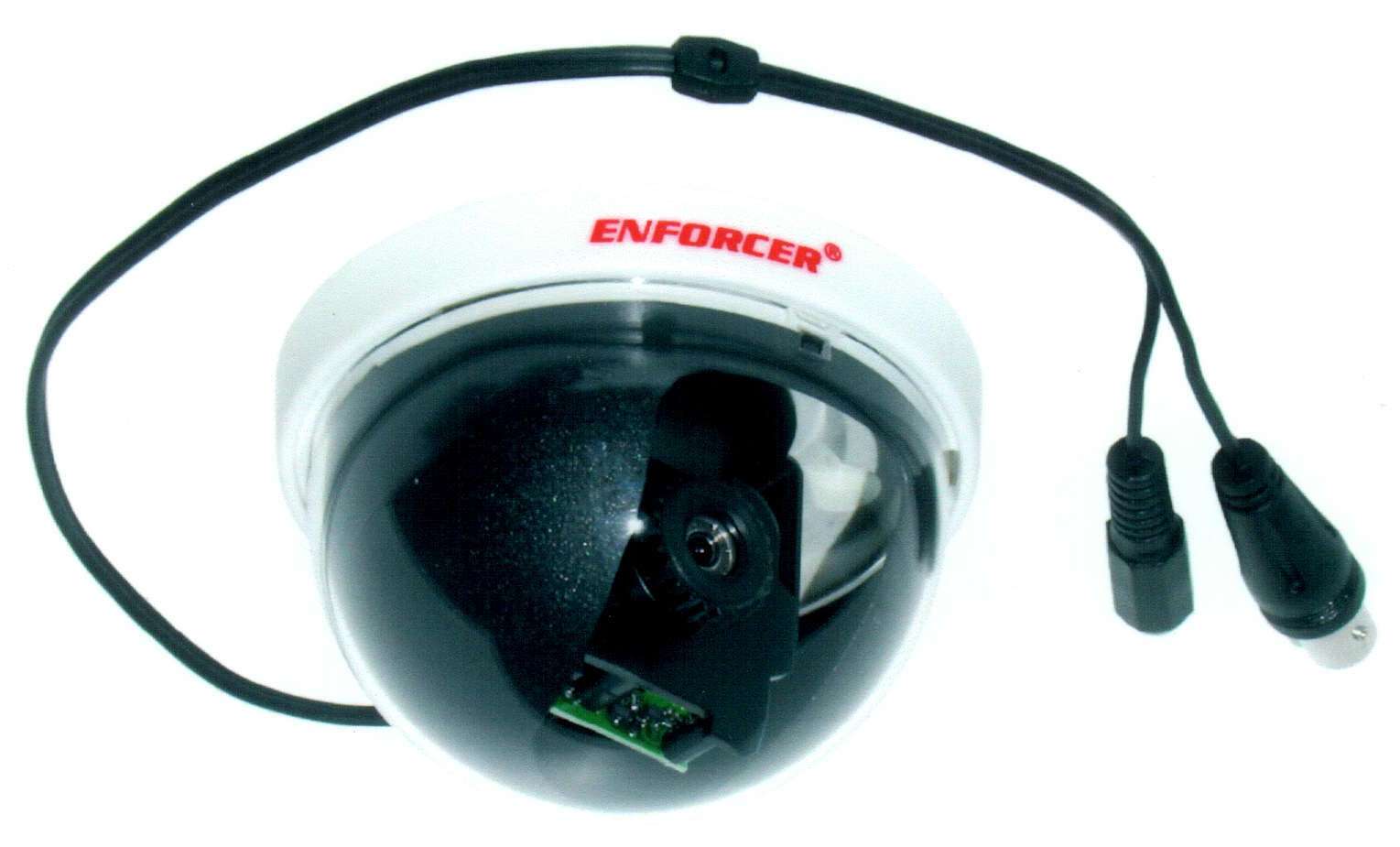

Oct 17, 2002 Model EV-1223B12, with Sharp 1/3 in. CCD element, provides 400 TV lines at resolution of 512 x 492 pixels for EIA-standard video systems. Model EV-1253B12, based on CCIR standards, has resolution of 500 x 582 pixels. Color Model EV-1224C12, with Panasonic 1/4 in. CCD element, offers 330 TV lines at resolution of 510 x 492 pixels for NTSC video systems. Model EV-1264C12, aimed at PAL-standard systems, has 500 x 582 pixel resolution. All models include F3.6 mm lens and have diameter of 3.5 in.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089
Oct 17, 2002 Model DU-SOM mechanical forklift attachment handles 55 gal drums in vertical, horizontal, and transitional positions. User can pick drum from horizontal rack or storage application, remove it safely, and manipulate drum to vertical position (or vice-versa), with no man-handling and without operator leaving seat of forklift. With 850 lb working capacity and all steel construction, unit withstands constant use.

Nemal Electronics International, Inc.    North Miami, FL 33161

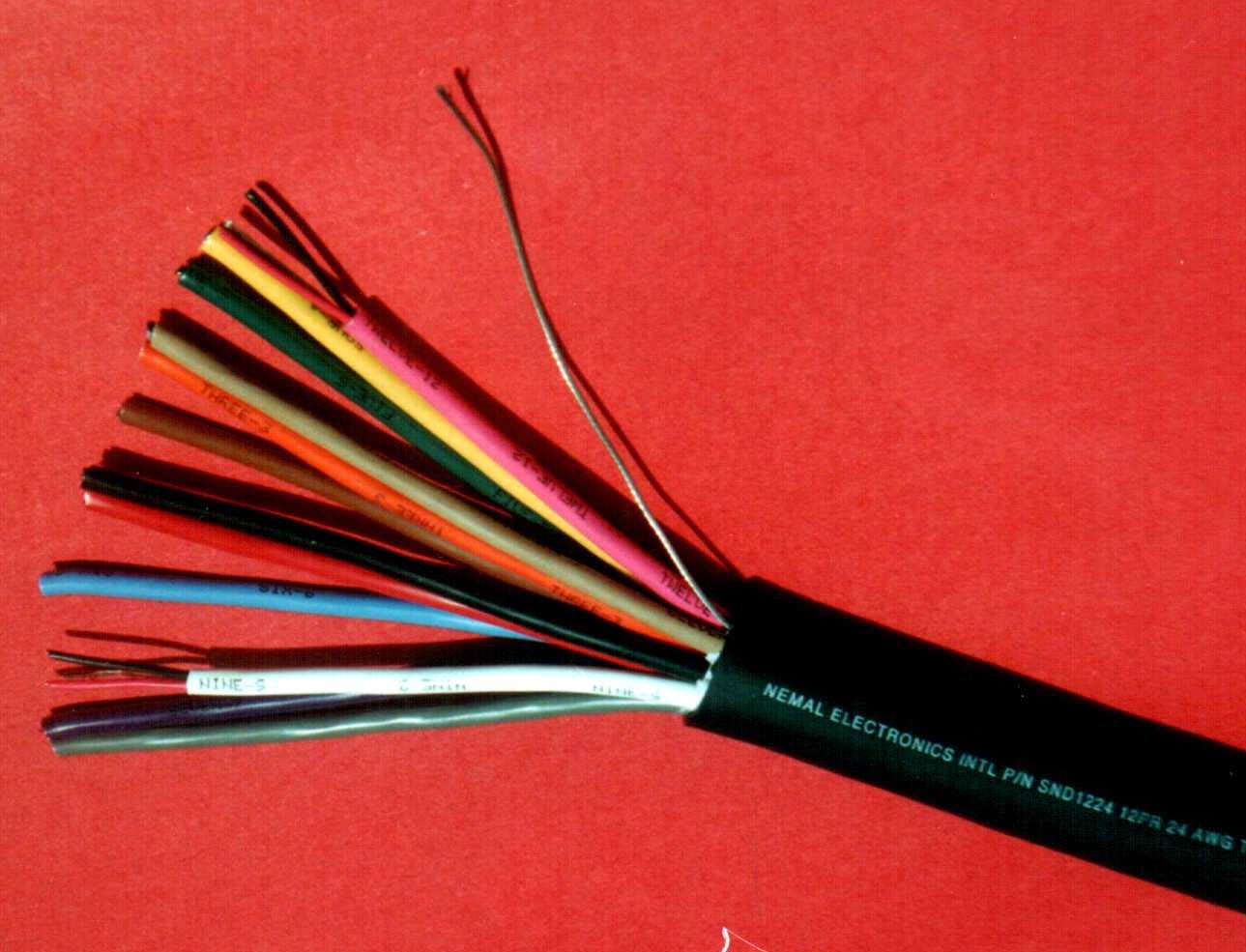

Oct 17, 2002 Digital Audio Snake Cables are 110 ohm cables available in constructions containing 2 to 24 pairs, and are UL-CM approved. Part No. SND2424 consists of 24 individually shielded and jacketed pairs with overall foil shield and jacket. It features 24 AWG conductors, foam polyethylene insulation, outer diameter of 1.20 in., and temperature rating of -30 to +75°C. Cables are suitable for broadcast and other high end audio applications.

Opex Corporation    Moorestown, NJ 08057
Oct 17, 2002 Routing and Transit with Check Truncation Enhancement, for Image Export Module (IEM) on System 150 and MPE 7.5, allows transactions to be sorted based upon any combination of routing and transit bank number, including check account number. It sorts truncatable transactions and non-truncatable transactions into separate pockets. Software supports up to 8 different check classifications, which are then sorted into different batches and groups based on check type.

RAND Worldwide    Mississauga, ON L4W 5B8
Oct 17, 2002 IMAGINiT Productivity Pack for Inventor embeds Mechanical Physics, Theory, and Calculations into wizards that enables users to automatically create mechanically correct models by entering engineering or geometric data without requiring extensive CAD drafting abilities. It can also be used by accomplished engineers to solve extremely complex and advanced mechanical engineering, design, and drafting problems.

Datacolor    Lawrenceville, NJ 08648
Oct 17, 2002 Mercury 3000 Color Measurement System combines accuracy of bench-top instrument with easy navigation and touch screen technology of PDA. Users can select different samples and color evaluation output without changing screens. Unit features UV Calibration to correctly measure whiteness of samples containing fluorescent whitening agents such as textiles, paper, and plastic. It also provides calculation of Ganz and CIE Whiteness Indices.

Informative Graphics Corp.    Phoenix, AZ 85022
Oct 17, 2002 Drawbridge Central is designed to build self-managing Web site for document and/or drawing content and includes ready-to-use templates for presentation layout. It allows managers and team members to access drawings and documents through browser without need for plug-ins or native applications. DrawBridge Central can also be incorporated into existing organizational Web sites to provide downstream access to CAD and document content.

Intermec Technologies    Everett, WA 98203
Oct 17, 2002 Java-based MobileLAN(TM) manager v2.0 allows IT managers to map devices, track, manage, and ensure availability of access points and devices within wireless networks. Intuitive and scalable software includes real-time event-driven monitoring of changes and events within network. Polling provides timely health and existence information for single access point installations, and Station Refresh graphically identifies those stations that are currently operating or missing in action.

Intermec Technologies    Everett, WA 98203
Oct 17, 2002 Intellitag® Fixed Reader (ITRF) is designed for integration with existing wireless LANs. RF power output and duty cycle for antenna ports are programmable. Unit includes RS232 and RS422 serial ports for connection with PLCs. It is offered in 915 and 2450 MHz frequency bands and is packaged in extruded aluminum enclosure with power supply. Reader is suitable for RFID standards-compliant systems that require read range up to 3 m, multi-tag sort, and read/write capabilities.

Netzsch, Inc.    Exton, PA 19341
Oct 17, 2002 Ideal for skid/trailer mobile applications, compact TORNADO® Rotary Lobe Pumps offer high efficiency pumping that ensures continuous fluid movement throughout the pump. Available in capacities up to 3,100 gpm and pressures up to 170 psi, additional features include: four rotary lobe designs, intermittent dry run capabilities, positive displacement metered flow, and low life cycle costs. Used in chemical, waste water, and food industries.

Rockwell Automation    Milwaukee, WI 53204
Oct 17, 2002 Rockwell Software RSView Supervisory Edition(TM) version 2.10 human machine interface (HMI) software helps companies meet regulatory compliance requirements by meeting and maintaining Federal requirements for 21 CFR Part 11 and similar regulations. Software supports key requirements for compliance including authentication, electronic signatures, auditing, and archiving. Support for Microsoft® Windows® XP operating system is included.

SolidWorks Corp.    Concord, MA 01742
Oct 17, 2002 COSMOSWorksâ„¢ 2003, COSMOSFloWorksâ„¢ 2003, and COSMOSMotionâ„¢ 2003, along with SolidWorks® 2003 3D CAD software, allow designers to analyze moving parts, fluid flow, and overall structural integrity. Features include automatic solution convergence using H-Adaptive technology; failure diagnostic tool, automatic loop, and controls for meshing parts; and capability to convert COSMOSWorks results into eDrawings files. Batch processing multiple studies allows for simultaneous what-if comparisons.

Primera Technology, Inc.    Plymouth, MN 55447-4446
Oct 17, 2002 Composer(TM), ComposerPlus, ComposerPro, and ComposerMAX Optical Disc Duplicators include Lucky Goldstar's 48x CD-R drives. Models complete one full burn/print cycle in less than 3 minutes per full 650 MB disc. Speed of burn/print cycle increases when less data is stored on CD-R. Suitable for businesses that duplicate/print their own CD-Rs or DVD-Rs, applications include music recording, software distribution, data archival, photography, and medical imaging.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Oct 17, 2002 Formulated for use in long-life industrial and severe-duty applications, ViperLube(TM) lubricants are composed of synthetic PAO (polyalphaolefin) base stocks. They offer mechanical and thermal stability; high load carrying capability; and resistance to rust, corrosion, and water. Lubricants consists of NLGI Grade 2/Severe Duty GC-LB Grease, 90w Gear Oil, and 10w Lightweight Oil, all of which are NSF HI rated for incidental food contact.

National Starch & Chemical Co.    Bridgewater, NJ 08807-6500
Oct 17, 2002 With 0/0 rating for flame propagation and smoke generation, PUR-FECT LOK® 34-196A, 100% solids adhesive has appearance of translucent solid. Moisture curing product provides immediate handling strength, deflection resistance, and ability to run cleanly at 250°F. Full cure occurs in 3 to 7 days. Application requires roll or slot coater adapted for reactive hot melt adhesives. Open time ranges from 3 to 7 minutes (depending on substrate thermal conductivity).

CMMS Data Group, Inc.    Chicago, IL 60660
Oct 17, 2002 MVP Projectâ„¢ XML-enabled software provides collaborative environment for project team, allowing all information, images, and documents to be shared amongst authorized users who have Internet access. As well as tracking time, MVP Project can track costs and compare cost to performance. Labor and cost summaries can be run for project monitoring or for executive-level reporting. User can sort, search, and scan interrelated data without draining server resources.
