Magnatech Limited Partnership    East Granby, CT 06026

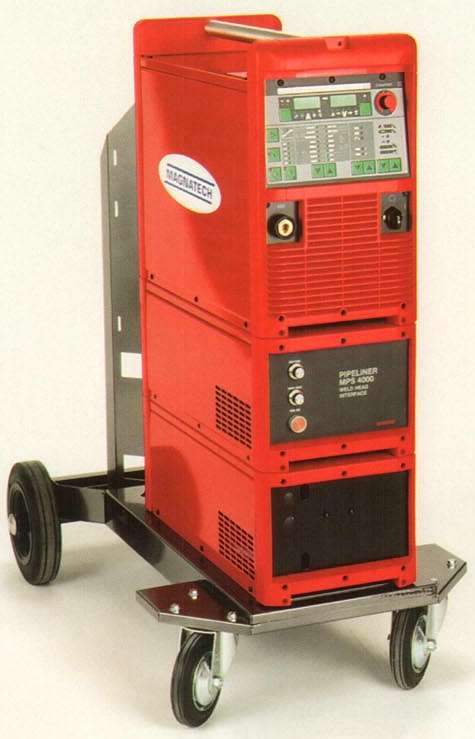

Oct 21, 2002 Model MPS-4000 microprocessor-based, portable inverter power source is designed for GMAW/FCAW process welding applications. Integral weld Head controller operates all Pipeliner weld Head models. Power source provides synergic control of electrode speed and power output. Factory-developed programs are stored for many combinations of alloy, electrode diameter, and shielding gas. Model MPS-4000 is rated IP23 for outdoor job site usage.

Parvus Corp.    Salt Lake City, UT 84115 2913

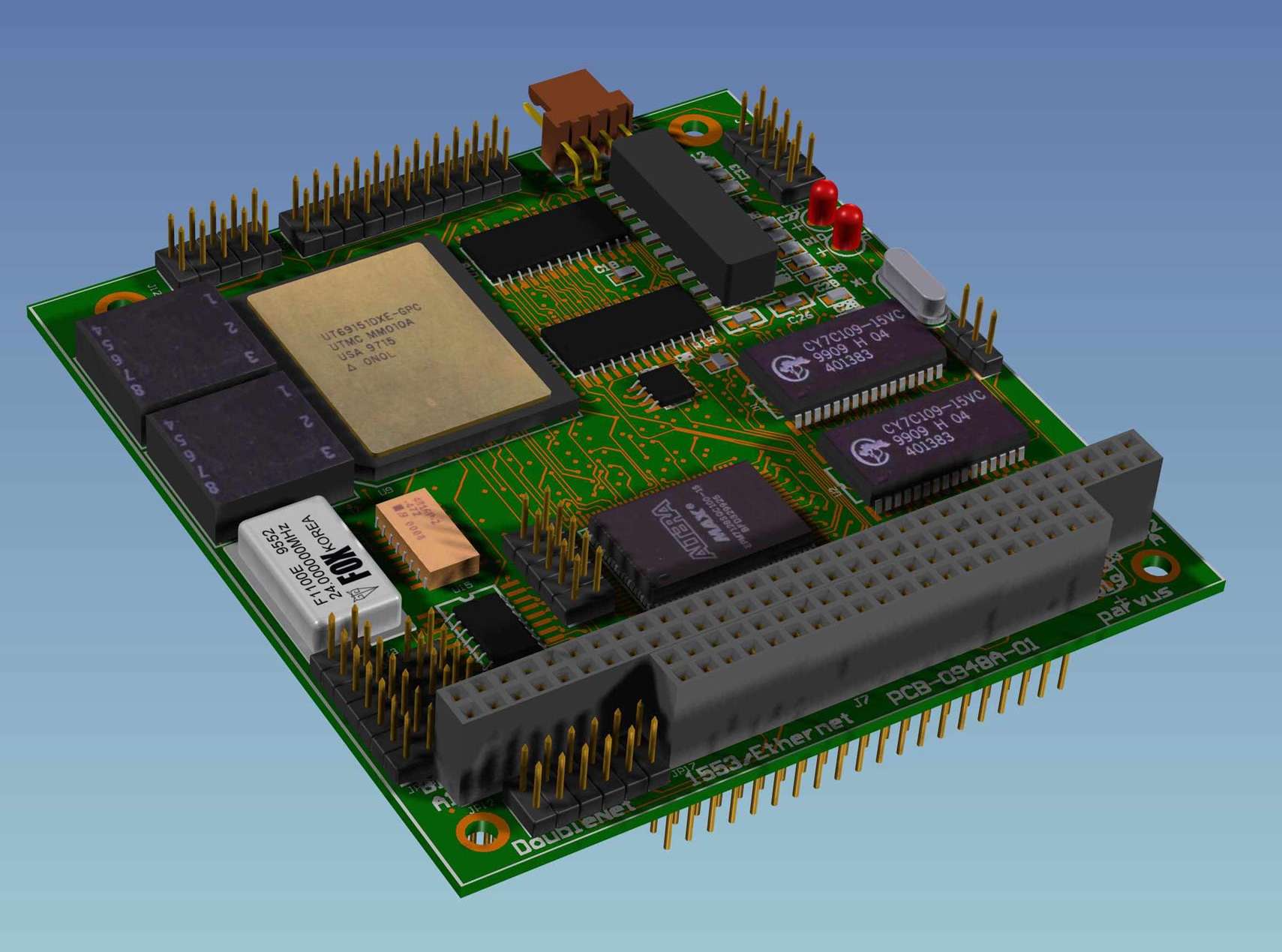

Oct 21, 2002 Model PRV-0950X-01 1553/Ethernet Interface Board utilizes MIL-STD-1553 support chip to operate as data bus controller, remote terminal, or bus monitor, and operates over -40 to +85°C. Four 16-bit register locations allow complete access to interface functions through PC/104 I/O space. Test routines enable access to memory and internal registers. Ethernet portion is fully NE2000 and NE2000-Plus compatible, is based on AT DP83905 chip, and includes 4-pin Molex connector for 10BaseT connections.

Royal Diversified Products    Warren, RI 02885
Oct 21, 2002 Ejector Sleeves are machined from H-13 hotwork die steel and ion nitrided to Rc 65-75 on inside and outside diameters for wear resistance. Precision ground with +.0005-0000 in. ID tolerance and OD tolerance of -/0003-0008 in., standard sleeves are available from 3 to 12 in. long with 3/32 to 3/4 in. IDs. Special Sleeves can be machined from 420 and 440 stainless, A10, S-7, and M-2 steel as well as H-13 hotwork die steel.

Western Industries, Inc.    Milwaukee, WI 53213
Oct 21, 2002 Models CP-10, CP-20, CP-500, and CP-60 have 1, 2, 5, and 6 gallon capacities, respectively. Containers have passed Child Resistant Closure testing protocol established by US Consumer Product Safety Commission. Spill-resistant containers are self-closing and self venting, and also include child-resistant feature. Ergonomic handle provides secure, comfortable grip even while wearing gloves.

Oskar Antipollution    Montreal, QC H1J 1H6

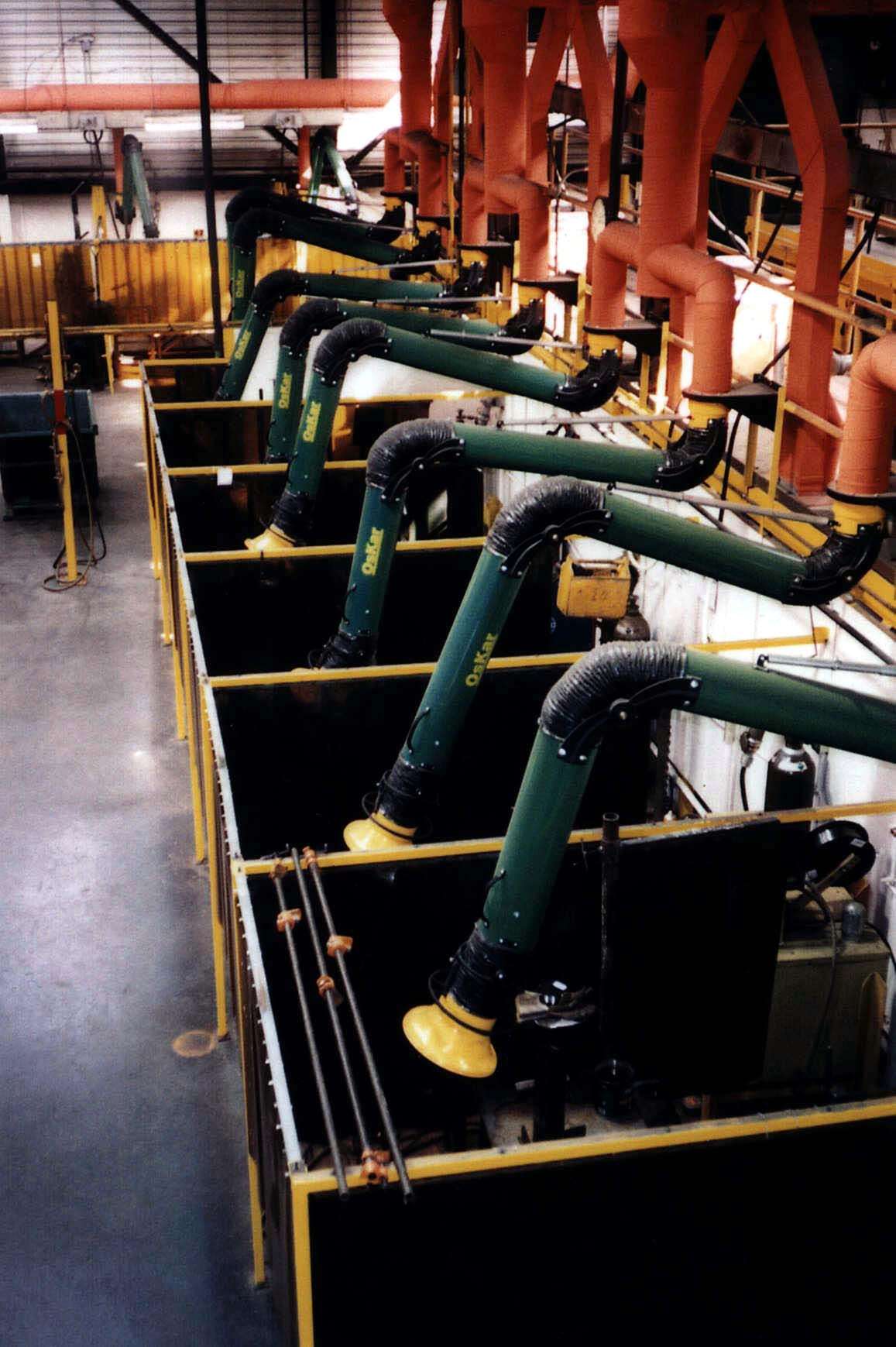

Oct 21, 2002 Standard or stainless steel fume extractor arms are offered in 4, 6, and 8 in. diameters. They provide non-corrosive, adjustable means to extract hazardous materials such as welding smoke, dusts, pharmaceutical dusts, and acidic or caustic chemicals. Fume arms offer acid resistance as well as washability. They have no encumbrances inside, which allows for clear and free movement of contaminated air and eliminates possibility of residue build up.

Thermadyne Industries, Inc.    St. Louis, MO 63017

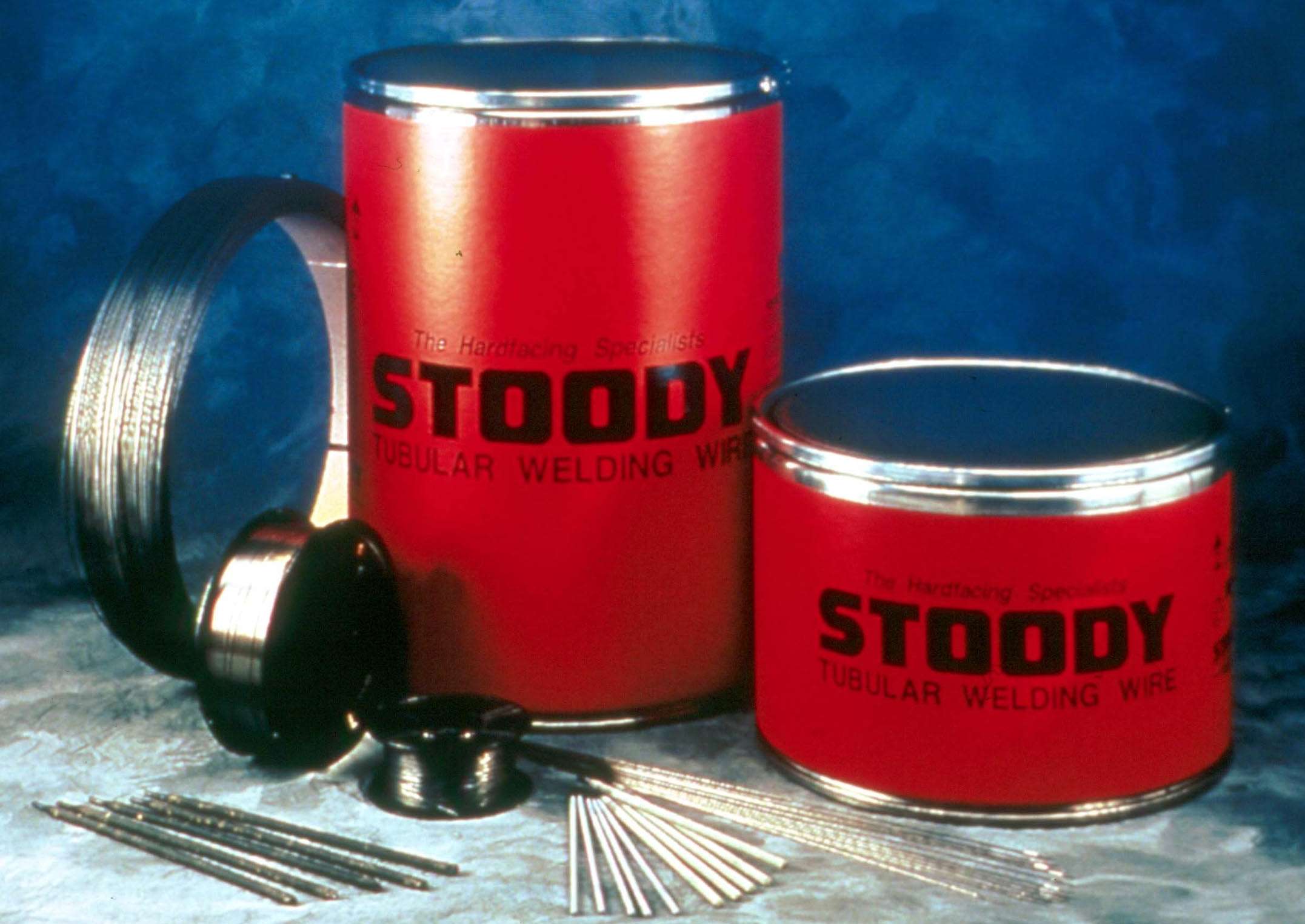

Oct 21, 2002 Low alloy steel Stoody® ThermalClad® Roll Build 3 produces deposit of unlimited thickness. Sizes include 3/32 in. diameter with amperage range of 300-400, voltage range of 25-29, and wire extension range from 1 to 1¼ in.; 1/8 in. diameter for 400-500 A, 26-30 V, with wire extension of 1¼ to 1½ in.; and 5/32 in. diameter for 450-600 A, 28-32 V, with wire extension of 1¼ to 1½ in. All can be welded with company's R-20 flux. Applications include roll build up and shaft rebuilding.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 21, 2002 WinHMI incorporates HTML, PDF, ActiveX, or VB scripts so manufacturer-specific displays can be integrated. Users can monitor machine operation using standard web browser, and machine faults are routable to E-mail or cell phone text messaging. IndraView 16 (12 in. display) and IndrawView 40 (15 in. display) feature Intel Pentium processors. Designed to work with System200, HMI units feature integral UPS and shock-mounted hard drive.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

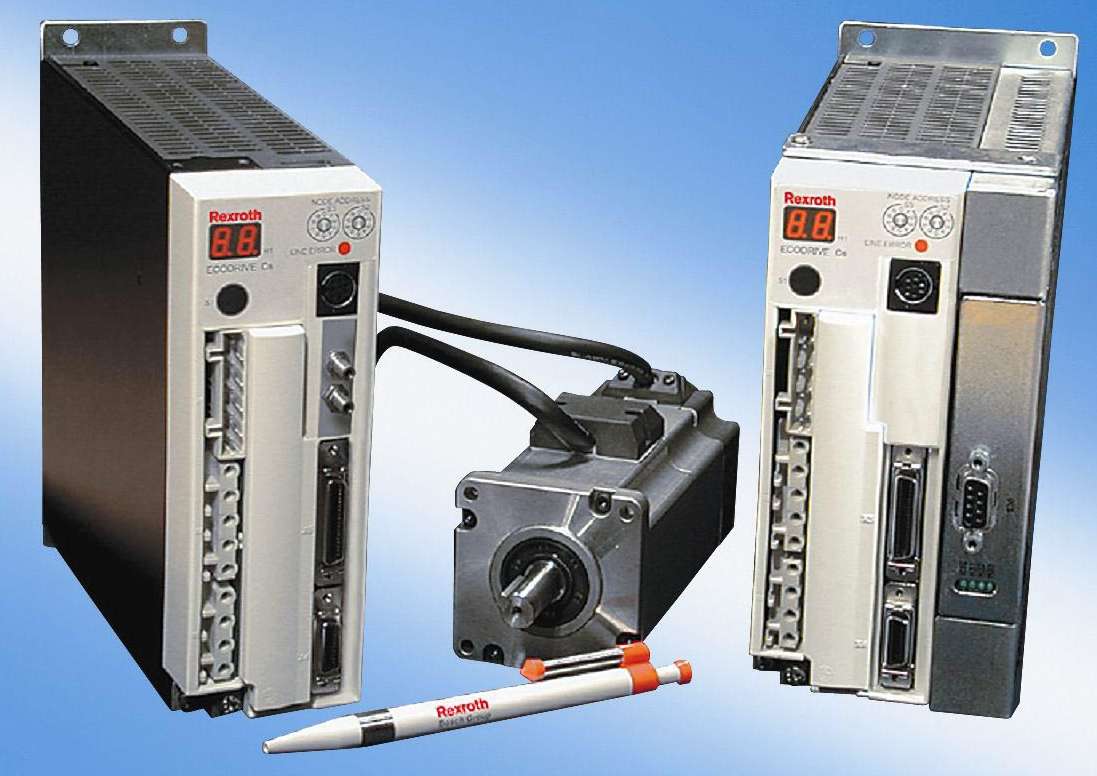

Oct 21, 2002 ECODRIVE Cs series system-compatible AC servo drive is offered in 100–750 W power range with 230 Vac, 1- or 3-phase power input. Unit measures 2.17 x 7.17 x 6.69 in. (W x H x D). Motor includes options for built-in holding brake, keyed output shaft, and absolute feedback. Available with various open bus interfaces, ECODRIVE Cs incorporates firmware that embodies process-oriented technologies including Shaftless-Driven Electronic gearing, cam tables, and fast probe analysis.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

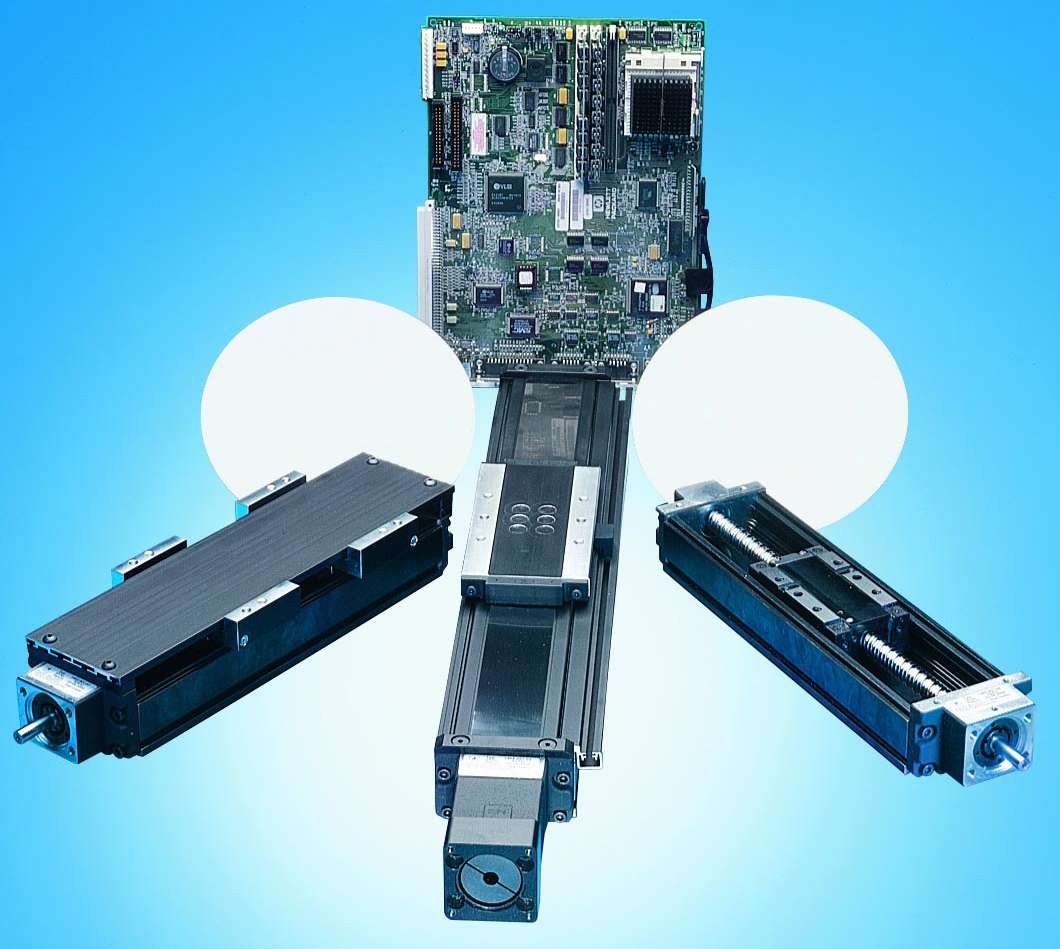

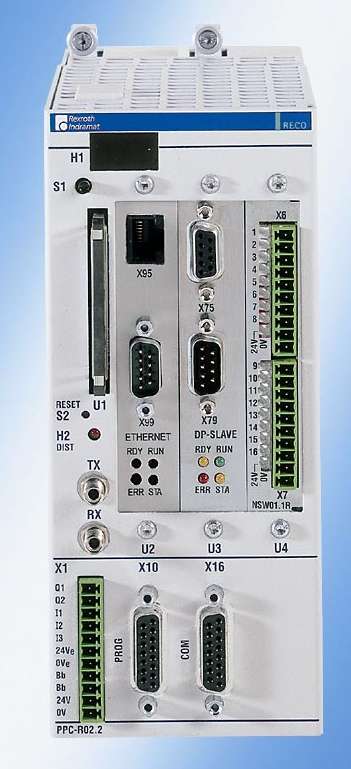

Oct 21, 2002 With modular system concept, open control structure, and internationally standardized interfaces, VisualMotion provides solutions for automation architectures. Intelligent drive system and servo drives allow product and process changes to be made electronically. Modular Windows-based control software synchronizes up to 32 servo axes, communicating via SERCOS, Ethernet TCP/IP, PROFIBUS-DP, DeviceNet, INTERBUS, ControlNet, and RS232/485 communication interfaces.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 21, 2002 Type PSK linear module, suitable for semiconductor and life science industries, uses sealing strip to prevent contamination in sensitive environments. Extruded steel base with integral ball rail guide way enables PSK Precision Modules to achieve positioning repeatability of 0.005 mm with payloads up to 44,760 N at speeds up to 1.6 m/sec. Interchangeable with other modules, PSK can be used to upgrade existing equipment or machinery.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 21, 2002 With lengths up to 5500 mm, CKR module achieves speeds up to 5 m/s with smooth running characteristics. External dimensions, accessories, and attachments are identical to company's CKK modules. Available motor mounting positions include front-mounted gear reducers and side drives with timing belt. Both options include various reduction ratios for adaptation of external mass to inertia of motor. Side drive with timing belt also acts as motor support.

Micro Air Clean Air Systems    Wichita, KS 67205

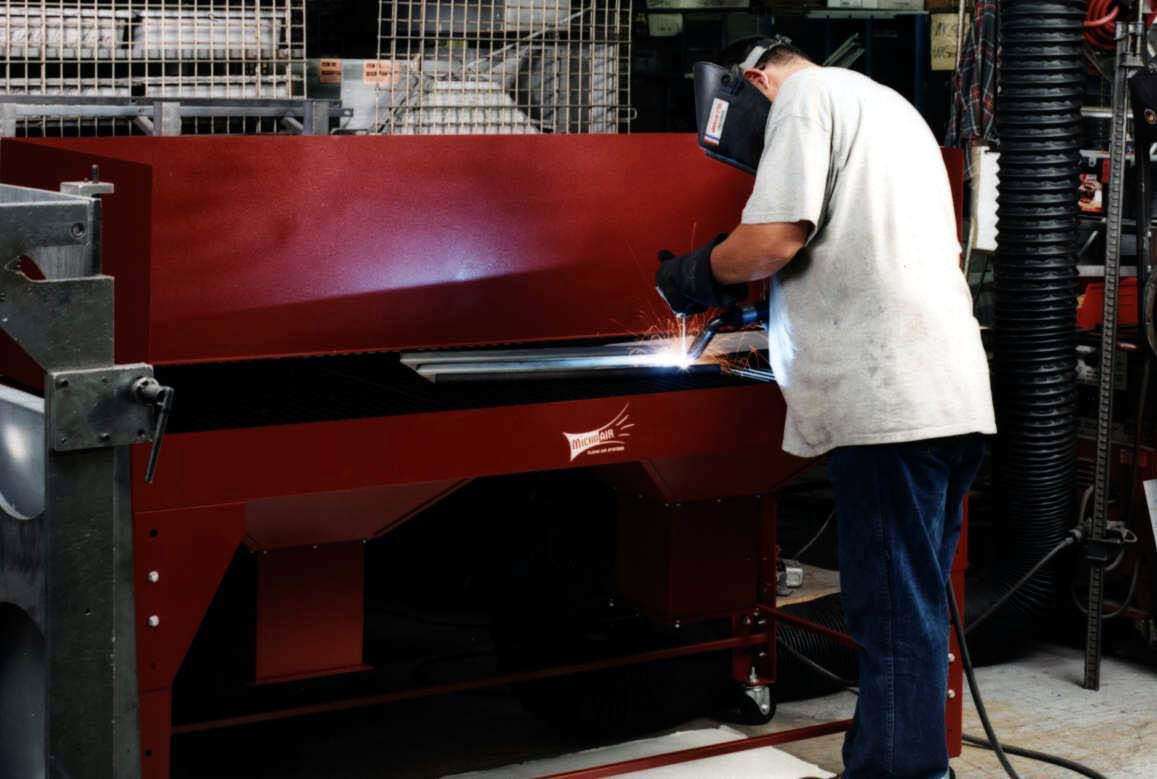

Oct 21, 2002 Tables provide modular, portable, and adjustable downdraft work surface, suitable for welding, grinding, soldering, and finishing processes. Able to be configured to meet application needs, space, and worker preference, they draw contaminants away from worker vision and breathing zones. Deflectors create even downdraft across table surface. Tables, standard with heavy steel grating, can be connected to existing exhaust or filtration system.

Logansport Matsumoto Co.    Logansport, IN 46947
Oct 21, 2002 Model MDVVi 346 offers twin synchronized drives and split worm gear that deliver 200 rpm performance. Suitable for complex parts such as turbine blades or compressor scrolls, rotary table provides maximum machining force of 500 N-m with ±2 arc-sec repeatability.

AMETEK Spectro Analytical Instruments Inc.    Mahwah, NJ 07430

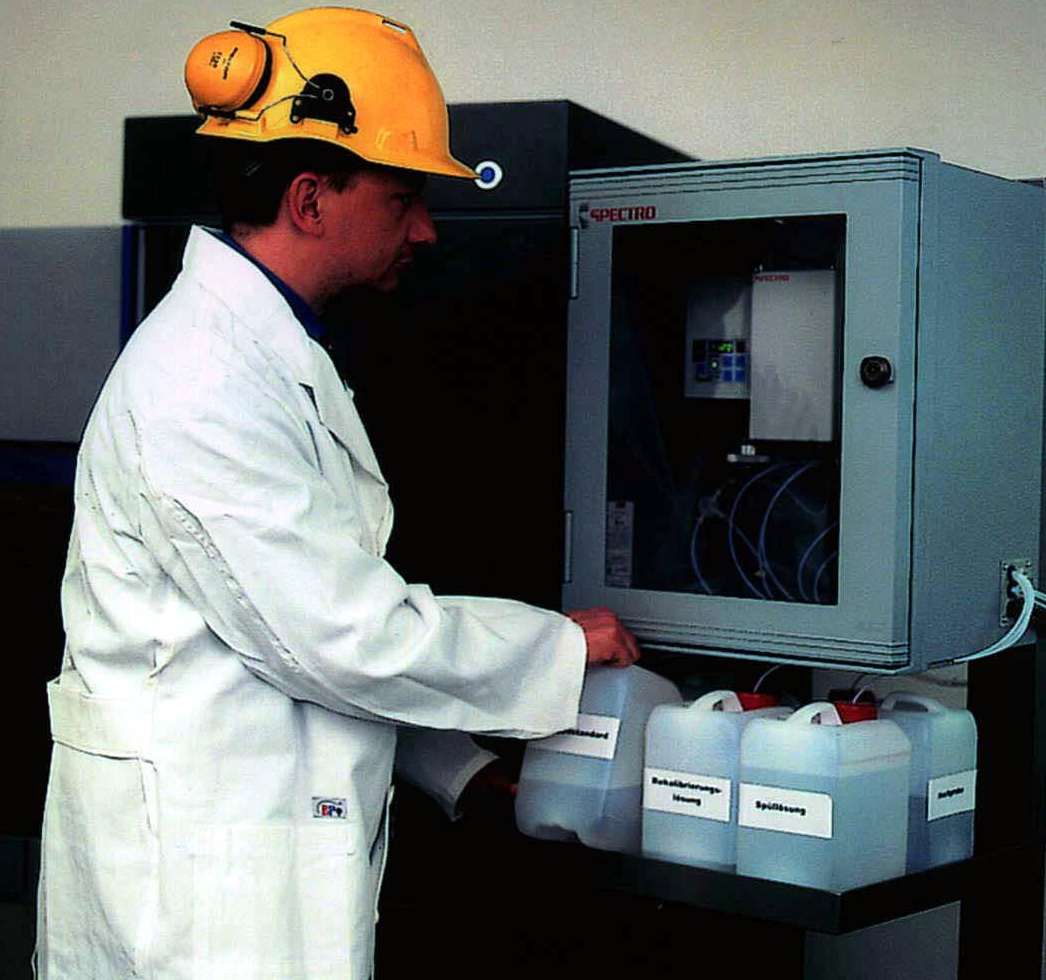

Oct 21, 2002 On-Line Sampling System provides automated, multi-elemental analysis to assist volume waste producers where multiple effluent streams must be monitored and controlled on 24-hour basis. Features include time-controlled startup and shut-down and built-in self-monitoring and diagnostic functions. Remote access/control functions are available using TCP/IP based SPECTRONET(TM) communications option, programmable for multi-level error handling and traceable sampling.

Accu Trak Tool Corp.    Cherry Valley, MA 01611
Oct 21, 2002 Conical knurling dies are manufactured with taper angles of 15° and 30°. All dies have 1 in. diameter, measure 3/8 in. wide, and have 1/4 in. holes. Available in fine, medium, and coarse pitches, dies are made from M1 tool steel, heat-treated to 61/63 HRc, and can be TiN coated. Dies fit company’s adjustable conical holders for impressions on most taper knurl jobs.

AGR International, Inc.    Butler, PA 16001-0149
Oct 21, 2002 Precision testing device, Ramp Pressure Tester 2â„¢ (RPT2) safely and effectively tests internal pressure strength of glass containers up to 900 psi. It incorporates pre-defined test profiles that permit rapid filling and pressurization of containers according to international testing standards. Powered by Windows CEâ„¢ operating system, RPT2 manages all functions of the testing system.

Carpenter Technology Corporation    Wyomissing, PA 19610-1339

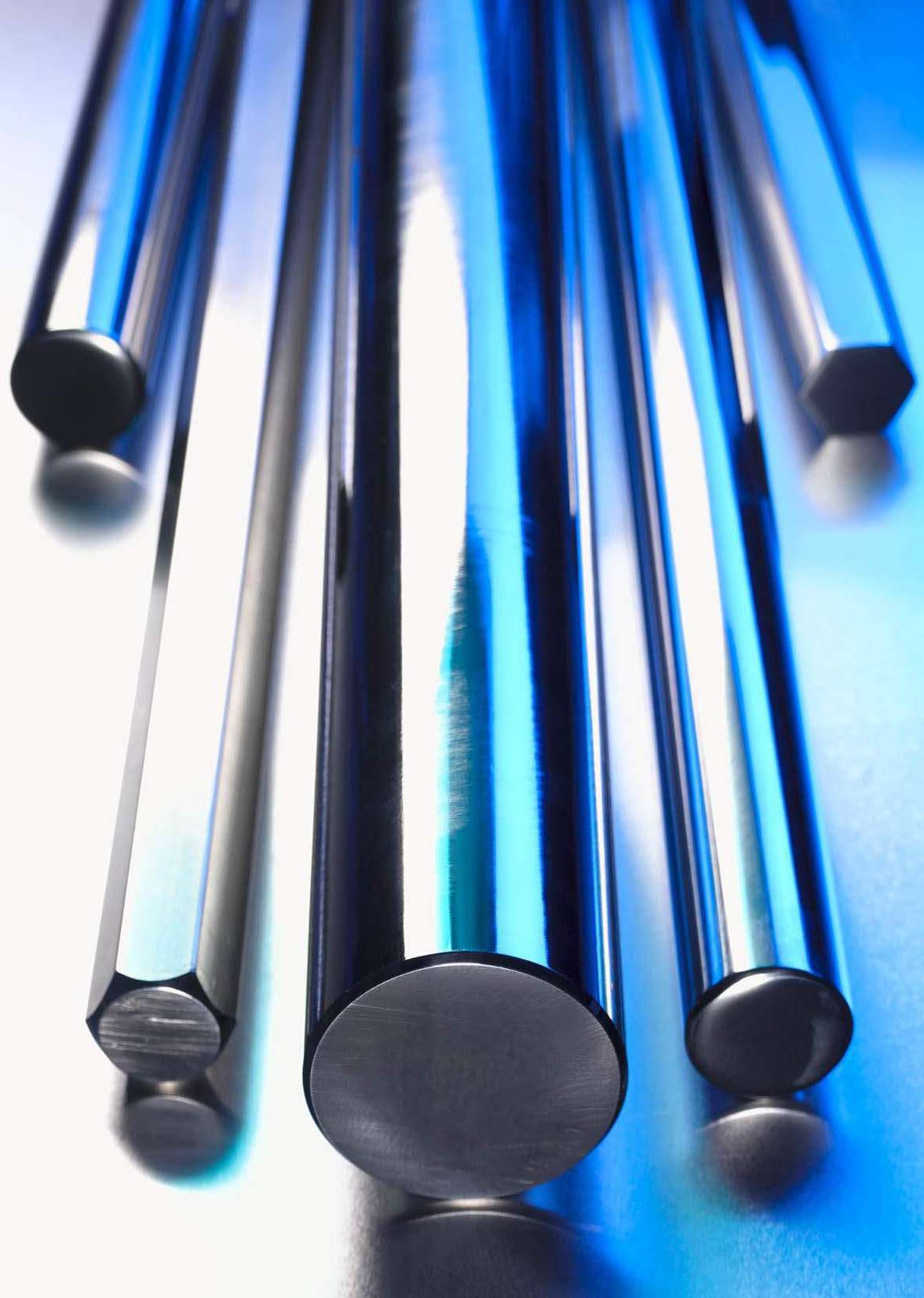

Oct 21, 2002 Project 70+® premium stainless steel machining alloys are offered in 6 grades and provide more lot-to-lot consistency, faster machining speeds, better part output and less tool wear than comparable products. Grades include Type 303, Type 304/304L, Type 316/316L, Type 416, Custom 630, and 15Cr-5Ni. Bar is offered in sizes ranging from .125 to 3.25 in. in standard increments.

Webex, Inc.    Neenah, WI 54957 1026

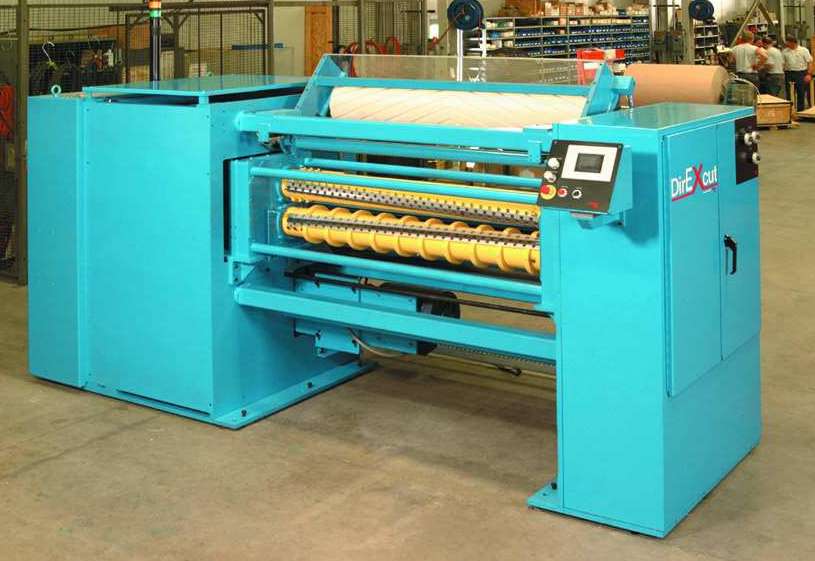

Oct 21, 2002 DirEXCutâ„¢ dual rotary knife module features dead-shafted knife cylinders mounted in cartridge configuration. Each cylinder uses helically-wrapped, CPM blade to create scissored-type cutting action across web. Infeed side features adjustable nip section consisting of 16 in. diameter driven, chromed lower roll and hypalon, chevron-grooved upper roll that aids in de-wrinkling. Swivel operator console with touch screen control panel stores over 50 run specifications.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 21, 2002 WinPRM AddOn Software for System200 CNC and PLC controllers protects machine uptime by monitoring operation of machine components when maintenance events become due. All maintenance information can be located directly on machine’s PC-based controller or on central Ethernet or Intranet file server. Upcoming maintenance item can automatically be sent (via E-mail, fax, pager, and mobile devices) to respective maintenance personnel when warning threshold is exceeded.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

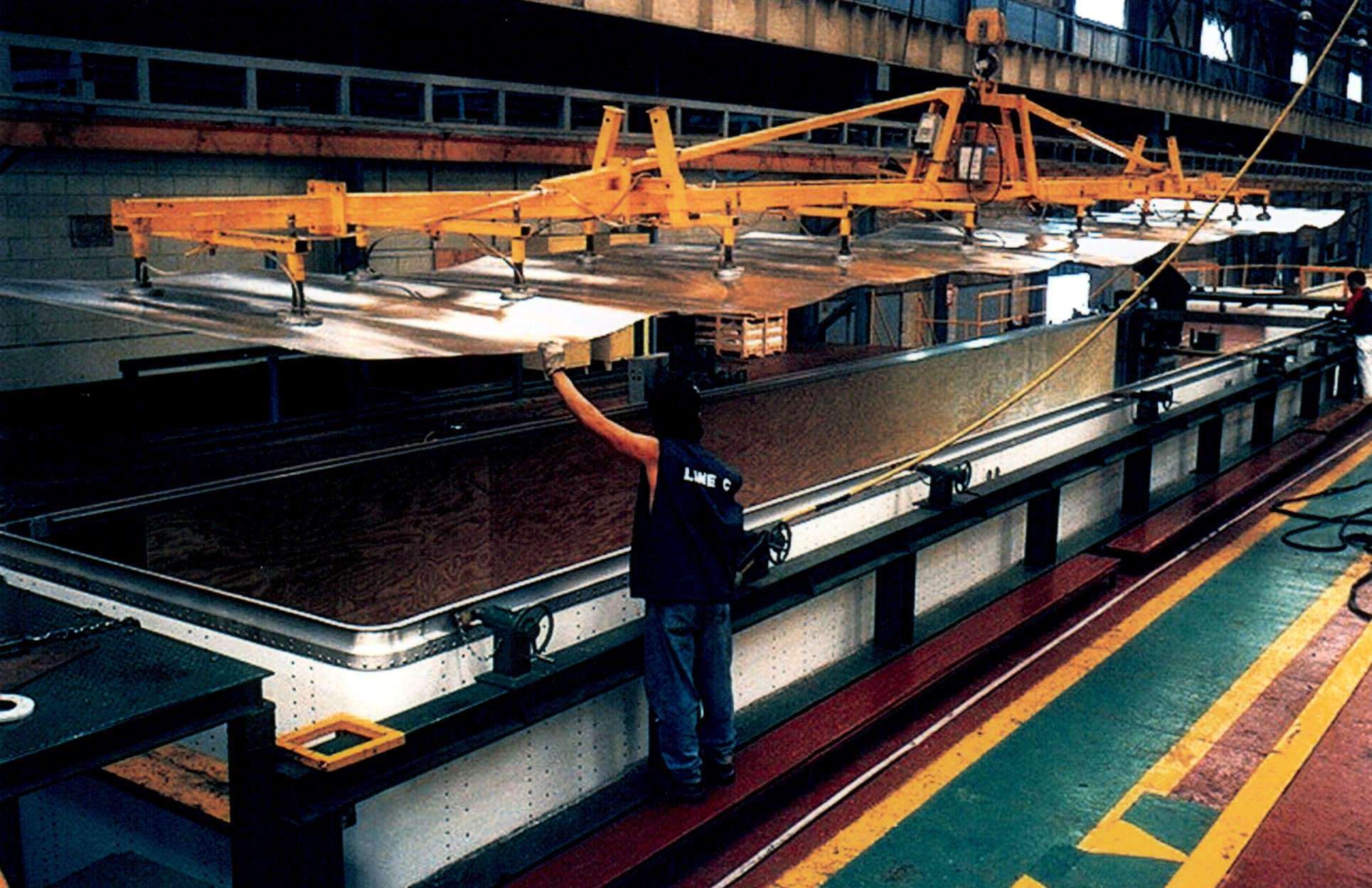

Oct 21, 2002 Oversize Vacuum Lifters can be built to handle loads up to 60 ft long per lift point and can be equipped with 20 or more vacuum pads. VacGuardâ„¢ leakage sensor, warning, and control module have timers and switches that turn pump off and on at preset levels to maintain safe level for lifting. Vacuum check valve and reservoir turns on automatically in case of leak and provides audio and visual status alarms. Electric vacuum lifters can be built with capacities up to 40,000 lbs.
