Rockwell Automation    Milwaukee, WI 53204
Oct 23, 2002 Available with ratings from 5 through 1,200 A, MCS products include UL-approved molded case and motor protection circuit breakers. Safety contactors are available with ratings from 95 to 860 A in 3 frame sizes. Overload relays include built-in DeviceNet(TM) communication. MCS products also include panel mount, standard bus bar, and ISO(TM) (Isolating) bus bar mounting systems and configuration/design software.

Machine Solutions Inc.    Flagstaff, AZ 86001
Oct 23, 2002 Swaging equipment utilizes one-piece, segmented die plate and closer plate. Its range of motion allows several die segments to be accurately integrated into one piece of metal. Die cavity geometry increases swaging accuracy, while overall wear is reduced between parts of die mechanism. Clean operating, mechanism has no sliding or rolling parts that require lubrication. Unit also offers automatic and accurate band longitudinal positioning.

ServicePower    Annapolis, MD 21401
Oct 23, 2002 SERVICEPower v5.1 incorporates architectural advancements to deliver new levels of scalability and performance. System with 32,000 field service technicians supports throughputs of 128,000 jobs/hr. It is supported by Web-based client modules, SERVICEPlanner and SERVICEAnalytics, which support day-to-day planning, operation, and reporting for field service operation. SERVICEMobility allows job details to be dispatched to wireless device using variety of communication technologies.

Thunderline-Z    Hampstead, NH 03841
Oct 22, 2002 Feedthroughs eliminate noise and frequency interference in discoidal capacitance filtering applications and eliminate need for externally mounted capacitor chips. Utilizing glass and proprietary soldering techniques, single-pin design styles can be custom manufactured for unique applications. Capacitance values range from 5 to 27,000 pF, with tolerances as tight as ±10%. Units are available with optional Kovar matched or compression seals.

PacTec Div., LaFrance Corp.    Concordville, PA 19331
Oct 22, 2002 Measuring 3.5 x 6.7 x 1.8 in., Model OD45 features IP65/NEMA 4X rating and is suitable for equipment that must be cleaned in place. It is constructed of UV stable 94V-2 polycarbonate. Bottom cover has mounting flanges with holes for surface mounting, and top cover features recessed area for incorporating keypads, membrane switches, and displays. Moisture and liquids are kept out by gasket used to seal joint between covers. Wall mountable unit can be customized.

American Allsafe    Tonawanda, NY 14150 2593
Oct 22, 2002 ViewSpecâ„¢ glasses have single lens and 4-base curve. They are offered in clear, smoke, and amber. Eyewear meets ANSI Z87.1 and CSA Z94.3 high impact and sideshield requirements.

AZCO Corp.    Elmwood Park, NJ 07407-3306
Oct 22, 2002 ACU-SERTâ„¢ Model CI-250 Coupon Inserter inserts absorbent poly liners into meat trays, and other flat materials into industrial and consumer product packages. It enhances worker safety and eliminates human error as it speeds processing and lowers costs. It inserts 300 pieces/min and feeds flat coupons, labels, or leaflets up to 9 in. wide from preprinted rolls of stock. Computer controls allow easy size adjustment on-site or remotely.

Park Place Packaging Machinery    Clarksville, IN 47131
Oct 22, 2002 Servo-Drive Upgrade Kits integrate servo drives and controls onto case-packer machinery and associated automatic infeed systems. Servo drives, with PLC and touchscreen controls, allow variations for product size and stack pattern within mechanical parameters of case packers. Touchscreen allows users to make product changeovers by selecting icons. Fault conditions and diagnostics information are also provided. Kits also provide PC networking for production reports.

Proline Packaging Equipment    Montreal, QC H4X 1M8
Oct 22, 2002 Model SP-2000 crumples 30 in. (W) paper into 6 in. pad that suits shipping needs. Designed for use in manufacturing/shipping environments, Speedfill(TM) void-fill production machine does not require specialty paper supply. With digital controls, fully-automatic machine is operated by foot pedal, allowing operator to keep hands free to work on packaging. Touch screen permits pre-set programming for automatic operations and timing. Machine also includes hardened titanium cutter.

Roeslein & Associates, Inc.    St. Louis, MO 63126
Oct 22, 2002 OpMaster II Operations Management Software Data Collection System utilizes Microsoft’s SQL Server 2000 as database. Connected to plant communication network via PC, it collects and logs production, scrap, and fault-occurrence data. Real-time data reporting system allows users to modify, add, and delete equipment and machine functions. Plant personnel can analyze daily operations, identify problems, and perform adjustments to maintain daily production efficiencies.

Diversified Technology Inc.    Ridgeland, MS 39157
Oct 22, 2002 Single-slot Model cPB-4325 offers choice of one or two 933 MHz Intel Pentium III processors with 512 KB L2 caches. Model cPB-4321 comes with 1 GHz Intel Pentium III processor, with 256KB L2 cache and 440GX chipset with 100 MHz front side bus. Model cSB-4240 hot-swappable Managed Layer 2/3 switch provides 2 Gigabit and 24 Fast Ethernet ports in 6U x 4HP CompactPCI form factor blade. Model cPS-4081, 4U general-purpose CompactPCI PSB System Platform offers 8-slot transversely mounted backplane.

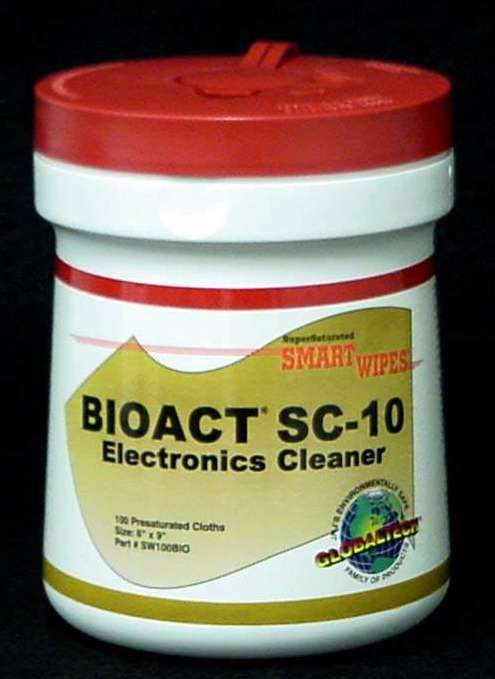

JNJ Industries Inc.    Milford, MA 01757
Oct 22, 2002 BIOACT® SC-10 Wipes clean better than IPA, yet have milder odor and reduced flammability. BIOACT SC-10 blends highly-refined aliphatic hydrocarbons, orange terpenes, and linear alcohols for stencil/misprint cleaning and de-fluxing. It is also effective in removing many rosin, water-soluble, and no-clean solder paste and flux residues, as well as acrylic and silicone conformal coatings. Wipes are lint-free, disposable, and packaged in re-sealable containers.

Magnatech Limited Partnership    East Granby, CT 06026
Oct 22, 2002 Quickclamp Weld Heads are designed for GTAW circumferential butt welding of pipes and tubes. They cover size range from 1 in. OD tube to 6 in. pipe. Units include electronic Arc Gap Control, filler wire feed capability, torch rotation, and torch oscillation with adjustable stroke width, speed, and end point dwell. Heads mount using adjustable clamp. Standard 2 lb wire spool, mounted directly on head, provides positive wire feeding.

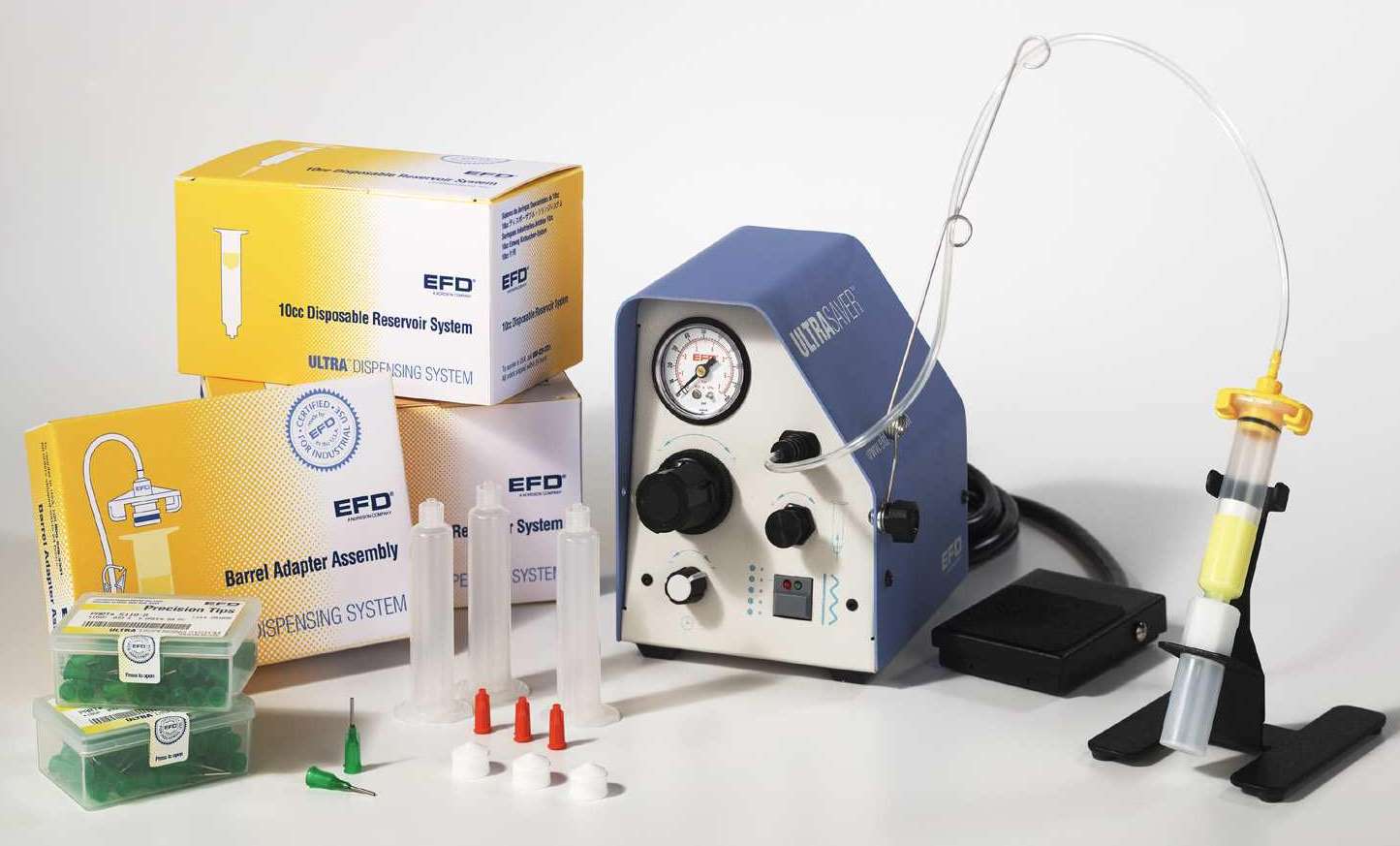

EFD Inc.    East Providence, RI 02914-1342
Oct 22, 2002 ULTRASAVERâ„¢ multi-purpose dispensing system provides way to switch from squeeze bottles to air-powered dispensing of adhesives, sealants, and other assembly fluids. Kit comes with air-powered dispenser, electric foot pedal, and customer-selected disposable components. To apply consistent amounts of fluid, user sets air pressure, adjusts timer, holds syringe reservoir like pen, and presses foot pedal. Timer can be deactivated if operator-controlled application is required.

Vision Components    Burlington, MA 01803
Oct 22, 2002 Model VCM50 miniature progressive scan CCD smart camera is 100 mm long, 30 mm in diameter, and consumes less than 1 W. Sony CCD sensor features 640 x 480 pixel resolution and can read 7 to 10 ECC200 Data Matrix codes per second from full frame images. Process interface allows 2 inputs and 4 outputs for direct control of external equipment. NEMA4 housing stands up to vibrations, shocks, and extreme temperatures. It integrates LED ring lighting, optics, CCD sensor, and human interface.

Lift Products, Inc.    Elm Grove, WI 53122 0349
Oct 22, 2002 Parallel Clamps can accommodate unlimited variety of arms. Frame is formed by 2 double-I extruded profiles, each of which support 2 sliding profiles. Design offers uncluttered visibility through wide central window. Improved visibility is also gained by reduction in height of clamp body and narrow frame. Combined with rotator, attachments convert into 360 deg rotating clamps.

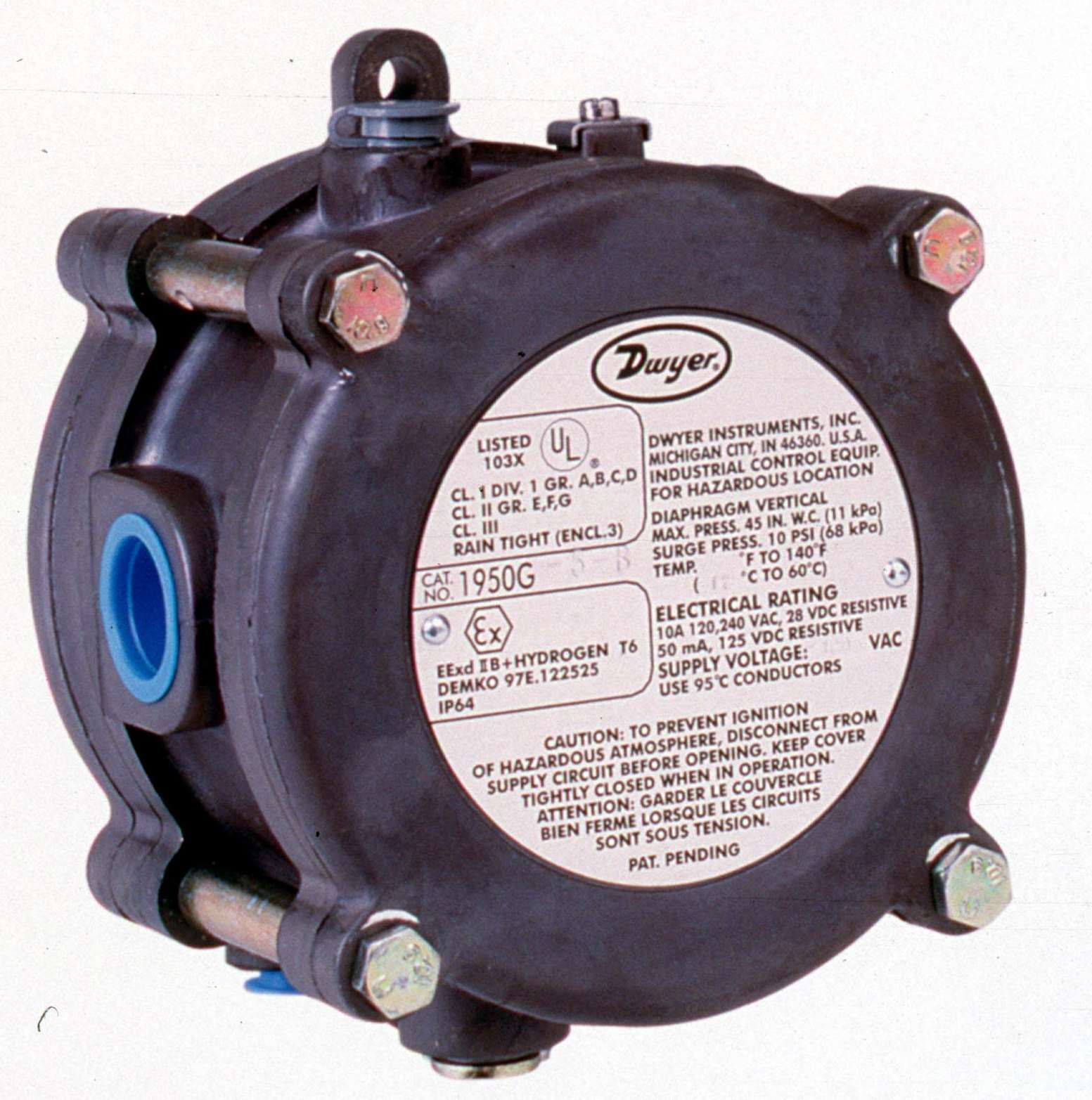

Dwyer Instruments, Inc.    Michigan City, IN 46361
Oct 22, 2002 Cenelec-approved Model 1950G Explosion-Proof Differential Pressure Switch is compatible with hydrogen, methane, propane, and natural gas. Adjustable set points range from 0.07 to 20 in. wc. Weatherproof features include o-ring seal in cover and condensation drain. Removable front cover swings aside, allowing easy electrical connections. Switch is rated 10 A, 120/240 Vac, 28 Vdc resistive; 50 mA, 125 Vdc.

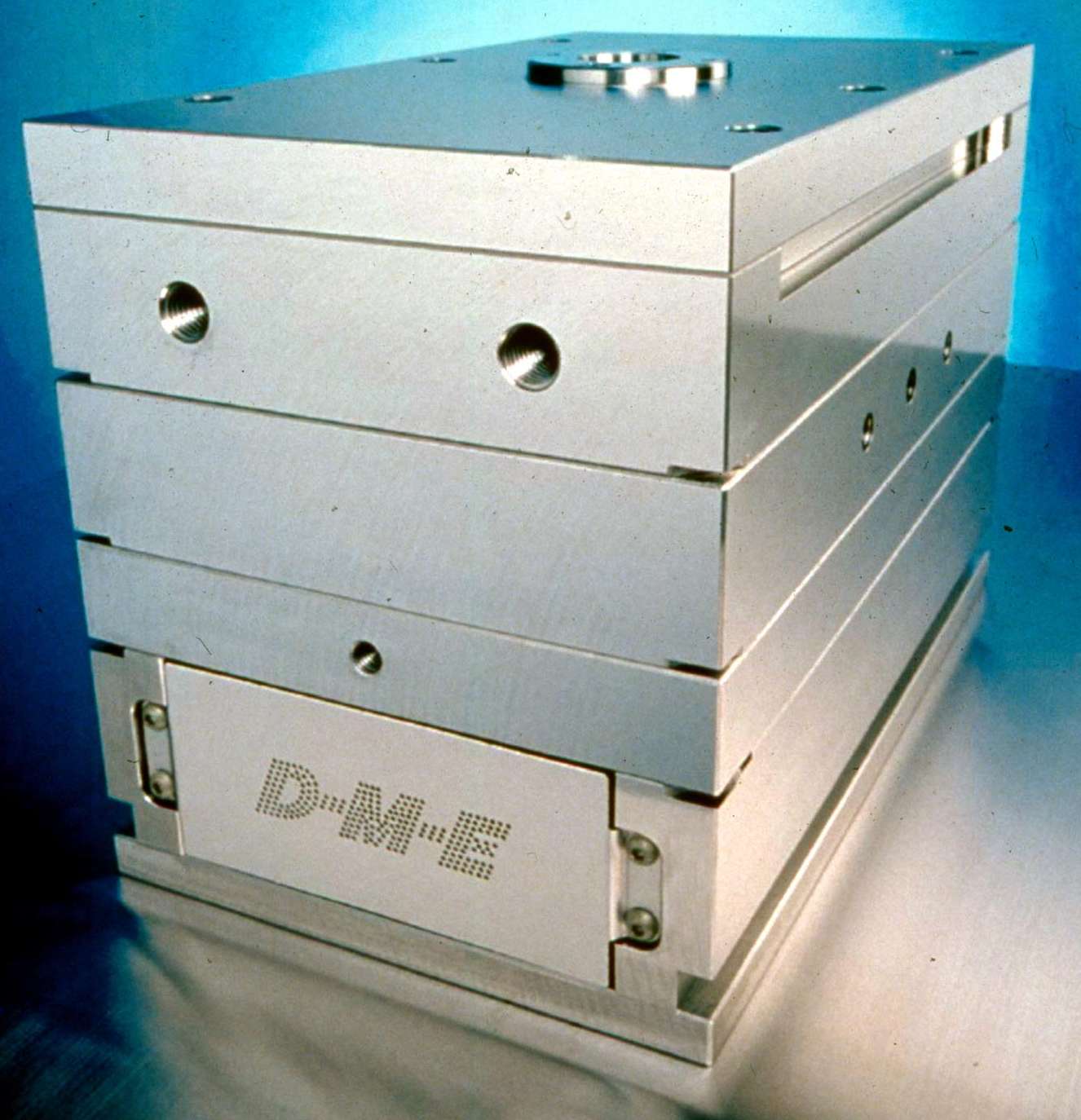

D-M-E Company    Madison Heights, MI 48071-2383
Oct 22, 2002 SelectBaseâ„¢ units are offered in 43 nominal mold base sizes (from 0808 to 2435) with 4 steel types and 9 plate thicknesses. Features include available clamp slot type (A, B, C, or D), location or omission of locating ring, and sprue bushing and sprue puller pin. Options include selection or omission of assembly screws, choice of stop pins and return pins, and either 3-piece or welded ejector housing type. Additional offerings include guided ejection.

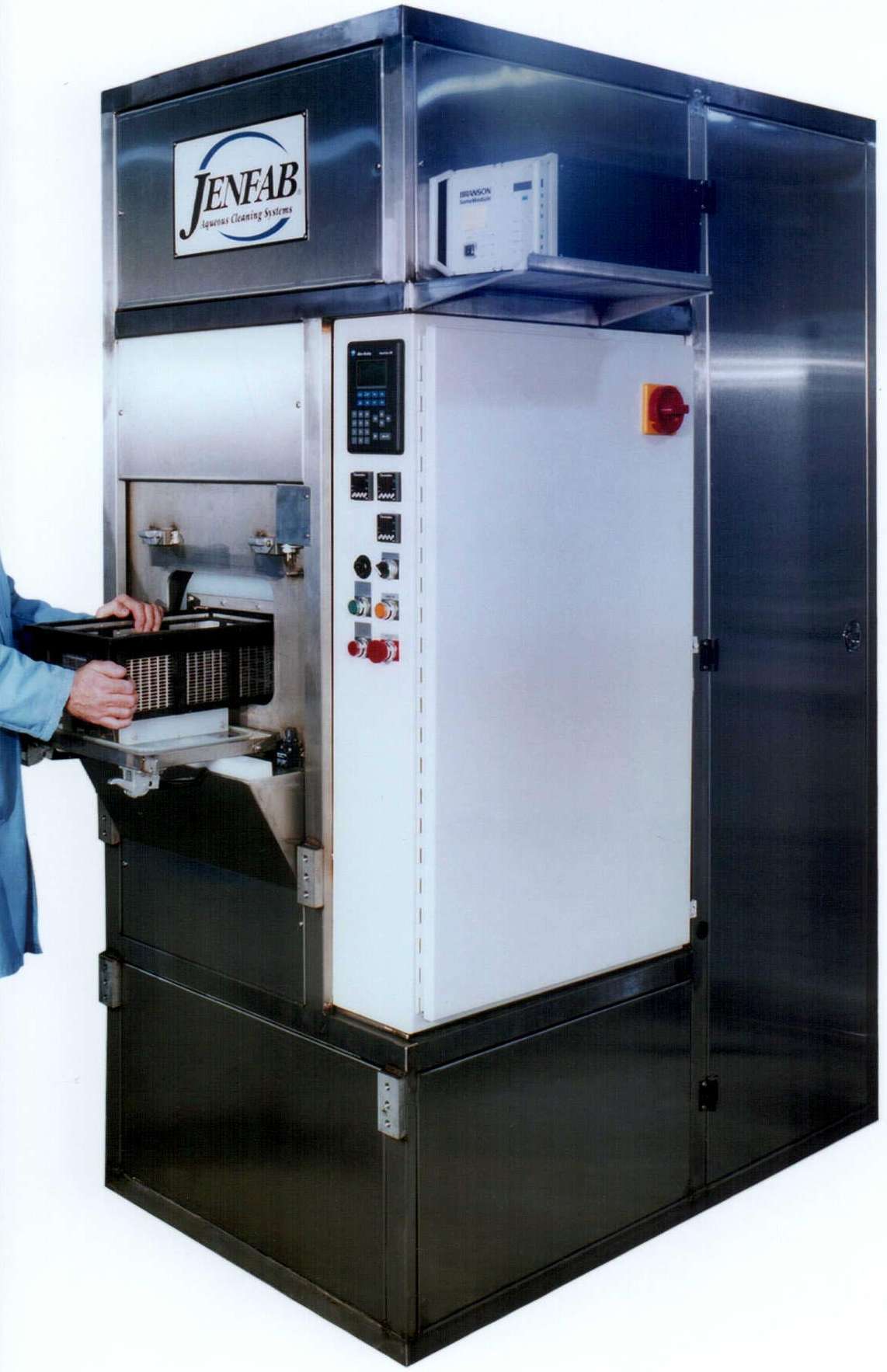

Jensen Fabricating Engineers, Inc./JENFAB    Berlin, CT 06037
Oct 22, 2002 LeanCleanâ„¢ 360 Cellular Basket Aqueous Parts Cleaning System provides variable-speed, multi-directional rocking of baskets containing parts to be cleaned. Parts can be rocked from 5° to 60° on each side of basket centerline. Unit incorporates complete immersion of components in conjunction with high pressure, submerged turbulation, and high volume spray in wash and rinse cycles. Its automated, variable speed wash/rinse and dry cycles processes 10 to 20 baskets/hr.

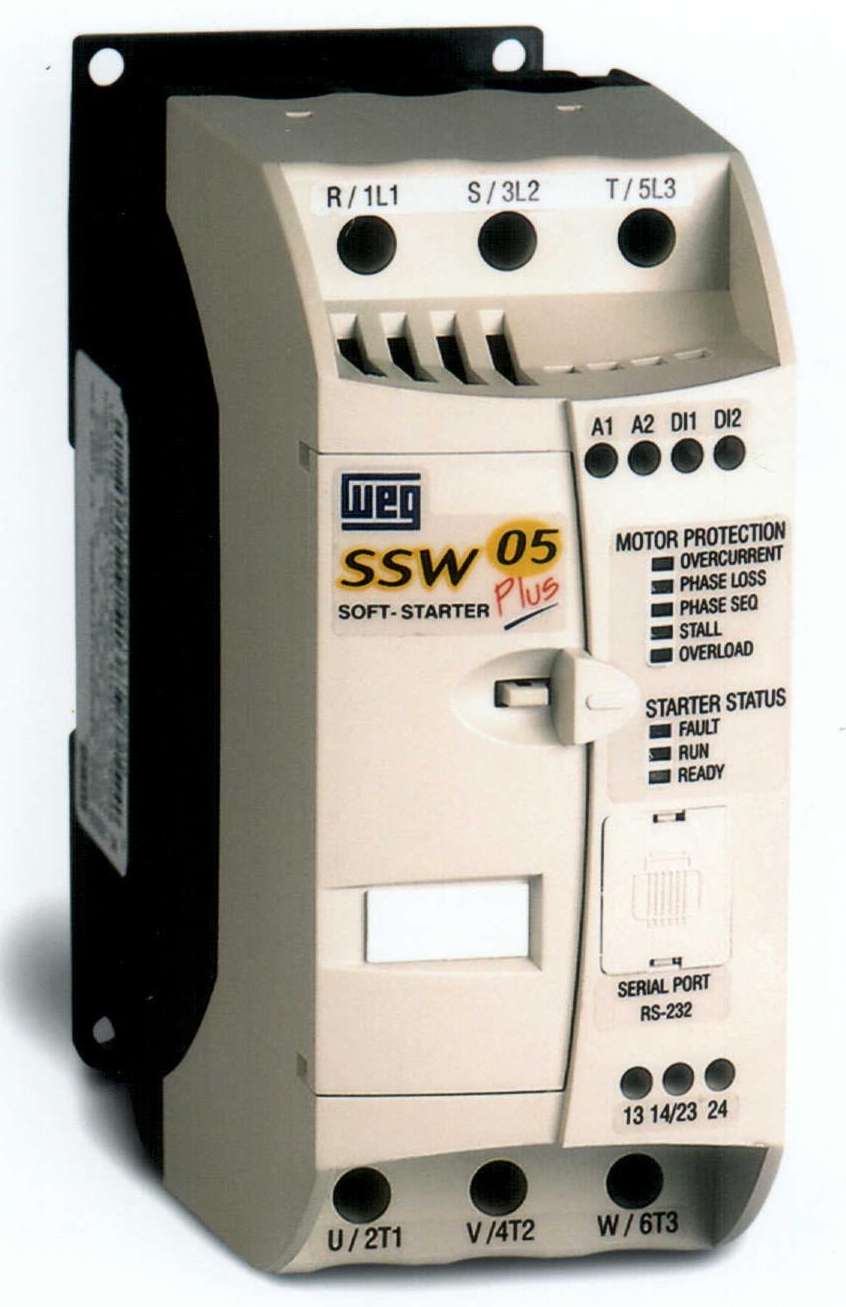

WEG Electric Corp.    Duluth, GA 30097
Oct 22, 2002 Designed for ease of use, SSW-05 digital soft starters incorporate set-up and parameter selections that are accomplished through DIP switches and potentiometers. Their front panel LEDs display operational status, while their construction provides operation, diagnostics, and overload protection. Soft starters accommodate motors from 3 to 60 hp, rated from 10 to 85 A, 220 to 575 Vac.
