IntelLiDrives Inc.    Philadelphia, PA 19152

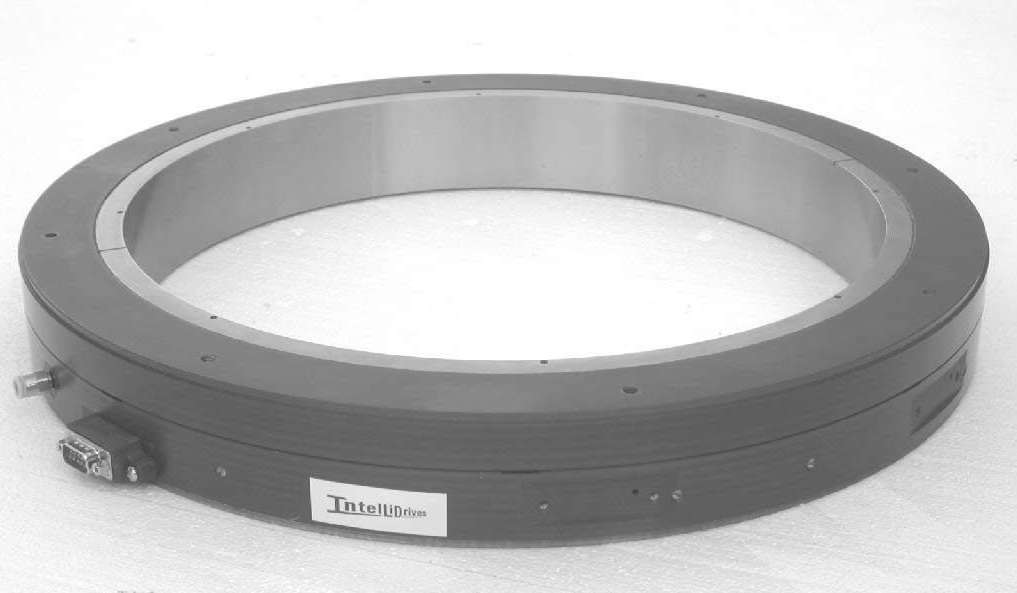

Oct 23, 2002 RotoRingâ„¢ Series combines RotoLinearâ„¢ motor technologies and planar air bearings. Tables feature 14 in. diameter center opening to allow access to every die on wafer in die attach and flip-chip applications. Distributed RotoLinearâ„¢ motor modules provide high positional stiffness to maintain wafer alignment during fast cartesian wafer indexing. Tables offer 30 Nm torque and positioning accuracy of 10 arc-sec (no feedback) and 2 arc-sec (with feedback).

Chemelex Div., RBP Chemical Corp.    Milwaukee, WI 53214 0069
Oct 23, 2002 SILCLEAN NS low VOC, alkaline cleaner/degreaser contains no SARA Title III, Section 313 reportable chemicals or chlorinated solvents. It cleans and suspends dirt and oils from silicone wafers and metal substrates. Product contains corrosion inhibitors, degreasers, and wetting agents to emulsify oils. It is easy to rinse and leaves no film or residue. Non-hazardous, non-combustible cleaner can replace solvents for general cleaning of metal surfaces.

Amada Wasino America, Inc.    Rolling Meadows, IL 60008
Oct 23, 2002 Model G05UP holds 1 micron in cylindricity, roundness, and positioning. Built with precision-type integral motor, unit also incorporates built-in active thermal feedback monitoring system and isolated automation package. Equipped with floor type loader, G05UP offers .00001 in. X and Z offset capability. Spindle speeds reach 12,000 rpm, travel for X- and Z-axes is 8.66 in, and traverse rate is 600 ipm. Applications include surface finishing and IT industry parts.

Mettler-Toledo Process Analytics    Bedford, MA 01730
Oct 23, 2002 EasyClean 350 fully automates in-line analysis of pH, dissolved oxygen, and conductivity in liquid processes. It carries out all routine maintenance relative to cleaning and calibration without skilled maintenance personnel. Self-monitoring diagnostics immediately alert process operators or maintenance personnel to functional problems. Designed for use in high-throughput liquid processes, system suits chemical, pharmaceutical, and industrial wastewater applications.

Mettler-Toledo Process Analytics    Bedford, MA 01730
Oct 23, 2002 With application field including suspensions, solvents, acids, and alkalis, InPro® 4250 electrode offers 0-14 pH range and integral temperature sensor. Its XEROLYT®PLUS reference system consists of solid polymer, which does not require refilling of electrolyte. Pressure resistant for operation pressures up to 232 psig, XEROLYT®PLUS is in direct contact with measuring media using open junction (no diaphragm). Electrode is resistant to sulfide contamination.

Mettler-Toledo Process Analytics    Bedford, MA 01730
Oct 23, 2002 InPro 4800, with gel electrolyte, provides resistance towards oxidizing media, solvents, and acid or alkali solutions, with operating pressures to 188 psi at 266°F. Offerings include pressure-compensated reference system, diffusion path in 2 separated, reference electrolyte chambers, and dirt-repellant, annular PTFE reference junction. Unit also includes integral temperature sensor and watertight VarioPin plug connector.

Intermec Technologies    Everett, WA 98203
Oct 23, 2002 RoutePower® route distribution software automates customer order information, delivery invoicing, inventory management and product pricing. It runs on Windows for Pocket PC 2002 software and is designed for Series 700 mobile computers. Built-in 802.11b local area network support allows software to transmit data wirelessly within customer's network. Load-by-bay function permits route driver to request that product be loaded into specific bays of delivery vehicle.

Front Range Solutions Inc.    Colorado Springs, CO 80920
Oct 23, 2002 HEAT® Service & Support(TM) v7.0 includes Directory Services integration using Lightweight Directory Access Protocol, allowing organizations to access HEAT profile information from common repository. Documents such as maps, schematics, photos, and test files can be linked with customer information. HEAT Plus Call Center companion module allows users to transform service centers into complete customer interaction organizations by integrating communications system with computer telephony functions.

American Saw & Mfg. Co./LENOX    East Longmeadow, MA 01028
Oct 23, 2002 Available in 3 styles, Lenox® Utility Knives include 2 shatter-resistant Lenox® Edgeâ„¢ blades. They offer die-cast zinc construction and internal blade-storage area. Ergonomic, cushion-gripped, top end handles, with quick-change blade feature, do not require screwdriver. Retractable handles have 3-position blade adjustment for various applications, including drywall and metal scoring.

Dynamic Systems, Inc.    Poestenkill, NY 12140
Oct 23, 2002 Gleeble 1500 thermal-mechanical simulation system with Series 3 digital control system update offers Pentium computing power and Windows-based software. With 16-bit resolution and Microcal Origin Data Plotting Software, system provides instantaneous test progress readouts via virtual panel meters. Gleeble system is used for process simulation, materials characterization, and basic research.

Rockwell Automation    Milwaukee, WI 53204
Oct 23, 2002 Available with ratings from 5 through 1,200 A, MCS products include UL-approved molded case and motor protection circuit breakers. Safety contactors are available with ratings from 95 to 860 A in 3 frame sizes. Overload relays include built-in DeviceNet(TM) communication. MCS products also include panel mount, standard bus bar, and ISO(TM) (Isolating) bus bar mounting systems and configuration/design software.

Machine Solutions Inc.    Flagstaff, AZ 86001
Oct 23, 2002 Swaging equipment utilizes one-piece, segmented die plate and closer plate. Its range of motion allows several die segments to be accurately integrated into one piece of metal. Die cavity geometry increases swaging accuracy, while overall wear is reduced between parts of die mechanism. Clean operating, mechanism has no sliding or rolling parts that require lubrication. Unit also offers automatic and accurate band longitudinal positioning.

ServicePower    Annapolis, MD 21401
Oct 23, 2002 SERVICEPower v5.1 incorporates architectural advancements to deliver new levels of scalability and performance. System with 32,000 field service technicians supports throughputs of 128,000 jobs/hr. It is supported by Web-based client modules, SERVICEPlanner and SERVICEAnalytics, which support day-to-day planning, operation, and reporting for field service operation. SERVICEMobility allows job details to be dispatched to wireless device using variety of communication technologies.

Thunderline-Z    Hampstead, NH 03841
Oct 22, 2002 Feedthroughs eliminate noise and frequency interference in discoidal capacitance filtering applications and eliminate need for externally mounted capacitor chips. Utilizing glass and proprietary soldering techniques, single-pin design styles can be custom manufactured for unique applications. Capacitance values range from 5 to 27,000 pF, with tolerances as tight as ±10%. Units are available with optional Kovar matched or compression seals.

PacTec Div., LaFrance Corp.    Concordville, PA 19331
Oct 22, 2002 Measuring 3.5 x 6.7 x 1.8 in., Model OD45 features IP65/NEMA 4X rating and is suitable for equipment that must be cleaned in place. It is constructed of UV stable 94V-2 polycarbonate. Bottom cover has mounting flanges with holes for surface mounting, and top cover features recessed area for incorporating keypads, membrane switches, and displays. Moisture and liquids are kept out by gasket used to seal joint between covers. Wall mountable unit can be customized.

American Allsafe    Tonawanda, NY 14150 2593
Oct 22, 2002 ViewSpecâ„¢ glasses have single lens and 4-base curve. They are offered in clear, smoke, and amber. Eyewear meets ANSI Z87.1 and CSA Z94.3 high impact and sideshield requirements.

AZCO Corp.    Elmwood Park, NJ 07407-3306
Oct 22, 2002 ACU-SERTâ„¢ Model CI-250 Coupon Inserter inserts absorbent poly liners into meat trays, and other flat materials into industrial and consumer product packages. It enhances worker safety and eliminates human error as it speeds processing and lowers costs. It inserts 300 pieces/min and feeds flat coupons, labels, or leaflets up to 9 in. wide from preprinted rolls of stock. Computer controls allow easy size adjustment on-site or remotely.

Park Place Packaging Machinery    Clarksville, IN 47131
Oct 22, 2002 Servo-Drive Upgrade Kits integrate servo drives and controls onto case-packer machinery and associated automatic infeed systems. Servo drives, with PLC and touchscreen controls, allow variations for product size and stack pattern within mechanical parameters of case packers. Touchscreen allows users to make product changeovers by selecting icons. Fault conditions and diagnostics information are also provided. Kits also provide PC networking for production reports.

Proline Packaging Equipment    Montreal, QC H4X 1M8
Oct 22, 2002 Model SP-2000 crumples 30 in. (W) paper into 6 in. pad that suits shipping needs. Designed for use in manufacturing/shipping environments, Speedfill(TM) void-fill production machine does not require specialty paper supply. With digital controls, fully-automatic machine is operated by foot pedal, allowing operator to keep hands free to work on packaging. Touch screen permits pre-set programming for automatic operations and timing. Machine also includes hardened titanium cutter.

Roeslein & Associates, Inc.    St. Louis, MO 63126
Oct 22, 2002 OpMaster II Operations Management Software Data Collection System utilizes Microsoft’s SQL Server 2000 as database. Connected to plant communication network via PC, it collects and logs production, scrap, and fault-occurrence data. Real-time data reporting system allows users to modify, add, and delete equipment and machine functions. Plant personnel can analyze daily operations, identify problems, and perform adjustments to maintain daily production efficiencies.
