Rice Lake Weighing Systems    Rice Lake, WI 54868
Oct 25, 2002 Panel-mount model 520 maintains NEMA 4X/IP67 seal to protect electronics in dusty and washdown environments. Enabling customization and system integration, it is equipped with setpoints or checkweigh modes, selectable analog-to-digital speeds up to 120 Hz, and on-board serial ports. Peak hold, time and date, counting, and accumulation functions are executed via multi-function keys. Unit delivers stable, accurate results with digital filtering.

Schmidt, W. A., Inc.    Souderton, PA 18964
Oct 25, 2002 SprinklerGuard retrofits to existing pallet racks, providing protection against sprinkler head breakage and subsequent water damage. Fabricated from 5/8 in. dia hot-rolled steel bar stock and welded to ¼ in. mounting plates, it is finished in OSHA safety yellow baked urethane paint. Mounting hardware is included with each guard; unit can be installed by bolting or welding.

Mulox, Inc.    Macon, GA 31297
Oct 25, 2002 Able to stack four units high, cubic yard FIBC has 35 in. square base and 36 in. height. Design is approved for UN packaging Groups II and III and features full-open duffle top with flat bottom and 3-mil LLDPE liner. Fabric is 6.5 oz. polypropylene, and capacities range to 2,205 lbs with 6:1 safety factor (2,645 lbs with 5:1 factor). FIBC can be used with over-the-road, rail, and sea transport with no special handling equipment.

Red Bird Service    Osgood, IN 47037
Oct 25, 2002 Chemicals and solutions are available for product quality assurance, process quality, and toxicology testing. Products for both organic and inorganic analysis are also included. They meet ASTM, APHA, EPA, and AOAC standards (where applicable). Supplied with Certificate of Analysis and MSDS documents, container sizes range from 50 ml to 55 gal. Custom solutions can be supplied to meet customer needs and specifications with private labeling.

Du Mont Co., LLC., The    Greenfield, MA 01302
Oct 25, 2002 Minute Man heavy-duty keyway broaches, bushings, and shims cut 1/2, 5/8, or 3/4 in. keyways in 17 bore sizes from 2 to 3 in. Set No. 50 can be used to cut keyways in pulleys, gears, collars, and similar pieces in experimental, maintenance, machine assembly, or limited production work. Broaches are push-type and can be used with hand operated arbor presses or hydraulic presses with adequate throat opening. Other sets are available in range of 1/16 to 3/4 in. in bores from 1/4 to 3 in.

American Lewa, Inc.    Holliston, MA 01746 1455
Oct 25, 2002 Packages can be supplied in various configurations that provide up to 17,500 psi with flow rates up to 100 gpm for inhibiting hydrate formation in pipelines and wellhead of offshore platforms. Hermetically-tight, sealless diaphragm pumps isolate process fluid from hydraulic system. Available configurations include manual or automated stroke length control, speed control, and fixed volume delivery, with continuous injection (gas lines) and intermittent injection (oil).

Johns Manville Roofing Systems Group    Denver, CO 80217 5108
Oct 25, 2002 SuperSeal® Duct Butter's aerosol can will not leak or corrode, increasing its shelf life and stability. Product retains its shape and volume after curing is completed, resulting in improved finished appearance. Used for spot and edge repair of ductboard or liner, it can also be used to seal gaps between liner sections or fittings. SuperSeal maintains thermal integrity of insulation it is used to seal.

American MSI Corporation    Moorpark, CA 93021
Oct 25, 2002 Celltrack PROâ„¢ enterprise software is designed for medical device manufacturers that need to comply with FDA's 21 CFR Part 11 regulation. It records, maintains, archives, retrieves, and transmits relevant manufacturing data, including batch detail and downstream processing, equipment settings, and measurements. Closed data chain, with high-level access control and record-validity checks, guarantees tamper-free data integrity from point of collection through reporting and archiving.

American MSI Corporation    Moorpark, CA 93021
Oct 25, 2002 Altanium® CM temperature control system mounts directly on mold junction-box and eliminates need for thermocouple cables. With width of 9.5 in., height of 9.7 in., and depth of 6.25 in., unit can fit on any hot runner mold system, leaving space for robots, optronics, and hoses. Transverse latching mechanism assures that control remains securely in place.

Motion Engineering Inc.    Santa Barbara, CA 93117
Oct 25, 2002 Model XMP-SynqNet-PCI provides 100 Mbps, real-time, synchronous networking for up to 32 axes. Servos can be updated as quickly as 20 kHz for 4 axes, or 10 kHz for 8 axes. SynqNet also supports user-defined I/O CAN-based networking under industry operating systems such as Windows NT, Windows 2000 and 95/98, VenturCom, and VxWorks. Powered by 32-bit floating point Analog Devices SHARC DSP, heart of SynqNet is its modular motion programming interface software.

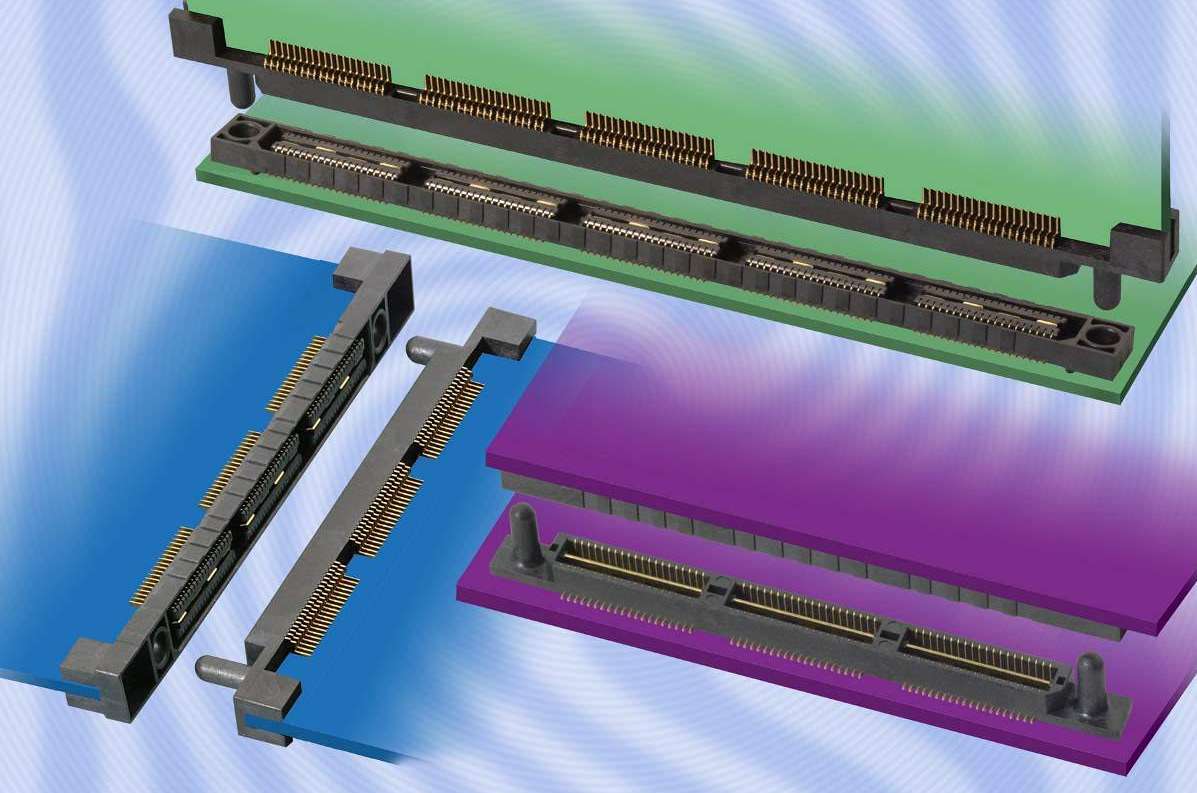

Samtec, Inc.    New Albany, IN 47151 1147
Oct 25, 2002 Series QTE/QSE-GP .8 mm pitch interfaces use Guide Post to accurately align connector when mating. They are rated for use up to 2.33 GHz, depending on application and interface. Mounting configurations allow for traditional parallel board stacking, and perpendicular mating of boards such as in daughtercard applications and horizontal (coplanar) type applications. Interfaces are suitable for servers, routers, set top boxes, network systems, switchers, and industrial computers.

Quality Lighting    Franklin Park, IL 60131 0309
Oct 25, 2002 Paradigmâ„¢ PDM-24 features computer-designed, segmented, multi-surface optical system for lamps up to 400 W. Six distribution patterns suit virtually any outdoor application. Housing is constructed of diecast aluminum with polyester powder-coat finish for rust and corrosion resistance. Extruded silicone gasket around lens frame ensures impenetrable seal against water, dirt, debris, and insects. Luminaire is UL and CUL listed for safety in wet locations.

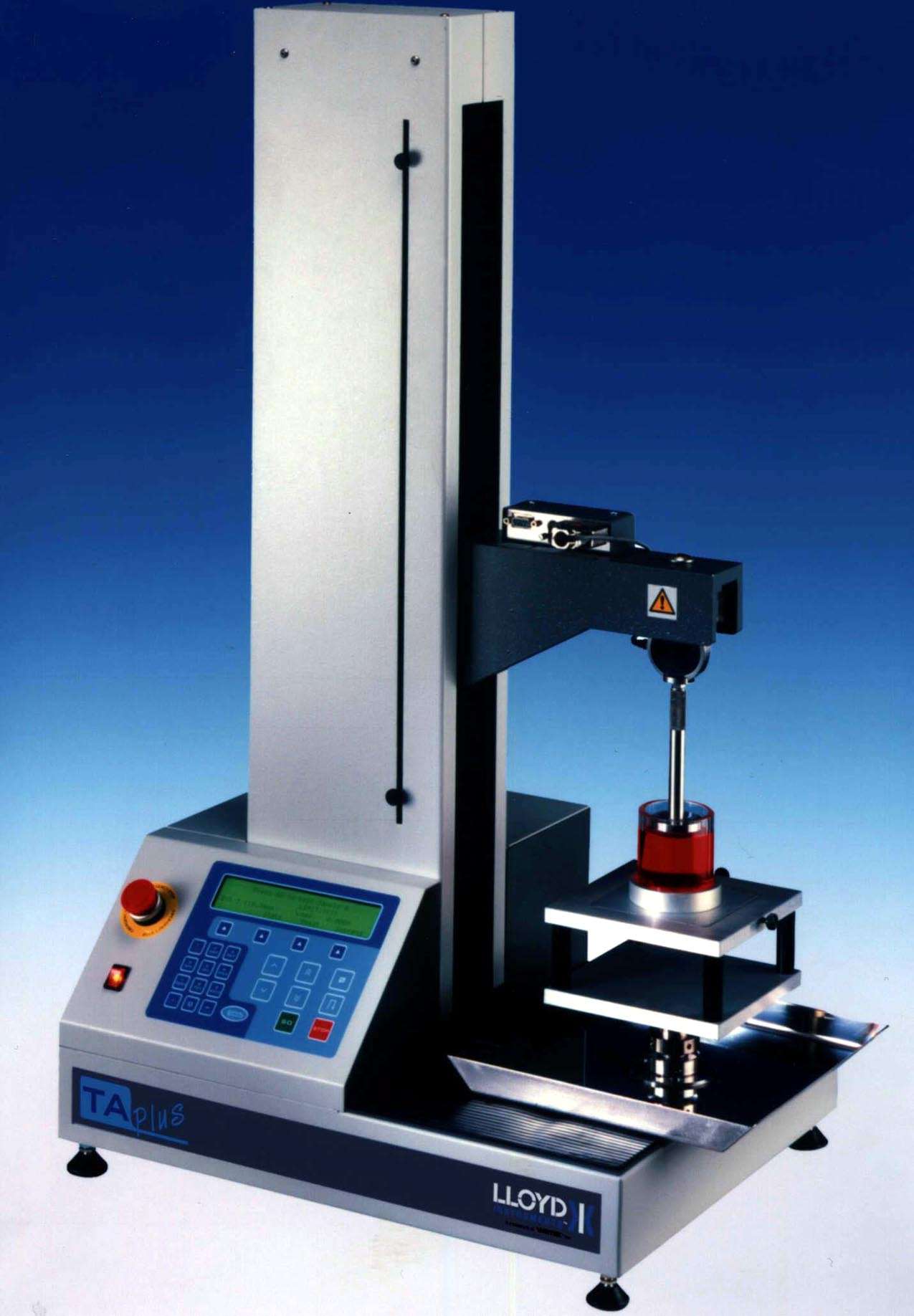

AMETEK Test & Calibration Instruments    Largo, FL 33773
Oct 25, 2002 CHATILLON TAPlus accommodates large samples and provides routine and sophisticated texture analysis. With capacity to 220 lbf, unit accepts interchangeable XLC Series load cells. Measurements are accurate to ±0.5% of reading and speeds are accurate to <0.2%. Standard system includes base machine, drip tray, food-testing base, and ½ in. probe. NEXYGEN MT data analysis control software provides library of standard tests and specialized food-test set-ups.

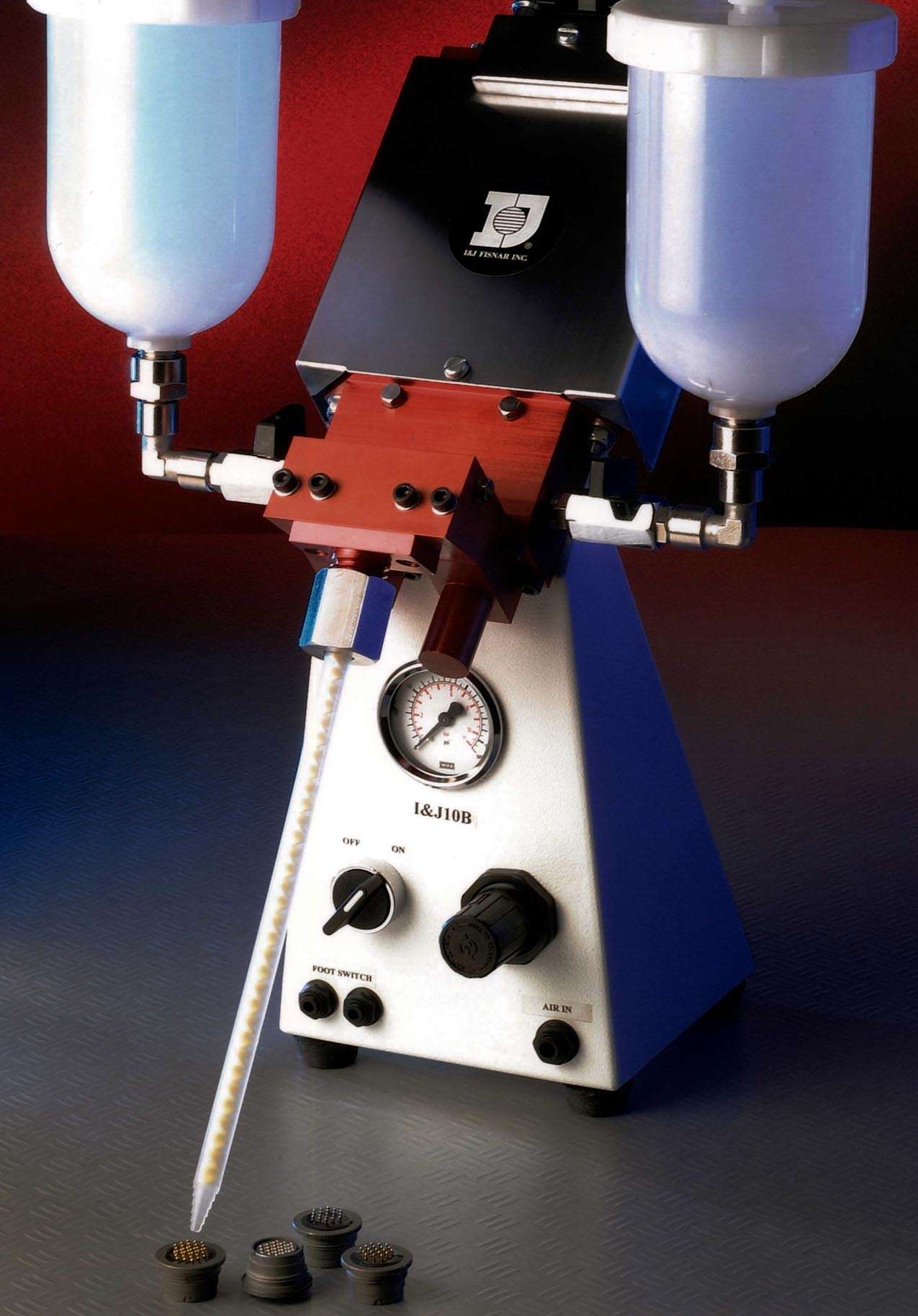

Fisnar Inc.    Wayne, NJ 07470
Oct 25, 2002 Series I&J10 dispenses 0.012 to 5 cc of mixed material with accuracy of 1% using Dead-Stop feature to ensure repeatability. It can be robot mounted (I&J10R) and supplied with stepping-motor drive (I&J10RS) to avoid pneumatic stroke delays and to enable variation of dispense rate. Portable bench mounted model (I&J10B) utilizes small bench area; reservoirs mount directly on system. Model I&J10F provides larger reservoirs and other requirements such as heat, agitation, and degassing.

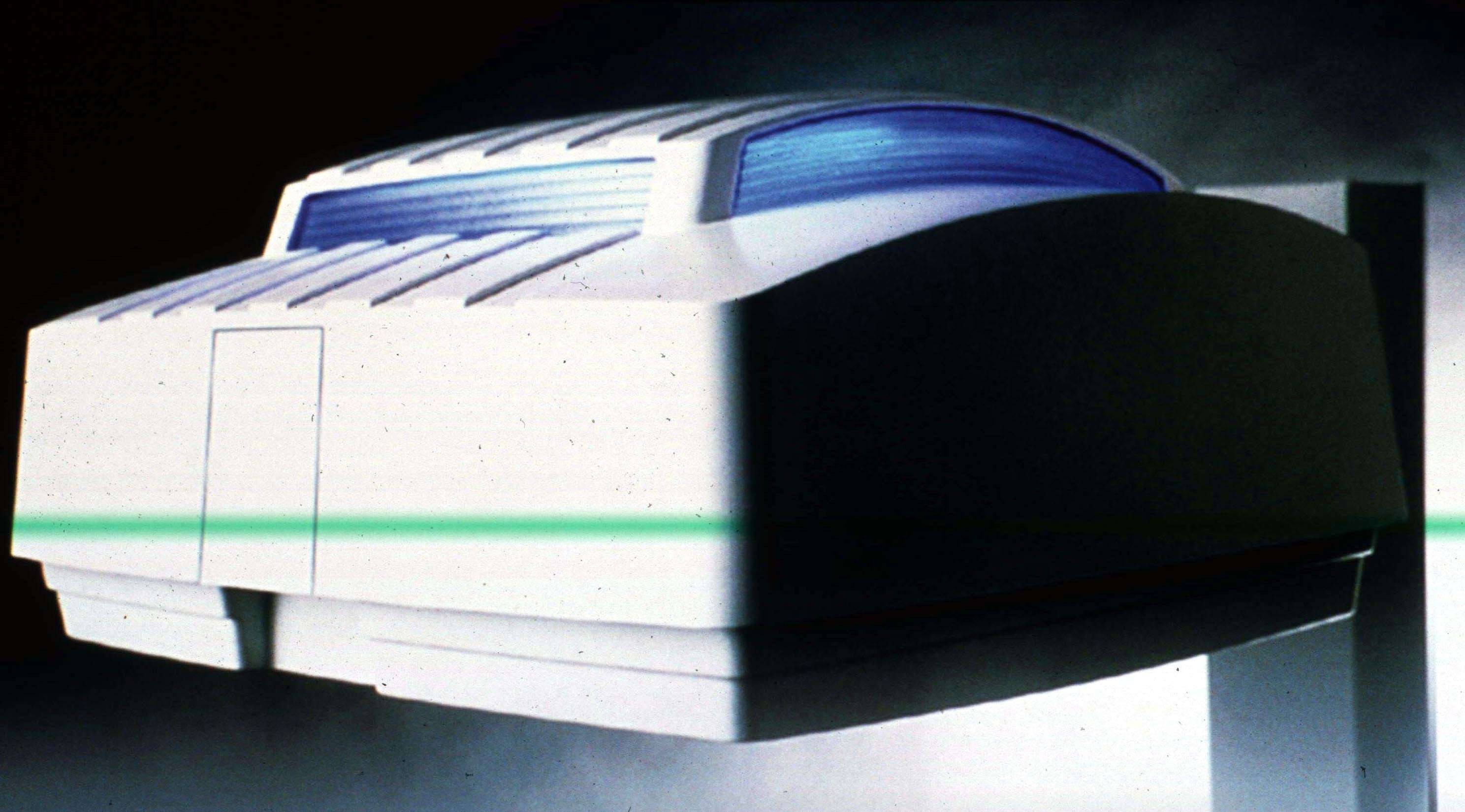

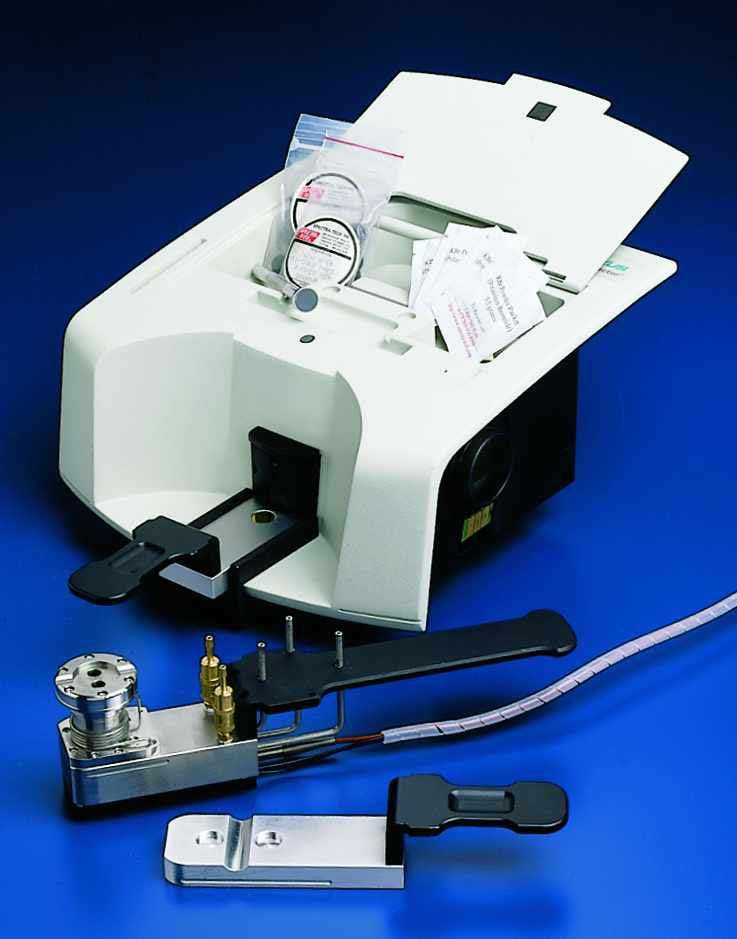

Thermo Nicolet Instrument Corp.    Madison, WI 53744 4451
Oct 25, 2002 Smart Collector is designed for infrared analysis of solid samples. Optical design increases percentage of diffuse reflection needed to obtain nanogram levels of sensitivity. It can eliminate spectral distortion by maximizing diffuse reflectance radiation, while minimizing specular reflectance component. When combined with environmental chamber option, unit can perform diffuse reflectance experiments at elevated temperatures, high-pressure, and vacuum conditions.

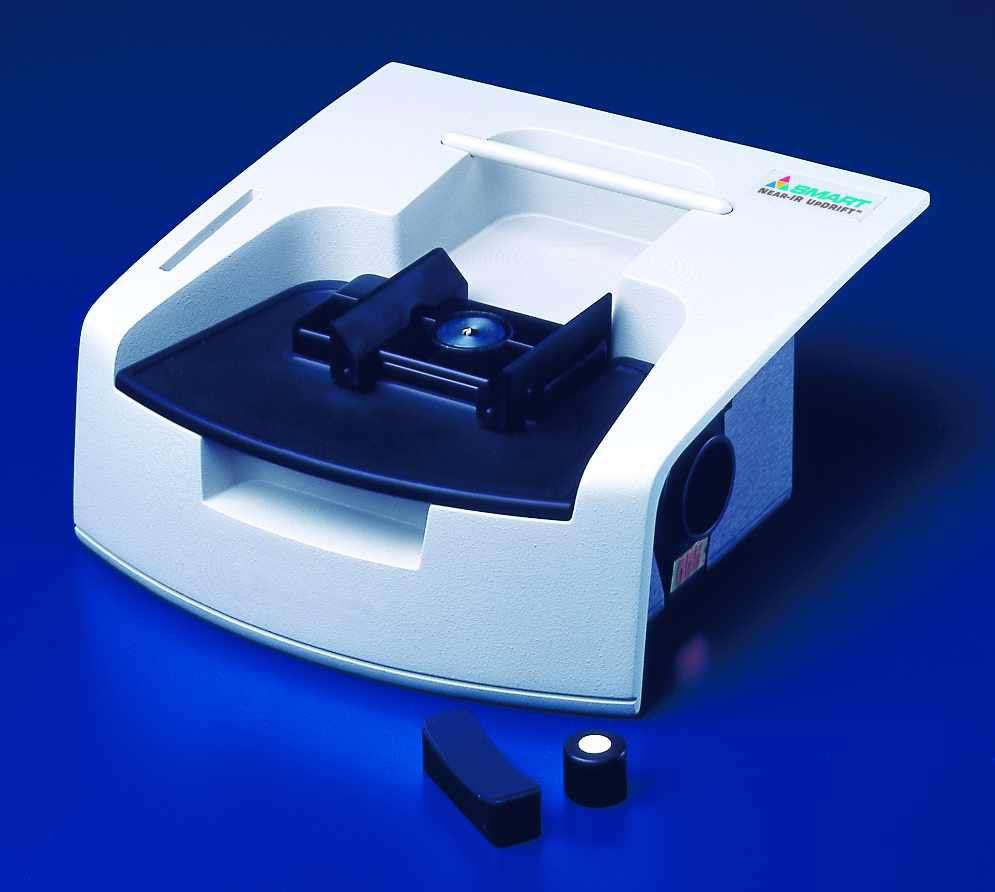

Thermo Nicolet Instrument Corp.    Madison, WI 53744 4451
Oct 25, 2002 Top-loading, Smart Near-IR UpDRIFT accessory is designed for use with Avatar 370 and Nexus spectrometers in near-infrared spectral region. Samples can be analyzed directly from plastic bags and most plastic and glass bottles using standard, diffuse-reflectance technique. Optical-focusing system, a compound parabolic concentrator, virtually eliminates specularly reflected component that can distort spectral results. Accessory can be used quantitatively or qualitatively.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Oct 25, 2002 Type W Switch is available with maintained, momentary, slip, or lateral contacts. Continuous rating is 20 A at 600 V and interrupt ratings include 5-50 A at 120-600 Vac or 8 A at 125 Vdc. Type W2 rotary-roller-action switch is available with up to 6 rollers. Spring-actuated design provides momentary, maintained, or combination contacting with up to 3 key interlocks. Continuous rating is 20 A at 600 V and is available with interrupt ratings of 8-30 A at 120-600 Vac or 1-5 A at 125-250 Vdc.

Barrington Automation    Crystal Lake, IL 60014
Oct 25, 2002 TUFF-SERIES slides are offered in 4 sizes with strokes ranging from ½ to 24 in. and bore sizes from ½ to 1 ½ in. They use polymer bearings and common mounting bolt patterns. Rod-guided table slides are available with side or center mounted rodless cylinders. They feature .750 and 1.250 in. rod diameters, strokes from 1 to 36 in. and bores of 1, 1 ½, and 2 in. Each is standard with linear ball bearings. Stop screw stroke adjustment and shock absorbers are optional.

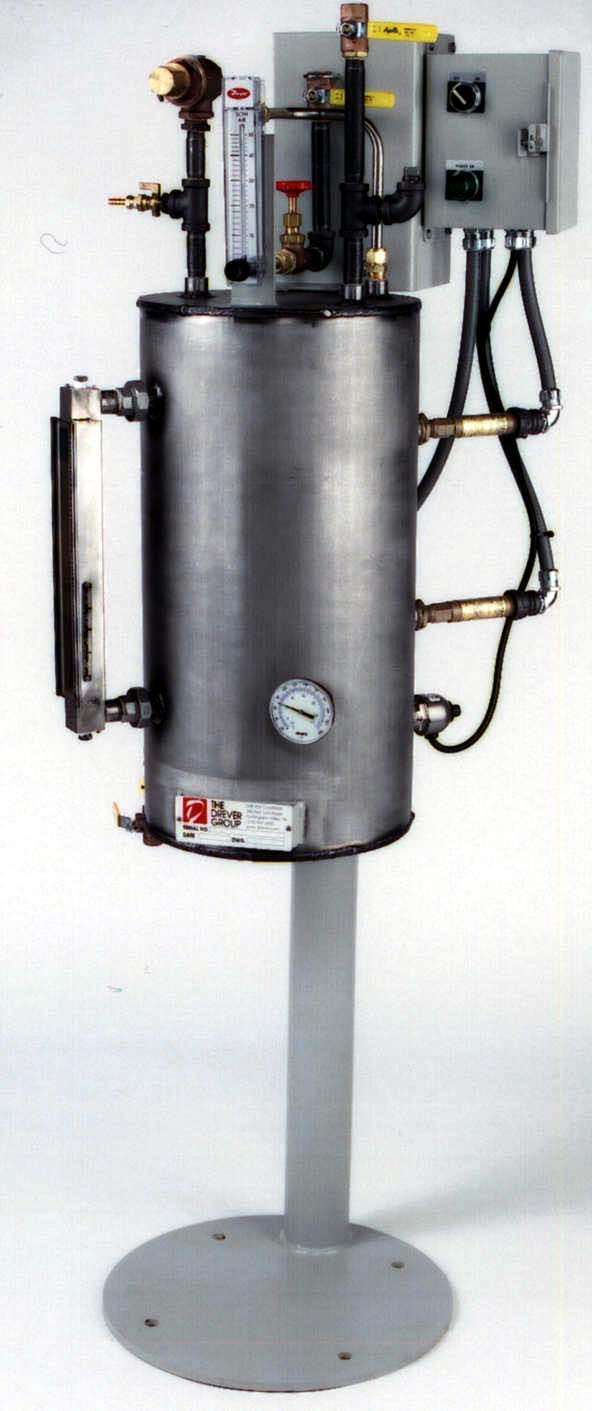

Drever Co.    Huntingdon Valley, PA 19006
Oct 25, 2002 Atmosphere Humidity Regulator extends furnace belt life by 33% and prevents adherence of stainless steel tubes to each other in heat processing operations where cryogenically produced gases are employed. Unit can be installed in atmosphere piping of existing furnaces.

Advance Lifts, Inc.    St. Charles, IL 60174
Oct 25, 2002 Available in 18 models, double wide lifts offer extra heavy axle rolling capacities to handle dynamic forces of rolling paper rolls as they come onto lift. End axle capacities are rated at 3,000, 4,500, and 9,000 lbs. Units, provided with "V" deck to nest rolls, are offered with platform sizes from 48 x 36 in. to 96 x 68 in. with vertical travels of 22, 34, and 46 in.
