Electrocube, Inc.    Monrovia, CA 91016 4150
Oct 25, 2002 Seacor AEBank series consists of application-specific configurations of electrically parameter-matched electrolytic capacitors. AEBank is terminated using low resistance, minimal inductance, copper buss strips, to which optional bleeder resistors may be added. Able to be designed for various mounting configurations, unit can be banked to any capacitance value. Voltages are available from 10 to 20,000 V, and currents are available up to 1000 A rms.

S-B Power Tool Co. (Skil/Bosch)    Chicago, IL 60646 5925

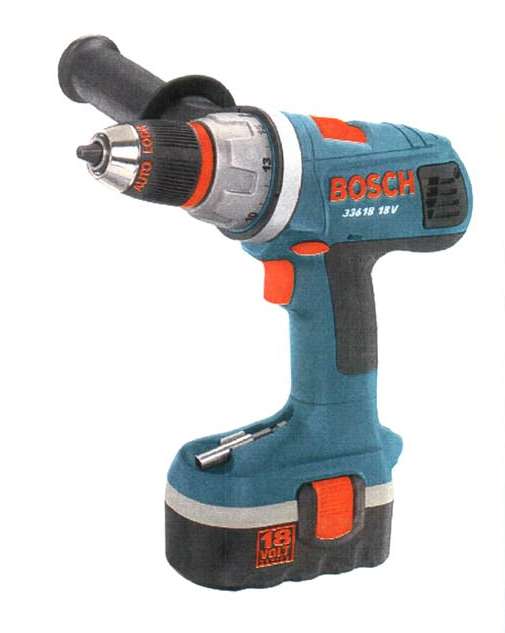

Oct 25, 2002 Brute-Toughâ„¢ drill/drivers are designed with ½ in. chuck for continuous heavy use in high torque drilling applications. Models offer 1,500 rpm (14.4 V) and 1,300 rpm (18 V) in addition to 475 lb-in. torque. Compact-Toughâ„¢ drill/drivers, designed for tight spaces, feature 3/8 in. chuck and come in 9.6, 12, and 14.4 V models with speeds up to 1,200 rpm (12 and 14.4 V). All drill/drivers include Dura-Shieldâ„¢ exterior housing consisting of ABS/Nylon blend.

Almco, Inc.    Albert Lea, MN 56007 2751

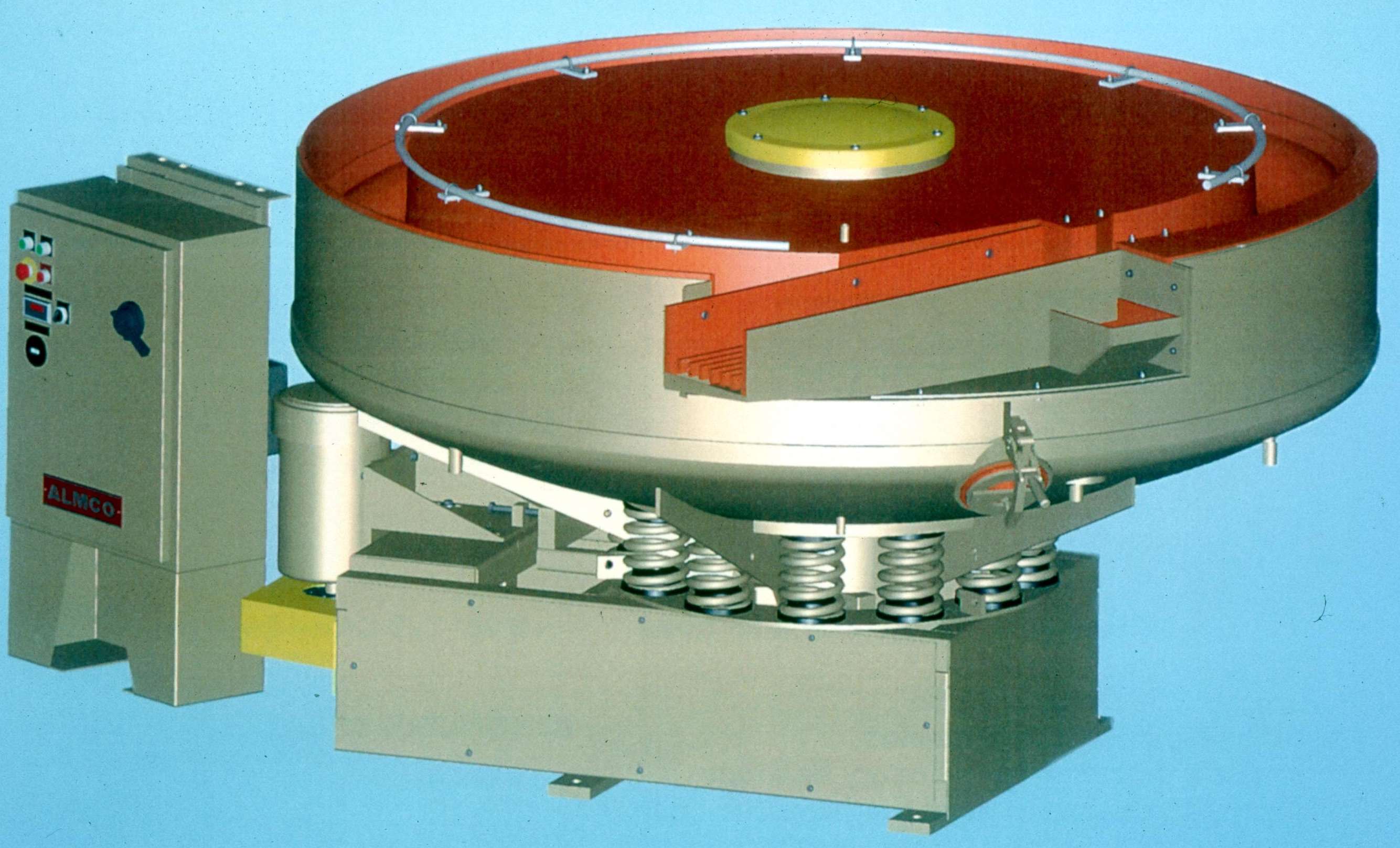

Oct 25, 2002 Automated, continuous thru-feed Model XLR-22 features round-bowl design for deburring and finishing of metal parts. Cycle/separation options include continuous once-around-and-out processing, or batch cycling for parts requiring longer deburring exposure. Bowl is 8 ft in diameter and lined with 1 in. cast-molded urethane for parts protection. It has 8¼ in. tub cross-section, full-length tub contour baffle, and automatic lubrication for vibratory bearings.

Astec America Inc.    Carlsbad, CA 92008
Oct 25, 2002 Dual-output, quarter-brick Series ALQ15 offers output voltages of 3.3/2.5, 3.3/1.8, and 2.5/1.5 V. Rated to deliver up to 15 A from either output, series provides a full 60 W of clean, regulated, low-noise DC power. Unit can start up into high-capacitance loads of up to 10,000 microFarads per output. Features include over-temperature, over-current, and over-voltage protection. Input voltage range is 36-75 V, and operating temperature range is -40 to +85°C.

A & D Weighing    Milpitas, CA 95035

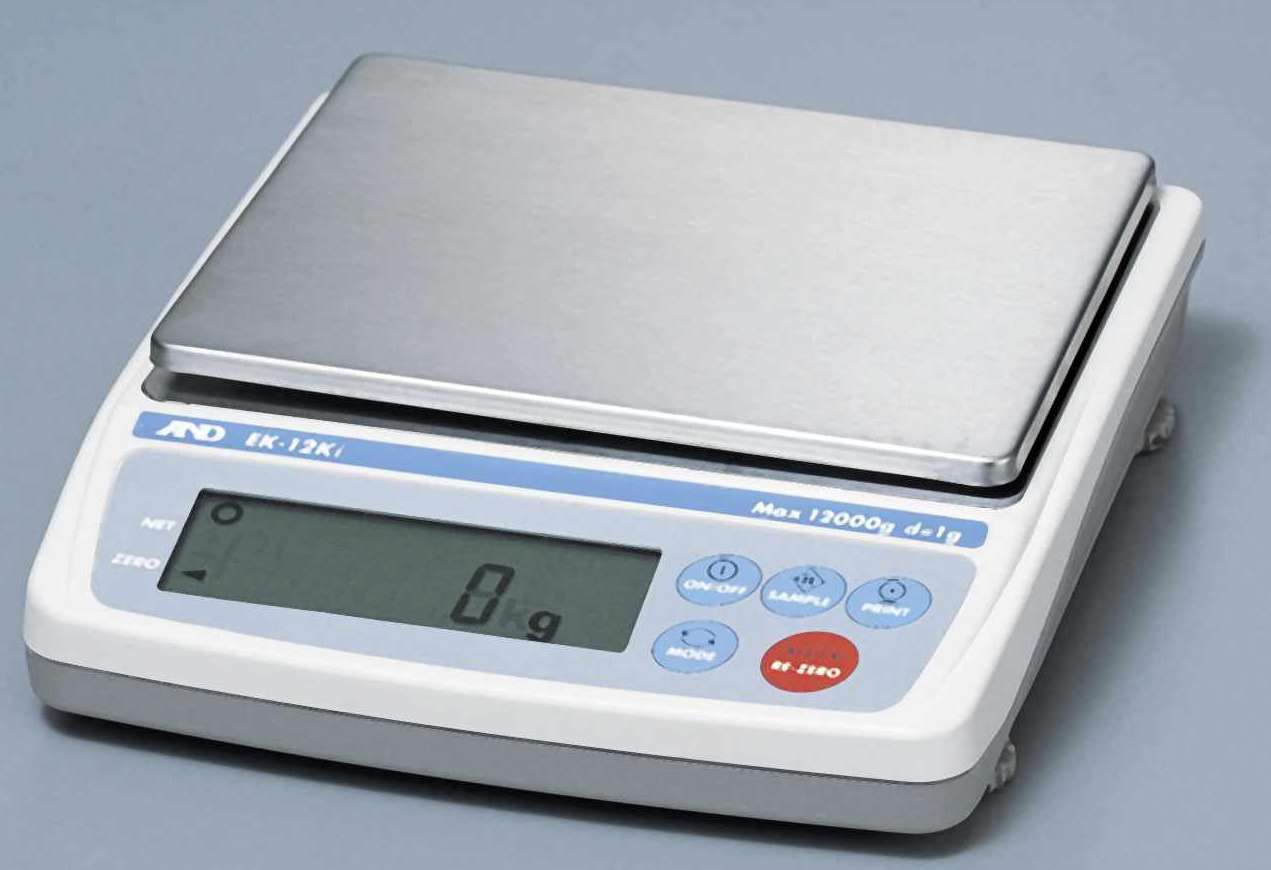

Oct 25, 2002 Models EKi and EWi come with backlit LCD and RS-232C for connecting to printer or computer. Both models include counting, percentage, and comparator modes, and EWi models have triple range weighing. GLP data output assures reporting documentation. Users can choose from 9 weighing units. Capacities range from 120 g to 12 kg, with readabilities as precise as 0.001 g. Applications include field-testing, production quality control, and sieve analysis.

Copley Controls Corp.    Canton, MA 02021
Oct 25, 2002 Junus applies DSP-based technology to symplify system set-up and commissioning, while increasing electrical, mechanical, and thermal capabilities of motor. Used in conjunction with CME2â„¢ software, it utilizes user-invoked algorithms to automate brush-motor current-loop tuning. Java-based software uses on-screen prompts for implementation of detailed tuning adjustments. Users can store parameters in non-volatile Flash memory and digitally create motor-drive functions.

Copley Controls Corp.    Canton, MA 02021

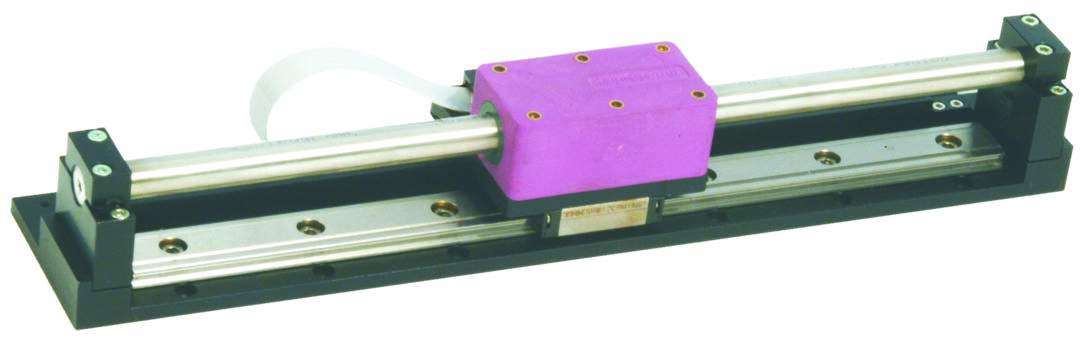

Oct 25, 2002 Miniaturized ThrustTube Micro motor modules can be combined to create miniature x – y platforms. Motor block weighs 76 g and is constructed from polymer and epoxy to achieve accelerations of 30 G while retaining sub-micron positional accuracy. Use of polymers eliminates eddy currents in device, making motors able to achieve speeds of 10 m/sec. Modules are 60 mm wide x 48 mm high and up to 600 mm travel.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797
Oct 25, 2002 Two-wire braid Model 472TC, for high-impulse applications, offers ½ SAE 100R12 minimum bend radius and exceeds SAE 100R16 specifications. Synthetic, high-Nitrile rubber tube handles various petroleum-based hydraulic fluids, lubrication oils, water/oil emulsion, and water/glycol hydraulic fluids. MSHA-accepted Tough Cover resists abrasion. Working pressure is 15% to 35% higher than standard SAE 100R2 hose.

Mill-Rose Co., The    Mentor, OH 44060 4805
Oct 25, 2002 Micro/mini brushes are manufactured to exacting tolerances from 0.018 in. dia in materials such as stainless steel, brass, bronze, gold, silver, titanium, and molybdenum. Also manufactured in synthetic fibers (nylon, polyethylene, styrene, Herox®, Tynex®), brushes' bristle materials range in thickness from 0.0025 in. Uniform brush diameters are accurate to ±0.001 in. Brushes are available with or without loop handles, which facilitate turning and handling.

Bicron Electronics Co.    Canaan, CT 06018
Oct 25, 2002 Model SC0424L (magnetic latching) and Model SC0424N (non-latching) open-frame, pull-type solenoids provide 250,000+ actuations from one set of 4 AA battery cells (6 Vdc). Both models have dimensions of .42 x .46 x .95 in. (W x H x L). Standard with flat face plunger, solenoid insulation is rated Class A (105°C), and operating temperatures range from -20 to +40°C. Maximum force is rated 34.8 oz at .02 in. stroke (10% duty cycle).

Rice Lake Weighing Systems    Rice Lake, WI 54868

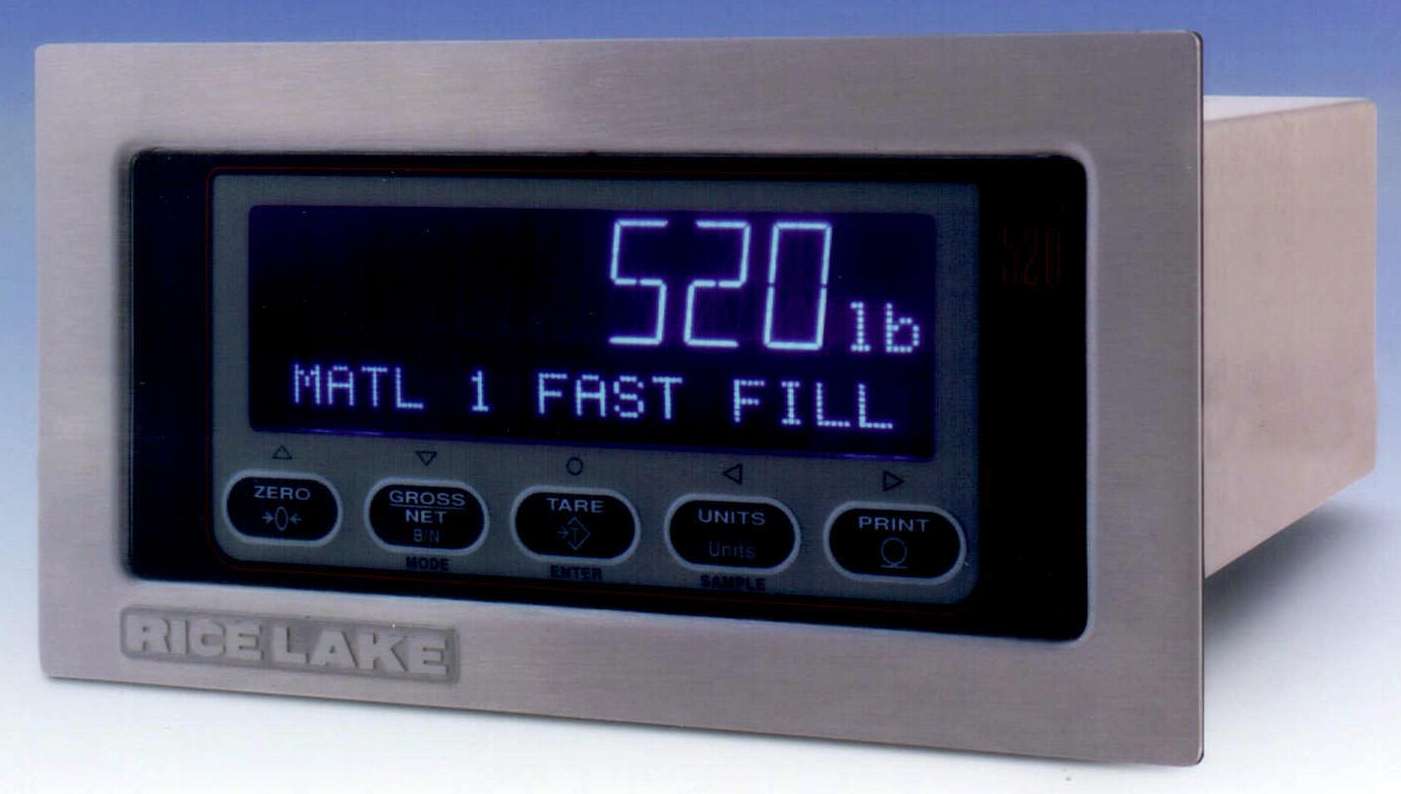

Oct 25, 2002 Panel-mount model 520 maintains NEMA 4X/IP67 seal to protect electronics in dusty and washdown environments. Enabling customization and system integration, it is equipped with setpoints or checkweigh modes, selectable analog-to-digital speeds up to 120 Hz, and on-board serial ports. Peak hold, time and date, counting, and accumulation functions are executed via multi-function keys. Unit delivers stable, accurate results with digital filtering.

Schmidt, W. A., Inc.    Souderton, PA 18964
Oct 25, 2002 SprinklerGuard retrofits to existing pallet racks, providing protection against sprinkler head breakage and subsequent water damage. Fabricated from 5/8 in. dia hot-rolled steel bar stock and welded to ¼ in. mounting plates, it is finished in OSHA safety yellow baked urethane paint. Mounting hardware is included with each guard; unit can be installed by bolting or welding.

Mulox, Inc.    Macon, GA 31297

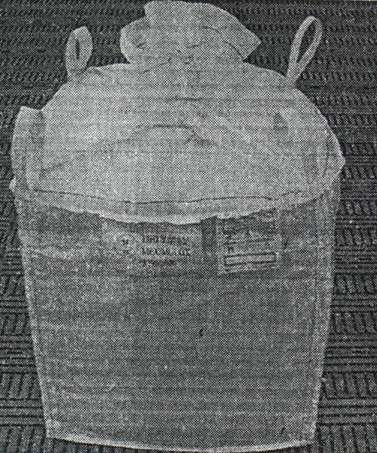

Oct 25, 2002 Able to stack four units high, cubic yard FIBC has 35 in. square base and 36 in. height. Design is approved for UN packaging Groups II and III and features full-open duffle top with flat bottom and 3-mil LLDPE liner. Fabric is 6.5 oz. polypropylene, and capacities range to 2,205 lbs with 6:1 safety factor (2,645 lbs with 5:1 factor). FIBC can be used with over-the-road, rail, and sea transport with no special handling equipment.

Red Bird Service    Osgood, IN 47037
Oct 25, 2002 Chemicals and solutions are available for product quality assurance, process quality, and toxicology testing. Products for both organic and inorganic analysis are also included. They meet ASTM, APHA, EPA, and AOAC standards (where applicable). Supplied with Certificate of Analysis and MSDS documents, container sizes range from 50 ml to 55 gal. Custom solutions can be supplied to meet customer needs and specifications with private labeling.

Du Mont Co., LLC., The    Greenfield, MA 01302
Oct 25, 2002 Minute Man heavy-duty keyway broaches, bushings, and shims cut 1/2, 5/8, or 3/4 in. keyways in 17 bore sizes from 2 to 3 in. Set No. 50 can be used to cut keyways in pulleys, gears, collars, and similar pieces in experimental, maintenance, machine assembly, or limited production work. Broaches are push-type and can be used with hand operated arbor presses or hydraulic presses with adequate throat opening. Other sets are available in range of 1/16 to 3/4 in. in bores from 1/4 to 3 in.

American Lewa, Inc.    Holliston, MA 01746 1455
Oct 25, 2002 Packages can be supplied in various configurations that provide up to 17,500 psi with flow rates up to 100 gpm for inhibiting hydrate formation in pipelines and wellhead of offshore platforms. Hermetically-tight, sealless diaphragm pumps isolate process fluid from hydraulic system. Available configurations include manual or automated stroke length control, speed control, and fixed volume delivery, with continuous injection (gas lines) and intermittent injection (oil).

Johns Manville Roofing Systems Group    Denver, CO 80217 5108
Oct 25, 2002 SuperSeal® Duct Butter's aerosol can will not leak or corrode, increasing its shelf life and stability. Product retains its shape and volume after curing is completed, resulting in improved finished appearance. Used for spot and edge repair of ductboard or liner, it can also be used to seal gaps between liner sections or fittings. SuperSeal maintains thermal integrity of insulation it is used to seal.

American MSI Corporation    Moorpark, CA 93021
Oct 25, 2002 Celltrack PROâ„¢ enterprise software is designed for medical device manufacturers that need to comply with FDA's 21 CFR Part 11 regulation. It records, maintains, archives, retrieves, and transmits relevant manufacturing data, including batch detail and downstream processing, equipment settings, and measurements. Closed data chain, with high-level access control and record-validity checks, guarantees tamper-free data integrity from point of collection through reporting and archiving.

American MSI Corporation    Moorpark, CA 93021
Oct 25, 2002 Altanium® CM temperature control system mounts directly on mold junction-box and eliminates need for thermocouple cables. With width of 9.5 in., height of 9.7 in., and depth of 6.25 in., unit can fit on any hot runner mold system, leaving space for robots, optronics, and hoses. Transverse latching mechanism assures that control remains securely in place.

Motion Engineering Inc.    Santa Barbara, CA 93117

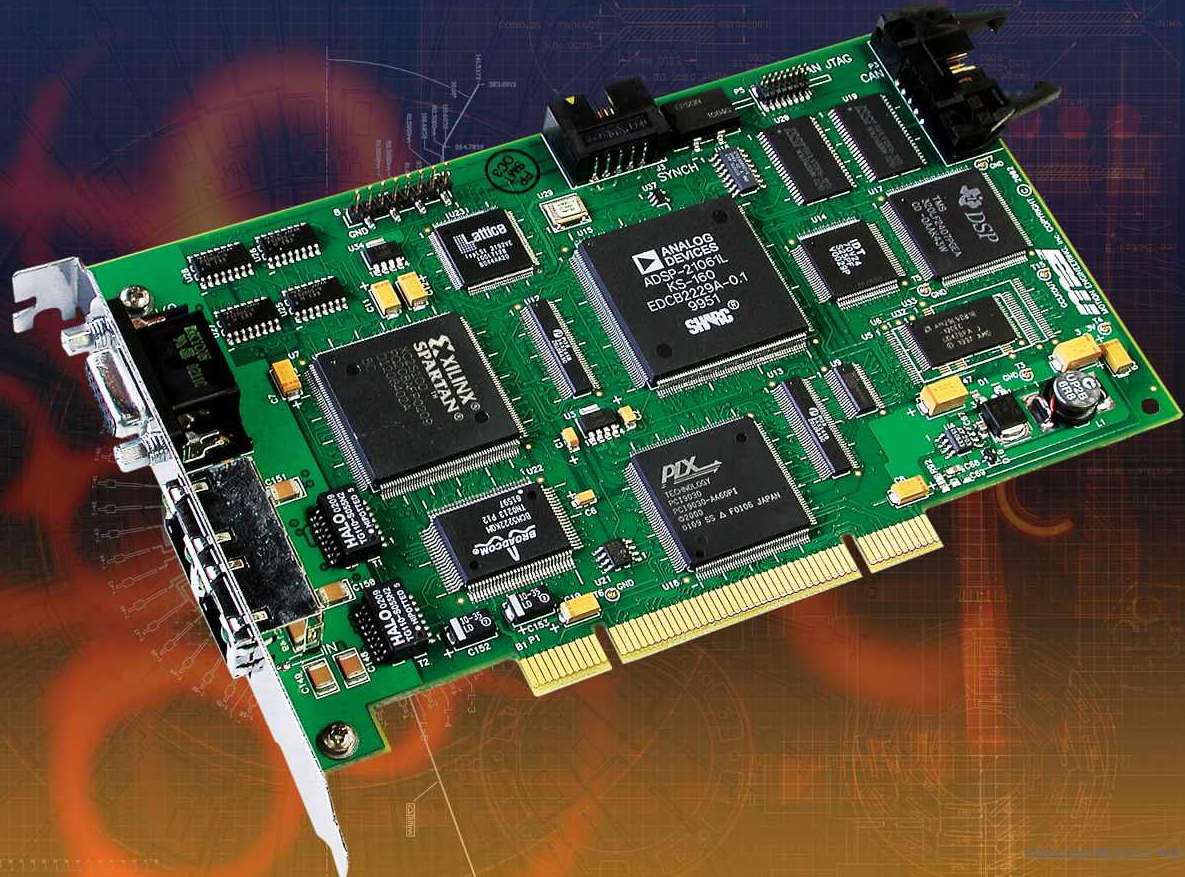

Oct 25, 2002 Model XMP-SynqNet-PCI provides 100 Mbps, real-time, synchronous networking for up to 32 axes. Servos can be updated as quickly as 20 kHz for 4 axes, or 10 kHz for 8 axes. SynqNet also supports user-defined I/O CAN-based networking under industry operating systems such as Windows NT, Windows 2000 and 95/98, VenturCom, and VxWorks. Powered by 32-bit floating point Analog Devices SHARC DSP, heart of SynqNet is its modular motion programming interface software.
