Hoffman    Anoka, MN 55303 7504

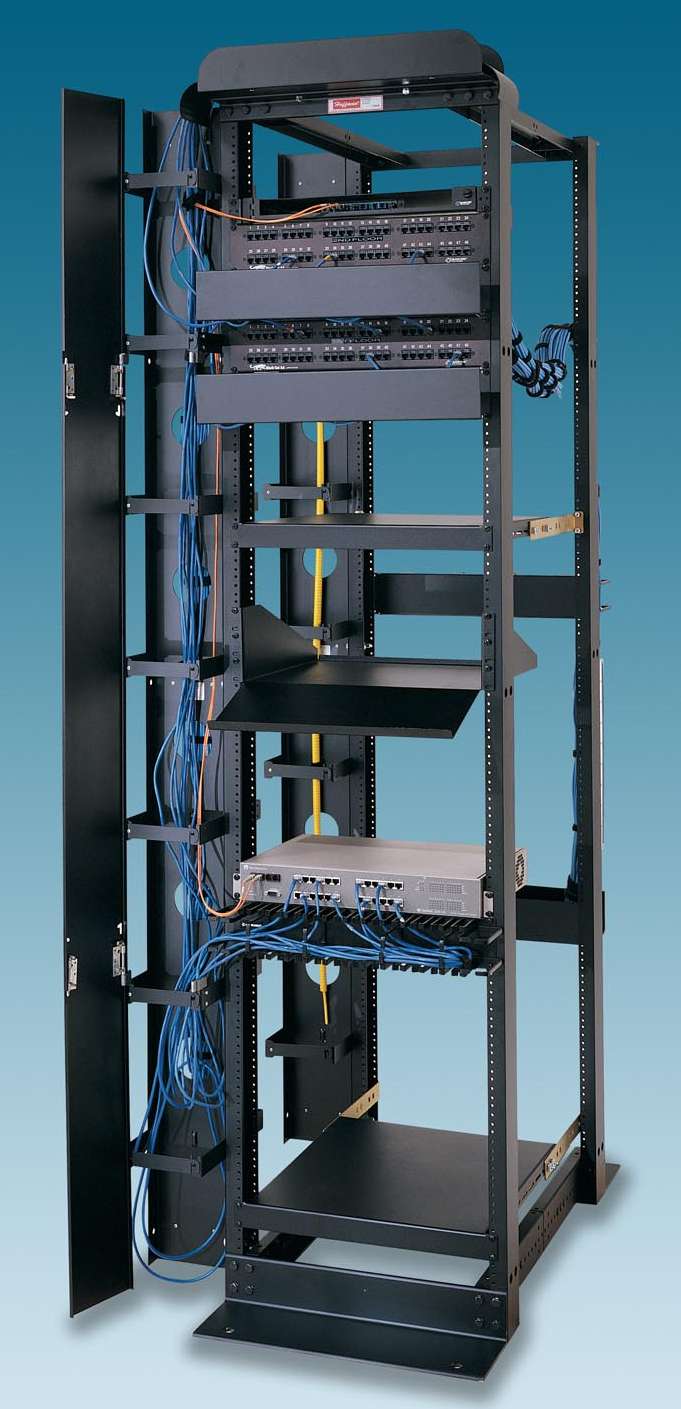

Nov 29, 2002 With load rating of 2,500 lb, DataCom 4-post, open frame racks securely accommodate LAN/WAN equipment, voice/data equipment, routers, servers, and switches. Available with 6, 7, and 8 ft frame heights, 3 models are offered in 38, 45, and 51 rack unit sizes, respectively. EIA RS-330-D standard racks are constructed of extruded aluminum and range in weight from 70–80 lb. Racks are adjustable for depths from 17.7–41.3 in. in 0.98 in. increments.

C & D Technologies    Mansfield, MA 02048-1151

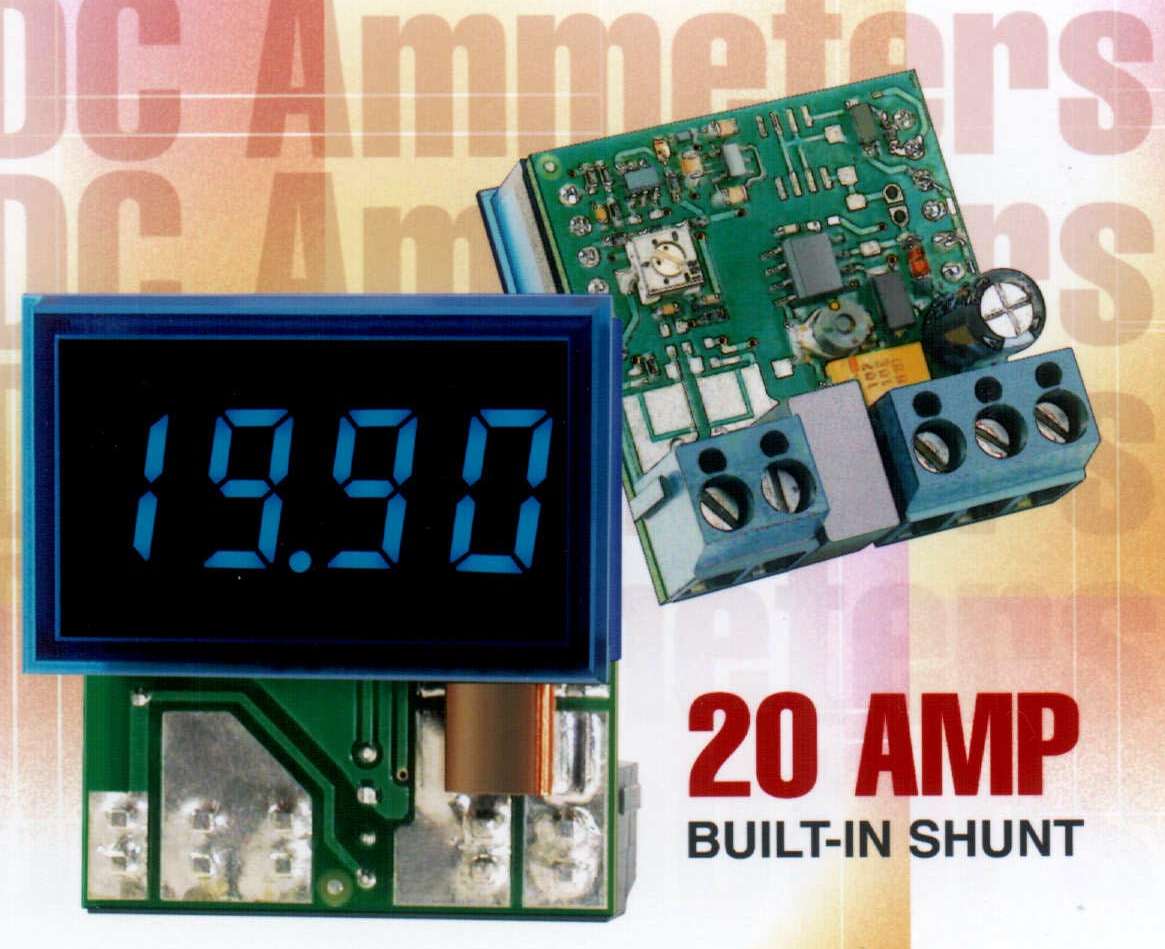

Nov 29, 2002 Series DCA-20PC covers 6 ranges from 0-200 µA to 0-20 A, with ±0.1% accuracy. Ammeter includes factory-calibrated scaling circuitry, 3 ½ digit A/D converters with LED displays, power supply isolation, and terminal blocks for power and load connections. Integral optical filter ensures display can be read at distances up to 15 ft. LED colors include blue, green, and standard red. Power consumption is less than 75 mW for 5-40 V powered models and less than 1 W for 8-36 V models.

Concurrent Technologies, Inc.    Ann Arbor, MI 48108
Nov 29, 2002 Model VP 100/010-E uses 800 MHz Intel® Pentium III Processor with 512 Kbytes secondary cache and offers operating temperature range of -25 to +70°C. Single slot board supports 1 PMC site with expansion connector providing 2 additional PMC sites on optional extended temperature carrier. EIDE and Ultra Wide SCSI interfaces are provided. Soldered on board, SBC provides 1 Gbyte of 133 MHz ECC S-DRAM.

Concurrent Technologies, Inc.    Ann Arbor, MI 48108
Nov 29, 2002 Single-slot Model VP 742/10x incorporates MPC7455 PowerPC G4 processor with speed options of 800 MHz or 1 GHz and up to 1 Gbyte SDRAM. With 128-bit AltiVec(TM) technology, system provides 256 Kbytes L2 cache, L1 cache locking, and block address translation registers. Processor connects to MPC107 (Chaparral) PCI bridge to interface to 2 Mbytes of backside L3 cache, PCI bus, SDRAM, and 16 Mbytes of Flash EPROM. SBC supports 2 flexible PMC sites, one with rear I/O.

Logistics Management Solutions (LMS)    St. Louis, MO 63141
Nov 29, 2002 TOTALVision combines rate management, Internet tracking and tracing, and freight payment management into one system. It offers complete online shipment visibility, from order entry to carrier payment, and allows shippers to manage data, pinpoint cost-saving opportunities, and measure operational performance. Product can be installed in 60 days and integrates with existing TMS/ERP systems. Functions also include carrier inquiries and final delivery notification.

Harmonic Drive, LLC    Peabody, MA 01960

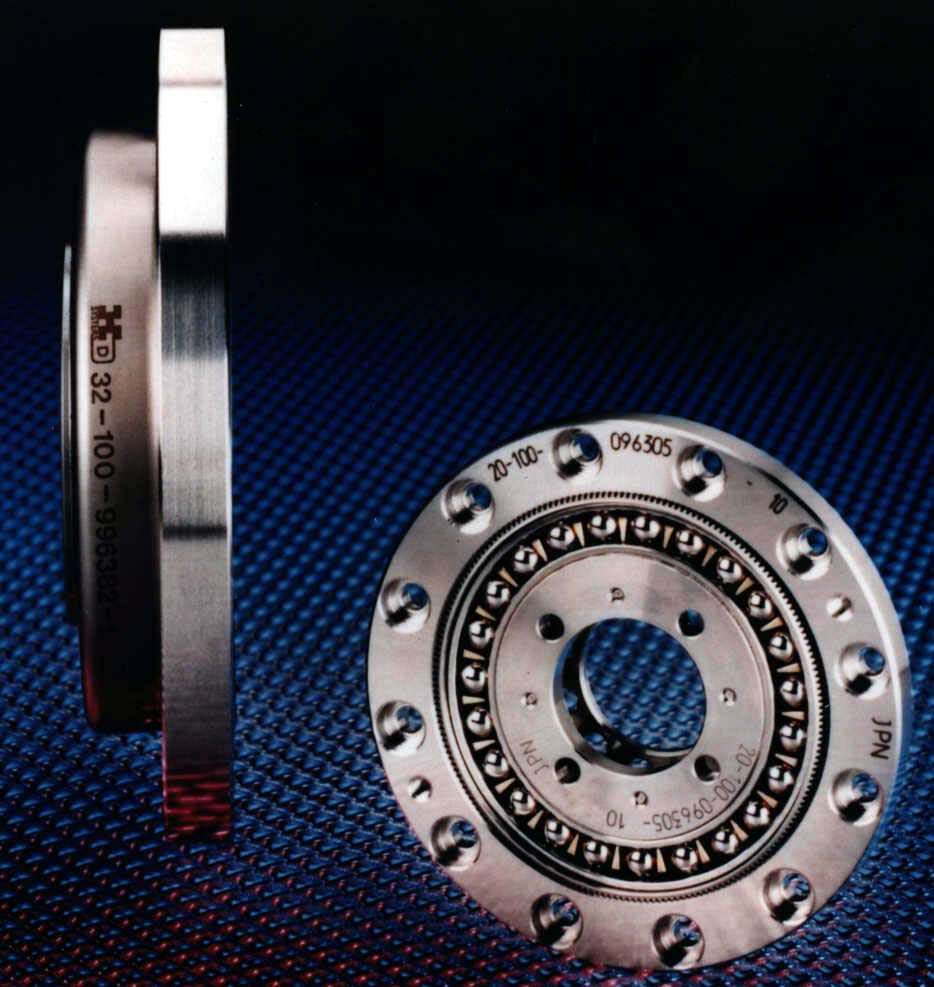

Nov 29, 2002 Series CSD Size 32 flat, harmonic, gear drive is 22 mm long with 110 mm OD. It is offered in gear ratios of 50, 100, and 160:1. Drive features rated torque of 850 lb-in. and maximum torque of 3175 lb-in. It uses S tooth profile and provides ±5 arc-sec repeatability. Unit is suitable for robotics, factory automation, and aerospace applications.

Fullscope Inc.    Ann Arbor, MI 48104
Nov 29, 2002 WiseXE integrated Web-based platform features pre-packaged business processes that enable collaborative commerce between manufacturers and their trading partners by extending ERP functionality. Targeted at Fortune 2000 companies, WiseXE leverages critical sales information that is traditionally maintained in back office ERP systems, and extends business processes to customers and their partners, collaborating and sharing information in real-time.

L.J. Star, Inc.    Twinsburg, OH 44087
Nov 27, 2002 Glare-free Series ESL25-EX is rated for zones 1 and 2, to IEC 79-10. Dust and waterjet tight specs include IP65 to EN 60529/DIN VDE 0470 part 1. Units are 5 1/2 in. long by 2 4/5 in. in diameter and provide 5–20 W. Luminaires are used in single-port, or combination light/sight port applications. They illuminate internals of visual flow indicators, pipelines, lab mixers and bioreactors, as well as storage tanks, reactors, and other normally sealed process vessels.

Sentech, Inc.    North Hills, PA 19038

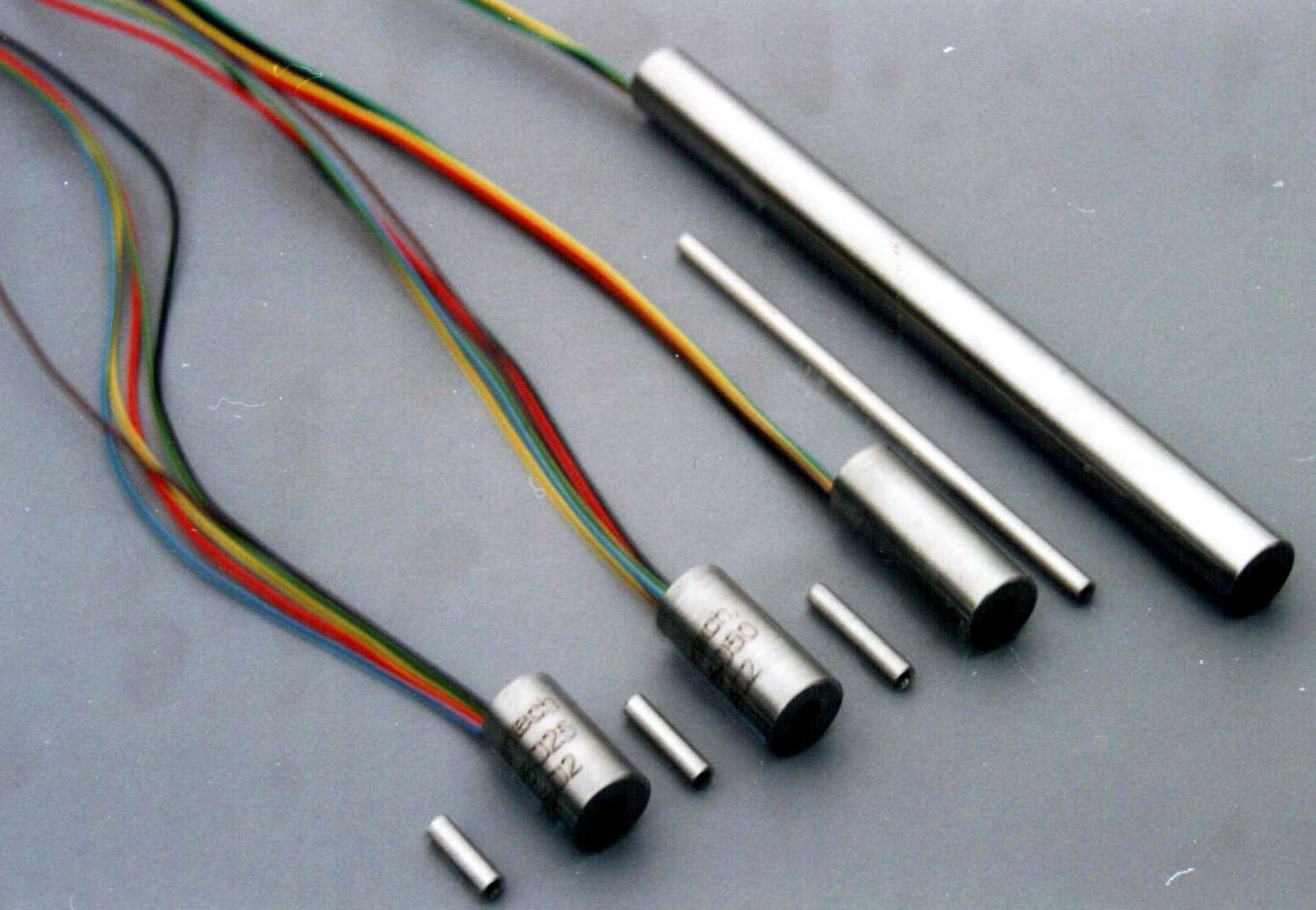

Nov 27, 2002 Series 375 sensors, with 0.375 in. ODs, can be used in compact equipment designs and restricted space applications. Units utilize low-mass moveable cores, and construction consists of composite coil bobbin with stainless steel outer housing. Terminated with #30 AWG Teflon®-insulated lead wires, sensors are available in measurement ranges from ±0.005–1.000 in. Units operate from 3 V_rms nominal and frequencies of 400 Hz to 20 kHz.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Nov 27, 2002 Series PIC18FXX20 PICmicro® Flash offers 6 power-managed modes, 0.1 µA power consumption in standby mode, and operating voltage from 2–5.5 V. Re-programmable Flash enables fix-on-the-fly capability and one-time validation. Device provides 8 Kbytes of Flash program memory, 512 bytes of RAM, 256 bytes of EEPROM, and internal multi-frequency oscillator up to 8 MHz. In-Circuit Serial Programmingâ„¢ allows unit to be programmed after being placed in circuit board.

Melles Griot Electro-Optics Group    Boulder, CO 80301
Nov 27, 2002 Series 56 ICS 222 Violet CleanBeamâ„¢ is available with up to 6 mW output at 405 nm or 1 mW output at 440 nm. It delivers round, spatially filtered beam with M² factor of less than 1.1. Laser temperature, controlled by thermoelectric cooler, stabilizes output power and minimizes wavelength drift. Suited for use in laser-induced fluorescence metrology applications, series is CE and CDRH certified, fully self-contained, and requires 8 Vdc to operate.

APC American Power Conversion    West Kingston, RI 02892
Nov 27, 2002 Capable of environmental monitoring, network card sends alerts when changes to ambient temperature and humidity reach levels outside user-set parameters. On-board modem provides remote management of UPS systems, allowing users to monitor network failures and receive event notification at remote sites. It also offers ability to dial in to network card and gain access to UPS. IT managers can also talk to UPS via web interface and other protocols.

CertainTeed Corp.    Valley Forge, PA 19482-0860

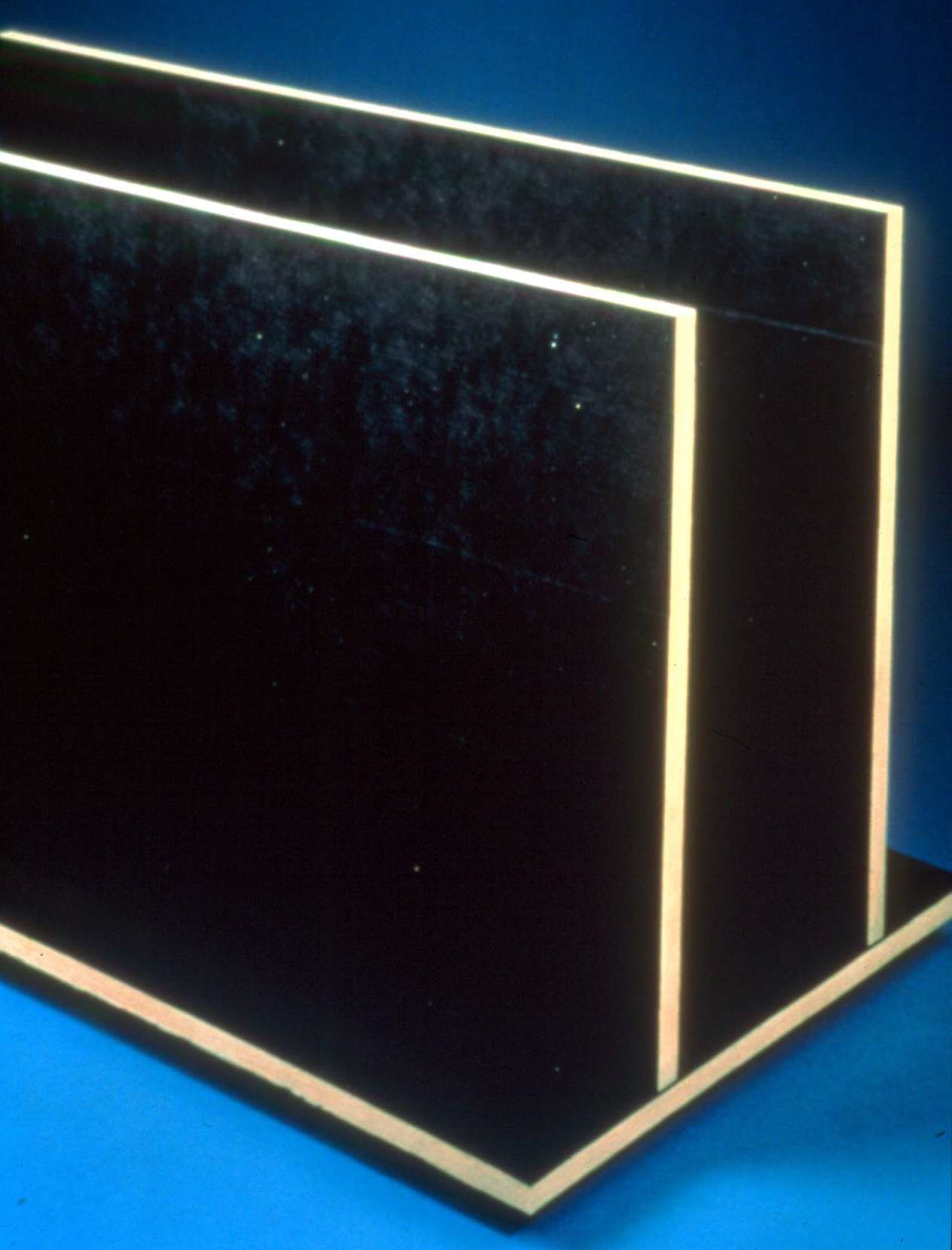

Nov 27, 2002 ToughGardâ„¢ thermal and acoustical board, with damage-resistant composite airstream surface, has breathable coating that preserves sound-dampening performance. Composed of rotary-glass fibers bonded with thermosetting resin, board has black nonwoven mat bonded to airstream surface to withstand air velocities to 6,000 fpm without fiber erosion. Air stream surface contains antimicrobial agent and withstands temperatures from 35 to 250°F.

Bionomic Industries Inc.    Mahwah, NJ 07430

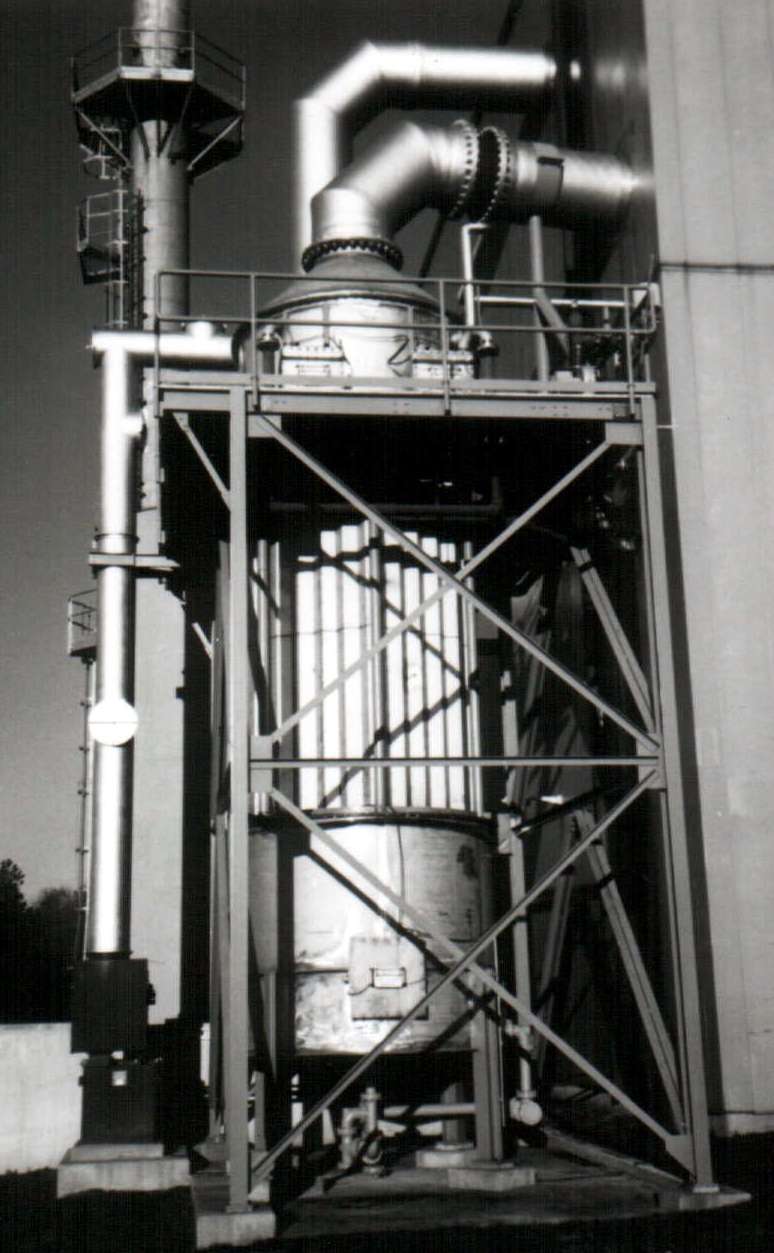

Nov 27, 2002 HEI™ (High Energy Ionizer) Wet Electrostatic Precipitator System (WESP) incorporates discharge electrode technology. Available in models from 500–250,000 scfm, system suits difficult-to-clean gas streams such as those with high moisture content, submicron particulate concentration, and high opacity. System is also available with nonfueling RotaBed™ Precleaning Module for particulate reduction and gas absorption prior to HEI/WESP treatment.

Dwyer Instruments, Inc.    Michigan City, IN 46361

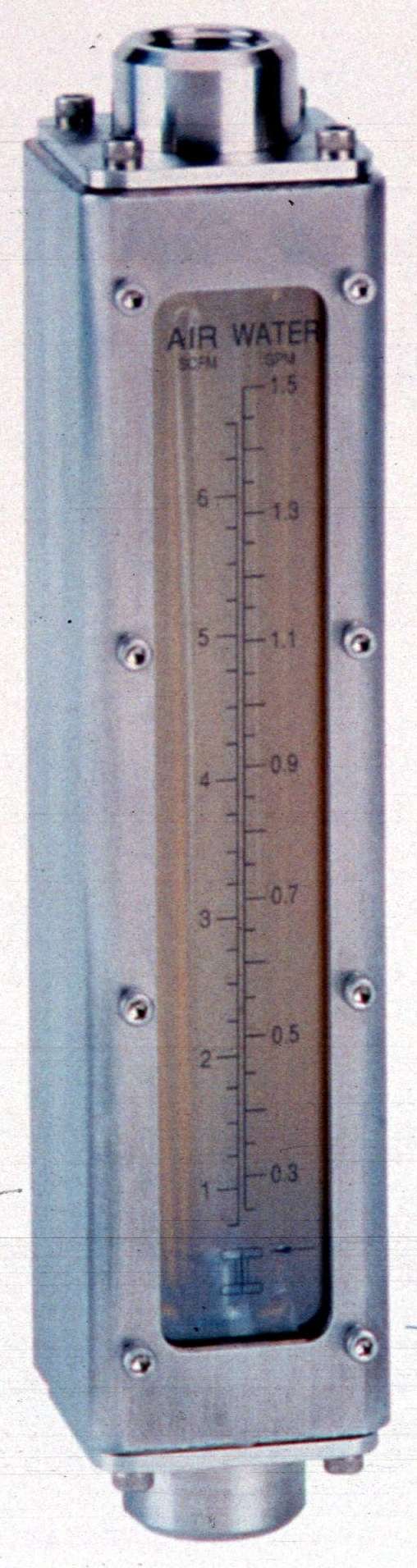

Nov 27, 2002 With incorporated dual scale and fully enclosed stainless steel case, Series IF directly measures flow rates up to 20 gpm of water or 90 scfm of air. Each unit has detachable, clear, 3/16 in. thick, polycarbonate front shield that provides protection up to 200°F. Max operating pressure is rated at 200 psi. Suited for wastewater treatment and facility maintenance applications, series provides female NPT end fittings for in-line installation.

Caterpillar, Inc.    Peoria, IL 61629
Nov 27, 2002 Extreme Duty (XD) Pneumatic and Extreme Duty Solid Flexport™ tires are available in 2 sizes: 10–16.5 and 12–16.5. With deep treads, heavy sidewalls, and rim guards, tires run on dirt and other unimproved surfaces. Elliptically shaped holes molded in outer ring of sidewall give tires flexibility and ride cushioning, reducing shocks to machine and operator. Tires are suitable for work in concrete plants, asphalt recycling, and scrap yards.

Graco Inc.    Minneapolis, MN 55440

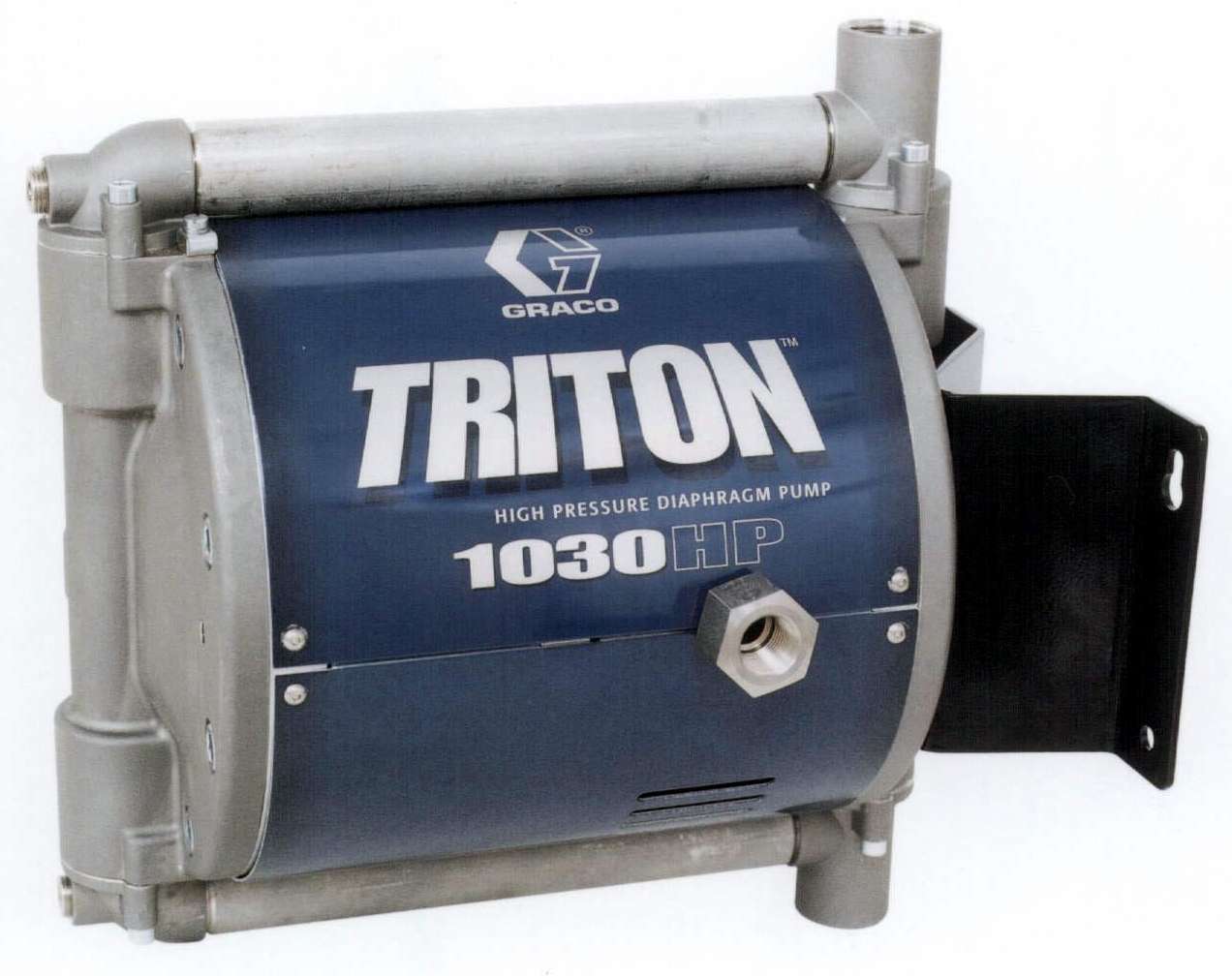

Nov 27, 2002 TRITON 3:1 pumps incorporate flexible, double diaphragm, which provides smooth, quick flushing. Additional offferings include spring-loaded ball checks and precision air motor valve. Available in 2 models, pumps provide maximum fluid flow rates of 0.8 gpm and 2.0 gpm. Suited for waterborne and solventborne coatings, stainless steel constructed pumps can be wall- or floor-mounted.

Bee Valve Inc.    Elyria, OH 44035

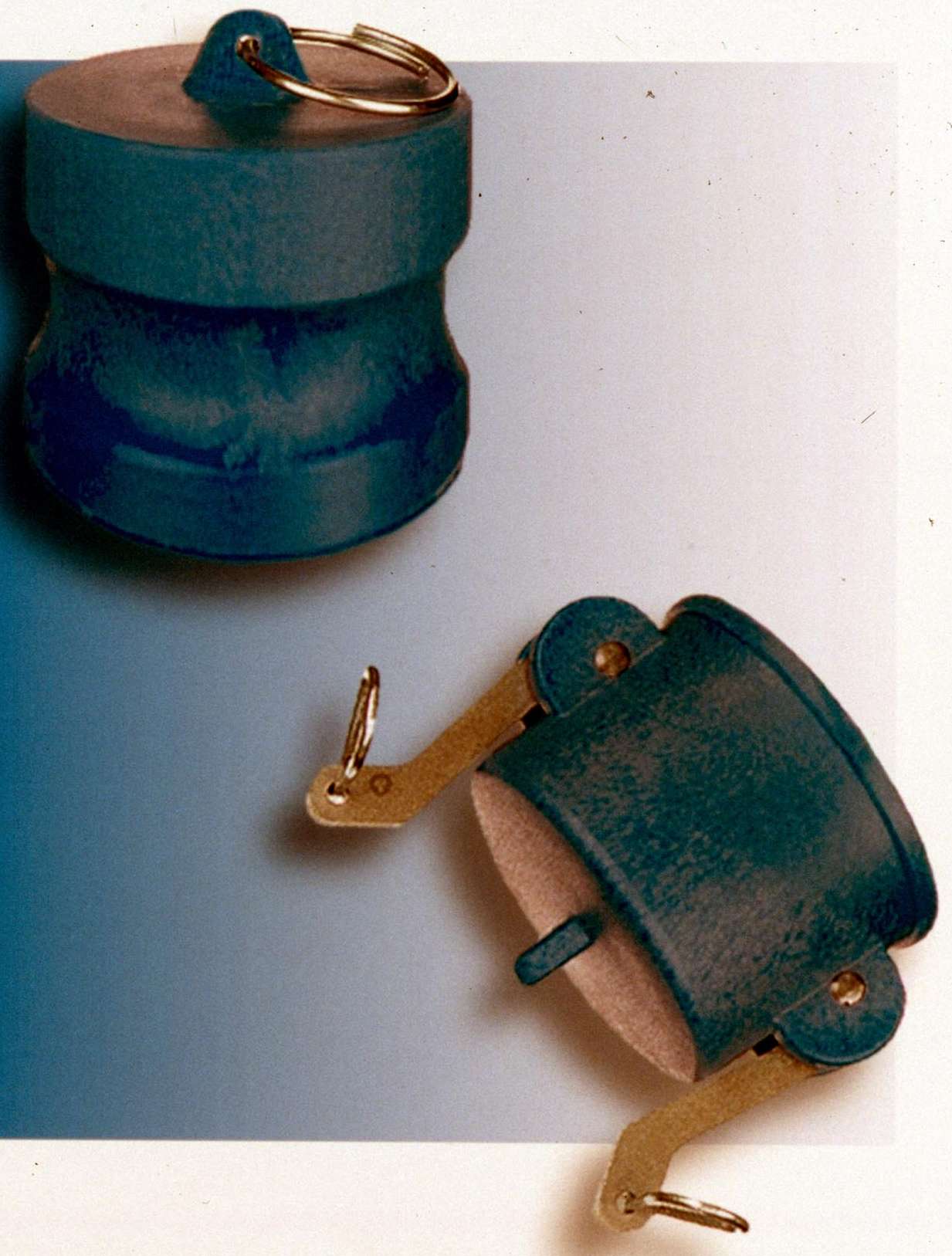

Nov 27, 2002 Santoprene dust caps and plugs cap off pipes and do not hold pressure. Available in 2 and 3 in. sizes, caps come with stainless steel arms, pins, and rings. Plugs offer stainless steel rings. Standard color is dark blue with other color options are available.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Nov 27, 2002 With resolution of 330 x 350 lines, Series IS-1000 video inspection system provides non-destructive method of visually inspecting hidden solder joints. Model IS-1000H system provides 130x magnification for detailed inspection of outermost components. Suited for internal inspection of BGA components, IS-1000L system has 70x magnification. Model IS-1000X provides adjustable magnification from 70–140x. Series can be used with x-ray inspection systems.

Huot Mfg. Co.    St. Paul, MN 55104-1701

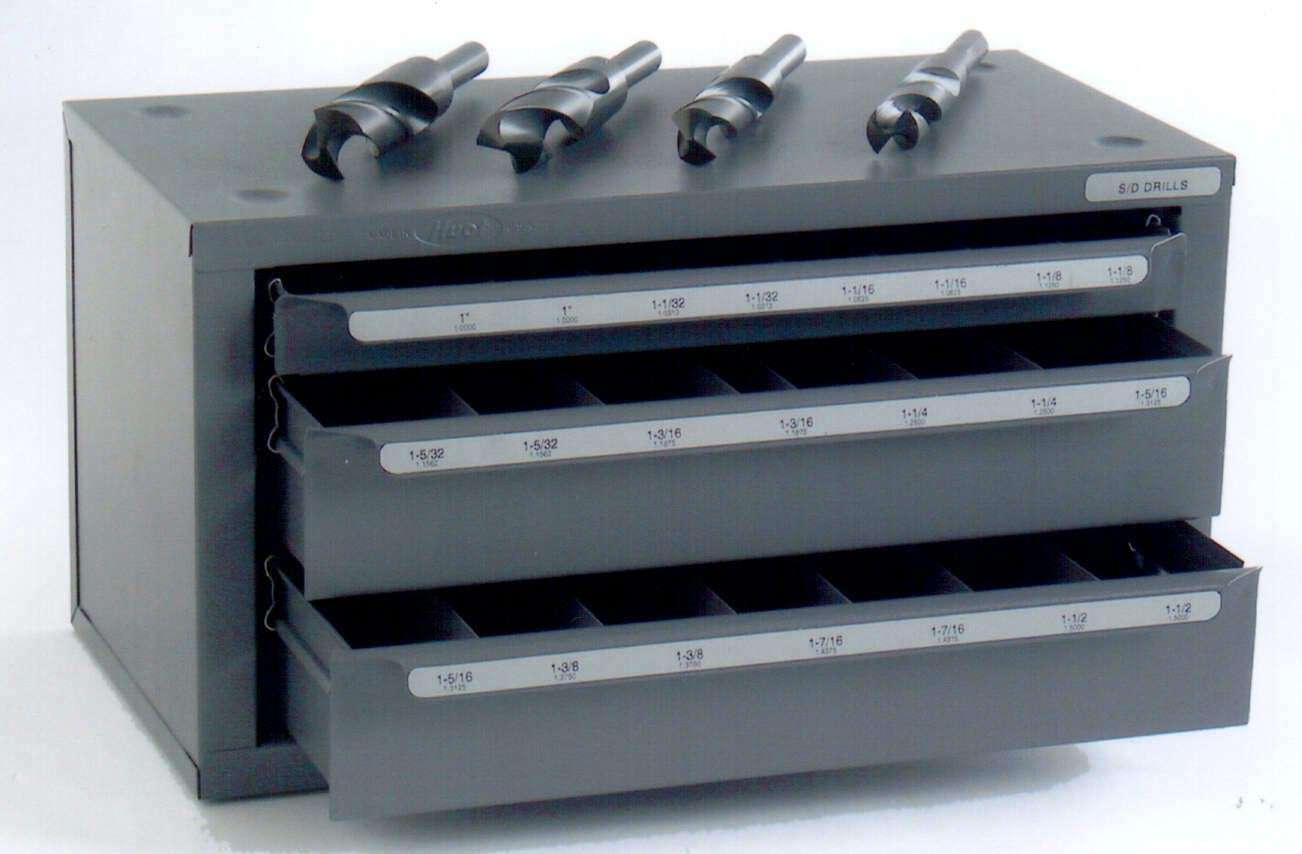

Nov 27, 2002 Silver Deming Drill Dispenser features labeled compartments that ID each drill bit. It holds 11 most commonly used sizes ranging from 1 to 1 ½ in. and can store 2 bits of each size. Measuring 14 5/8 in. wide by 7 3/8 in. deep by 7-3/4 in. high, dispenser fits on shelf, in cabinet, and on top of work bench. It is fabricated from heavy-gauge steel with epoxy powder finish.
