Wright Tool Co.    Barberton, OH 44203

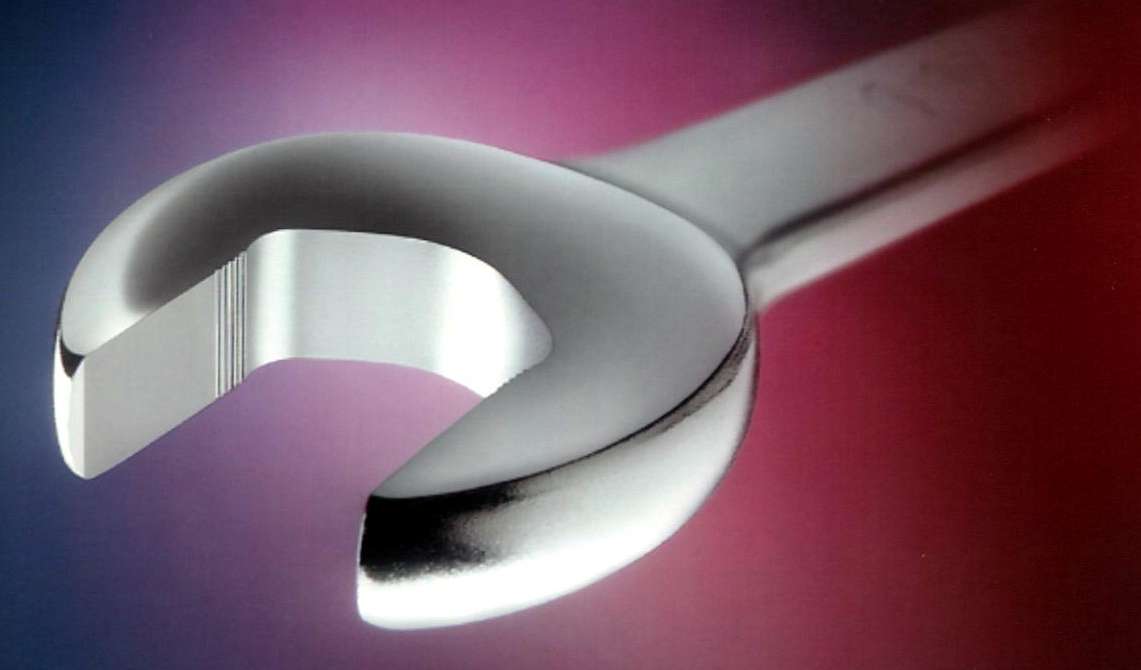

Oct 30, 2002 Open-end and combination wrenches, up to 1¼ in. in size, are available with WrightGripâ„¢, which prevents jaws from spreading and keeps wrench from slipping. Design incorporates strategically placed teeth inside jaw, and fastener corner that locks into groove to prevent slippage under load. Enlarged back end of opening provides space for radii on back surfaces, reducing stress concentration.

Nelco Products, Inc.    Pembroke, MA 02359

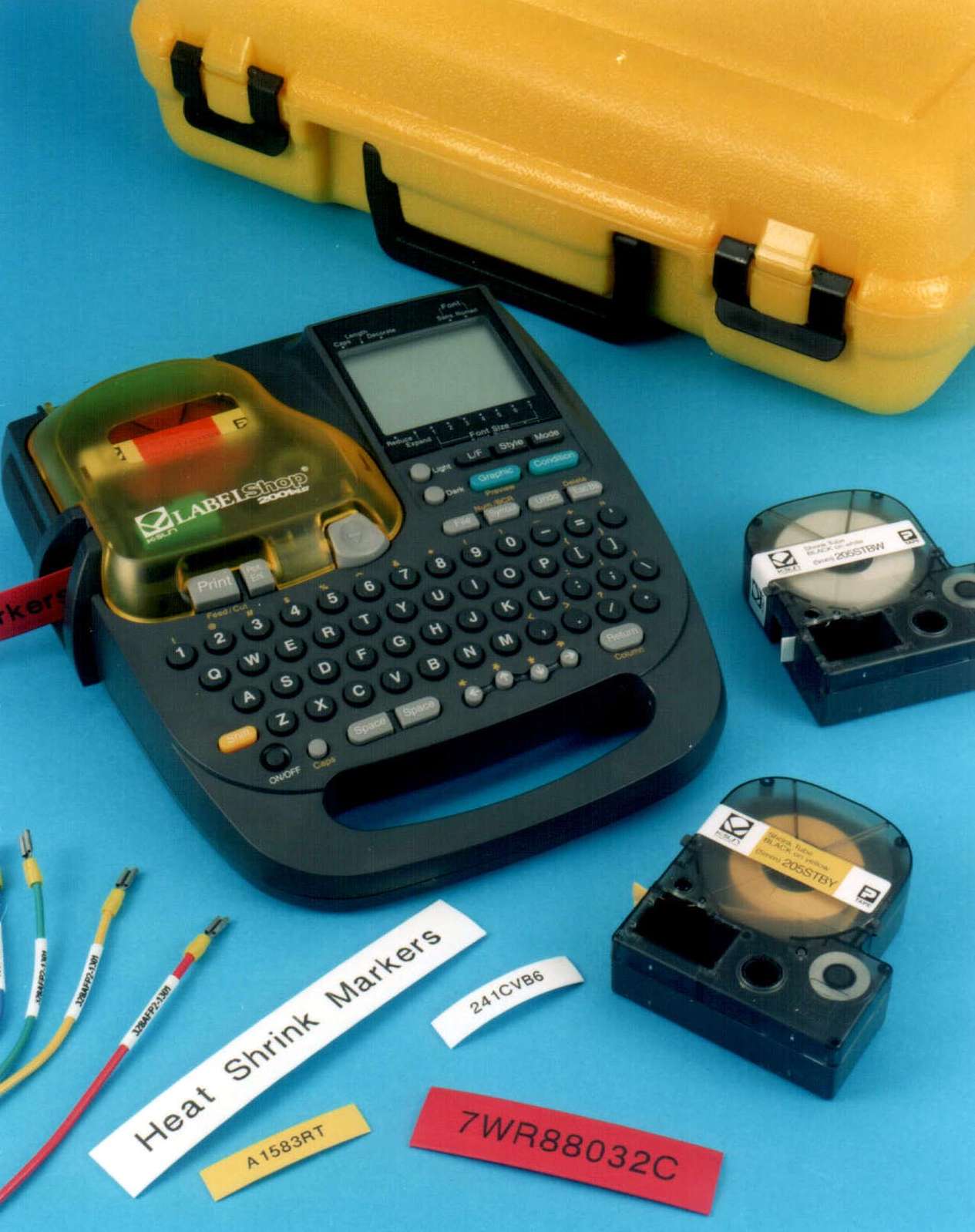

Oct 30, 2002 Fully portable MarkerMakerâ„¢ makes UL-224, VW-1 compliant 3:1 heat shrinkable polyolefin wire and cable markers. Keyboard-operated device offers WYSIWYG display and repeatable printing. It includes 262 international characters and symbols, 6 bar code formats, and 3,000 character memory for printing alphanumeric messages. Unit accommodates snap-in 3:1 heat shrink polyolefin shrink tube cartridges in 1/4, 3/8, and 1/2 in. sizes in black print-on-red, yellow, and white tubing.

Dwyer Instruments, Inc.    Michigan City, IN 46361

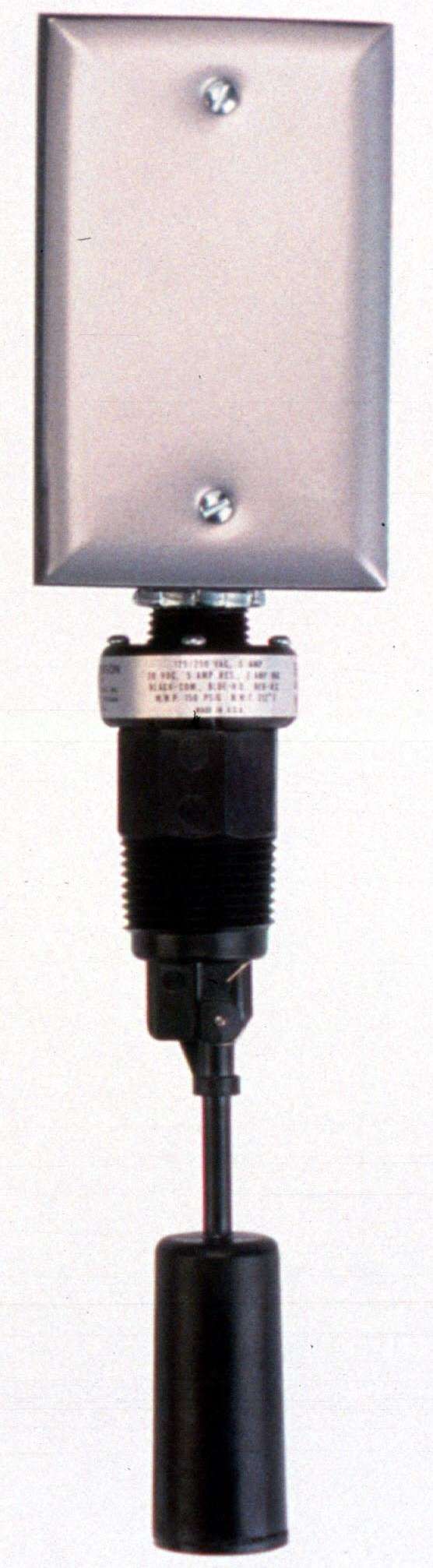

Oct 30, 2002 Model L8-WP has weatherproof housing constructed of aluminum that allows for mounting in outdoor locations. Unit includes magnet actuated switch with no direct linkages and body construction of chemically resistant polyphenylene sulfide (equivalent to Ryton®). Leak proof body has overall length of 12 7/16 in. Applications include HVAC and building automation systems and likewise industrial settings.

KOA Speer Electronics Inc.    Bradford, PA 16701

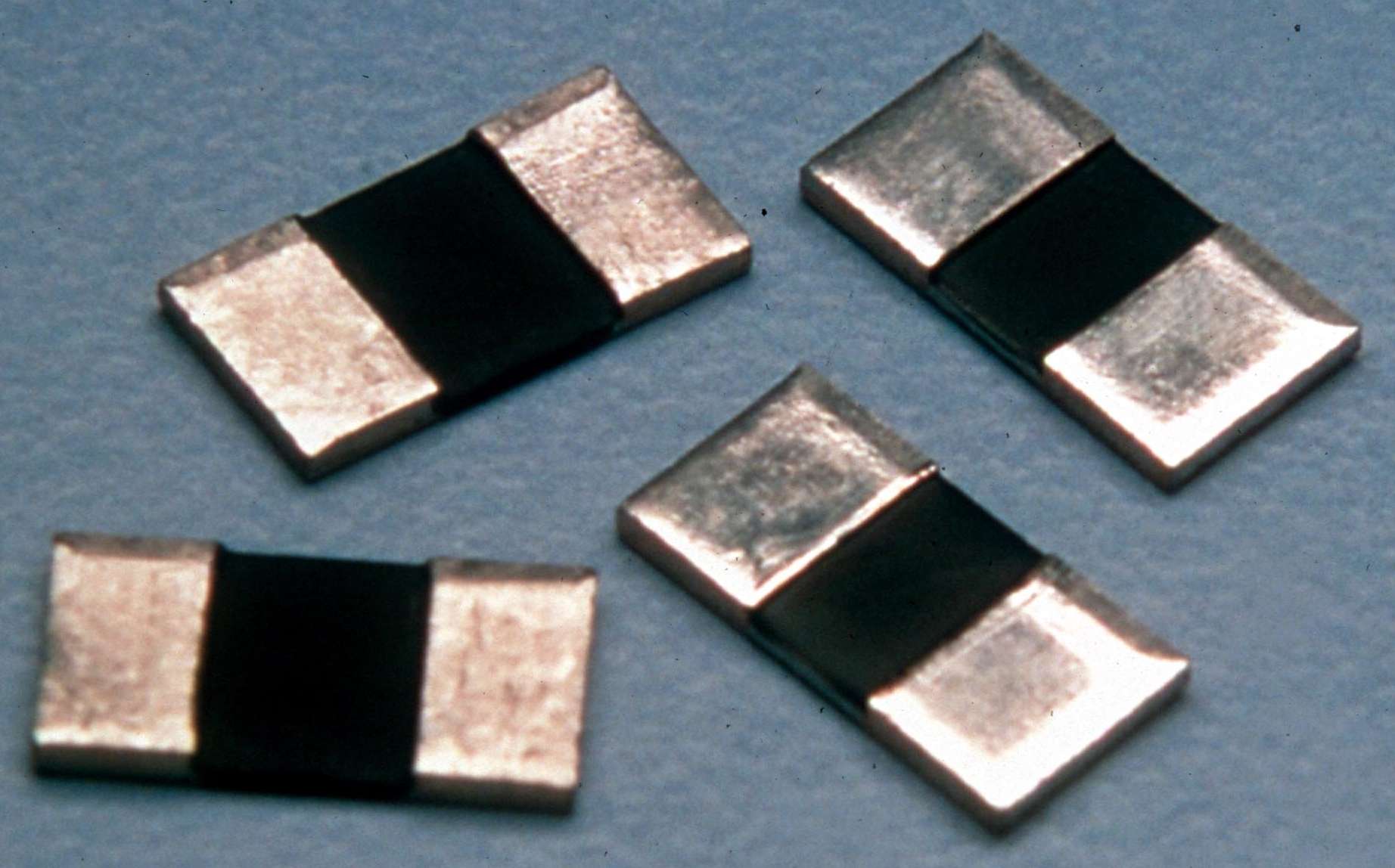

Oct 30, 2002 Constructed of metal alloy, TLR series surface mount chip-type metal plate resistors are untrimmed, providing resistances from 1 milliohm to 4 Megaohms. Standard tolerances are rated at ±1 and ±5% with power ratings of 1.0 W up to 70°C. Maximum T.C.R for TLR series is ±150 or ±200 ppm/°C. Resistors withstand operating temperatures from -65 to +170°C and are suitable for flow or reflow soldering. Embossed plastic packaging is available.

Bindicator    Spartanburg, SC 29306
Oct 30, 2002 Radio frequency sensing probe is suited for applications where temperatures exceed 450°F. Made of 304 Stainless Steel and ceramic, this probe is mounted remote from electronics, providing maximum protection from heat. Probes available for higher temperature applications include heavy duty probe with larger diameter active section, which accepts various extensions and attachments for unique applications.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

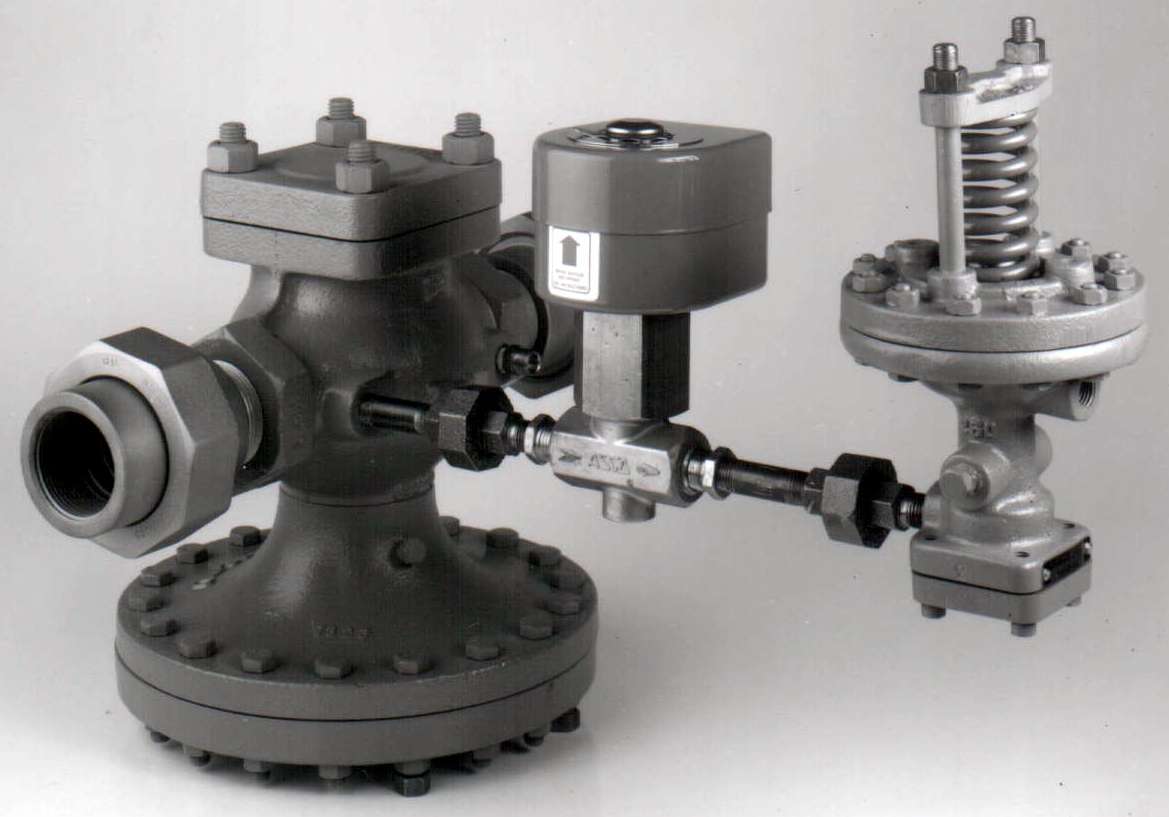

Oct 30, 2002 Model EM33D incorporates remote on/off control for batch process loops and automated building controls. Use of regulator in place of control valves eliminates need for support systems, sensors, and air input. With packless construction, hardened stainless steel trim, and few moving parts, regulator is available in sizes from 3/8 through 12 in. in cast iron and cast steel.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Oct 30, 2002 Washdown-duty dumper, with tubular frame, discharges contents of poly containers into hopper at 36 in. above floor level. Skip, with tubular bottom, allows debris to fall through. Hydraulic system, housed in stainless steel enclosure, utilizes FDA/USDA-approved hydraulic fluid. Equipment includes polycarbonate safety guarding on 2 sides. Safety touch switch, coupled with momentary contact controls, requires operator to use both hands to activate dump cycle.

Wachs, E.H., Co.    Wheeling, IL 60090 6022
Oct 30, 2002 Multifunctional, handheld Model RS-II, with choice of hydraulic, pneumatic, or electric drive, and forward and reverse operation, operates all rising and non-rising stem valves from 6 to 60 in. Unit mounts directly to rising-stem valve using universal hand-wheel adapter, allowing for semi- and permanent-mount applications in petro-chemical, wastewater, and water distribution markets. Offerings include variable speed control and built-in LCD counter.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005 2550

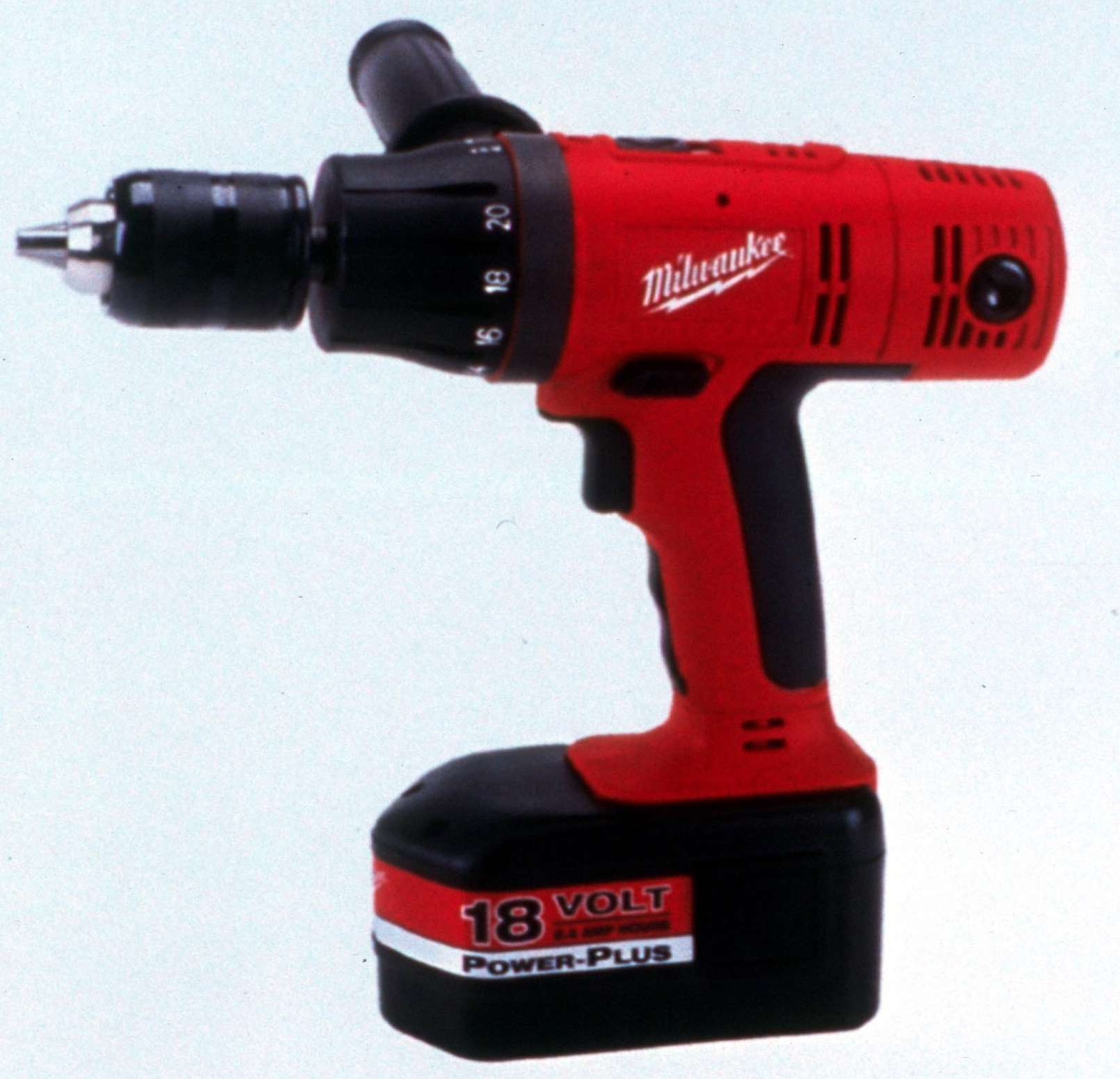

Oct 30, 2002 Lok-Torâ„¢ Series of 14.4 and 18 V driver/drills and hammer-drills offer all metal, single-sleeve, ratcheting chuck with carbide jaws. Three-stage system of 15 planets evenly disperses load of gear teeth. Drills produce speeds up to 1,700 rpm. Tools, with quiet spindle-lock mechanism, also offer externally replaceable brushes, soft-grip handle and finger grip, and reversible battery orientation.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005 2550

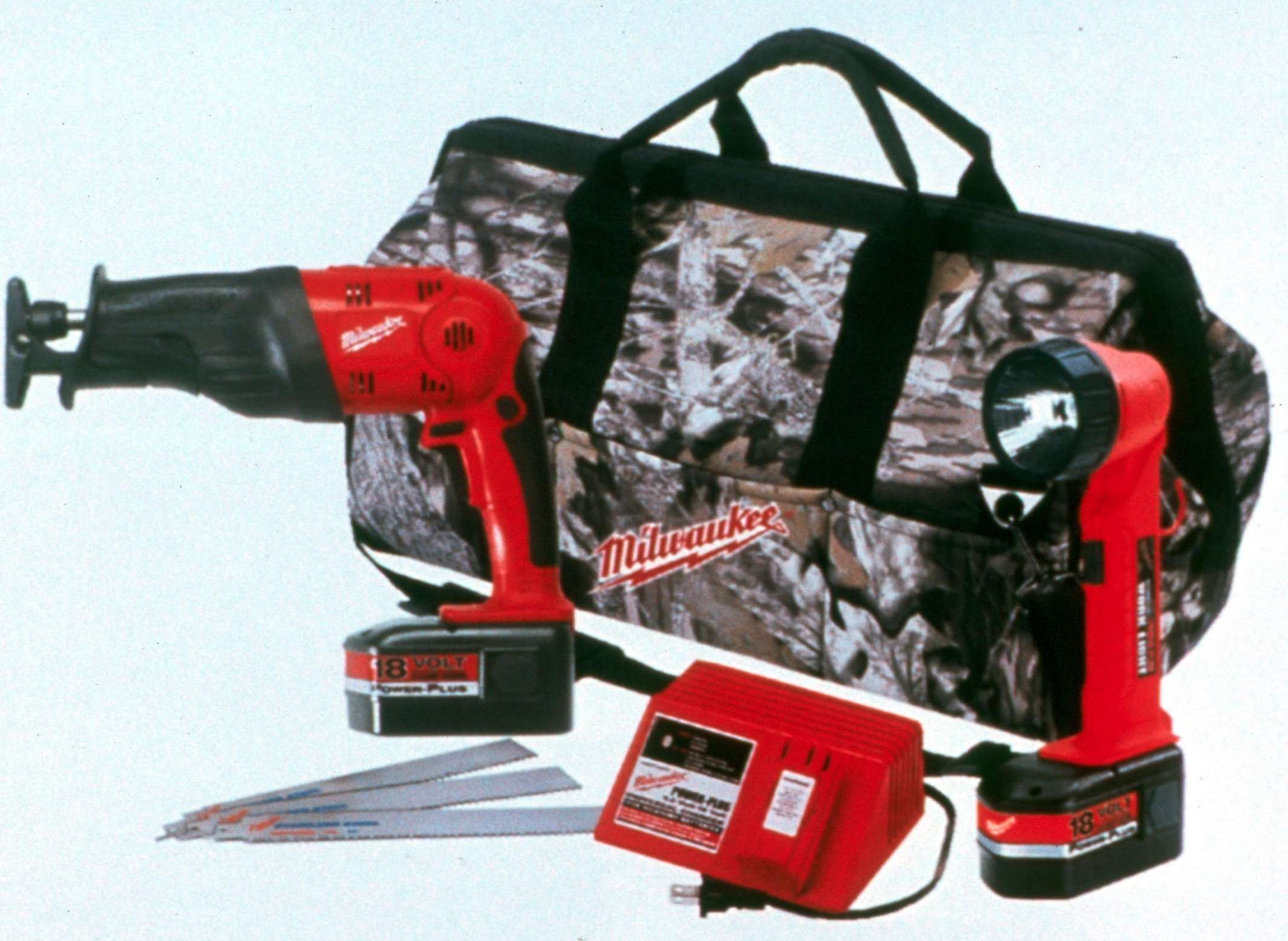

Oct 30, 2002 Sawzall kit consists of Sawzall, 18 V Xenon bulb work light, two 18 V 2.4 A-hr batteries, universal 1 hr charger, and three 9 in. stainless steel Sawzall® blades, all in Mossy Oakâ„¢ Camouflage Buckbag. Cordless reciprocating saw with orbital action (The Hatchetâ„¢) cuts through wood and metal. It offers 3/4 in. blade stroke and 0 to 2700 spm variable-speed trigger. Its counter balanced mechanism reduces vibration, while slider-crank reciprocating mechanism withstands abrupt stalls.

Plast-O-Matic Valves Inc.    Cedar Grove, NJ 07009

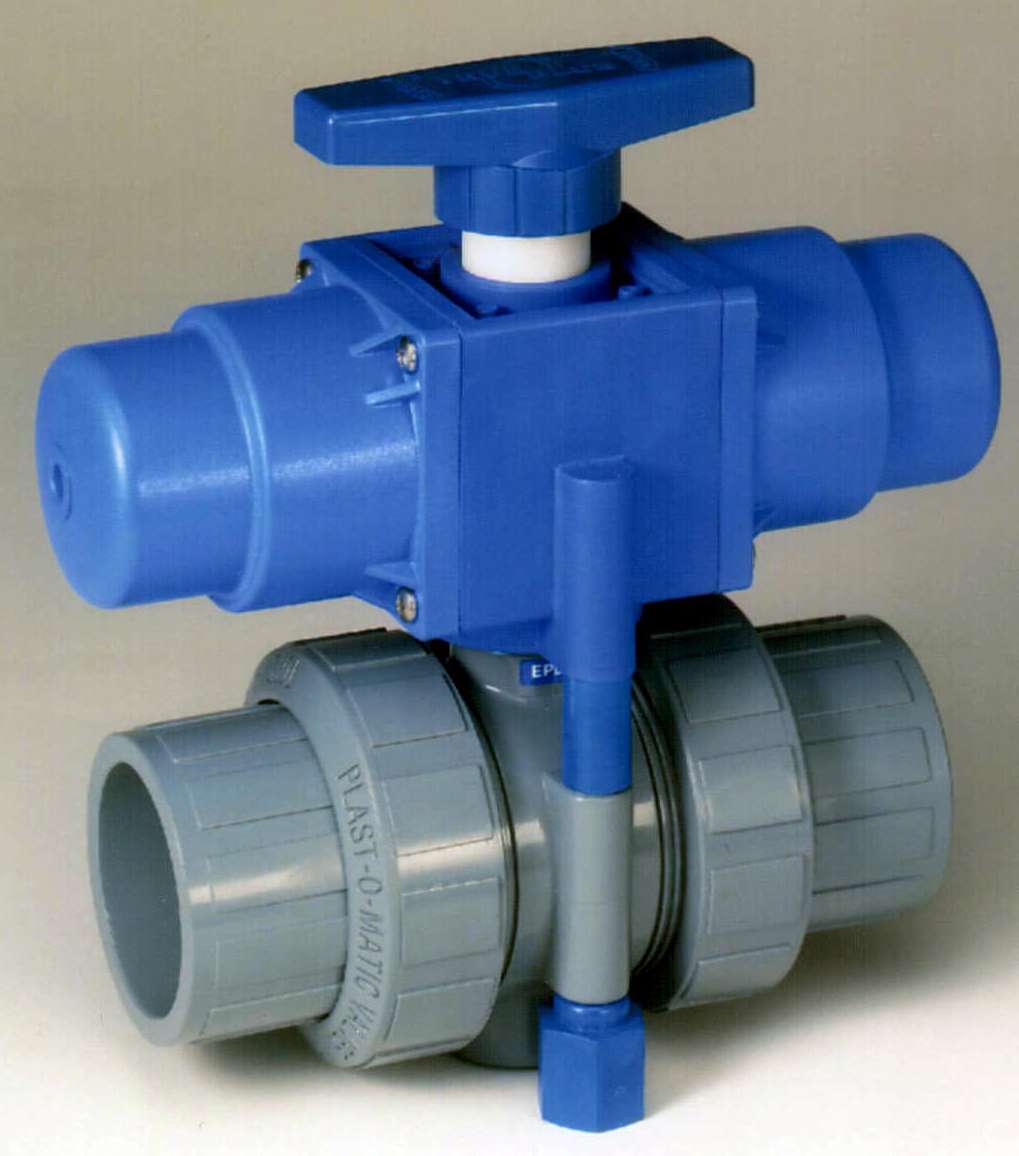

Oct 30, 2002 Air-actuated valves are used for on/off service and automatically close when power failures occur. Available in 1/2 through 2 in. sizes with various connection types, valves have pneumatically powered fail-safe actuators constructed of corrosion-resistant plastics. Suited for use in applications that require elevated temperatures and corrosion resistance of Corzan, valves are available with manual override.

PPT Vision, Inc.    Eden Prairie, MN 55344

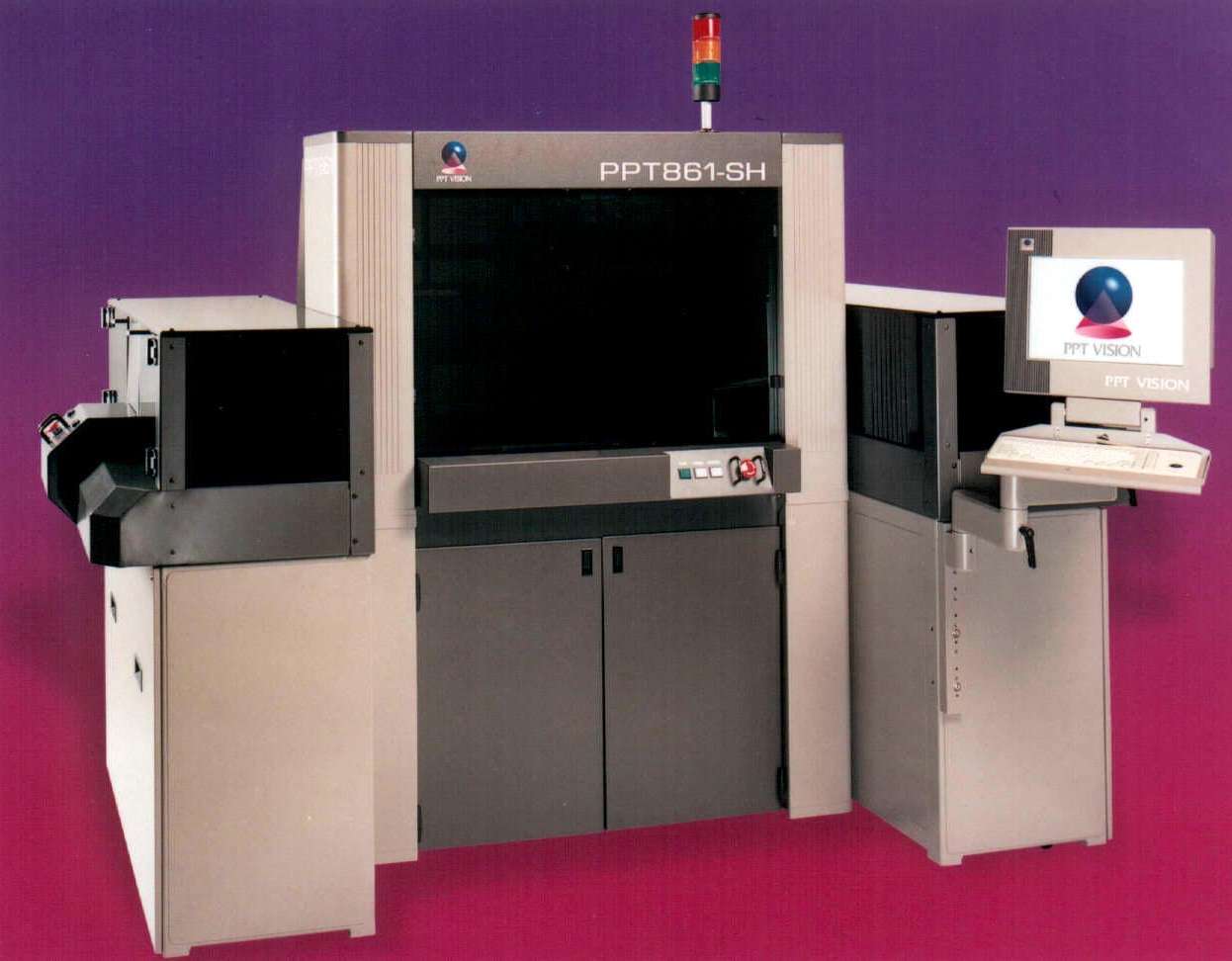

Oct 30, 2002 Automated model PPT861-SHâ„¢ provides precise measurement of critical device parameters. Utilizing SMIâ„¢ (Scanning Moire Interferometryâ„¢) 3D technology, it allows 100% production inspection of devices in strips, including BGA, CSP, and LGA. All scanning and motion parameters are programmable. Typical measurements include coplanarity, ball height, surface flatness, and true position. Inline or batch processing inspection system suits small lot production.

Alstom Power, Inc./Raymond, Bartlett-Snow    Lisle, IL 60532 4314

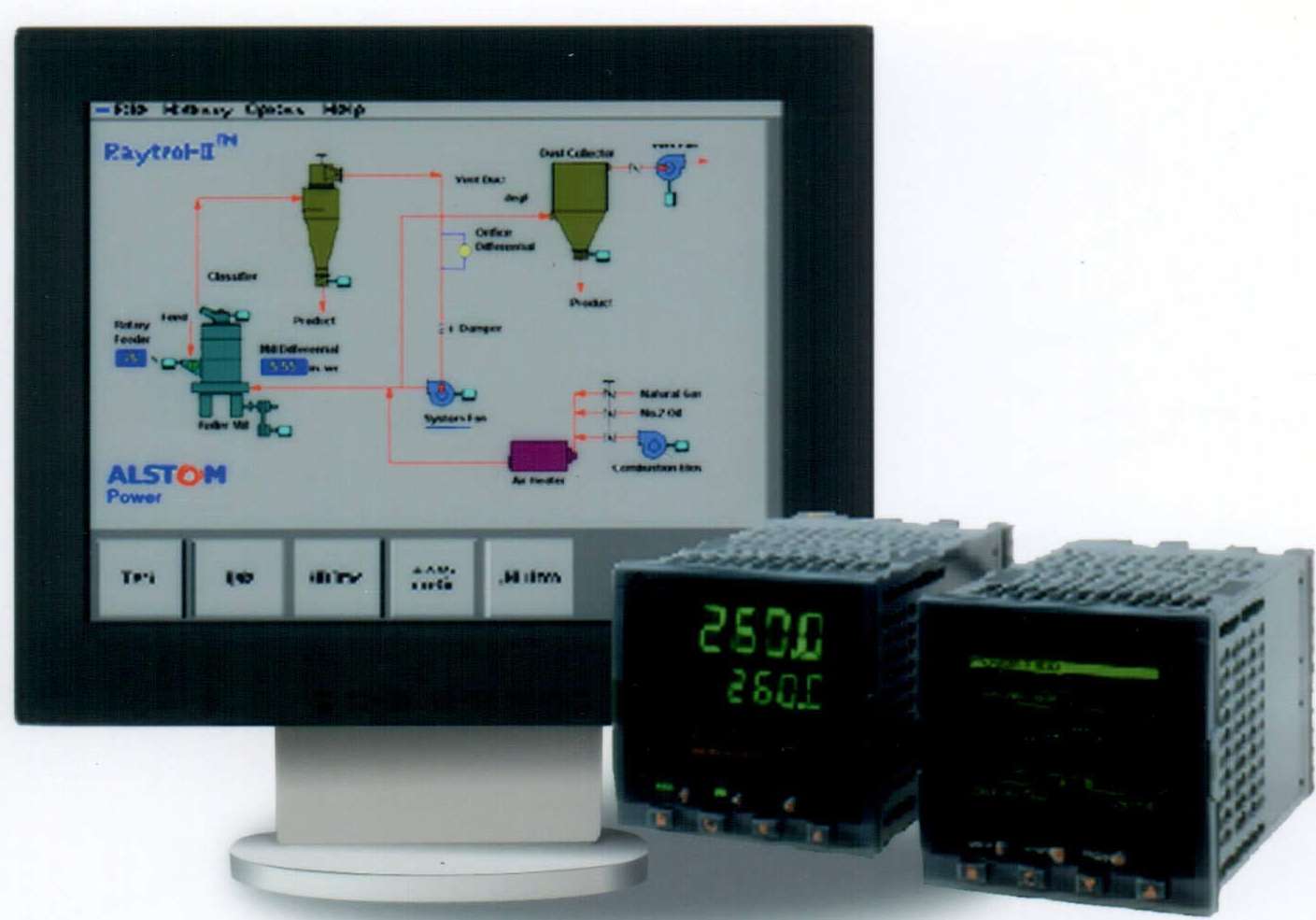

Oct 30, 2002 For updating or replacing controls on existing company roller mills and pulverizing systems as well as competitor's systems, multi-loop, highly stable Raytrol-IIâ„¢ control system delivers economical process control, monitoring, and data acquisition. Network accessible, system is pre-programmed or customizable. Features include graphical user interface, trending capabilities, universal inputs, and Microsoft Windows-based, human-machine interface.

Uvex Safety Inc., A Bacou USA Co.    Smithfield, RI 02917 1896

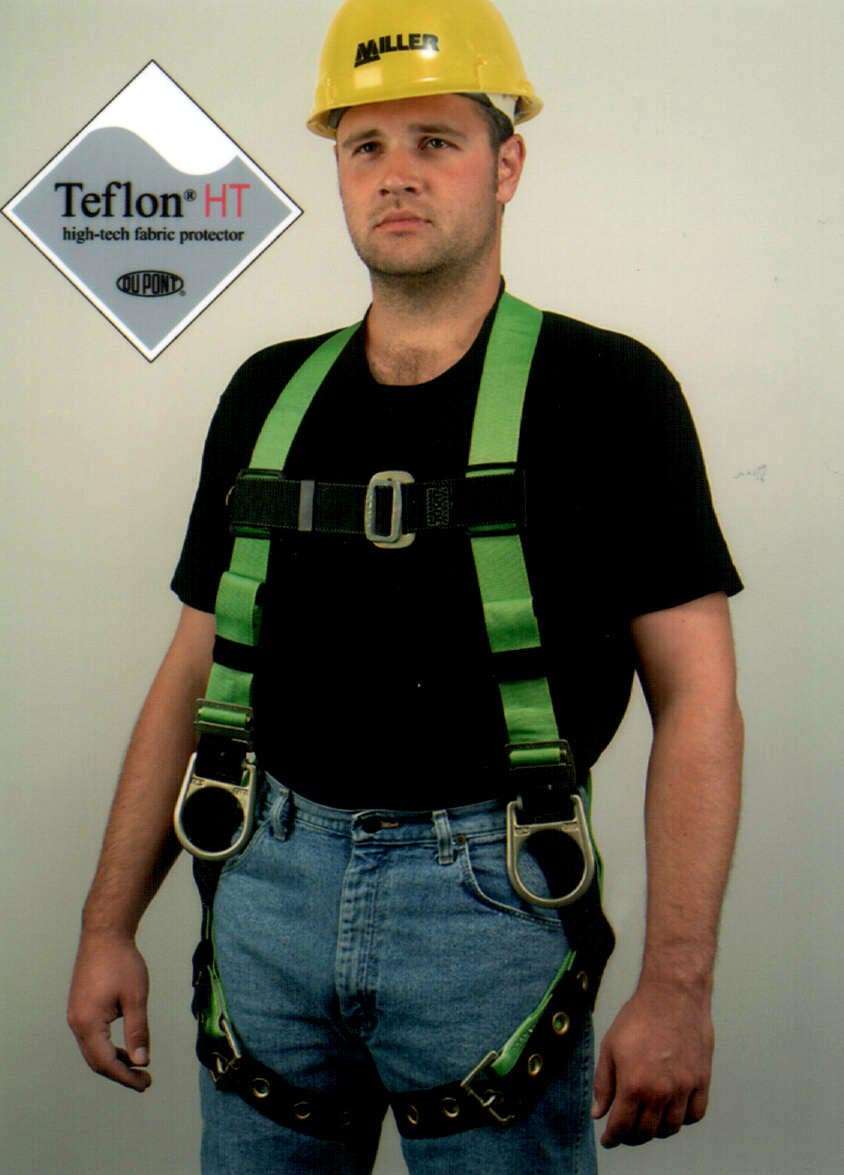

Oct 30, 2002 HP (High Performance) Fall Protection harnesses and lanyards include DuPont Teflon HT finish that resists dirt and grime from becoming imbedded in webbing, extending equipment's performance and life. Bright colors identify HP harnesses and shock-absorbing lanyards, making them readily visible and easy to inspect.

PCB Piezotronics Inc.    Depew, NY 14043 2495

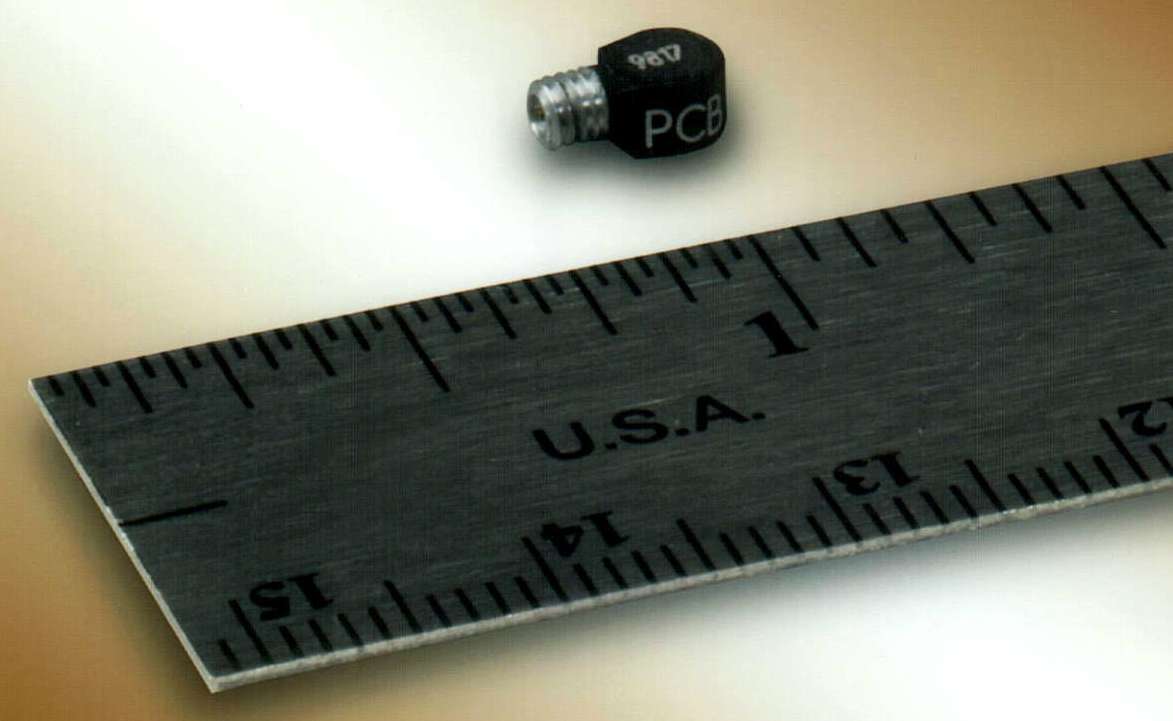

Oct 30, 2002 Model 357A08 charge mode accelerometer occupies 0.11 x 0.16 x 0.27 in. and weighs only 0.006 oz for minimal mass loading of test article. It connects to charge amplifiers or in-line charge converters, which condition output signal for recording or analysis. Operating temperature is -100 to 350°F. Sensor is structured with shear mode, piezoceramic sensing element and produces 0.3 pC/g output signal, with frequency response up to 12 kHz and resonant frequency of greater than 70 kHz.

Fairchild Semiconductor    South Portland, ME 04106
Oct 30, 2002 PowerTrench® 100/150 V MOSFETs come in SO-8 packages and offer low total gate charge. They are effective in conventional and high-density isolated DC/DC power supplies. Typical applications include telecom brick designs, which are optimized by using 100 V MOSFET in half- or full-bridge topologies, and 150 V MOSFET in forward topologies. Range of MOSFETs provides choice of R_DS(on) vs gate charge trade-offs to benefit each application's operating conditions.

Fairchild Semiconductor    South Portland, ME 04106

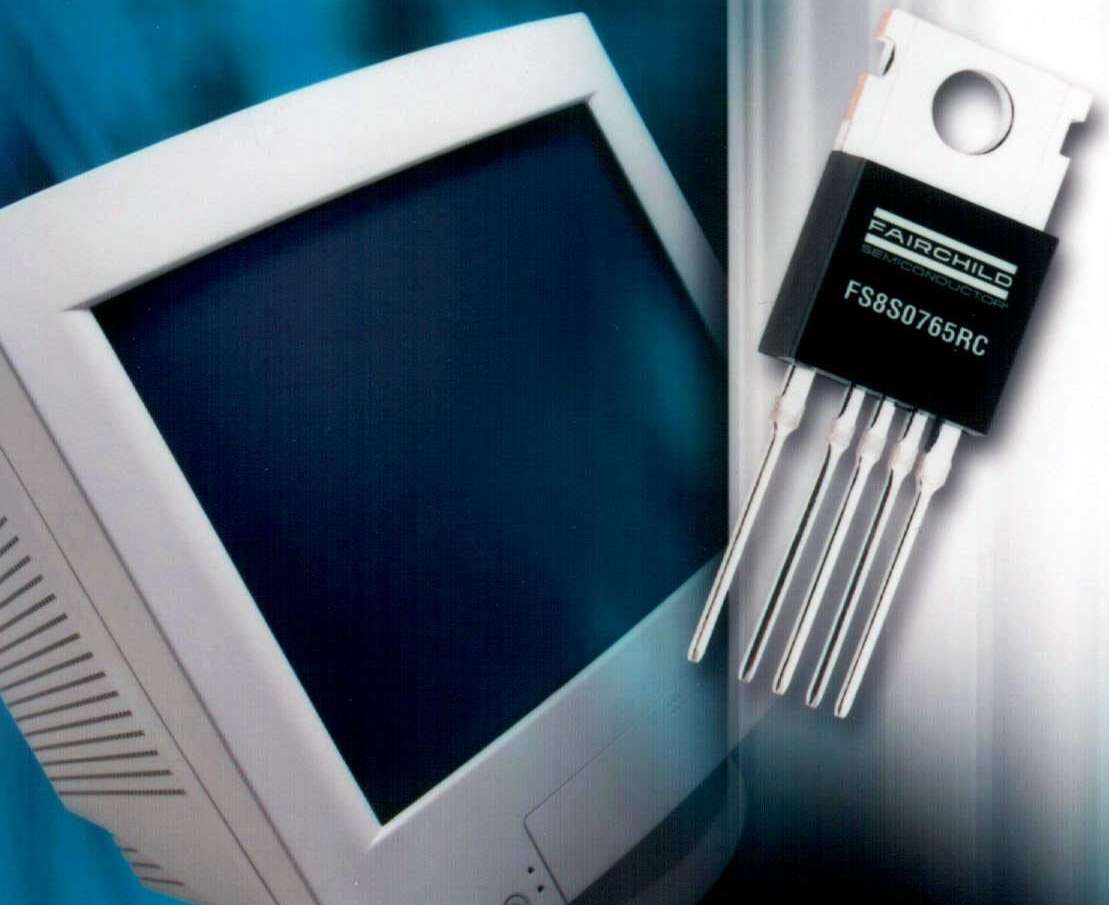

Oct 30, 2002 Model FS8S0765RC, for CRT monitor fly-back power supply applications, integrates fully avalanche-rated SenseFET (650 V min breakdown rating) with current mode PWM IC featuring primary side regulation. It includes burst mode operation for stand-by mode (under 2 W @ 265 Vac). To eliminate screen noise generated by switching action, switch turns on internal MOSFET synchronously with external sync signal. It includes over-voltage, overload, over-current, and thermal shutdown protection.

Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173

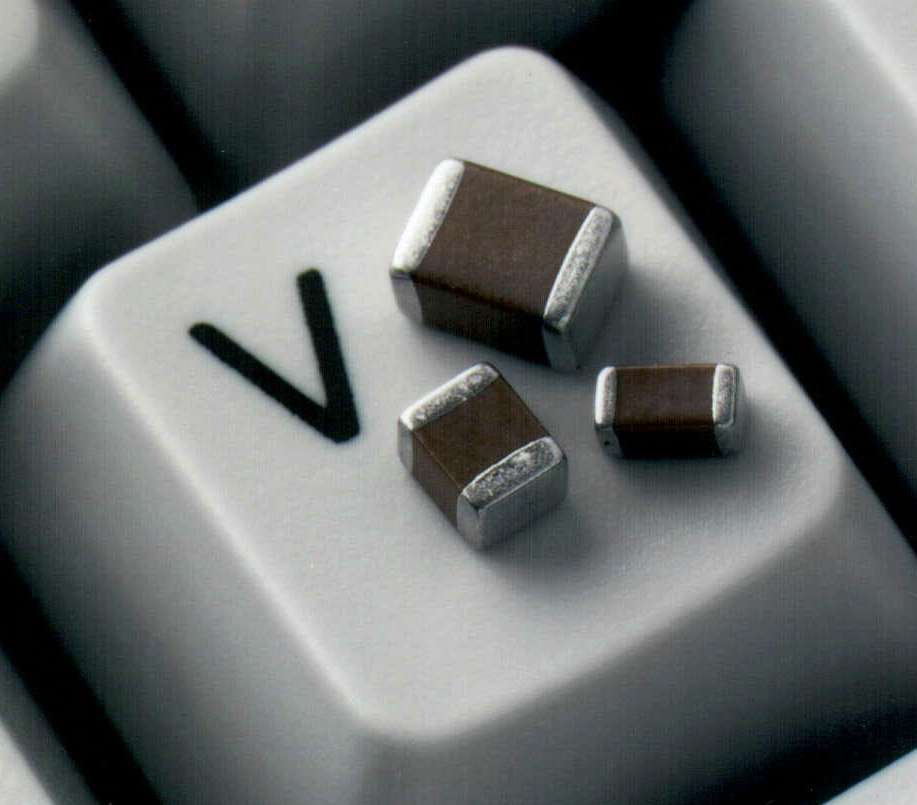

Oct 30, 2002 Series CG Medium-High Voltage Multi-Layer Ceramic Capacitors include capacitance value/voltage range combinations of 0.1, 0.22, 0.47 and 1 µF at 100 V; and 0.01 and 0.1 µF at 250 V. Surface-mount units come in 0805, 1206, 1210, and 1812 case sizes. DC Bias characteristics minimize capacitance loss. Base metal (Nickel) internal and external electrodes extend component life. Applications include strobe and inverter circuits, base station equipment, and general telephone exchanges.

Vestil Manufacturing Co.    Angola, IN 46703-0507

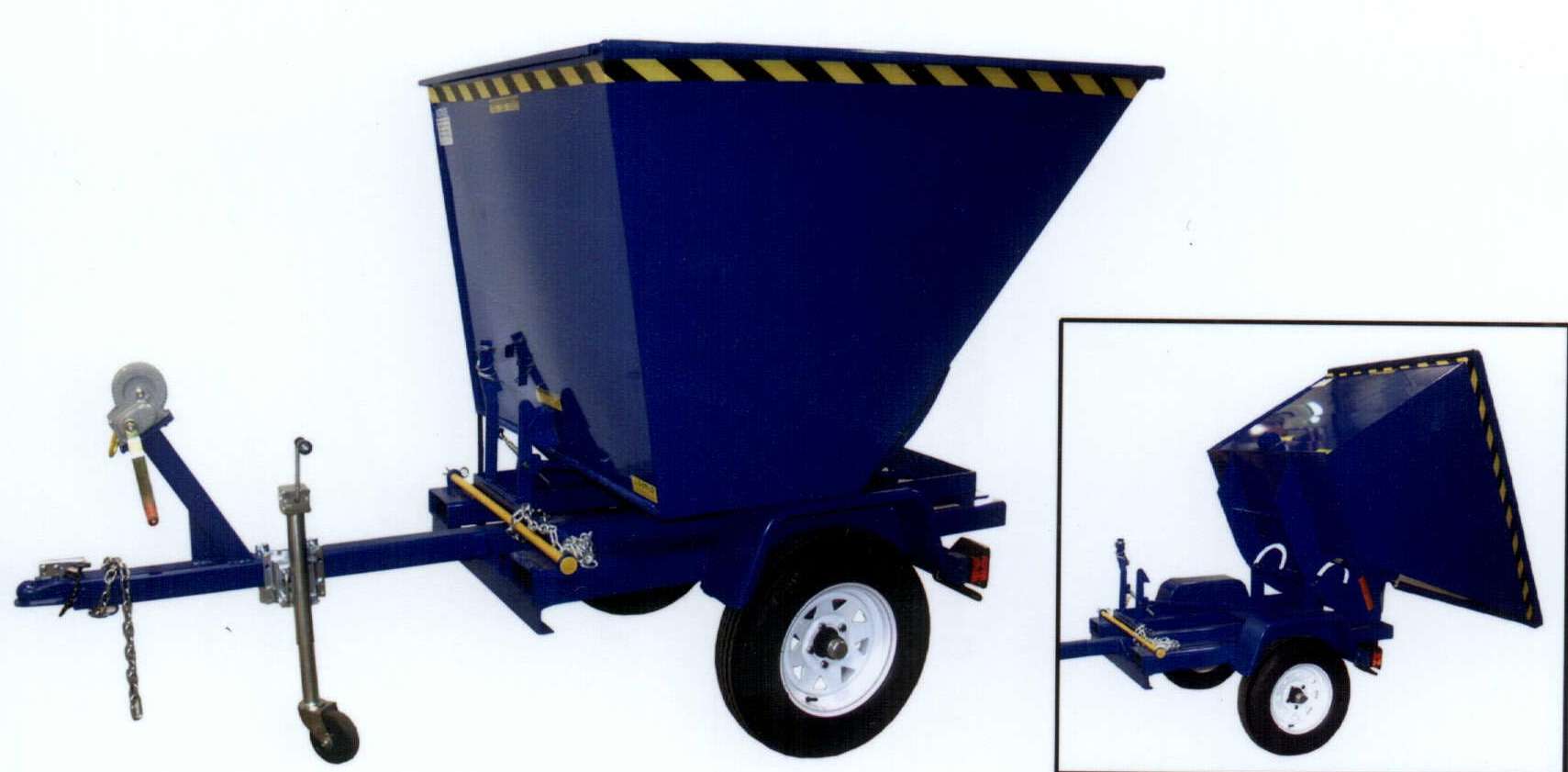

Oct 30, 2002 Multi-purpose Model HOP-T Hopper on a Trailer transports different types of material, refuse, building materials, and landscaping materials from location to location. Once material is delivered, hopper dumps 85°. Winch provides controlled dumping. Two cubic yard unit is detachable from trailer to use as stationary hopper. Overall size is 71 1/2 in. high x 53 1/2 in. wide x 110 in. long. Wheels are 26 in. pneumatic type on 14 in. rims and are highway safe.

Smith & Loveless, Inc.    Lenexa, KS 66215 1234

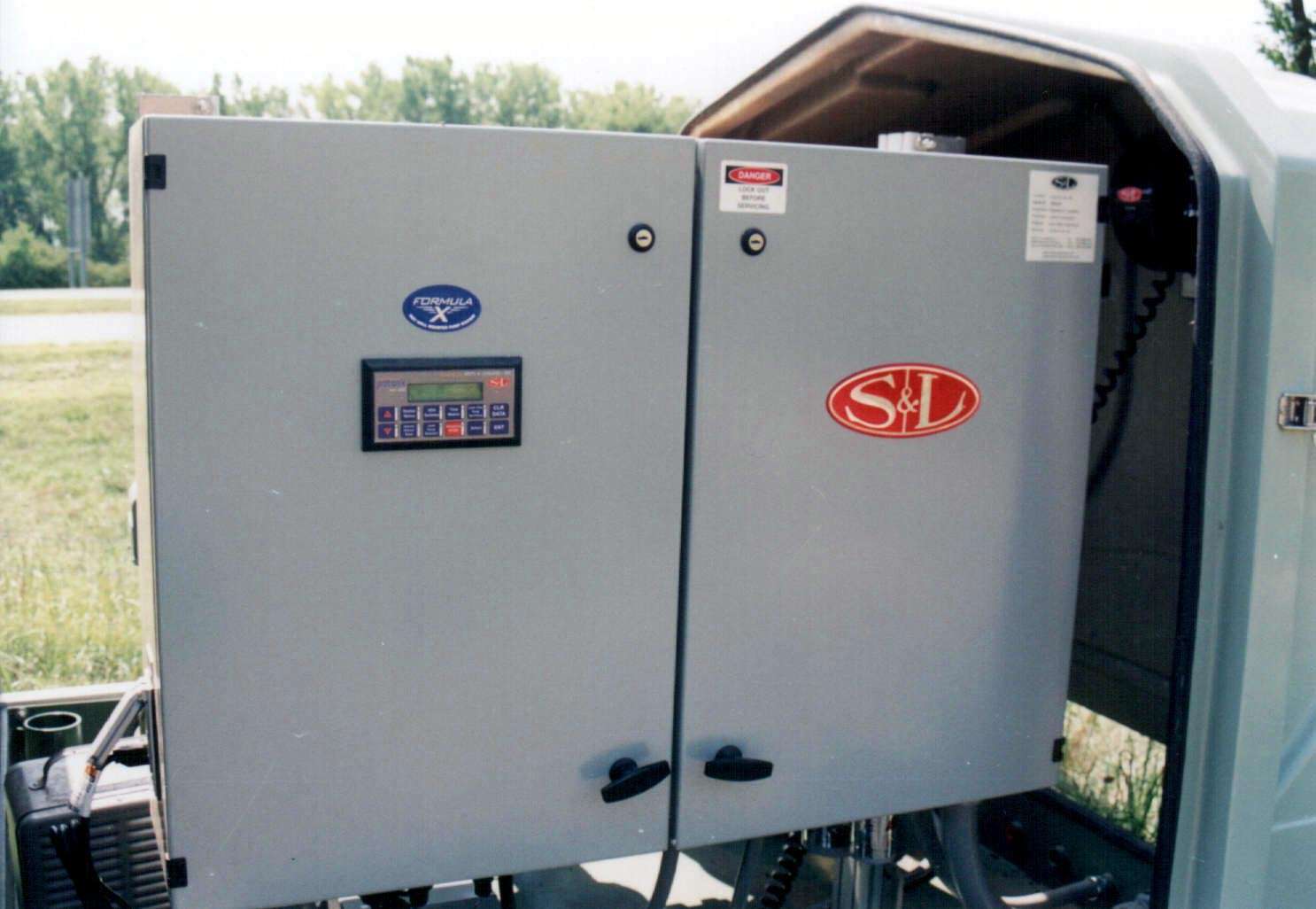

Oct 30, 2002 Microprocessor-based PROTRONIXâ„¢ controls operation of pumps, environmental systems, accessories, and alarm functions through isolated digital and analog input and output ports. Unit interfaces with level transducer system without moving parts in wet well. Standard package uses Model 220 HMI display, submersible level transducer, automatic alarm reset, alarm silence switch, running time meter, pump alternation selection, high water alarm, surge capacitor, and lightening arrestor.
