J.W. Speaker Corporation    Germantown, WI 53022

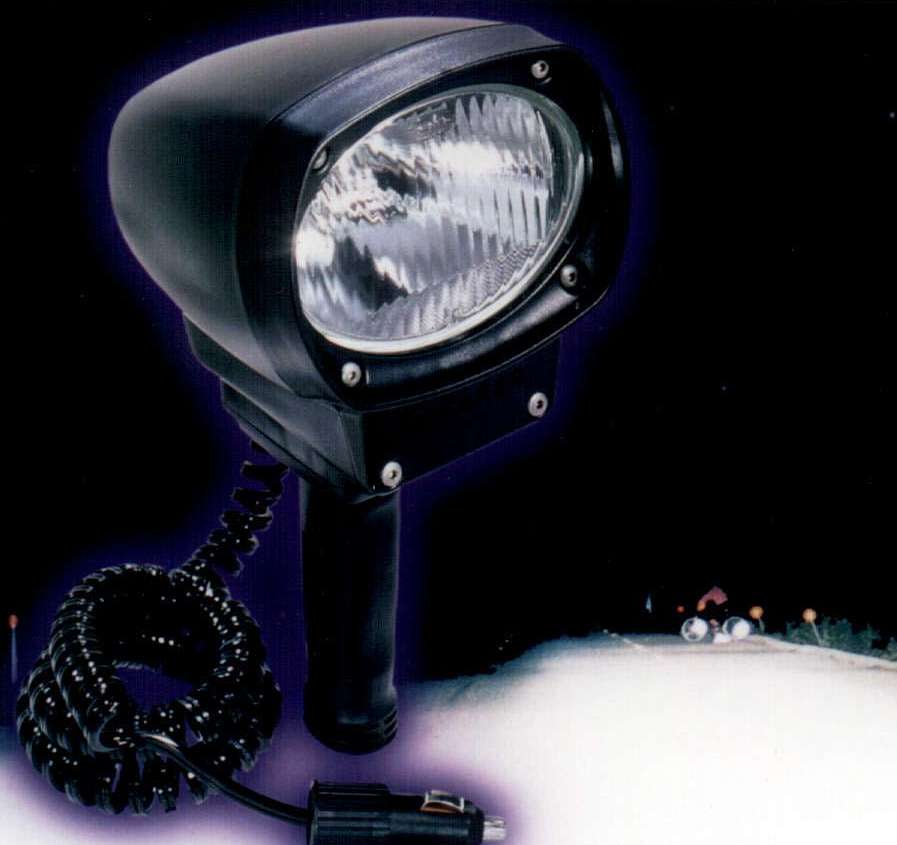

Nov 06, 2002 Model 9770 High Intensity Discharge Spotlight produces white light with daylight color impressions at 4 to 5 times illumination of halogen lamps. At 2.5 million-candle power, light emitted makes objects more recognizable up to 5 miles. Unit is constructed of industrial-grade materials, with stainless steel hardware and high-impact chemical-resistant housing. Since Xenon bulb has no filament, there is no breakage from shock and vibration. Service life is up to 4,000 hrs.

ATP, Division of Hy-Tech Machine, Inc.    Cranberry Township, PA 16066

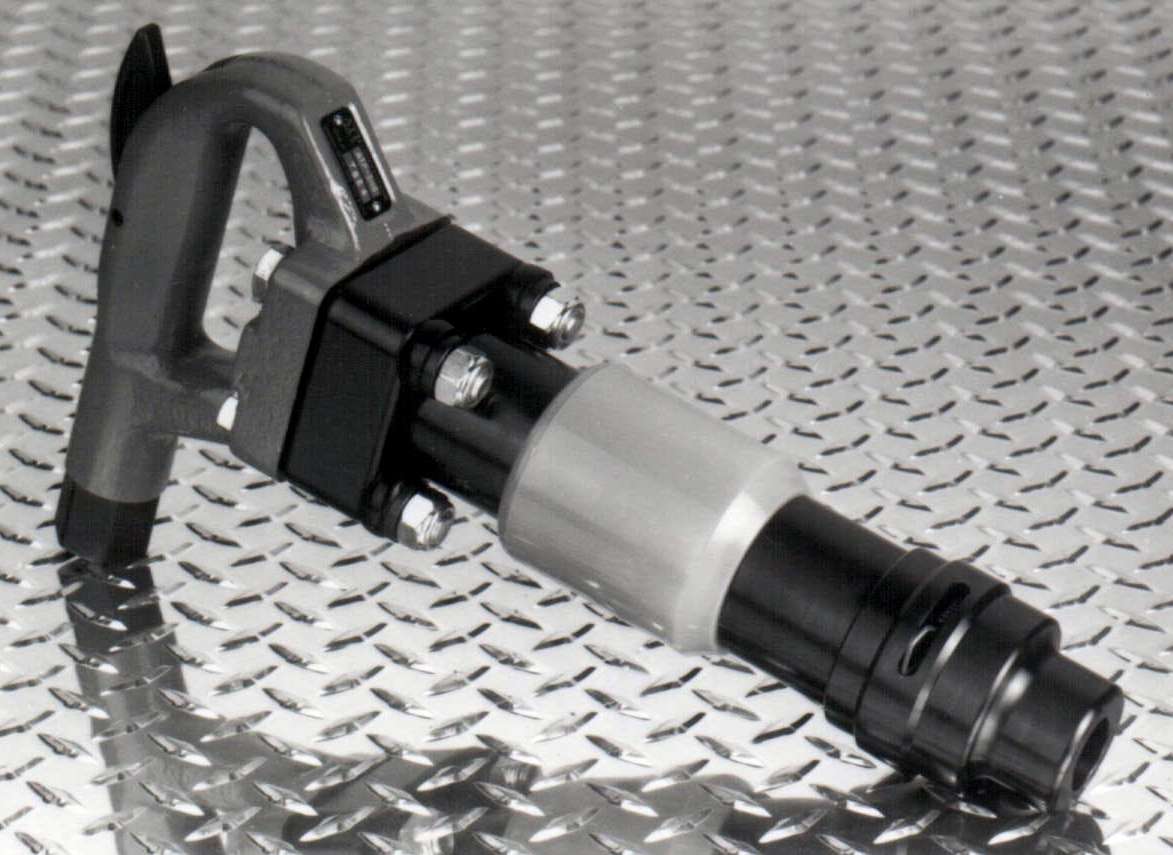

Nov 06, 2002 Ergonomic Light Weight Chipping Hammer features closed grip handle that locates operator's hand and arm in-line with chisel for maximum effectiveness and operator comfort. It is offered in 2, 3, and 4 in. stroke versions, with either round or hex chisel bushings.

Bivar, Inc.    Irvine, CA 92618 2593

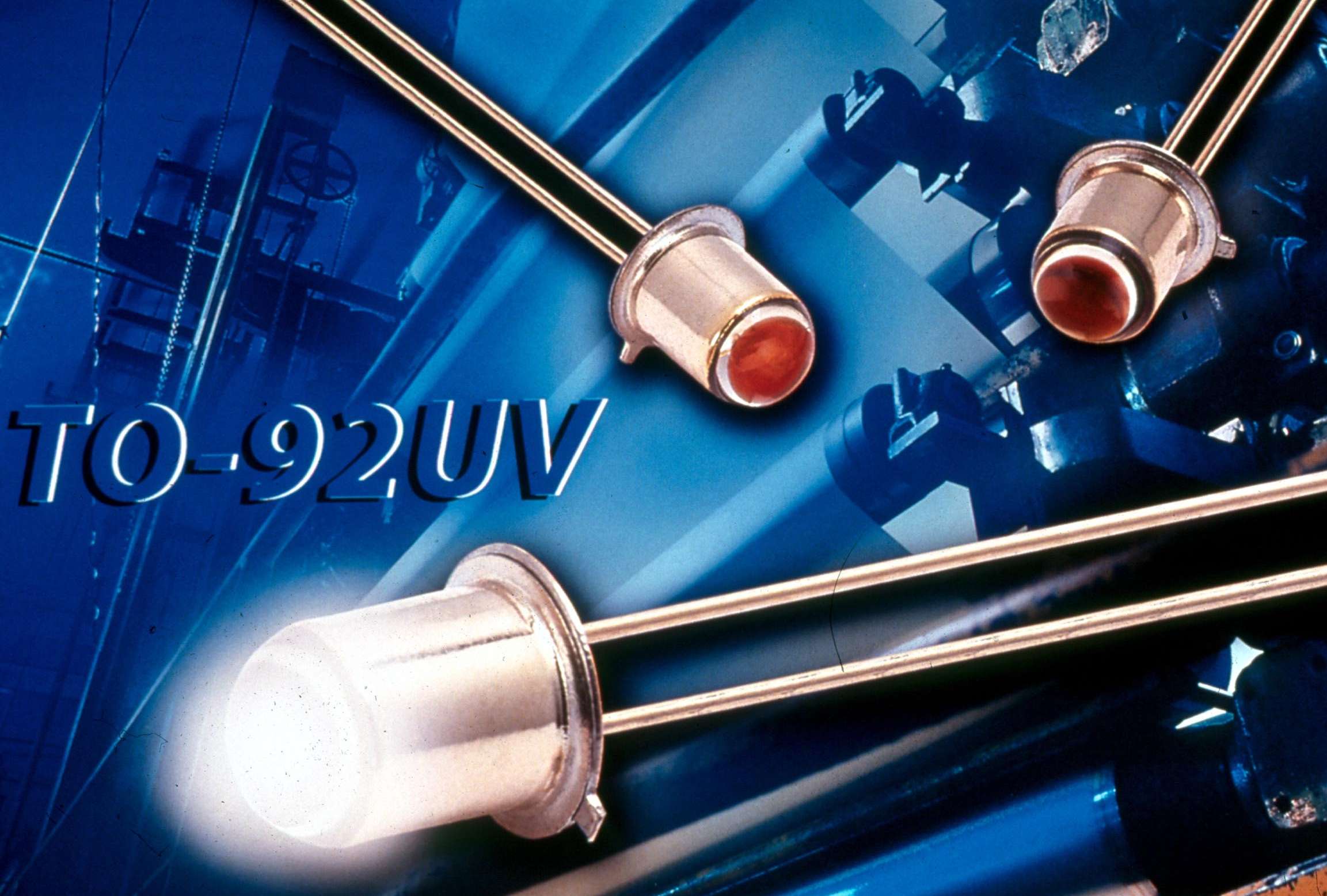

Nov 06, 2002 Series UV-400-TO92 features typical radiant flux of 12 mW per chip and typical stable wavelength of 400 nm. Units are housed in all metal and glass TO-92 package and are rated for over 20,000 hours of continuous operation at 30 mA. Series can be specified with multi-chip configurations allowing for compound intensities up to 36 mW per unit and in large cluster arrays of up to 144 units per PCB. LEDs feature 30° viewing angle and temperature range of -25 to +85°C.

Parker Hannifin Corp., Instrumentation Connectors Div.    Huntsville, AL 35803-2197

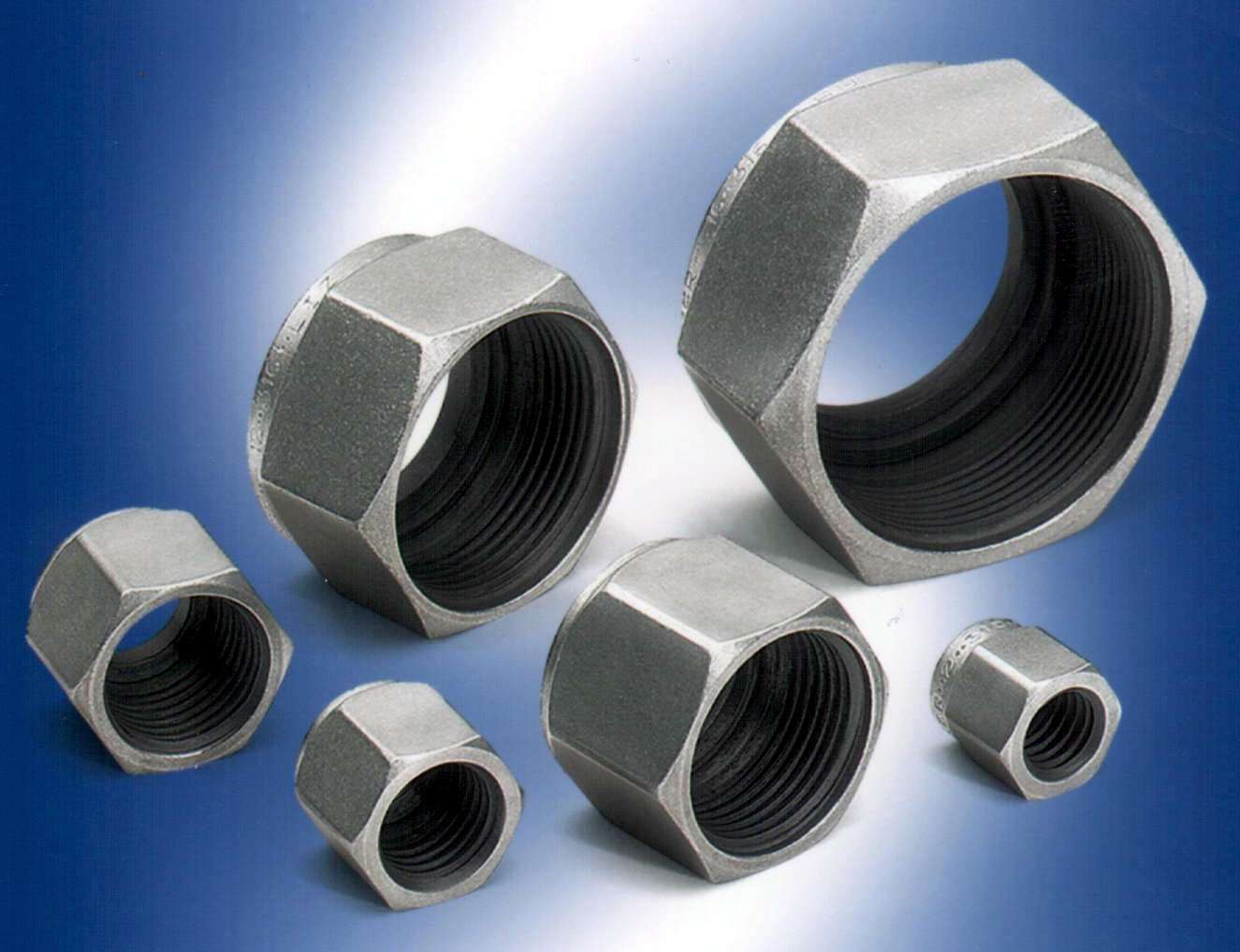

Nov 06, 2002 Moly Inside!â„¢ Nuts are made of stainless steel and help eliminate problems of inconsistent remakes during assembly of stainless steel tubing systems. Inside of each nut features bonded coating of molybdenum disulfide that serves as barrier between threads of both nut and fitting body. Coating also functions as lubricant, simplifying installation process. Nuts can be used on A-LOK® or CPIâ„¢ compression fittings.

3M Electrical Specialties Div.    Austin, TX 78726

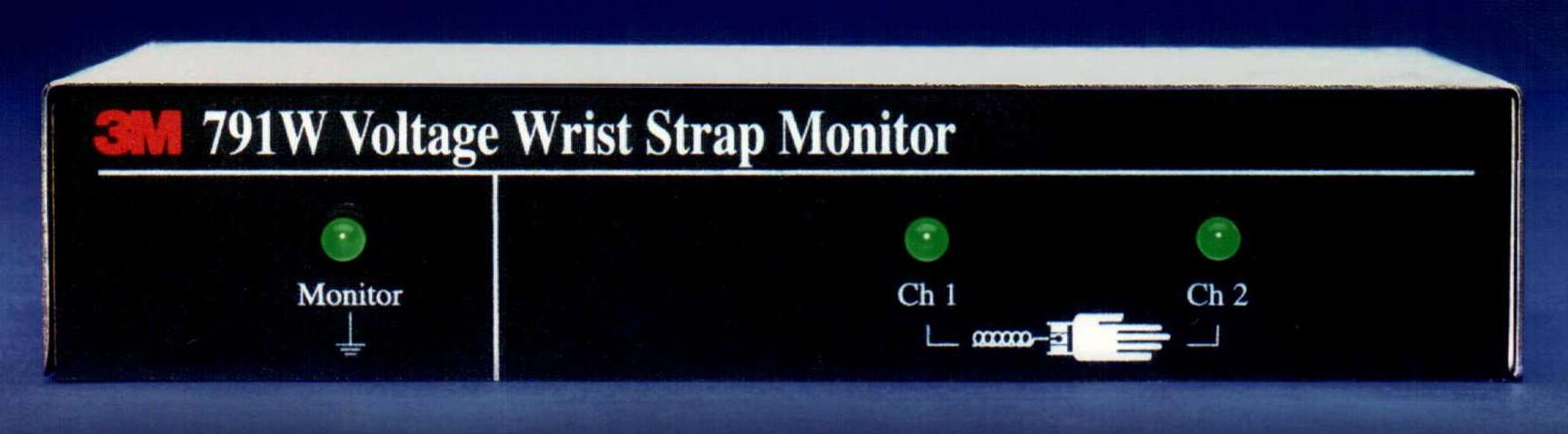

Nov 06, 2002 Model 791W Voltage Wrist Strap Monitor grounds and monitors 2 dual-conductor wrist straps that plug into 2 separate remotes. Audible and visual alarms alert operators when voltage exceeds preset level. Model 791E Equipment Ground Monitors provide 3 channels to continuously measure ground connections of manufacturing equipment and ESD worksurfaces. They offer monitoring resistances from 1 ohm to 35 megohms. All models record ESD events in real time.

Rockwell Automation    Milwaukee, WI 53204
Nov 06, 2002 ArmorBlock MaXum(TM) I/O blocks provide device-specific analysis of faults and advanced warning of off-wire and short-circuit detection. These 16-input DC and 8-input/8-output 24 VDC, 1792D modules are software selectable via EDS parameters in RSNetWorx(TM) for DeviceNet(TM). Able to handle sinking or sourcing inputs, they include input circuitry that eliminates false inputs generated by sensors with high-leakage current. Modules combine adapter, power supply, and I/O.

Aspen Technology Inc.    Cambridge, MA 02141
Nov 06, 2002 Aspen Apollo uses artificial intelligence technology to apply advanced control to highly complex processes. It maintains safe and efficient operation during both steady-state and dynamic conditions. Technology also enables manufacturers to achieve faster time-to-benefit, since models that form basis of controller can be created using historical plant data, avoiding need for extended implementation period within plant to build and validate model.

BW Technologies    Calgary T2A7X9  Canada
Nov 06, 2002 GasAlertMicro multi-gas detection unit offers piercing audible alarms, visual alarm bars, and simultaneous gas concentration display. Additional offerings include internal vibrator, built-in boot, and interchangeable field power-AA alkaline batteries or NiMH rechargeable batteries. Monitor weighs 7.4 oz and detects H₂S, O₂, CO, and combustibles.

Amada Wasino America, Inc.    Rolling Meadows, IL 60008
Nov 06, 2002 Main spindle of Model JD-3 offers 2 in. diameter bar capacity. Unit's synchronized main and sub-spindles complete both rough and finishing operations, allowing lathe to transfer parts on the fly between spindles. Main and sub-spindle speeds reach 4,000 rpm, with 15 and 5 hp motors. Able to be used in stand-alone situations and integrated into flexible transfer lines, JD-3 incorporates controller with .00001 in. X and Z offset control.

AMBEC    Owings Mills, MD 21117-3510
Nov 06, 2002 Low Pressure Roller Accumulation Systems consist of Model 10, which uses ¼ in. diameter stainless steel rods, and Model 10R, which uses plastic rollers over ¼ in. diameter stainless steel rods as conveying surface. Each custom-designed system is divided into individually controlled zones that allow system to automatically adjust to various line conditions.

Pneumatic Scale Corp., A Barry-Wahmiller Co.    Akron, OH 44223
Nov 06, 2002 Easi-Flow operates on low vacuum/gravity filling system, which minimizes proof loss for distilled spirits applications. Pressure equalization ensures accurate fills, while low vacuum filling nozzle prevents dripping. Maintenance is minimized by employing cluster lubrication plate and cam-operated container lift platforms. Easi-Flow can be coupled with closers and pluggers, and is also available in monoblock configuration.

Repeat-O-Type Mfg. Corp.    Wayne, NJ 07470-6892
Nov 05, 2002 Within 6 seconds, No. R8 electronic reset device resets lock-out chips on cartridges to read full by joining contacts on resetter with those on cartridge's smart chip. Unit refills Epson T036 and T037 cartridges as used in Stylus C42UX printers. Resetter includes 3-year-life batteries capable of resetting hundreds of cartridges. Unit is suitable for use by rechargers and end users wanting to fill empty cartridges.

SE Relays LLC - Magnecraft Brand    Northfield, IL 60093

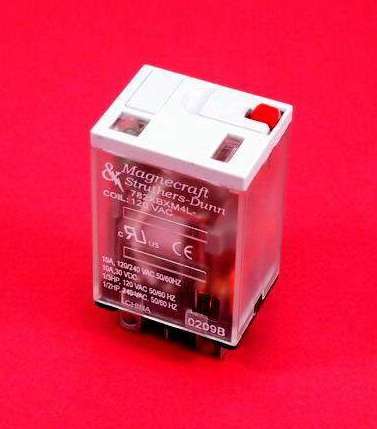

Nov 05, 2002 Class 782 ice-cube style relay is offered in 3 types: Model 782XBX DPDT 15 A unit with .187 plug-in/solder and .100 PC terminals, Model 782XBX2 DPDT 3 and 10 A units, including 3 A bifurcated contact model, and Model 782XDX 4PTD 3 and 10 A units. AC coils are available for 6-240 Vac and DC coils are available for 6-110 Vdc. Relays include LED status lamp, flag indicator, showing status in manual or powered condition, and pushbutton for manual operation.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

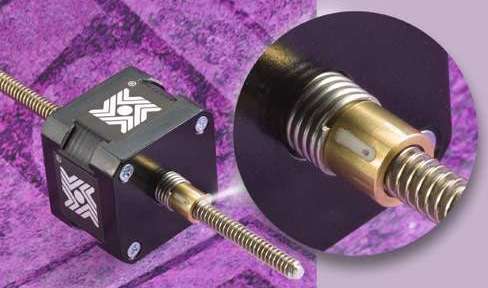

Nov 05, 2002 Nuts eliminate minimal backlash between leadscrew and nut interface on linear actuators and are available in non-captive and captive designs. Made from self-lubricating thermoplastic or glass-reinforced resin, nuts are available for .218 and .250 in. dia screw. Range of preload requirements can be accommodated up to 15 lb. Spring preload design assures precision over millions of cycles.

Modern Process Equipment, Inc.    Chicago, IL 60623
Nov 05, 2002 Model IMD69 GMP Gran-U-Lizerâ„¢, pharmaceutical grade roller style grinder, incorporates three-stage progressive roller reduction design. It offers features such as full wash-down capability, controlled grinding environment (N2, Ar), water-cooling, and PLC controls. It is suited for GMP applications requiring narrow particle distribution with fines reduction of up to 75%.

Smith Eastern Corporation    Jessup, MD 20794
Nov 05, 2002 PAPCE captures contaminants from painting overspray, welding and chemical fumes, sanding dust, and cleaning operations at work source. Its versatility in unenclosed spaces promotes safe and healthy work environments. PAPCE is approved by CA-SCAQMD.

Del City    Menomonee Falls, WI 53051
Nov 05, 2002 OEM-type, 5-stage Crimping Tool crimps 20-12 gauge OEM (open barrel) automotive terminals. Combination Crimping Tool crimps 22-8 gauge, non-insulated terminals; 22-14 gauge insulated terminals; and 7 and 8 mm ignition terminals. Tool also strips and cuts wire and cuts screws. Suited for battery terminals, Die Cast Terminal Crimping Tool handles all die cast terminals and lugs, 6 through 4/0 gauge. Its offers 26 in., fully-insulated handle and lock button.

Chiron America, Inc.    Charlotte, NC 28278
Nov 05, 2002 Model MC 536 with CNC capabilities offers fixed table that can be used as 2 separate areas for pendulum machining or as 1 area covering total X-travel range (133 in. or more). With digital direct drives in all axes, VMC also includes tool magazine with intelligent tool management that handles up to 54 tools. Machine includes Y and Z limits of 21.65 and 20 in., respectively, and traverse speeds of 1575 in./min. Spindle speeds reach 8,000/10,000 rpm.

Uvex Safety Inc., A Bacou USA Co.    Smithfield, RI 02917 1896
Nov 05, 2002 Scorpionâ„¢ Personal Fall Limiter (SRL) can be attached directly to harness back D-ring for use as Personal Fall Limiter, or it can be used as traditional retractable lifeline. Its smooth, quiet, lightweight design provides 9 ft of working capacity. Lifeline is protected with Teflon HT, invisible finish that provides water/oil repellency and protection against grease and grime. Unit meets OSHA, ANSI, and CSA requirements.

EADmotors/Eastern Air Devices, Inc.    Dover, NH 03820
Nov 05, 2002 Brushless DC servomotor-based actuator, with precision ball screw and low-profile encoder, provides linear speeds up to 5,000 rpm and closed-loop control. Compatible with all 3-phase brushless DC motor amplifiers, NEMA size 23 motor offers permanently lubricated ball bearings and dynamically balanced rotor. Compact, 2.0 in. motor length provides up to 80 oz-in. peak torque. Applications include medical equipment, semiconductor, robotics, and syringe pumps.
