Henkel Loctite Corporation    Rocky Hill, CT 06067
Dec 02, 2002 Multicore® 63S4 MP200 no-clean solder paste is formulated with 63S4 alloy that eliminates tombstone defects and reduces component misalignment. Paste delivers extended abandon time, long open time, and slump resistance. It is suitable for HASL, OSP copper, gold over nickel, and silver immersion. Multicore 63S4 meets or exceeds test specifications of J-STD-004 for copper mirror, copper plate, chlorides and bromides, and is classified as ROL0.

Ultra Motion    Cutchogue, NY 11935
Dec 02, 2002 Smart Digit and Smart Bug actuators include optical encoder, digital servo amp, indexer, local power supply, and serial communications interface. With 1 µ repeatability and .5 µ resolution, actuators are available in 2, 4, and 8 in. stroke lengths. Directly coupled to drive screw, Smart Digit units move at speeds to 25 ips with 120 lb of force max. Smart Bug units incorporate nonslip timing belt with ratios from 1:1 to 4:1 and move at speeds to 40 ips, providing 500 lbs of force max.

American ELTEC, Inc.    Las Vegas, NV 89102
Dec 01, 2002 PC_EYE(R)_2+ quadro channel and RGB color frame grabber PCIbus board has 4 video input channels that can digitize 4 separate images in parallel from synchronized cameras. Drivers are provided for Linux and Windows(R) 98, ME, NT, and 2000 operating systems. Setup program provides test and configuration of board. Support for 3rd party imaging tools is available, including AdOculos(R), Heurisko(R), VisiLab(R), LabView(R), and Halcon(R).

Parker Hannifin Corp., Pneumatic Div.    Richland, MI 49083 0901

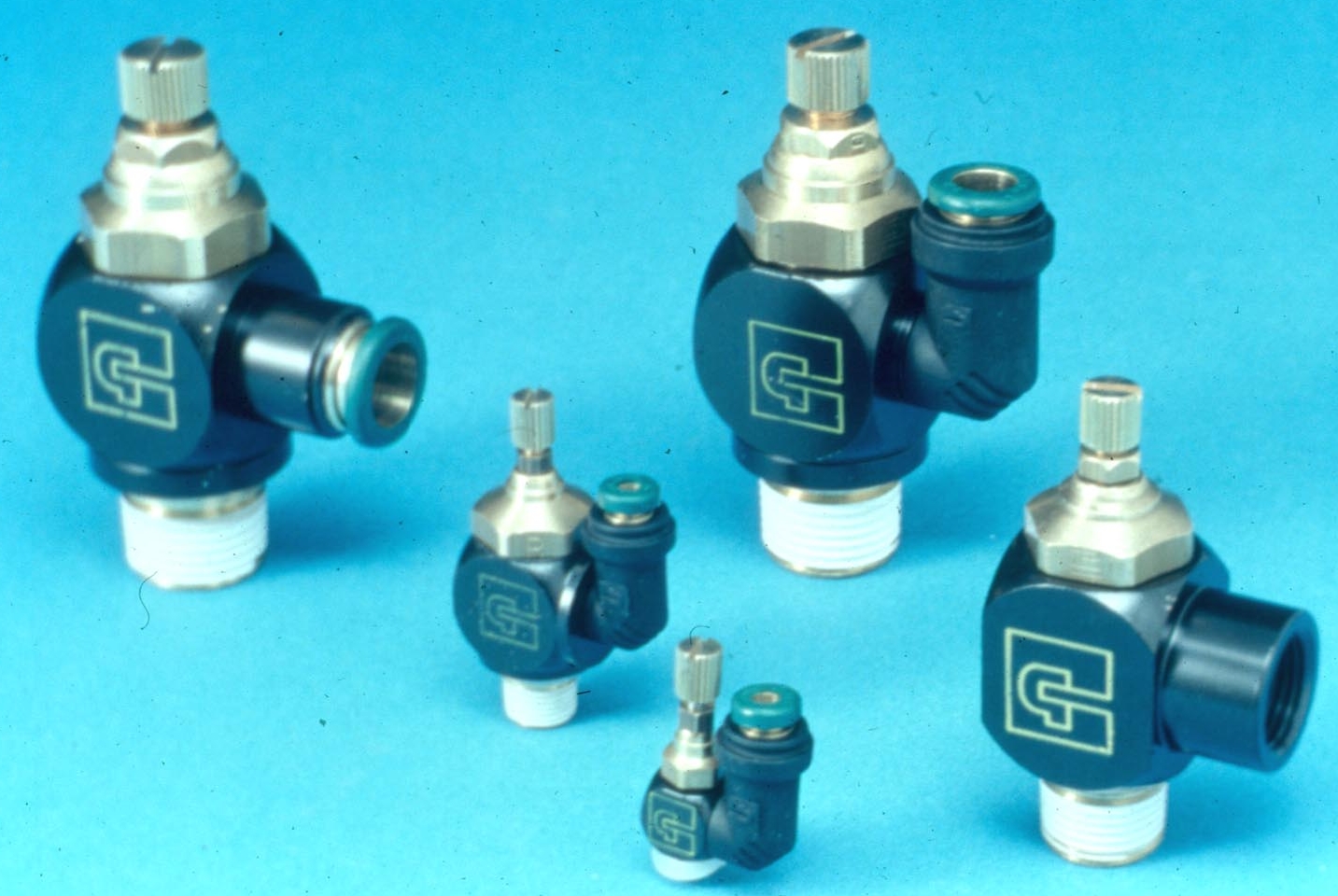

Dec 01, 2002 Banjo-style Miniature Flow Control mounts directly on small-bore cylinders such as those used in micro-pneumatic applications. Unidirectional valve has adjustment screw that produces linear flow and allows free flow of intake air while metering exhaust air. Available with or without knob adjuster, flow control is offered with 10-32 UNF to 1/2 in. NPT threads for 5/32 to 1/2 in. tubing or up to 1/2 in. female threads.

Parker Hannifin Corp., Pneumatic Div.    Richland, MI 49083 0901

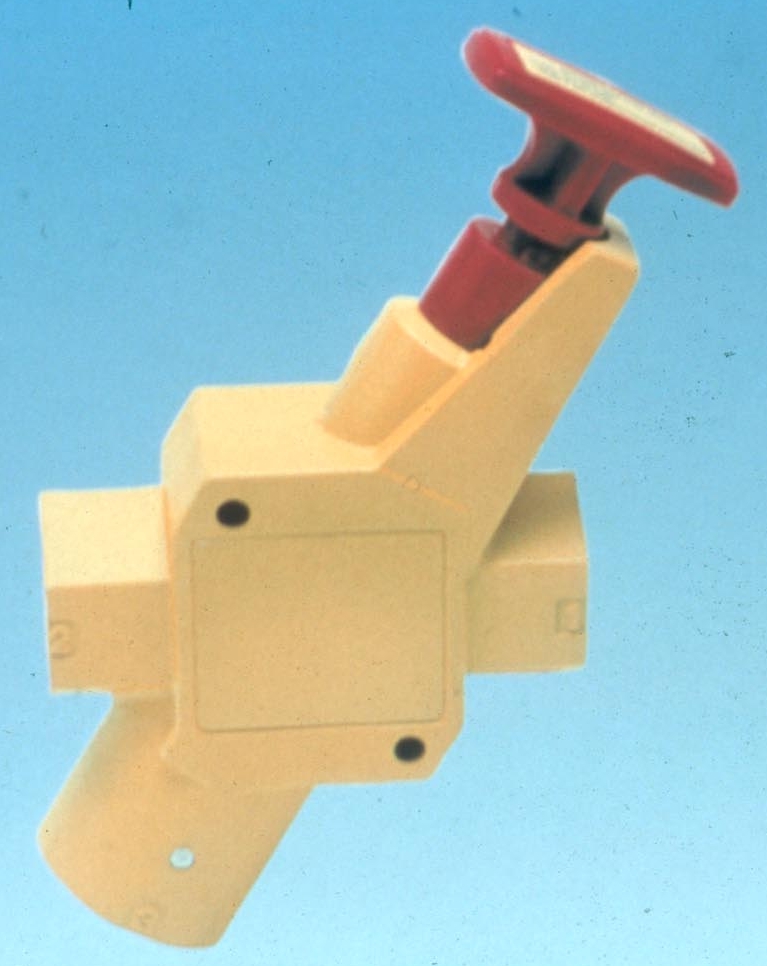

Dec 01, 2002 With Cv's from 3.0 to 14, LV Series Lockout Valves are offered in pipe sizes from 1/4 to 1 1/4 in. in BSPP and NPT threads, and are available with 1 and 1 1/4 in. exhaust ports. They are used to prevent accidental actuation during maintenance and servicing of air-operated equipment, and feature cast aluminum alloy bodies designed for inline or surface mounting. Other features include detented spools and threaded exhaust ports.

Parker Hannifin Corp., Pneumatic Div.    Richland, MI 49083 0901

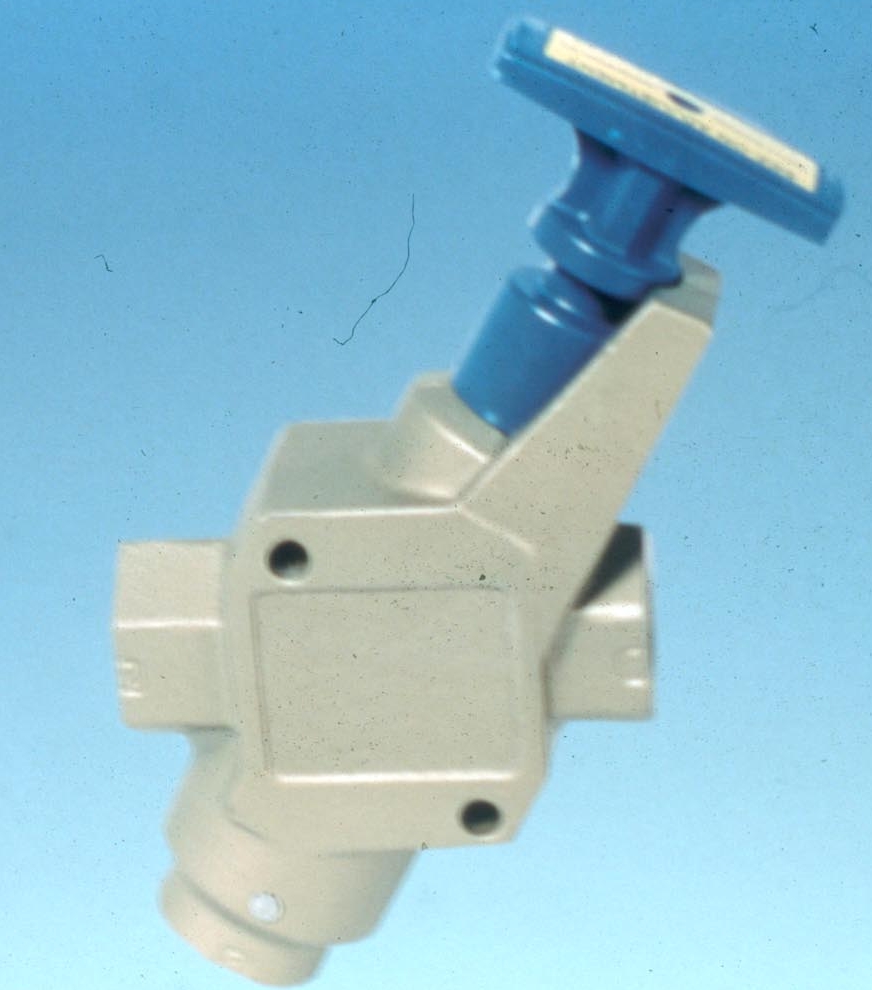

Dec 01, 2002 EZ Series Lockout Valves prevent accidental actuation during servicing of air-operated equipment. Soft-Start function allows gradual system re-pressurization after maintenance has been completed. Valves are offered in pipe sizes from 3/8 to 1 1/4 in. in both BSPP and NPT threads. With Cv's from 3.7 to 13.7, valves are available with 3/4 and 1 1/4 in. exhaust ports. Construction includes cast aluminum alloy body, detented spool, and threaded exhaust port.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

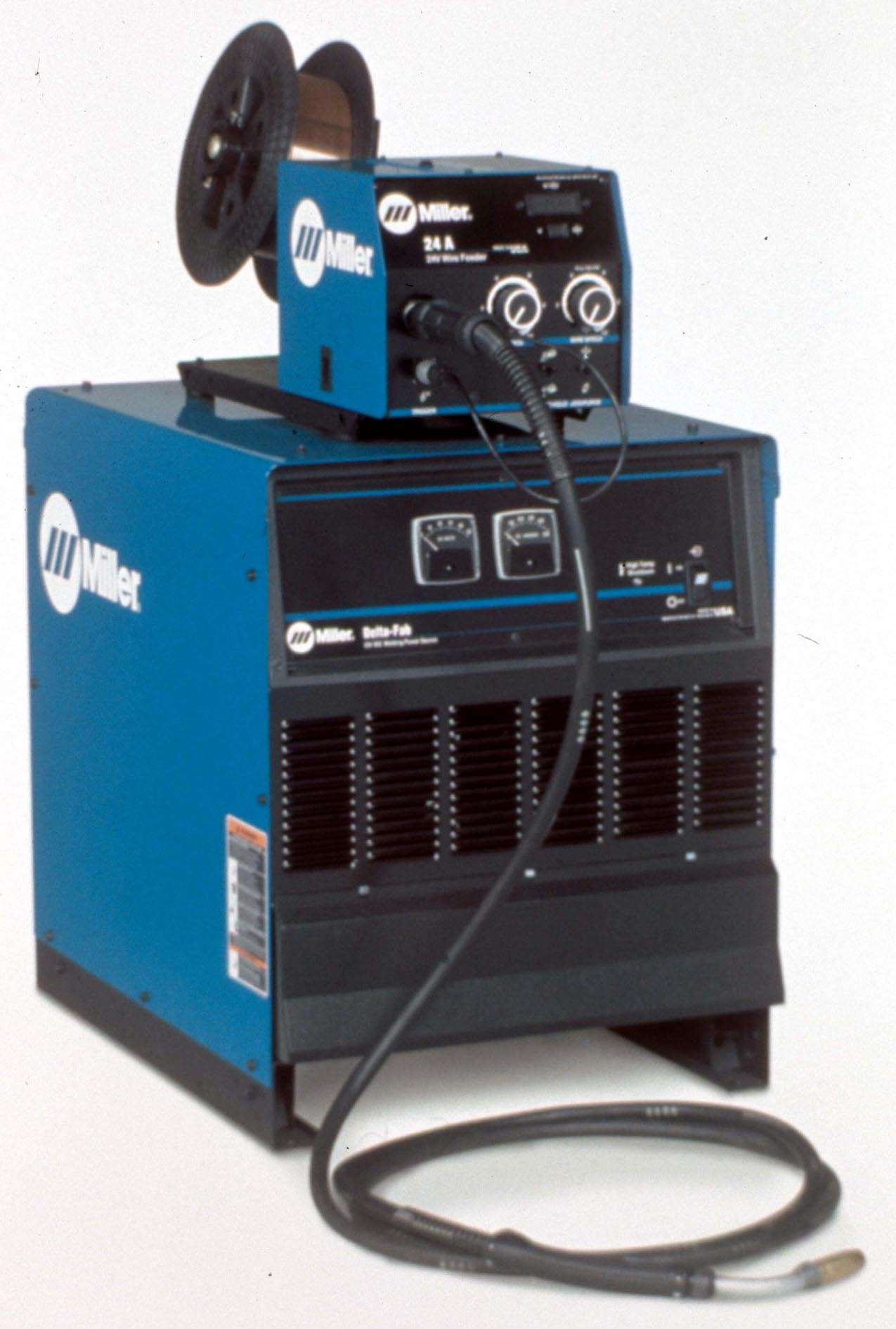

Dec 01, 2002 Delta-Fab® MIG/flux cored welding system offers 375 A welding power at 100% duty-cycle, 50 to 500 A. Unit produces 10 to 45 open circuit volts to combat voltage drops when power source is stationed away from workspace. Acceptable wires include .035–.045 in. hard and stainless steel wires and 1/16 in. flux cored wires. Drive roll system provides positive feeding for wires .045 and larger and includes trigger hold, jog/purge, and run-in controls.

M2 Optics, Inc.    Los Angeles, CA 90034

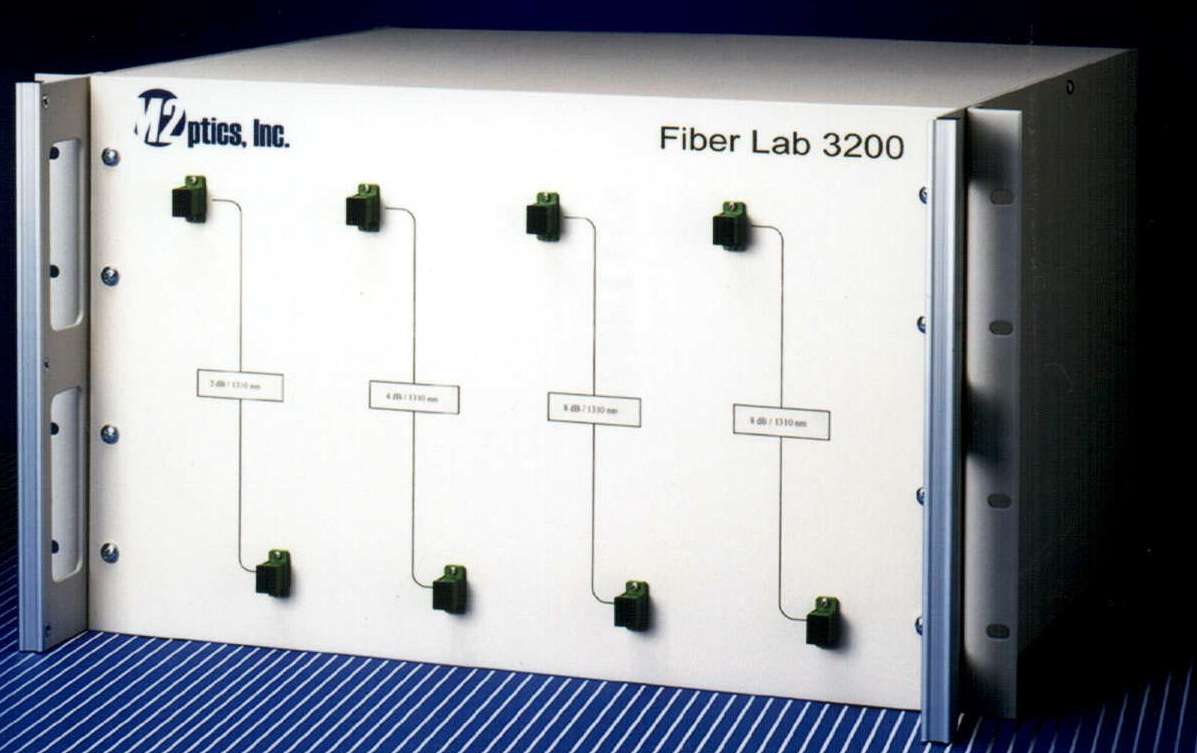

Nov 29, 2002 M2 Fiber Lab 3200™ simulates field applications for designing, developing, and manufacturing fiber optic systems. Unit houses spools of fiber to provide 1–8 dB of real fiber attenuation or up to 25 km in each of 4 individual attenuation areas. Package eliminates fiber crimping and breakage, and is available with various connector interfaces, types of fiber, attenuation specified at 1310 or 1550 nm, and with SMF-28 fiber or other single- or multi-mode fibers.

Scapa North America    Windsor, CT 06095
Nov 29, 2002 Polyethylene Duofoam® S5589BA mounting tape is double coated with acrylic, pressure-sensitive adhesive. It offers resistance to dilute acids and alkalies, and meets Ford specifications WSK-M3G184 A1, WSK-M11P49 A, and WSK-M11P51 A. Supplied on blue, siliconized HDPE liner, UV-resistant tape provides clean edge finish and is suitable for bonding door step plates as well as other automotive trim applications.

Mikron Bostomatic Corp.    Milford, MA 01757

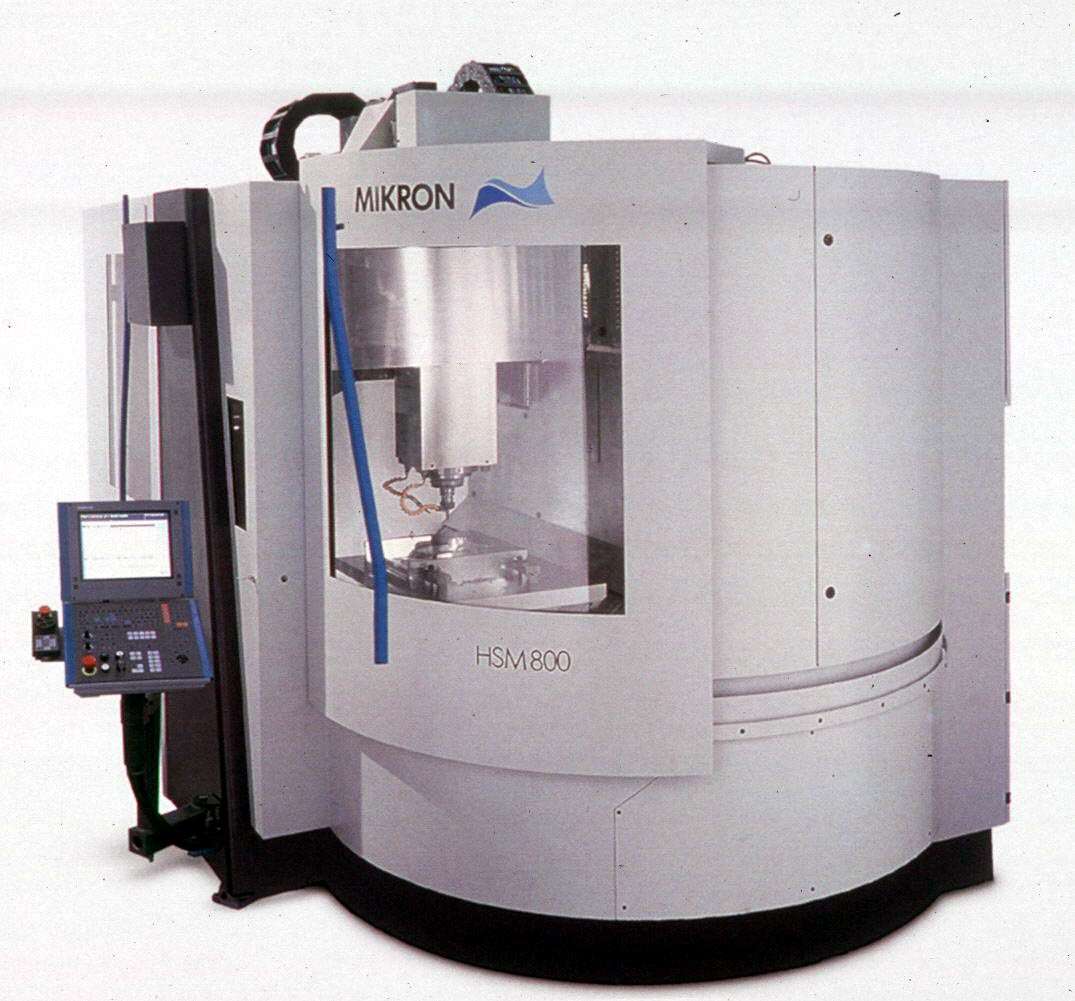

Nov 29, 2002 Model HSM 800 provides high-speed machining of heavy workpieces up to 2,200 lb, with up to 1.7 g acceleration in 3 dimensions. It features 4-position pallet changer, monoblock construction, concrete polymer base, and Heidenhain TNC 530 control. Liquid-cooled spindle motor with hybrid, ceramic ball bearings, delivers short run-up and braking times. Spindle choices include 30,000 rpm spindle, suitable for roughing or finishing operations, or 13.4 hp, 42,000 rpm spindle.

J. W. Winco, Inc.    New Berlin, WI 53151

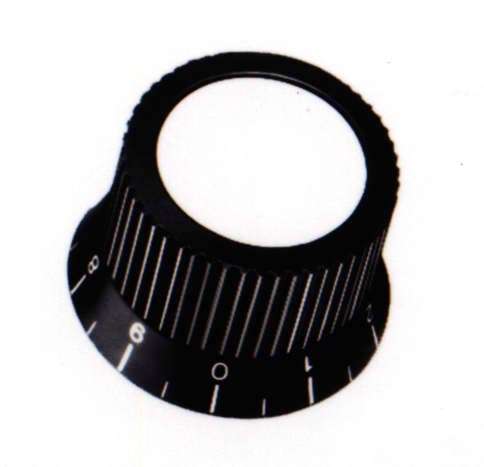

Nov 29, 2002 Skirted Knurled Control Knobs have anodized finish and decorative light gray, push-fit cover disk made of plastic. Arrow, graduations, and numbers are laser-engraved. Collet version provides easy way to position and lock control knob to shaft. Serrated-end, set-screw version secures control knob tightly to shaft.

IAC Industries    Brea, CA 92821 2926

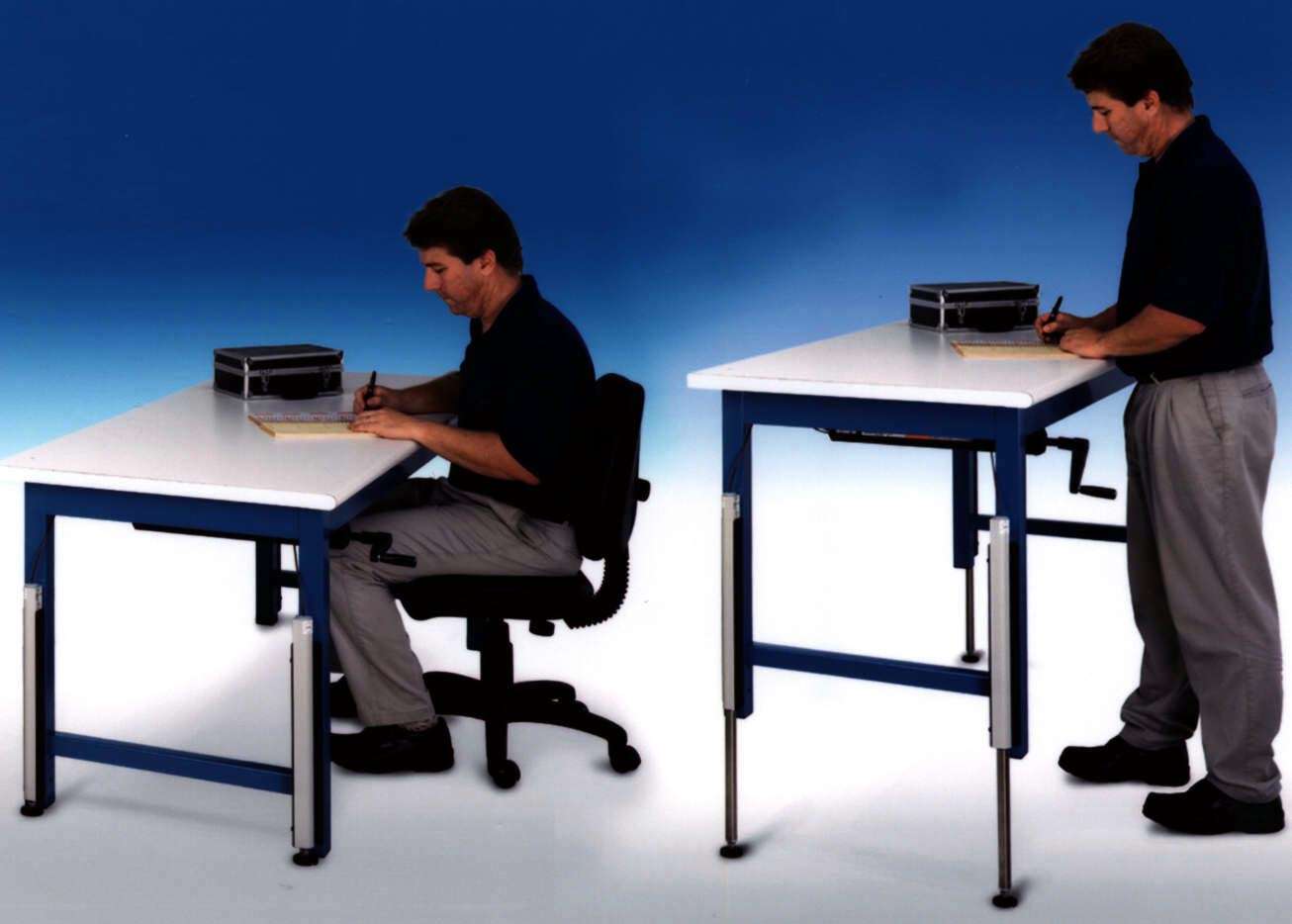

Nov 29, 2002 Retrofit Kits reduce physical injury by enabling workstation users to adjust working surface to correspond with physical requirements. They provide 12 in. height adjustment travel and 700 lb lifting capacity. Each kit includes hydraulic lifting module for each leg and height controller that is manually or electrically actuated. Bolt-on systems install with common tools on 4-leg workbenches, platforms and desks.

Princo Instruments, Inc.    Southampton, PA 18966

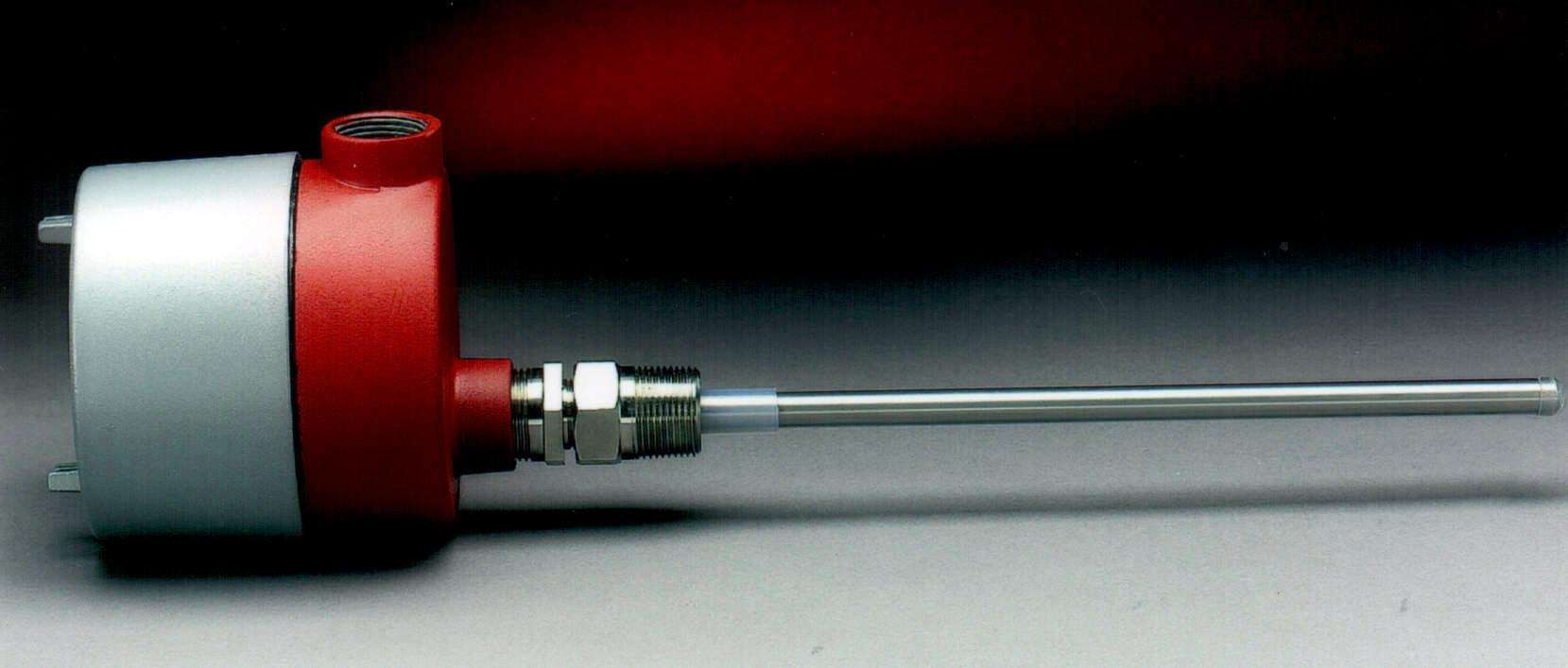

Nov 29, 2002 Smart 2 Model L4620 provides 4-20 mA analog signal as well as digital FSK communications signal on same 2-wire signal loop. Based on RF impedance level sensing technology, transmitter provides level control of most non-coating water- or organic-based liquids and light bulk solids. One-piece unit is comprised of electronics and inert sensing probe. Configuration and calibration can be performed with HART® handheld configurer or in control room with DCS or PC-based system.

Seco Tools Inc    Troy, MI 48083

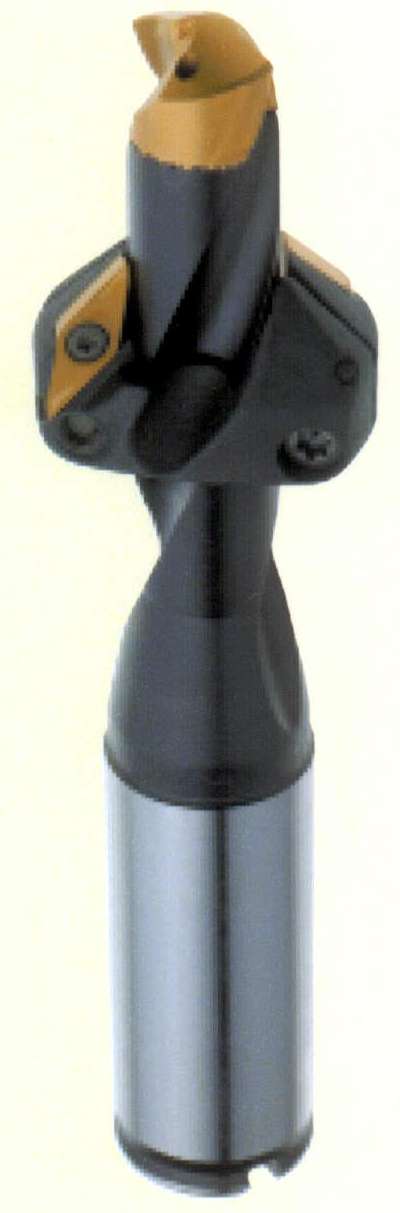

Nov 29, 2002 M-geometry crown, for CrownLoc(TM) drill system, is optimized for hard-to-drill materials and incorporates chamfer module that utilizes 2 inserts, each with 2 cutting edges. Heat generation is minimized via small edge preparation. Sharp cutting edges and conical front rake clearance reduce workpiece work hardening, while cutting geometry reduces residual stress and minimizes burrs at hole exit. Crown also offers precision-ground interface of interlocking V-grooves.

Blum Laser Measuring Technology Inc.    Fort Mitchell, KY 41017

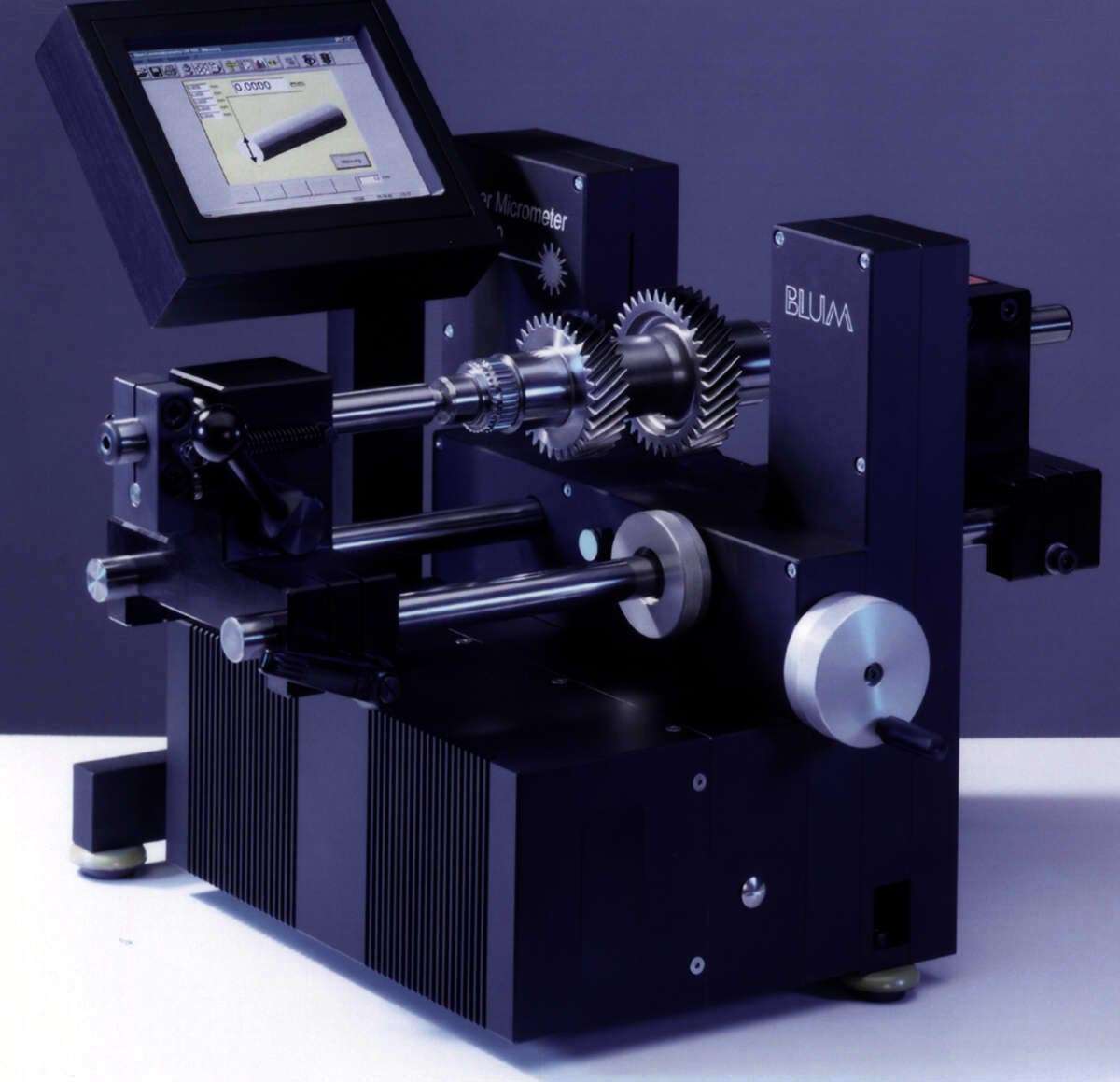

Nov 29, 2002 LaserMicro100 measures outside diameters and dimensions of shafts, rubber rolls, and cylindrical parts. Able to be used as stand-alone measuring device or fully integrated into automated manufacturing line, unit has repeatability of ±0.2 µ at linearity of better than ±1 µ over its 0.02–4 in. measuring range. Non-contact, single-focused beam system is virtually unaffected by part surface variations. Unit accommodates serial port interface or Ethernet card.

Arista Corporation    Tustin, CA 92780-2137

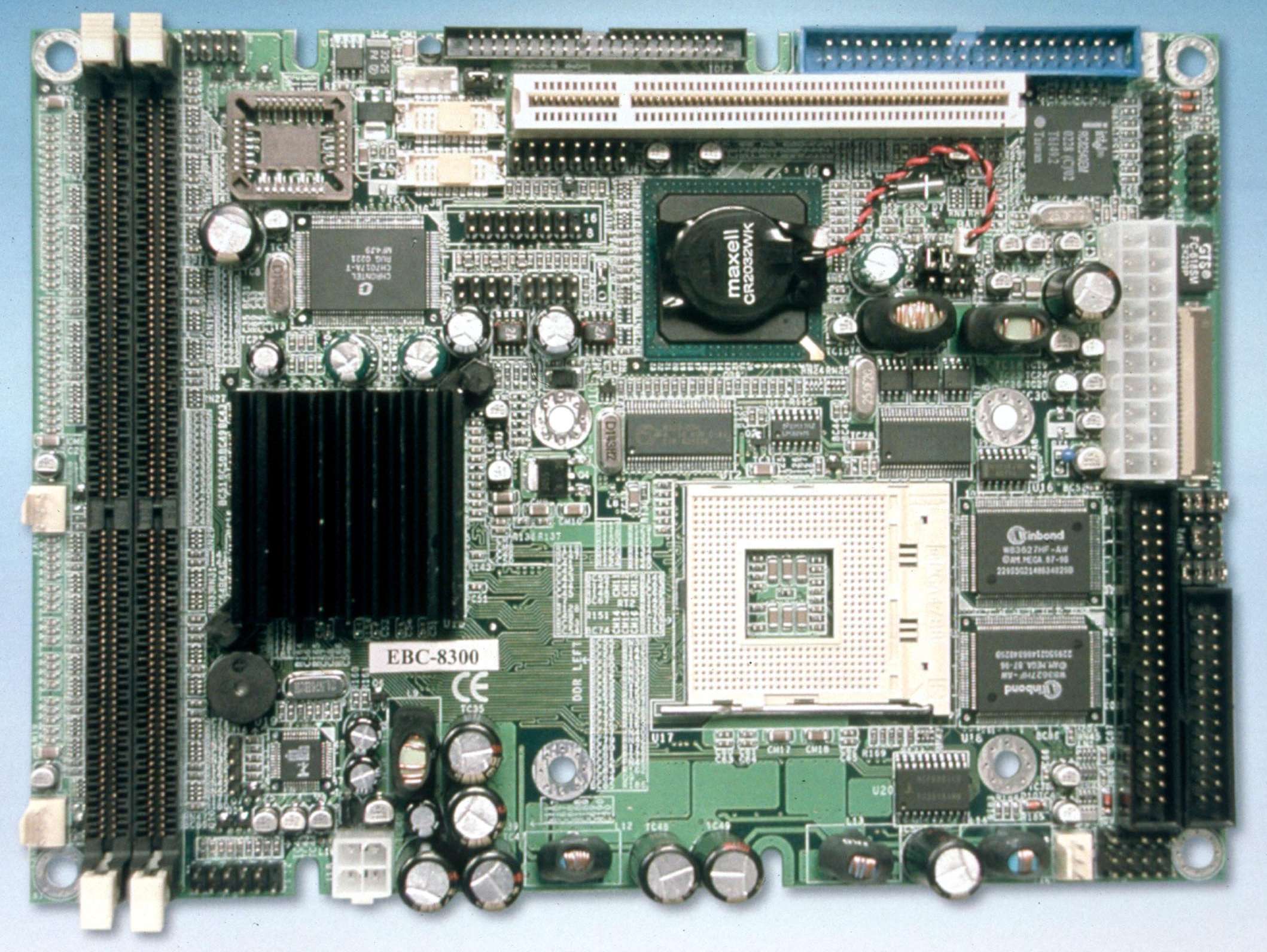

Nov 29, 2002 Model EBC-8300, 5.25 in. embedded board incorporates Intel's 845G Chipset, supporting Intel Pentium 4 processor with speeds of 1.3–3.06 GHz with 256 or 512 KB L2 cache. I/O functions are integrated onto built-in ICH4, and integrated graphics device provides 3D, 2D, and video capabilities. Its 4 USB ports utilize USB 1.1 and 2.0 standard. Available with Ethernet functionality, product also supports TV out and LVDS with use of Chrontel CH7017 display controller.

Pactiv Corp.    Lake Forest, IL 60045

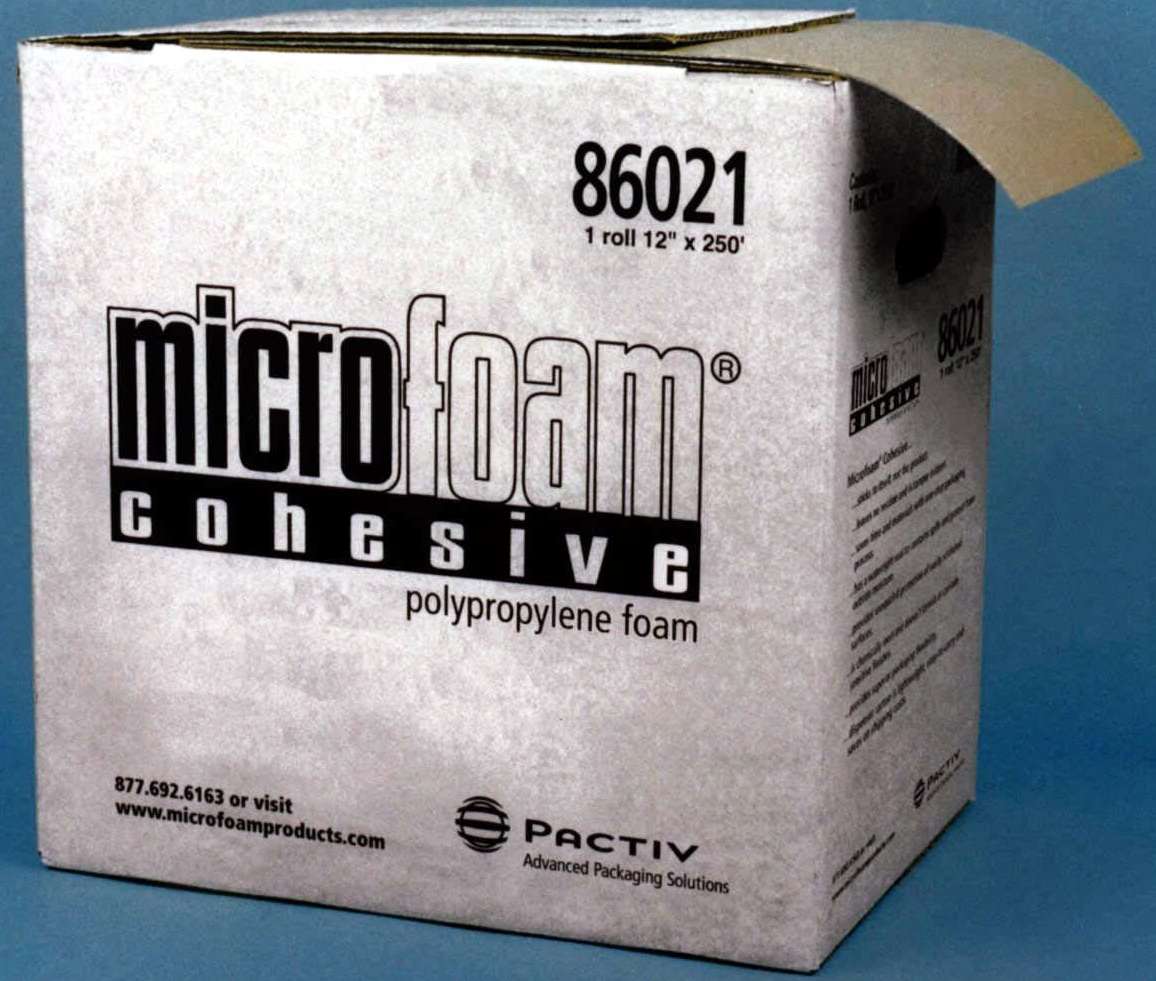

Nov 29, 2002 Microfoam® dispenses cold-seal coating that adheres to itself to form tamper-evident, protective packages that adapt to various product shapes. Structure is constructed of 1/16 in. layer of microfoam® closed-cell polypropylene foam laminated to 60# Kraft paper. Bleached white corrugated dispenser pack has 12 in. x 250 ft roll and measures 17 x 17 x 12 3/8 in. Cohesive coating only adheres to itself, not to products.

CyberResearch, Inc.    Branford, CT 06405 2932

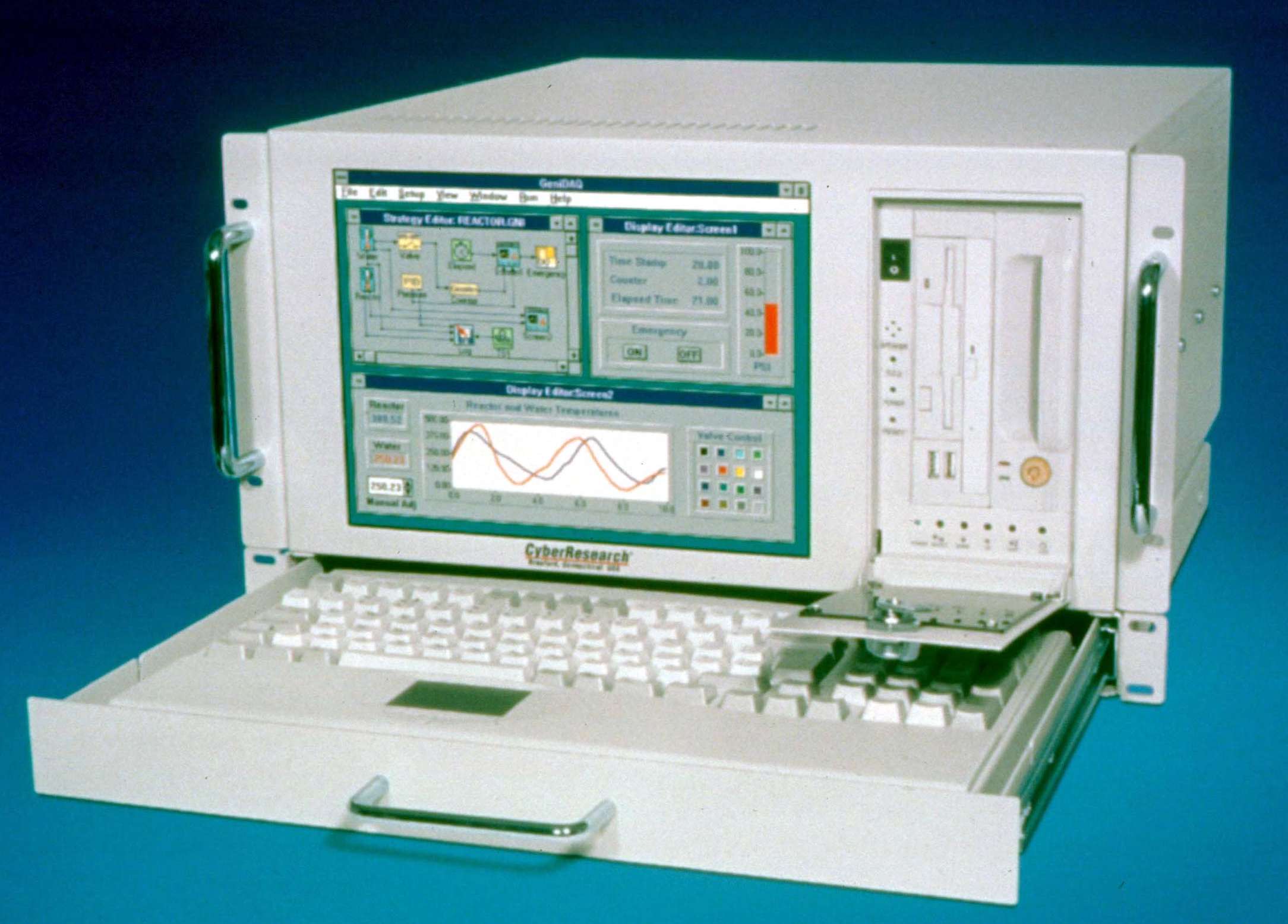

Nov 29, 2002 Basic NlC 12A workstations are 6U high and provide the following: 250-nit, 12.1 in. TFT LCD monitor; 2 USB ports; external floppy; CD-ROM; 5.25 in. bay; and internal 3.5 in. bay. Users choose 1U keyboard or touchscreen, appropriate CPU, and speed. Various A/D, D/A, DIO, communications, and motion-control boards are available to be included in motherboard or backplane. Drive bays can be filled with any of 70 available drives.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515

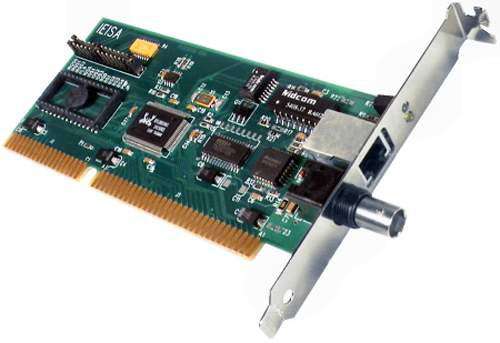

Nov 29, 2002 Model IEISA-10T2 Industrial Ethernet NIM links ISA bus compatible computers with Ethernet local area networks or fieldbuses. It supports 10BASE-T and 10BASE2 network media interfaces via RJ-45 and ENC connectors, respectively. Connection to either interface is automatically sensed and selected by module. Unit features full-duplex operation and auto polarity correction on receive lines to 10BASE-T port. Two LEDs are provided for diagnostic purposes.

EAO Switch Corp.    Milford, CT 06460

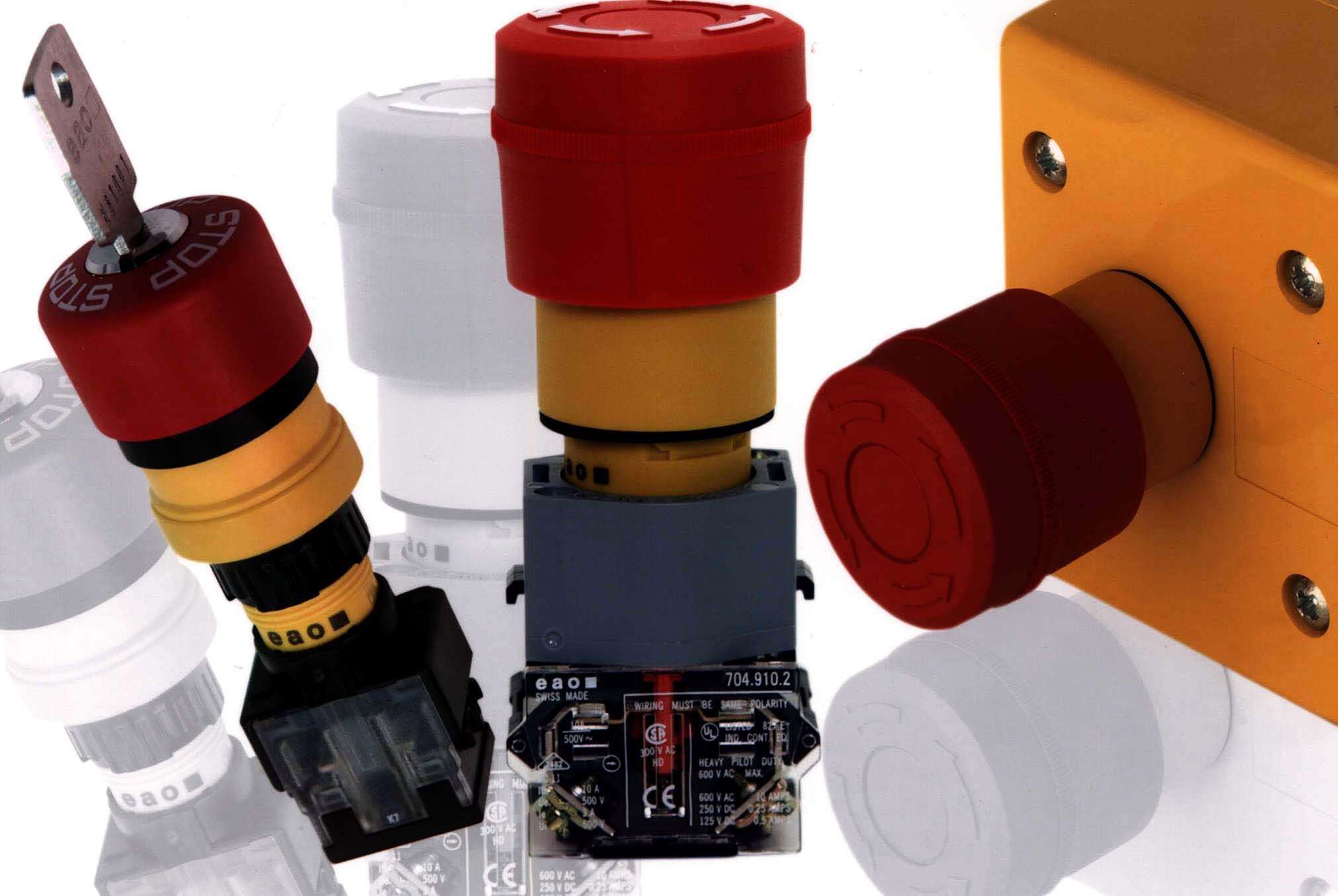

Nov 29, 2002 Emergency Stops are offered in twist-to-release and key-to-release versions and are protected to IP65 from front. Series 04 and 44 are 22.5 mm switches with 37 mm dia actuators. Series 04 incorporates bayonet fitting contact block with 2 mounting screws. Series 44 has snap-on contact block with slow-make forced-open contacts. Series 61 is 16 mm with 27 mm actuator, and is installed using threaded shaft and lock nut. All are designed in accordance with EN 60947-5-1.
