Azerity    San Jose, CA 95112
Nov 05, 2002 ProChannel Mid-Market offers 4 software bundles for high tech industry. Demand Generation adds speed and efficiency to sales activities. Global Price Management increases closure rates by streamlining fulfillment activities. Channel Management improves margins and channel sales and Compensation Management optimizes staffing levels. Each bundle offers functionality for administration, user management, organization management, Alerts and Notifications, and standard reports.

Tra-Con, Inc.    Bedford, MA 01730

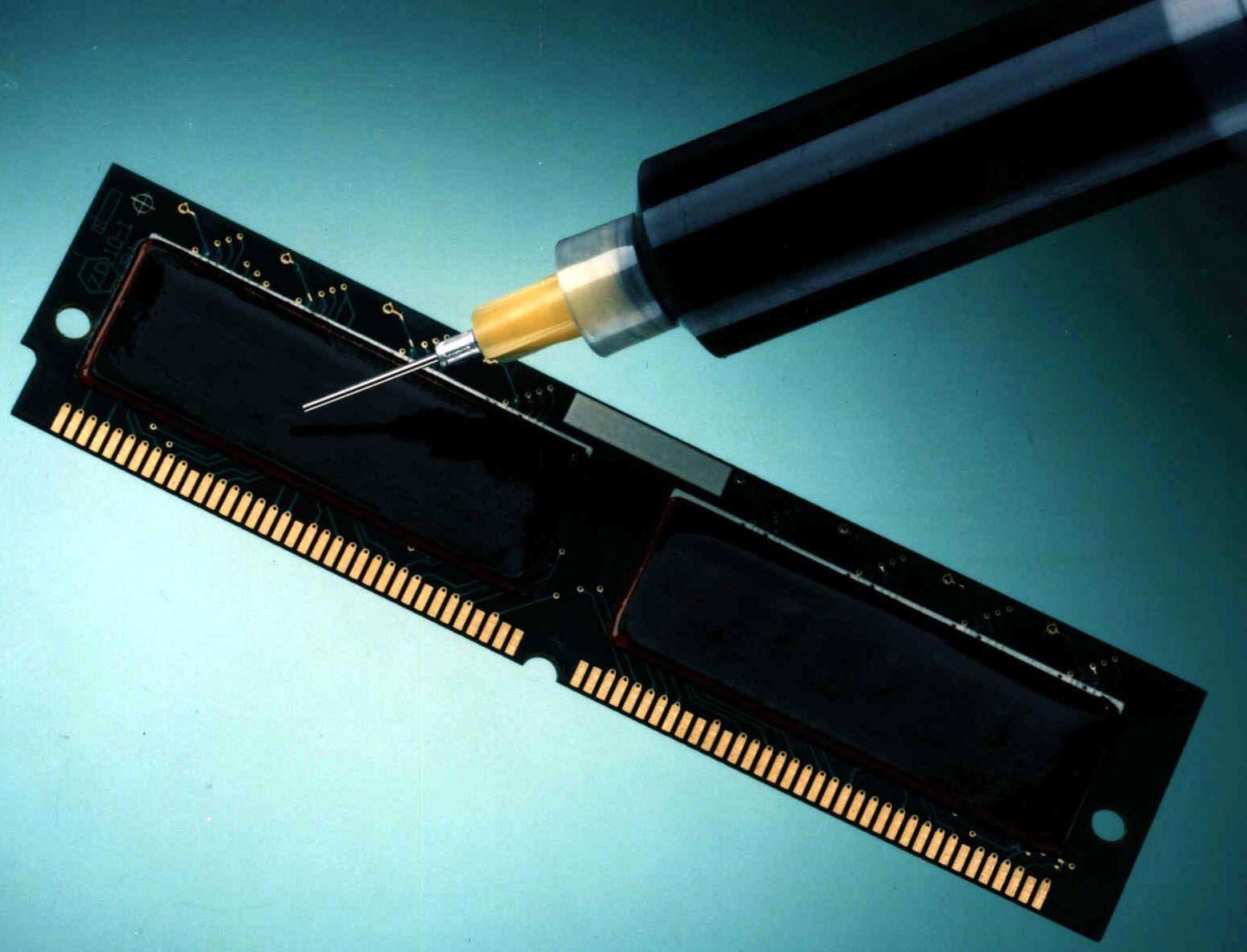

Nov 04, 2002 Cream colored TRA-BOND 789-4 one-part, thermally conductive adhesive bonds to metals such as gold, silver, and copper. Adhesive retains bond strength after exposure to moisture, and suits applications such as substrate attach, sealing micro-electronic packages, heat sink attach, and component staking.

Fargo Controls, Inc.    Eatontown, NJ 07724

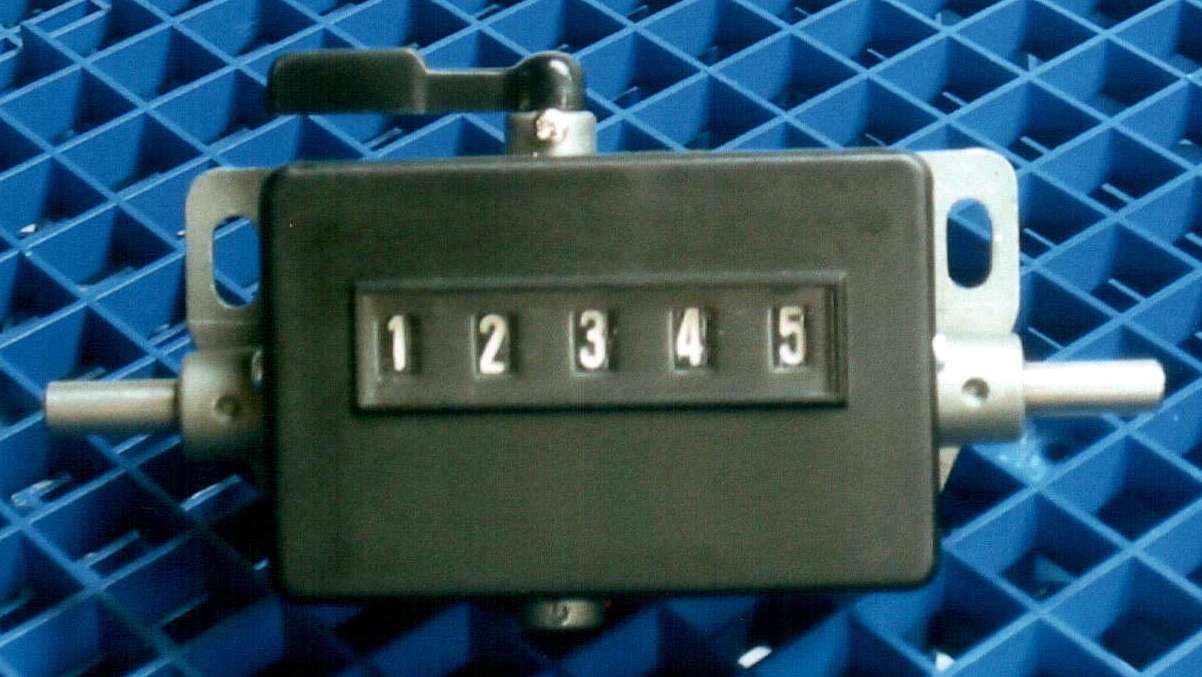

Nov 04, 2002 Heavy-duty, 5-digit Series C 05 has die-cast zamak body and ABS plastic face. Available in stroke, revolution, or rotary type, counter offers quick resetting lever and is available with left or right shaft rotation. Rotary version displays feet, feet and inches, and meters. Base-mounted counter suits automatic machines and measurements. Applications include presses; shearing, tooling, winding, and printing machines; and measuring of cloth/tape/rope.

Maxpro Technologies    Fairview, PA 16415

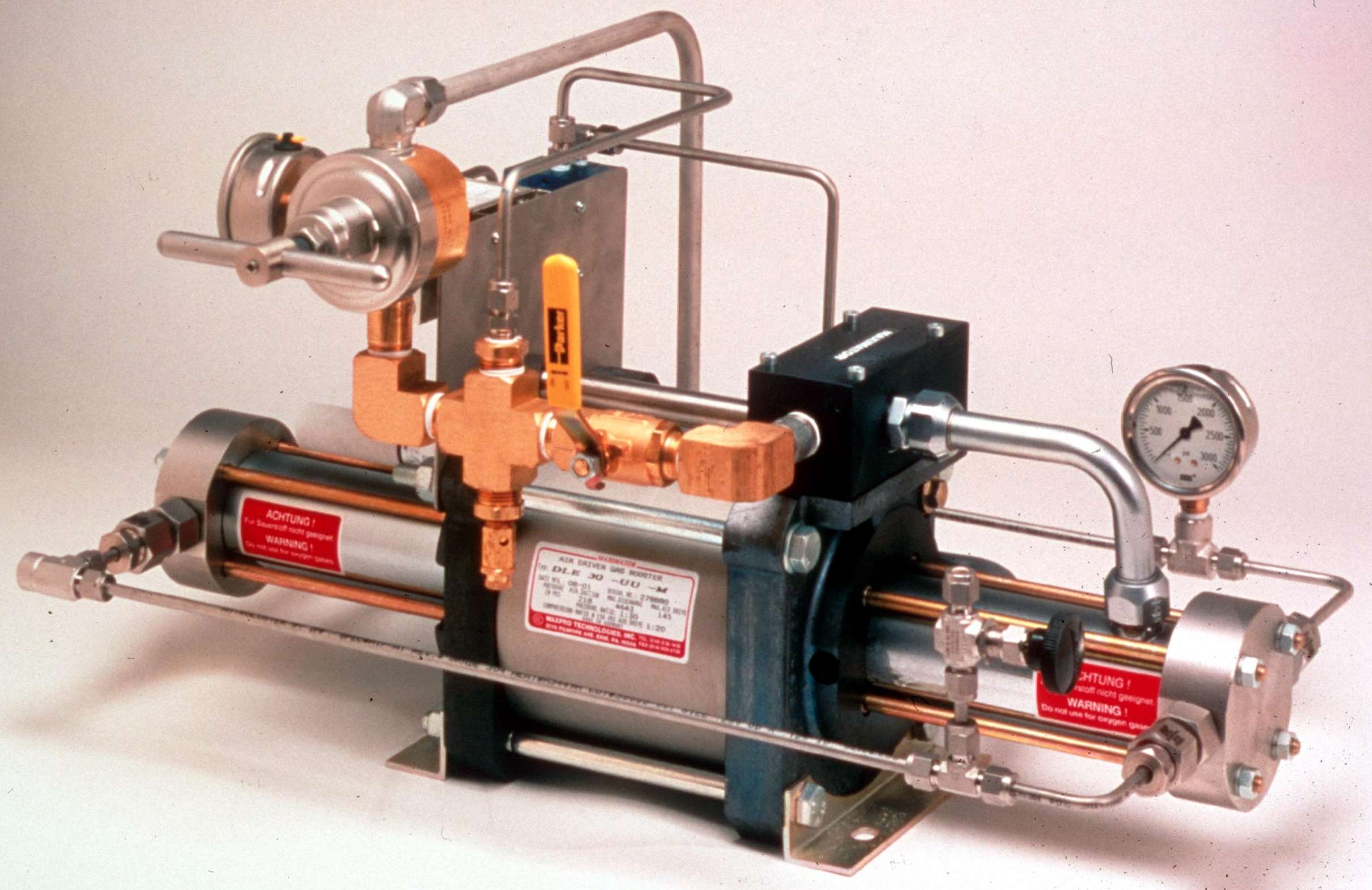

Nov 04, 2002 Available in 1- and 2-stage models, portable nitrogen booster systems include automatic stop feature (activated when gas supply pressure drops to minimum inlet rating). Turnkey systems can be operated by one person. Designed to operate from one gas source, regulator with gauge operates boosters' drive sections at pressures to 145 psi. Single stage models are for use in nitrogen charging to 3,000 psi; 2-stage models are for use in charging to 6,000 psi.

Lytron, Inc.    Woburn, MA 01801 1039
Nov 04, 2002 Kodiak® recirculating chiller provides immediate response to setpoint change. Its controller allows pressure units (PSI and BAR) to be set independent of temperature units (°F and °C). Chiller, available with cooling capacities from 600 to 6,500 W, uses common coolants and offers pressure display, reservoir level indicator, and low flow sensing. It suits analytical instruments, medical and laboratory equipment, and industrial applications.

Barton Instrument Systems, LLC    City Of Industry, CA 91749-1882

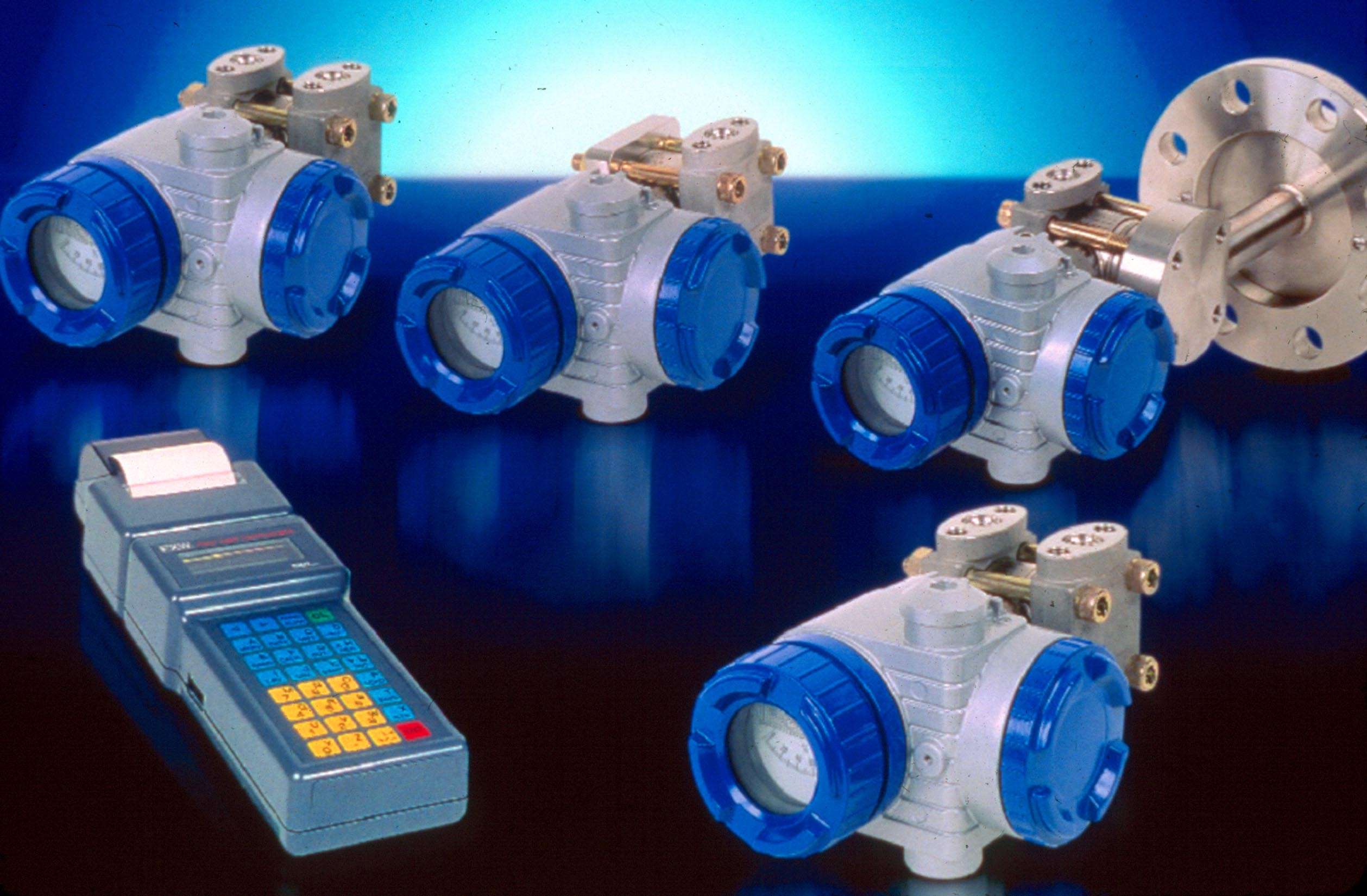

Nov 04, 2002 Intrinsically safe, explosion-proof Series FCX electronic transmitters measure, display, alarm, and output level, pressure, and/or flow data. Type All includes gage, absolute, differential pressure, flanged level, and remote seal models. Type Alle includes gage and differential pressure models. Accuracy is ±0.07% of span for Type All, and ±0.1% of span for Type Alle. Turndown is 100:1 for All and 30:1 for Alle. Enclosure is rated IEC IP67 and NEMA 6/6P.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Nov 04, 2002 Multi-layer TiAlN/TiN/TiAlN-coated carbide grade KC633M offers resistance to wear and deformation when rough machining ferrous materials and high-temperature alloys. Multi-layer TiN/TiCN/TiC-coated grade KC625M is suited for non-ferrous materials, while KC635M TiAlN-coated material suits high-temperature alloys. Other grades include KP525M powdered-metal material, KH110M uncoated steel grade with 8% cobalt content and heat treatment process, and diamond-coated KDF300.

Interstate Products, Inc.    Sarasota, FL 34233

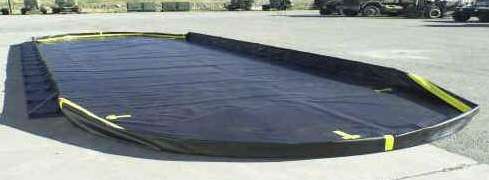

Nov 04, 2002 Deluxe Drive Through Berm provides secondary containment, decontamination, and wash down area for trucks and equipment. It has no corners to rip out, no bulky foam walls to drive over, and provides easy fork lift access. Berm is made from heavy-duty, 30 oz fuel-resistant material and is available in black, tan, yellow, and green.

Square D Co.    Palatine, IL 60067

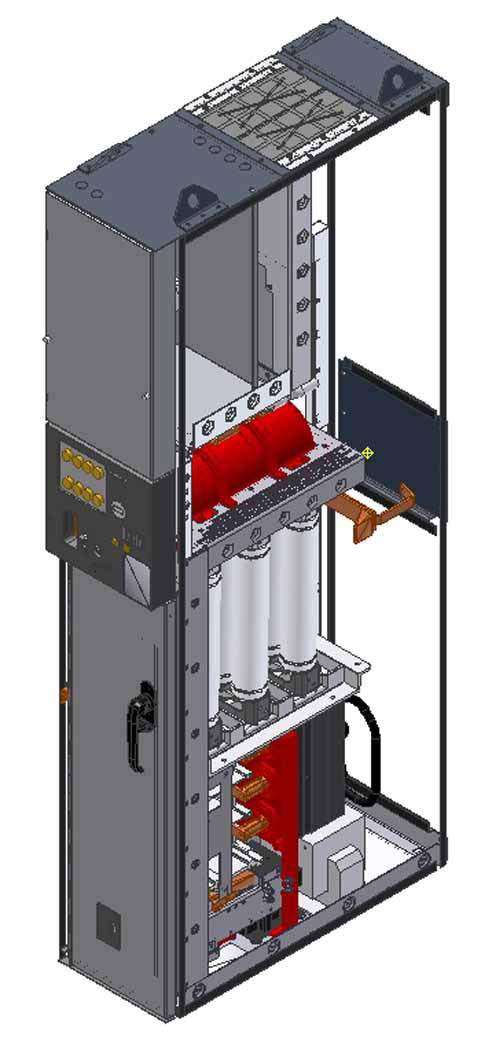

Nov 04, 2002 Medium-voltage MOTORPACT offers protection based on compartmentalized construction that includes integral cable grounding switch and optional built-in arc resistance. Controller is capable of 5,000 operations with no maintenance. With main bus bar mounted directly onto isolation switch, MOTORPACT has fewer bolted connections. Infrared scanning ports are provided for scanning bus bar connections and cable terminations. Controller meets ANSI, CUL, IEC, NEMA, and UL standards.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 04, 2002 Multimode LC Connector Plug Kits are available for 900 µm buffered cable and 1.6 to 2.0 mm, 2.4 mm, and 3.0 mm jacketed cable. Knurled crimp body enables cable retention, while wide thumb latch makes it easy to unplug. Design utilizes one connector body style for both simplex and duplex applications. Duplexing is accomplished via field installable clip, which allows polarization corrections.

Fibox Inc.    Glen Burnie, MD 21061

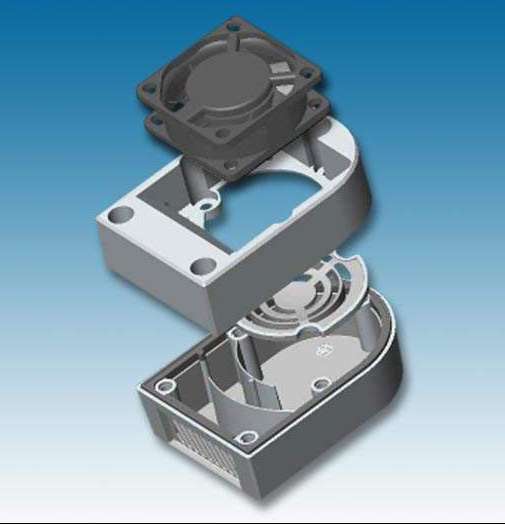

Nov 04, 2002 Enclosure Ventilator features molded-in-place gasket for tight seal. Device permits passive cross-flow ventilation. Fan-holder accessory, used with standard fan, eliminates heat in applications where forced air transfer is required. Ventilator is made of UL 94 V-0 polycarbonate plastic, rated IP44, and is suitable for outdoor use. Dimensions are 2 in. x 2.75 in. x 0.8 in. high. Package includes screws and drilling templates.

Coreco Imaging    St. Laurent Quebec H4T 1V8, CD   Canada

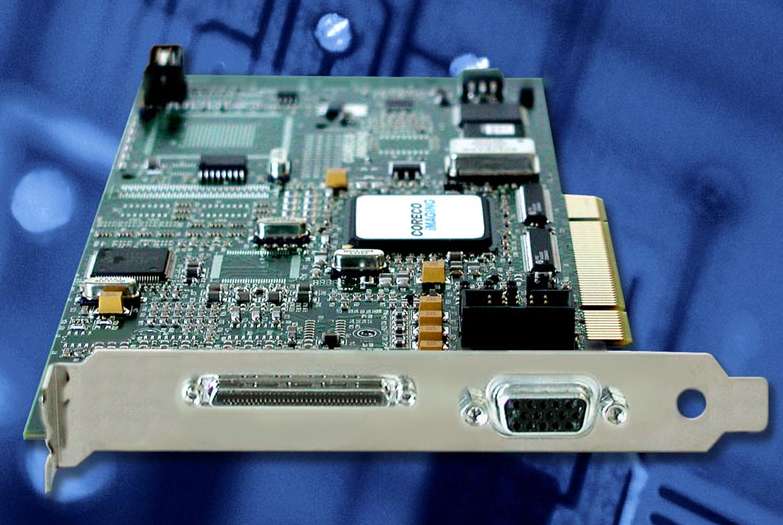

Nov 04, 2002 Bandit-II Digital monochrome frame grabber supports both single and dual tap digital cameras configured in 8, 10, or 12-bit pixel/tap input formats, and digitization rates up to 60 MHz. With interrupt-driven, dedicated I/Os, unit provides real-time control. Images acquired are transferred to system memory with no CPU usage. Onboard VGA can display high-resolution VGA and TV formats simultaneously. Live images can be flipped vertically or horizontally.

Southco Inc.    Concordville, PA 19331 0116
Nov 04, 2002 Quad Panel Latch offers ¼-turn operation and internal and external sealing to meet NEMA 4/IP 66 requirements. Spring-loaded pawl keeps constant force on frame when latched, to resist vibration and allow for grip tolerances. Pawl-position indicator on driver allows users to see status of latch at a glance. Eight tool-operated headstyles provide methods for OEMs to meet restricted or authorized personnel access requirements.

MK Automation Engineering Inc.    Bloomfield, CT 06002

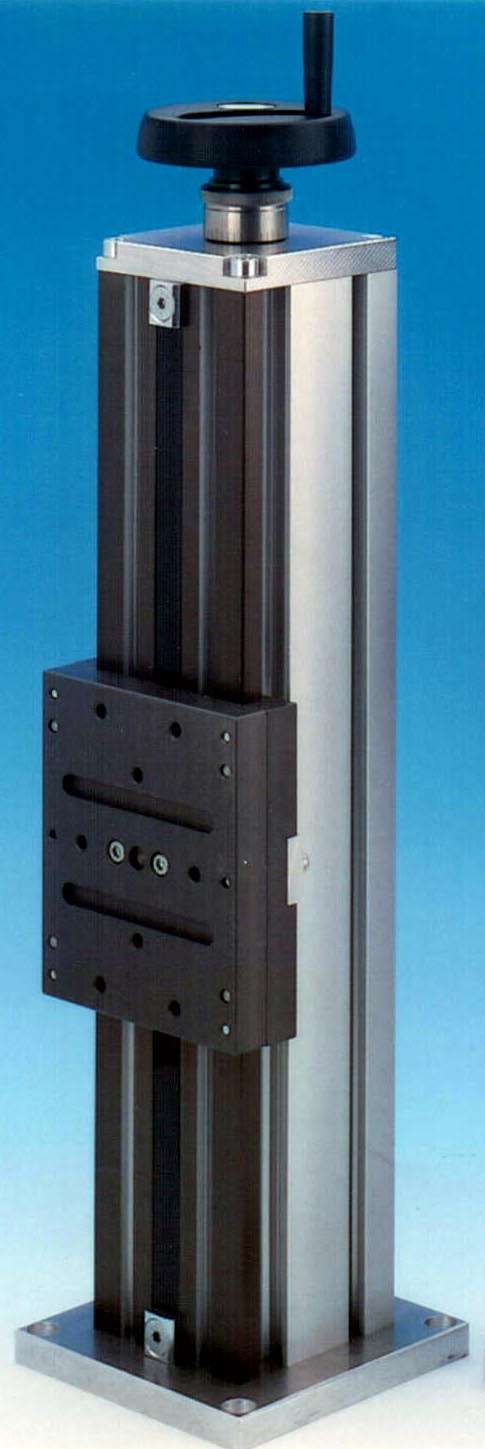

Nov 04, 2002 Model 2015 is 50 x 50 mm with 100 x 80 mm carriage plate moved by internal trapezoidal spindle (16 x 4) with load capacity of 500 n. Model 2011 is 100 x 100 mm with 150 x 130 mm carriage plate moved by internal trapezoidal spindle (20 x 4) with load capacity of 1000 n. Supporting beams are hard coated structural aluminum. All spindles are protected from contaminants by polyamide cover plates. Units are offered with standard hand wheel movement or motor-driven options.

Precision Finishing Inc.    Indianapolis, IN 46256
Nov 04, 2002 VORTEX High–Energy deburring machine features adjustable gap system between Tuff Tank and rotating bottom, allowing operator to make adjustments for smaller media and parts so machine can be kept in tight tolerance. It is fully programmable for complete process control. Machine offers inifinite speed control and ability to run variety of media including ceramics, plastic, sintered, natural, steel, loose-grain, and part-on-part. Same set-up runs wet or dry process.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

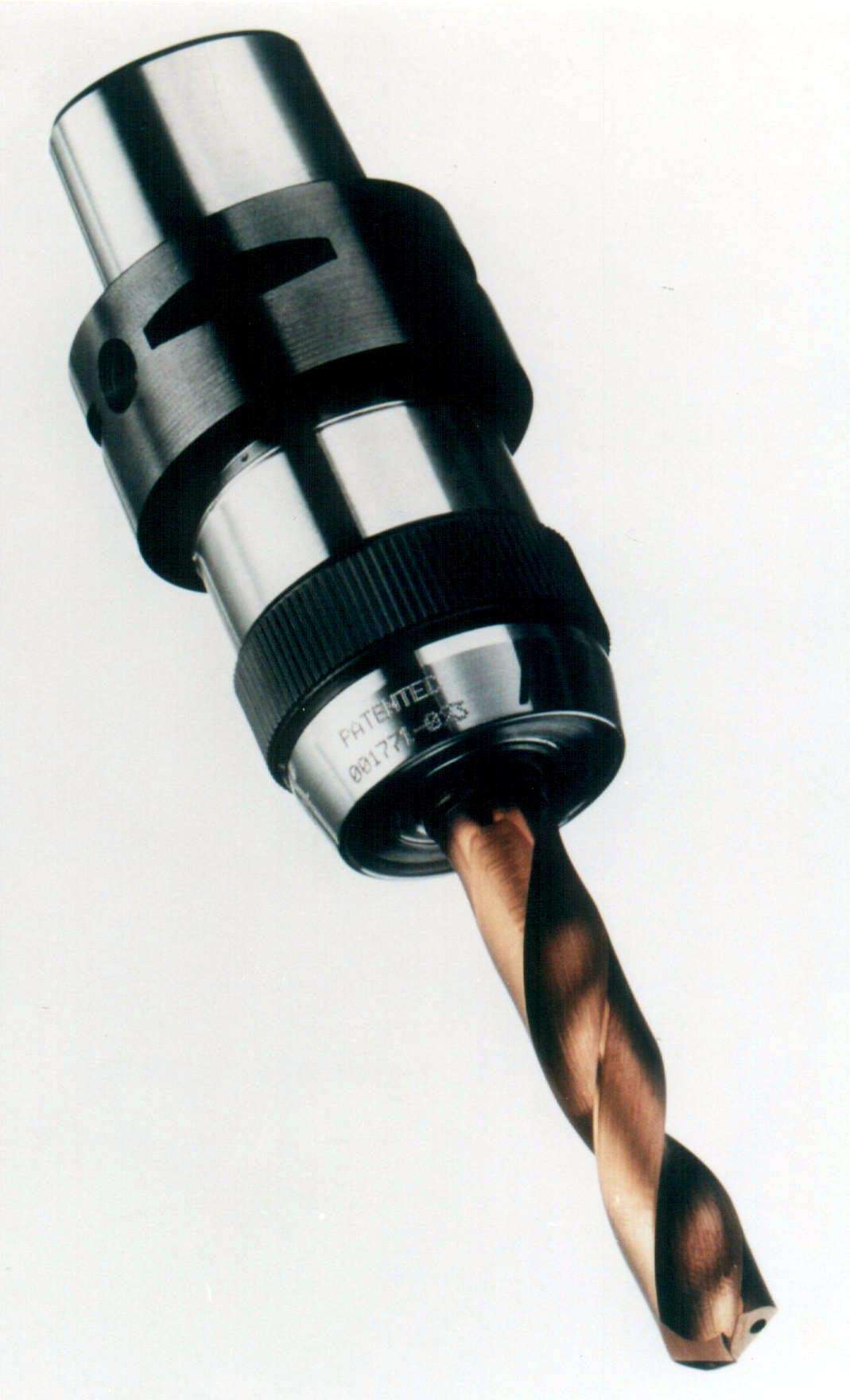

Nov 04, 2002 CoroDrill R840 Delta C is offered in diameters from 0.118 to 0.787 in. for external cooling and 0.197 to 0.787 in. for internal cooling. Drill is designed with bronze-colored grade GC1220 carbide and is suitable for use with metals ranging from aluminum to super alloys. Fine-grained carbide grade features strong multi-layer PVD coating for wear resistance and maximum edge security.

Ansoft Corp.    Pittsburgh, PA 15219
Nov 04, 2002 PExprtâ„¢ integrates design solution, analysis, and simulation in single environment to optimize design of transformers and inductors for electrical systems of automobiles, aircraft, and personal communication devices. User specifies conditions for system to produce results sorted in terms of loss, temperature rise, or other design parameters. Software includes complete model netlist for SIMPLORER®, PSpice®, or Saber®.

Werum America, Inc.    Towaco, NJ 07082-1032
Nov 04, 2002 PAS-X provides an integrated, paperless system to streamline manufacturing, decrease cycle times, increase equipment efficiency, and assure compliance within FDA-regulated (including 21 CFR Part 11 and GMP) production and packaging environments. It reduces work in process (WIP) up to 20%, reduces lead times up to 35%, reduces cycle times up to 45%, reduces paperwork by 55%, and reduces data entry by 75%.

Mitsubishi Electric & Electronics USA, Inc., Electronic Device Group    Sunnyvale, CA 94086
Nov 04, 2002 Flash-based Model M16C/26 integrates voltage down converter and operates at full rated 20 MHz speed with low power consumption across voltage range of 3.0 to 5.0 V. It includes 4 Kbytes virtual EEPROM, 38 programmable I/O ports, eight 16-bit timers, and watchdog timer. Microcontroller is available in 7 x 7 mm, 48-pin QFP package. Applications include power management, instrumentation, remote security, and 3-phase motor control.

Devcon    Danvers, MA 01923

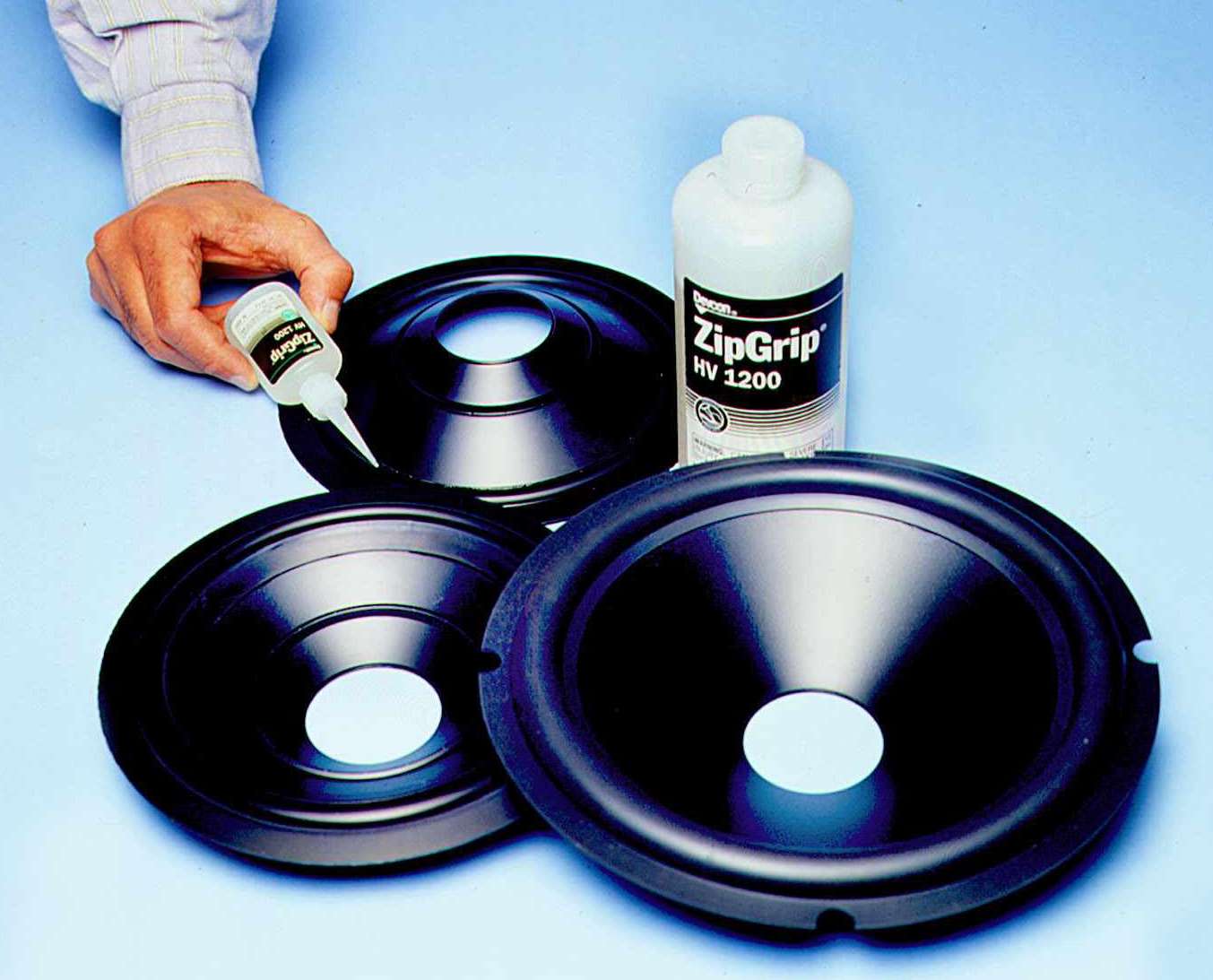

Nov 04, 2002 ZipGrip® clear-drying cyanoacrylates bond plastics, rubber, and metal and withstand temperatures up to 280°F. Functional strength is attained in 60 min and full cure in 24 hrs. With viscosity of 1,200 cps, HV1200 bonds porous substrates and fills gaps to .008 in. Tensile shear strength on steel is 3700 psi. With viscosity of 2,200 cps, HV2200 fills gaps to .050 in. It is resistant to water, humidity, and extreme thermal shock. Tensile shear strength is 3,800 psi on steel.
