Endress + Hauser Inc.    Greenwood, IN 46143
Nov 11, 2002 Immune to plant vibration, Promass H has wetted parts made from zirconium for corrosion resistance. Slightly curved, single-tube sensor has no flow splitter. Its ITBâ„¢ system (Intrinsic Tube Balance) provides balance and stability for accurate measurement (±0.15% in liquids) over various process conditions. Available in sizes 3/8 up to 1 1/2 in. for flow rates to 1,650 lb/min, unit operates in temperatures from -60 to +400°F.

Hardy Process Solutions    San Diego, CA 92123 1825
Nov 11, 2002 ANY-WEIGH(TM) Universal Bench Scales come with 15 ft cable for connection to strain gauge based weighing instruments. Other versions have built-in electronics with choice of DeviceNet or 4-20mA analog output communication capabilities. Scale sizes include 12 x 12, 20 x 20, and 24 x 24 in. DeviceNet Bench Scales offer 1-touch local calibration and allow remote DeviceNet C2® electronic calibration or calibration with test weights.

Schunk    Morrisville, NC 27560

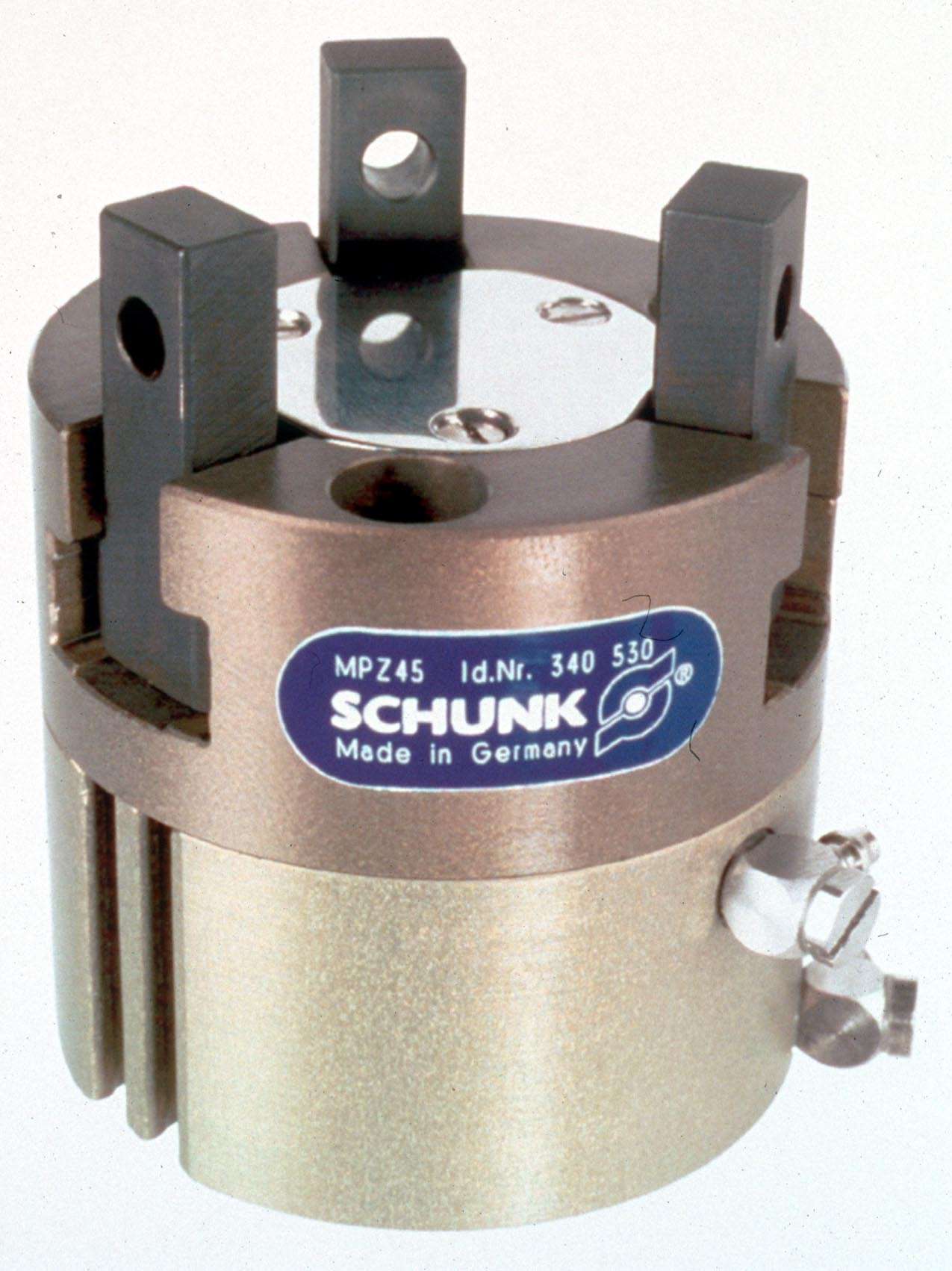

Nov 11, 2002 Series MPZ 3-finger concentric grippers provide actuation speeds as fast as 20 ms. Three body sizes range from 30 to 45 mm with strokes between 6 and 10 mm, resulting in grip forces from 60 to 285 N. Spring assist models provide internal or external gripping to enhance grip force and safety in event of air loss. Gripping conditions of open, closed or part present are monitored with magnetic type switches. Up to 5 positions can be monitored with optional Flexible Positioning Switch.

Scientific Software Inc.    Pleasanton, CA 94588
Nov 11, 2002 CyberLAB Knowledge Engineering System(TM) collects, warehouses, manages, and archives electronic records for enterprises while enhancing organizations' compliance with US FDA Part 11 requirements for electronic records and electronic signature. LimsLink and Nexxis software applications are interfacing solutions for transferring RS232 data to CyberLAB KES(TM). Users can include full integration of RS232 based instruments into CyberLAB implementation.

Syware, Inc.    Cambridge, MA 02142
Nov 11, 2002 Visual CE® Personal Edition v7 is designed for building customized forms and databases on Windows CE and Pocket PC handheld computers. It provides real-time wireless access to server data, macros, GPS support, and 48 numeric, string, and date functions. Relational capabilities allow data to be structured, stored, and retrieved across multiple tables. Complete support for GPS devices allows Visual CE to read and store positioning information for field applications.

Westinghouse Electric Co.    Pittsburgh, PA 15230 0355
Nov 11, 2002 StatePointPlus v3.05 offers workable, scalable, and continuous proactive strategy for pinpoining and rectifying unauthorized alterations in systems and data across enterprise — before, during, and after security breaches. From central control console, system administrators and security administrators can use product to remotely and concurrently control attributes of every software object in every computer on network to computer-specific baselines or desired states.

Signaworks    Powell, OH 43065
Nov 08, 2002 Panel-mounted 22 mm Nanostrobe produces high-intensity xenon flash. Suited for industrial and commercial applications, strobe has fully weatherproof, NEMA 3R, 12, 13, 4X, IP67 rating. Red, amber, green, clear, and blue colors are available in 10 to 100 Vdc, 110 Vac, and 220 Vac models. Light provides visibility from front and sides of unit.

Intertest Inc.    Columbia, NJ 07832
Nov 08, 2002 Offered in cable reel and push pole configurations and submersible to 100 ft, iShot Imaging AquArray(TM) captures color inspection footage from wet and immersed areas. With integral LED lamp and interchangeable lenses, system ensures detailed view of objects in saltwater and other corrosive liquids. Camera measures 1 in. in dia. and weighs 6.4 oz. with 1/4" interline transfer CCD that captures color video at 330 HTVL resolution.

Capital Equipment Corp.    Billerica, MA 01821
Nov 08, 2002 Distributed data acquisition device, webDAQ/100(TM), has built-in web server and net arm processor. It combines data acquisition hardware, dual processors, 4 to 128 MB of RAM data storage, Ethernet and serial interfaces with web server and FTP and e-mail capability. Graphing capability works in any web browser with single click on home page link. Customized graph options include auto or fixed axis scaling, assignments of channels to graphs, and trace and background colors.

PIAB Vacuum Products    Hingham, MA 02043

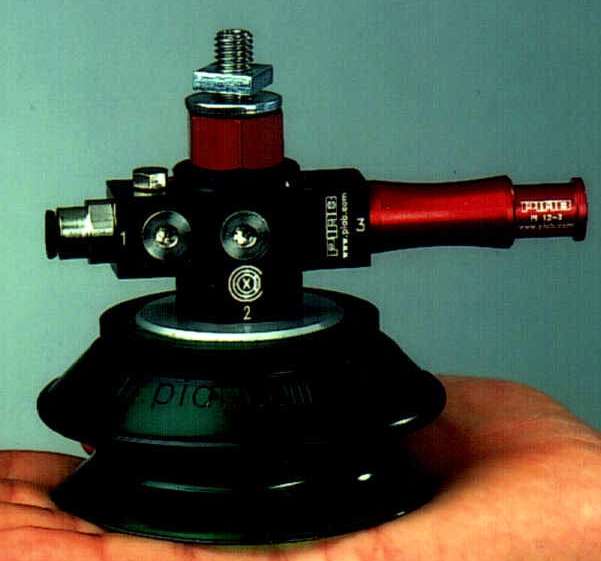

Nov 08, 2002 Vacuum Gripper System, VGS 3010, features polyurethane suction cup and multi-stage air driven vacuum pump integrated in a single unit. System is modularly constructed with replaceable suction cups that grip both porous, leaky materials, such as corrugated as well as coarse and curved surfaces. Suction cups are available in sizes from 1.5 to 4.5 in. dia and system can function at operating pressures below 45 psi.

Enerpac (Industrial Tools)    Milwaukee, WI 53201 3241
Nov 08, 2002 With maximum torque of 5,570 lb-ft, SQD-75-I hydraulic square drive torque wrench is intermediate-sized and weighs 11.9 lbs. Wrench speeds and simplifies bolting and unbolting process and provides lightweight option for sockets sized 1 1/2 to 4 3/8 in. Unit features slim nose radius and 360° swivel hose connection, which allows easier positioning in confined areas.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

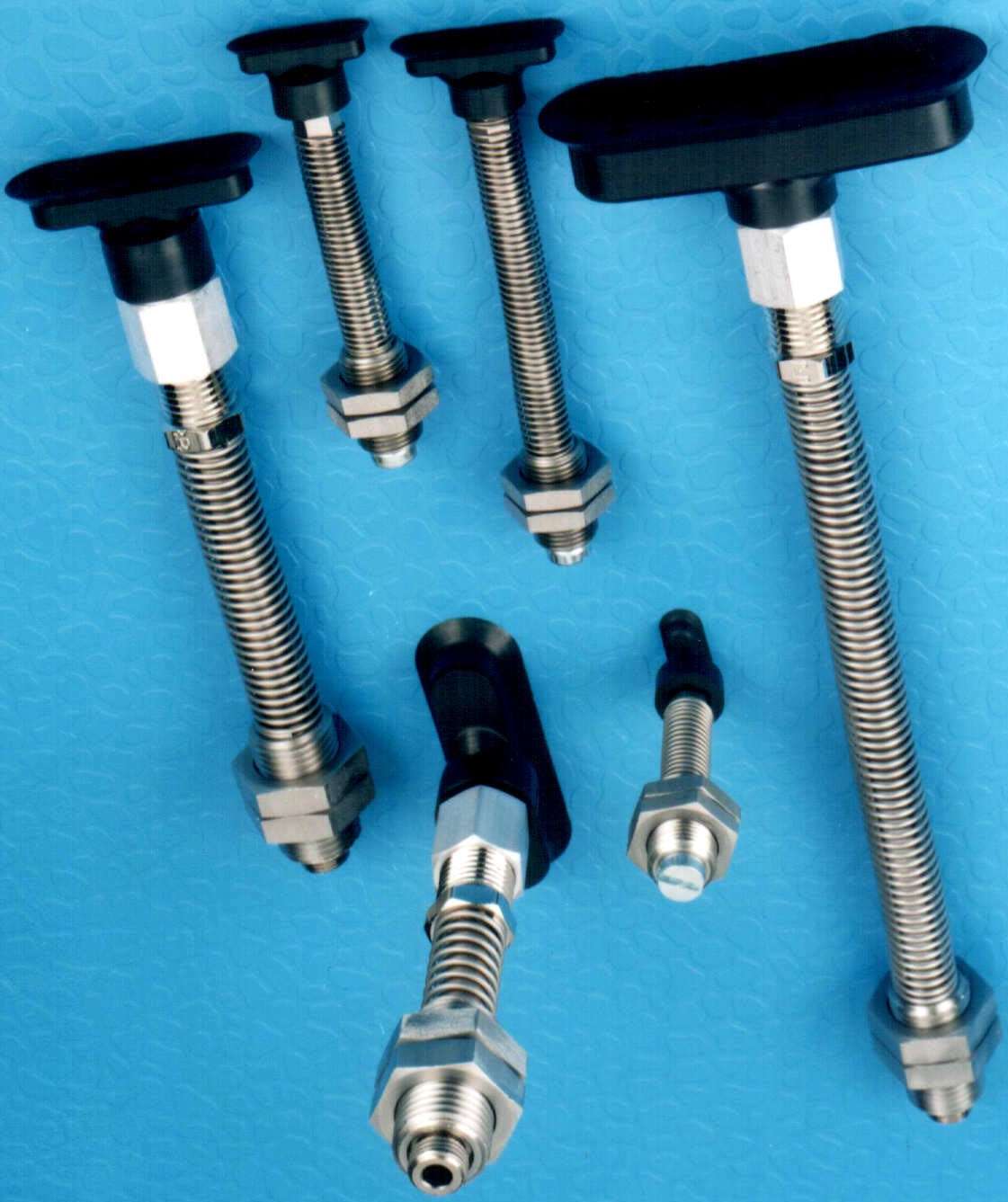

Nov 08, 2002 Non-rotating Vacuum Cup Suspensions lock each vacuum suction cup in place for precise positioning. Once tightened, all stainless steel suspensions will not rotate during operation. Designed for high-speed automation equipment using non-round suction cups, suspensions feature spring-loaded tubes for interfacing suction cup to vacuum lines. Units come in 10 sizes from 1.14 in. high to 6.61 in. long with 0.20 in. to 2.8 in. travel.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891
Nov 08, 2002 Model 6487 Picoammeter/Voltage Source can apply voltage stimulus as high as 500 V to device under test and measure currents as low as 20 fA. It also provides direct readout of resistance measurements up to 5x10¹⁶ ohms and offers 5½ digit resolution and voltage burden of less than 200 µV on lower measurement ranges. Voltage source ranges are ±10, ±50, and ±500 Vdc, with basic accuracy of ±0.1% on programmed value.

Little Giant Pump Co.    Oklahoma City, OK 73157 2010

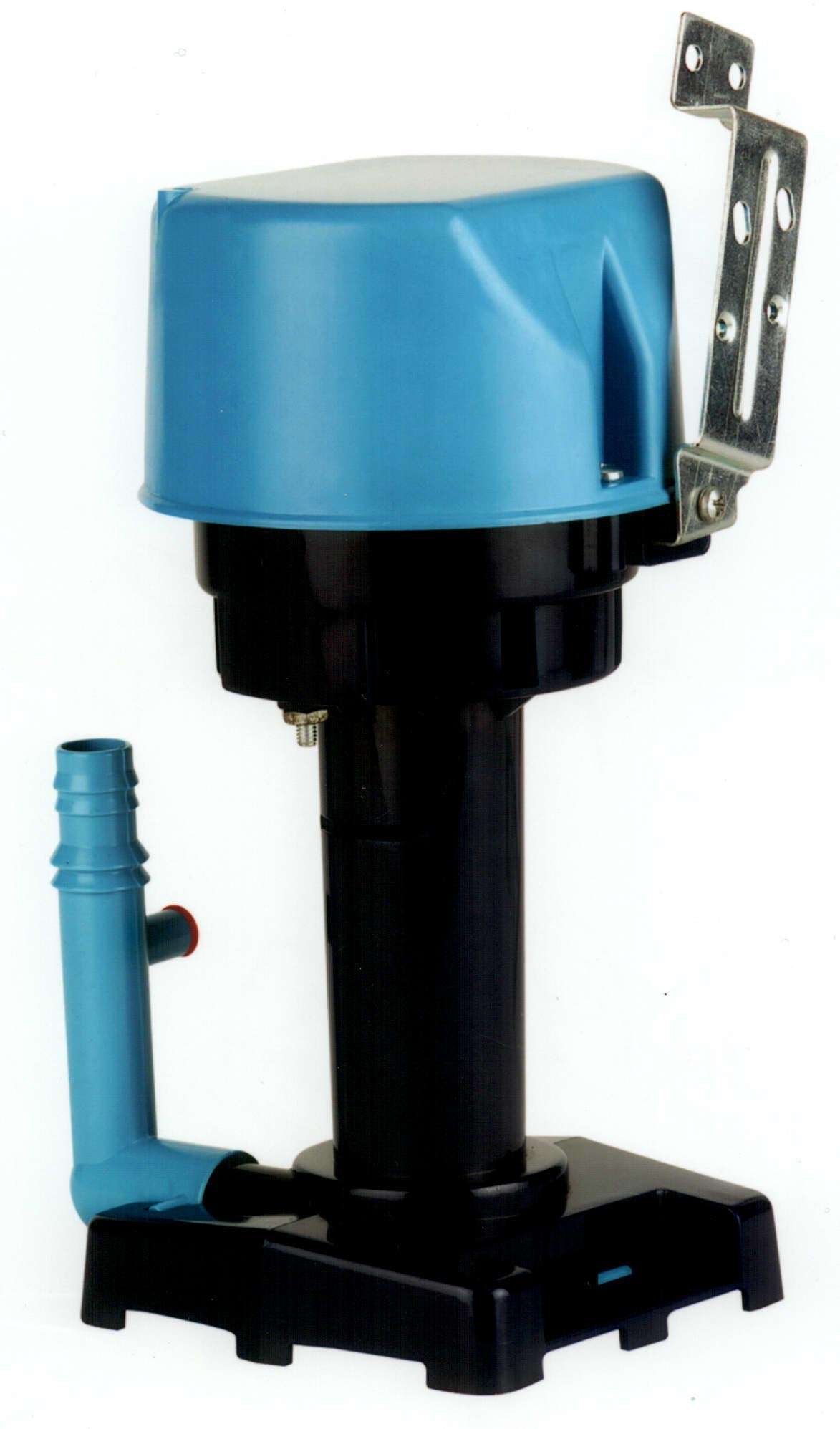

Nov 08, 2002 Models CP1, CP2, and CP3 pumps provide 5,000–7,500, 7,500–15,000, and 15,000–21,000 cfm respectively. Mesh screen prevents debris from entering pump. Discharge adaptor locks into base to prevent slipping during operation. Units include concentric fan-cooled motor, corrosion-resistant, one-piece, steel motor shaft, 90° barbed elbow with bleed-off port, and moisture-proof windings. All have flame-retardant housing and thermal-overload protection.

Flexible Steel Lacing Co.    Downers Grove, IL 60515-4200

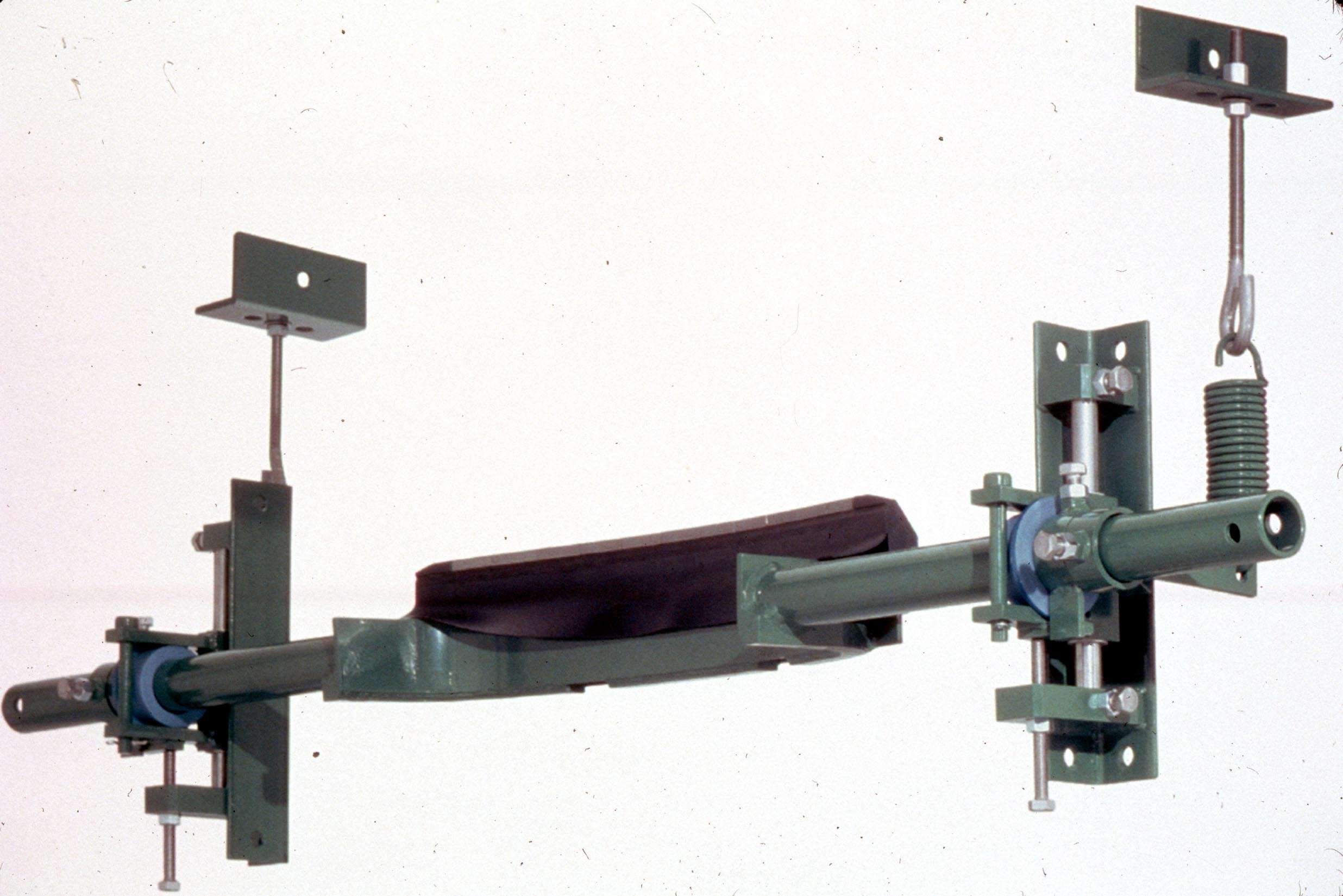

Nov 08, 2002 Eliminator® Belle Banne® U-Type® C-Blade Cleaner combines impact-resistant, tungsten-carbide tips with U-Type curved-blade design to minimize damage to blade and belt fasteners. While metal tips scrape away stubborn, wet, sticky carryback, rubber backing acts as squeegee to help remove any water. Curve of cleaner blade enables it to lift and glide across fastener plates without full-width impact. Cleaner is offered in 12 sizes to accommodate belt widths ranging from 18 to 120 in.

SKF Motion Technologies    Lansdale, PA 19446

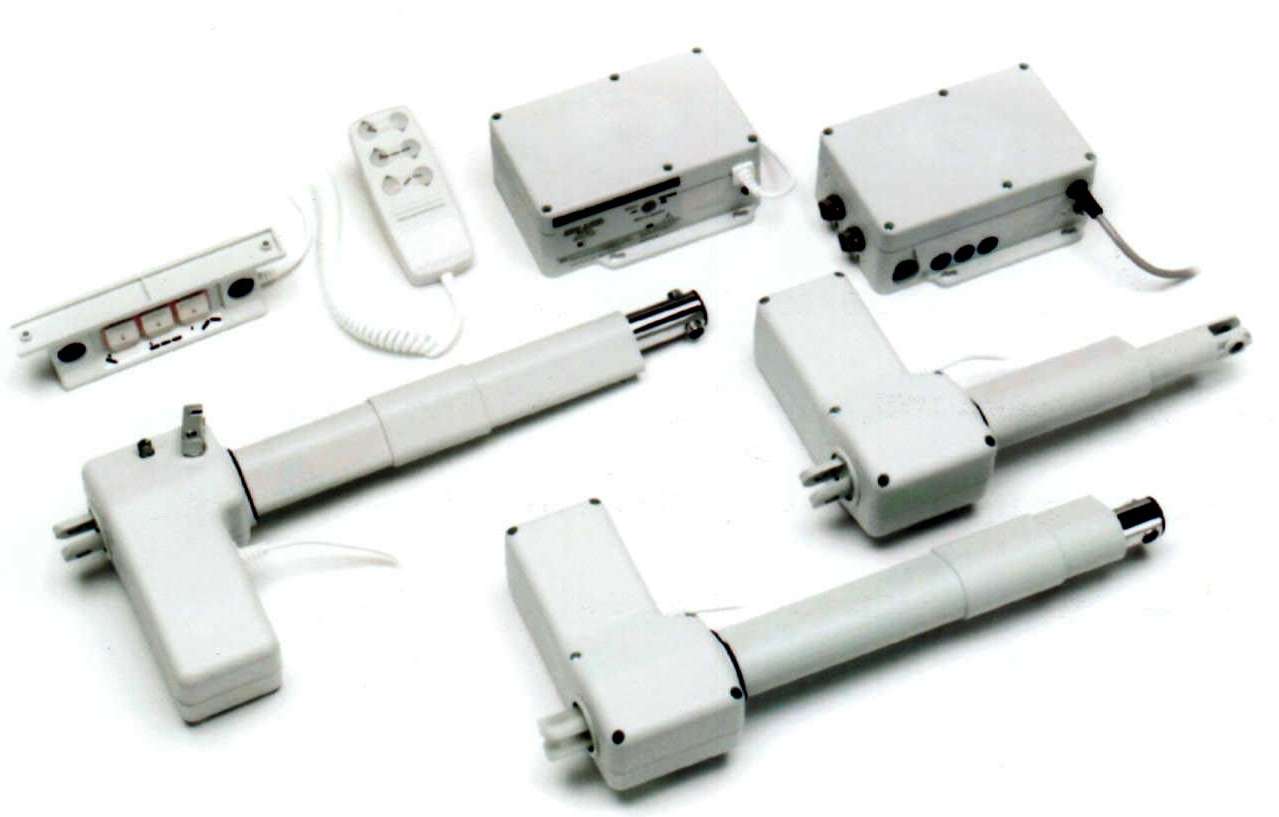

Nov 08, 2002 SKF® MediMove consists of actuators, recliners, and control units and panels, which can be integrated into beds to provide secure movement, positioning, and control. They offer variable height adjustment; adjustable backrest with CPR function; special positioning with autocontour function for comfortable sitting; and adjustable elevation of legs and knee-fold. Full electrical control is made possible by handsets, bilateral pedals, and selective function limiters.

RKC Instrument    South Bend, IN 46628

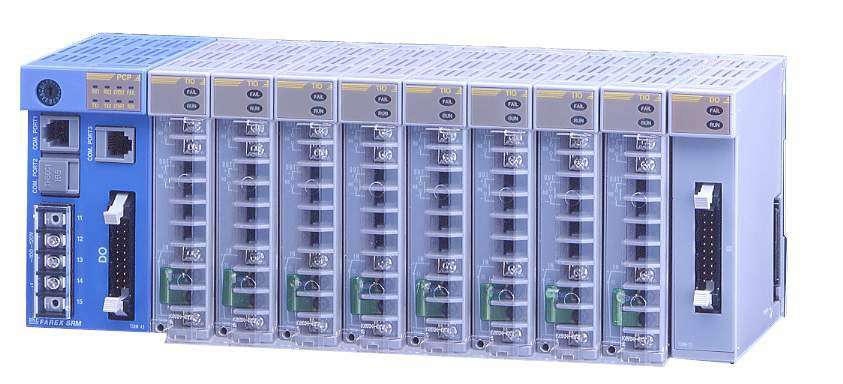

Nov 08, 2002 MAPMAN provides simplified interface solution with Allen Bradley SLC500s, Mitsubishi, Sharp, and Omron PLCs to company's instrument multi-loop and single-loop PID controllers. Temperature-control accuracy is achieved as process variables automatically and continuously update PLC registers. Gateways to convert standard serial communication protocols are also available for DeviceNet and Profibus protocols.

Gerwah Drive Components    Forest Park, GA 30297
Nov 08, 2002 Keyless locking mechanisms, with zero backlash, are available for shaft sizes as small as 1/4 in. Locking assemblies withstand reversing loads. Connections are available in carbon and stainless steel, with optional electroless nickel-plating for extra corrosion protection to preserve full torque transmission capability. They are suited for automation, packaging, and printing industries.

Falk RENEW    New Berlin, WI 53151

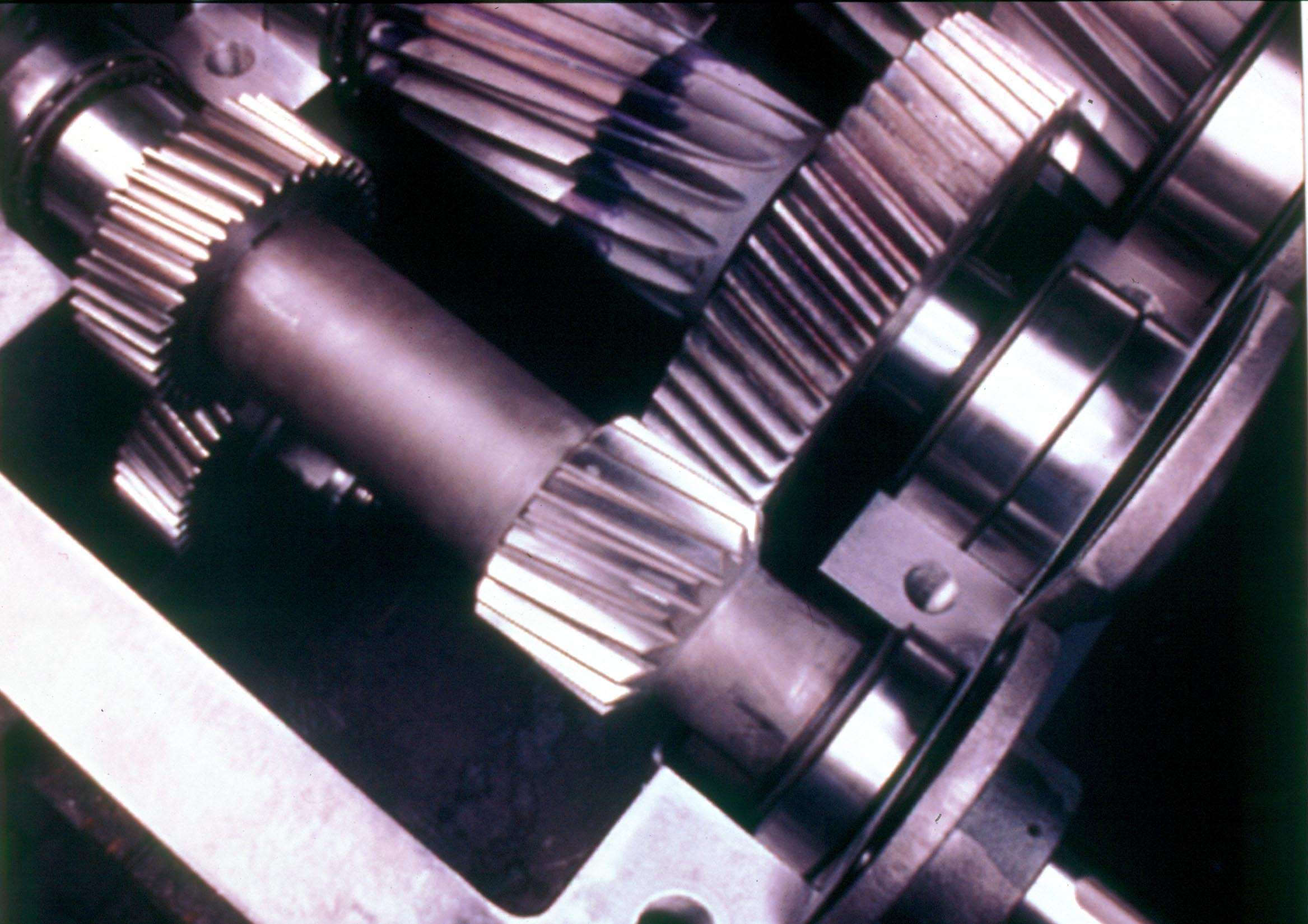

Nov 08, 2002 Kits are supplied for company's gear drive lines, providing convenient way to order and stock plant spares. Spare part kits include Rebuild Kits and Rotating Element Kits. Rebuild Kits consist of all bearings, seals, and shim/gaskets needed to rebuild company's gear drives, providing suggested minimum spare back ups. Rotating Element Kits include all gear drive shaft assemblies.

Elekon Industries USA, Inc.    Torrance, CA 90503
Nov 08, 2002 EFD Series InGaAs PIN photodiode, with dark current range of 0.1 to 0.3 nA (when VR = 5 V), has sensitive areas from 0.025 to 3 mm when detecting incoming light. It responds to near IR to run longer fiber optic cables. Suitable for communications to medical sensors, responsivity is rated at 0.9 A/W, and typical bandwidth is 1.5 GHz. EFD Series comes in TO-46 metal can packaging, but can be packaged in plastic ST-type or metallic ST-type receptacles.
