MSA    Pittsburgh, PA 15230 0426
Nov 12, 2002 Chemgardâ„¢ Photoacoustic Infrared Gas Monitor utilizes sample-draw analyzer with internal sequencer and external pump. General purpose unit with flash-back arrestors on sample lines can be mounted in control room or explosion-proof unit can be used. System uses end-of-line filters that prevent water from entering sample lines. In-line filters are installed to trap grain dust, while coalescing filters trap additional dirt and moisture.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Nov 12, 2002 Models PIC16F630 and PIC16F676 14-pin PICmicro Flash microcontrollers feature analog-to-digital converter and internal oscillator. PMOS Electrically Erasable Cell process technology provides erase/write endurance, retention, and disturb reliability for program and on-chip data EEPROM memory. Typical standby current is 100 nA at 2.0 V, and operating voltage is 2–5.5 V. Units offer 1792 Kbytes of Flash program memory, 64 bytes of RAM, and 128 bytes of EEPROM.

Anderol Company    East Hanover, NJ 07936
Nov 12, 2002 Non-asphaltic Polyguard 4100 synthetic open gear lubricant reduces downtime and scheduled maintenance when performing ore mining and ball milling at extreme temperatures. Product allows for rapid set-up on gear teeth helping to prevent metal loss and reduces volatile organic carbon (VOC) emissions. Transparent amber color makes clean up, inspection, and maintenance simple.

Elsner Engineering Works, Inc.    Hanover, PA 17331
Nov 12, 2002 Model AFR-18 high speed aluminum foil and food film rewinder is infinitely adjustable from 16 to 500 ft lengths. It handles both 12 and 18 in. foil widths and allows core OD sizes of 1.25 to 1.75 in.

Electronic Materials, Inc.    Breckenridge, CO 80424 8817
Nov 12, 2002 OPTOCAST 3410 GEN 2 ultraviolet light and/or heat curable epoxy is suitable for opto-electronic assembly. It cures rapidly when exposed to UV light in 320-380 nm range with low shrinkage. Maximum ionic content is 10 ppm total Na+, K+, and Cl-. Epoxy is ideal for fixturing and aligning optical devices with less than 1 µ movement throughout its service life. Working life at room temperature is approximately 3 days.

Invensys    Foxboro, MA 02035
Nov 12, 2002 PROFIBUS Fieldbus Modules provide users with option to securely distribute system I/O remotely in the field. They operate in conjunction with I/A Series Control Processor 60 to provide real-time access to process data and status, plus access to field device parameters and diagnostics to support configuration, maintenance, and asset management applications. Each Fieldbus Module channel provides 2 PROFIBUS channels.

ACI International Inc.    Concord, ON L4K 3Z3  Canada
Nov 12, 2002 Model ACV36IR provides full color image during daytime, and contains infrared LEDs that are automatically switched on at night for video surveillance in dark. With LEDs illuminated, camera can provide usable video images in darkness to distance up to 32 ft.

Orled    Portland, OR 97223
Nov 12, 2002 Model RL40 offers 360° of white illumination to eliminate shadows while using less than 3 W of power. Estimated lifetime is more than 25 years. Unit is supplied with set screws for connection to microscope. Included adapter supplies required 200 mA at 15 Vdc.

Westchester Marketing, Inc.    Monroe, OH 45050
Nov 12, 2002 POSI-WEAR³â„¢ is fabricated from 3-ply SMS substrate material, which provides breathability. Available in white or gray, zippered coveralls are offered with various application-specific accessories: elastic hood, elastic cuffs, attached boots, and protective collars. POSI-WEAR³ is suitable for use in industrial environments as well as for workers operating in warmer climates/conditions. Applications include pharmaceutical production and food processing.

Scientific Technologies Inc.    Fremont, CA 94555
Nov 12, 2002 SGE series offers molded end caps and wiring plugs that are inserted directly into safety contact. Co-extruded safety contact is housed in, and protected from damage by, outer covering of non-conductive rubber that allows actuation angles up to 90°. They provide solutions to meet safety requirements for machine guarding applications and can be used to safeguard hazards such as gates, doors, machines, and scissor lifts.

Vistant Corporation    San Diego, CA 92121
Nov 12, 2002 IntelliStock(TM) helps automate labor-intensive supply management processes. Wireless, open-stock inventory management system has 1½ x 2½ in. transmitters that affix to existing shelves, racks, and bins. Each transmitter, equipped with a take and return button, is used to track inventory levels of specific SKU. This enables users to automatically track, reorder, and manage supplies. Applications include stock rooms, tool cribs, and tracking bench stock.

Process Integrity Inc.    Arlington, TX 76015
Nov 12, 2002 Intellisure, part of SMART Quality Execution System, provides process control vigilance by monitoring process in real-time and forcing compliance to documented requirements. It overcomes opportunities for error, resulting in quality operation. Intellisure can provide real-time analysis and if-then branching to assure compliance is obtained.

GE Intelligent Platforms    Charlottesville, VA 22911
Nov 11, 2002 Computer Dynamics Survivor-WildCat(TM), 15 in., corrosion-resistant computer has NEMA 4, environmentally sealed, aluminum-fabricated enclosure. Computer's backlit Ultra-HiBrite(TM) display provides sunlight readability. Unit also incorporates 1 GHz Intel® Pentium III processor with up to 512MB SDRAM, 40 gigabyte hard drive, two Type 2 PCMCIA expansion slots, and two RS232 serial ports. Measuring 16.9 x 19.8 x 8.1 in., computer can withstand shock of 20 G.

McDonnell & Miller    Chicago, IL 60618 5523
Nov 11, 2002 Conductance actuated level devices control burner circuits, pumps, motor starters, and electric valves. Dual-function 750B-LP-120 models have low-water cutoff and pump control capabilities, while 750B-DLP-120 models have tri-function capabilities, with 2 low-water cutoffs and pump control. Both controllers are available in panel mount configurations and are CSD-1 compliant. Series 750B controllers provide low-water cutoff protection and level control.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 11, 2002 Knurled control knob body is manufactured of aluminum with black anodized finish and decorative light gray push-fit cover disk. Made of plastic, cover disk can be removed by inserting screwdriver into provided slot. Arrow, graduations, and numbers are laser-engraved. Collet version positions and locks control knob to shaft, while serrated end set screw version secures control knob tightly to shaft.

Viking Corp., The    Hastings, MI 49058 9706

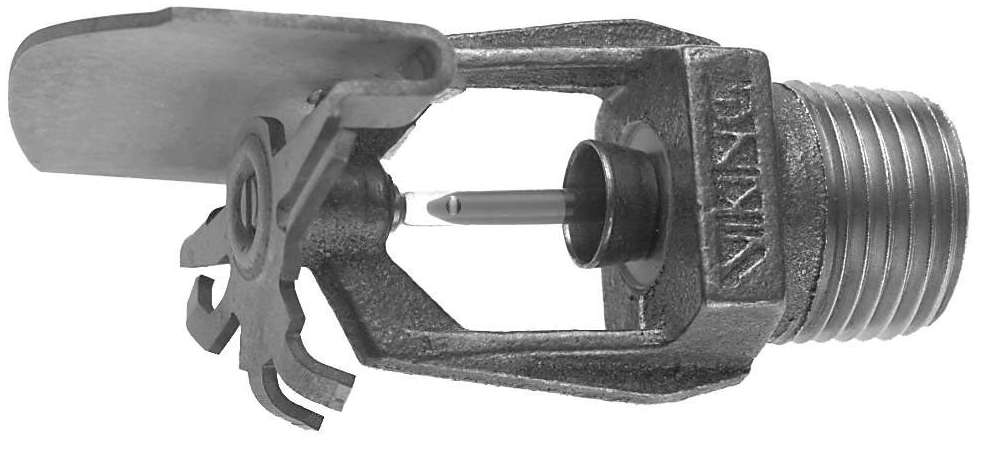

Nov 11, 2002 Model VK488 Residential Horizontal Sidewall Sprinkler offers 4.3 K-factor and adjustment up to 5/8 in. when installed in recessed escutcheon. Unit is UL Listed for residential occupancies below smooth, flat, horizontal ceilings and approved for 155 and 175°F temperatures. Depending on water supplies, it can be installed at 4 to 6 in. or 6 to 12 in. down from ceiling.

Kontron    Poway, CA 92064
Nov 11, 2002 Model CP605, 6U CompactPCI Single Slot CPU, incorporates Intel® Pentium® 4 processor in 478-pin package FC-PGA. It is available in high-performance version (operating at 2 to 3 GHz) or as low power dissipation version (using Mobile Pentium® 4-M processor and operating at 1.2 to 2 GHz). Its on-die 512 KB full speed L2 cache facilitates maximum processor performance. Operable as either system master or in passive mode, board can accommodate up to 1 GB soldered DDR SDRAM.

Norgren    Littleton, CO 80120

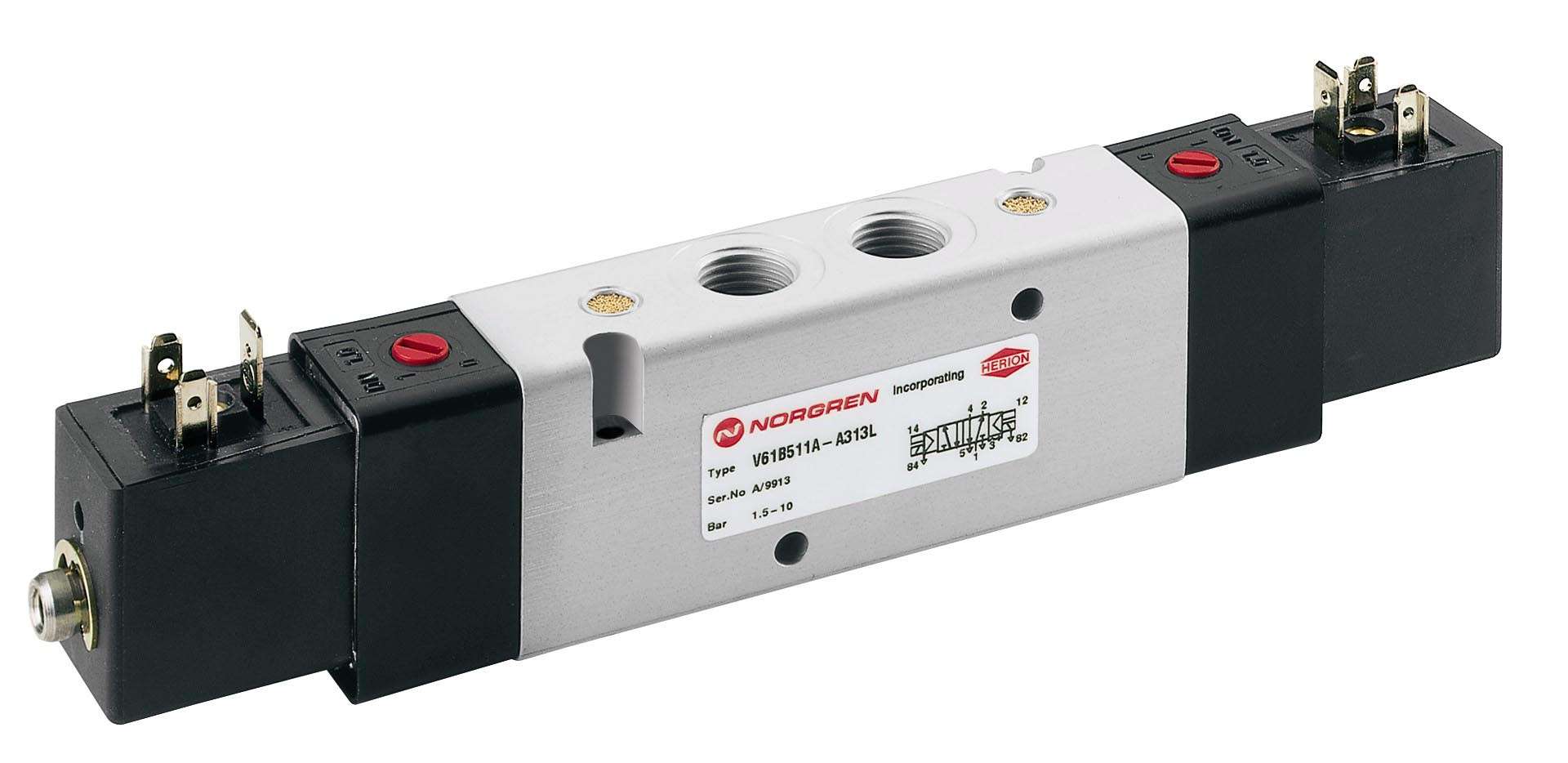

Nov 11, 2002 Series V60 inline valves employ stainless steel spools and static seals. Model V60 offers flow rate of 750 l/min for 1/8 in. ported body; Model V61 offers flow rate of 1,400 l/min, for 1/4 in. ported body; and Model V62 features flow rate of 2,600 l/min for 3/8 in. ported body. Series provides 3/2, 5/2 and 5/3 valve functions and range of voltage options. Double solenoid versions are available, with single 4-pin double coil mounted on one side of valve.

Garner Industries    Lincoln, NE 68504

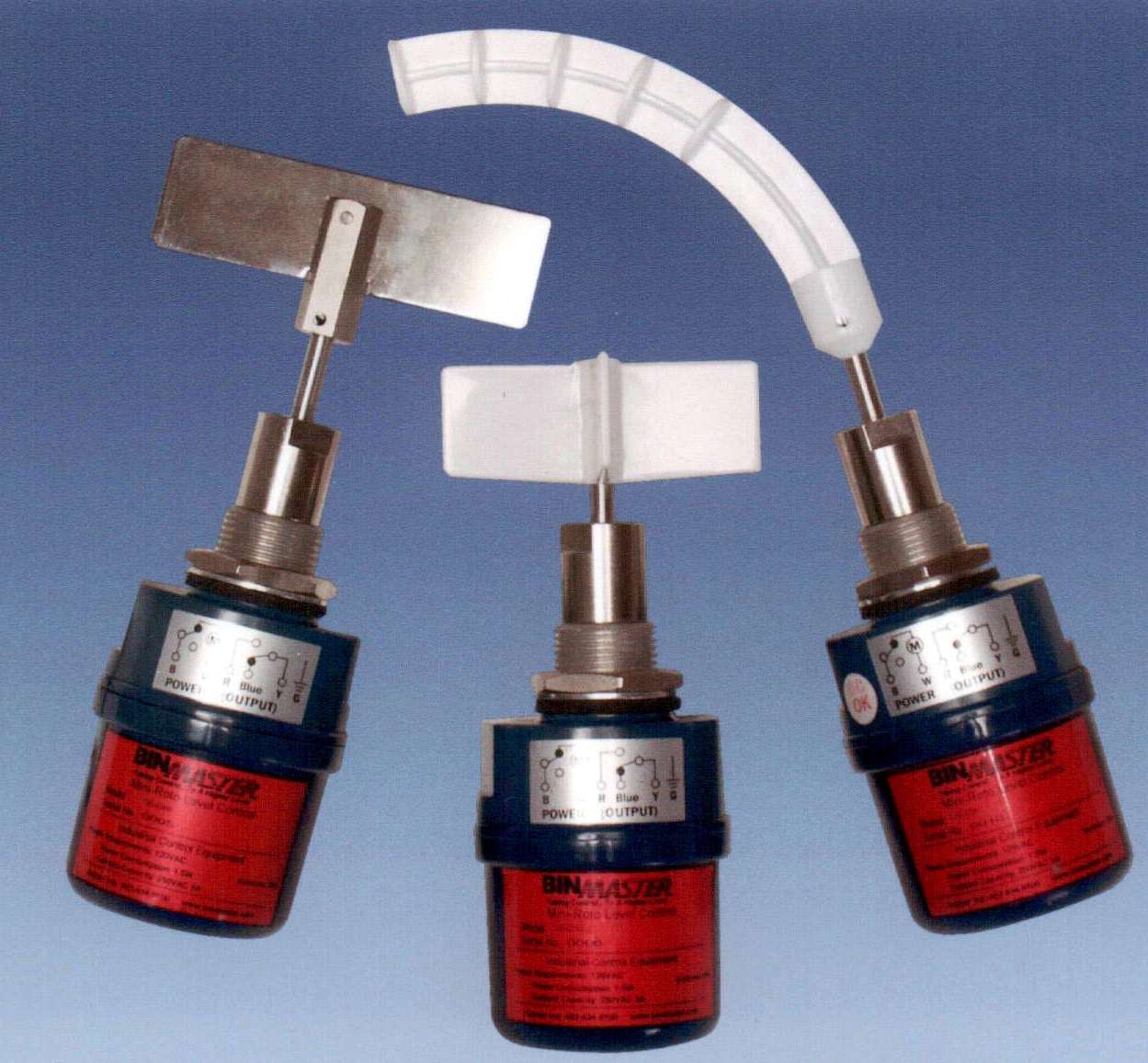

Nov 11, 2002 Mini-Rotary has few moving parts and is designed for use in small bins, hoppers, and feeders. Slow-speed synchronous motor rotates paddle that senses pressure of material at level where unit is placed. Sensitivity can be adjusted allowing unit to be used in both light and heavy materials. Small design allows use in areas where other level sensors will not fit.

Fisnar Inc.    Wayne, NJ 07470

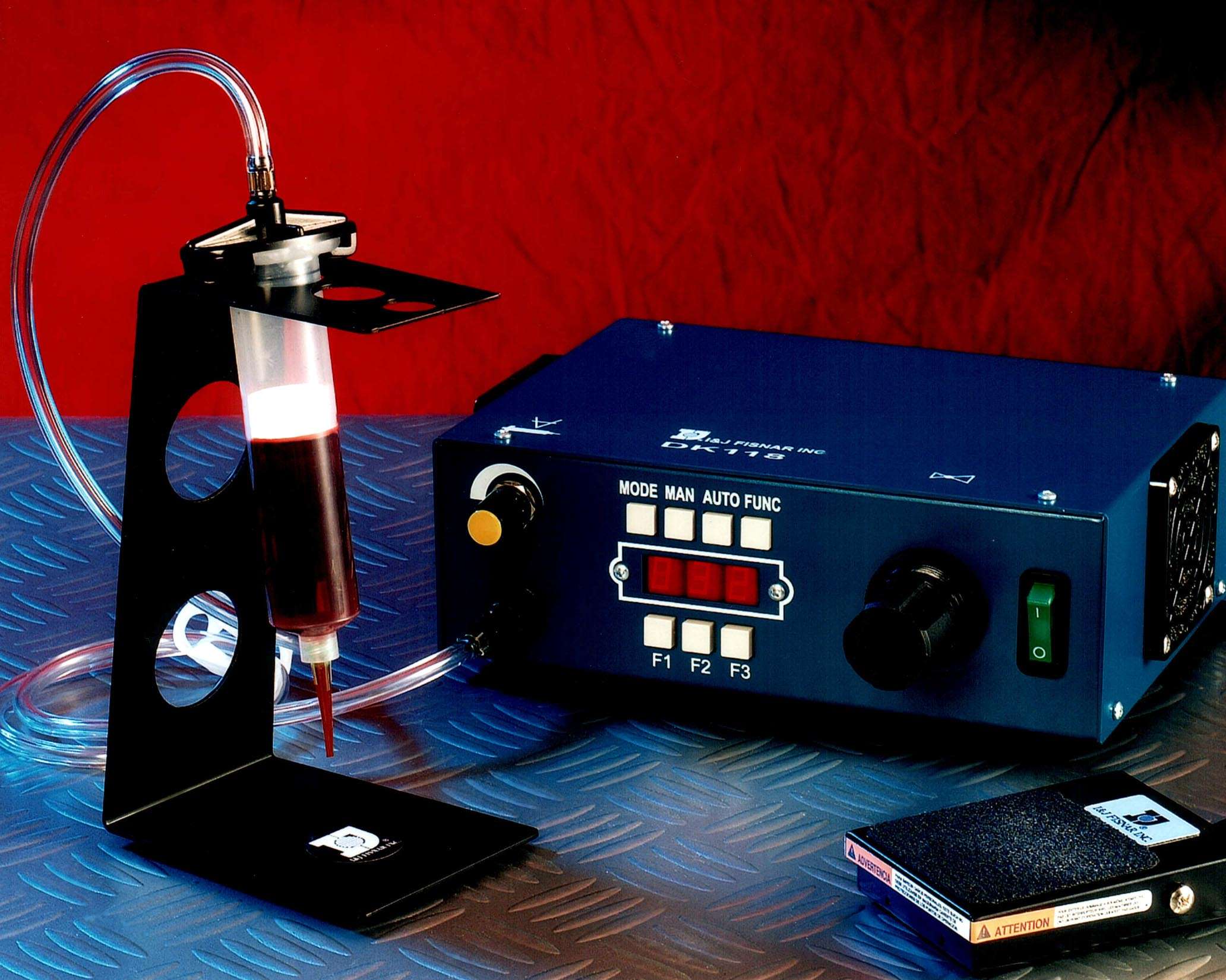

Nov 11, 2002 Digital DK118 Teach and Learn system will dispense exact repeat of set-value, and will save setting when system is switched off. Digital LED display provides 12.7 mm, 3-character set with floating point for immediate recognition by user. Display can toggle between digital readout of regulated air supply pressure and programmed dispense period. Setting can be programmed from 0.01 to 99.9 sec, and 5-24 V I/O connection allows remote control operation.
