Koma Precision, Inc.    East Windsor, CT 06088
Nov 13, 2002 Multi-faced NC Tsudakoma, for horizontal machining centers, has four 6 in. diameter platens, which rotate simultaneously at 33.3 rpm and are driven by additional machine axis or TPC-Jr controller with RS-232C interface capability. Accuracy is ±7.5 arc second with ±2 arc second repeatability. Clamp provides 156 N-m and is included for position machining. Larger models, custom faceplates, and hydraulic rotary joints are also available.

RF Industries    San Diego, CA 92126 4202

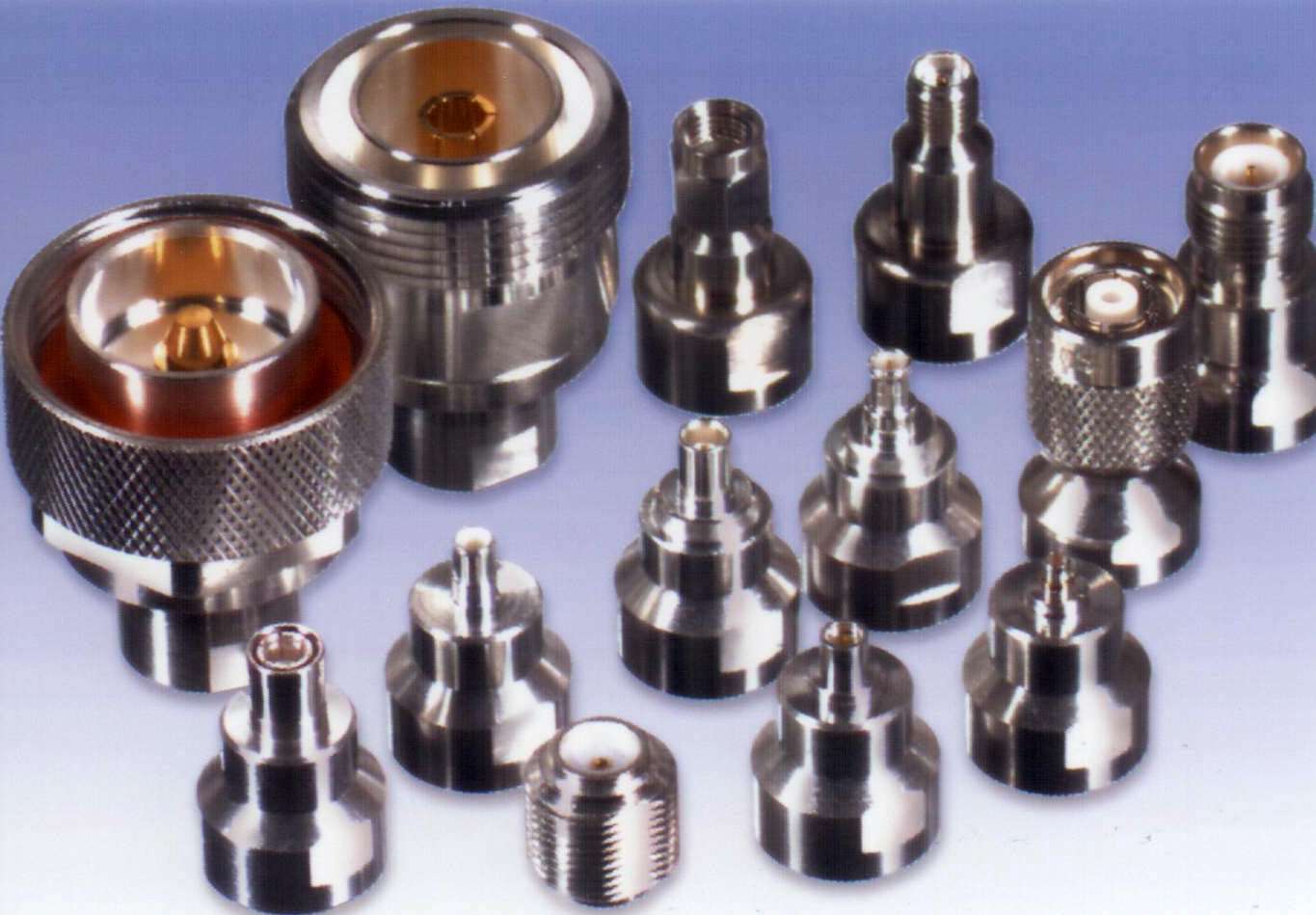

Nov 13, 2002 Unidapt® Line of male and female coaxial adapters are made of machined brass with Teflon® insulation, silver-plated bodies, and gold-plated contacts. RFA-4018 kit contains coaxial cable tester with Unidapt® terminals and full assortment of Unidapt® adapters. RFA-4018-20 Unidapt® cable tester is designed to test coaxial cables for shorts, open conductors, and open shields. All adapters are available separately or contained in several other kits.

Tech-Tran Corp.    Rancocas, NJ 08073

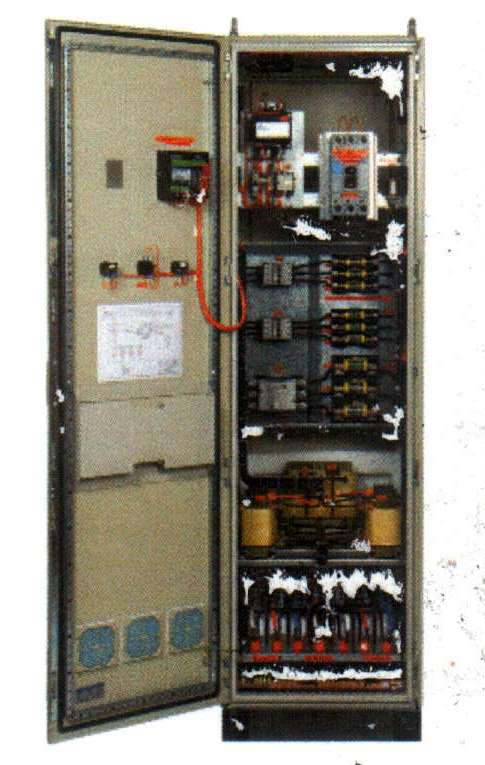

Nov 13, 2002 Power Failure Correction Filter Systems come in fixed units ranging from 3 to 130 KVAR for providing fixed level of capacitance that reduces reactive VAR's. Automatic units range from 25 to 900 KVAR and continuously measure VAR's with automatic on and off switching of level of reactive capacitance necessary to regulate power factor to preset value. Alarms and visual displays of power factor, voltage, current, KW, KVA, KVAR, and harmonic percentage are included.

ITT Flygt Corp.    Trumbull, CT 06611
Nov 13, 2002 Model 3068 cast iron submersible pump delivers up to 260 gpm with max head of 100 ft. It is available with closed, 2 vane solids handling impeller; with vortex impeller; or in chopper version with Ni hard impeller and cutting plate. Pump comes in single-phase and 3-phase versions and is rated 2.3 and 2 hp (single phase) and 2.4 to 3.8 hp (3-phase). It can be mounted on guide rails in deep sumps, or fitted with threaded pipe discharge connection and remain stationary on floor in sump.

Arlyn Scales    East Rockaway, NY 11518

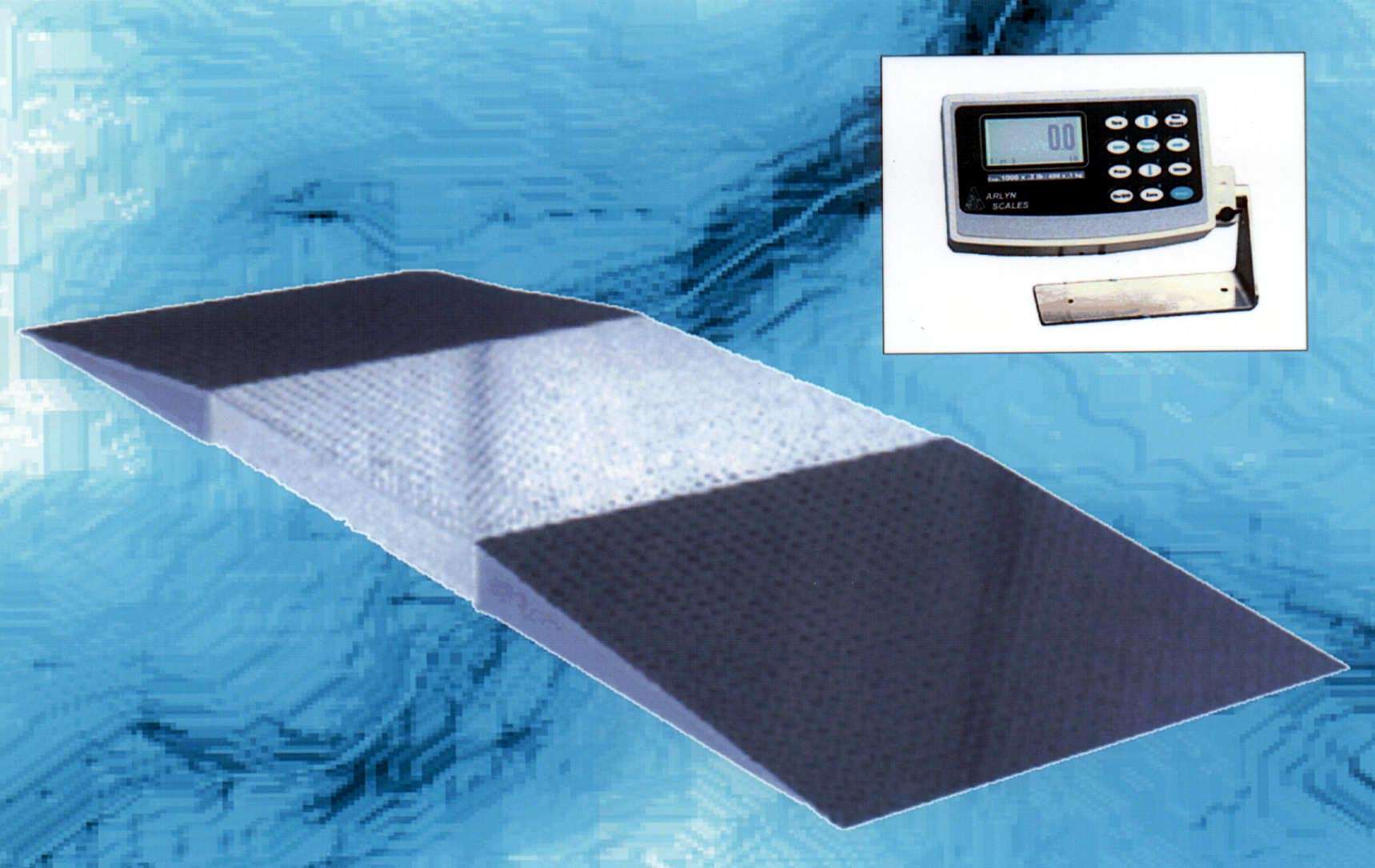

Nov 13, 2002 Series 5200 handles heavy loads starting at weight capacities of 2,500 lbs. With optional USB interface, scales can download information directly to Windows-based database program, allowing user to track, store, and manipulate weighing data in database or spreadsheet format. Units include stainless steel load cells, LCD indicator with 1 in. high digits, pushbutton tare, and units conversion. Readability is as low as 0.5 lbs.

RIA Electronic, Inc.    Eatontown, NJ 07724

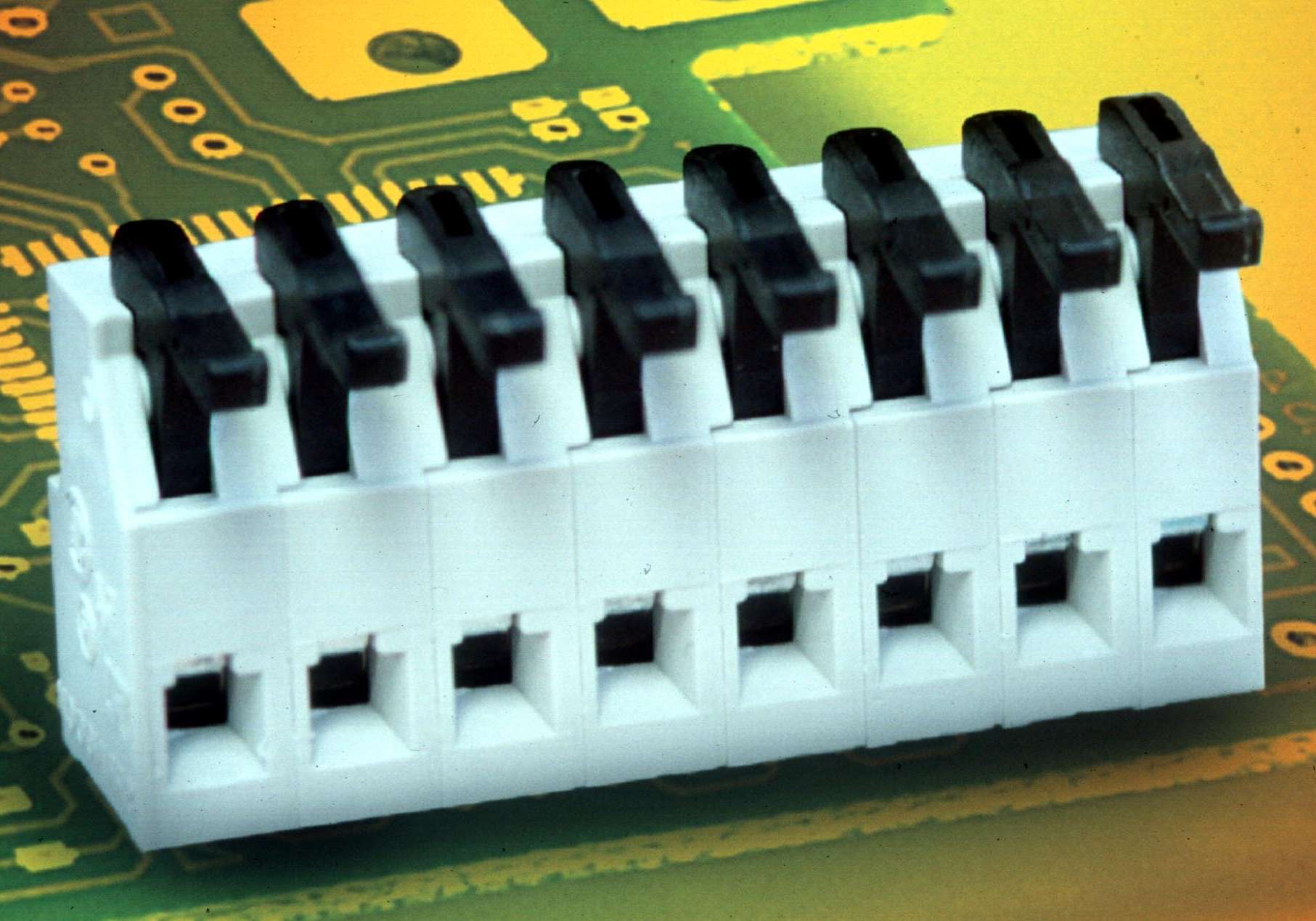

Nov 13, 2002 Type AST025 Springcon® 5.00 mm spring clamp terminal block is rated to 300 V at 13 A and is available in circuit sizes from 2 to 24 poles. Design provides constact contact resistance and auto adjustment of spring force at each wire size. Unit accepts wire range from 14 to 28 AWG. It is UL and CSA listed and designed to meet VDE requirements.

Eaton Corp., Cutler-Hammer Group    Moon Township, PA 15108

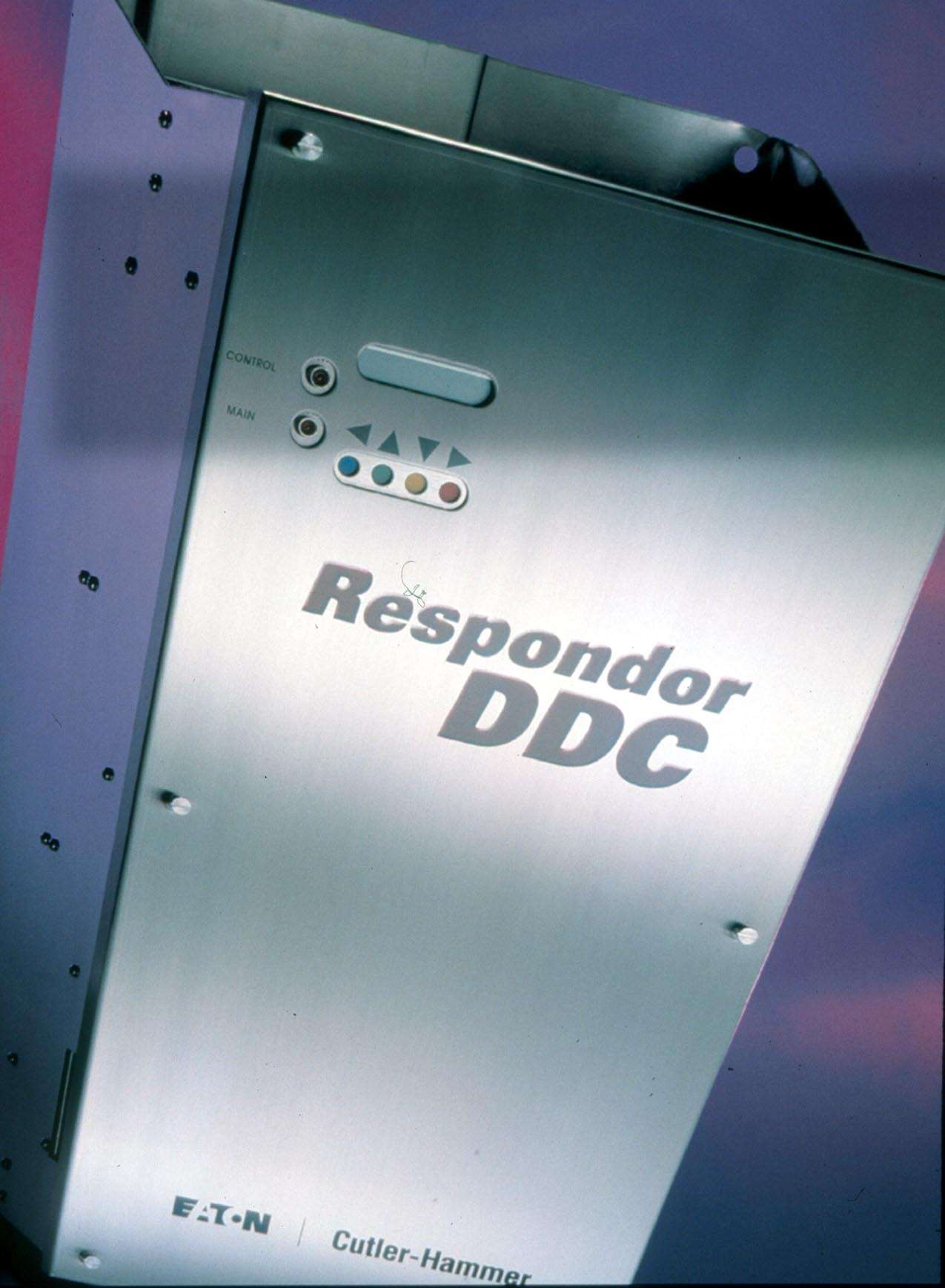

Nov 13, 2002 Respondor DDC uses high-speed semiconductors to provide smooth acceleration and deceleration, reducing inrush of current. Stepped or stepless motions can be programmed to correspond with application needs. Stainless steel enclosure withstands harsh mill environments. Respondor DDC facilitates retrofits by retaining existing motor, collector system, series or shunt brake, power loss DB resistors and power limit switch connections.

Conbraco Industries, Inc.    Matthews, NC 28106 0247
Nov 13, 2002 Suited for continuous pressure, indoor applications where water spillage is undesirable, Series 4W-500 valve prevents back-siphonage. It is available in ¼, 3/8, and ½ in. sizes with straight-through flow path, corrosion-resistant Noryl® body, silicone rubber discs, and stainless steel springs and fasteners. Integral shut-off valves and ¼ in. flare test connection are standard. Maximum working pressure is 150 psig, and operating temperature range is 33–180°F.

HellermannTyton    Milwaukee, WI 53224
Nov 13, 2002 Weld stud mount, when used with a cable tie, secures wire harnesses and hoses to frame. Suitable for transportation and heavy equipment manufacturing, unit is manufactured from heat stabilized, impact modified nylon 6/6. Weld stud mount will not rust or abrade wire, cable, or hoses. Installed by use of welding equipment, weld stud mount can be applied to metal surfaces in 1/3 of 1 sec.

Emuge Corp.    West Boylston, MA 01583-2121
Nov 13, 2002 Aero Series Type GSF Mills are PVD TiCN coated and have multiple spiral flutes employing micro geometry to reduce cutting forces. They have large cutter diameter with high-profile projections and axial internal-coolant capability for chip removal. Mills are offered in No. 10 1/4, 5/16, 5/8, and 7/16 in. sizes in UNC and UNF. They can cut pre-hardened steels to 58 Rc, stainless and mold steels, inconel, titanium, cobalt, chrome, stellite and other exotic materials.

Eclipse, Inc.    Rockford, IL 61103 1299

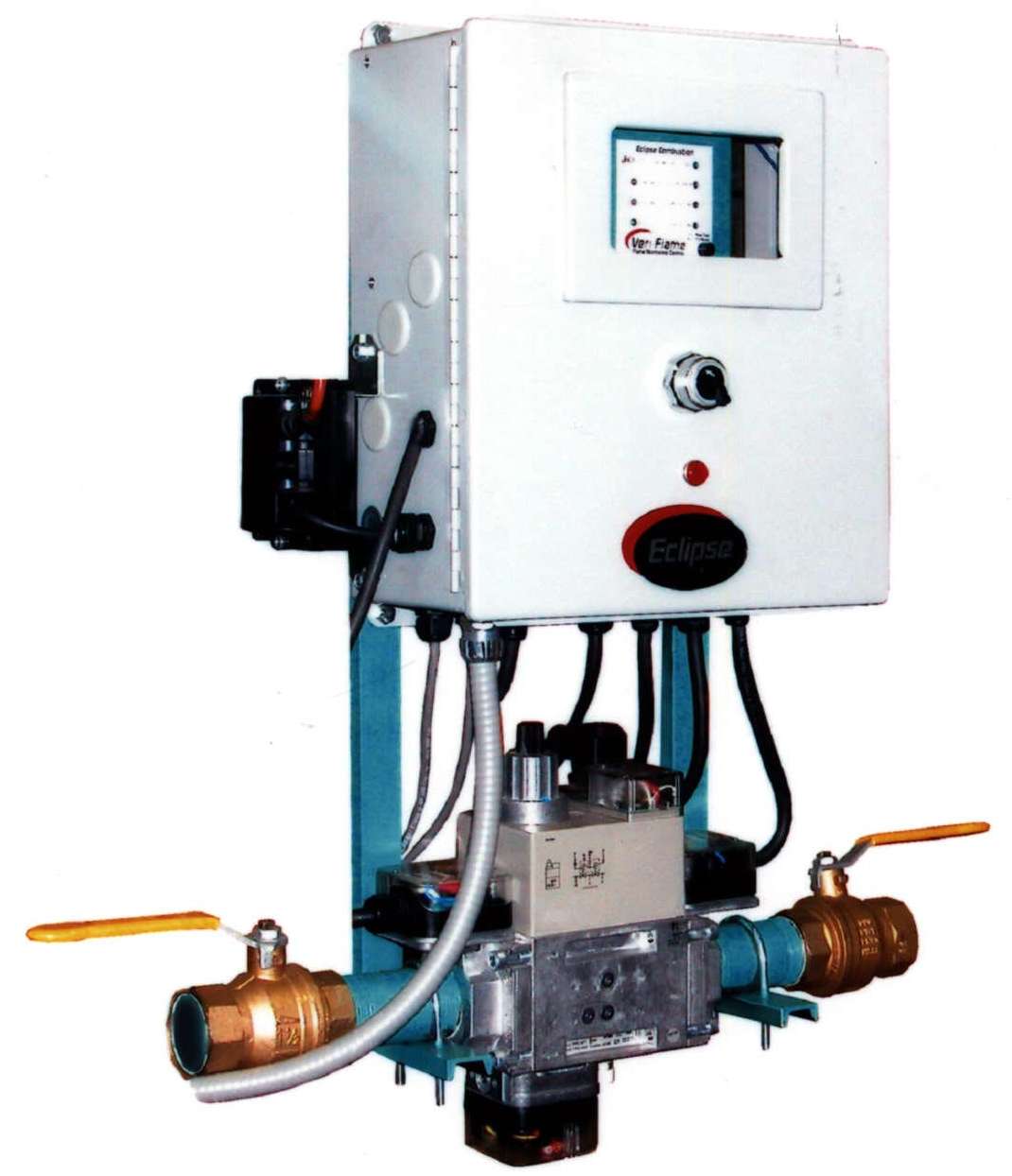

Nov 13, 2002 HeatPak, with integrated valve train and control box, includes double valve with gas pressure switches, Veri-Flame® modulating flame monitor, and ignition transformer. It can be used on burners with ½ to 2 in. piping up to 6 MMBtu/hr inputs. It is available with 2 options: one with choice of scanner or flame rod, and another proof of position using either switches on burner or auxiliary contacts incorporated within Eclipse ACT004 rotary actuator.

Keyence Corporation of America    Elmwood Park, NJ 07407

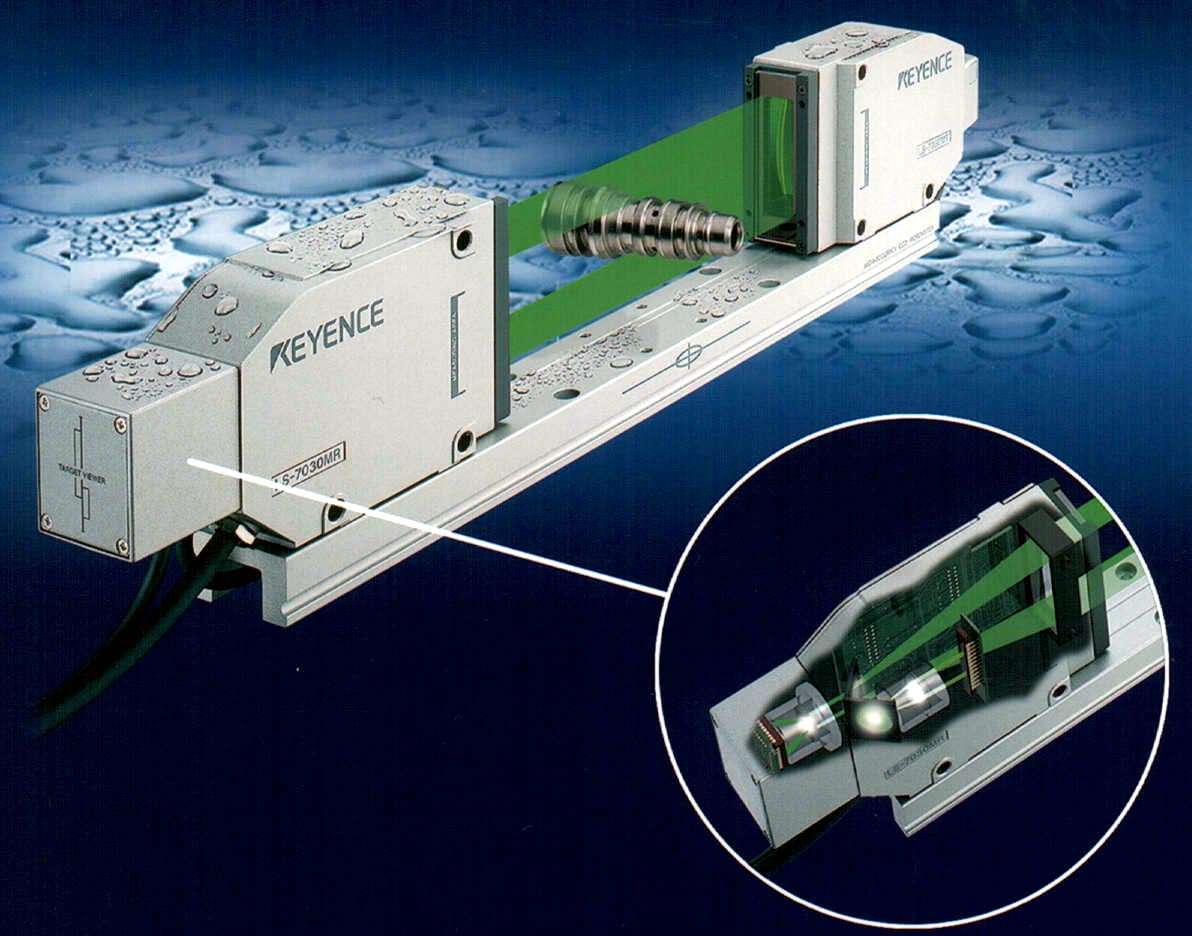

Nov 13, 2002 LS-7030M Optical Micrometer makes high-speed measurements of fast moving targets on production and assembly lines via high-intensity, low-noise GaN LED light source. It generates continuous 30 mm wide beam with no gaps in detection due to scanning. CMOS camera in receiver head of Optical Micrometer provides image of target on Controller Monitor. Unit provides 2400 samples/sec, display resolution of 0.01 microns and repeatability of 0.15 microns.

EAO Switch Corp.    Milford, CT 06460

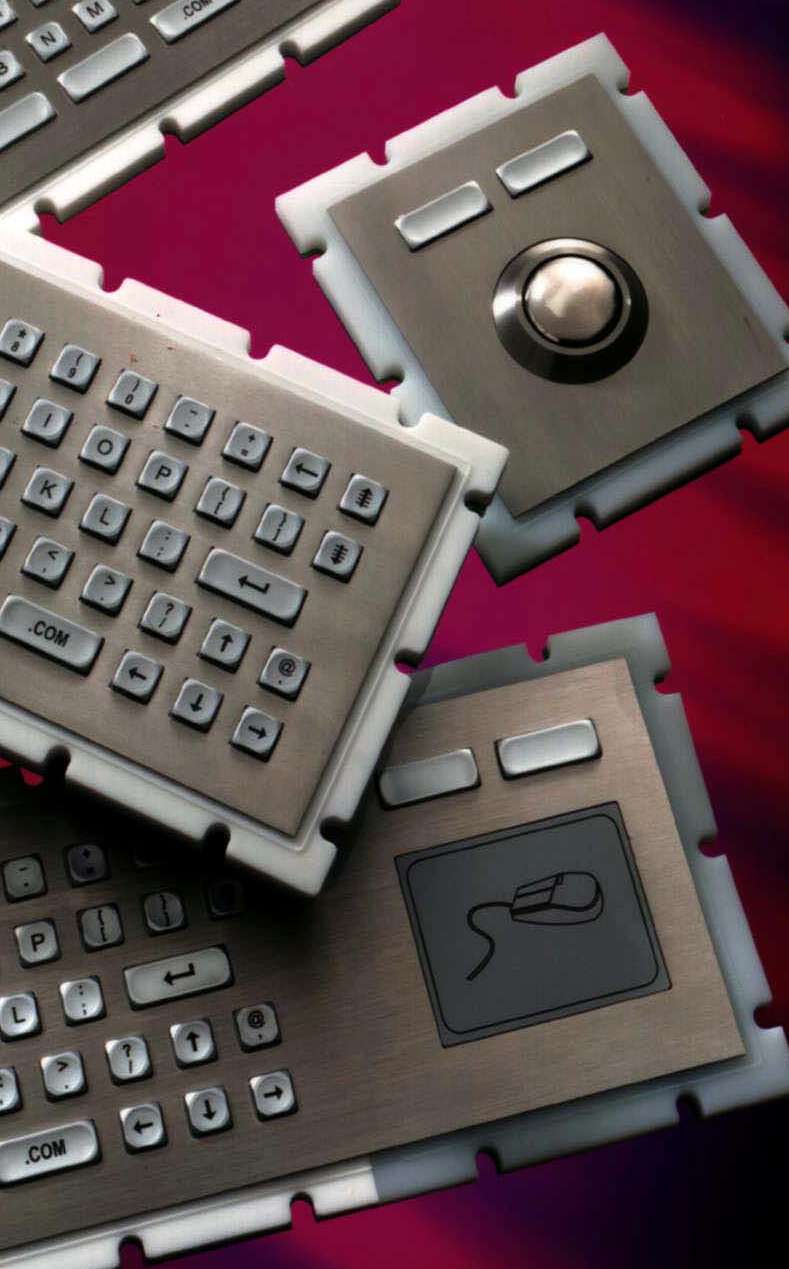

Nov 13, 2002 Keyboards, for web payphones and kiosks, have dedicated shortcut keys, such as www. or .com, that can be tailored to customer's needs. Mechanical Internet unit is built from stainless steel and zinc alloy, with anti-pull-off keys that can be laser-engraved for wear-resistant markings. One-piece membrane seals against liquid penetration. Touch-sensitive 74-key unit is totally adaptable and is configured with Studio Creative Box software. User can design keyboard layout and color.

Beijer Electronics, Inc.    Schaumburg, IL 60173

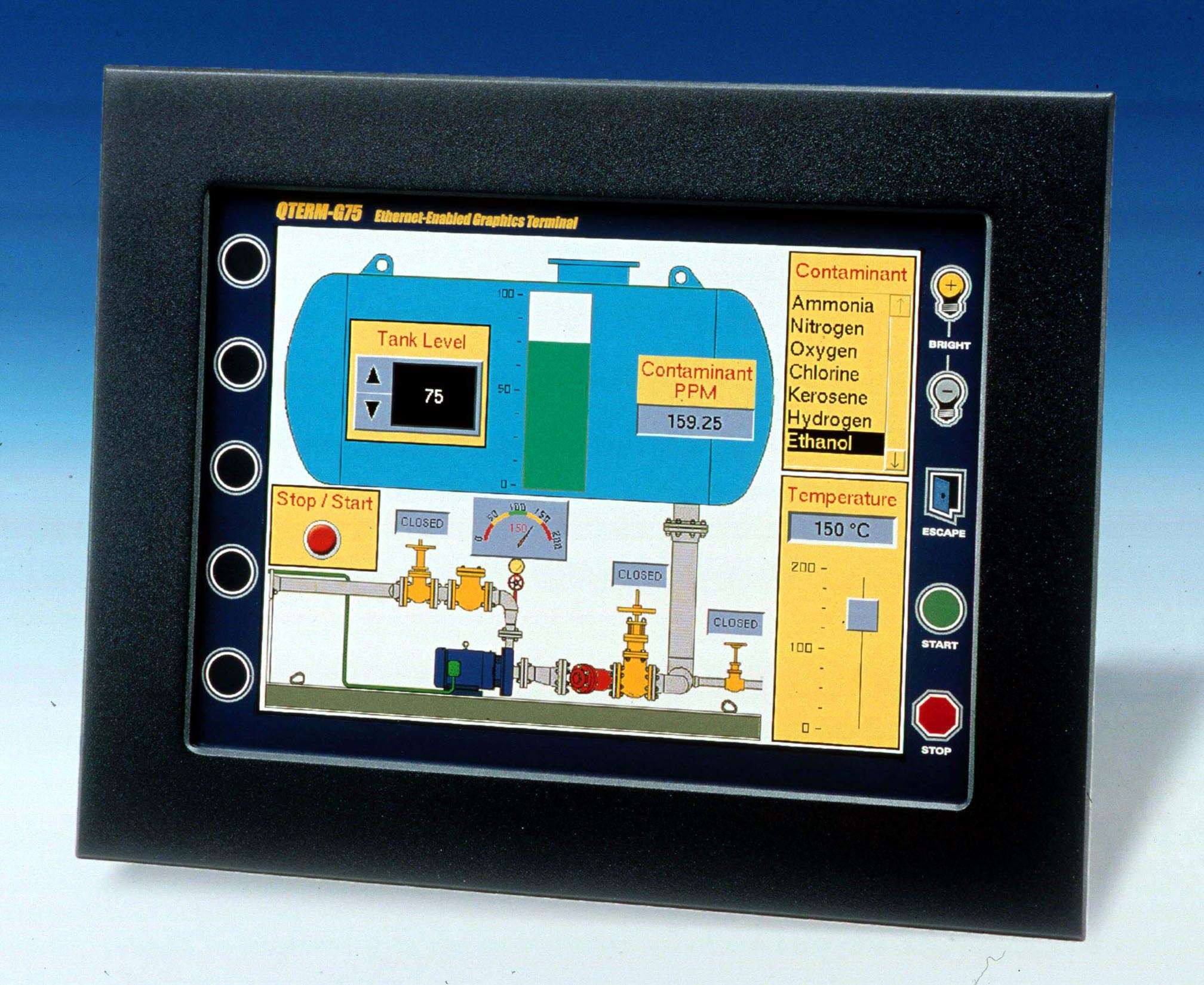

Nov 13, 2002 Ethernet-enabled QTERM-G75 includes 640 x 480 color, 10.4 in. diagonal, TFT graphics LCD; 10Base-T Ethernet with TCP/IP support; touch screen with optional PS/2 keyboard connection; EIA-232, -422, or -485 serial interface; and 2 Mbyte Flash/16 Mbytes RAM in NEMA 4, CE Certified aluminum housing. Qlarity(TM) object-based language allows operator to use predefined objects, edit existing objects, or author their own objects.

Sensortechnics Inc.    Dublin, CA 94568

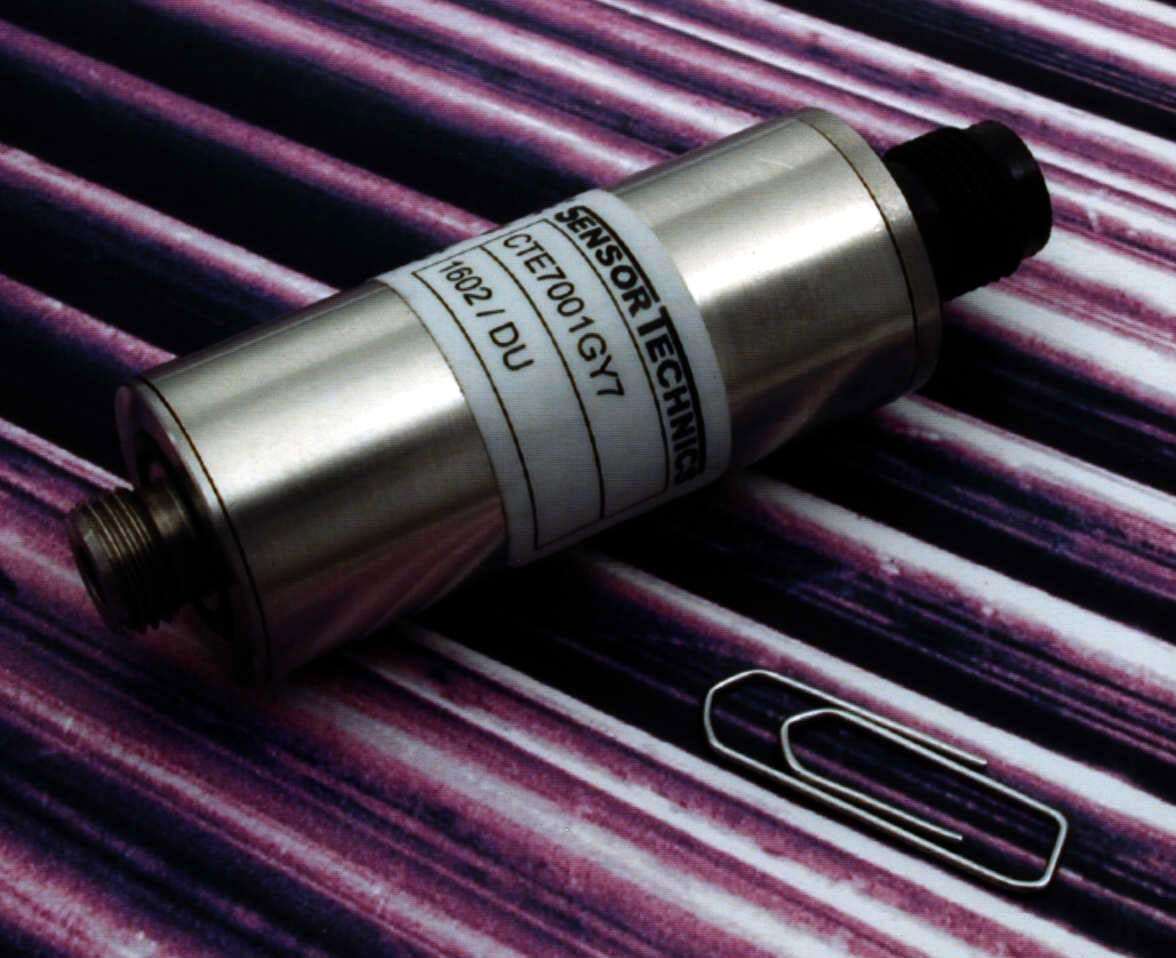

Nov 13, 2002 Series CTU7000 offers long-term stability in pressure ranges from 0–0.15 to 0–100 psi. Unit has 0.86 in. diameter stainless steel housing and utilizes piezoresistive silicon pressure sensor. Output signals include 0.5–4.5 V, 4–20 mA, 1–6 V, and 0–5 V, with typical linearity of 0.2%. Transmitter is used for non-corrosive air and dry gases in applications including filter-monitoring, blow molding machines, and airflow measurement.

ProductionLine Testers    Pleasanton, CA 94588

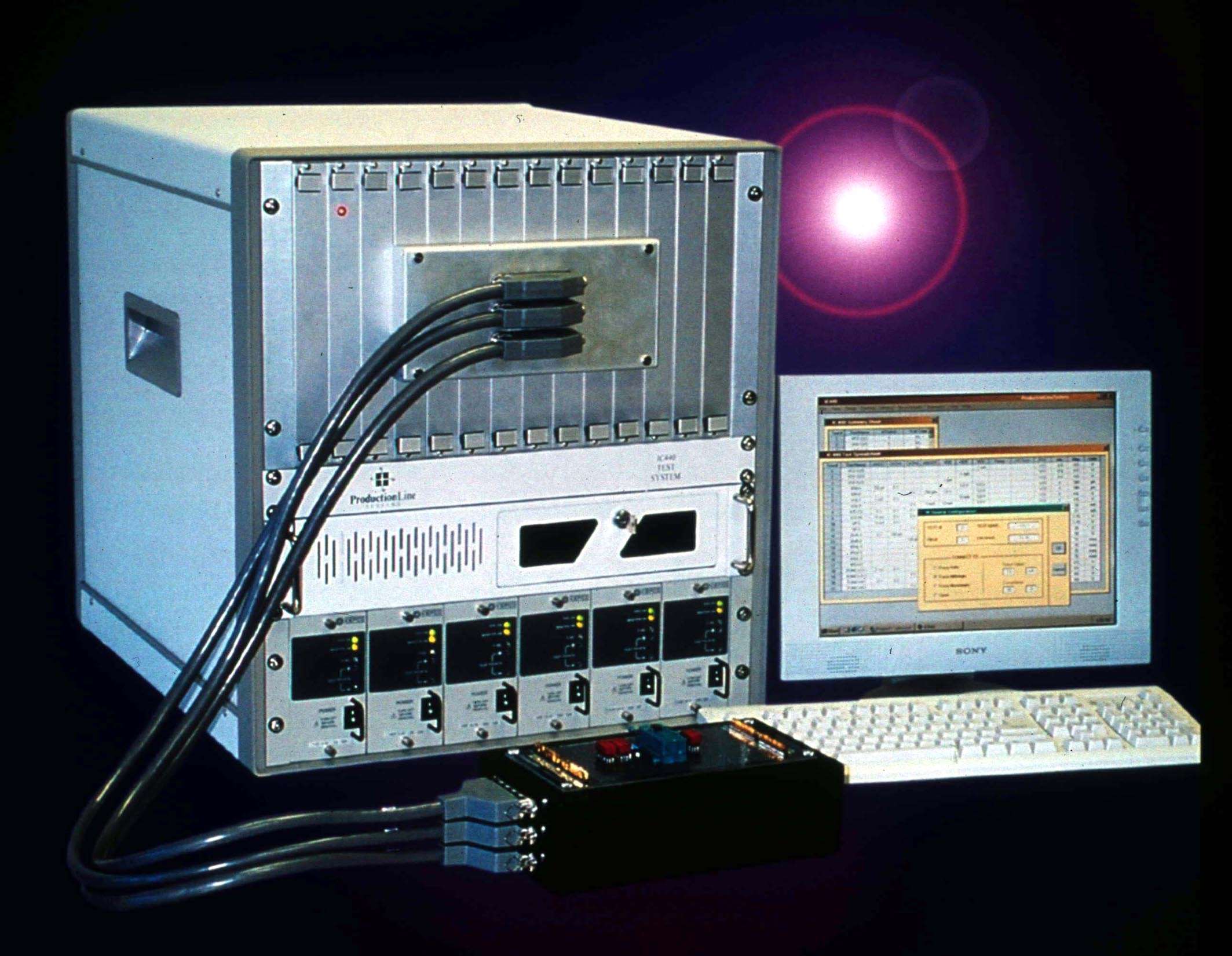

Nov 13, 2002 Model IC443 bench top, integrated-circuit test system interfaces directly with handlers and probers for wafer probing or final assembly testing. Specifications are input into Excel-like spreadsheet, and test is compiled. Unit includes slew rate window comparator, sine wave generator, and 16-bit setting and measurement accuracy. Each analog pin has precision 4-quadrant VI-source with programmable compliances. Footprint measures only 24 x 22 x 20 in.

Milwaukee Valve Co.    Milwaukee, WI 53207 1519

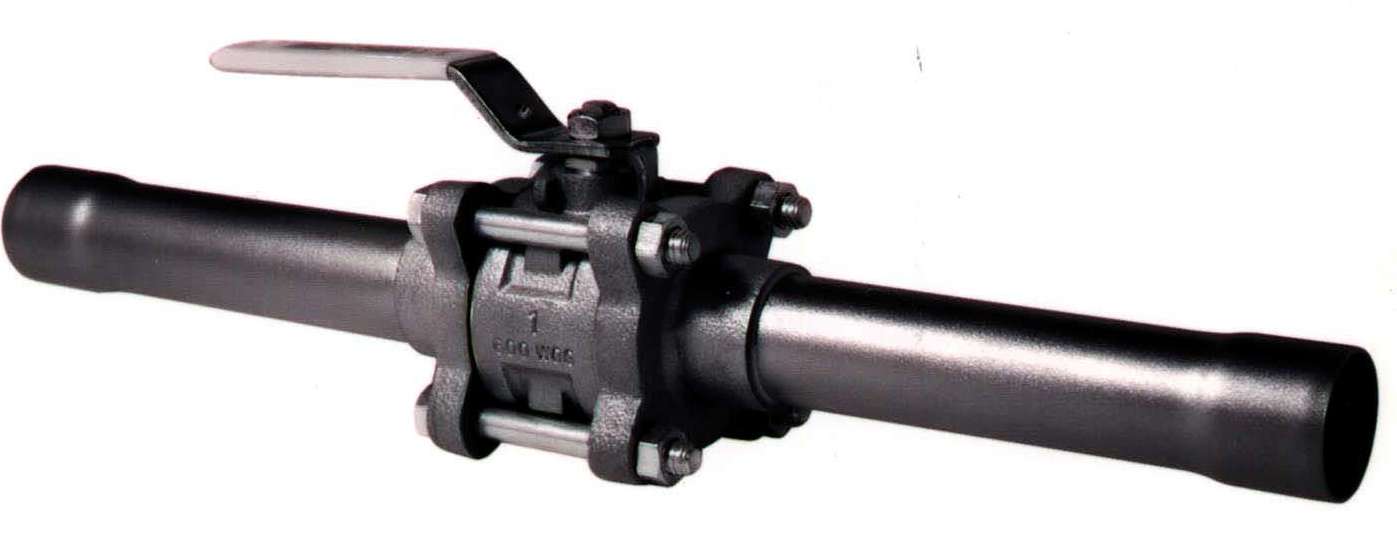

Nov 13, 2002 Model BA350TE 3-piece, bronze-body, full-port ball valve has 6 in. copper tube extensions brazed to each tailpiece. Available in sizes from 1/2 to 2 in., valve is offered with straight male tube-end, female expanded ends, or combination of male and female ends. Offerings include reinforced PTFE seats and packing, blowout-proof stem, and chrome-plated brass ball. Valve is suited for applications where brazing/soldering is preferred method of installation.

Met-Pro Corp.    Harleysville, PA 19438 0144
Nov 13, 2002 Fiberglass filters/filter bags for self-contained dust collector vessels can replace sintered metal and ceramic dust filters, and eliminate need for upstream pre-treatment equipment and systems. Filter media capture dust and fine particulates that are typically by-products of processing/production applications associated with chemical, petrochemical, hydrocarbon, pharmaceutical, food, and other manufacturing technologies.

IBAG North America    North Haven, CT 06473

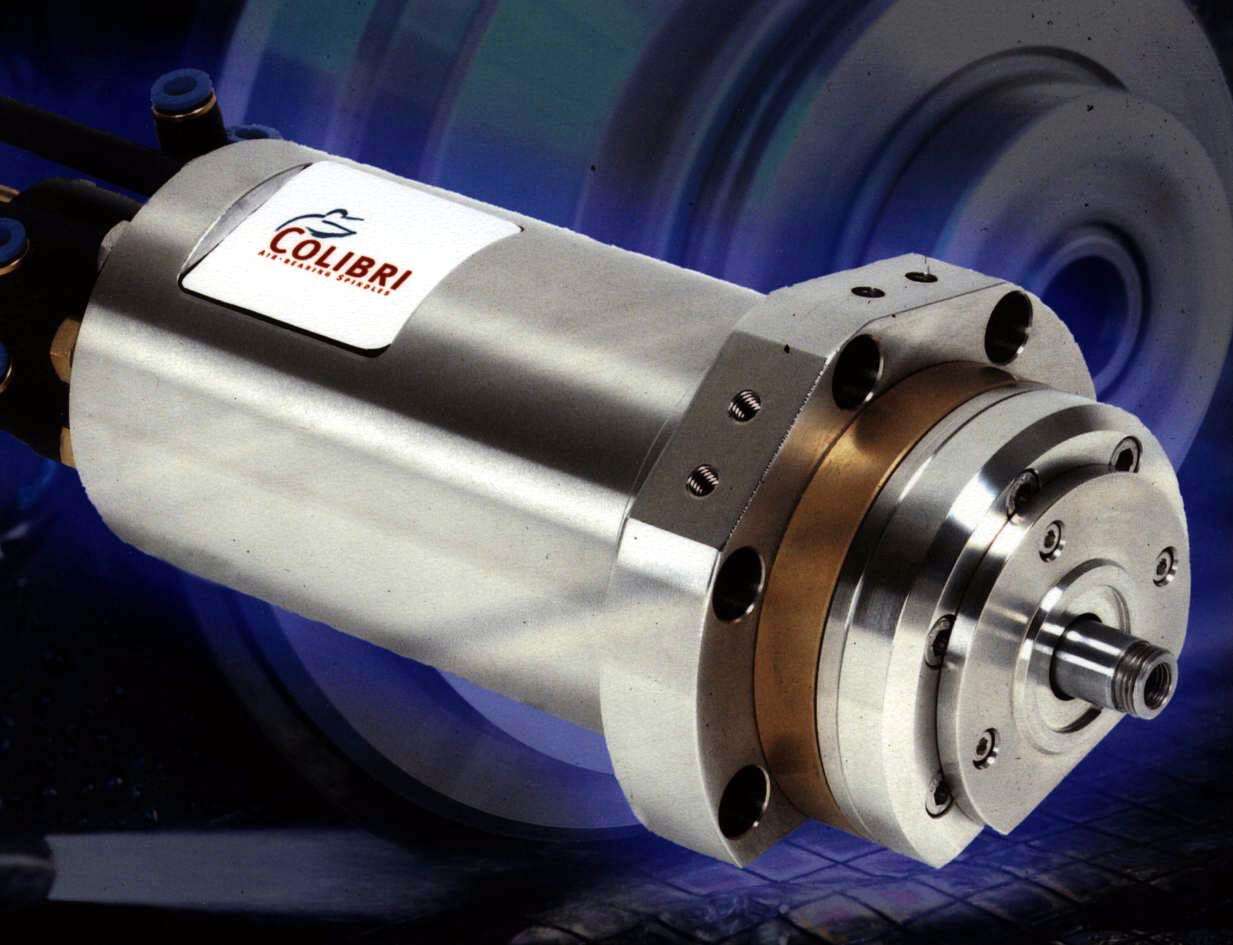

Nov 13, 2002 Model BOH 80 2.1 D 60 brushless, aerostatic spindle incorporates Motorized Bearing Technology and is available with either collet for tools with 0.5 mm shaft or Dorn taper for extreme accuracy. Spindle offers high stiffness of 9 N/microns axial and 14 N/microns radial with speeds to 60,000 rpm. Unit is balanced to G 0.4 standards and is suitable for dicing semiconductor wafers.

Ballard Power Systems, Inc.    Burnaby, BC V5J 5J9  Canada
Nov 13, 2002 Ecostarâ„¢ hydrogen fueled, internal combustion engine driven genset offers alternative to small turbines or combustion engines using other fuels. It is capable of producing 114 kVA of power at several voltage levels and phase options, and is based upon standard 6.8 liter Ford production engine that has been modified for hydrogen use.
