Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Nov 12, 2002 MC Toolkit, Pocket PC-based tool, is designed to configure, monitor, diagnose, and manage smart field instruments. It handles multiple communications protocols, including Honeywell Digitally Enhanced and HART. Unit automatically compares and detects any differences between device database and its own database. It enables easy configuration of Lower Range Value, Upper Range Value, range, engineering units, and damping. Toolkit provides self-diagnostic as well as full device diagnostic support.

Asylum Research    Santa Barbara, CA 93117
Nov 12, 2002 MFP-3D® AFM System consists of digital controller, Igor Pro software, and Nanopositioning system. With MicroAngelo feature, system allows nanolithography images to be imported from other programs or generated within software environment. Imported images are converted into series of contour lines which are then scaled and used to drive scanner to create lithographic image. Sensored, closed loop operation in all 3 axes provides sub-nanometer resolution over entire 100 µm scan range.

Ross, Charles, & Son Company    Hauppauge, NY 11788 0615
Nov 12, 2002 Model DPM is offered in sizes from ½ pint to 750 gal working capacity. Liquid seal arrangement completely isolates planetary gearbox from mixing zone. It is used where complete cleaning is required between batches, and is also useful for isolation and containment of aggressive solvents or vapors. Model DPM can mix high viscosity products up to 6 million cps. It is offered with several agitator blade designs, vacuum construction, and jackets for heating or cooling.

Adams Rite Mfg. Co.    City Of Industry, CA 91749
Nov 12, 2002 MS Maglockâ„¢ combines convenience of electromagnetic locks with strength of mechanical locks in 6 x 2¾ x 2 in. package. Design utilizes pair of spring loaded hardened steel mandibles that instantly clamp armature in event of forced entry. While mechanical jaws are engaged, MS Maglock's holding force is rated at 4000 lbs. Unit can be installed on in-swinging or out-swinging doors of any kind, and can be integrated into most access control systems.

Detcon Inc.    The Woodlands, TX 77387 8067
Nov 12, 2002 UniToxâ„¢ has sensors that employ universal transmitters, which are compatible with sensor modules for monitoring various gases. Loop-powered universal transmitter, combined with sensor modules specific to different toxic gases, allows for field conversion to any gas type or range required. UniToxâ„¢ includes intrinsically safe electronics with on-board microprocessor. Capabilities include automatic data logging and menu-driven calibration with magnetic interface.

Mazak Corp.    Florence, KY 41042 3092

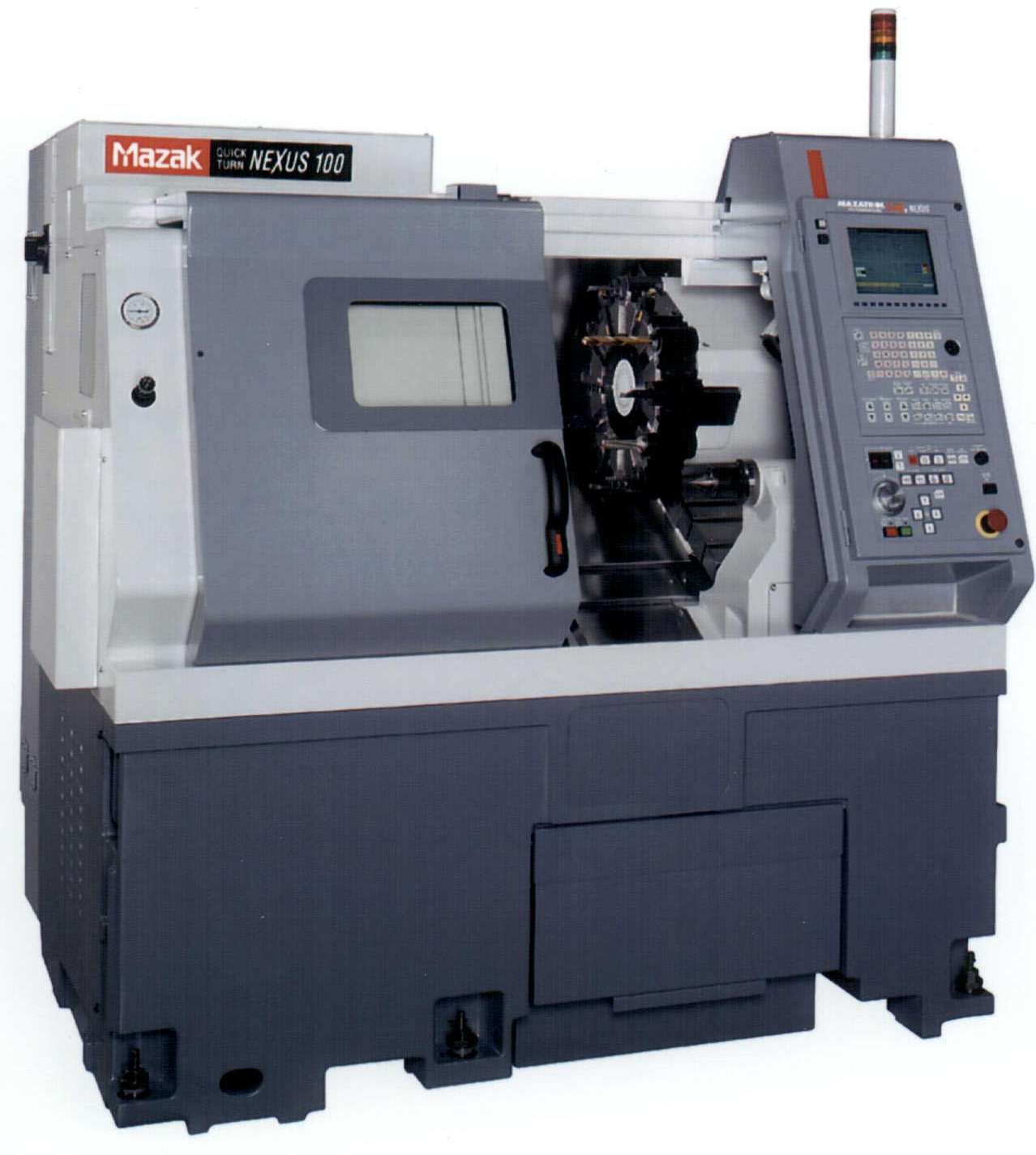

Nov 12, 2002 Quick Turn (QT) Nexus 100 provides 6 in. chuck, 15-hp motor, and 12-tool drum turret with 0.18 sec. turret indexing time. It is capable of handling heavy-duty cutting at low speeds as well as high-speed turning of nonferrous materials. Programmable NC electric tailstock, driven by servo motor, does not require manual adjustment. Unit's Tool Eye automatic presetting arm automatically performs offset of tool nose position, tool measurement, and data registration.

Mazak Corp.    Florence, KY 41042 3092
Nov 12, 2002 Driven by 25-hp spindle motor, Nexus 410A reaches max spindle speed of 12,000 rpm. Vertical Machining Center provides high-speed, rapid traverse rate of 1,417 ipm @ 0.5 G acceleration. Unit also provides machining area with X, Y, and Z-axis travels of 22, 16, and 20 in., respectively. Table size is 35.4 x 16.1 in., with load capacity of 1,100 lbs. Tool magazine can store up to 30 tools (of 40 taper) with tool-to-tool change time of 1.3 sec.

APT Instruments    Litchfield, IL 62056
Nov 12, 2002 Artisanâ„¢ TT2210 dual channel KJT thermocouple thermometer can monitor actual or differential temperature in plant or laboratory applications. Meter adapts to types K, J, and T thermocouple probes. Its backlit digital display provides dual/differential temperature measurements as well as MAX, MIN, and HOLD functions. Options include RS-232 output and Windows®-compatible software program.

Scientific Dust Collectors    Alsip, IL 60803
Nov 12, 2002 LP Series pulse jet vertical cartridge collector has 2, 3, 4, or 5 cartridges for nominal air flows from 1,000 to 3,000 cfm. High ratio unit offers company's cleaning system and internal high side inlet baffles. With all welded design and integral hopper drawers, LP collector on-line self-cleaning unit offers solid state timer board. Designed for outdoor use, unit provides media filtering efficiencies to better than 99.9%.

SKF Motion Technologies    Lansdale, PA 19446

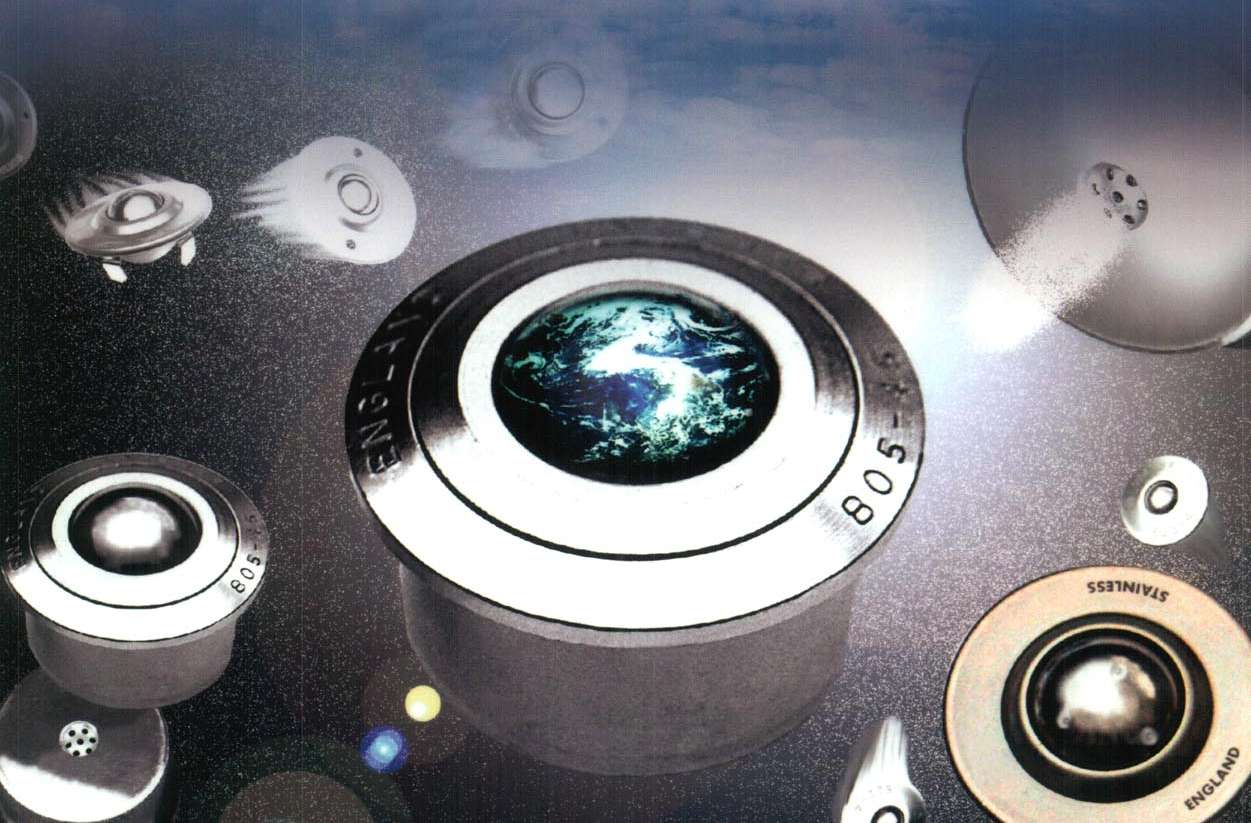

Nov 12, 2002 Heavy Duty Units are constructed with hardened bright zinc-plated mild steel body, stainless steel 30 and 45 mm load balls, stainless steel minor balls, and multi-hole stainless steel drain base. Flange Fixing flying saucer units have ball diameters from 25 to 50 mm and load ratings from 120 to 750 lbs. Euro Units have ball dia from 15 to 45 mm and load ratings from 110 to 1,014 lbs. Pressed-steel types are available in various styles.

Alto U.S. Inc.    Chesterfield, MO 63017 3626

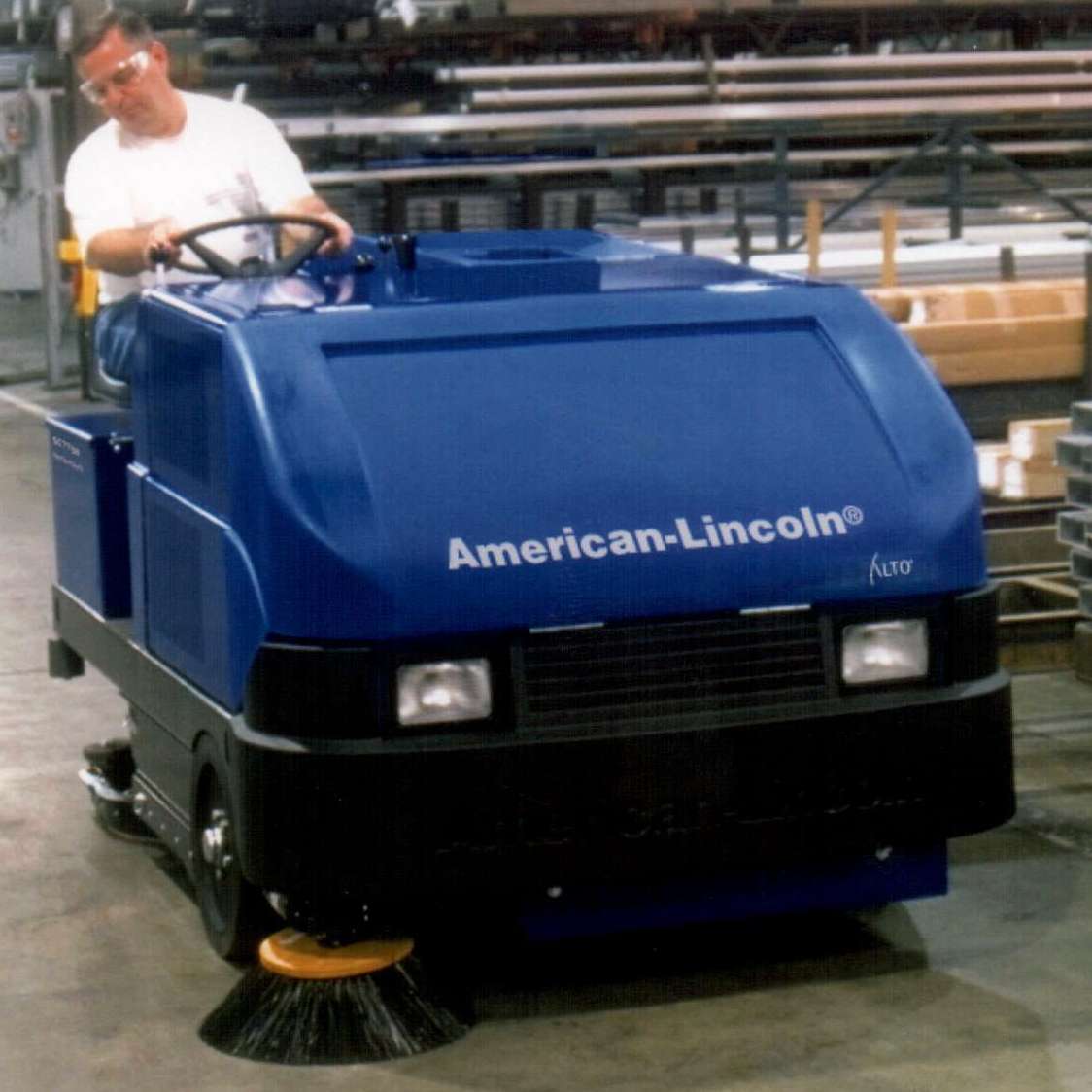

Nov 12, 2002 Model SC7750 removes dirt, grease, grime, and loose debris without need for separate sweeper. Sweeping system, independent from scrubbing process, has steel hopper that can reach containers as high as 60 in. for dumping as much as 10 ft³ of debris. Offered with 46 or 53 in. cleaning path, unit offers 70 gallon solution and recovery tanks. Additional offerings include hydraulic drive, power steering, and Accu-Trackâ„¢ break-away squeegee.

New Pig Corp.    Tipton, PA 16684 0304
Nov 12, 2002 PaveClean® removes oil stains from concrete without using water or harsh chemicals, eliminating contaminated storm water runoff associated with pressure washing. It also removes surface sheen and slipperiness from stained concrete or asphalt, helping to reduce slips and falls. Pave Clean® is packaged in 1, 5 and 20 lb containers providing enough product to clean from 120, 600 or 2,200 ft² of area. Applications include parking areas, fueling islands, and bank drive-thrus.

Innovative Solutions, LLC    Naugatuck, CT 06770-2224
Nov 12, 2002 Model CS001 RF Capacitance Level Transmitter provides linear level measurement in extreme process temperatures and fluid conditions. It features fully programmable 4-button calibration for specific medias and is available in NEMA 4 (IP65), or explosion-proof housing. Probe is 316L stainless steel, comes in lengths up to 120 in., and contains Teflon encapsulated electrode. Applications include refrigerant systems, food and beverage processing, and storage tanks.

Nord Gear Corp.    Waunakee, WI 53597
Nov 12, 2002 Inverter/Vector Duty Motors conform to NEMA MG-1-1998 Section 31.4.4.2, and include Class H magnetic wire insulation and IP55 enclosure protection. At speed range of 5:1, they offer constant torque from 60 to 12 Hz. At speed range of 20:1, constant torque ranges from 80 to 4 Hz. Totally Enclosed Fan Cooled motors are UL recognized, CSA approved, and European Union CE Certified. They are designed for demanding applications.

FP International/Free-Flow Packaging International, Inc.    Redwood City, CA 94063-3120

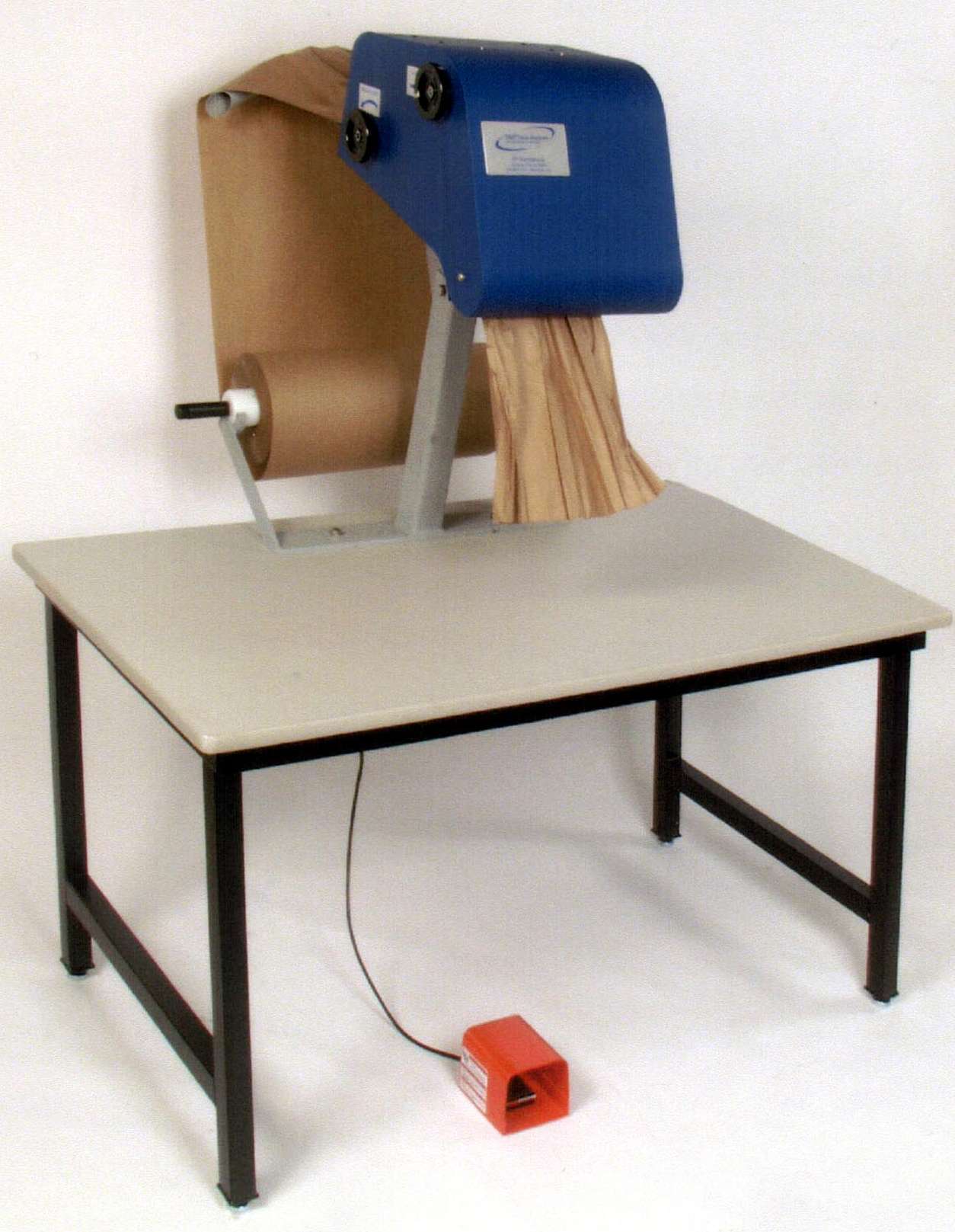

Nov 12, 2002 FASTTrack Benchmate System crumples and cuts kraft paper at speeds up to 270 fpm. It is available either mounted on sturdy worktable or steel-frame stand, and can be used on high-speed conveyor pack lines or in off-line packing operations. Using 40 lb rolls of 100% recycled Kraft paper, Benchmate machine averages 80 cu ft of packing material per roll.

Keystone Electronics Corp.    Astoria, NY 11105

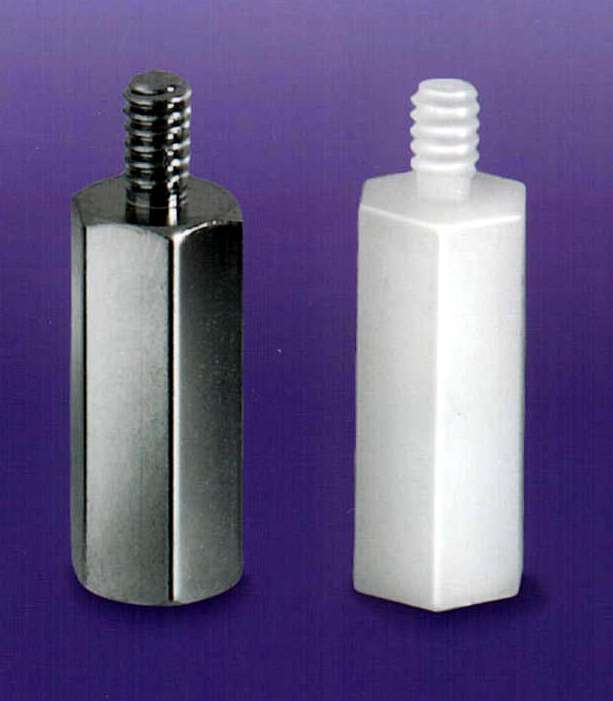

Nov 12, 2002 Standoffs overcome space limitations that occur when PC/104 or PC/104-Plus Bus drives are installed. They are available in nickel plated brass (Part 8799) and nylon (Part 4799). Each PC/104 and PC/104-Plus module is a self-stacking pin and socket bus that eliminates bulk of backplanes and card cages. Computer power supplies and multi-board stacks are typical end-uses of modules and require standoff installation.

Haewa Corp.    Duluth, GA 30097

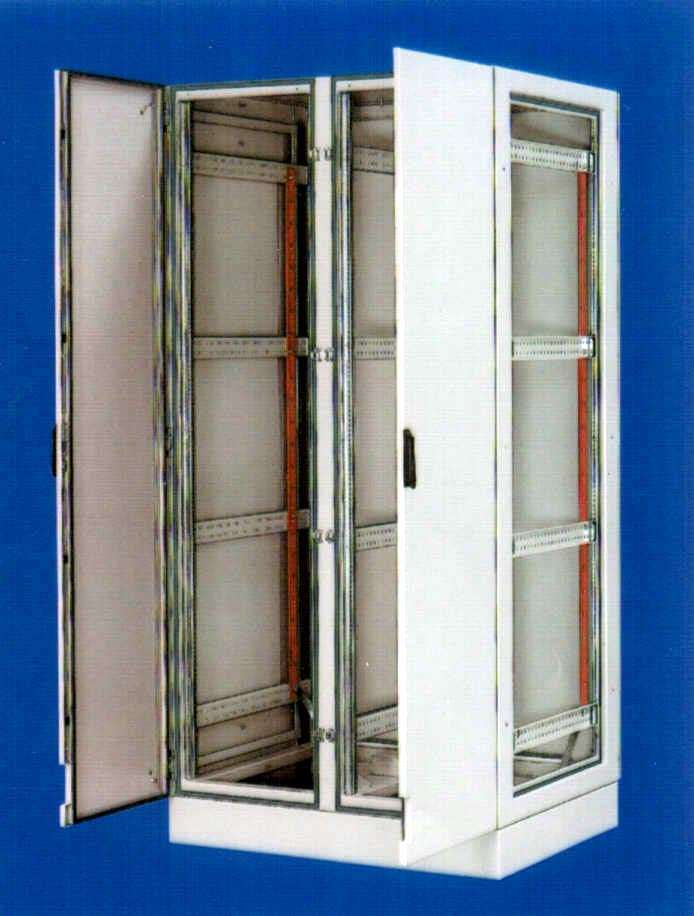

Nov 12, 2002 Custom 19 in. cabinets can be designed with single bay, 2-bay, 3-bay, or 4-bay configurations. Racks and consoles have front to back adjustable EIA rails or frame integrated mounting hole patterns. Vertical heights and depths are modified to customer specifications. Structures of cabinets are seismically qualified by Finite Element Analysis that permits computer based simulation and analysis of deformations and stresses on complex frame structures.

Precision Multiple Controls Inc.    Midland Park, NJ 07432
Nov 12, 2002 Flashing or steady-on, bi-directional BT1O-SS-RT signaling and warning device features 1 in. wide strips of 3M red reflective tape on top and bottom of both sides of sign. Hand-held, battery powered stop sign baton has 10 LED lights that can be seen up to 1/2 mile away from both sides of sign. This 18 in. octagon shaped, weather proof signaling device is 1.72 lbs and provides over 300 hours of continuous flashing operation.

APT Instruments    Litchfield, IL 62056
Nov 12, 2002 Portable, battery-operated digital refractometer with digital display and splash-resistant housing provides accurate readings of sugar concentrations (Brix) or refractive index in plant, field, or lab. HR200 refractometer is available in 4 models with different measurement ranges - 0 to 36%(1.3330 to 1.3903 nD), 0 to 45%(1.3330 to 1.4098 nD), 28 to 65%(1.3800 to 1.4535 nD) and 60 to 92%(1.4400 to 1.5230 nD) with an accuracy of ±0.2%.

Haas Automation, Inc.    Oxnard, CA 93030

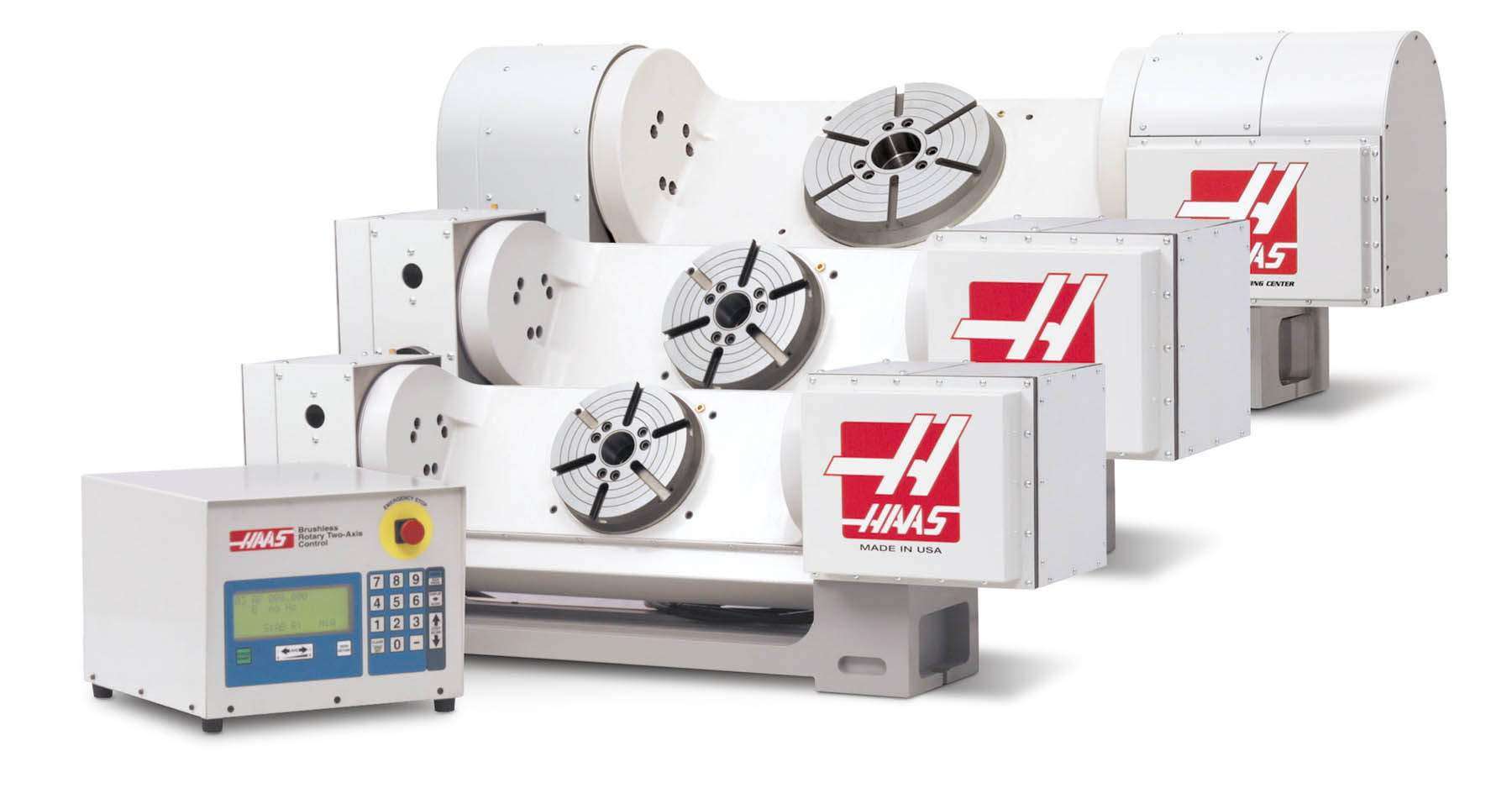

Nov 12, 2002 Models TR160, TR210, and TR310 are 160, 210, and 310 mm rotary tables, with capacities of 80, 200, and 500 lbs, respectively. Dual-axis trunnions bolt directly to table of 3-axis VMC to provide 5-axis motion or to position parts to nearly any angle for multi-sided machining. All three tables are driven by brushless servo motors on both axes, and provide ±120° of tilt on A axis and 360° of rotation on B axis. Units can easily be removed when not needed.
