Pennsylvania Crusher Corp.    Broomall, PA 19008 0100
Nov 14, 2002 Modular Mountaineer Sizer is 40 in. high and offered in various lengths. Arrangement of teeth on rolls is configured to customer requirements and can include straight rows, spirals, herringbone, and other designs. Crushing chamber is fully lined with wear plates to protect frame. Retractable, steel wheels enable relocation of machine for maintenance.

Hart Scientific, Inc.    American Fork, UT 84003 9775
Nov 14, 2002 Model 5698 Working Standard Platinum Resistance Thermometer features strain-free 25 ohm pure platinum sensor. Enclosed in 19 in. quartz glass sheath, unit covers temperatures from -200 to +661°C. Long-term drift is specified at ±0.006°C after 100 hr at maximum temperature. Calibration options include both fixed-point and comparison calibrations.

Ogden Mfg. Co.    Arlington Heights, IL 60005
Nov 14, 2002 Model ETR-9040 protects equipment, materials, and personnel from over-temperature process conditions. True back-up system can be put in place when unit is used with dedicated sensor and contactor. Universal Input allows product to be used in various temperature, pressure, flow, and control applications. Optional port provides additional functions: programmable alarm, RS-485 communications, DC power supply, limit annunciator, or event input.

TrynEx International / SweepEx Division    Warren, MI 48089
Nov 14, 2002 Able to manually angle broom, pivot mount attaches to most standard forklift tines. Suitable when sweeping long spans or excessive amounts of debris, unit clears paths for service vehicles and personnel, resulting in uniformly placed piles of debris. Broom angling is accomplished via 1 drop pin. Pivot mount works with all SweepEx Mega Series broom models. Mega-Series brooms are available in 48, 60, and 72 in. lengths. Extensions are also available.

Labelmate    Henderson, NV 89014-2002
Nov 14, 2002 Suited for production applications, Model LD-100S uses foot-switch controlled advance mechanism. If label can be seen by operator, LD-100S correctly dispenses it. Variable speed control advances labels according to operator's desired speed. Supply roll of labels, up to 4 in. wide, slides onto built-in Roll Holder, which accepts up to 8½ in. roll size and core diameters from 1½ to 3 in. Unit's heavy-duty design incorporates heavy-gauge steel construction.

Molded Fiber Glass Tray Co., A Div. Of Molded Fiber Glass Companies    Linesville, PA 16424
Nov 14, 2002 System includes cart, trays, and inlays as turnkey unit. Grounding system enables cart to handle electrostatic discharge (ESD) sensitive PC boards and assemblies. Cart also handles 20 ElastoStatMat trays, which have permanent static dissipative elastomer inlay material to cushion and protect ESD sensitive PDC boards and assemblies. Trays meet or exceed ANSI/ESD S2020 standard

QTC Gears - Quality Transmission Components    Garden City Park, NY 11040
Nov 14, 2002 Designed to fit shafts from 4-10 mm in dia, Series SUSL Module 0.5, 0.8, and 1.0 spur gears conform to JIS B 1702 Grade 4 standards. With face widths from 5-8 mm, 20° pressure angle precision gears are made of 303 stainless steel. Fairloc® integral hub fastener eliminates marred shafts and is suitable for when phase adjustment, timing, position adjustment, and frequent removal of components are factors. Available sizes range from 14-120 teeth.

Allegro MicroSystems Inc.    Worcester, MA 01615
Nov 14, 2002 Fully integrated Model ACS750ECA-100 ±100 A current sensor comes in 10 x 13 x 7 mm package, which consists of 2 primary power conductive leads that allow current to pass through ferrite core over sensing element of Hall IC. Bandwidth is 13 KHz and internal resistance is less than 1 mOhm. Power leads are electrically isolated from sensing circuitry, allowing use in applications where isolation is required without adding opto-isolators.

Scapa North America    Windsor, CT 06095
Nov 14, 2002 Double-coated, hand tearable Dublfilm® S837TA has acrylic pressure-sensitive adhesive that bonds foams to irregular surfaces. With high tack and peel, 4-mil acrylic adhesive film is formulated for NVH applications and bonds to EPDM rubbers. Product also bonds to low surface energy plastics as well as ether and ester foams. It is resistant to environmental extremes.

Ansys, Inc.    Canonsburg, PA 15317
Nov 14, 2002 ANSYS® v7.0 Workbench Environment supports 3Dconnexion's SpaceBall, SpaceMouse, and CadMan controllers. Simulation software package gives product designers and engineers power to conceptualize, design, and validate ideas on desktop. Users can explore, manipulate, and navigate 3D objects to improve design comprehension. Additionally, users can detect design errors early on by moving and viewing designs intuitively, while simultaneously performing analysis with simulation tools.

DataCard Corp.    Minnetonka, MN 55343
Nov 14, 2002 Compatible with Datacard® 295 card personalization system, OnDemandâ„¢ Labels v3.0 incorporates one tool for label design and setup. Using magnetic stripe technology, software captures data and prints information directly onto surface of wristbands or labels. It conserves wristband/label stock, reduces data entry errors, and provides accurate, legible, direct-thermal and thermal-transfer printing. Numerical data fields can be printed as bar codes.

Aladdin Systems, Inc.    Watsonville, CA 95076 4159
Nov 14, 2002 Spring Cleaning® 5.0.1, optimized for Mac OS X, provides 16+ tools that remove clutter to increase performance and protect online privacy. Update is compatible with Mac OS 10.2 Jaguar and includes System Menu fix, Dockling Applications, and Cookie Editor. Power Cleaning Tools include Duplicates Finder(TM), Empty Folder Finder(TM), Fat App Slimmer(TM), and Mail Cleaner(TM). Also provided, iClean includes Cookie Tosser, Alias Fixer(TM), Web Cache Files Remover(TM), and Internet History Files Remover(TM).

Sensor Developments, Inc.    Orion, MI 48359
Nov 14, 2002 Multi-function instrument includes rotating torque sensor with integrated optical encoder for reading out torque, speed, and horsepower. AutoID enables PTI to detect sensor and encoder calibration, units, and ppr for set-up of torque and horsepower testing. PTI single-button instrument offers capacities from in.-oz to thousands of ft-lb. Unit can also detect and hold peak torque/hp values, as well as display peak values and rpm at which they occurred.

Summit Technology Inc.    Walnut Creek, CA 94546
Nov 14, 2002 Model PS4000 simultaneously performs swell, sag, transient, harmonic, and consumption functions. It also determines and holds transient information down to 10 microseconds and analyzes harmonic information to 63rd on every cycle. Displaying measurements continuously, unit interfaces via complete keypad. Capable of operating for 8–10 hours from rechargeable batteries, accessories allow direct connections to voltages from 1–15,000 V and currents from 10 mA to 6,000 A.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 14, 2002 Infiniium 54854A and 54855A are 4 and 6 GHz oscilloscopes that provide sample rate of 20 GSa/s on all 4 input channels simultaneously. They can also capture 4, full-bandwidth, real-time signals off single trigger event. InfiniiMax 1130A series active probes offer single-ended and differential measurements up to 7 GHz. Design allows use in difficult to reach situations such as probing between memory modules on server motherboards.

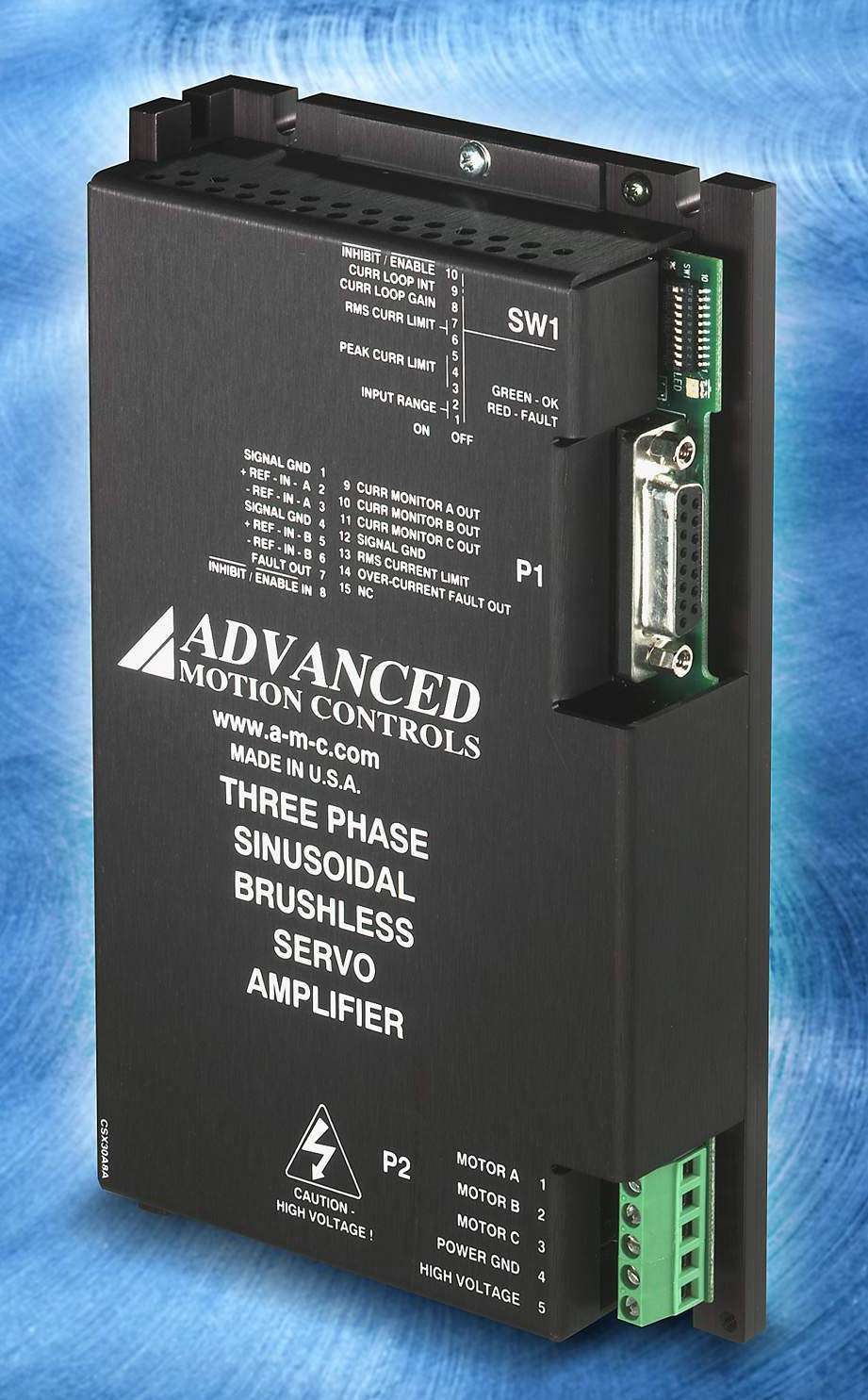

Advanced Motion Controls, Inc.    Camarillo, CA 93012
Nov 14, 2002 Model SX25A20 outputs 25 A peak, 12.5 A continuous and operates off 60-190 Vdc. It accepts 2 sinusoidal command signals with 120° phase shift, generated from external controller, which does commutation. Amplifier generates third phase internally and drives motor sinusoidally. Bandwidth of 6 KHz can be achieved using low inductance motor. Thermal drift and offset is minimized by current loop components. Unit includes 1400 Vdc isolation and is CE compliant.

Ansys, Inc.    Canonsburg, PA 15317
Nov 14, 2002 Suited for digital prototyping and simulation market, ANSYS v7.0 includes technology based on CADOE® Software, which gives users all results corresponding to variations of design parameters in 1 analysis. User interface with DesignSpace® software increases CAD user productivity from days to hours. ANSYS 7.0 also allows CAD operators to confirm component and assembly design assumptions and predict product performance during early stages of development.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Nov 14, 2002 Through user-defined equations and formulas, Advanced Formula Manager (AFM) transforms critical plant data from Uniformance® Plant History Database (PHD) into process information. Equation-building capabilities collect process data to be shared across organization in centrally managed, flexible environment. Designer interface enables building of complex calculation libraries that access historical and updated process data and store calculated results in historian database.

JAI, Inc.    San Jose, CA 95134
Nov 14, 2002 NA series 24-240 Vac/dc auto-ranging photo sensors incorporate enclosed terminals that eliminate need for additional junction boxes. Suited for indoor and outdoor operation, units utilize visible red beams that simplify exact positioning. Units include 3 A relay outputs and are available in throughbeam, polarized, retro-reflective, and diffuse models. Applications include conveyors, industrial doors, and applications that run 24/7.

Tesa Tape, Inc.    Charlotte, NC 28209
Nov 14, 2002 Steelmaster 52015 is 15 mil Softprint platemounting tape for printing labels and tags that require solid and spot color imaging. Adhesive system rests on closed-cell foam backing, which allows tape to resist foam fatigue. Type 52017 is also 15 mil Softprint platemounting tape, but with slightly softer foam backing, making it suitable for process printing applications.
