Netzsch, Inc.    Exton, PA 19341
Nov 14, 2002 Model CDS combines spiral jet mill design with dynamic air classifier wheel, which strictly controls upper particle size. Oversized particles are virtually eliminated from finished product. Compact design makes assembly, disassembly, and thorough cleaning between product batches easy. Residual material in mill is minimized, making CDS suitable for pharmaceuticals and high value powders.

Bimba Manufacturing Co.    Monee, IL 60449 0068

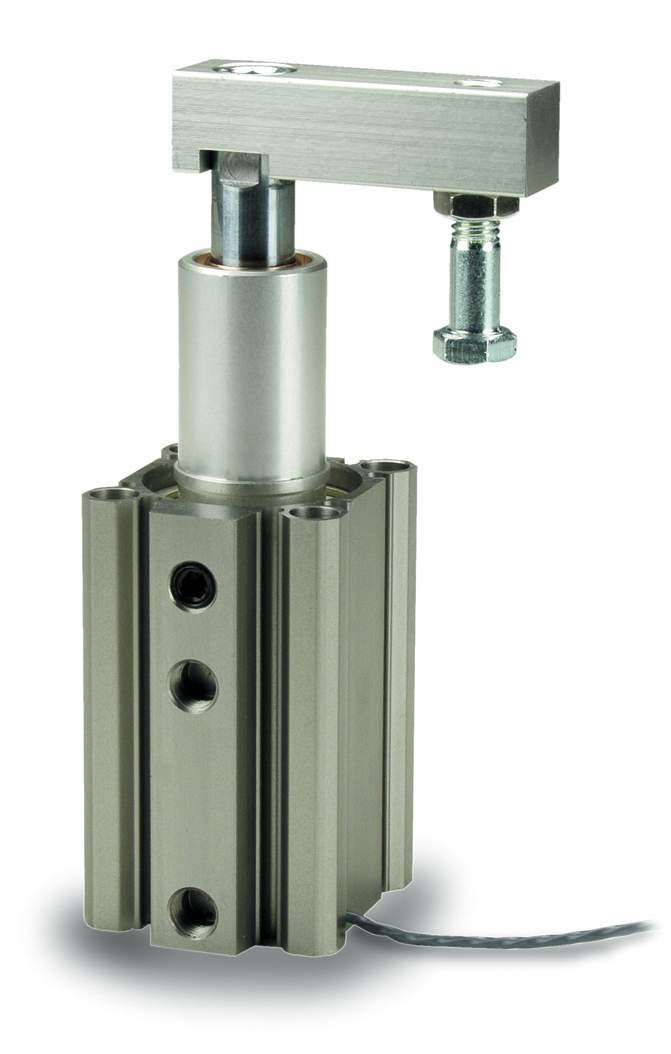

Nov 14, 2002 Twist Clamp Cylinder is offered in 4 bore sizes of 25, 40, 50, and 63 mm. By attaching clamp arm, actuator becomes clamping mechanism for light-duty holding applications. Clamping force of up to 600 lb can be achieved at maximum pressure of 140 psi. Rotary motion rotates clamp arm out of work area for easy loading and unloading of parts. Cylinder has hard coat anodized, PTFE-impregnated body.

Fox Electronics    Fort Myers, FL 33905 5022
Nov 14, 2002 Series RFV300 Radio frequency crystal oscillator (RFXO) allows for full use of allotted bandwidth in systems and lowers bit rate errors in optical data communications. Voltage controlled crystal oscillator (VCXO) offers phase jitter of less than 0.5 pS and is available in frequencies from 600 MHz to 1.25 GHz. Housed in 7.5 x 5.0 x 1.5 mm ceramic package, RFV300 series is available with frequency stabilities of ±50, ±25, and ±20 ppm.

Mettler Toledo, Inc.    Columbus, OH 43240
Nov 14, 2002 Suited for end-users with PC-based manifest software and shipping needs below 70 lbs, models PS15 and PS30 are National Type Evaluation Program (NTEP)-certified. Offered with GEOCALâ„¢ calibration, both models provide simple display and keyboard to eliminate operator confusion. They include 120 Vac, 9 Vdc wall mount power supply and 6 ft RS-232 serial interface cable to send commercial package weights electronically to controlling PC-manifest software.

Extech Instruments Corp.    Nashua, NH 03063
Nov 14, 2002 Hygro-Thermometer Alarm Clock measures relative humidity from 20-90% with ±5% accuracy. Temperature measurements are °C/°F selectable and range from 14 to 140°F with 2°F accuracy. LCD displays temperature and humidity readings as well as day, date, and month. Clock alarm, with 4 minute snooze function, is also included. Unit, with stand, measures 9.8 x 7.5 x 1 in.

Caterpillar, Inc.    Peoria, IL 61629
Nov 14, 2002 Rated at 165–210 hp, D6R Series II incorporates electronic C9 engine with electronically controlled, hydraulically actuated, direct-injection fuel system. Offerings include modular components, elevated sprocket design, Advanced Modular Cooling System (AMOCS), and differential steering. Torque divider and transmission are matched to engine, and planetary powershift transmission offers Load Compensating Shifting. Isolation-mounted and pressurized cab reduces sound and vibration.

Precision Multiple Controls Inc.    Midland Park, NJ 07432

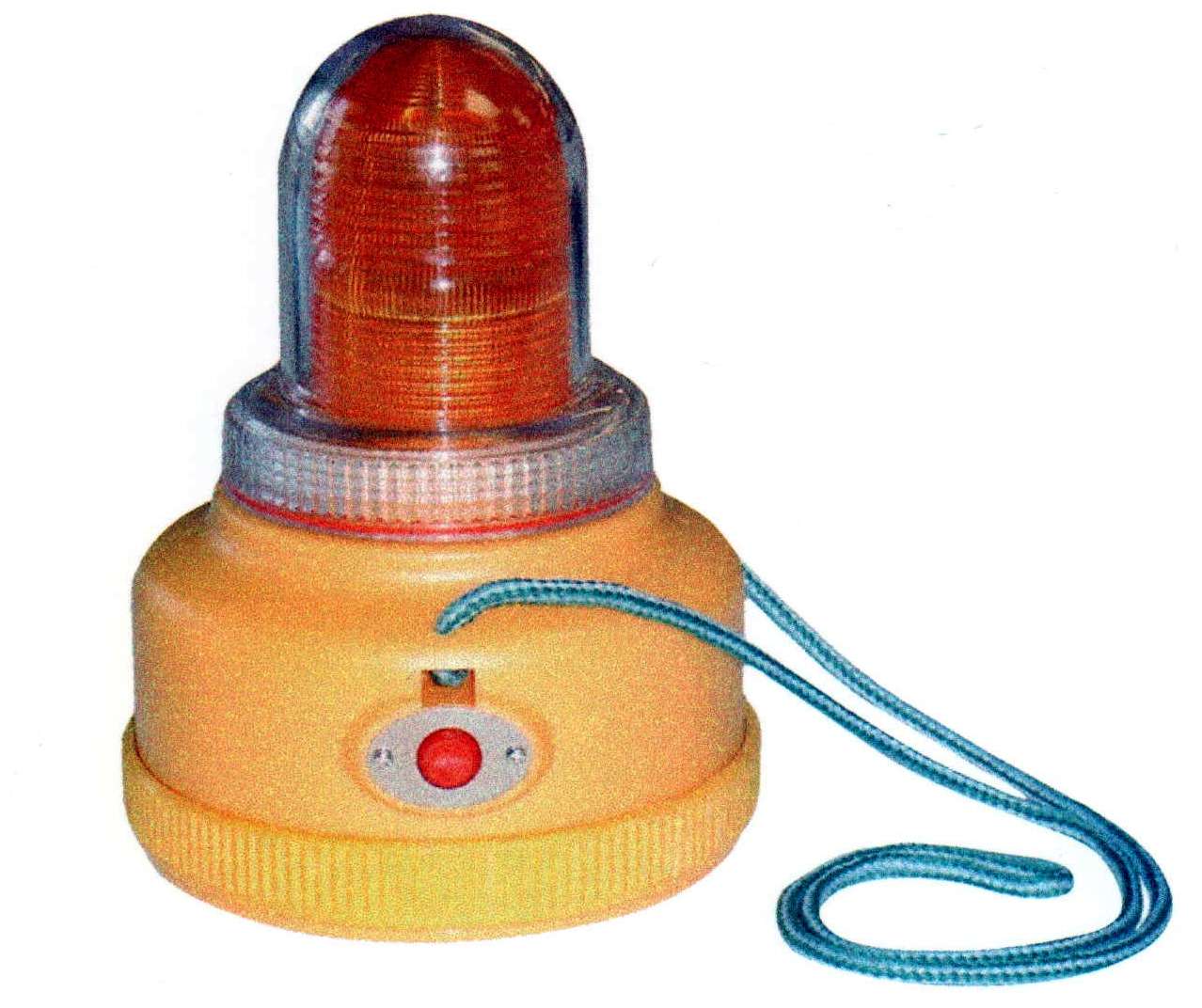

Nov 14, 2002 Model LX-5 Mini Series warning light utilizes 360° Fresnel lens and 5 LED lamps. It provides flash rate of 60 double flashes/min and average operating time of 150 hr when powered by 2 D cell alkaline batteries. Additional offerings include external push button on/off switch, magnetic base, and top cord for carrying or hanging. Unit has 4 in. dia base, measures 5½ in. high, weighs 1 lb 2 oz.. and is available with handle adapter.

Nanmac Corp.    Framingham, MA 01702 2469

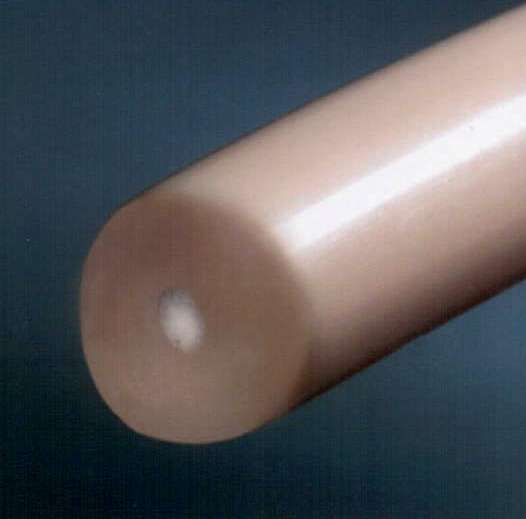

Nov 14, 2002 Model NC15 has high-temperature ceramic sheath with thermal shock resistance and high-strength properties at elevated temperatures. Stainless steel support tube protects ceramic sheath from breakage while using adjustable mounting adapter. Thermocouple calibration types include C, B, R, S, and K with lengths up to 48 in. Unit has closed hot end and is gas tight. Applications include furnaces, power generating plants, gas-fired ovens, and combustion chambers.

NSW, LLC    Roanoke, VA 24016
Nov 14, 2002 Plastic belts are offered in coil lengths up to 3,280 ft, allowing runs of over six tenths of a mile, without splicing. They include Kevlar®, steel, or polyester reinforcement. Kevlar reinforcement provides high strength can cable with flexibility, suitable for curved configurations. Belts are resistant to oil, grease, chemicals, dirt, and humidity.

General Polymers    Cincinnati, OH 45242
Nov 14, 2002 Non-porous Seamless Floor and Wall System is easily cleaned and minimize areas where mold, bacteria and other infectious agents might grow. Flooring system can be installed with integral cove bases that can be seamlessly transitioned from wall system. Antimicrobial additive protects floor or wall from microbial attack and helps reduce odor. Applications include schools, hospitals, clinics, cafeterias, and food and beverage plants.

Pennsylvania Crusher Corp.    Broomall, PA 19008 0100

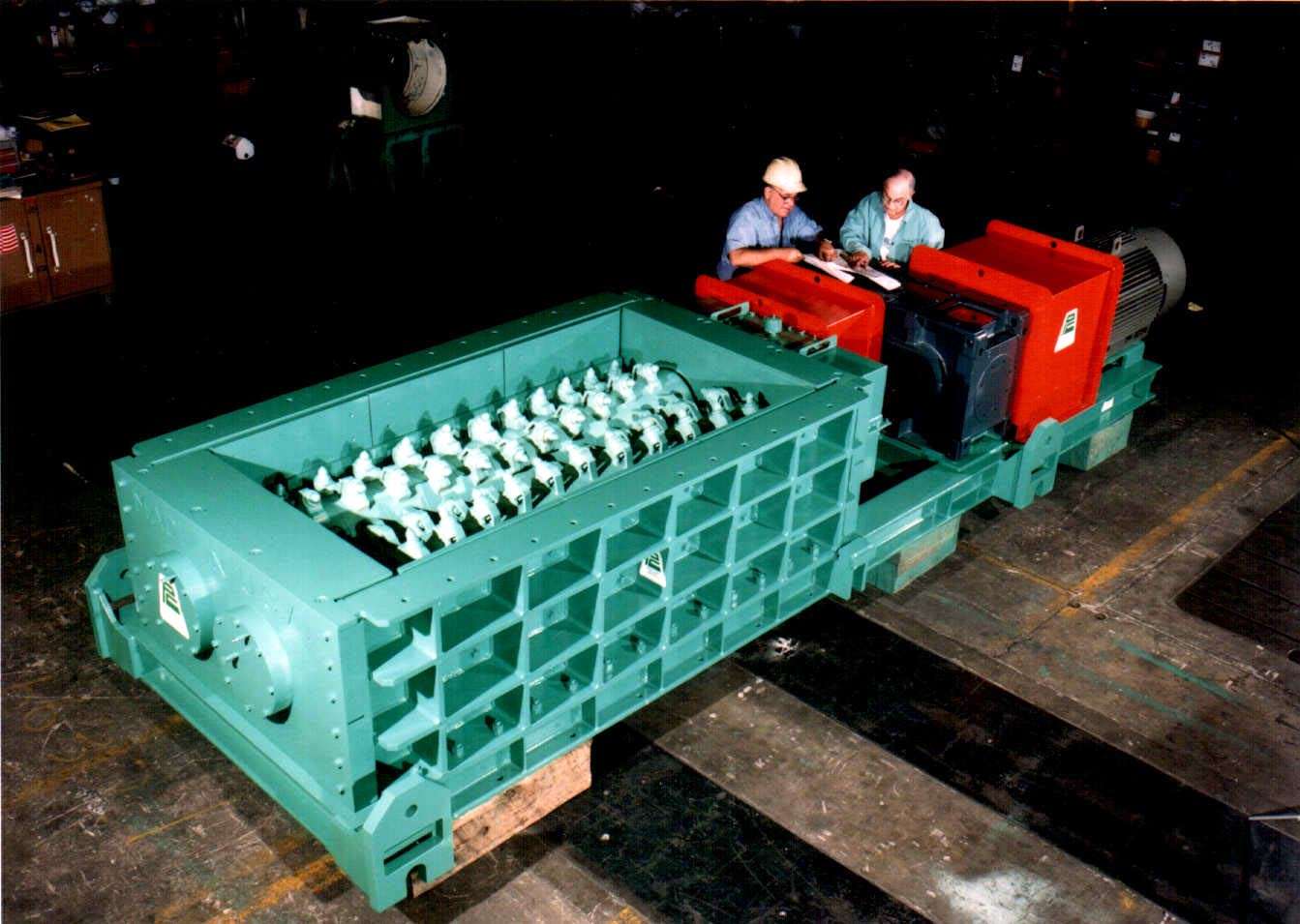

Nov 14, 2002 Modular Mountaineer Sizer is 40 in. high and offered in various lengths. Arrangement of teeth on rolls is configured to customer requirements and can include straight rows, spirals, herringbone, and other designs. Crushing chamber is fully lined with wear plates to protect frame. Retractable, steel wheels enable relocation of machine for maintenance.

Hart Scientific, Inc.    American Fork, UT 84003 9775

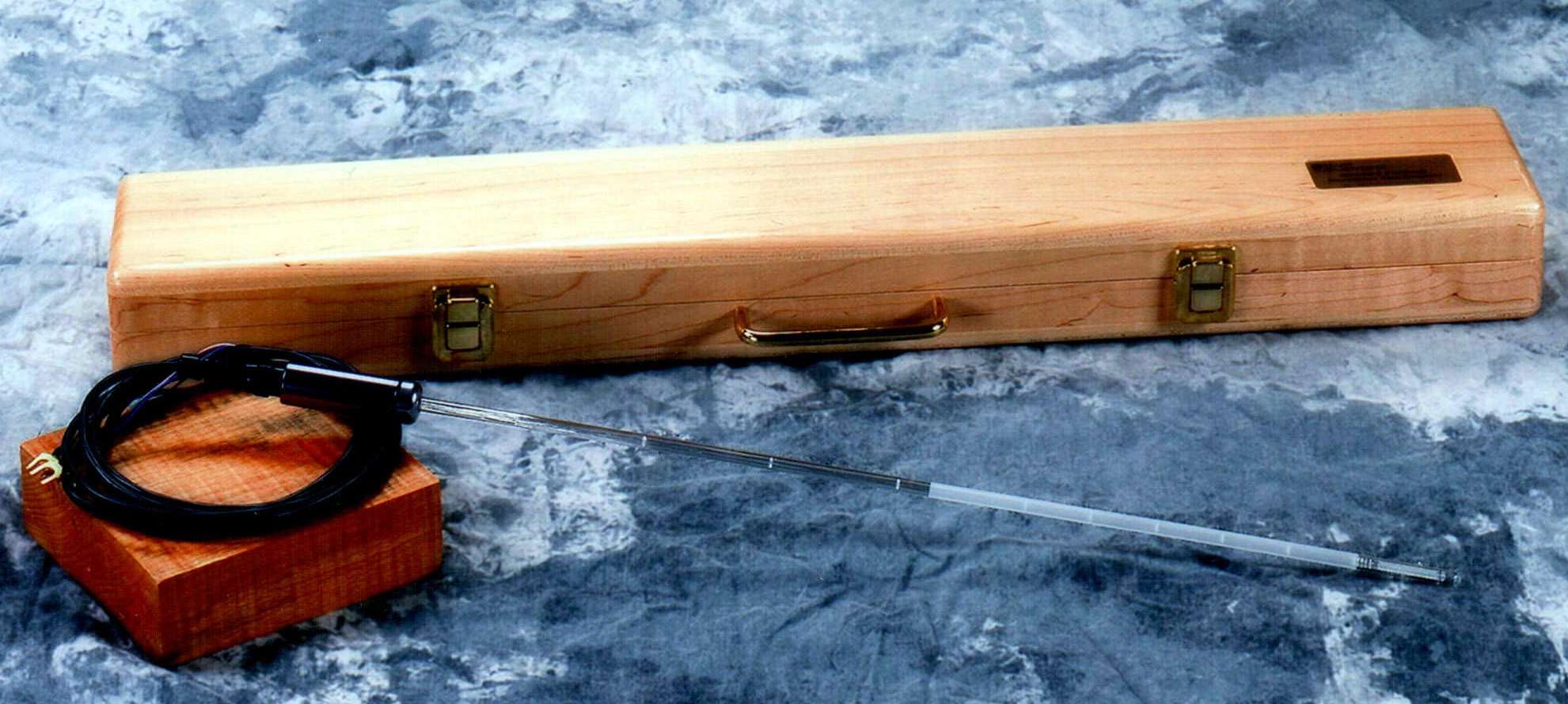

Nov 14, 2002 Model 5698 Working Standard Platinum Resistance Thermometer features strain-free 25 ohm pure platinum sensor. Enclosed in 19 in. quartz glass sheath, unit covers temperatures from -200 to +661°C. Long-term drift is specified at ±0.006°C after 100 hr at maximum temperature. Calibration options include both fixed-point and comparison calibrations.

Ogden Mfg. Co.    Arlington Heights, IL 60005
Nov 14, 2002 Model ETR-9040 protects equipment, materials, and personnel from over-temperature process conditions. True back-up system can be put in place when unit is used with dedicated sensor and contactor. Universal Input allows product to be used in various temperature, pressure, flow, and control applications. Optional port provides additional functions: programmable alarm, RS-485 communications, DC power supply, limit annunciator, or event input.

TrynEx International / SweepEx Division    Warren, MI 48089

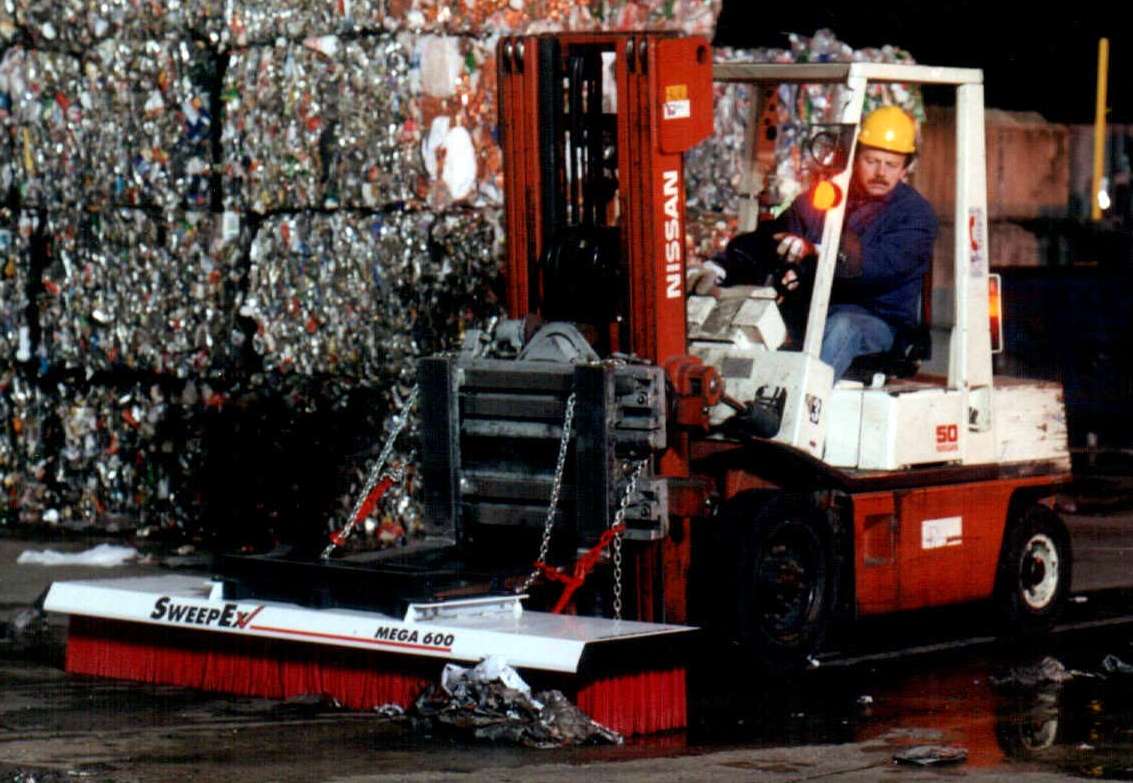

Nov 14, 2002 Able to manually angle broom, pivot mount attaches to most standard forklift tines. Suitable when sweeping long spans or excessive amounts of debris, unit clears paths for service vehicles and personnel, resulting in uniformly placed piles of debris. Broom angling is accomplished via 1 drop pin. Pivot mount works with all SweepEx Mega Series broom models. Mega-Series brooms are available in 48, 60, and 72 in. lengths. Extensions are also available.

Labelmate    Henderson, NV 89014-2002
Nov 14, 2002 Suited for production applications, Model LD-100S uses foot-switch controlled advance mechanism. If label can be seen by operator, LD-100S correctly dispenses it. Variable speed control advances labels according to operator's desired speed. Supply roll of labels, up to 4 in. wide, slides onto built-in Roll Holder, which accepts up to 8½ in. roll size and core diameters from 1½ to 3 in. Unit's heavy-duty design incorporates heavy-gauge steel construction.

Molded Fiber Glass Tray Co., A Div. Of Molded Fiber Glass Companies    Linesville, PA 16424
Nov 14, 2002 System includes cart, trays, and inlays as turnkey unit. Grounding system enables cart to handle electrostatic discharge (ESD) sensitive PC boards and assemblies. Cart also handles 20 ElastoStatMat trays, which have permanent static dissipative elastomer inlay material to cushion and protect ESD sensitive PDC boards and assemblies. Trays meet or exceed ANSI/ESD S2020 standard

QTC Gears - Quality Transmission Components    Garden City Park, NY 11040
Nov 14, 2002 Designed to fit shafts from 4-10 mm in dia, Series SUSL Module 0.5, 0.8, and 1.0 spur gears conform to JIS B 1702 Grade 4 standards. With face widths from 5-8 mm, 20° pressure angle precision gears are made of 303 stainless steel. Fairloc® integral hub fastener eliminates marred shafts and is suitable for when phase adjustment, timing, position adjustment, and frequent removal of components are factors. Available sizes range from 14-120 teeth.

Allegro MicroSystems Inc.    Worcester, MA 01615

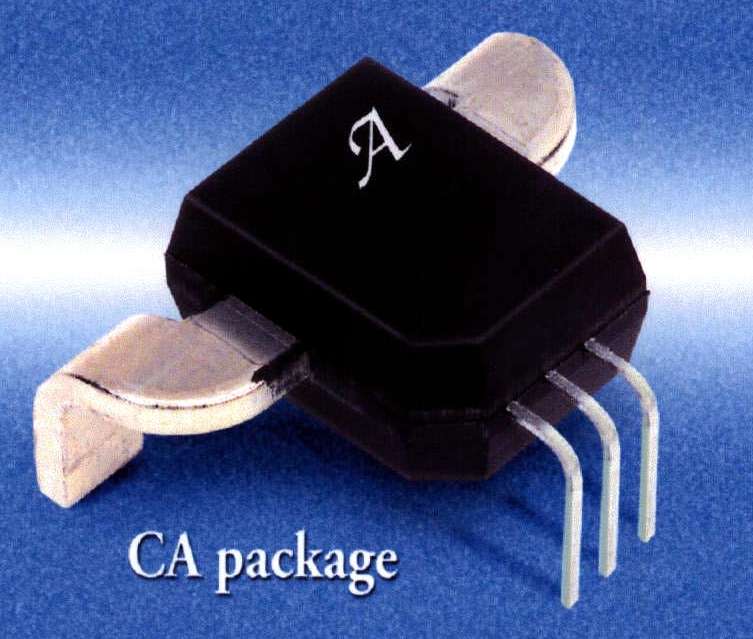

Nov 14, 2002 Fully integrated Model ACS750ECA-100 ±100 A current sensor comes in 10 x 13 x 7 mm package, which consists of 2 primary power conductive leads that allow current to pass through ferrite core over sensing element of Hall IC. Bandwidth is 13 KHz and internal resistance is less than 1 mOhm. Power leads are electrically isolated from sensing circuitry, allowing use in applications where isolation is required without adding opto-isolators.

Scapa North America    Windsor, CT 06095
Nov 14, 2002 Double-coated, hand tearable Dublfilm® S837TA has acrylic pressure-sensitive adhesive that bonds foams to irregular surfaces. With high tack and peel, 4-mil acrylic adhesive film is formulated for NVH applications and bonds to EPDM rubbers. Product also bonds to low surface energy plastics as well as ether and ester foams. It is resistant to environmental extremes.

Ansys, Inc.    Canonsburg, PA 15317
Nov 14, 2002 ANSYS® v7.0 Workbench Environment supports 3Dconnexion's SpaceBall, SpaceMouse, and CadMan controllers. Simulation software package gives product designers and engineers power to conceptualize, design, and validate ideas on desktop. Users can explore, manipulate, and navigate 3D objects to improve design comprehension. Additionally, users can detect design errors early on by moving and viewing designs intuitively, while simultaneously performing analysis with simulation tools.
