Alemite Corporation    Charlotte, NC 28226 3515
Dec 12, 2002 Electronic meters, with ergonomic trigger design, dispense motor oil, gear oil, and pure antifreeze. Furnished with flexible hose and manual, non-drip nozzle, shock-resistant meters provide digital readout of totals. Additional offerings include field-replaceable lithium battery and integral 30-mesh strainer. Quart models are designated Part No. 3651; liter models are Part No. 3651-A.

Meller Optics, Inc.    Providence, RI 02940

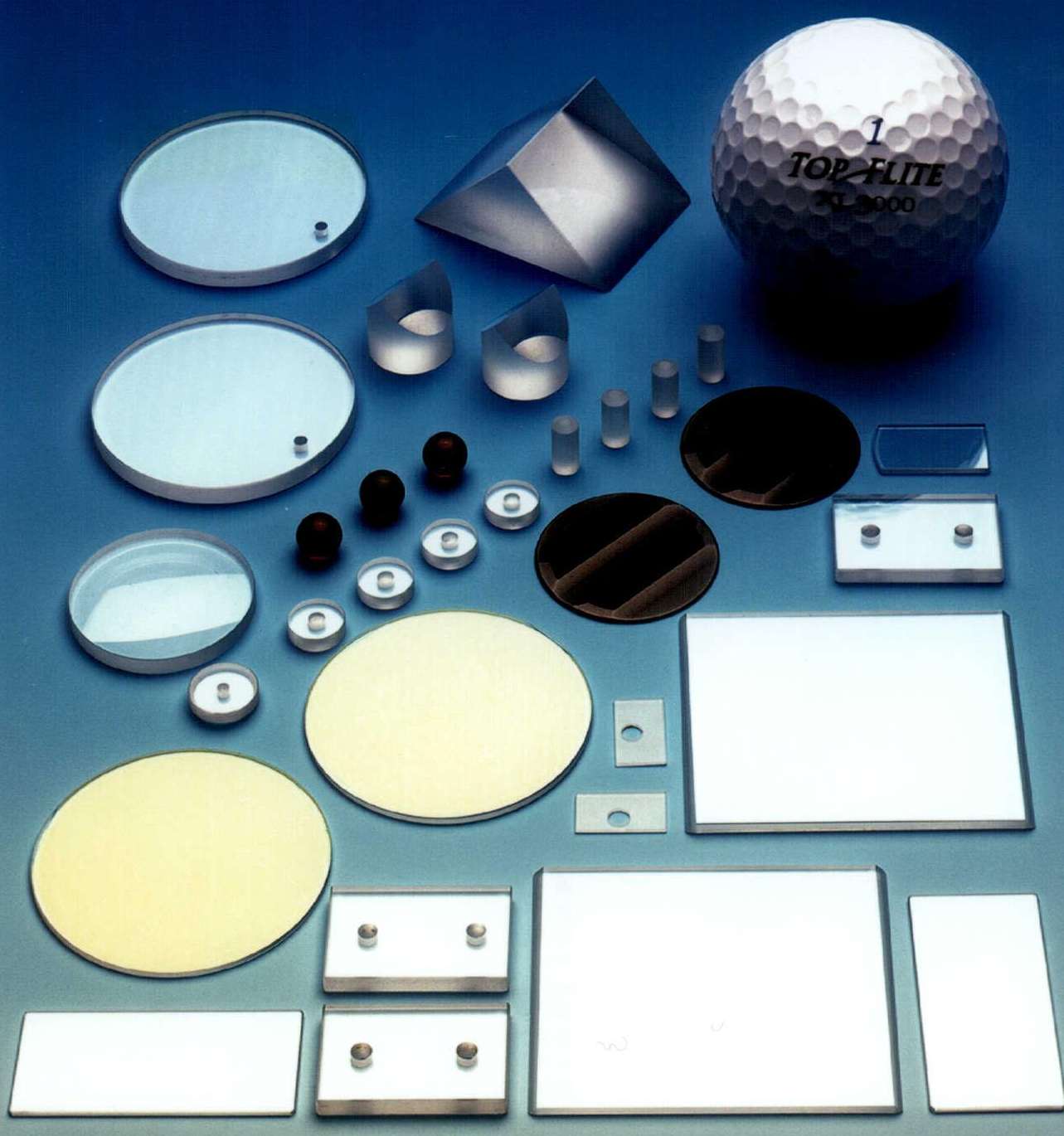

Dec 12, 2002 Custom optics include balls, plano convex and plano concave lenses and windows, rectangles, squares, and cones. Design characteristics include steps, wedges, precision holes, and radical curves. Optics exhibit Moh 9 hardness, diameter tolerances to ±0.001 in., and thickness tolerances to ±0.0005 in. With surface finishes to 10–5 scratch-dig, products have better than 2 arc-sec. in./in. parallelism. Units transmit UV to IR with up to 99% transmission.

Advanced Orientation Systems Inc.    Linden, NJ 07036
Dec 12, 2002 EZ-COMPASS-PROBE offers 3 axes and tilt and temperature compensation. Magnetometer compass measures 8.3 in. and has 1.25 in. diameter. Waterproof probe transmits heading, pitch, roll, magnetic field, and temperature over RS232 or RS422 ports. Compass measures tilt angles up to ±75 arc-deg and includes hard and soft iron calibrations. Applications include directional rock drilling, antenna monitoring, logging, and bore hole profiling.

LEDtronics, Inc.    Torrance, CA 90505

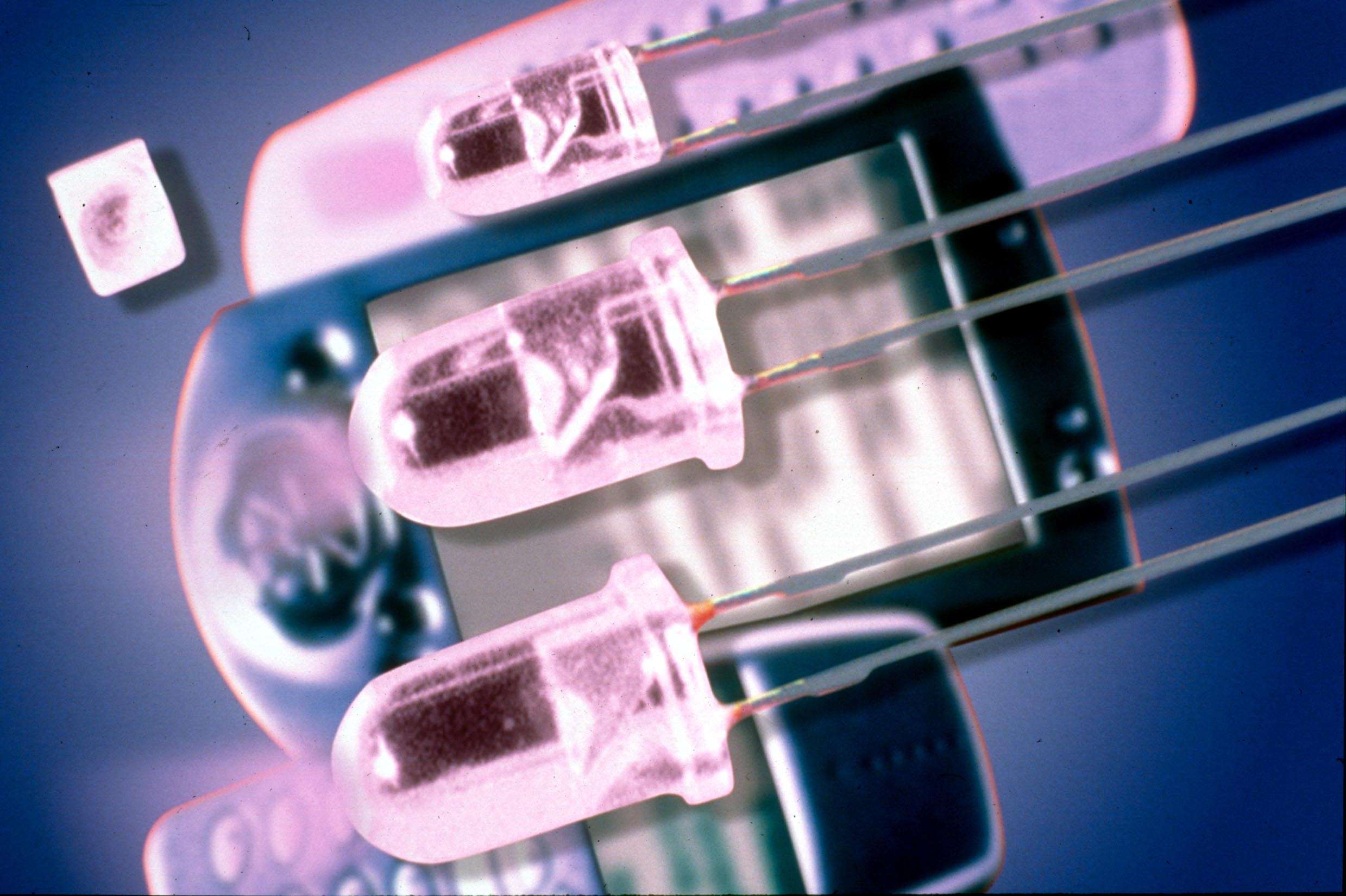

Dec 12, 2002 Infrared Discrete LEDs use semiconductor compounds to produce infrared emissions in wavelengths of 550, 880, and 940 nm. Sizes are T1 (3 mm), T1-3/4 (5 mm), and SMT (3.4 x 8 mm). T1 and T1-3/4 LEDs have strong leads that hold up to stress of wire-wrap and through-hole applications. SMT model is packaged in plastic housing for miniature electronic devices. Angle of emission is 18° for T1 model and 120° for SMT model. T1-3/4 LEDs offer 40° medium and 20° standard angles.

Clark    Hudson, MA 01749
Dec 12, 2002 Model MA2590-9 Universal Portable Datalogger has 100,000-measurement memory, which is expandable up to 25 million measurements. Instrument time and date stamps each logged measurement and can apply 6 digit ID tags as well. Thumbwheel and 5 buttons manage all programming and device functions. Backlit LCD dot-matrix display allows for viewing of multiple measured values simultaneously or for graphical displays of measured values.

Rabbit Semiconductor    Davis, CA 95616
Dec 12, 2002 Powered by Rabbit 3000 microprocessor, Model RCM3400, 8-bit core module operates at 3.3 V while running at 29.4 MHz. It is available in models with 512 or 265 K Flash/SRAM. Unit is equipped with quadrature decoder, PWM outputs, and pulse capture capabilities. Its two, 34-pin connection headers provide 47 digital I/O shared with 5 serial ports. Measuring 1.37 x 1.16 x 0.31 in., product mounts directly on user-designed motherboard and interfaces with CMOS-compatible digital devices.

Retsch, Inc.    Irvine, CA 92614

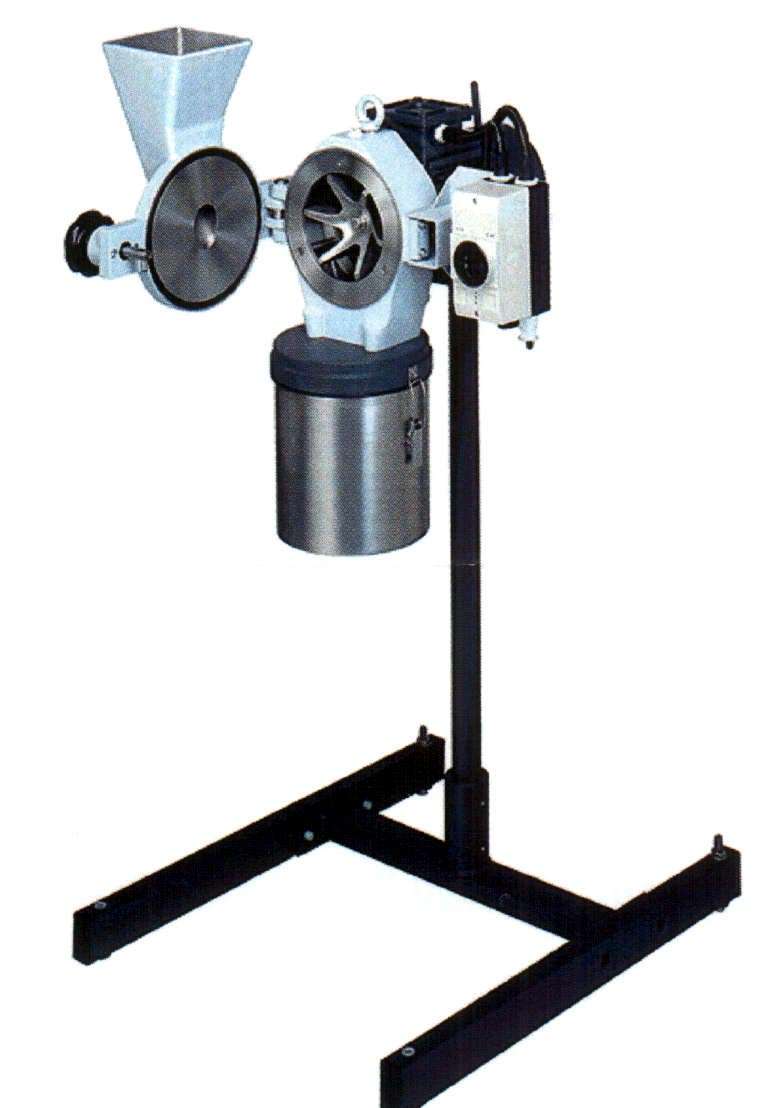

Dec 12, 2002 Model SR 300 processes materials with feed sizes up to 15 mm to fineness below 80 micron. Batch output is up to 30 L or 360 kg/hr in continuous mode. Mill achieves circumferential speed of 18,000 rpm. Circular screens, with hole diameters from 0.08–10 mm, determine final fineness of sample. Metal conidur filter provides for convenient handling. All parts in contact with sample are made of stainless steel. Applications include chemical, agricultural, pharmaceutical, and mineral.

Weiler Corporation    Cresco, PA 18326 0149

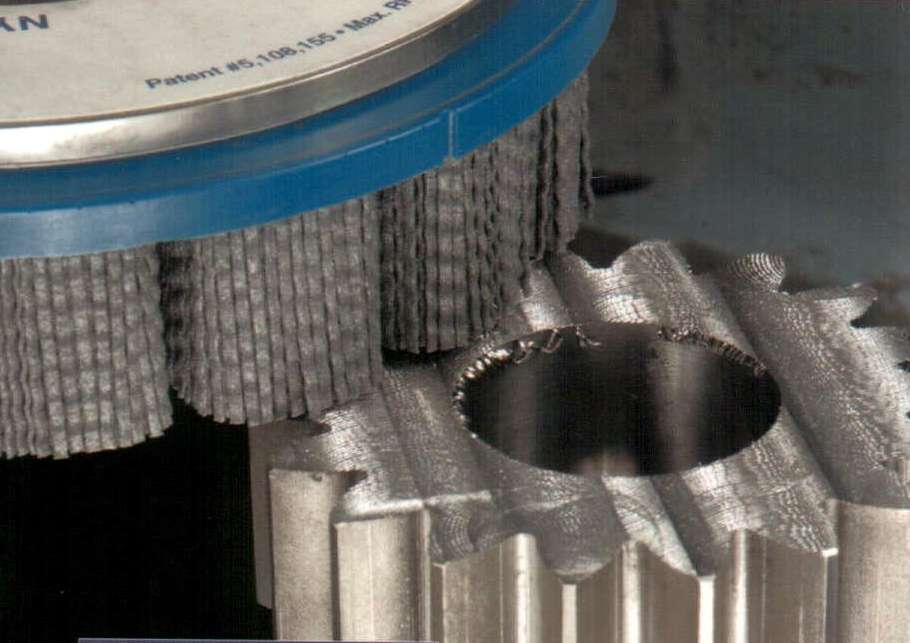

Dec 12, 2002 Burr-Rxâ„¢ abrasive nylon disc brushes are more aggressive than conventional nylon brushes, allowing faster feed rate. They remove large burrs without altering part dimensions. Brushes increase productivity, reduce work-in-process inventory, and improve part quality and consistency.

Dwyer Instruments, Inc.    Michigan City, IN 46361

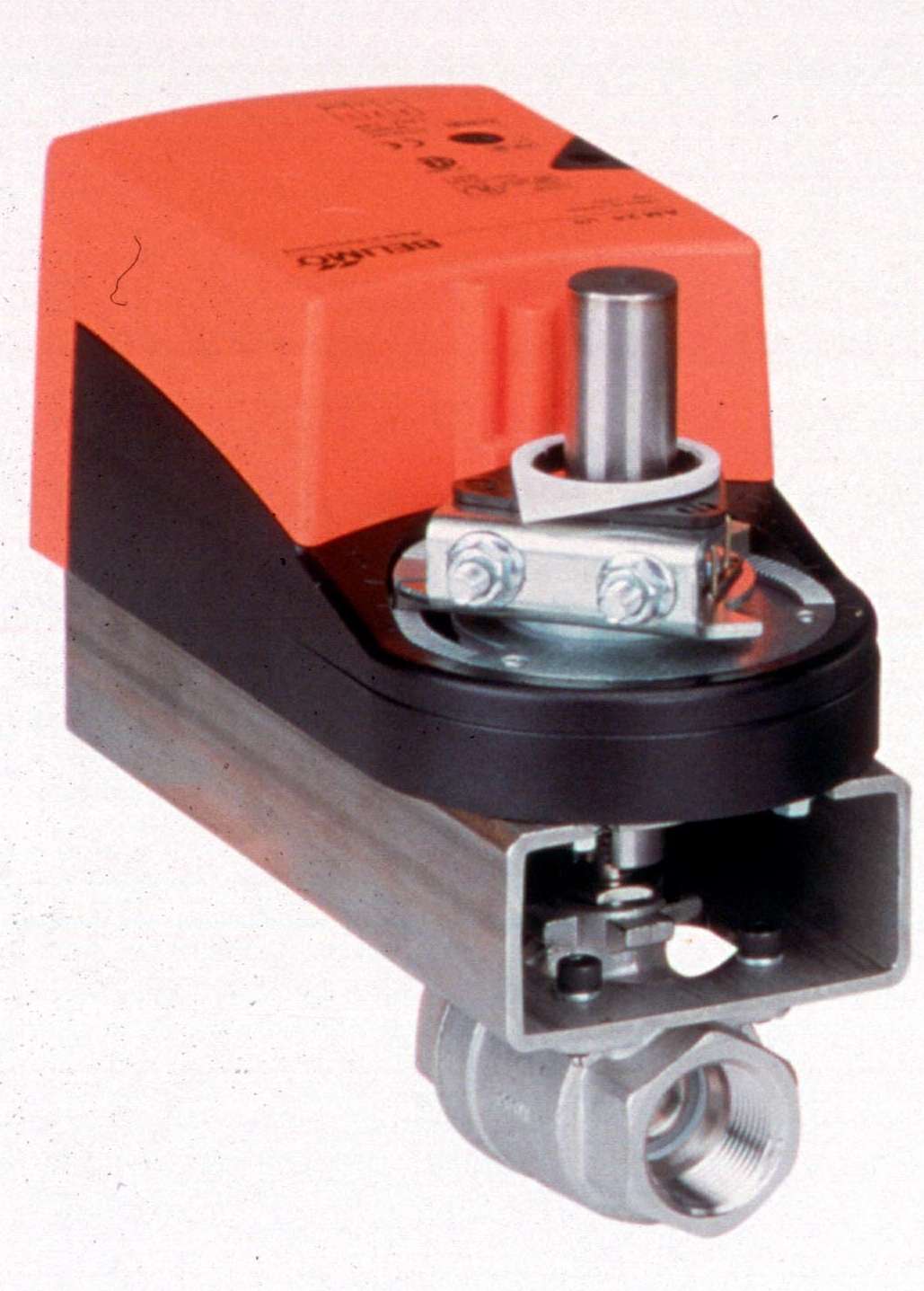

Dec 12, 2002 Series BV2L two-piece, electric actuated ball valves are made from 316 stainless steel and Teflon® for corrosion resistance. They offer bubble tight shutoff to 1,000 psi and temperature range from -20 to +450°F. Full port design allows maximum Cv with minimal pressure drop. Electric actuators are offered in 24 Vac/dc or 120 Vac. Spring return models return valve to fail-safe position upon loss of power and return to closed position upon failure.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Dec 12, 2002 Model AZ770 is offered in SPST and SPDT configurations. It has 5 A, 250 Vac, 100,000 cycle UL rating; comes standard with Class B insulation; and due to 8 mm creepage distance, has high dielectric strength of 5000 Vrms from contact to coil. Sensitive 200 mW coil is available with gold-plated contacts and epoxy-sealed cover. Relay helps reduce field failures of sensitive control boards due to lightning surges.

PCB Piezotronics Inc.    Depew, NY 14043 2495

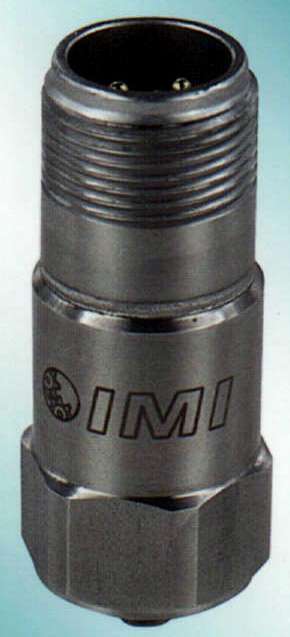

Dec 12, 2002 Miniature Model 603C00 offers IP68 housing, 2-pin, MIL-style connector, electrical case isolation, and RFI, EMI, and mis-wiring protection. It provides 10 mV/g output signal, 500 g measurement range, and 10 kHz frequency range. Applications include imbalance, bearing monitoring, and gear-mesh studies and diagnostics on rotating machinery, spindles, and compressors. Versions with polyurethane, Teflon, and armored integral cables are available.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Dec 12, 2002 Series 5302 utilizes strain-gage sensing technology and wireless, digital, signal telemetry to transmit measurement signals to adjacent receiver. With compact design and RF interference immunity, series exhibits low sensitivity to axial thrust and bending moments. Sensor is offered in 7 in. dia flange with choice of capacities from 1000 lb-in. to 6200 lb-in.

Frigoscandia Equipment    Redmond, WA 98052
Dec 12, 2002 M-series GYRoCOMPACT® modular spiral freezers are based on self-stacking belt that eliminates bulky and difficult to clean support structures. Freezer has thoroughly cleanable freezing zone. Increased access to evaporators and other areas inside freezer housing make thorough cleaning fast, easy, and economical.

Del-Tron Precision Inc.    Bethel, CT 06801
Dec 12, 2002 Model LE2-X features 2.060 x 2.500 in. aluminum actuator base that uses E-2 AC series ball slide assembly with 0.50 in. of travel. Anti-creep retainer system maintains alignment. Standard 0.188 in. diameter, 0.050 in. lead leadscrew drives slide from side. Anti-backlash nut is spring-loaded to assure positive movement when changing direction. Actuator offers straight-line accuracy of 0.0005 in. per in., 0.0002 in. repeatability, and speeds up to 20 rps.

Lincoln    St. Louis, MO 63120 1578
Dec 12, 2002 Model LFC 3000 Fluid Inventory Control and Management System simultaneously controls, dispenses, and monitors up to 64 locations using modular components. It creates reports by product user, customer, or location and monitors stock levels with standard software. Supervisory personnel can assign degrees of system access and control with 3 security code levels. Enhanced setup, control, and report capabilities are available with optional PC interface package.

Lincoln    St. Louis, MO 63120 1578
Dec 12, 2002 PowerLuber Models 1242 and 1244 are 12 V cordless grease guns featuring pressure relief valve that allows grease to escape in thin strand when blocked fitting is encountered, alerting operator that fitting is not accepting grease. Valve also prevents guns from accidental overload. Both models have CE-approved assemblies and wiring design. Battery clips ensure that battery remains secure in harsh conditions.

Lincoln    St. Louis, MO 63120 1578
Dec 12, 2002 Self-priming, automatic PowerLuber Model 1163 cycles continuously provided that its trigger is pulled. Products includes air motor and air operating range of 40–150 psi. Design incorporates powder paint exterior, chrome-plated grease container, and high-pressure flexible hose. CE certified, unit is suited for heavy equipment, fleet, auto/truck dealership, and agricultural applications.

Lincoln    St. Louis, MO 63120 1578
Dec 12, 2002 Model 905 Electronic Metering Control Valve dispenses motor oil, ATF, gear lubricant, antifreeze and hydraulic fluid in pints, quarts, liters, or gallons. Automatic, non-drip nozzle contains manual open/close feature preventing accidental release of fluid when handling or storing meter. Digital display allows for accurate bulk dispensing. Valve includes inline swivel, adjustable rigid extension, nozzle, and inline filter.

Stedham Electronics Corp.    Reno, NV 89502
Dec 12, 2002 Housed in Delrin for durability, Capacitive Proximity Sensors have standard ½ in. NPT threads to fit into tanks and fittings without requiring sensor well. Available in all DC and AC outputs, units feature adjustable sensitivity, green Power-On LED and yellow Signal LED. DC version is protected against short circuit, reverse polarity, and overload.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Dec 12, 2002 Platform model GT7700B accommodates 8 ISA and 4 PCI or cPCI slots in 1 chassis. Able to be expanded to accommodate up to 38 PC cards using expansion chassis, design accepts PC plug-in card from any vendor using carrier cards. Product is provided with Pentium CPU controller and included SBC, floppy, hard disk, SVGA interface, two RS-232 ports, parallel port, and USB port. Employing 2 power supplies, product provides 3 open slots for I/O interfaces.
