Pomona Electronics    Pomona, CA 91766 3835

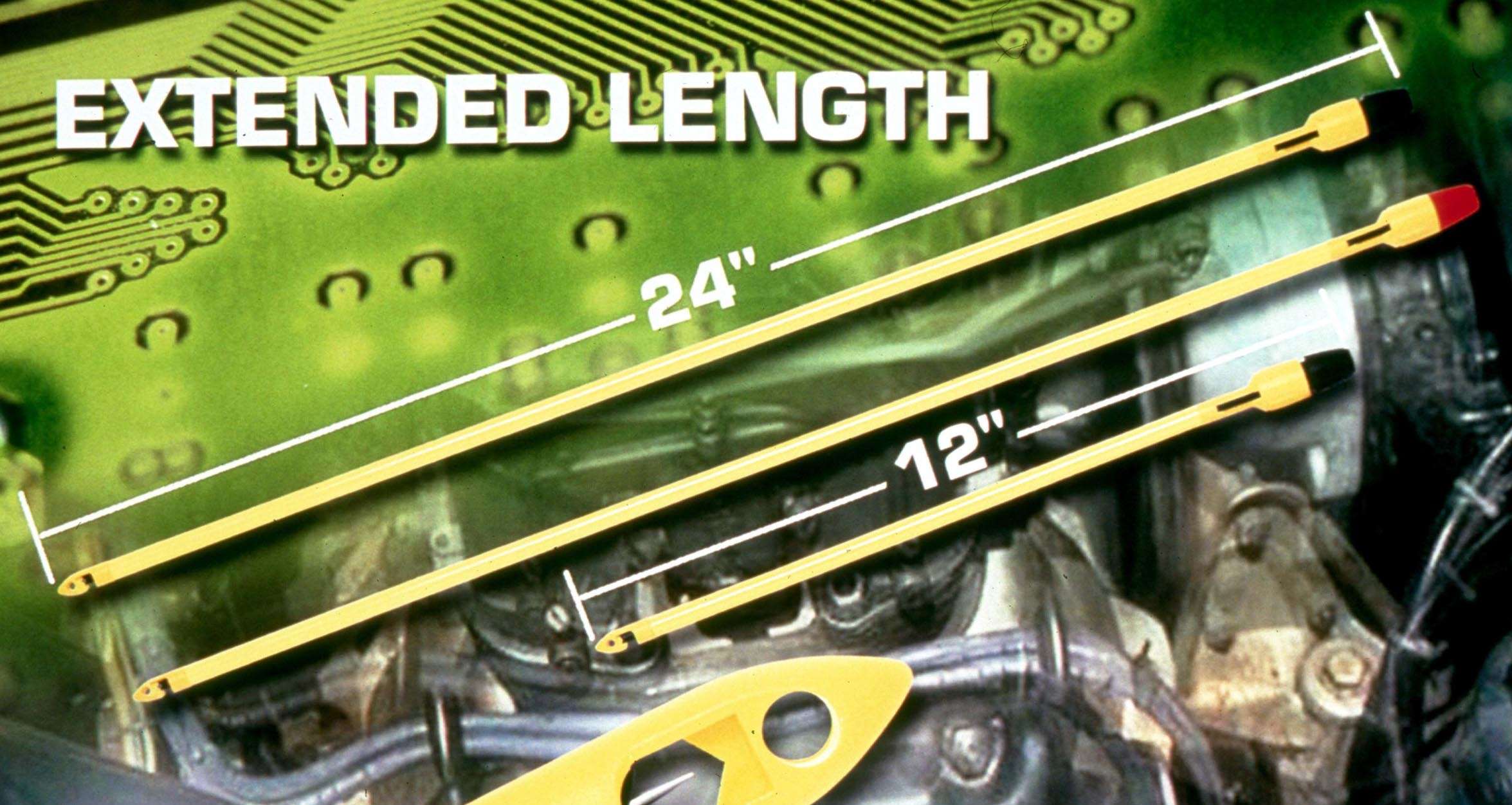

Nov 18, 2002 Offered in 12 and 24 in. lengths, Model 6580 has heat/burn-resistant Teflon™ tubing. Suitable for measurement applications up to 60 Vdc, test probe incorporates spring-loaded wire locator clamp and screw-in point. Piercing probe allows user to provide pressure needed to penetrate hard or soft insulation on wire from 0.060–0.200 in. dia. Hardened steel piercing point is removable for sharpening and rotating banana jack prevents test lead from twisting.

TE Connectivity Ltd.    Berwyn, PA 19312

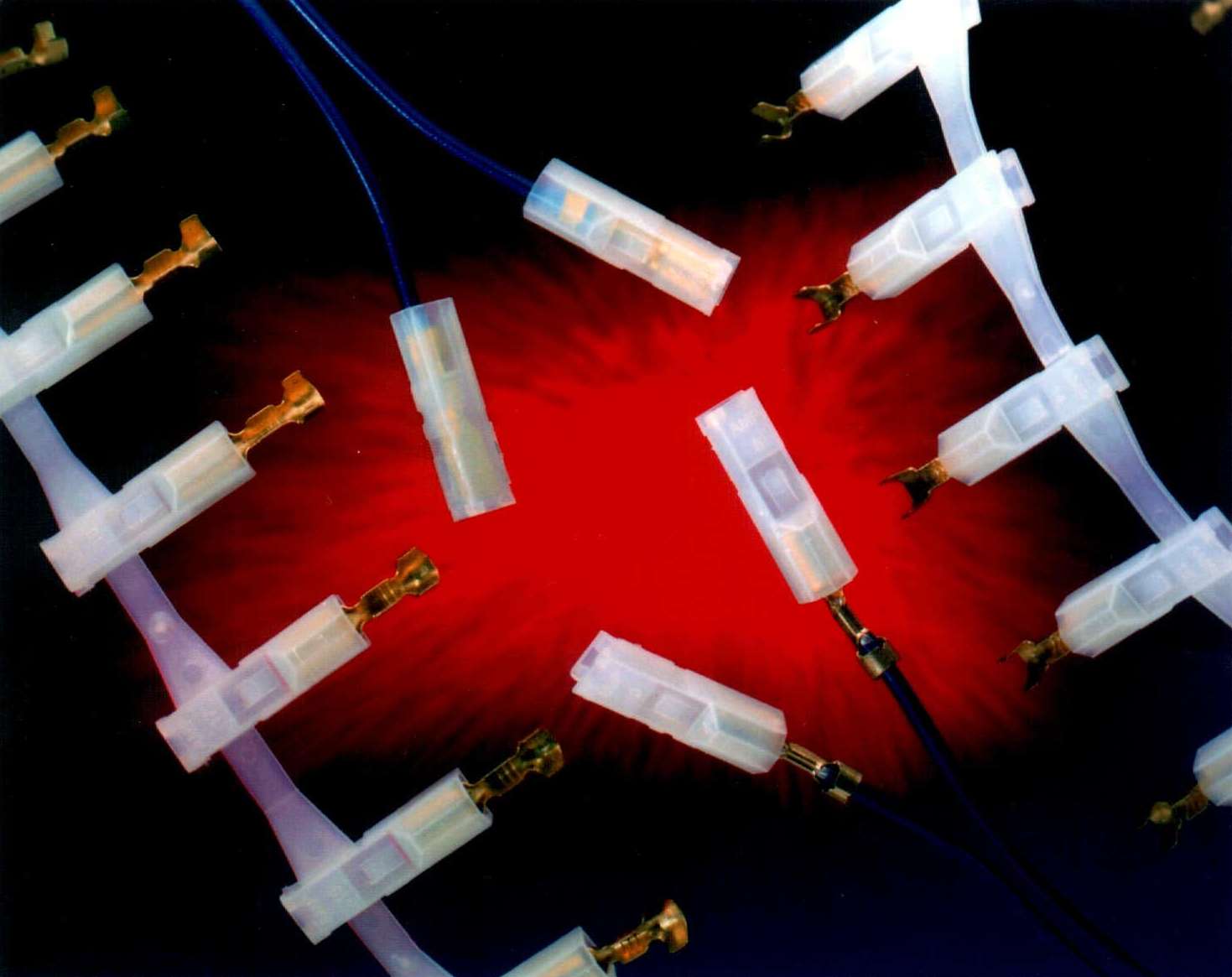

Nov 18, 2002 Fully-insulated Ultra-Pod .110 Series FASTON Receptacle, for .110 tabs at .020 and .032 thickness, uses F-crimp wire termination. It accepts 22-18 AWG wire with insulation diameters up to .120 in. Brass or tin-plated brass contacts are rated for 600 Vac and are suitable for solid or stranded wire. Housings meet UL 94V-0 or UL 94V-2 flammability requirements. Applications include household appliances, portable appliances, floor care machinery, and gaming machines.

Holophane    Granville, OH 43203
Nov 18, 2002 Illuminaire(TM) fixtures come in 5 optical designs suited for commercial, retail, or light industrial applications. Each shape is offered with plain optics or with decorative claws, caps, and mounting configuration options. Prismatic glass shapes include Egg, Tri-Egg, Crest, Tri-Crest, and Quad. Photometric distributions range from 75% downlight and 25% uplight to 10% downlight and 90% uplight. Sizes include 20 in. OD for quad model and 10½ and 16 in. OD for other shapes.

NKK Switches    Scottsdale, AZ 85260-3420

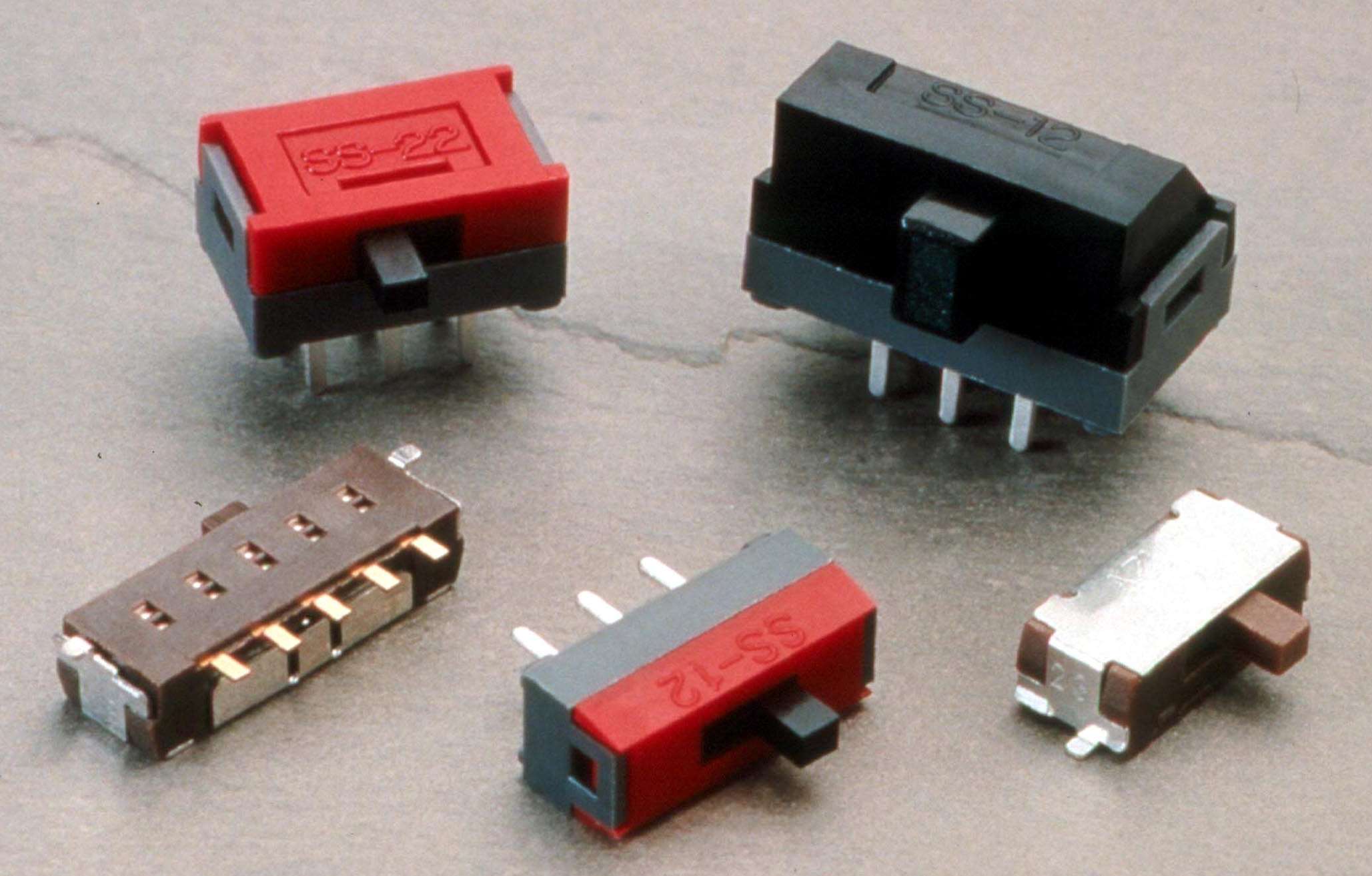

Nov 18, 2002 Series SS has max width of .354, max length of .275 in., and measure .275 in. from PCB to top. Insert-molded terminals lock out flux, solvents, and other contaminants. Through-hole models in SPDT, SP3T, and DPDT circuits come with gold or silver contacts rated 0.4 VA max @ 28 Vac/dc max and 0.1 A @ 30 Vdc, respectively. Surface-mount models, with side actuation, are available in SPDT and SP3T circuits. Through-hole mounted illuminated models are SPDT and DPDT. All are UL 94V-0 rated.

Smith & Loveless, Inc.    Lenexa, KS 66215 1234
Nov 18, 2002 Modular FAST® can be installed below ground and provides clear, odorless effluent, ready for subsurface discharge. It accommodates constant fluctuations encountered by small-flow, on-site applications. System consists of tank packed with fixed media that is totally submerged in wastewater. Influent enters system and is circulated through media in aeration tank. Zone underneath media allows sludge to settle and collect for further digestion in anaerobic environment.

Slaughter Co. LLC    Ardmore, OK 73401

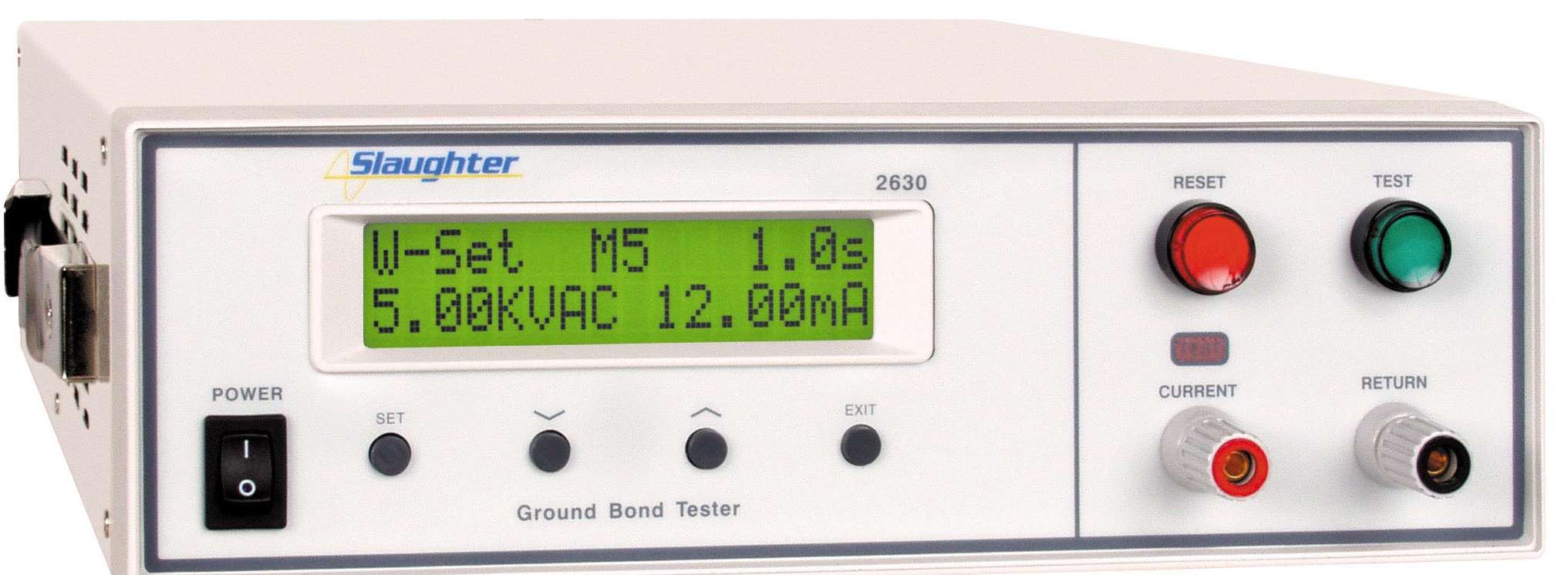

Nov 18, 2002 The 2630, 30 A ground bond tester has LCD, electronic ramp and dwell, test setup memories and remote control capabilities for safety agency testing requirements from agencies such as UL, CSA, IEC, and European Norms. Operators can view test results and remotely configure instrument with PLC relay control. Interconnection to 2900 Series hipot tester allows 2630 to perform AC and DC dielectric withstand, insulation resistance, and ground bond tests.

Viking Corp., The    Hastings, MI 49058 9706

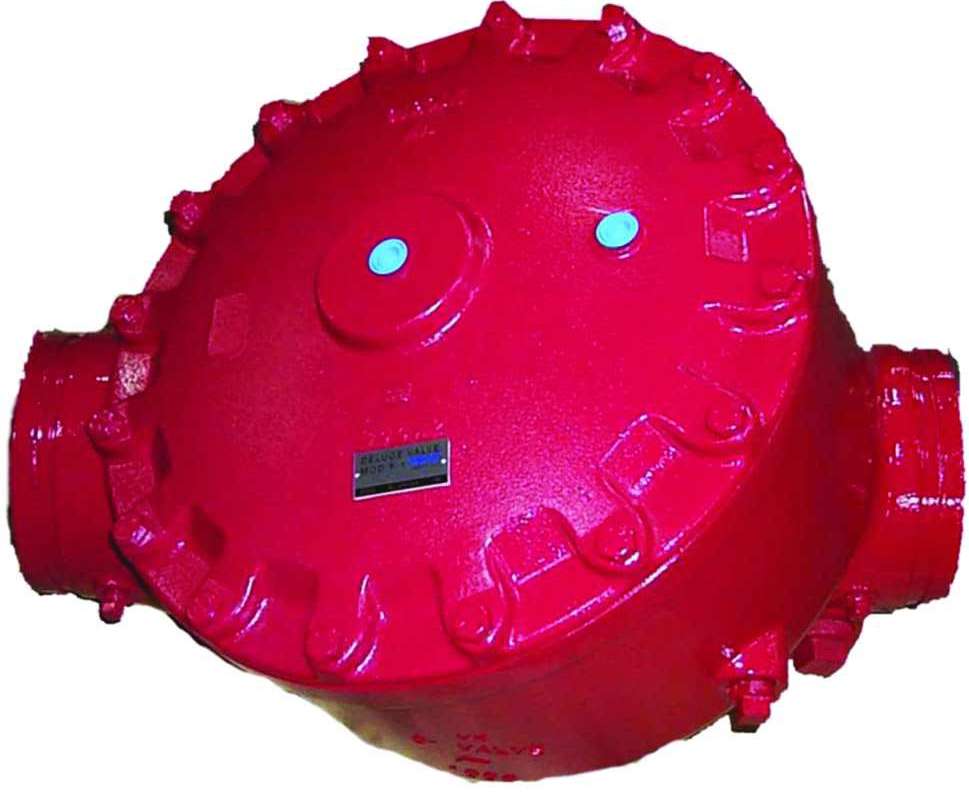

Nov 18, 2002 Straight-through deluge and flow-control valves, in 4, 6, and 8 in. sizes are UL listed and FM approved. Featuring grooved inlets and outlets, valves are compatible with company’s EZ or Conventional trim and can be installed vertically or horizontally. Corrosion-resistant, Halar-coated valves, with brass or stainless steel trim, can be retrofitted into existing straight-through systems. Model A-1 speed control assembly helps mitigate water hammer problems.

Nordson Corp., Product Assembly    Amherst, OH 44001

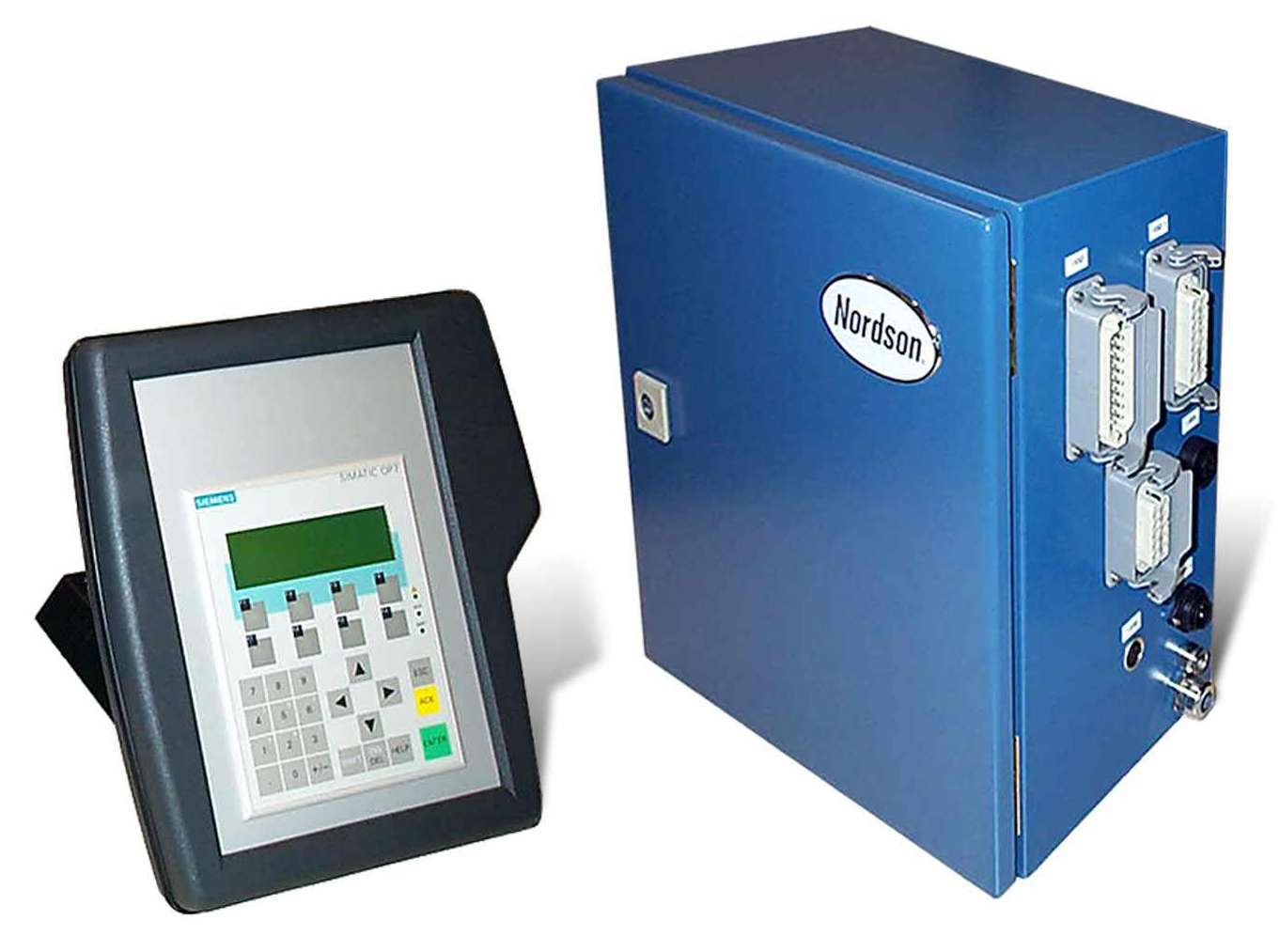

Nov 18, 2002 Model ES 10 III automatically calculates pump speed for different application weights to support production changeovers. With text display, operator interface provides direct input of application weight and width that coordinates with pump capacity and line speed information. PLC-based control system eliminates manual pump speed calculations. Unit supports manual programming for additional pumps and accommodates 2 identical pumps feeding one gun.

Macro Sensors, Div. of Howard A. Schaevitz Technologies, Inc.    Pennsauken, NJ 08110 1334

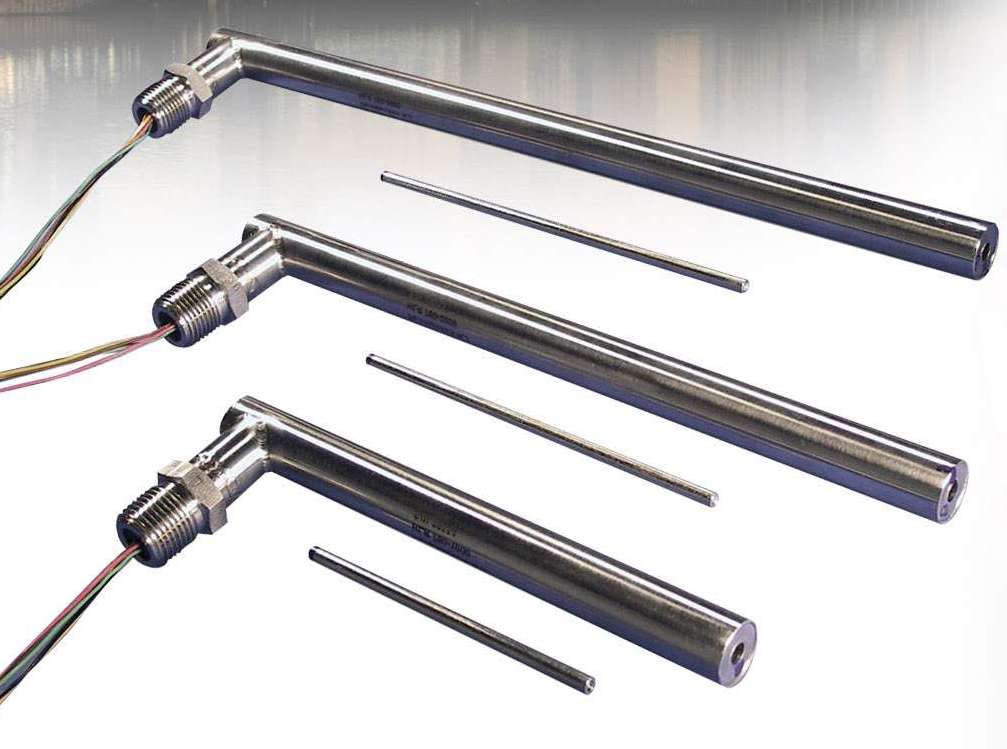

Nov 18, 2002 Series HLR 750 LVDTs are UL/ULC approved for operation in Class 1, Division 2 and Class 1, Zone 2 hazardous locations. AC-operated, ¾ in. diameter, hermetically sealed sensors offer contactless position measurement from ±1 to ±10 in. full scale. Repeatability is better than 0.01% of FS and non-linearity is less than 0.25% of full range output. Units offer through-bore design, stainless steel construction, and -65 to +300°F temperature range.

Production Support Services, Inc.    Bay City, MI 48706

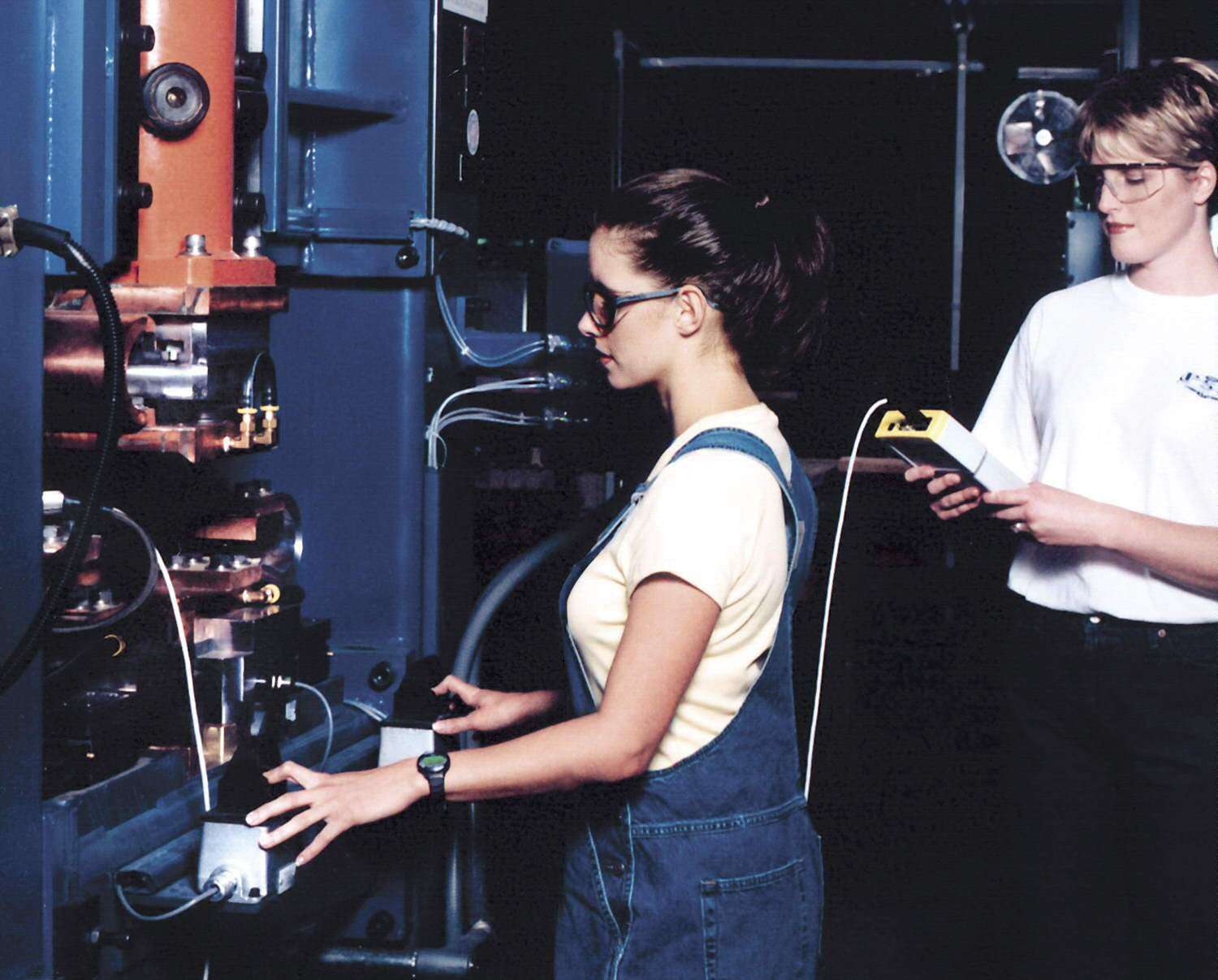

Nov 18, 2002 Model MX 321 can be used for spot testing of welding operations or can be attached to welding equipment for continuous performance monitoring. Weighing 1.5 lbs, unit can simultaneously display any 3 of the following: IRMS, IRMS Max, Weld Cycles, POS Peak, Half Cycles, NEG Peak, and Conduction Angle. It measures AC and DC with weld current detection (+2%) of: 0–5, 2–20, and 10–100 kA. Unit also provides programmable spot counter and error signaling.

Applied Data Sciences, Inc.    Dallas, TX 75381 4209

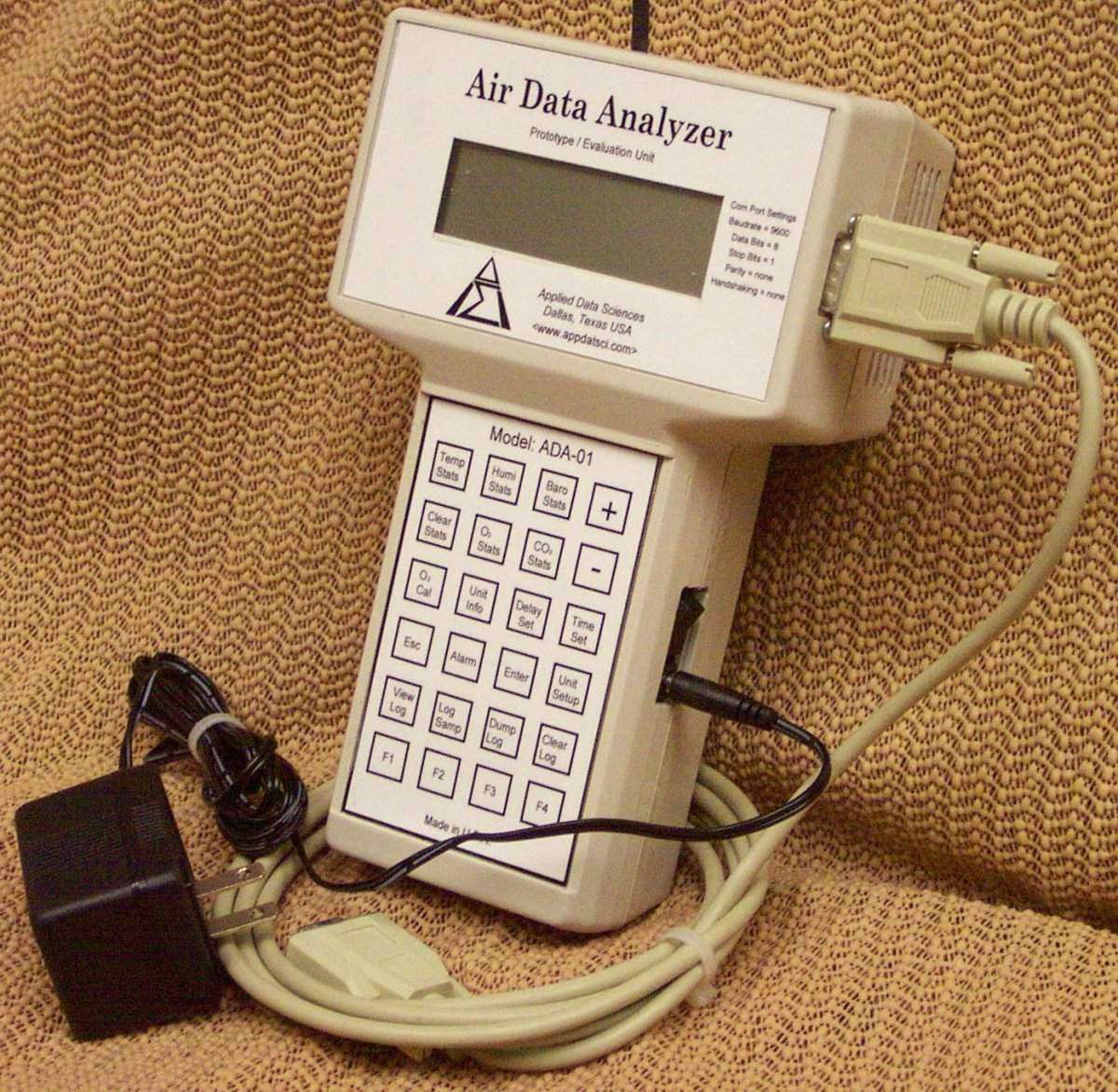

Nov 18, 2002 AIR DATA ANALYZER combines digital thermometer, hygrometer, barometer, oxygen sensor, and carbon dioxide sensor into one hand-held unit powered by two 9 V batteries. Unit saves up to 16,000 samples of all sensors in 256 Kbyte EEPROM. Auto log sample, with variable times from 1 minute to 2 hours, is user settable from setup screen. Included software allows unit to connect to desktop computer, and serial port interfaces with other devices.

Schleicher & Co. Of America, Inc.    Sanford, NC 27330

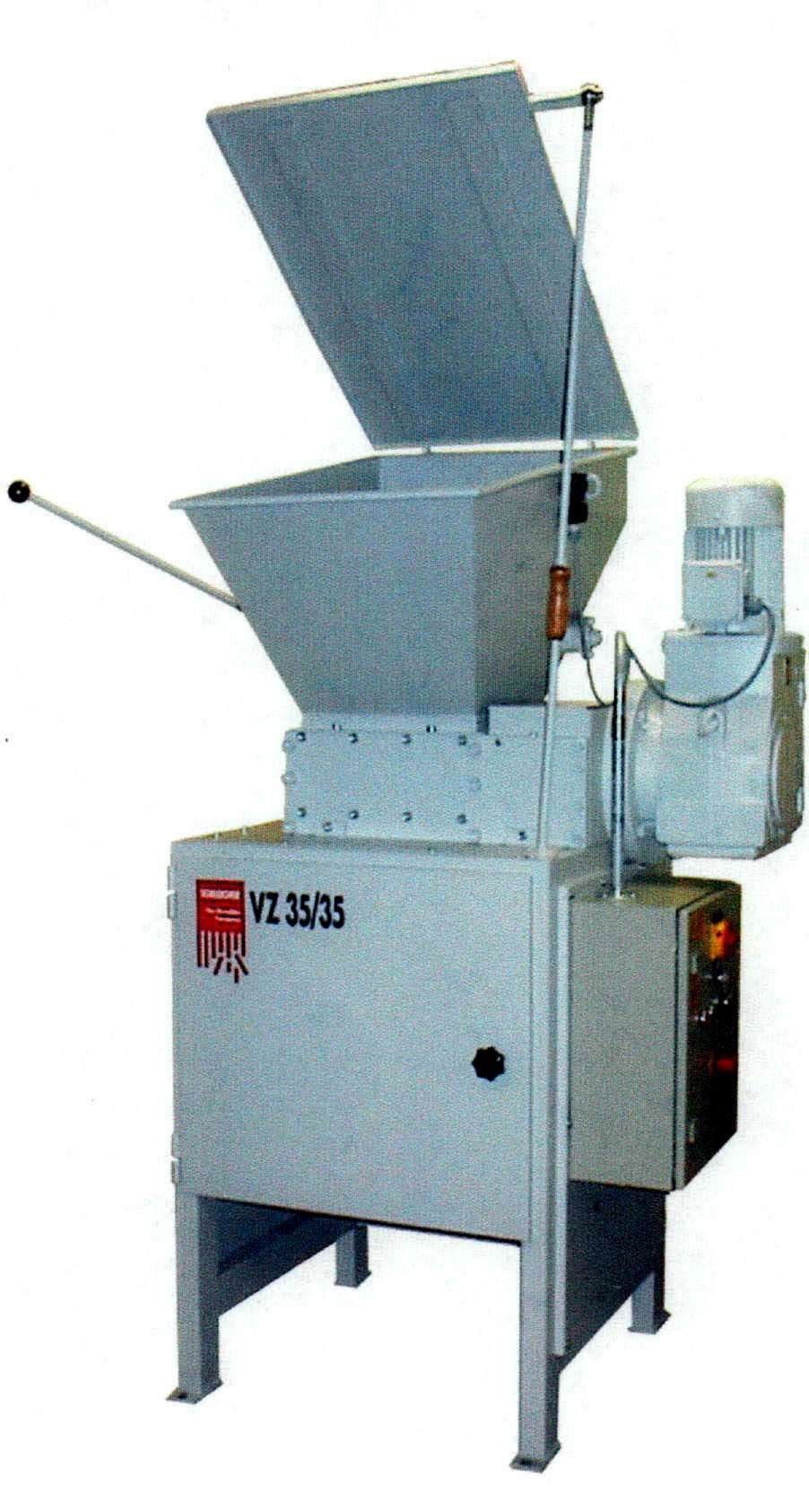

Nov 18, 2002 VZ Special series incorporates large hopper with lid, capable of accepting multiple items simultaneously. System cuts and destroys materials such as video surveillance tapes, carbon tapes, circuit boards, motherboards, CD ROMs, DAT tapes, back-up tapes, and floppy disks. Unit also cuts plastic bottles and cans.

Schleicher & Co. Of America, Inc.    Sanford, NC 27330

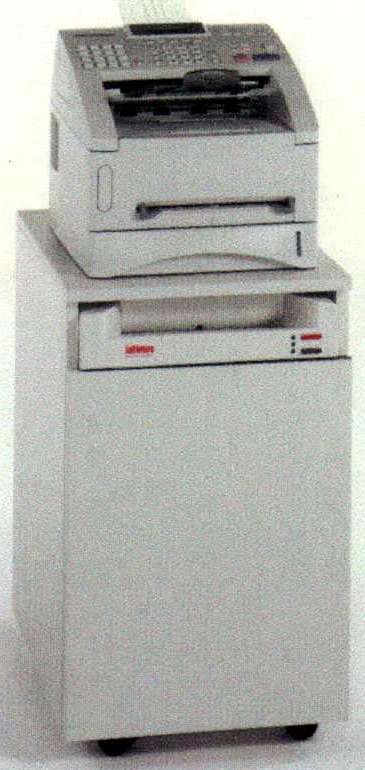

Nov 18, 2002 Model 402 integrated shredder/flat surfaced cabinet accommodates fax machines, small copiers, computer printers, and multifunctional devices. Unit provides document and media security as well as storage space for paper and supplies. Shredder handles paper items such as corporate documents, payroll reports, and checks; ID cards; paperclips/staples; and CD-ROMs.

PCB Piezotronics Inc.    Depew, NY 14043 2495

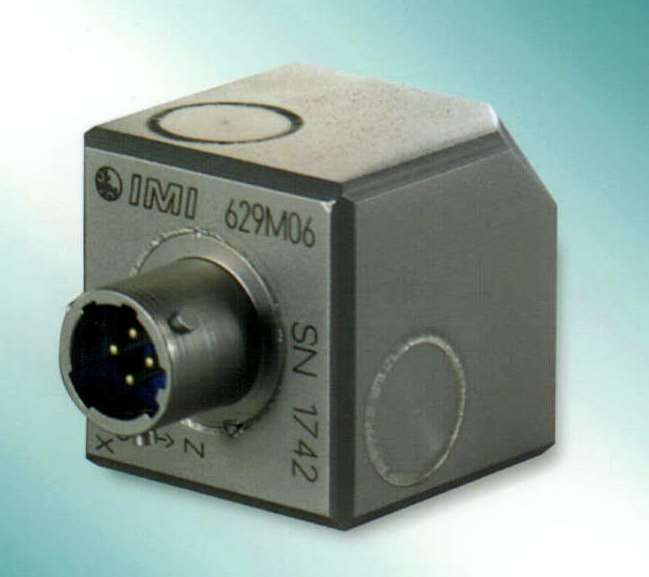

Nov 18, 2002 Model 629M06 1 1/8 in. cube allows portable data collection. Stainless steel housing, with 4-pin military style connector stands up to harsh industrial environments. Unit features 100 mV/g sensitivity, 48–720 k cpm frequency range, and 560 µg resolution. Max operating temperature is 250°F. NIST-traceable accelerometer is suitable for predictive maintenance and condition based monitoring of bearings, gears, motors, pumps, and compressors.

Mine Safety Appliances Co.    Pittsburgh, PA 15230
Nov 18, 2002 Bump Caps protect scalp by reducing exposure to abrasions and lacerations caused by bumps to the head. High-density polyethylene cap has perforated sides for cross air ventilation, and comes in 6 colors. SofCapâ„¢ Hat is a 100% cotton baseball-type cap with eyelet holes. Plastic liner helps protect against scrapes to scalp, while inner foam pad offers additional comfort.

SYSCON-PlantStar    South Bend, IN 46601

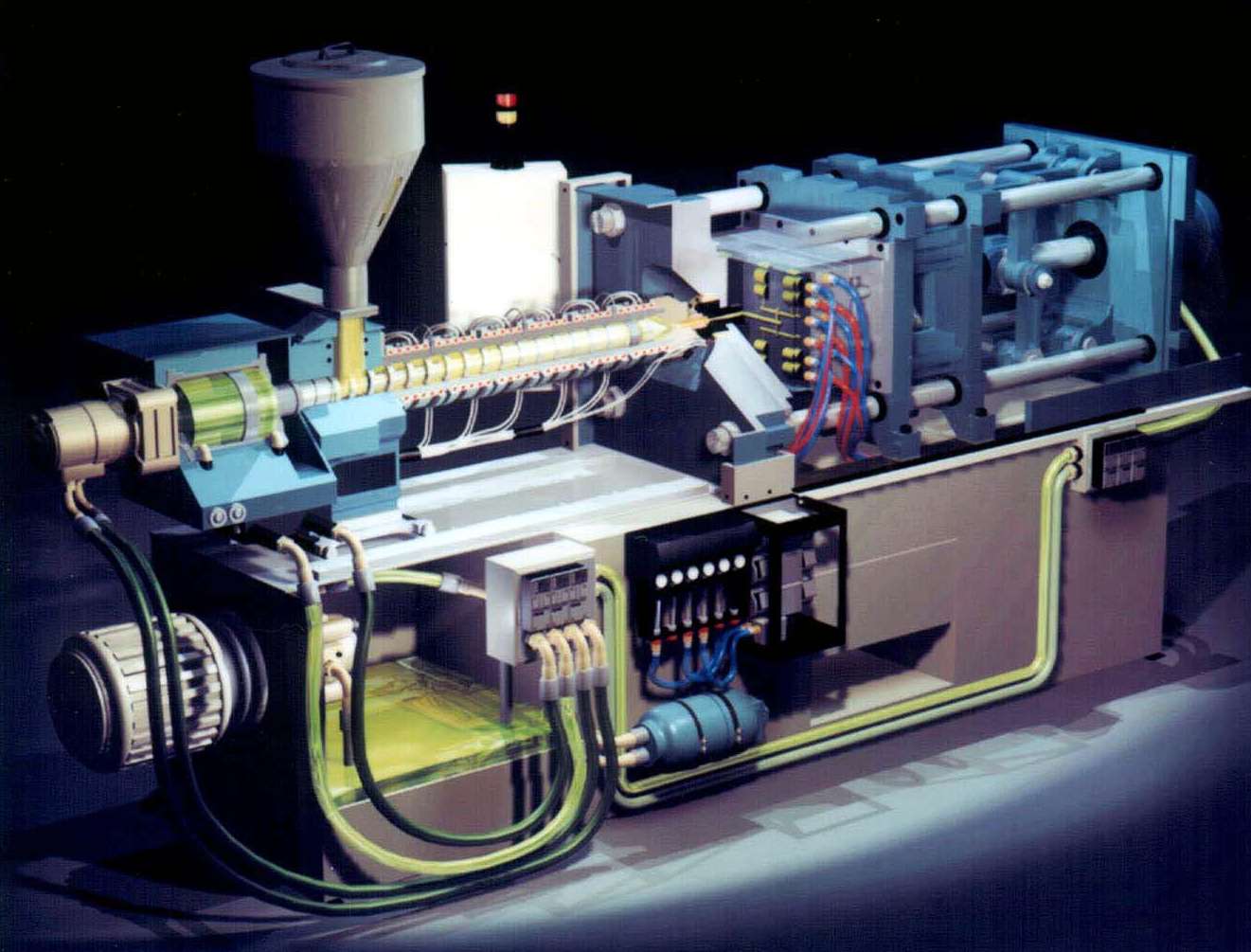

Nov 18, 2002 Tech Connect assists supervisors, operators, and set-up personnel in identifying and correcting common reasons for injection molded part defects. Touch screen menu guides user through video clips that show cause of problem and how to fix it. Tech Connect offers real-world illustrations utilizing full color video, audio, and 3-D graphic animation to describe and analyze problem.

Walls & Forms Inc.    Dallas, TX 75374

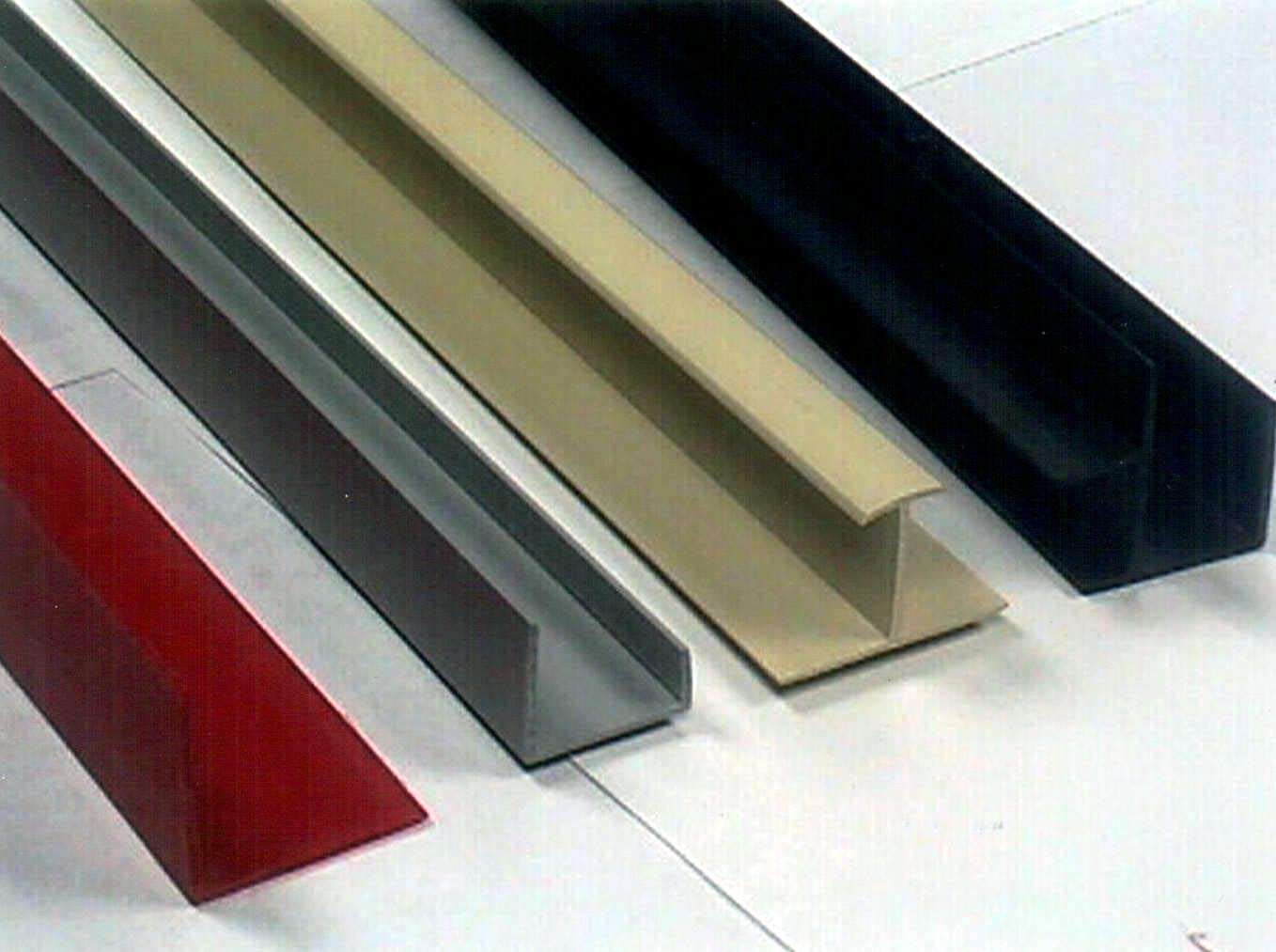

Nov 18, 2002 Divider moldings eliminate unsightly gaps in construction applications where panels are joined side by side, vertically or horizontally. J moldings finish or cover vertical or horizontal edge of panel, providing clean, consistent finished edge to slatwall. Corner moldings are for 90° inside or outside corner applications. Built-in tolerances allow for walls being out of plumb. L shape profiles and panel hinges in various sizes are available.

IOtech, Inc.    Bedford Heights, OH 44146-1833

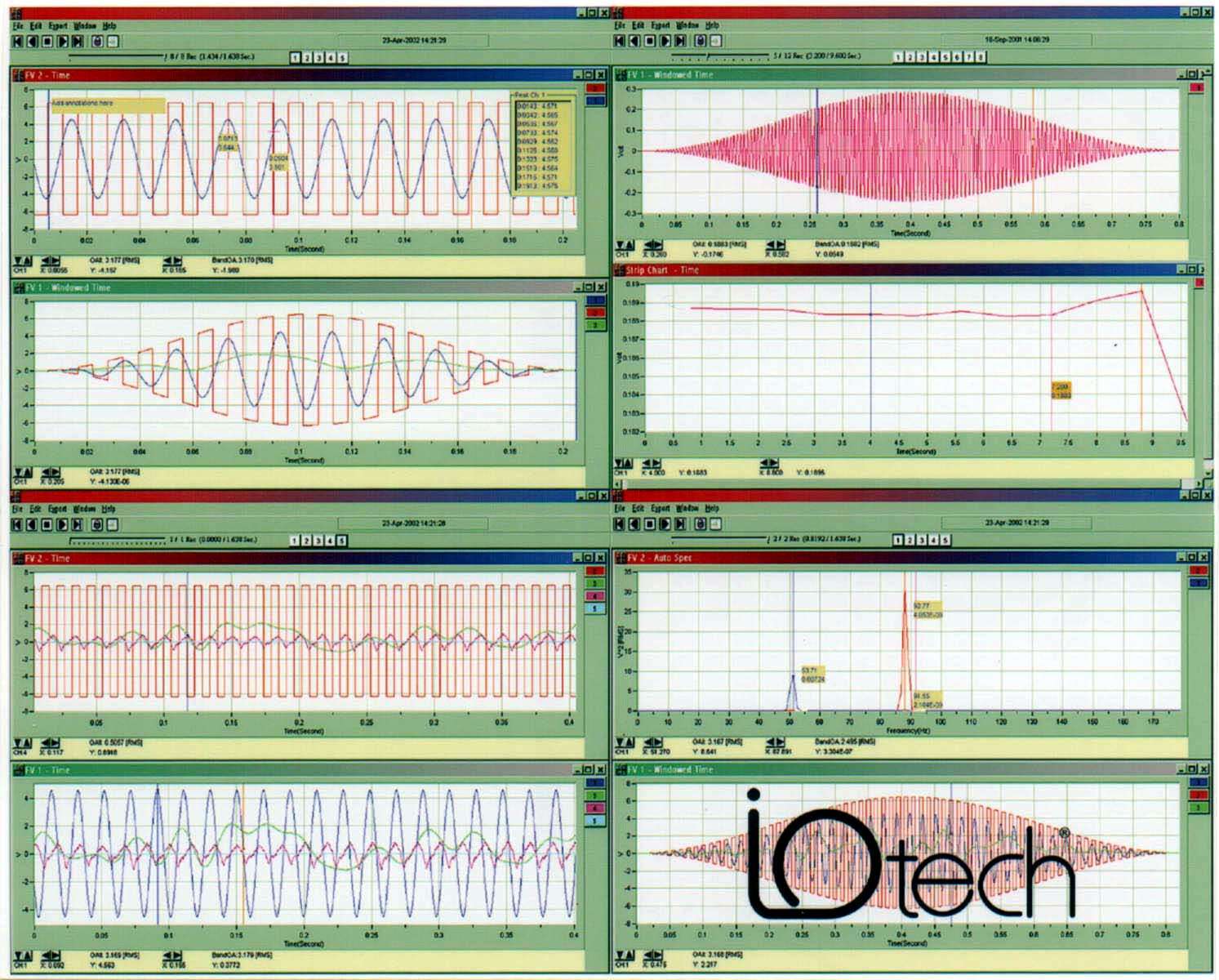

Nov 18, 2002 eZ-PostView features up to 8 time domain function windows, containing up to 16 channel traces each. eZ-TimeView adds simulated data playback, allowing user to display windows in real-time or single steps. Data strip chart displays add data scrolling, scaling, zooming, and cursor synchronization. eZ-FrequencyView adds frequency domain display and analysis. Single and cross channels are supported as well as function displays for spectrum, auto spectrum PSD, and strip chart.

Abtex Corp.    Dresden, NY 14441-0188
Nov 18, 2002 Bradex® brushes have nylon-only bristles for applications requiring less aggressive characteristics. Nylon filaments are molded into composite backing, which can be rigid or flexible as needed for application. Trim length, fill density, and filament sizes are controllable variables. Brushes are produced in black or clear, but may be custom ordered in range of colors.

Jet-Lube, Inc.    Houston, TX 77028 5811
Nov 18, 2002 ALCO EP-73 Plusâ„¢ has water-resistant aluminum complex base and anti-wear additives. Polymer additives further enhance moisture and corrosion resistance and ability to adhere to all types of metal surfaces. Service rating is -25 to 400°F. Grease meets MIL-G-18458 (SH) and can be used for equipment in hot humid climates, steam, and applications that subject or submerge equipment in water. Sizes range from cartridges to 400 lb drums.
