Acme Cryogenics, Inc.    Allentown, PA 18103

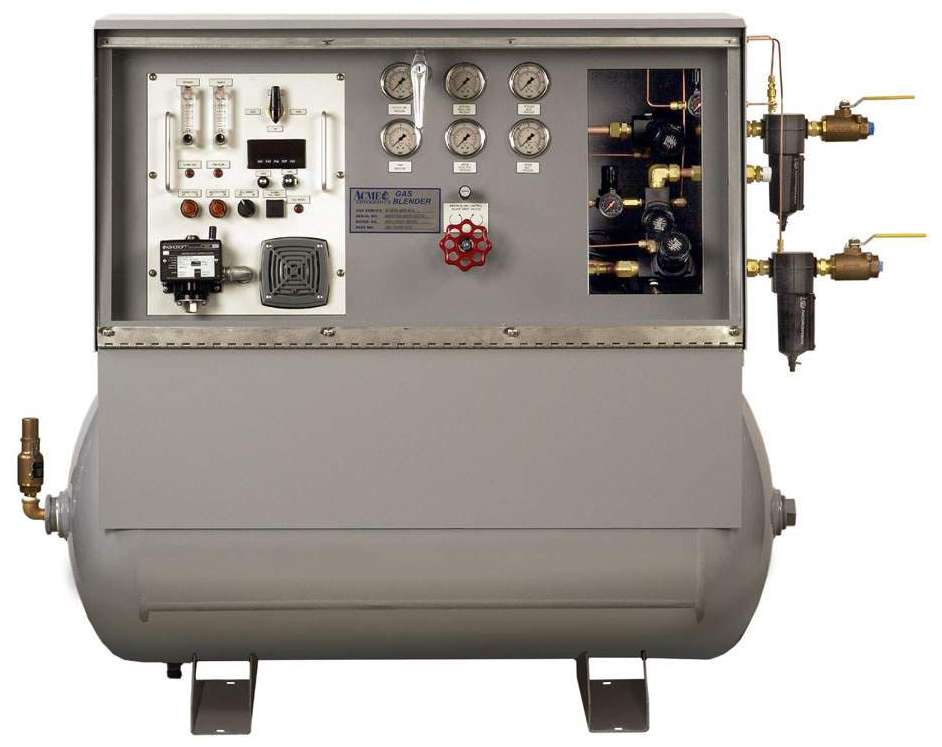

Nov 25, 2002 Generation Two blenders mix gases from cylinders, dewars, or bulk supply systems and distribute them through pipeline system to welder stations/process equipment. Blends remain consistent, regardless of withdrawal rate. Users can change blends as desired. Flow capacities are available from 2,000 to 10,000 SCFH. Construction includes stainless steel, liquid-filled pressure gauges; electronic pressure switch; and 400 W enclosure heater.

Omega Lighting    Tupelo, MS 38804
Nov 25, 2002 Open and enclosed 24 in. aluminum reflectors and 28 in. low bay optical assembly are suited for gyms, warehouses, educational, retail, and commercial applications. Offerings include 26, 32, 42, or 57 W compact fluorescent lamps, universal voltage electronic ballasts, and locking socket. Luminaires offer up to 4 levels of light by switching power to ballasts. Dimming ballast options are available for 1, 2, or 4 lamps.

MGE UPS Systems    Costa Mesa, CA 92626

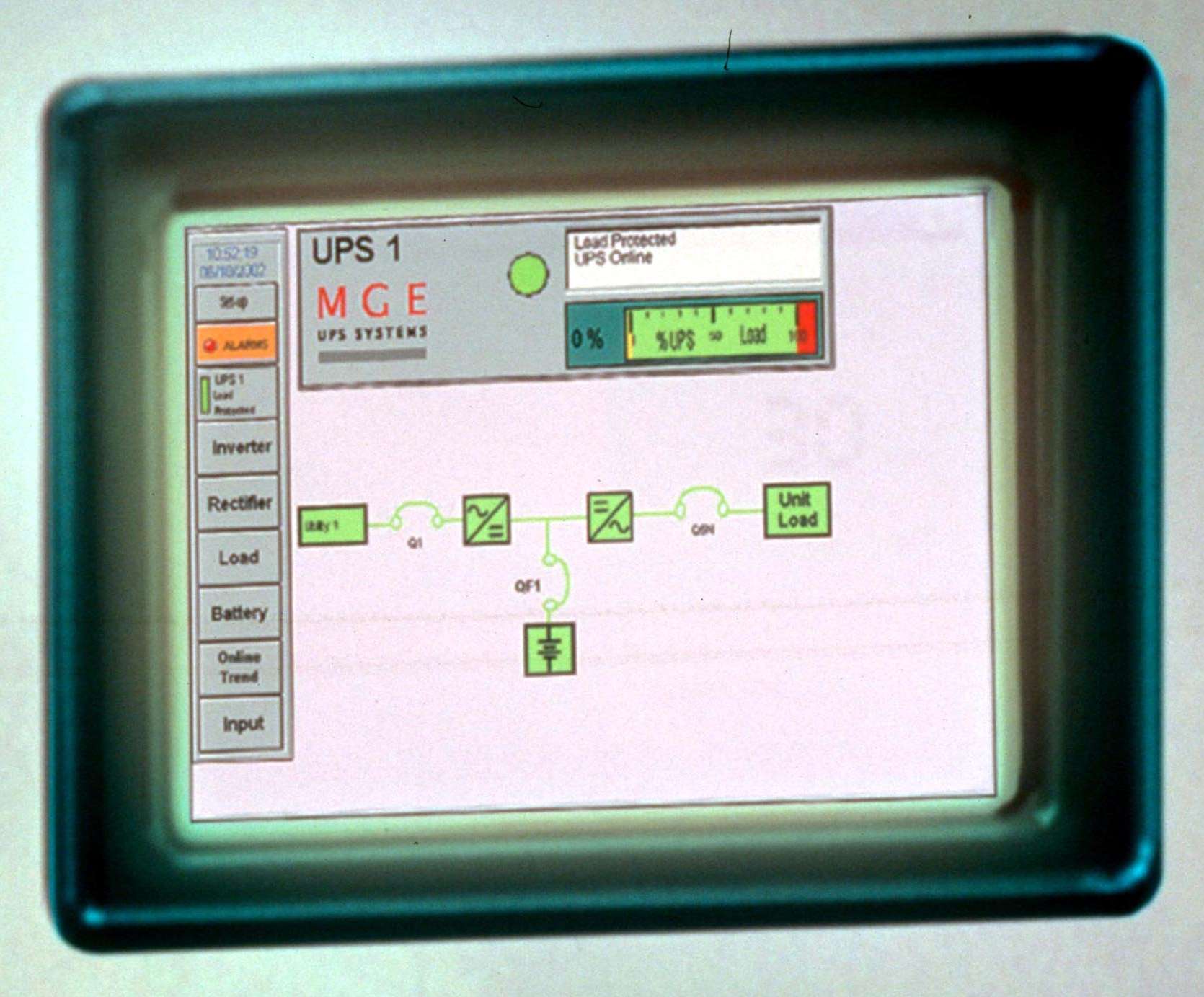

Nov 25, 2002 Graphical Command Centerâ„¢ (GCC) provides alarm event logs, animated mimic diagrams, performance graphs, component status, trending, and user instructions. Graphics allow users to view status of critical power systems, while web-ready Ethernet port makes data directly accessible via Internet or internal network. Equipped with thin film transistor 10.2 in. LCD monitor, GCC incorporates single-board computer and can serve as standalone Web server with IP address.

Graco Inc.    Minneapolis, MN 55440
Nov 25, 2002 Portable Xtremeâ„¢ Mix proportioner only mixes amount of material needed. Digital controls include reporting capabilities to continuously monitor component ratio throughout application process. Automatic shutdown and alarm features indicate when supply source is empty, or when fluid lines are leaking, to prevent operator from spraying off-ratio material. User can switch between multiple ratios from 0:1 to 10:1 with turn of key instead of mechanically reconfiguring system.

Arcom Control Systems    Kansas City, MO 64145
Nov 25, 2002 OLYMPUS ready-to-run development kit for Windows XP Embedded runs on company's EBX format Socket370 Pentium III based SBC. Development Kit strategy lets users develop and demonstrate Windows XP Embedded based applications using embedded platform suitable for OEM applications. It incorporates 533 MHz Intel Celeron CPU, 256 Mbytes SDRAM, 384 Mbytes CompactFlash memory, PSU, serial/Ethernet cable sets, and DVI interface board.

Leuze electronic, Inc.    New Hudson, MI 48165
Nov 25, 2002 READER 2300 is suited for reading 2D codes such as Data Matrix codes on directly marked components. Equipped with integrated high-power decoder, permanently mounted unit reads such codes as Data Matrix ECC 200 and PDF 417, even in situations where visual contrast conditions are poor. Unit also offers RS 232 interface, digital switching inputs and outputs, and integrated LED lighting system.

Raythecon/TI Systems    Dallas, TX 75243
Nov 25, 2002 Suited for use in non-radiometric industrial or public safety applications, Pro 400 Digital captures images for analysis and diagnosis of potential problems in equipment. Camera provides digital data storage combined with power of personal digital assistant (PDA), which can store 150+ images. It produces 320 x 240 pixel thermal images and offers on-screen menu and NTSC or Pal video output. Product is capable of using interchangeable lenses.

Berk-Tek, A Nexans Co.    New Holland, PA 17557
Nov 25, 2002 Twisted pair conductors incorporate brightly colored Flourinated Ethylene Propylene (FEP) insulation compound into category cables. With vivid colors, installers are able to distinguish pairs in low lighting situations.

Honeywell Advanced Composites    Newark, DE 19713
Nov 25, 2002 IP-Server provides enterprise-wide access to substation information using standard Web browser, without additional software. Offered with built-in human–machine interface polls, unit concentrates and manages data from intelligent electronic devices, simultaneously supporting up to 20 enterprise users using dial-up or high-speed connections. Substation hardened stand-alone server provides up to 16 communications ports via plug-in modules.

Auburn Mfg., Inc.    Mechanic Falls, ME 04256
Nov 25, 2002 CARBO-GLAS is produced by sandwiching AMI-GLAS fabric between 2 layers of partially carbonized acrylic non-woven fabric. Resulting tough, soft, flexible fabric is resistant to weld splatter and direct flame contact. Its composition and multiple, heavy-duty layers, provides protection for equipment and personnel by ensuring effective horizontal capture of concentrated spatter and red-hot cut pieces. Even when wet, fabric retains more than 75% of its strength.

ifm efector, Inc.    Exton, PA 19341

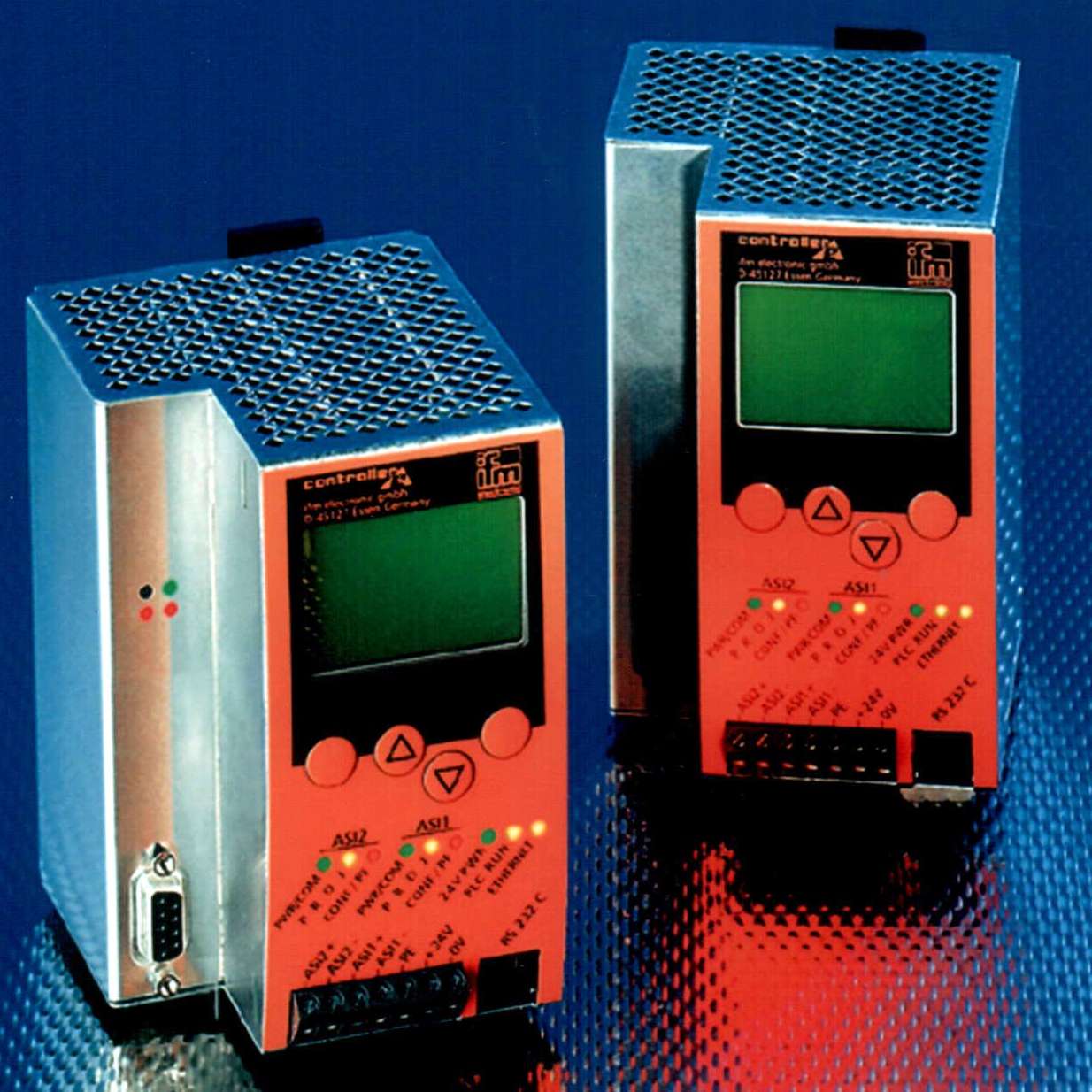

Nov 25, 2002 Controller-E supports all AS-i 2.1 specifications, provides detailed diagnostics on its backlit LCD display, and offers 1 MB total memory with 128 Kwords devoted to program memory. As gateway, unit can connect up to 868 I/O points on 2 full AS-i systems. Unit acts as 1 node on higher-level bus system. Standard with Profibus interface, product also includes 300+ counters and timers, 5 programming languages, and pushbutton programming.

Fastorq Bolting Systems, Inc.    Houston, TX 77205 0869
Nov 25, 2002 AUTO-ZIPâ„¢ products utilize DOUBLE ZIPâ„¢ Technology, which provides quick connection for safety benefits due to their robotic adaptability. Self-aligning designs eliminate cross threading, while robotic adaptability reduces human exposure to hazardous environments. Used in nuclear labs & sub-sea applications, products require push on and pull off operation with no twisting or turning. All parts are stainless steel, nickel-plated, or coated for corrosion protection.

Sytech Inc.    Spokane, WA 99212
Nov 25, 2002 XLReporter v4.0 automatically generates any type of historical report in Excel and publishes it to printers, fileservers, intranets, and internets in XML for spreadsheets format (XML-SS). Reports can be viewed in web browsers from any local. Offerings include historical query builder and real-time report generation. Product provides historical interfaces to Intellution's iHistorian, Wonderware's InTouch InSQL/History Logs, and OPC-HDA.

National Instruments Corp.    Austin, TX 78759-3504
Nov 25, 2002 LabVIEW Simulation Interface Toolkit allows design engineers to link LabVIEW graphical development software with MathWorks Simulink® modeling and simulation environment. It lets users control and view Simulink® model data and run Simulink® models in LabVIEW. Product development time is reduced, moving from simulations and models to validating and testing real-world prototypes. It automatically generates graphical code used to verify models with measurement hardware.

National Starch & Chemical Co.    Bridgewater, NJ 08807-6500
Nov 25, 2002 COOL-BIND® Excel, applied at 250°F, produces low odor, good color, and reduced burn severity hazard. Low temperature requirement results in less char on spinners promoting smooth application. With no moisture in the adhesive, the problems with paper wrinkling are eliminated. It performs well with any combination of equipment because of fast setup and long open time and may be applied at 18 to 20 mils.

nMetric    Costa Mesa, CA 92626
Nov 25, 2002 Using 4C@Site, users track final assemblies, subassemblies and components by lot and serial number while achieving real-time scheduling, monitoring, and tracking of manufacturing status. It identifies assemblies individually or as part of set, and validates serial numbers for final assemblies and components. Providing resource consumption and tracking, software allows users to record information on which resources are consumed and used when manufacturing specific products.

Baumuller LNI    Bloomfield, CT 06002
Nov 22, 2002 Series 22-100 DSD 3-phase, 540 V, synchronous servo motors, are available in sizes 22, 28, 36, 45, 56, 71, and 100. Units can be configured with or without fans and can include standard or high-resolution encoder and power connectors. Torque ratings vary from under 5 N-m to 300 N-m max. Torque overload capability is rated up to 300%. Inertia ratings vary from 18,000 Jsec² to 110,000+ Jsec².

Sherwin-Williams Co.    Cleveland, OH 44115
Nov 22, 2002 High-build, fast-drying, direct-to-metal Fast Cladâ„¢ DTM Urethane can be applied at 6–9 mils DFT in single coat with no outgassing or pinholing. Urethane dries in 1 hour as corrosion-resistant finish and may be applied at temperatures as low as 35°F, with airless spray equipment, brush, or roller. Coating has 2-hour potlife at 77°F and is for use directly over properly prepared steel.

Progressive Machine Co., Inc.    Ringwood, NJ 07456
Nov 22, 2002 Model 630 PMC winds ferrous and non-ferrous metal strips directly from slitter and can be used in heavy-duty rewind applications. Individual winding stations, coordinated through Accu-Wind computer control system, offer cantilevered shafts for supporting spools or cores weighing up to 3,500 lbs. Each is equipped with 10 hp, 4-quadrant regenerative drive, capable of providing 150 lb material tension and maintaining line speeds to 750 fpm.

Armitage Industries Inc., Thermal-Chem Div.    Franklin Park, IL 60131
Nov 22, 2002 FlashPatchâ„¢ system allows heavy forklift traffic to resume within 15 minutes after application of product. Low-order product meets USDA requirements and works at substrate temperatures as low as as 20°F; cure time may take up to 45 minutes at temperatures below freezing. Application consists of pouring special silica sand, wetting it with FlashPatch liquid, and immediately striking it level. Product suits spalled surfaces, patching, non-moving cracks, and more.
